19x10 +35 square?

[TTown]

The 19x10 35MM offset it's a perfect fitment to sit flush with the fenders.

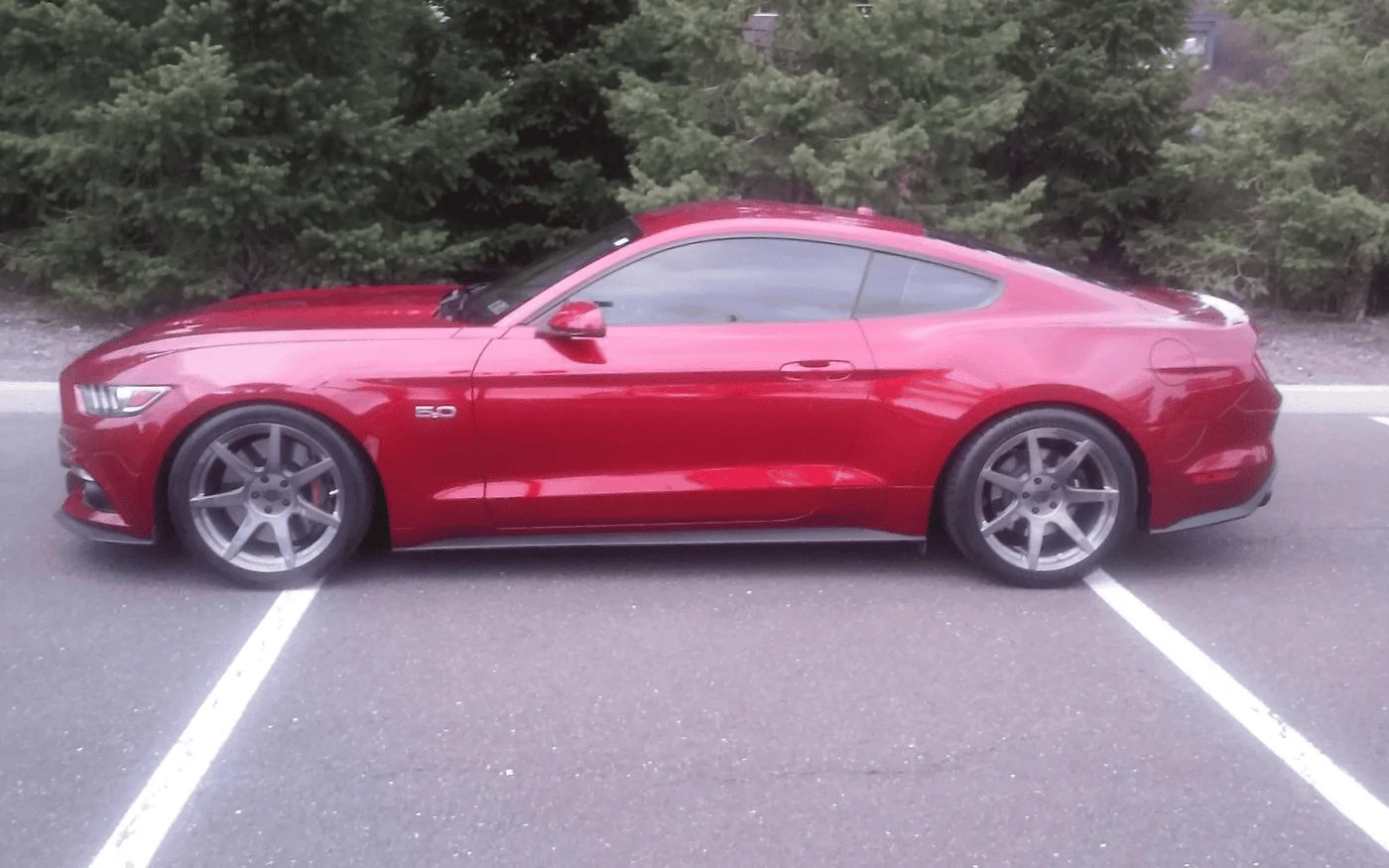

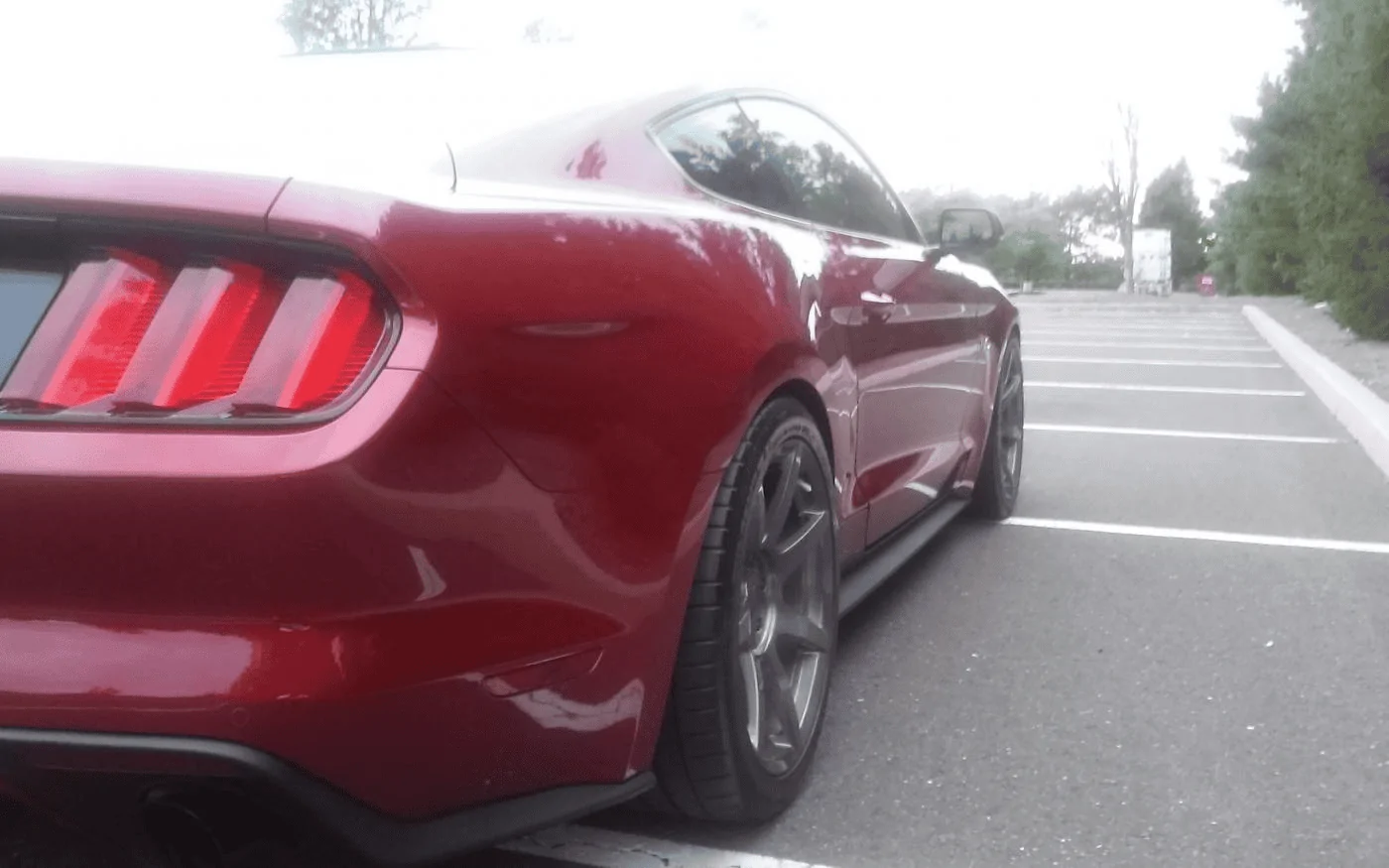

Check out a few images of this setup:

Are those gloss graphite from Project 6GR?

Sponsored



[AZ_S550]

Are those gloss graphite from Project 6GR?

Looks like it, good looking wheel!



[edrenaline]

I literally just dropped my car off at the tire place, with these exact wheels to put on a 2020 PP1 car and they called me back to warn me about the fitment. I said a bunch of people are running the same setup with no problems, but now I'm worried. MRR M600 19x10 35mm all around with 275/40/19 Michelins Pilot Sport 4 S all around



[EFI]

I literally just dropped my car off at the tire place, with these exact wheels to put on a 2020 PP1 car and they called me back to warn me about the fitment. I said a bunch of people are running the same setup with no problems, but now I'm worried. MRR M600 19x10 35mm all around with 275/40/19 Michelins Pilot Sport 4 S all around

What did they say the issue was?

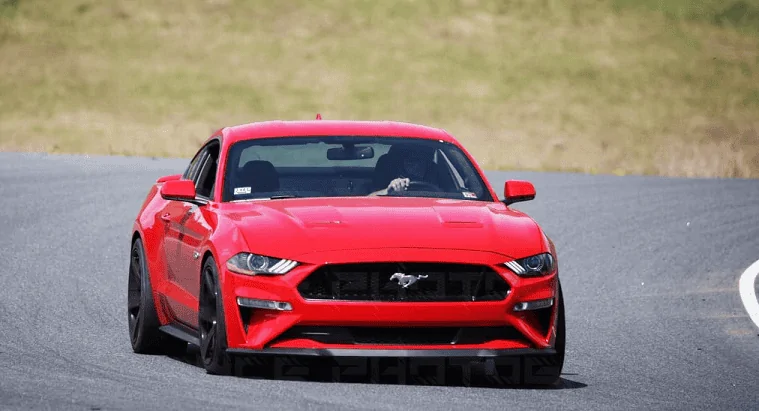

BTW, running 19x10 +34 (+40 with 6mm spacer) and fits just fine as you can see:



[emcmtony]

You are NOT going to rub. I have a 1.3 inch lower in the rear and 1.5 in the front. I am running 20x9.5 Front with 275 35r20 and 20x10.5 rear with 305 35r20 and it is perfectly fine. No rubbing. My car came like this from the Saleen upfitter.



[edrenaline]

Ended up being no problem. When they test-fit just the wheel without the tire in front, they said it was only half an inch from the strut. Darren from MRR had already assured me they would fit, and it turned out fine. I live in small-town Ohio and I don't think they get the chance to install many aftermarket wheels



[EFI]

they said it was only half an inch from the strut

Half an inch is PLENTY of room. I've done a few mm and it's fine.



[Salty]

What did they say the issue was?

BTW, running 19x10 +34 (+40 with 6mm spacer) and fits just fine as you can see:

Did you feel you have enough threads to tighten with the 6mm spacer? I know anything after 10mm its suggested to extend the wheel studs.



[EFI]

Did you feel you have enough threads to tighten with the 6mm spacer? I know anything after 10mm its suggested to extend the wheel studs.

Yes, I made sure to check that and counted at least 8 full turns on the lugs when I stopped counting.

I've done 14 track days (at least 3 sessions 20 minutes each) on this setup and have not had any issues with the wheels. FWIW, these are high quality billet custom spacers not the universal crap from AutoZone. I would not use those, or anything thicker.



[Salty]

Yes, I made sure to check that and counted at least 8 full turns on the lugs when I stopped counting.

I've done 14 track days (at least 3 sessions 20 minutes each) on this setup and have not had any issues with the wheels. FWIW, these are high quality billet custom spacers not the universal crap from AutoZone. I would not use those, or anything thicker.

Nice. I assume you found a local shop to do custom spacers?



[EFI]

Nice. I assume you found a local shop to do custom spacers?

Not local, they are from Motorsport Tech. They do custom stuff too, but they also carry many common setups one being the S550 Mustang. So they are specific to the car.



[MidwayJ]

Looks like it, good looking wheel!

I wonder if he still needed the answer 3 years later.
