Wiring for fuel pump connector

[christian]

Going back to stock. Anyone have the wiring diagram so I can see what color wires go where on the female plug for the fuel pump? It's a 4 prong plug on the pump. I see a small green, small yellow with purple stripe.
Large white with purple stripe and a large yellow with grey. Thanks in advance!!

Sponsored



[db252]

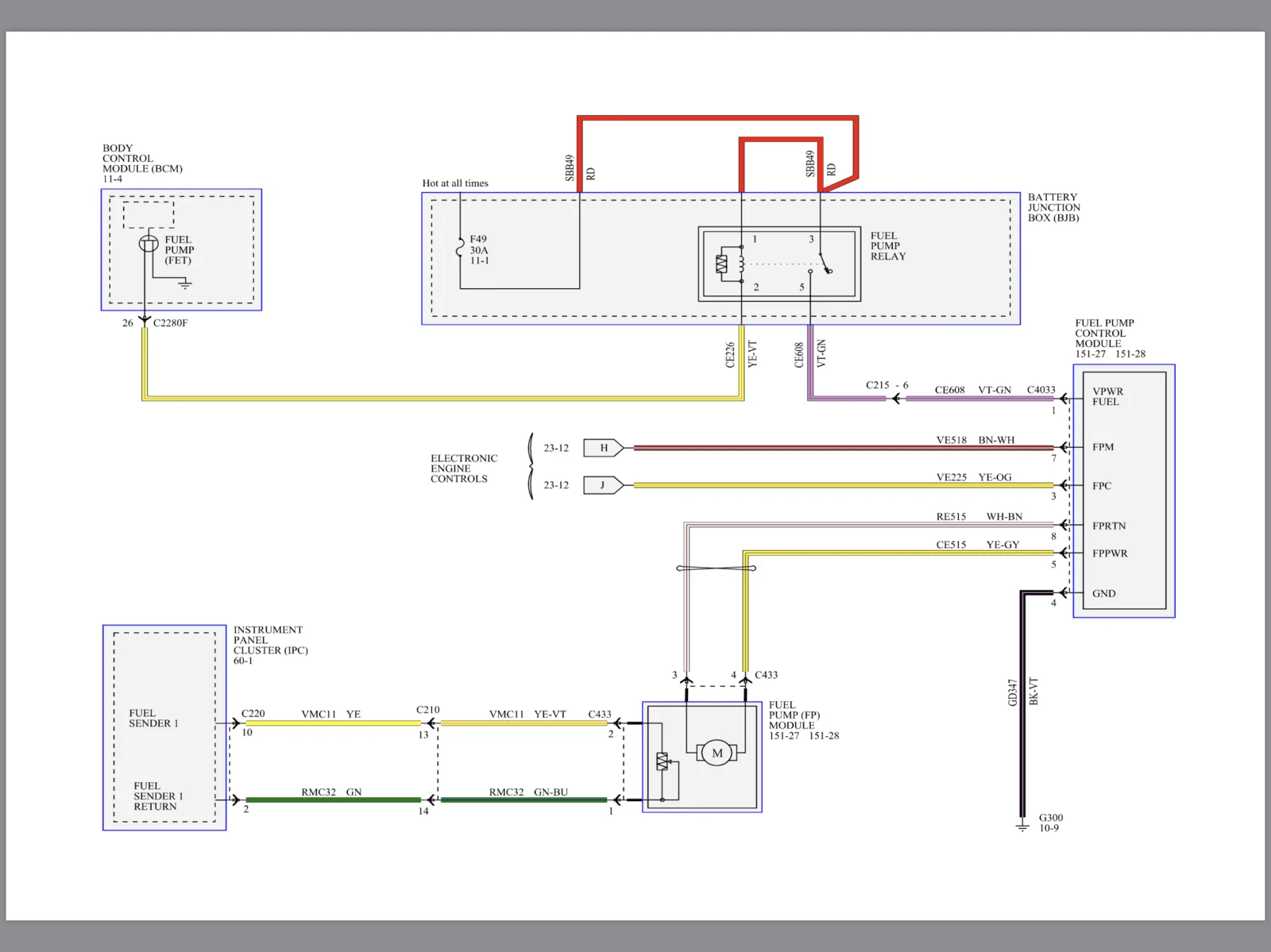

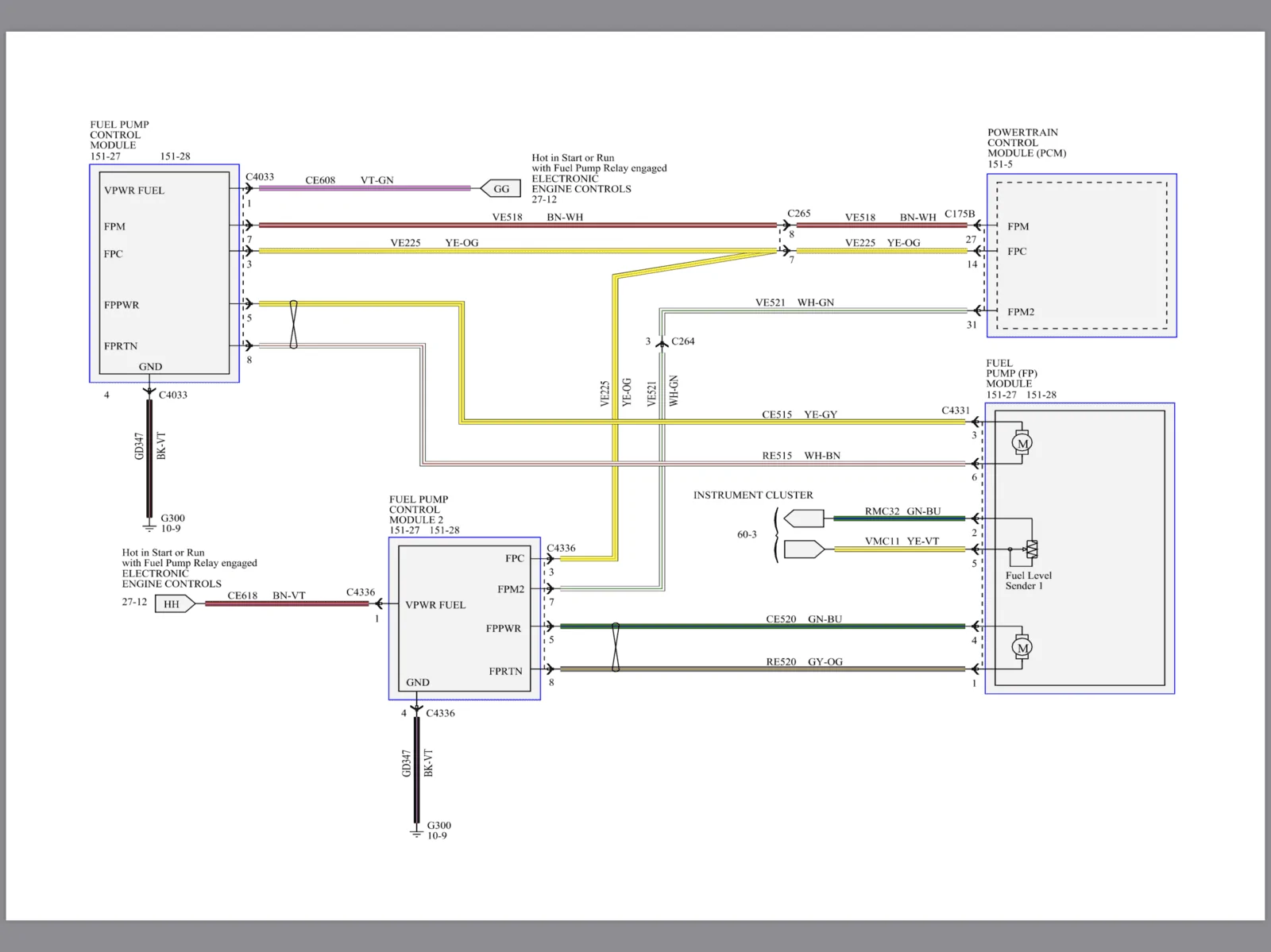

Let me know if these help.



[christian]

Looks right but I'm not good at reading....which one shows the actual connector that plugs into the fuel hat? Its 4 prongs and I dont see any 4's on that diagram. I know it's there but I cant figure it out lol



[christian]

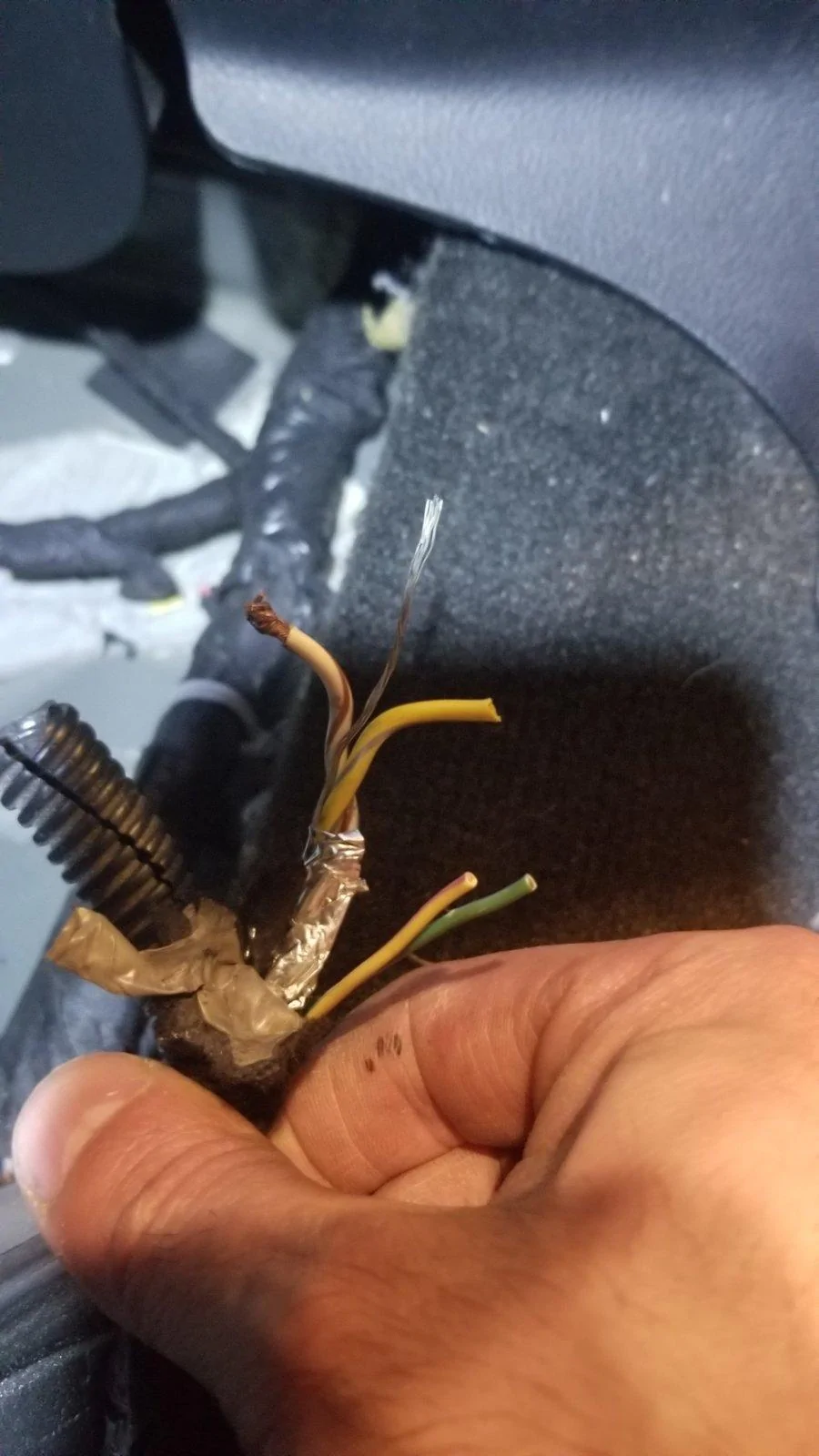

Here's the wiring coming from the harness



[mustank]

look at the C433 on the fuel pump. it looks like 2 separate connections, but it is pin 1,2,3,4.



[Midwestracer]

Let me know if these help.

is the fist pic a dual pump setup



[lance5oh]

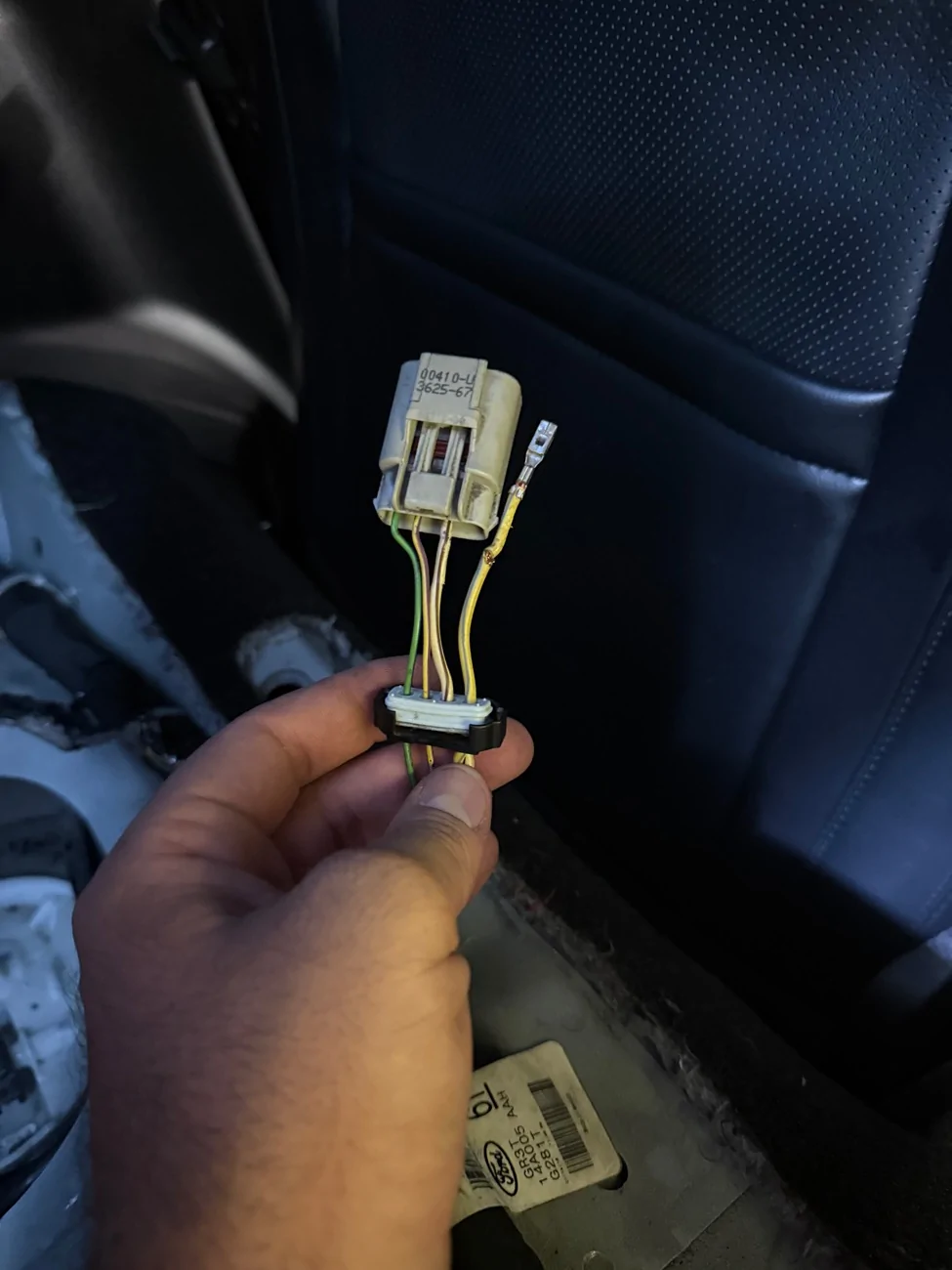

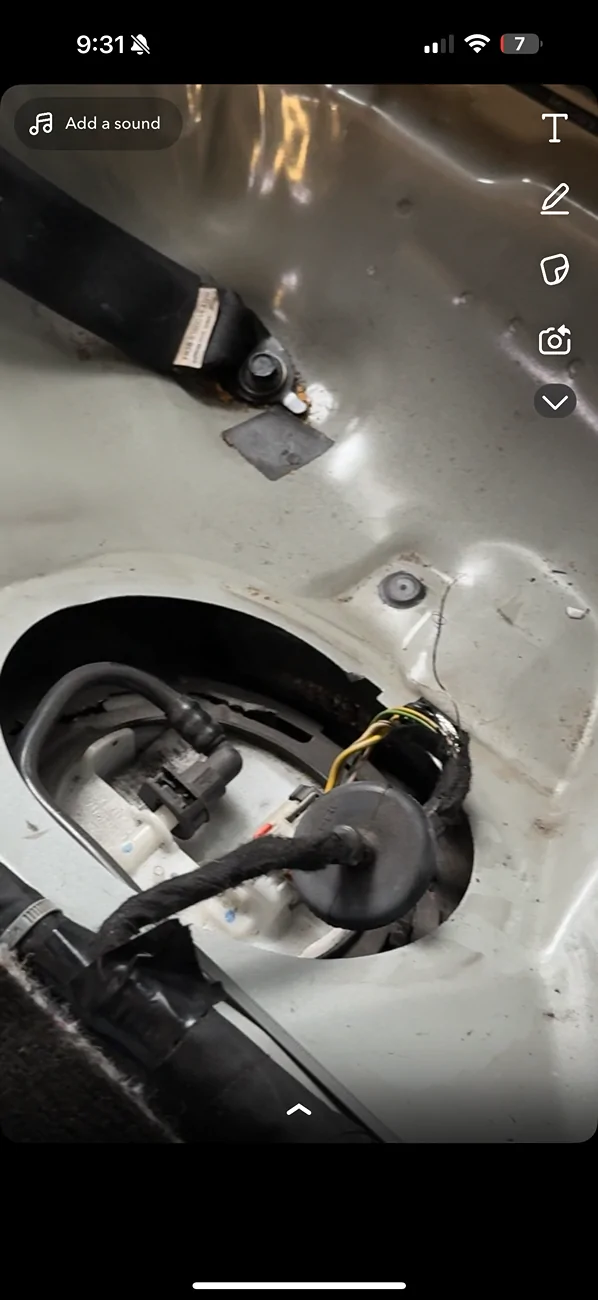

I have been experiencing a P0627 code come and go and the car would sometimes act as if it were running out of fuel. I then removed the back seat to inspect wiring and the electrical plug and lines. I found this. I then trimmed that “tin” looking metal wire back to the loom so it couldnt make contact with anything… i dont believe it was doing anything in the first place. I plugged the connector back in and rerouted the wires so they wouldnt be pinched by the seat anymore. Now the car just turns over and doesnt not start. I didnt remove the negative terminal from the battery prior to doing so. Is that metal wire a ground? Or did i trip a fuse or relay? If someone could help id really appreciate it. I also depinned the yellow wire bc it was showing wire but havent repaired it yet… the 2 wires on the right of the plug were both showimg exposed wire
