Anyone have or know where i can find the wiring diagram for the rear light systems of the stang? Thanks!


GTP

Deutsche Pony
Joined
May 27, 2015
Posts
2,913
Reaction score
808
Location
Indy
Website
www.BambergAudio.com
First Name
Philip
Vehicle(s)
Poor Man's McLaren
Or for the whole car, for that matter. :D


krazieboy

Well-Known Member
Joined
May 17, 2015
Posts
172
Reaction score
26
Location
LA
First Name
JT
Vehicle(s)
2016 Ruby Red EB, Manual, PP, Navi, 201a etc.
Ehh. I'm not looking for the entire service manual.... I just want a free wiring diagram of anyone has it..

Sent from my SM-N915P using Tapatalk


grumblin

Well-Known Member
Joined
Jan 26, 2015
Posts
196
Reaction score
71
Location
Carrollton, TX
Vehicle(s)
2015 Magnetic GT Premium
Ehh. I'm not looking for the entire service manual.... I just want a free wiring diagram of anyone has it..

Sent from my SM-N915P using Tapatalk
you can subscribe to motorcraftservice.com. it gives you complete access online to all service (mechanical, body and electrical) information. You can do a short-term (72-hour), monthly or annual subscription. It's worth it.


krazieboy

Well-Known Member
Joined
May 17, 2015
Posts
172
Reaction score
26
Location
LA
First Name
JT
Vehicle(s)
2016 Ruby Red EB, Manual, PP, Navi, 201a etc.
thanks, but was just looking for something free. wasn't trying to repair anything, just had a theory of something, and wanted to confirm if it was something possible. not worth the money lol.


ohbuckeyes

Well-Known Member
Joined
Jun 11, 2015
Posts
295
Reaction score
95
Location
Cincinnati
Vehicle(s)
2015 Ecoboost Premium
Bump I'm looking for the same diagram. American and euro rear light pin outs


Sent from my iPhone using Tapatalk


ohbuckeyes

Well-Known Member
Joined
Jun 11, 2015
Posts
295
Reaction score
95
Location
Cincinnati
Vehicle(s)
2015 Ecoboost Premium
Also looking for it, or any insight about how does the tail light wiring work

I just swapped my American tails for euro tails. Did it without or cutting anything. What were you wanting to know


Sent from my iPhone using Tapatalk


ohbuckeyes

Well-Known Member
Joined
Jun 11, 2015
Posts
295
Reaction score
95
Location
Cincinnati
Vehicle(s)
2015 Ecoboost Premium
Where did you get your euro ones. I will move to Europe next year.

Found a seller who had a set and bought them. No sets on eBay at the moment that i know of either


Sent from my iPhone using Tapatalk


WaxDaddy

Well-Known Member
Joined
Dec 4, 2015
Posts
124
Reaction score
33
Location
Lancashire
First Name
Matthew
Vehicle(s)
2015 Mustang 5.0 GT Custom Pack
Anyone have or know where i can find the wiring diagram for the rear light systems of the stang? Thanks!
Or for the whole car, for that matter. :D
Bump I'm looking for the same diagram. American and euro rear light pin outs


Sent from my iPhone using Tapatalk
Also looking for it, or any insight about how does the tail light wiring work
Awesome.

It matches with my test notes with the multimeter. Switching a few cables + adding some amber vinyl should work to meet Europe requirements.

I will try it over the next weeks.

Again, thanks!

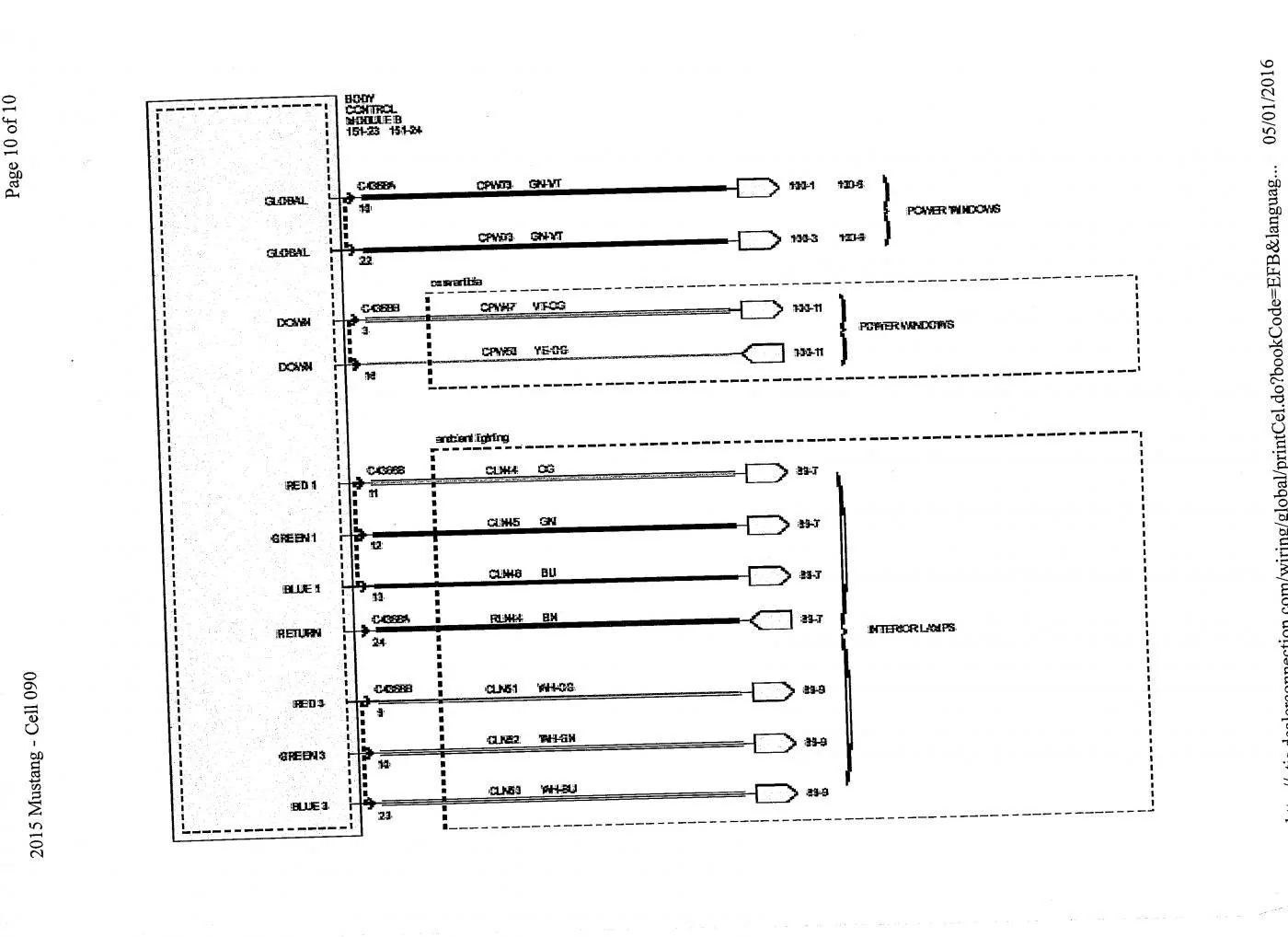

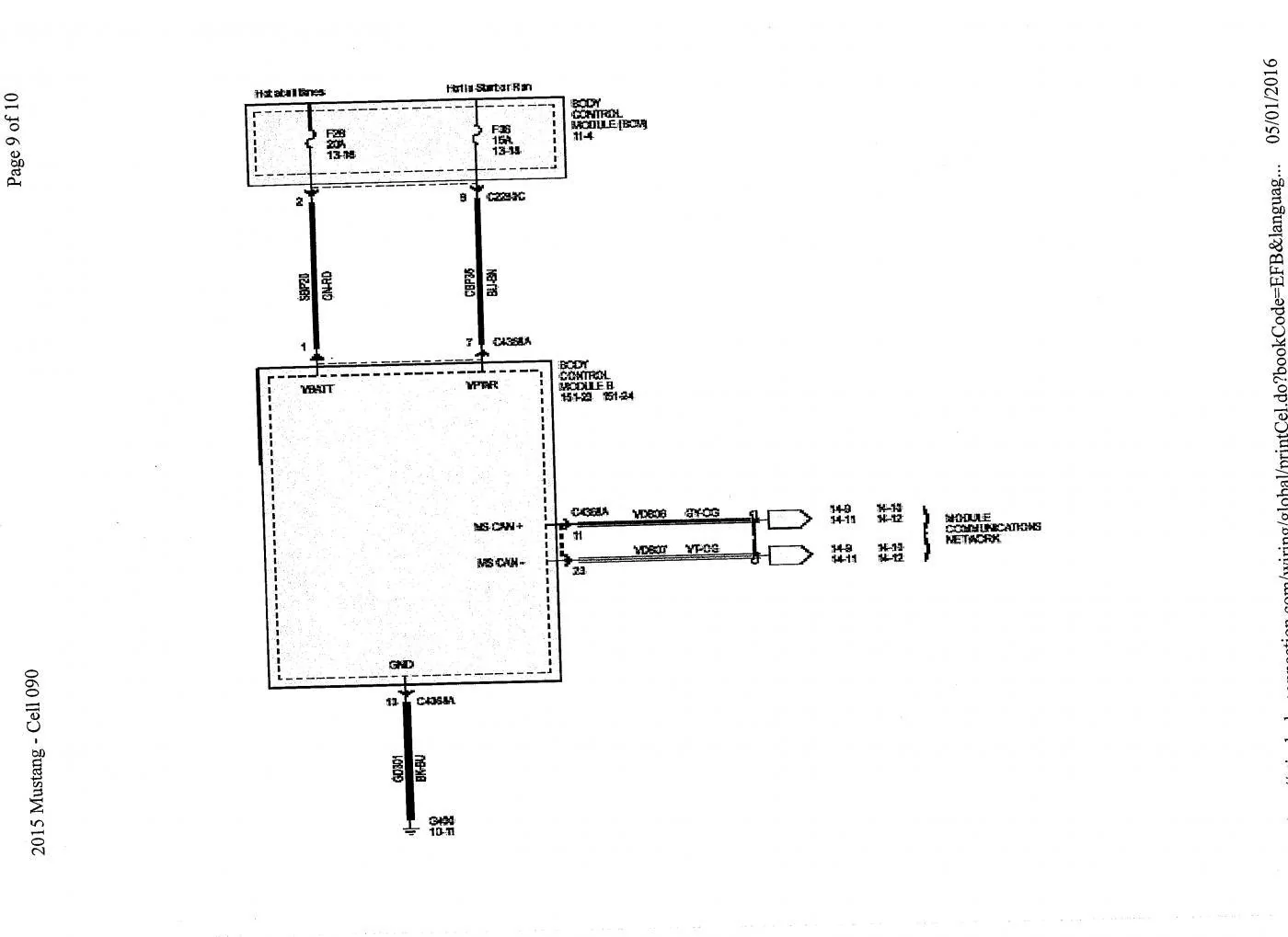

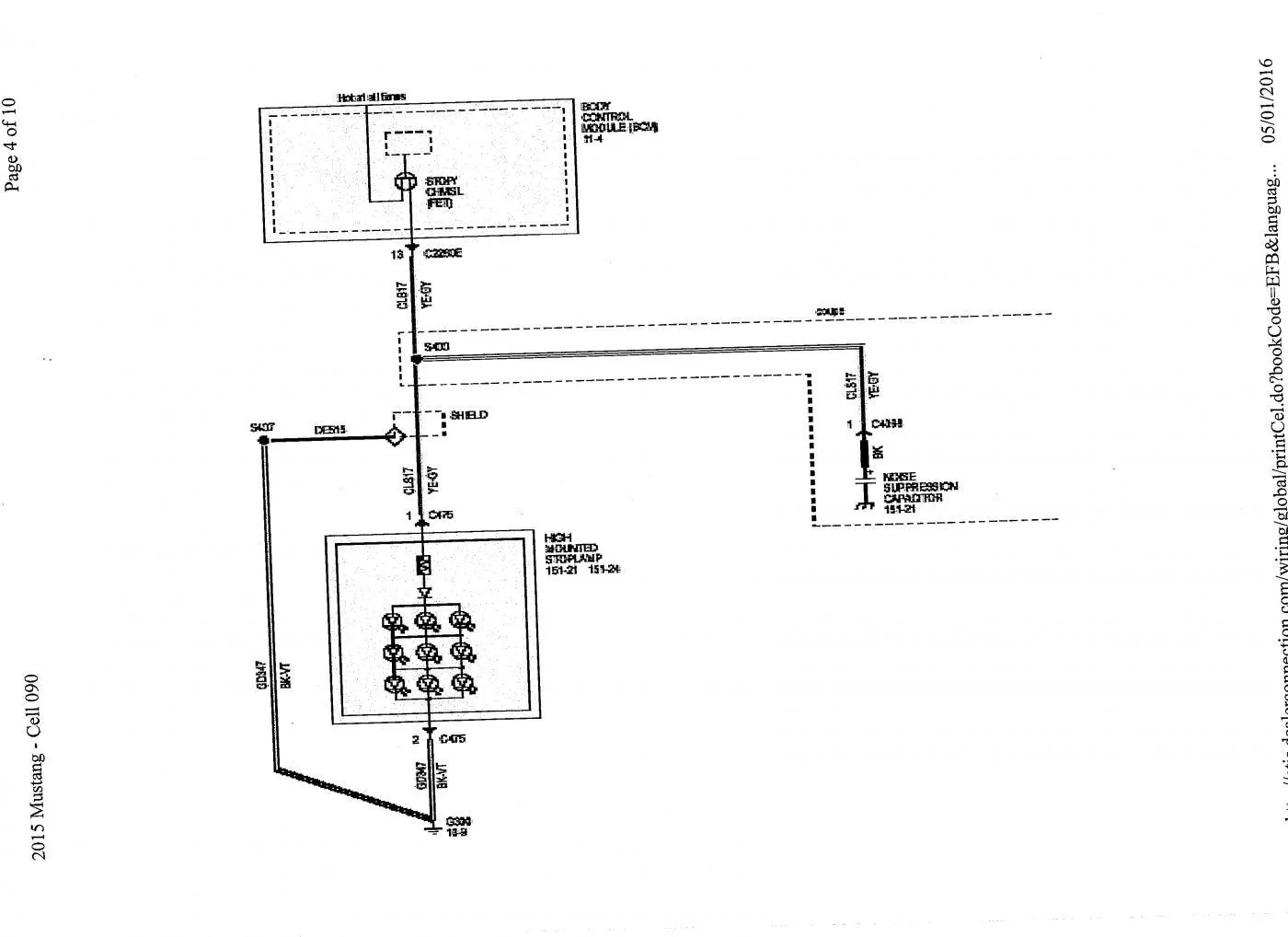

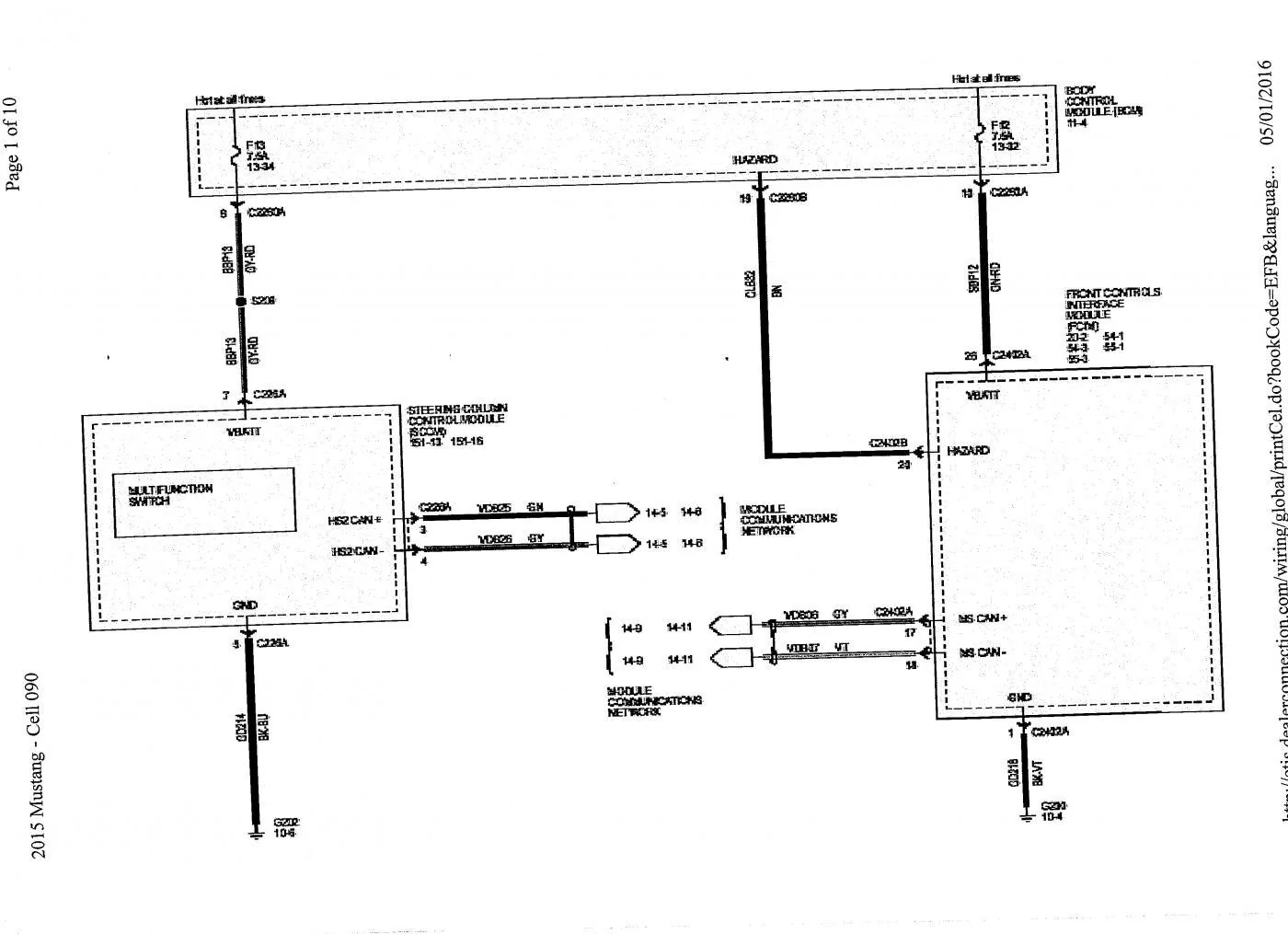

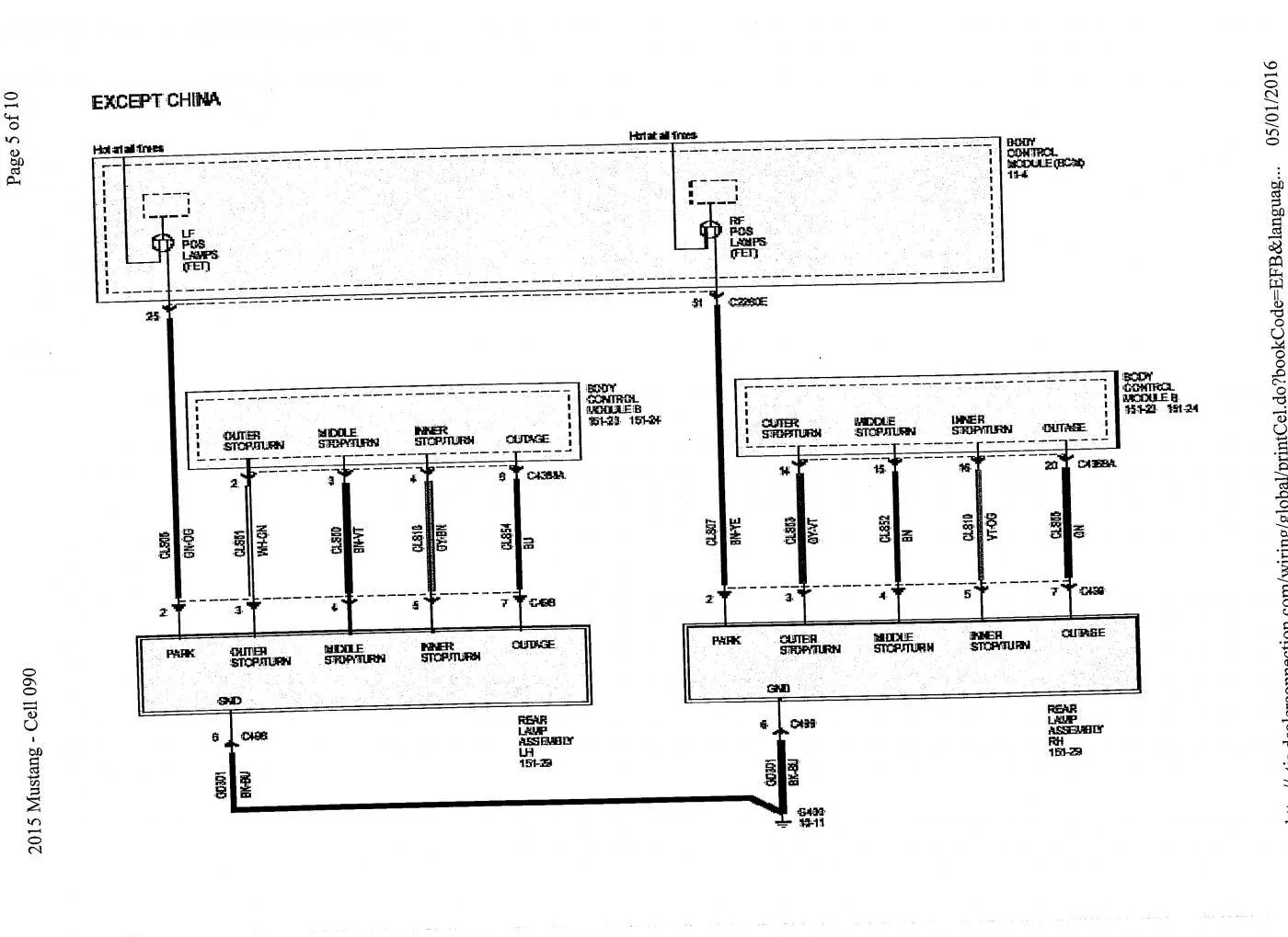

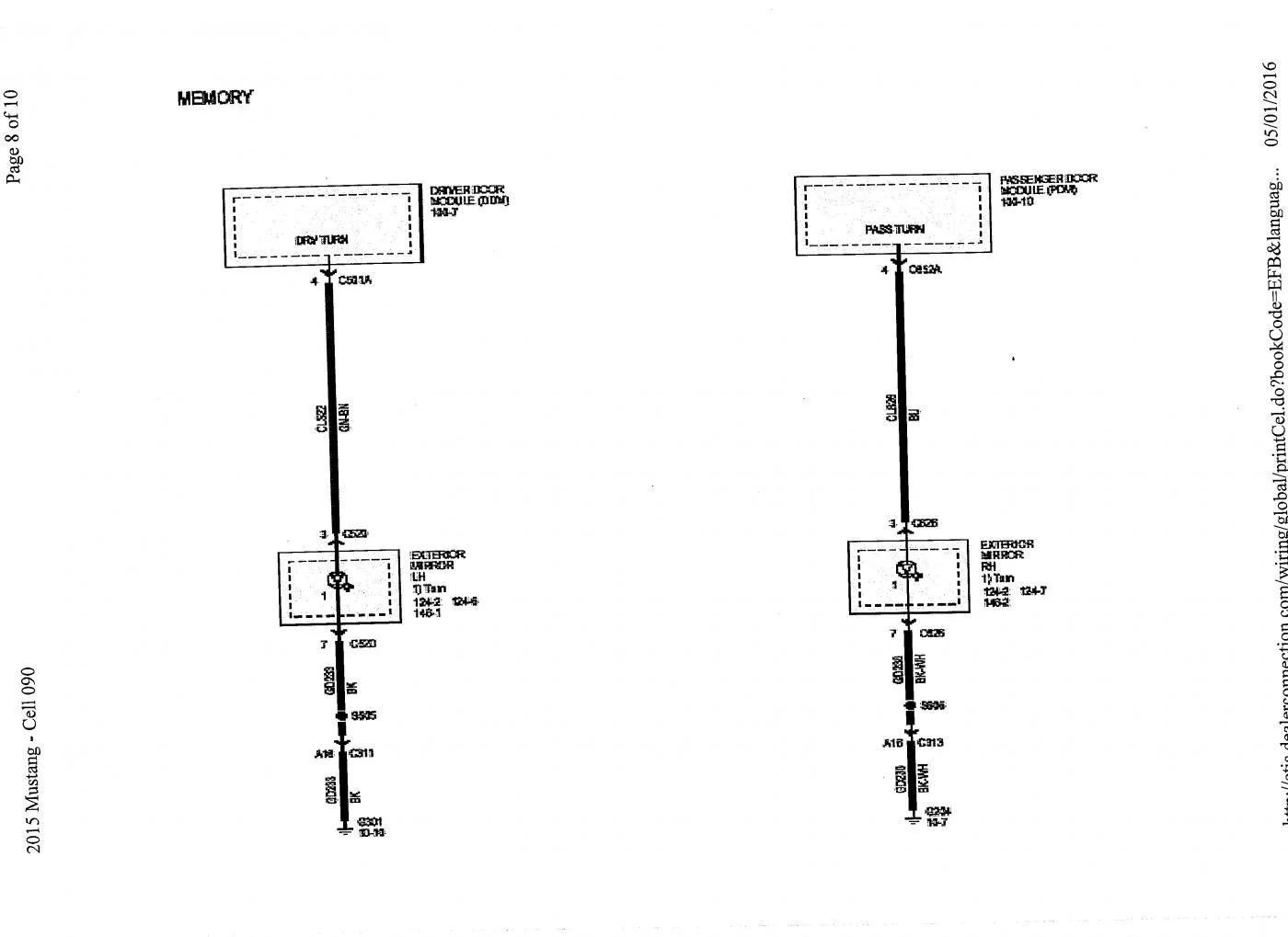

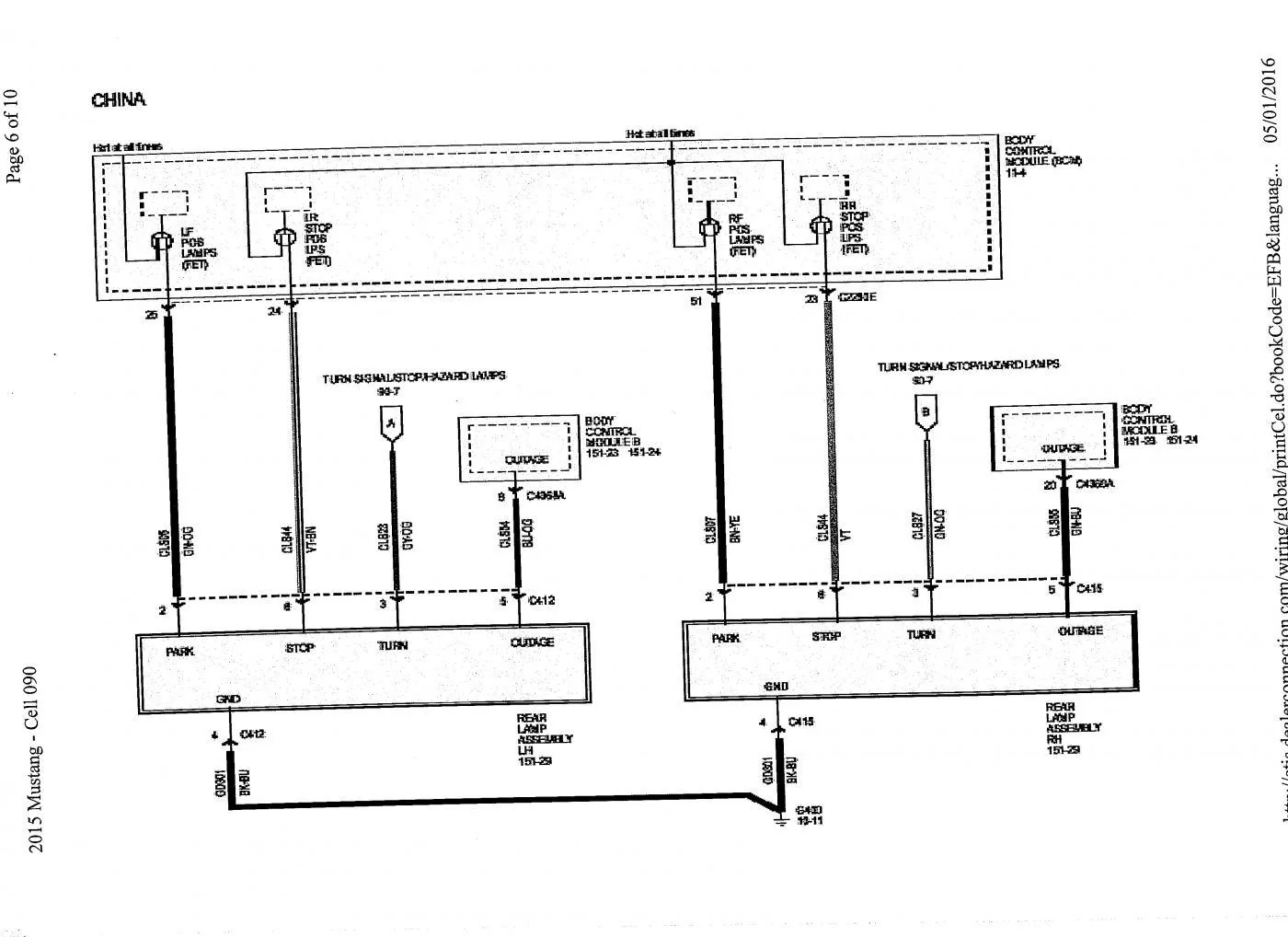

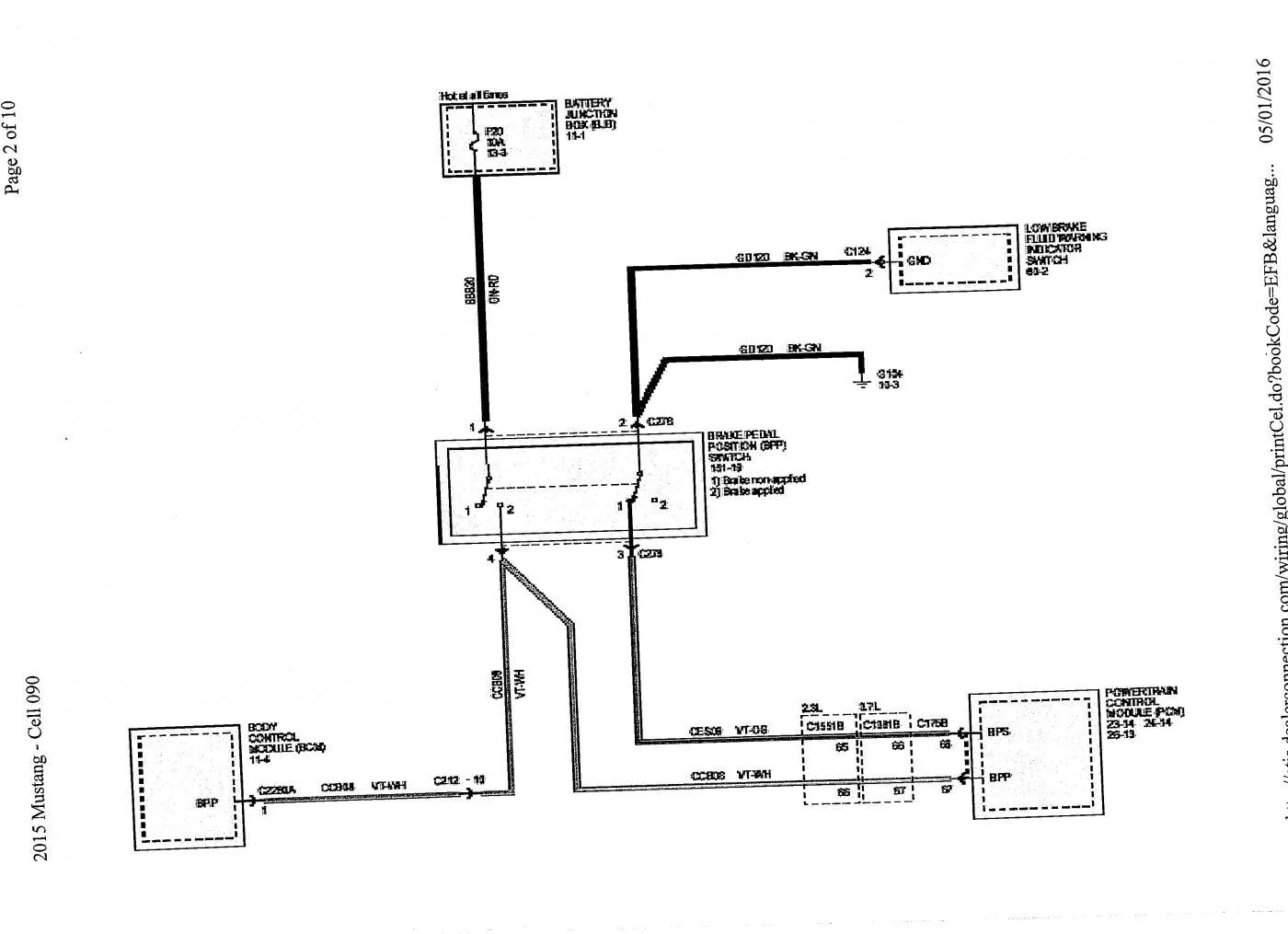

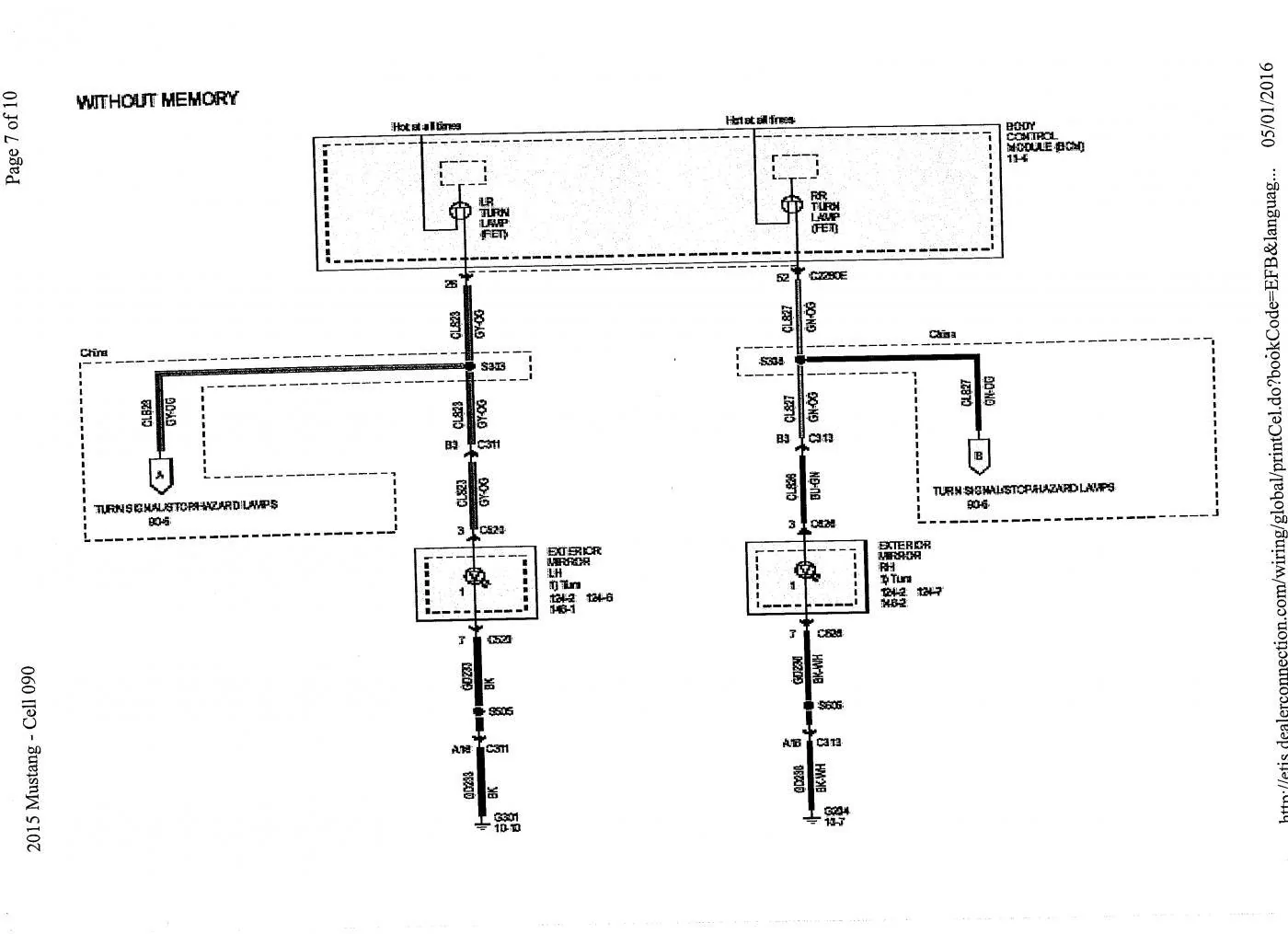

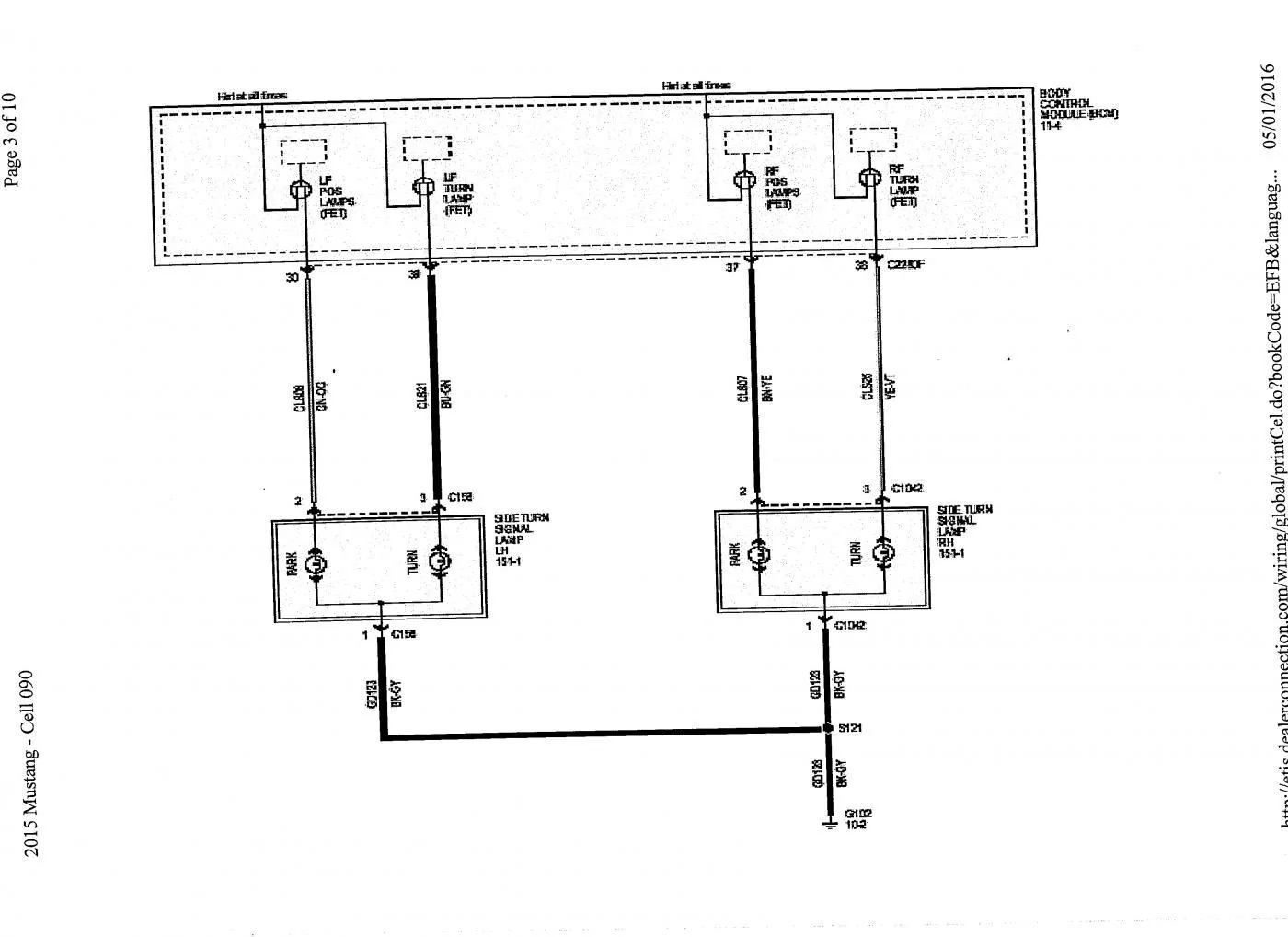

Wiring diagrams attached... not just the pin out as above. These include the EU versions (marked as CHINA)
Interior Wiring Page 1 of 10.jpg
Interior Wiring Page 2 of 10.jpg
Interior Wiring Page 3 of 10.jpg
Interior Wiring Page 4 of 10.jpg
Interior Wiring Page 5 of 10.jpg
Interior Wiring Page 6 of 10.jpg
Interior Wiring Page 7 of 10.jpg
Interior Wiring Page 8 of 10.jpg
Interior Wiring Page 9 of 10.jpg
Interior Wiring Page 10 of 10.jpg
