Steeda IRS Subrframe braces installation help

[AnthonyA1234]

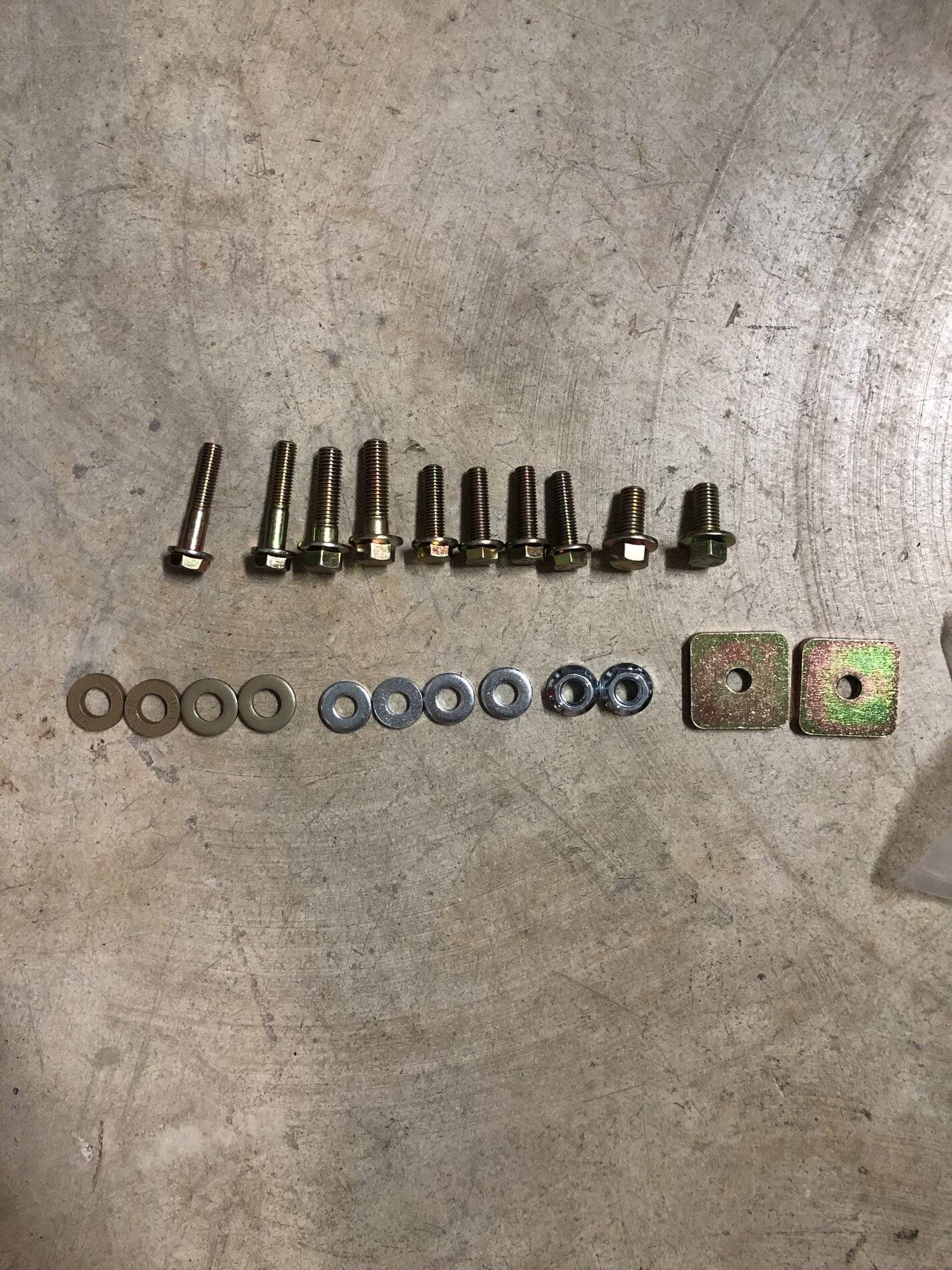

I purchased the braces for my 2019 bullitt and I’m confused on which bolts and washers go were. I also received different bolts then what they had on their YouTube video (no hex head bolt). Can anyone help me and explain what goes were?

Sponsored



[AnthonyA1234]

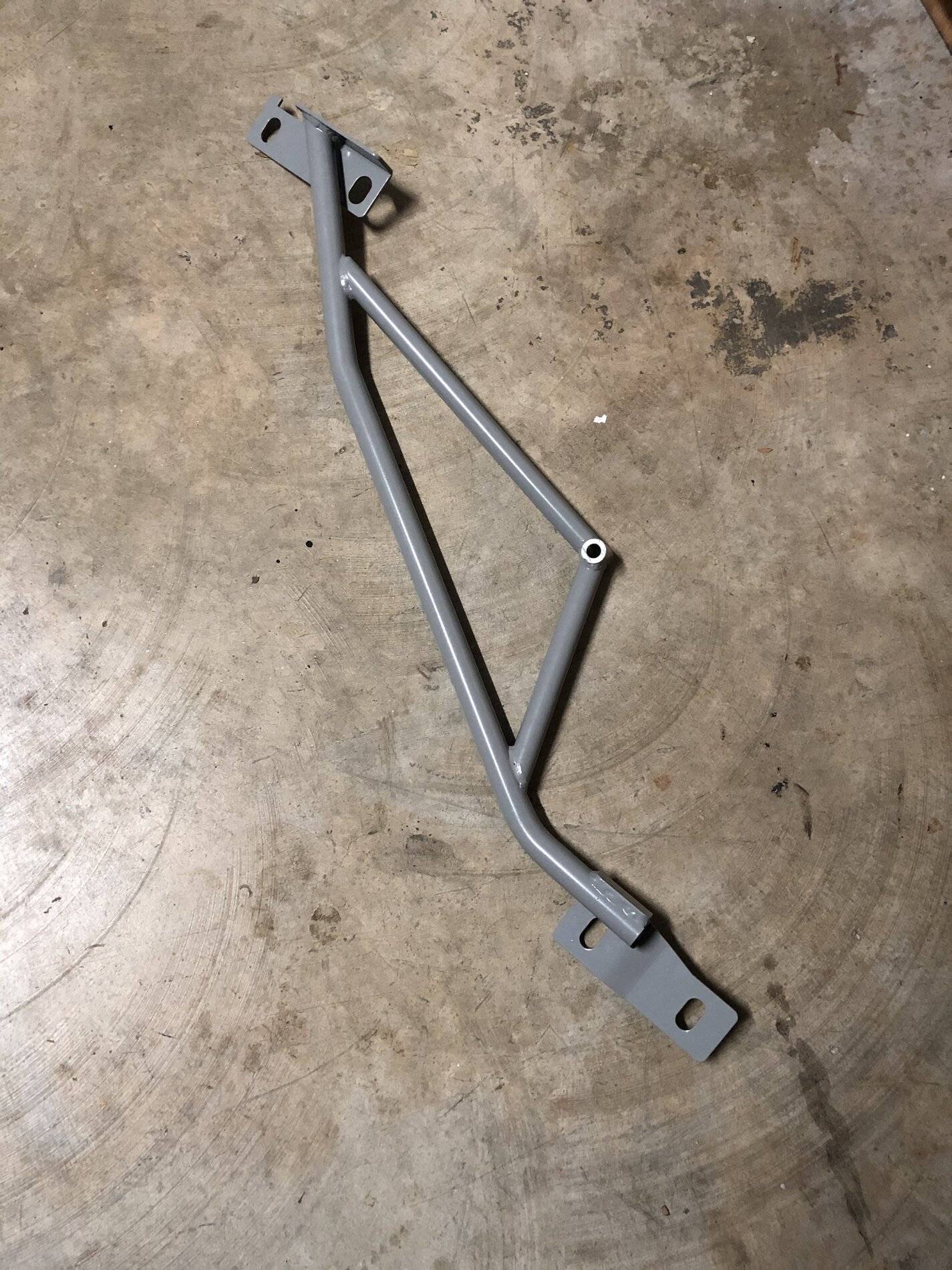

This is the brace I received. It also looks different to the one I see on their website as mine has large oval shaped holes while the one on the website and on youtube have smaller circle holes that fit the bolt better



[AnthonyA1234]

.



[AnthonyA1234]

@tj@steeda



[NGOT8R]

Here are the instructions.

https://www.steeda.com/assets/images/Instructions/555-5754-installation-instructions-v2.pdf



[NGOT8R]

Here’s mine installed on my 2019 Bullitt and they are slotted just like yours.

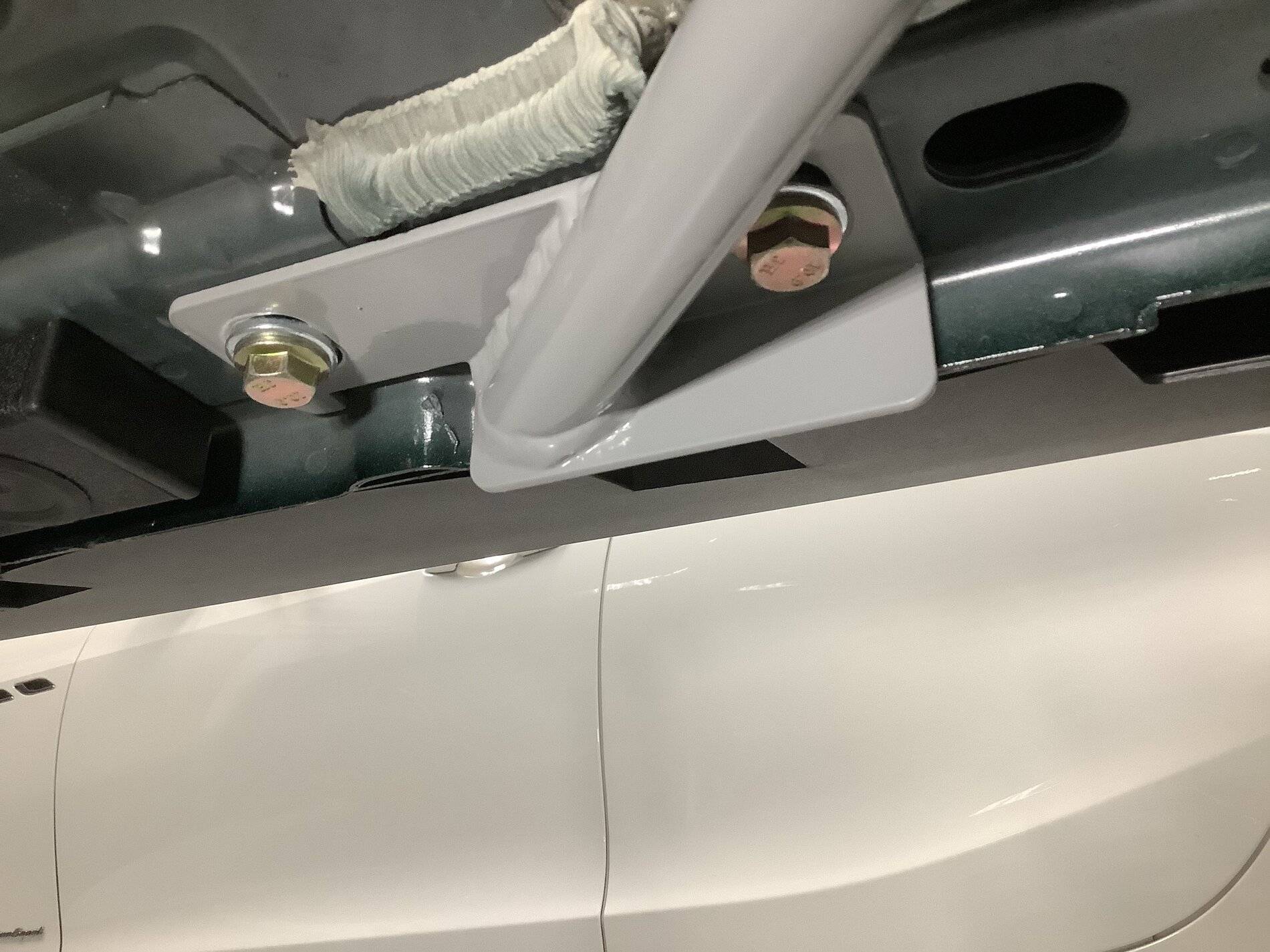

Pic 1 - 50 mm bolt

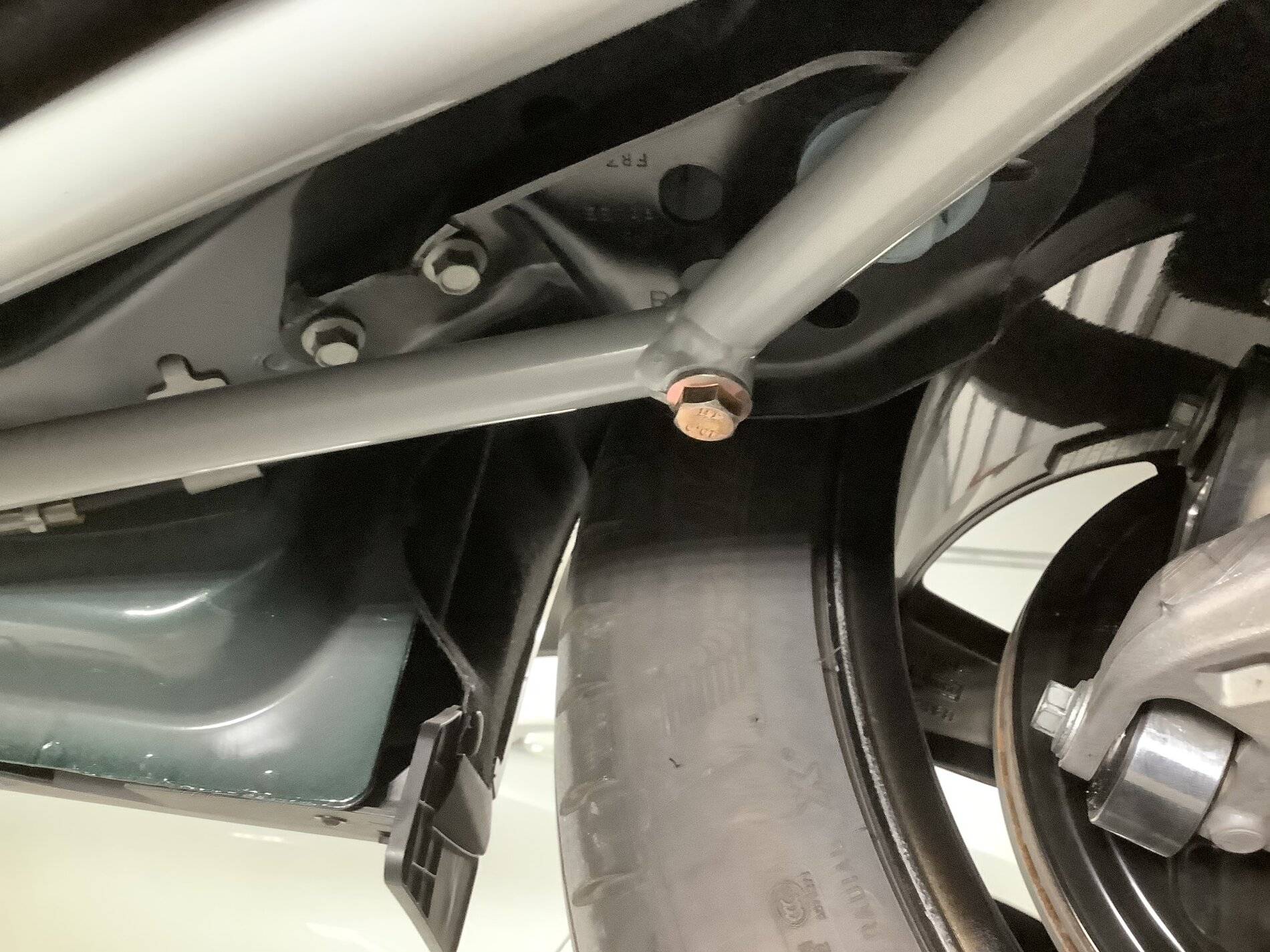

Pic 2 - 25mm bolts

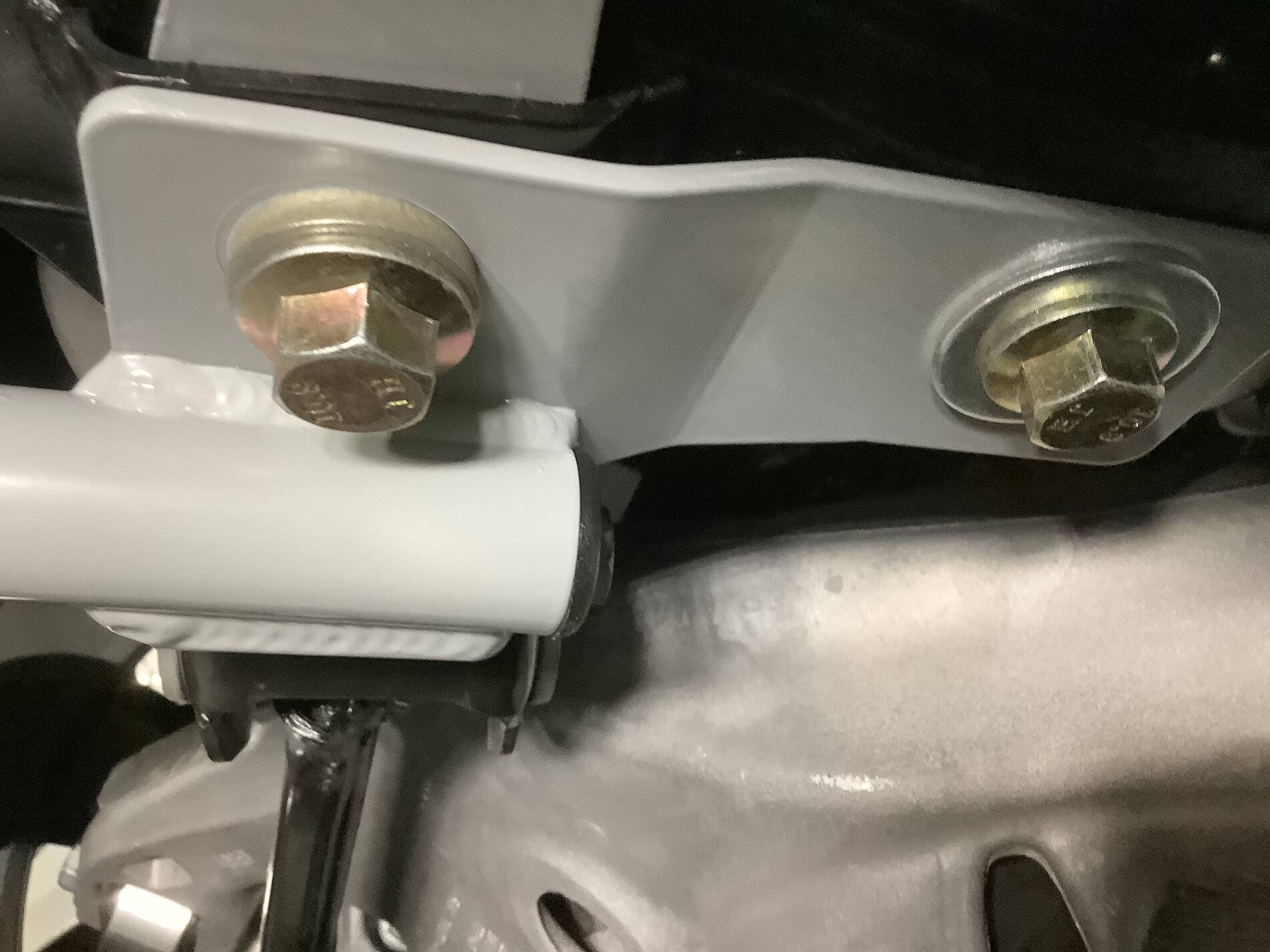

Pic 3 - (Front bolt = 45mm with nut on top)
Pic 3 - (Rear bolt = 12mm)
Note: The square threaded plate goes in the slot above the front bolt in pic 3. I didn’t use the plates in mine because I am running the differential support bracket on my car and the lower arms take the place of the square plates that you will use on your install.



[AnthonyA1234]

Great, thanks so much



[NGOT8R]

Great, thanks so much

NP. You haven’t loosened the blue subframe bolts for any reason have you? If so, I’d check to make sure they’re torqued to 129 ft-lbs, before installing the braces.



[AnthonyA1234]

NP. You haven’t loosened the blue subframe bolts for any reason have you? If so, I’d check to make sure they’re torqued to 129 ft-lbs, before installing the braces.

No I didnt, what would be the reason to?



[NGOT8R]

No I didnt, what would be the reason to?

To install the Steeda subframe alignment kit or their aluminum subframe bushing supports.
