SB1Racing - Ecoboost Quest for the 9's w/TUNE+ & CP-E

Discussion in 'Members Mustang Journals / Projects' started by sb1racing, Jan 7, 2016.

  1. sb1racing

    sb1racing Well-Known Member

    First Name:
    Ken
    Vehicle(s):
    2015 Mustang Ecoboost PP
    Joined:
    Jun 24, 2015
    Location:
    Michigan
    Posts:
    109
    Likes Received:
    37
    0   0   0
    #1 sb1racing, Jan 7, 2016
    Last edited: Aug 5, 2016
    Heading to Track Soon!

    Tuning and Build Coordination by Adam @ Tune+ (www.adamtuned.com)
    Turbo Kit by CP-E (www.cp-e.com)

    Specs:
    2015 Ecoboost A6 PP
    TUNE+ Lifetime E-Tune
    TUNE+ Auxiliary Fuel Tuning
    TUNE+ Transmission Tuning
    TUNE+ Dyno Tuning
    TUNE+ Denso ITV22 Plugs
    TUNE+ UPR Dual Valve Catch Can
    TUNE+ Plug and Play 4Bar TMAP Sensor
    TUNE+ Mega-Sauce E85 Fuel System
    CP-E Twin Scroll EFR Turbo Kit
    CP-E Single 3" Exhaust
    CP-E Downpipe
    Esslinger 12mm Head Studs
    Borg Warner 8374 EFR from Full-Race/Tune+
    Pande's Performance Built Engine
    MAP Sleeved Shortblock w/I-Beam Rods
    MAP Stage 5 Ported Head w/+1mm Valves
    Viking Shocks from BMR w/Kelly's recommended setup
    BMR CB005, TCA045, BK054, TR005, DSL017
    DSS Carbon Fiber Drivers from Lethal Performance/Tune+
    DSS 1400hp Axles
    ATM Intercooler
    ATM Silicone Cold Charge Pipe
    Watson Racing 6-Point Cage
    Dusold Designs Hex Grill
    Race Star Dark Star 17x9.5 Rear
    Race Star Dark Star 17x4.5 Front
    MT ET Street R P305/45R17
    MT Sportsman S/R - 28x6.00R17LT

    ***********************************************************
    Old Build Thread
    ***********************************************************

    So it begins!! Build completion is just around the corner now, bit delayed but aren't they always. Car will be hitting the track fairly soon, once some final Aux Tuning is completed and the weather clears!

    To start there are no words I can say that even begin to tell my gratitude to Adam @ Tune+!!! The man has spent countless hours coordinating the build of my entire car and just NEVER stops or slows down!! I simply drove my car to him and went back this past week to pick it up. He called all the shots and coordinated everything with my build. Which of course I'm overly ecstatic about to say the least. I mean come on, who doesn't want a daily driver w/remote start that can easily make over 600hp, runs pump gas (E85), still gets almost 30mpg and will blow the tires off on the highway if you want it to!?!?! Car is just sick and there's still WAY more to come, just waiting on the new fuel setup Adam is building as I speak. Then we can get into some serious boost numbers and start seeing those 700hp+ numbers!!

    CP-E did has build an amazing EFR Turbo Kit to seamlessly toss this AFR 8374 under the hood and make some power. Craftsmanship of every part of the turbo kit is flawless and worth every penny! Blows my mind this Big Turbo almost spools like stock!! I truly didn't expect it to maintain the crazy boost curve down so low in the RPM's. Twin Scroll is the ticket for sure...

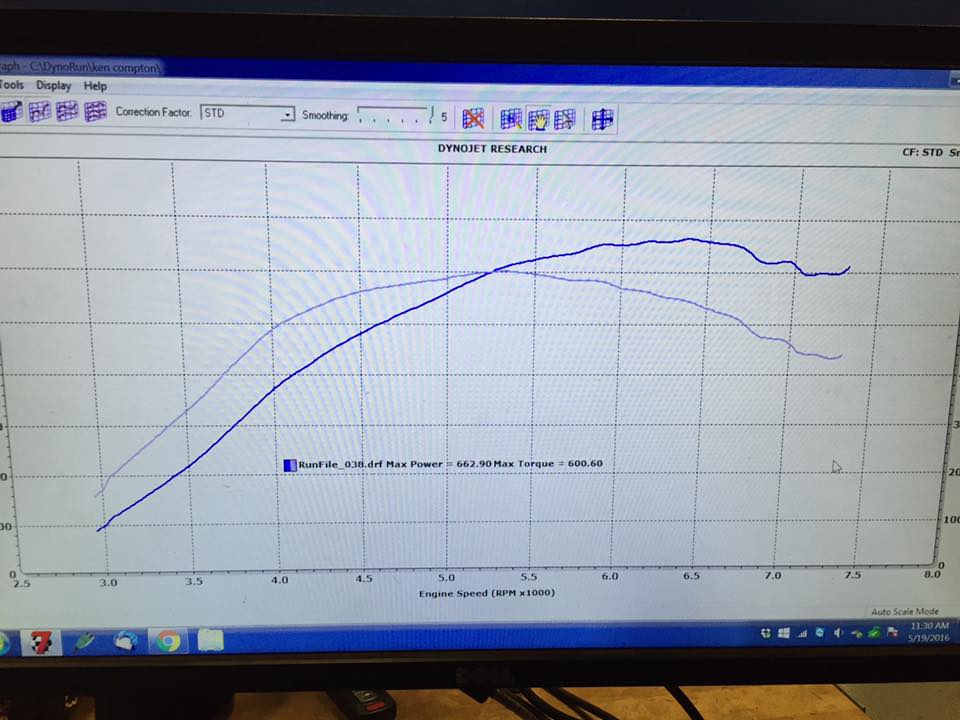

    Preliminary Dyno Results & Video, E85 Pump Gas:

    Dyno Video on Facebook

    (Unfortunately we ran out of fuel and couldn't turn the boost up yet)
    [​IMG]

    *************************************************************
    July 29th 2016 -update-

    Adam remotely Dyno Tuned my grocery getter (literally) today to a lil over 700hp!! Need to take some time to update everything here but just haven't had time. Now trying to get the car ready for the track this Thursday!! Dyno does't mean much to me, track is where a car is proven :)

    Updates to the car:
    TUNE+ E85 Fuel system
    CP-E's new Turbo Manifold
    CP-E Single Exhaust (that's sound flipping amazing!!)
    Pande's Performance that did the new engine rebuild
    Esslinger Racing 12mm Studs

    *************************************************************

    Finally made it out to the track for my first pass on the new combo! Haven't been down the track since October and unfortunately only got to make a single pass. Although I did make it count, see post #2 for details ;)

  2. OP
    OP
    sb1racing

    sb1racing Well-Known Member

    First Name:
    Ken
    Vehicle(s):
    2015 Mustang Ecoboost PP
    Joined:
    Jun 24, 2015
    Location:
    Michigan
    Posts:
    109
    Likes Received:
    37
    0   0   0
    #2 sb1racing, Jan 7, 2016
    Last edited: Aug 5, 2016
    Same post I submitted to the Fast List. Will update some more after I get some sleep & time. Got home from track a 8:30pm and started working @ 9pm, just finishing up so time for bed lol... 30 hour days hurt...

    Vehicle, Trim & Options: 2015 A6 PP
    Modifications (if any): Tuned by Adam @ Tune+ ([email protected]), ATM FMIC, EFR 8374 Turbo, MAP Stage-5 Head & Shortblock, CP-E Turbo Kit & Exhaust, E85 Pump Gas w/ TUNE+ E85 Fuel System & Full Weight (1/2 tank fuel), Full BMR Suspension and last but Definitely not least Pande's Performance for putting it all together!!!!

    Fast List Category Submitted For: Power Adder
    R/T......................................... 2.063 (lol)
    60'..........................................1.592
    330'........................................4.561
    594'........................................6.528
    660'........................................6.967
    660’ mph.................................102.33
    1000'.......................................9.037
    1320'......................................10.773
    1320’ mph….............................129.90
    Name of the track: Milan Dragway
    Date of pass: 08-04-2016
    Weather conditions: (include Density Altitude, if known): 2838' da

    The Time slip, first pass off the trailer! Unfortunately had a fitting with a TINY leak and they wouldn't let me make anymore passes :( Had no tools with me to fix and it was too hot outside anyhow:
    [​IMG]

    Weather (Albeit the car said 92 degrees)
    [​IMG]

    The Car:
    [​IMG]
    [​IMG]

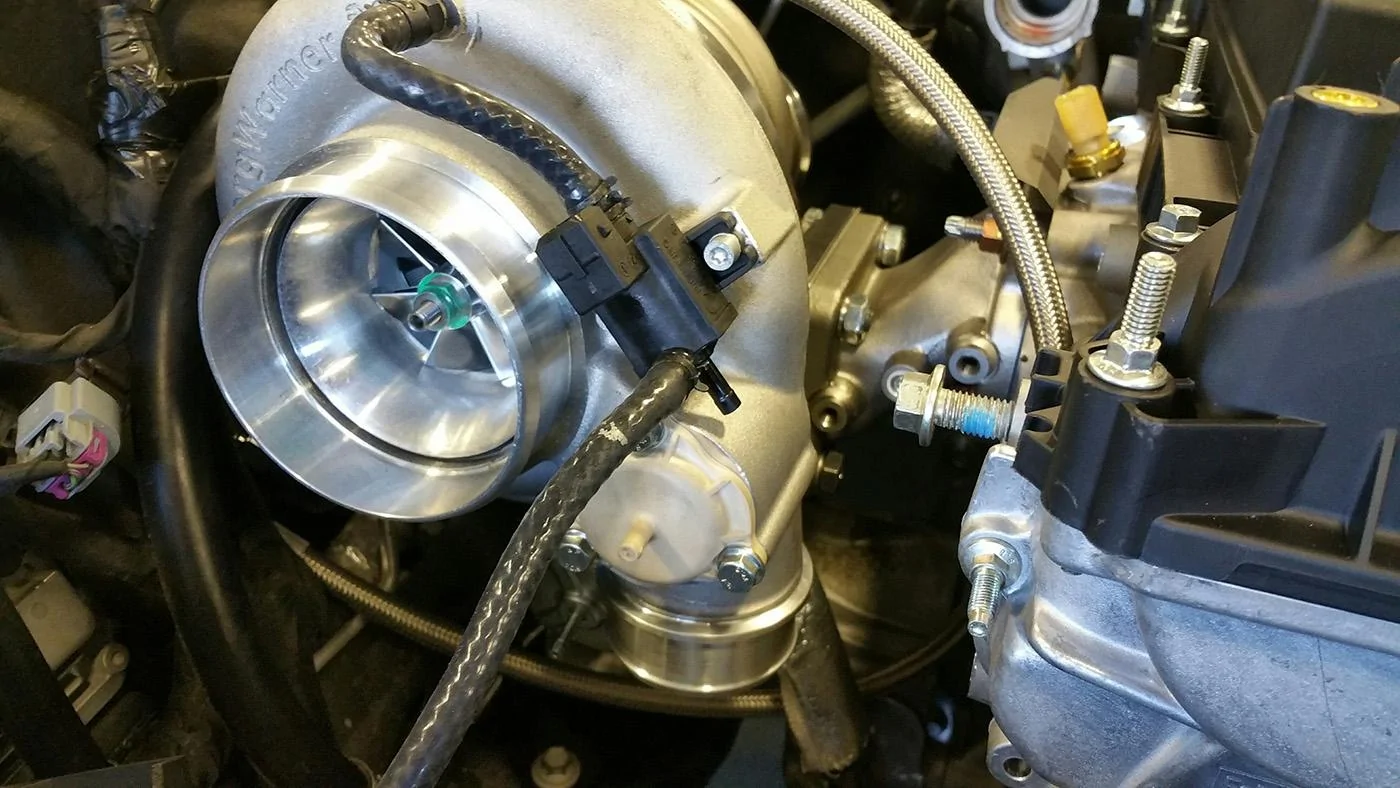

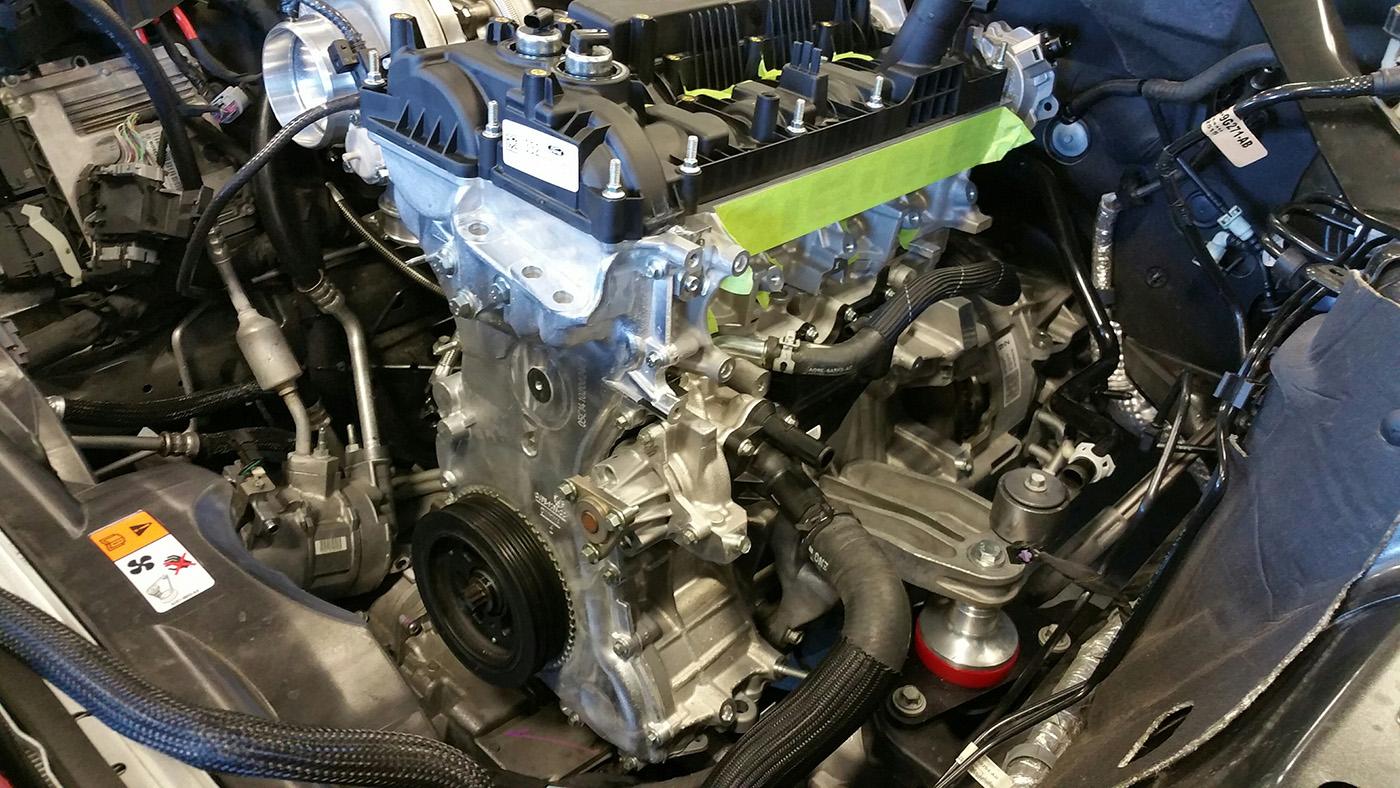

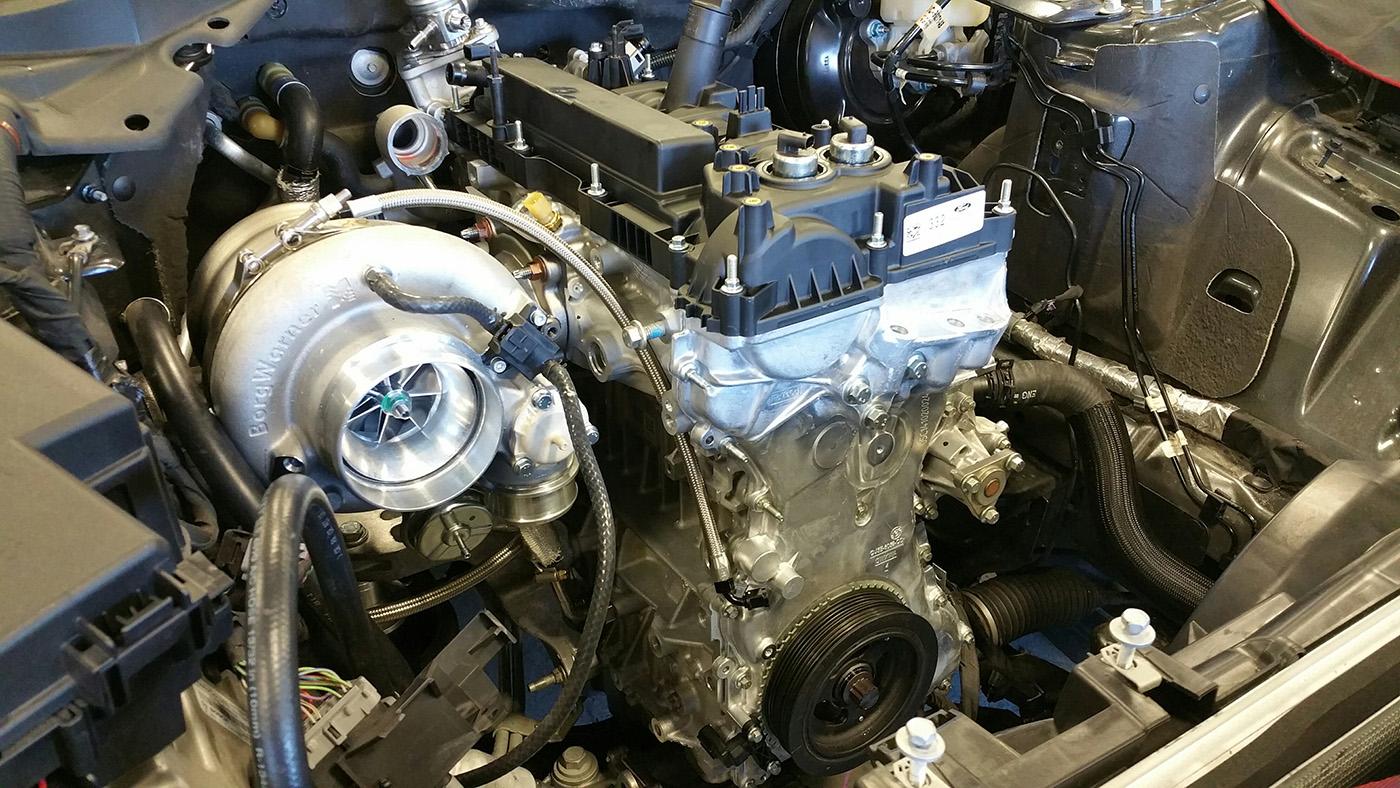

    Powerplant:
    [​IMG]

    Full Interior w/Sweaty center console, hot as hell to say the least:
    [​IMG]
    [​IMG]

    E85, don't have Economy Slot yet but I'll take it:
    [​IMG]

    Grocery shopping the weekend before while camping (Truly my daily driver) hahaha:
    [​IMG]

    Hmmm, not sure why my imgur.com images aren't showing up here :(

  3. Tune+

    Tune+ Well-Known Member

    First Name:
    Adam
    Vehicle(s):
    2015 Ecoboost Mustang Automatic
    Joined:
    Oct 13, 2015
    Location:
    St. Paul, MN
    Posts:
    1,639
    Likes Received:
    837
    0   0   0
    Reserved.

  4. Tune+

    Tune+ Well-Known Member

    First Name:
    Adam
    Vehicle(s):
    2015 Ecoboost Mustang Automatic
    Joined:
    Oct 13, 2015
    Location:
    St. Paul, MN
    Posts:
    1,639
    Likes Received:
    837
    0   0   0
    Reserved 2.

  5. MAPerformance

    MAPerformance Well-Known Member
    Gold Sponsor


    First Name:
    Sales
    Vehicle(s):
    2015 Ecoboost Base w/ Performance Package
    Joined:
    Jan 14, 2015
    Location:
    Cottage Grove, MN
    Posts:
    1,661
    Likes Received:
    997
    Rating:
    100%
    1   0   0
    #5 MAPerformance, Jan 7, 2016
    Last edited: Feb 10, 2016

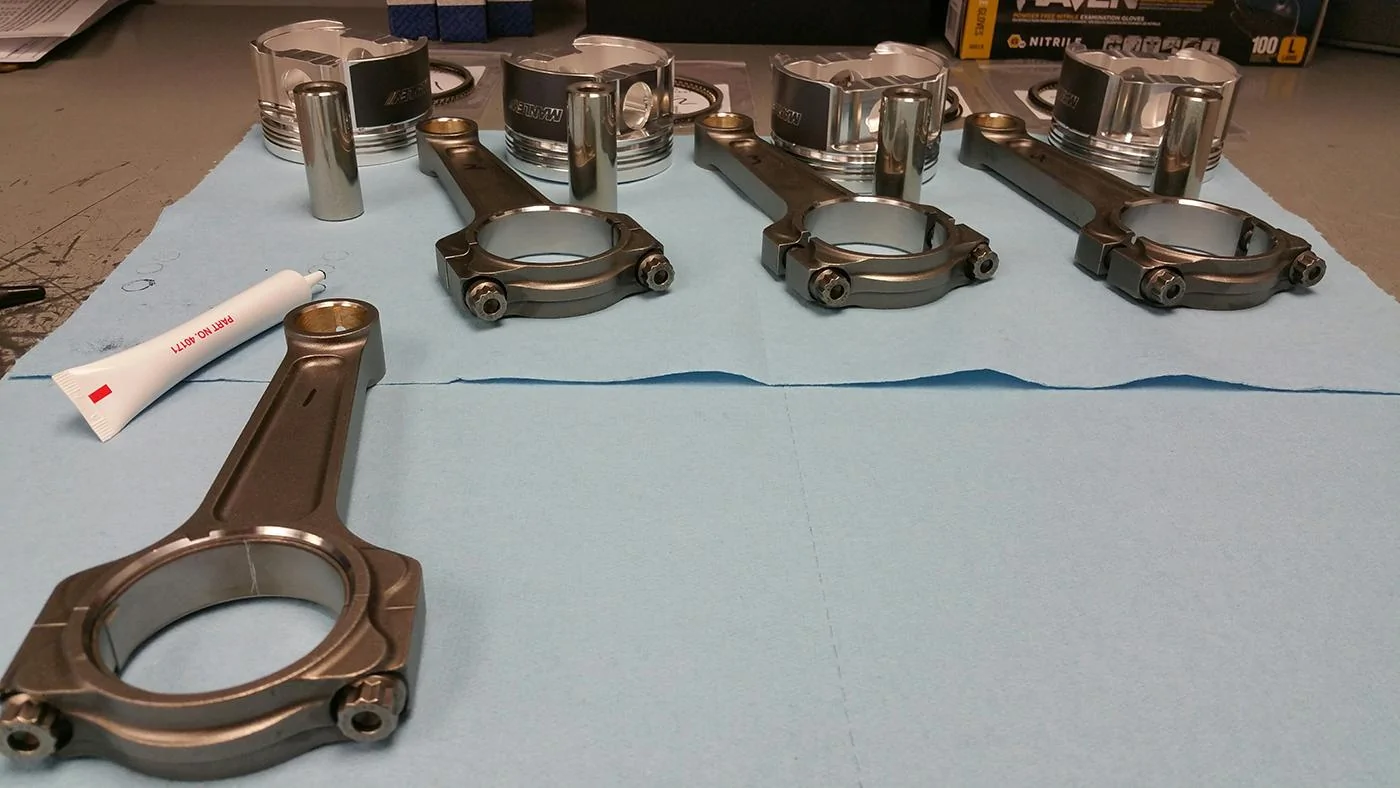

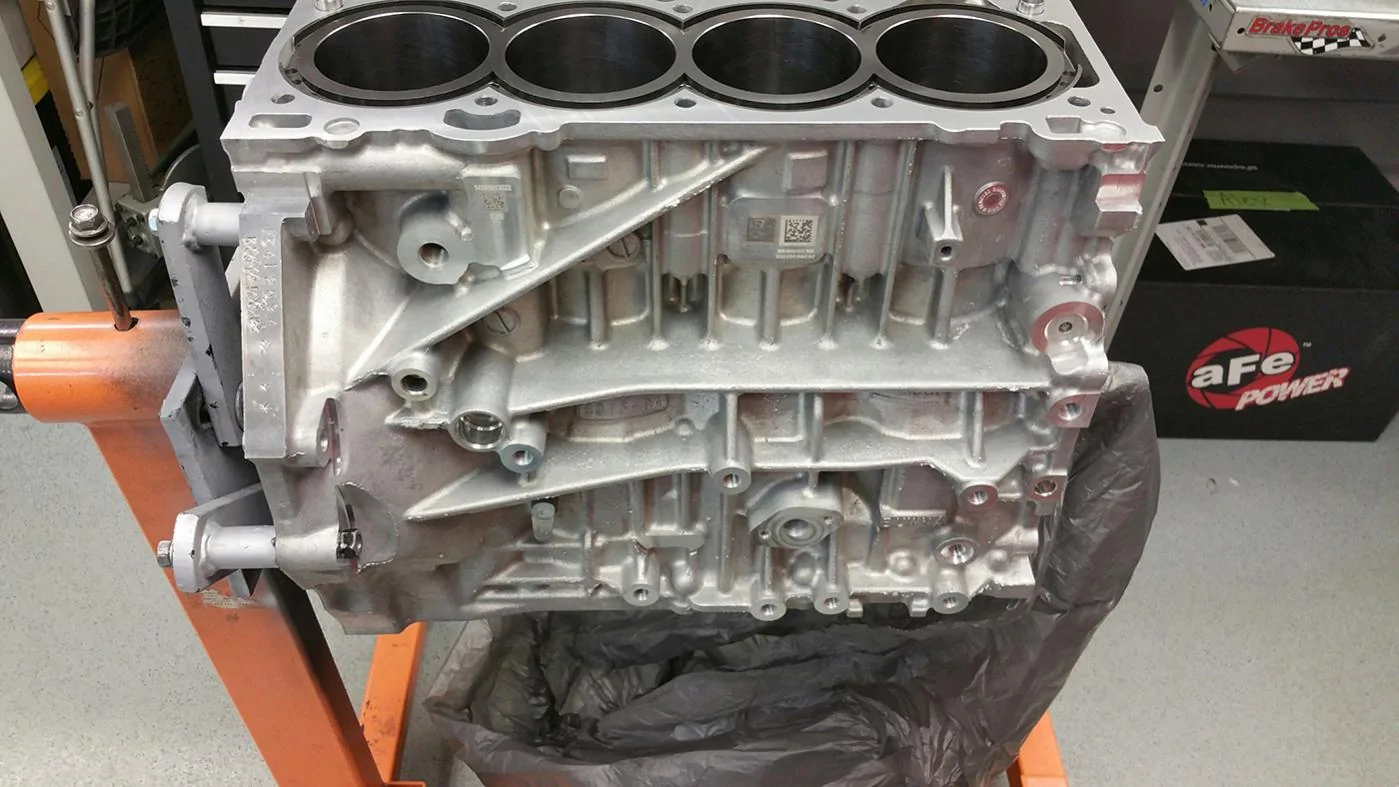

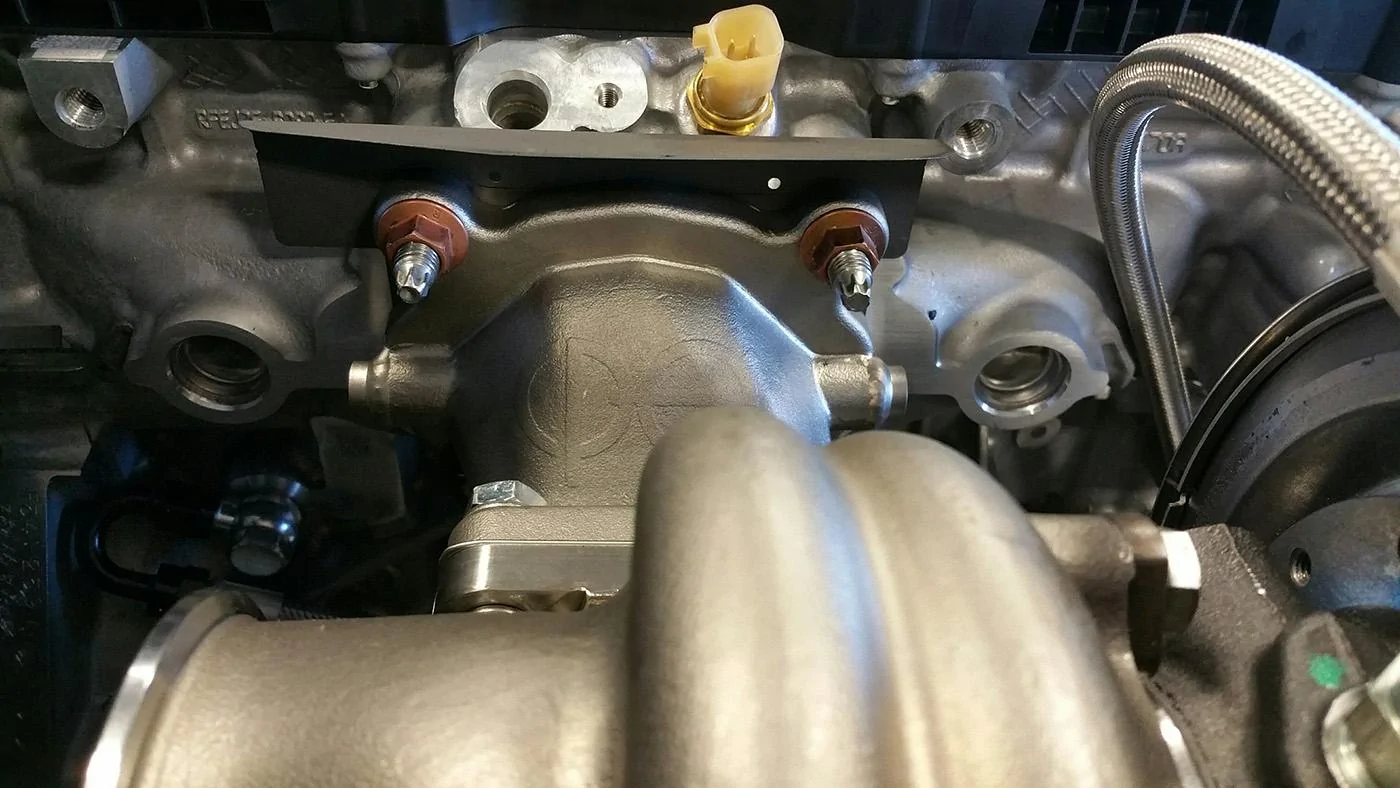

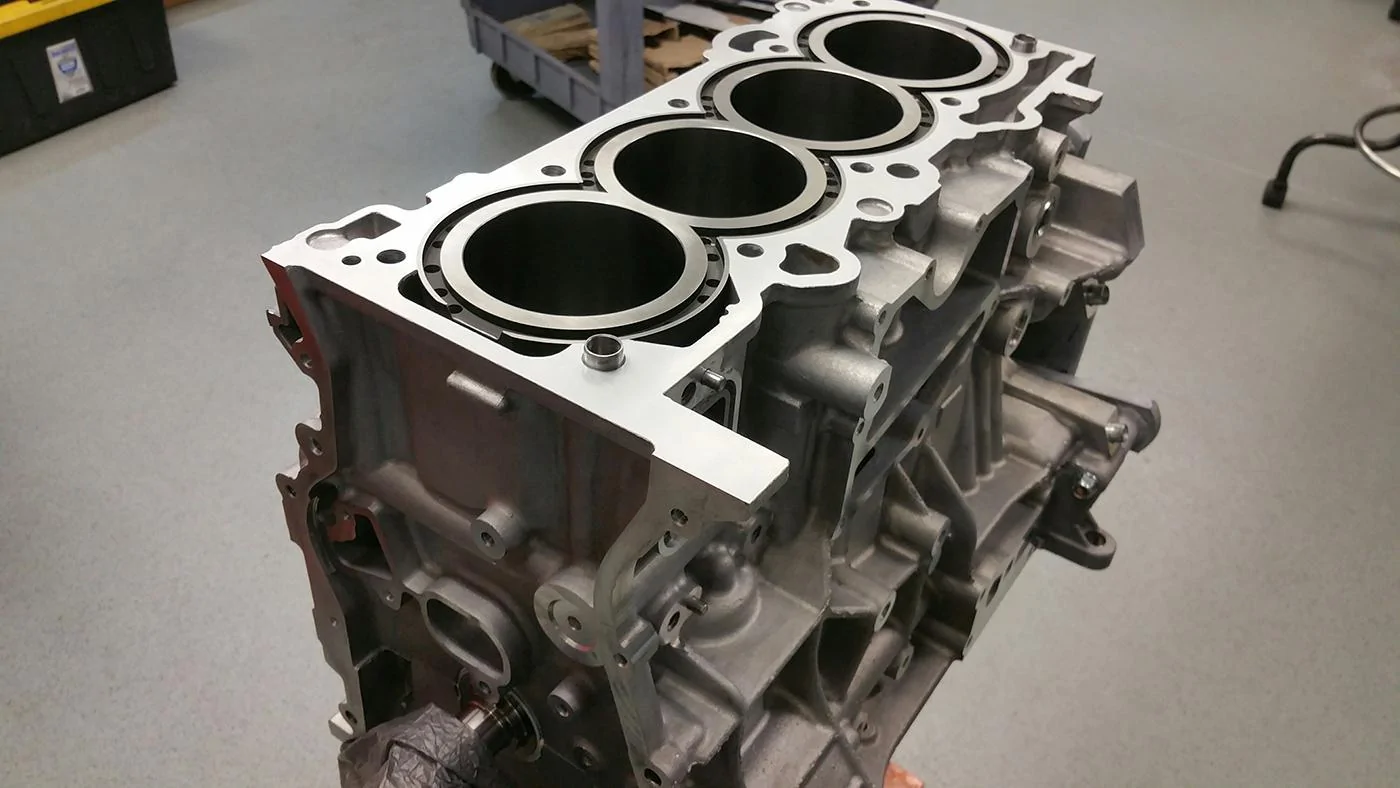

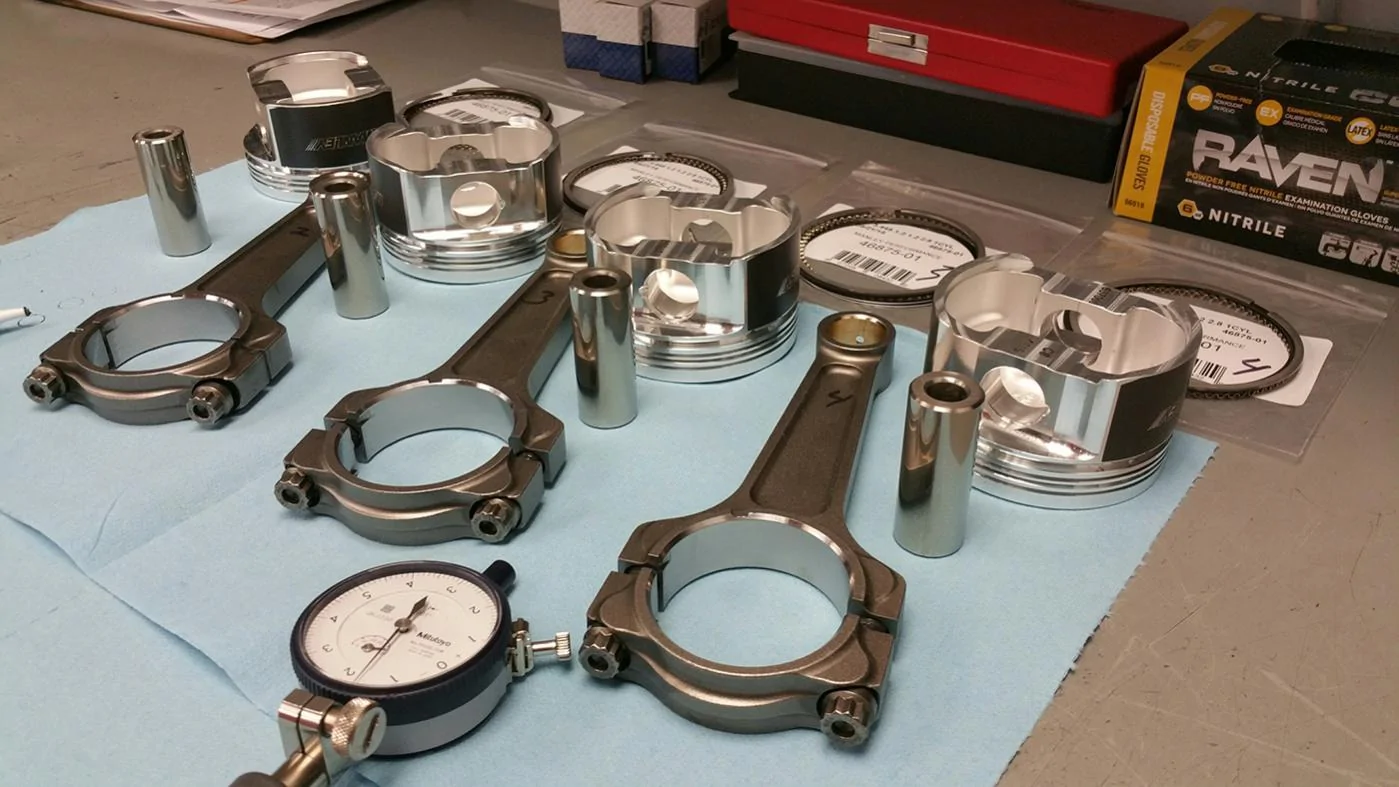

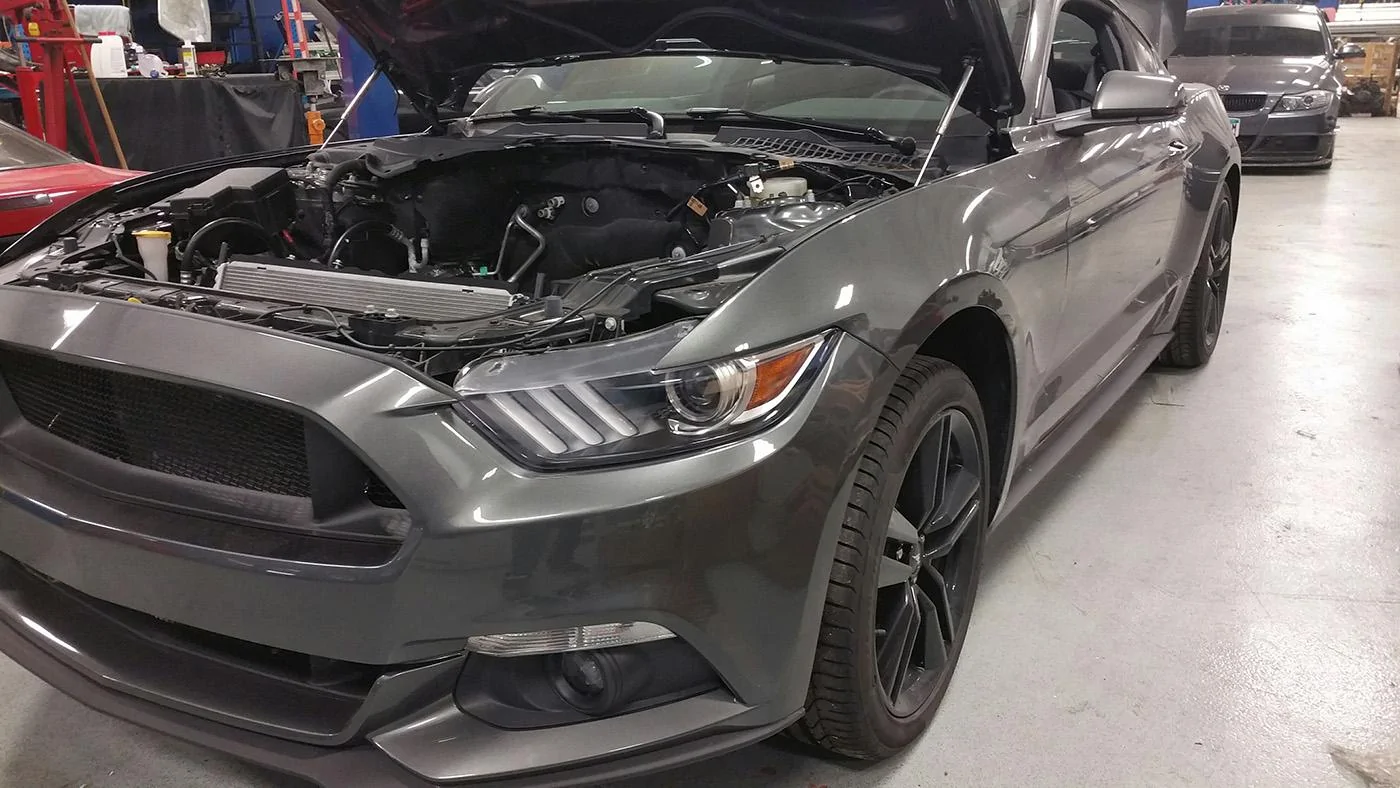

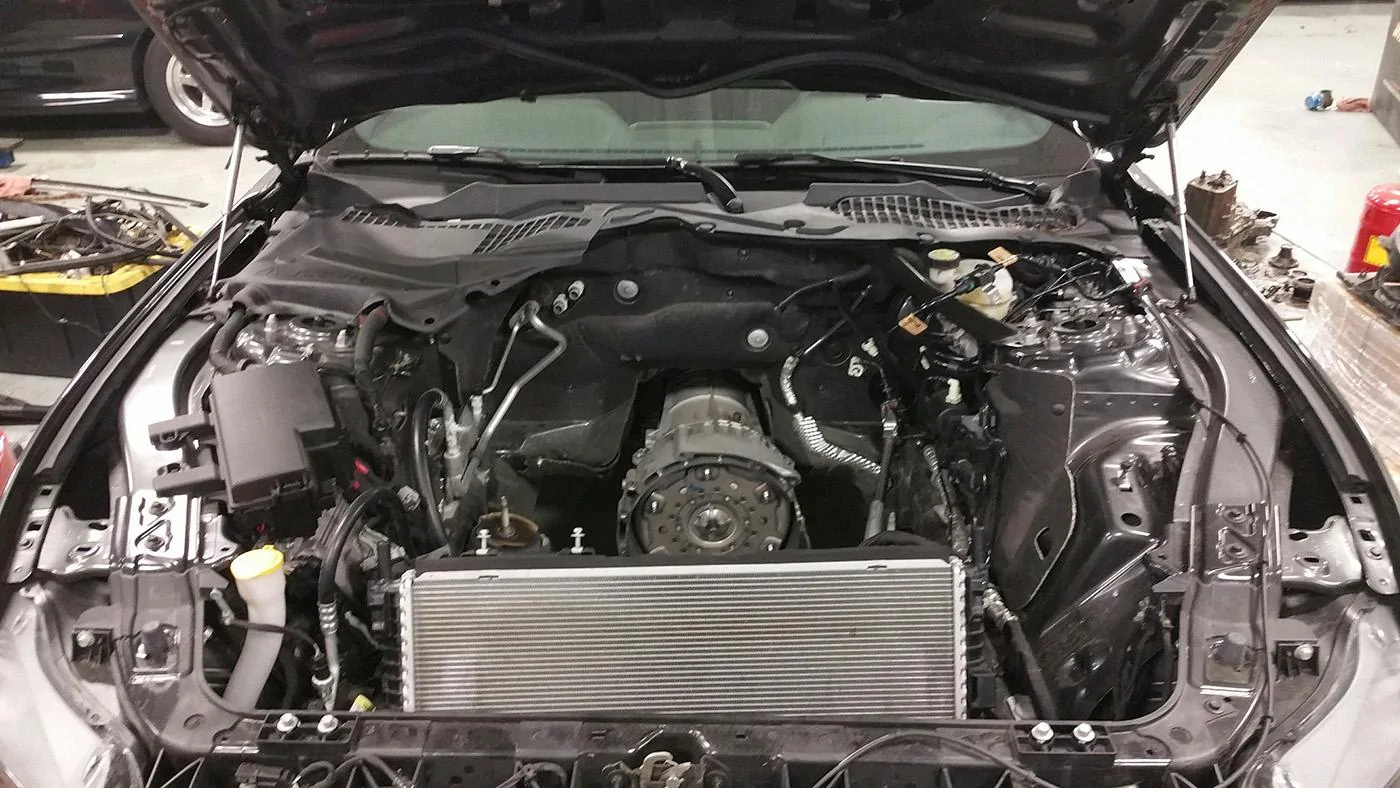

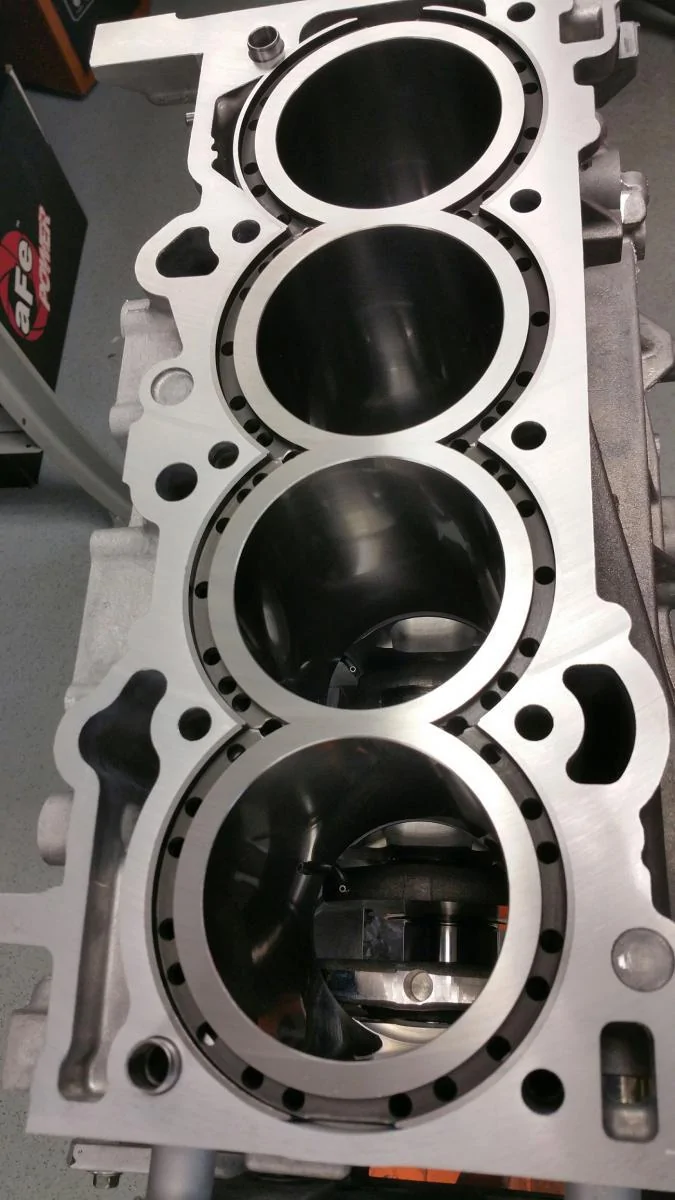

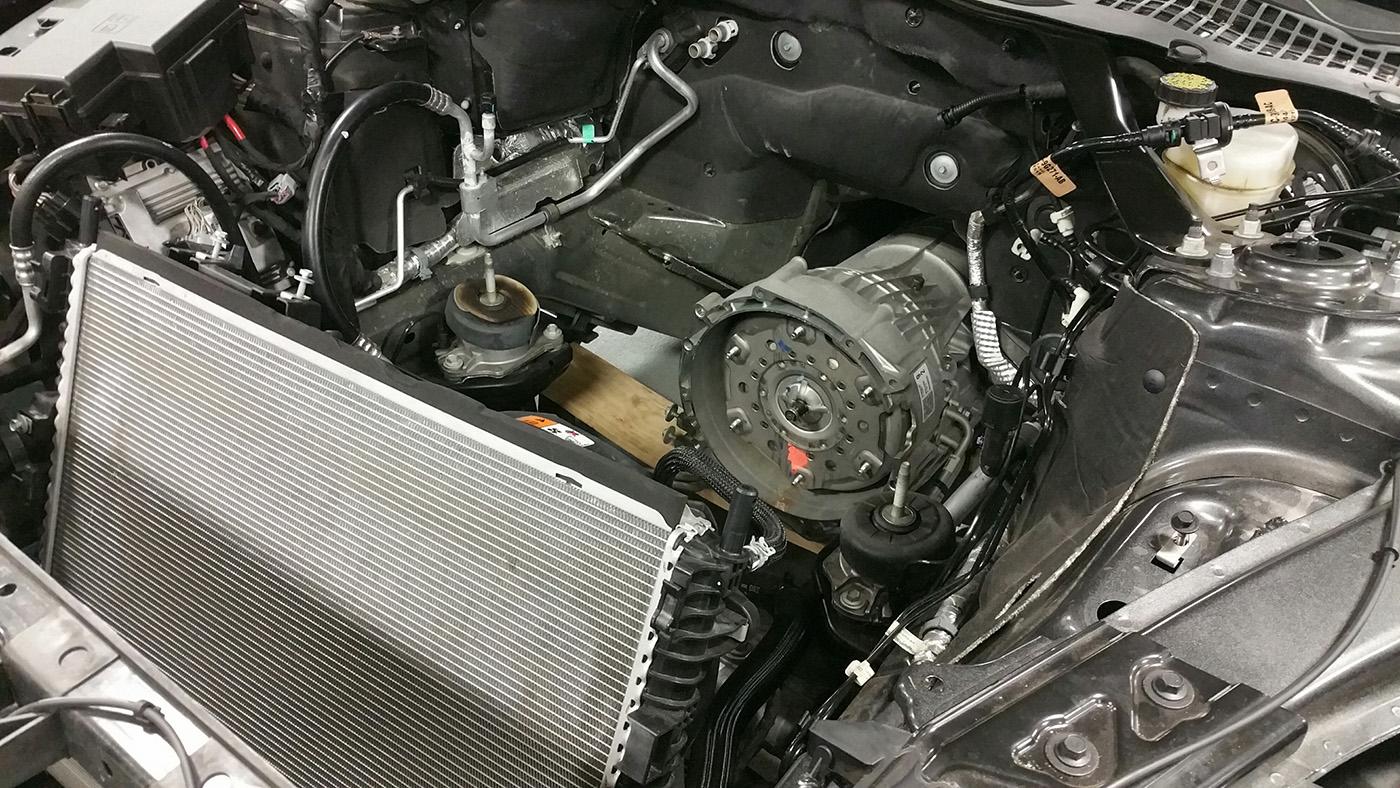

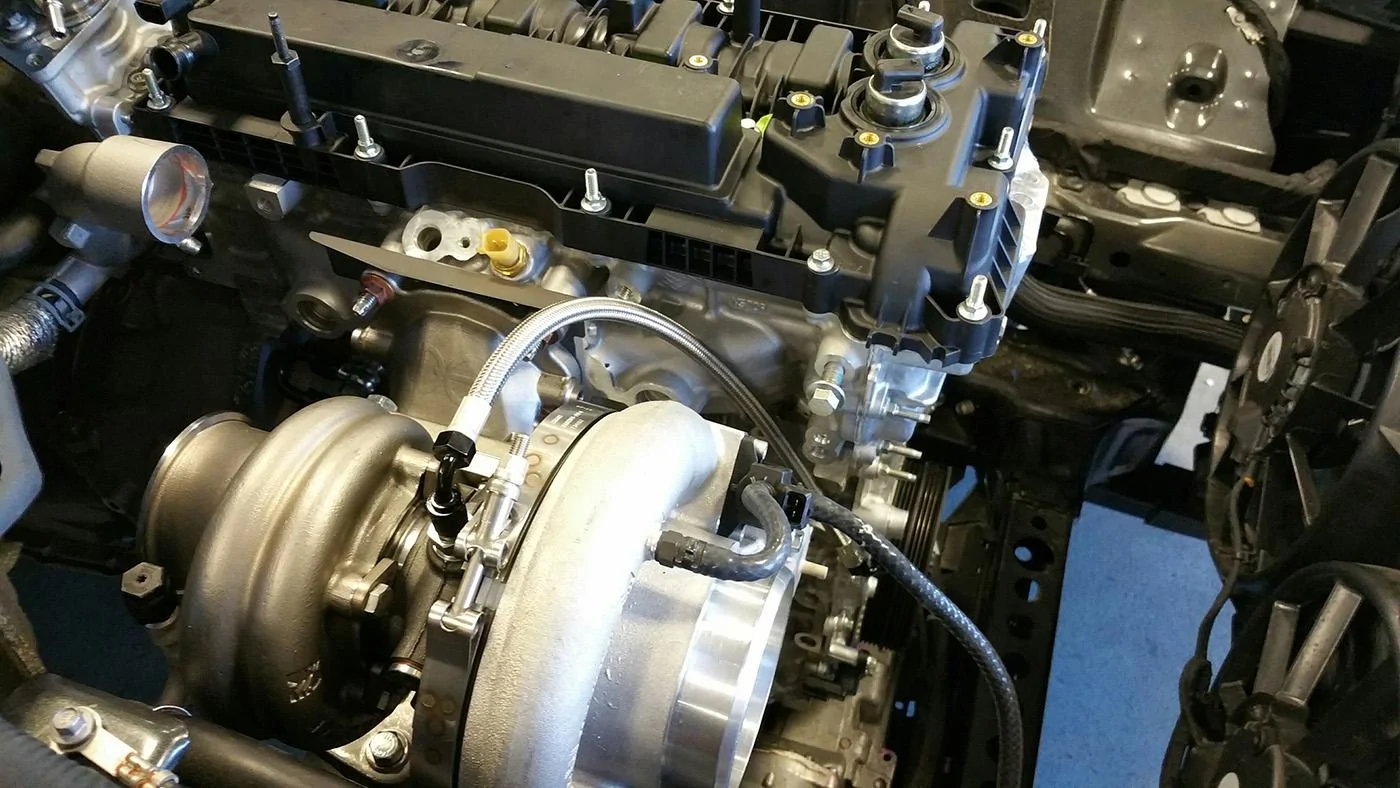

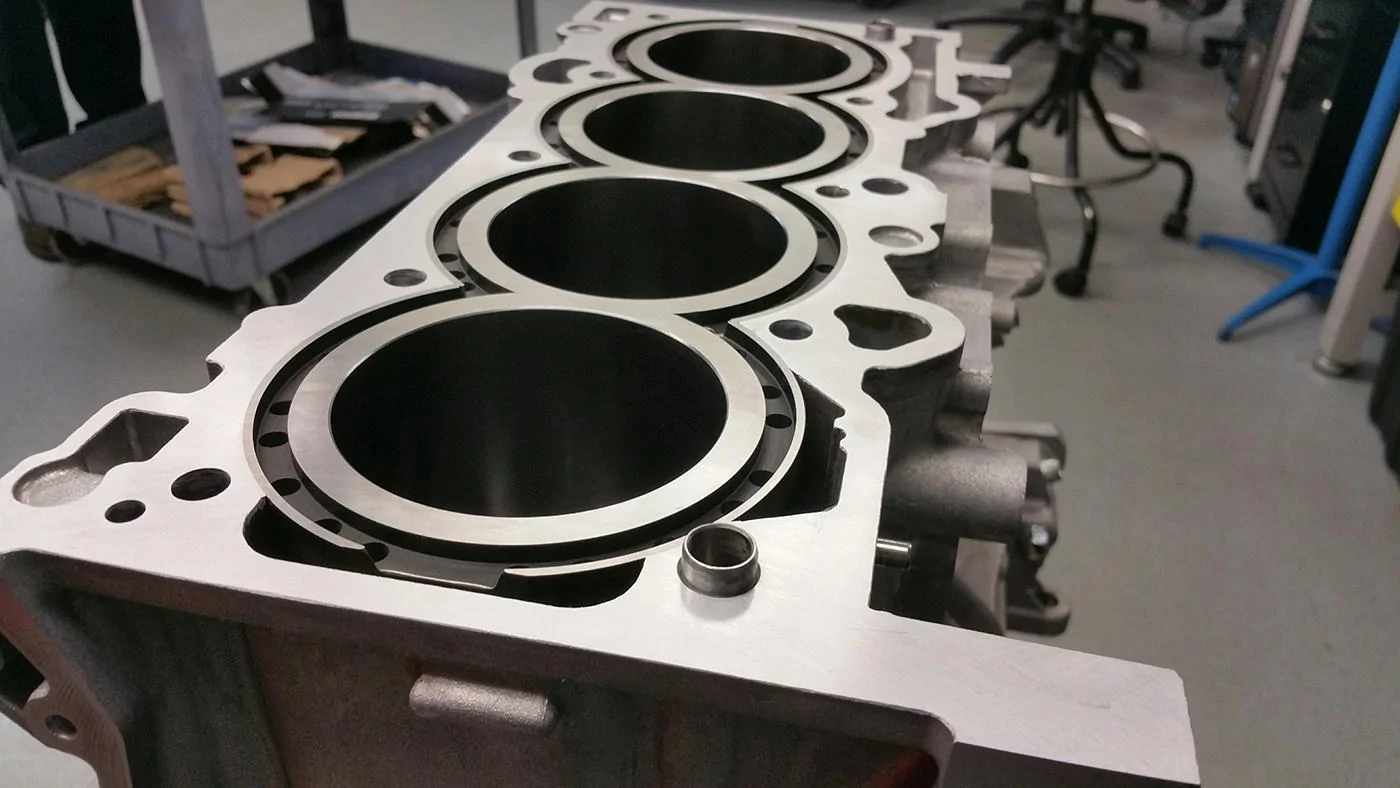

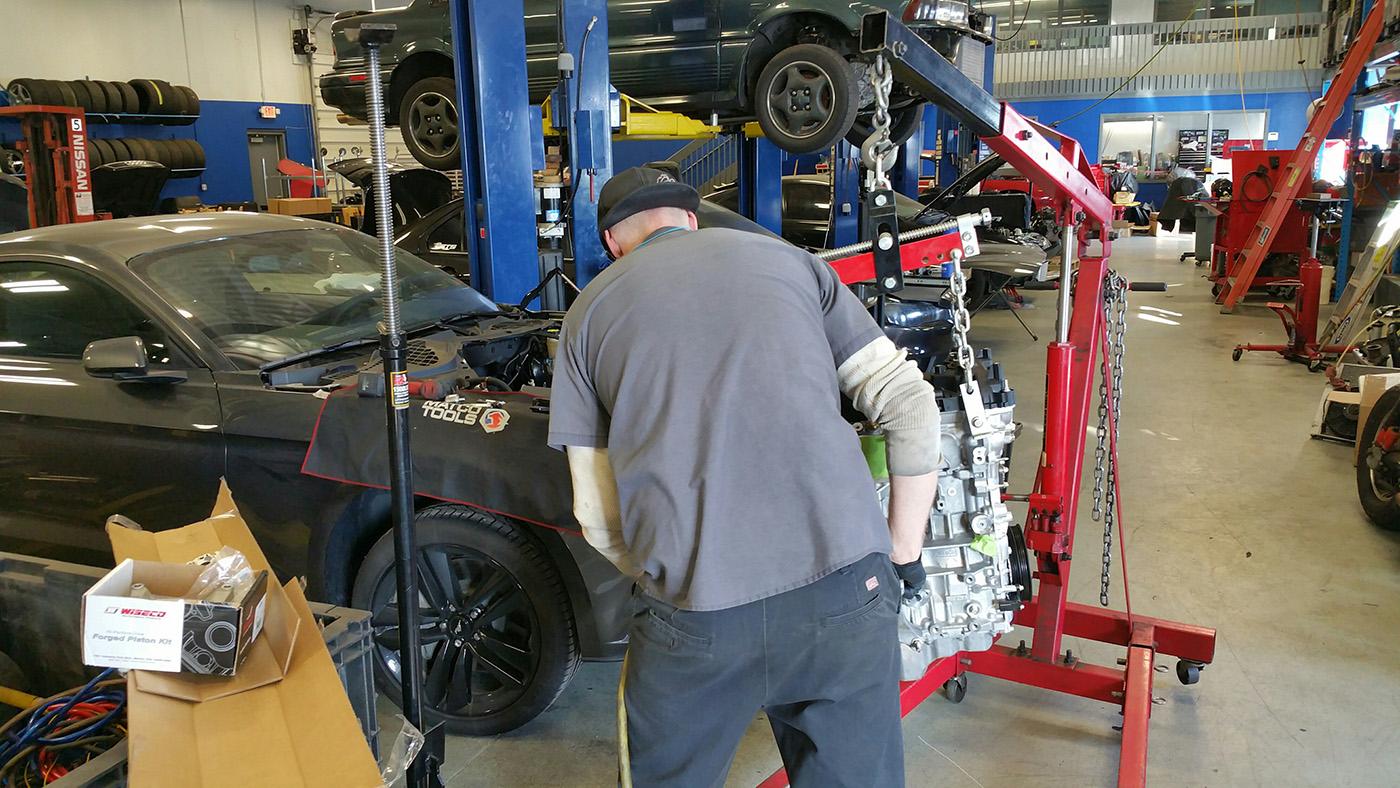

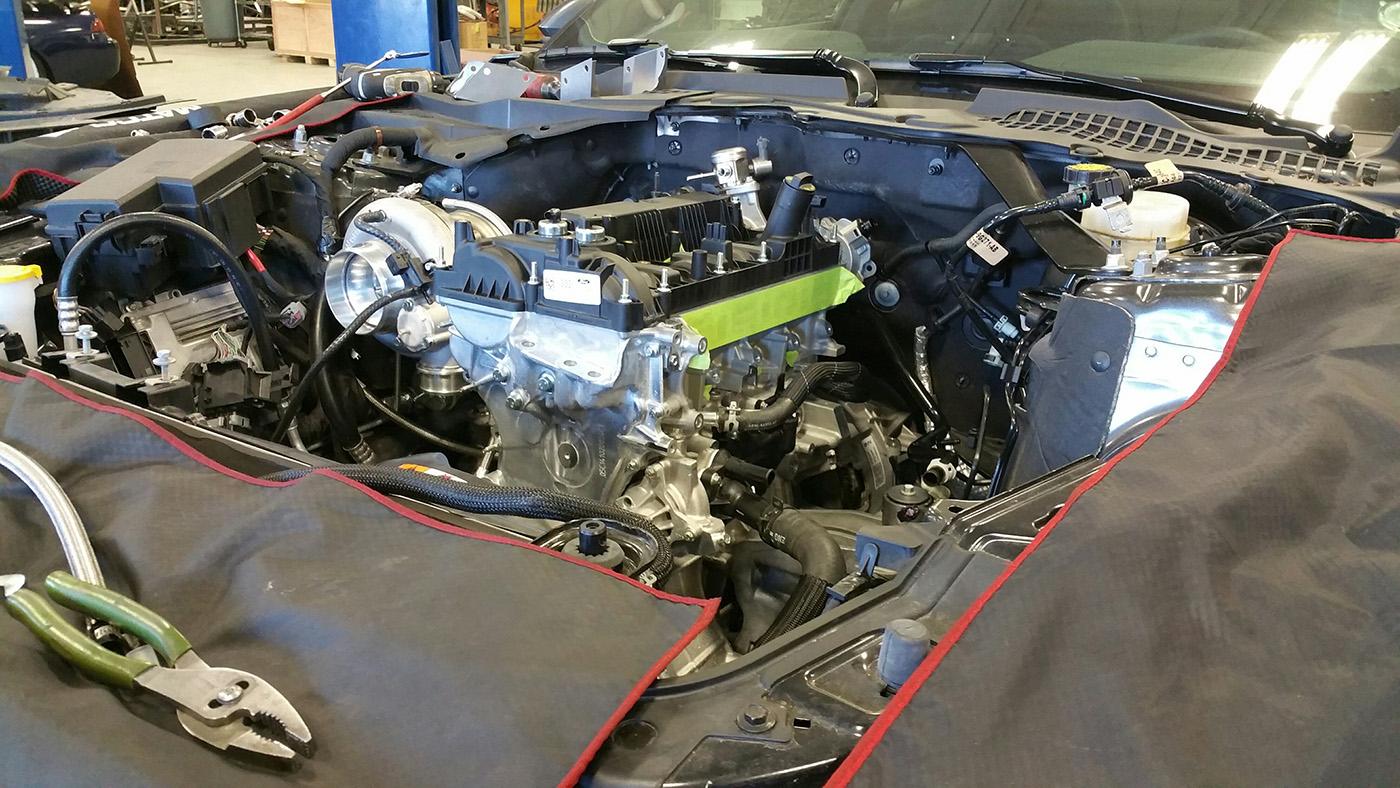

    Some juicy pictures to enjoy! 20160204_190913_resized_1.jpg 20160204_190920_resized_1.jpg 20160204_190926_resized_1.jpg 20160204_190354_resized_2.jpg 20160204_190416_resized_2.jpg 20160204_190458_resized_2.jpg 20160204_190509_resized_2.jpg 20160204_190524_resized_1.jpg 20160204_190530_resized_2.jpg 20160204_190530_resized_3.jpg 20160209_095755_resized.jpg 20160209_155311_resized.jpg 20160209_155316_resized.jpg 20160209_155324_resized.jpg 20160209_155332_resized.jpg 20160209_155342_resized.jpg 20160209_155356_resized.jpg 20160209_155356_resized_1.jpg

    Cmarsh likes this.
  6. MAPerformance

    MAPerformance Well-Known Member
    Gold Sponsor


    First Name:
    Sales
    Vehicle(s):
    2015 Ecoboost Base w/ Performance Package
    Joined:
    Jan 14, 2015
    Location:
    Cottage Grove, MN
    Posts:
    1,661
    Likes Received:
    997
    Rating:
    100%
    1   0   0
    Reserved 2

  7. Ron@cp-e

    [email protected] Well-Known Member

    First Name:
    whoosh
    Vehicle(s):
    2015 EBM
    Joined:
    Feb 23, 2015
    Location:
    MD
    Posts:
    913
    Likes Received:
    364
    Rating:
    100%
    1   0   0
    reserved for awesomeness

  8. Ron@cp-e

    [email protected] Well-Known Member

    First Name:
    whoosh
    Vehicle(s):
    2015 EBM
    Joined:
    Feb 23, 2015
    Location:
    MD
    Posts:
    913
    Likes Received:
    364
    Rating:
    100%
    1   0   0
    reserved for awesomeness-er than post 7

  9. OP
    OP
    sb1racing

    sb1racing Well-Known Member

    First Name:
    Ken
    Vehicle(s):
    2015 Mustang Ecoboost PP
    Joined:
    Jun 24, 2015
    Location:
    Michigan
    Posts:
    109
    Likes Received:
    37
    0   0   0
    Thanks for the updated pics MAP!! Can't wait to pick this monster up next week :D

  10. bay584

    bay584 Well-Known Member

    Vehicle(s):
    2016 GTPP
    Joined:
    Nov 16, 2014
    Location:
    SF Bay Area
    Posts:
    239
    Likes Received:
    55
    0   0   0
    ...and I'm drooling. Subb'ed!

  11. 04SloSnake

    04SloSnake Boost Addict

    Vehicle(s):
    R34 Skyline
    Joined:
    Nov 11, 2014
    Location:
    Japan / Germany
    Posts:
    1,511
    Likes Received:
    461
    0   0   0
    Updates?

  12. OP
    OP
    sb1racing

    sb1racing Well-Known Member

    First Name:
    Ken
    Vehicle(s):
    2015 Mustang Ecoboost PP
    Joined:
    Jun 24, 2015
    Location:
    Michigan
    Posts:
    109
    Likes Received:
    37
    0   0   0
    Sorry for the delays with updates but things were running a bit behind. The original post above has been updated and here are some pics from this past weekend:

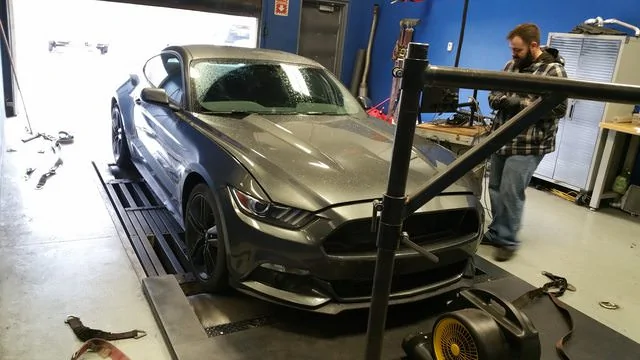

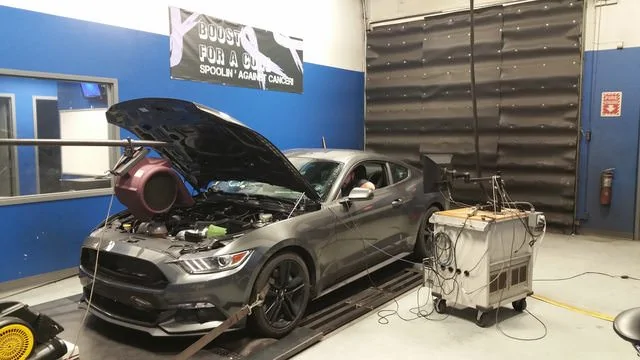

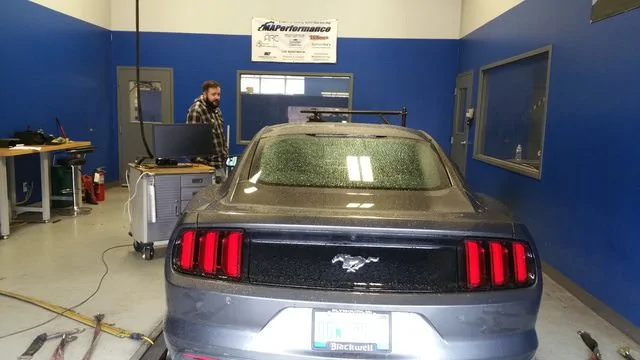

    Pulling the car into MAP Dyno Room, wonderful rainy day:

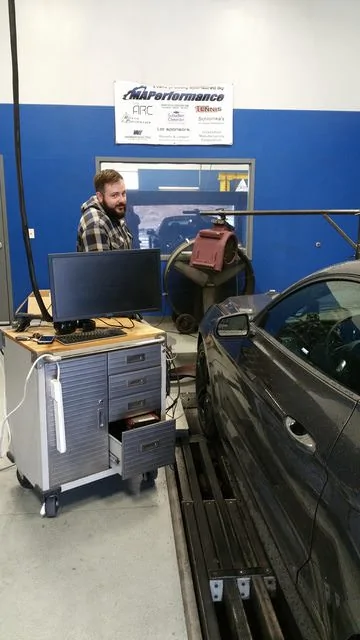

    Adam getting things ready:

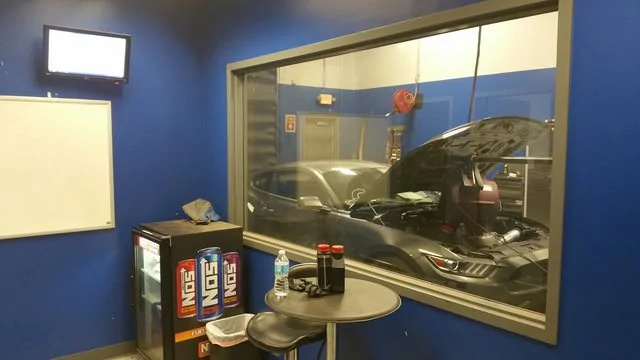

    MAP Facility:

    Ready to Rock:

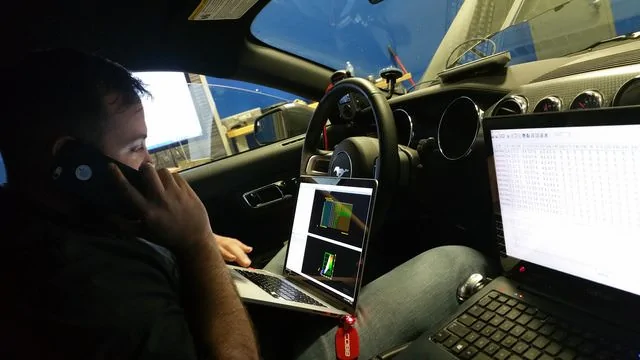

    The Man doing what he does! Currently working on three computers, on the Dyno, tuning the Car & Aux Fuel, while talking to a customer on the phone!!

  13. Tune+

    Tune+ Well-Known Member

    First Name:
    Adam
    Vehicle(s):
    2015 Ecoboost Mustang Automatic
    Joined:
    Oct 13, 2015
    Location:
    St. Paul, MN
    Posts:
    1,639
    Likes Received:
    837
    0   0   0
    You would post pictures of me in my dyno strapping clothes hahaha.

  14. 2016Mustang

    2016Mustang Well-Known Member

    Vehicle(s):
    Mustang
    Joined:
    Mar 17, 2016
    Location:
    Ny
    Posts:
    262
    Likes Received:
    42
    0   0   0
    Wow awesome build . Please bring it to the drag strip and give us some numbers !

  15. KrisR

    KrisR Well-Known Member

    Vehicle(s):
    2015 Mustang Ecoboost PP 50th Premium
    Joined:
    Mar 24, 2016
    Location:
    White Bear Lake, MN
    Posts:
    130
    Likes Received:
    21
    0   0   0
    Awesome car, great build, but I've gotta ask...
    Approximately how much is spent here to make 600-(potentially)700whp? At some point (500+hp range?) wouldn't it be way easier and cheaper to just abandon the project and do a simple forced-inducted GT to make the same numbers with a bolt-on turbo/blower setup on a V8 car with some simple larger injectors and a BAP on the fuel pump? Do you really love the car that much? Is it just a date to be different thing?

    Sorry to ask, I mean no offense, I just bought an Ecoboost '15 and can't fathom putting that much money and effort into my car versus upgrading to a GT...maybe coming from a simple mid-11-sec bolt on 2012 Coyote has me biased toward that direction.
