Official Tesla-Style Head Unit

[Frenchy480]

Mayyyyyyyyybe! YES! And with corrected Engrish!

I was about to flash it back to the feb2017 ROM because the whole wifi issue. Is it even necessary for me to flash it back if your guys custom ROM is being released soon? Or will wifi probably not work if I don't flash it back?

Sponsored



[StangATX]

I was about to flash it back to the feb2017 ROM because the whole wifi issue. Is it even necessary for me to flash it back if your guys custom ROM is being released soon? Or will wifi probably not work if I don't flash it back?

Feb17 or new ROM like I did to Patrick will make your wifi working again. Up to you



[Frenchy480]

Feb17 or new ROM like I did to Patrick will make your wifi working again. Up to you

Cool, I'll just wait for the new Rom. Im really diggin the different look. Thanks again



[Pablotheartist]

StangATX is the man!



[WavnAtCha]

Yay! Thank you @StangATX

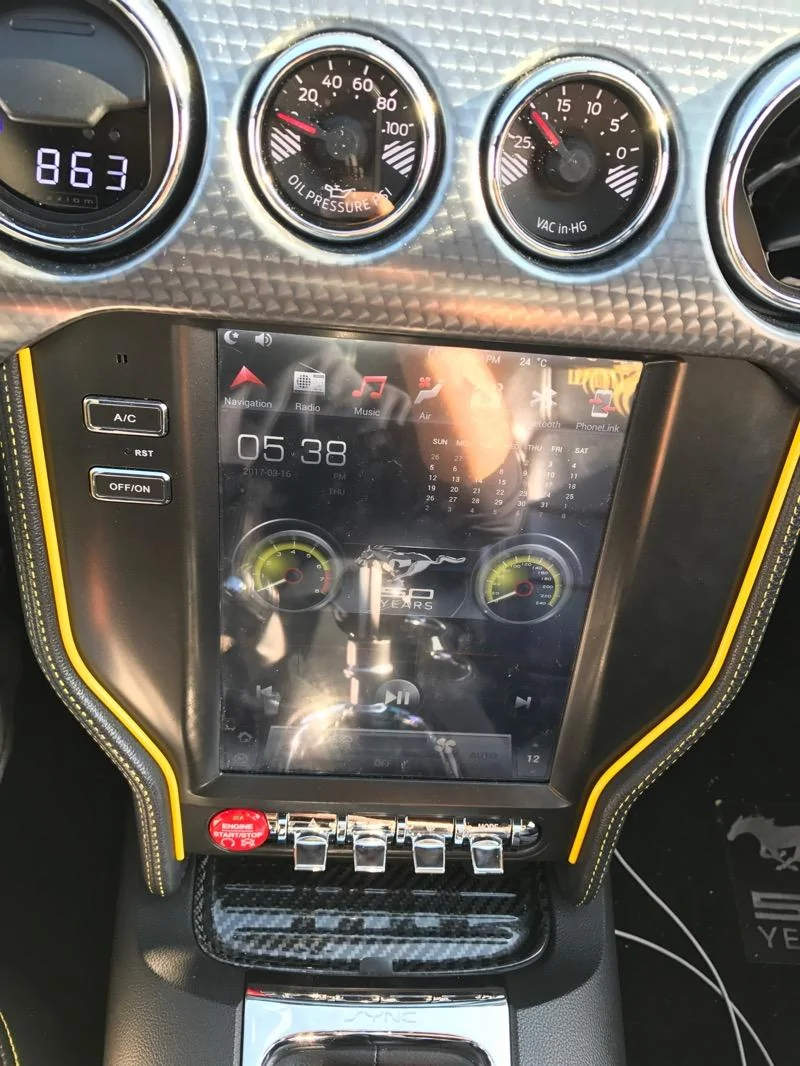

The blue guages look great!

Thanx @RVK for posting your wiki!
http://mustang.rajenki.com/Tesla-style_head_unit/Cables

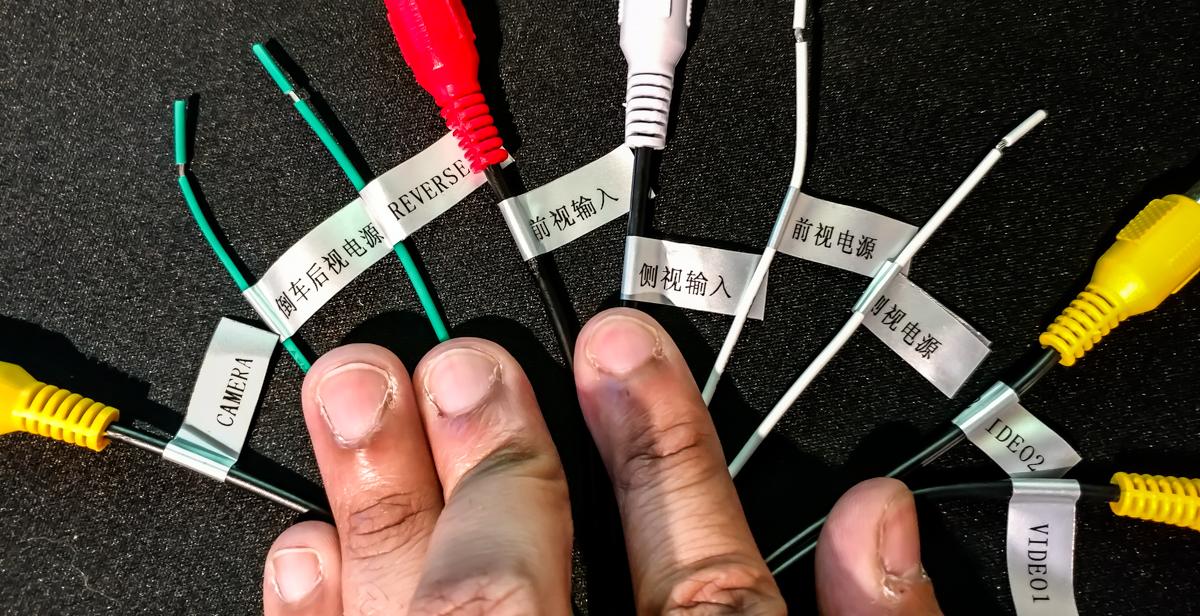

You were correct! The red RGA plug IS the FRONT camera. The white one is the RIGHT camera.

I have both CAMs now!

[ame="[MEDIA=youtube]mkRwAFc1YAA[/MEDIA]"]

I still don't have BT Phone working properly, but I do have BT music working fine. Strange!



[RVK]

Yay! Thank you @StangATX


The blue guages look great!

Thanx @RVK for posting your wiki!
http://mustang.rajenki.com/Tesla-style_head_unit/Cables
You were correct! The red RGA plug IS the FRONT camera. The white one is the RIGHT camera.


I have both CAMs now!



I still don't have BT Phone working properly, but I do have BT music working fine. Strange!

That's awesome, man! Glad it helped. I'll update the info on the wiki, but did you ever find out what the VIDEO1/VIDEO2 inputs map to?



[WavnAtCha]

That's awesome, man! Glad it helped. I'll update the info on the wiki, but did you ever find out what the VIDEO1/VIDEO2 inputs map to?

Not yet. It just feels weird to plug a yellow RCA plug (from camera video) into a red RCA plug... but it WORKS!

I do know that the red/white/yellow plugs in the harness to the head unit are mapped to AUX and work fine as well. Wish I could say the same about my BTPhone which suddenly isn't working anymore. I'm pretty sure I toggled something in the setup and killed it.

Perhaps [MENTION=21083]PatrickHenninger[/MENTION] will post screen shots of all his settings so I can see if I can get it back... *hint



[RVK]

Not yet. It just feels weird to plug a yellow RCA plug (from camera video) into a red RCA plug... but it WORKS!

I do know that the red/white/yellow plugs in the harness to the head unit are mapped to AUX and work fine as well.

You mean the one with the grey plug? So that's AUX video and audio?

Also:

- Did you find out if there's a cable for a left camera as well?
- What camera do you have for the front of your car and how did you mount it?
- Something that's not 100% clear to me yet (as I couldn't get it to work initially) is how the unit passes audio to the car. Is that the thing that goes to the little black box with that one big plug?



[WavnAtCha]

You mean the one with the grey plug? So that's AUX video and audio?

Yes

Also:

- Did you find out if there's a cable for a left camera as well?
- What camera do you have for the front of your car and how did you mount it?
- Something that's not 100% clear to me yet (as I couldn't get it to work initially) is how the unit passes audio to the car. Is that the thing that goes to the little black box with that one big plug?

- No Left Camera... Only labeled Right and Front. I suppose you can plug anything you want in them.
- This is the front camera I am using http://www.ebay.com/itm/222163143404?_trksid=p2057872.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT
- The little black box is the converter for the reverse camera



[RVK]

- No Left Camera... Only labeled Right and Front. I suppose you can plug anything you want in them.

Does the right camera come on if you use your right turn signal?

- The little black box is the converter for the reverse camera

How does the audio get connected then?



[WavnAtCha]

Does the right camera come on if you use your right turn signal?
How does the audio get connected then?

There is a toggle in Advance Setting for Right Camera and 360 Camera. I you toggle on Right Camera, when you turn on your right blinker, that screen will pop up on your dash.

If you toggle on 360 Camera, the Reverse Camera view will pop up on your screen.

Don't do it! It is VERY DISTRACTING.

Audio for what? There is no audio on any of the cams.



[RVK]

There is a toggle in Advance Setting for Right Camera and 360 Camera. I you toggle on Right Camera, when you turn on your right blinker, that screen will pop up on your dash.

If you toggle on 360 Camera, the Reverse Camera view will pop up on your screen.

Don't do it! It is VERY DISTRACTING.

Audio for what? There is no audio on any of the cams.

Thanks, that clarifies it.

The audio question is separate from the camera, sorry. I don't get how the unit hooks up to your car's speakers in general. The big plug with the two male red/white RCAs aren't it (I think)?



[WavnAtCha]

I don't get how the unit hooks up to your car's speakers in general. The big plug with the two male red/white RCAs aren't it (I think)?

The plugs that go into the back of the head unit and into the car wiring harness takes care of all that. The software takes care of the routing.



[RVK]

The plugs that go into the back of the head unit and into the car wiring harness takes care of all that. The software takes care of the routing.

Odd, I never had the audio working



[jordystang69]

StangATX is the man!

Where it has the radio controls, is that only for FM or does bluetooth audio show in there/can use those buttons from main page?

Also on the very top can you change temp from c to F
