Official APEX Wheels Showroom Gallery Thread

[Apex Wheels]

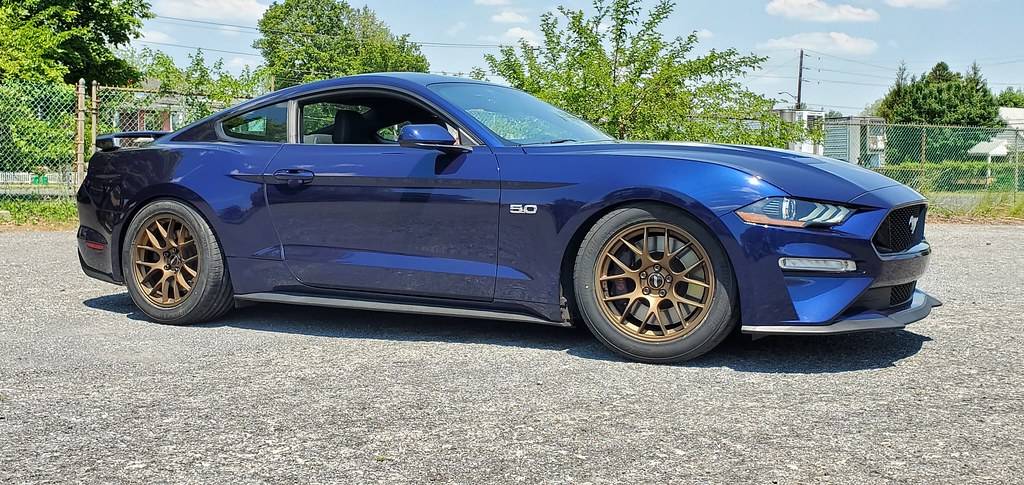

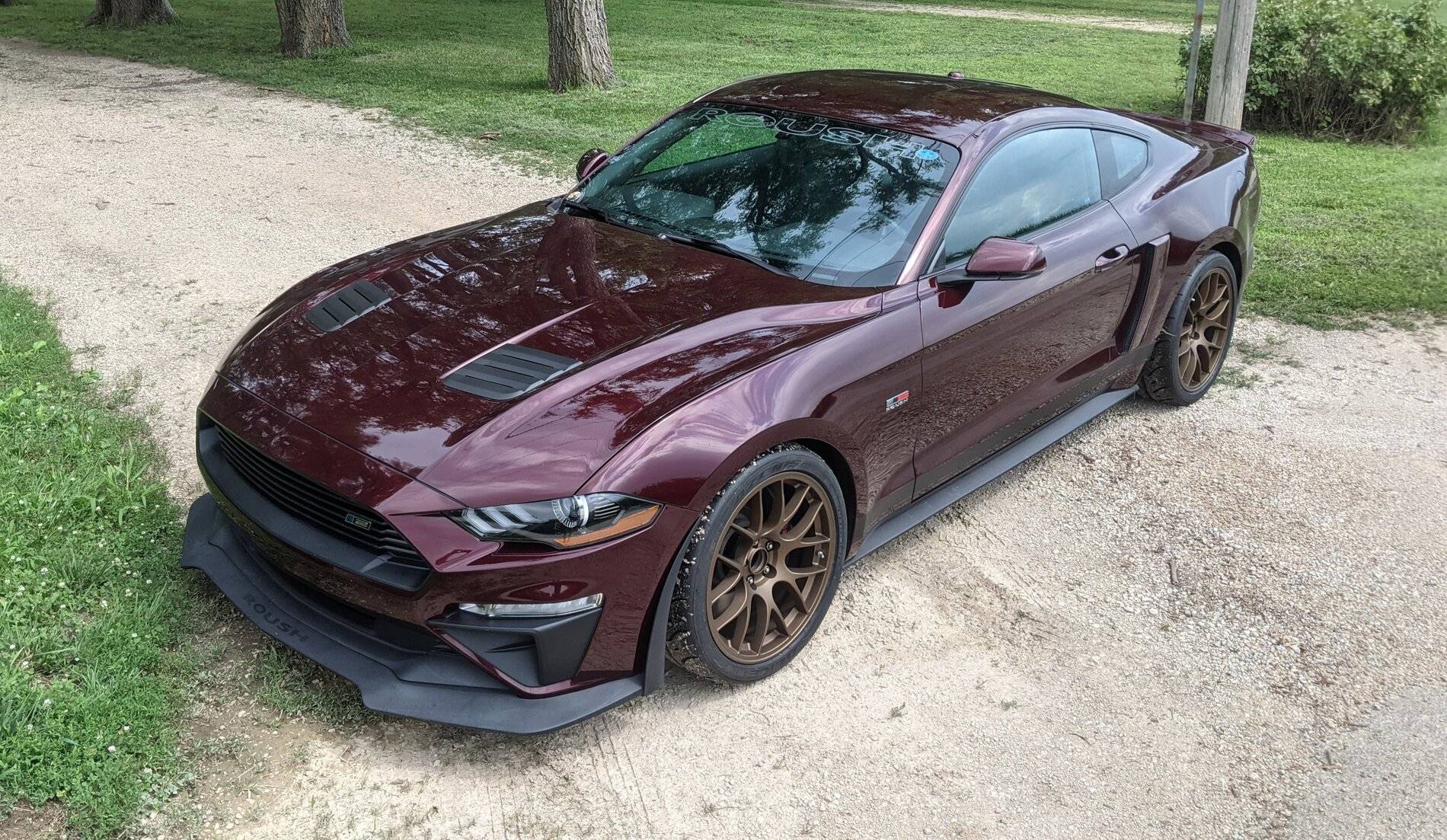

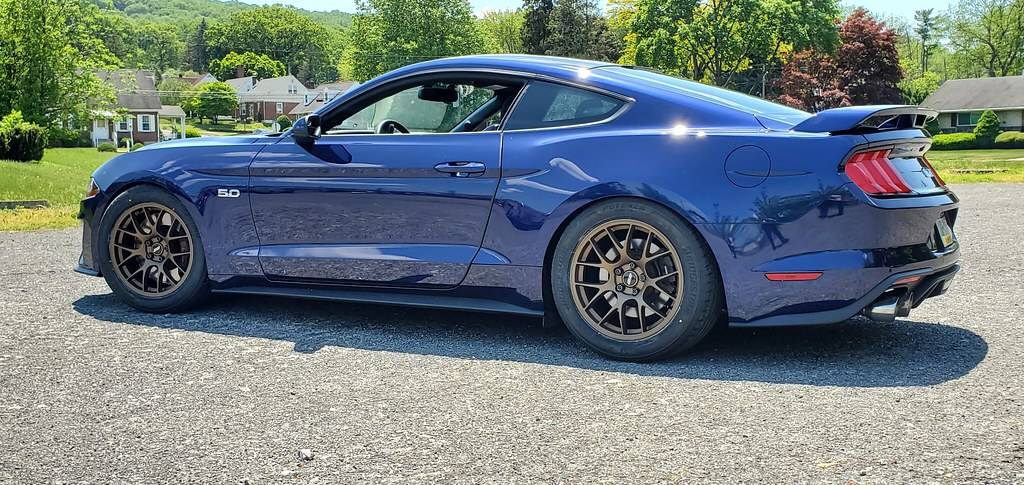

Got some great customer submitted photos of an S550 on a square 18" EC-7s setup in Bronze Finish with some meaty tires!

APEX Wheel Fitment Specs:

• Front/Rear: 18x9.5" ET35 with 275/45-18 Bridgestone Potenza S007As
• Suspension: Stock dampers with Eibach Sportline lowering springs (Reported no rubbing at all)

Sponsored



[TeeLew]

Around the new year, we dropped the retail price on these about $20 per wheel, so while it doesn't have the flashy sale tag next to it, it is less money than it was previously. (which is the definition of a sale )

Retail is retail.



[MadDog]

I am looking for some lightweight track wheels for my 2019 PP2. I would like to continue the factory stagger of 10.5" in the front and 11" in the rear. I see your ET52 for the rear, but I don't see a 10.5" for the front. Are any going to be available in the future?



[Apex Wheels]

I am looking for some lightweight track wheels for my 2019 PP2. I would like to continue the factory stagger of 10.5" in the front and 11" in the rear. I see your ET52 for the rear, but I don't see a 10.5" for the front. Are any going to be available in the future?

Hi, we have no plans to ever produce a 10.5" wheel for the Mustang as it gets too redundant with our 10" and 11" offerings. I would suggest running 19x11" ET26 up front which will better maximize that tire and improve performance.



[TeeLew]

I am looking for some lightweight track wheels for my 2019 PP2. I would like to continue the factory stagger of 10.5" in the front and 11" in the rear. I see your ET52 for the rear, but I don't see a 10.5" for the front. Are any going to be available in the future?

Most commonly, people will buy four 11" wheels w/ ET52 and then use a 25mm slip on spacer on the front with extended wheel studs. You will need a bit of negative camber (>-2* or so) to clear, but if you need that much tire on the front, you're generally running a good bit of camber, so it's no big deal.



[NightmareMoon]

Most commonly, people will buy four 11" wheels w/ ET52 and then use a 25mm slip on spacer on the front with extended wheel studs. You will need a bit of negative camber (>-2* or so) to clear, but if you need that much tire on the front, you're generally running a good bit of camber, so it's no big deal.

Yep. The 10.5 isn't really needed or ideal. I think Ford was just keeping slightly conservative backspace for clearance to the struts. 11" really are a better platform for the usual 305 tires on track anyway.

The 11"s ET52 which Apex sells with a 25mm spacer sits almost exactly as far outboard and is ~9mm closer inboard, and fits great with most 305 tires. Alternatively Apex will sell you a 11" ET26 if you don't like rotating your wheels and want to run w/o spacers on stock studs.



[Apex Wheels]

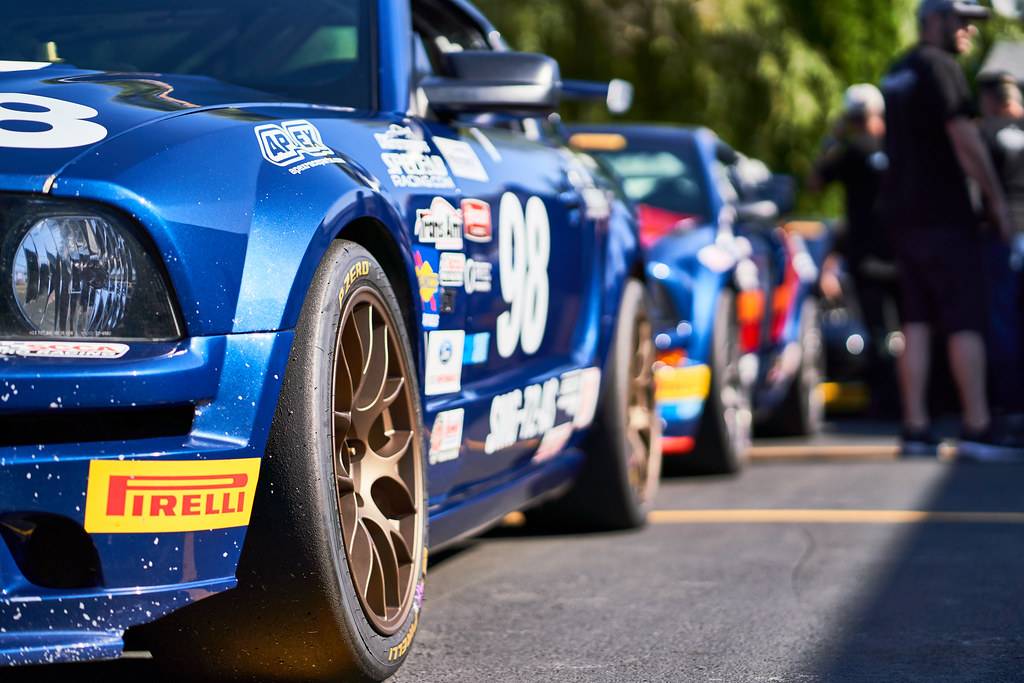

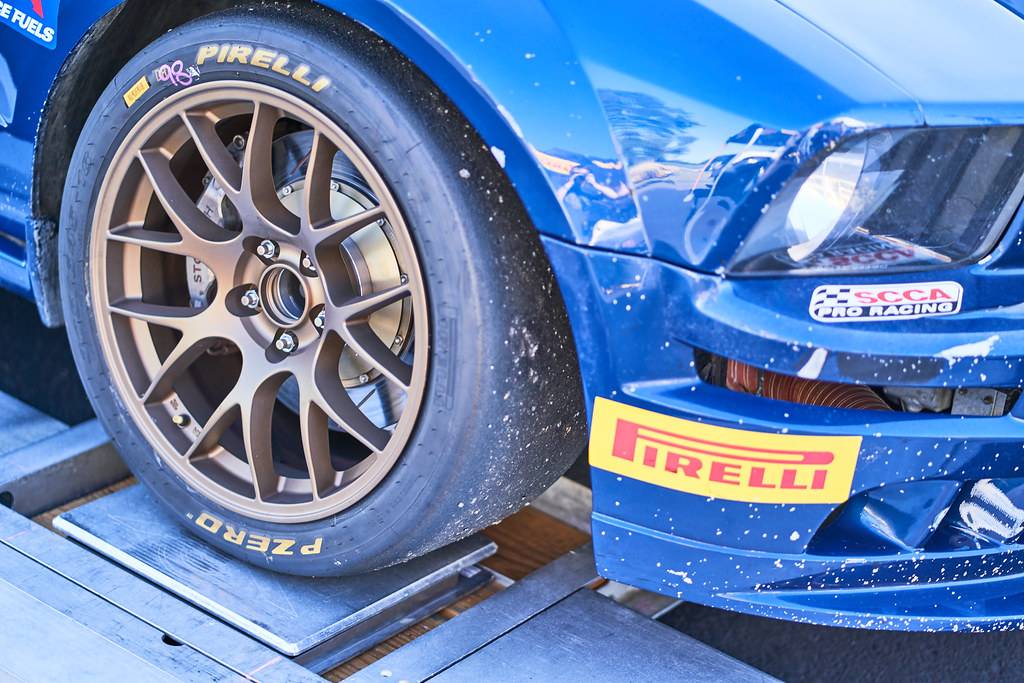

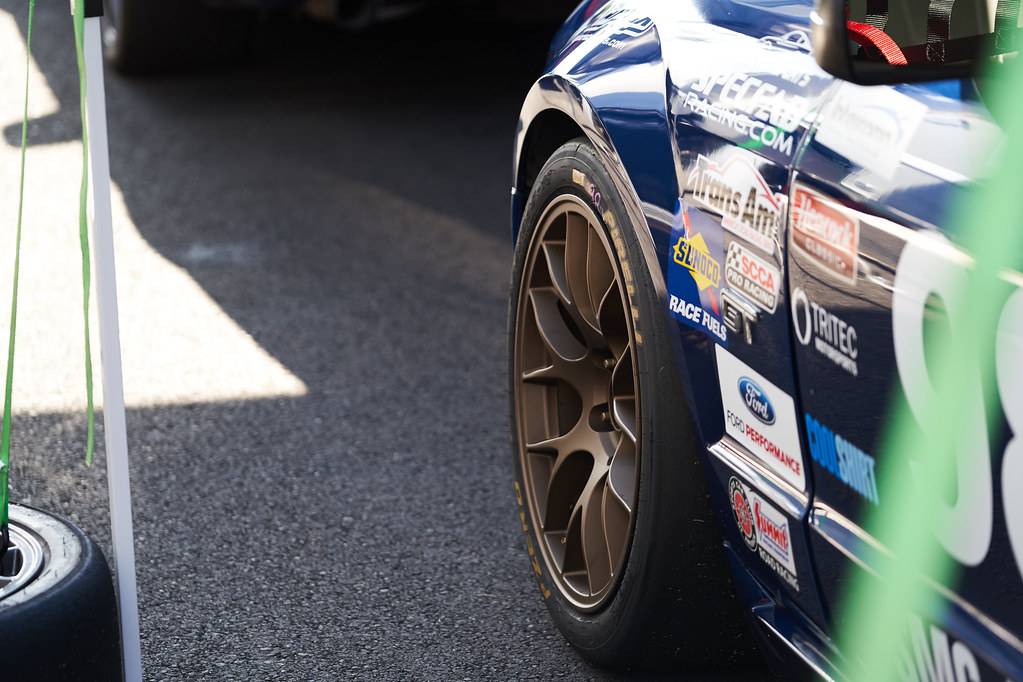

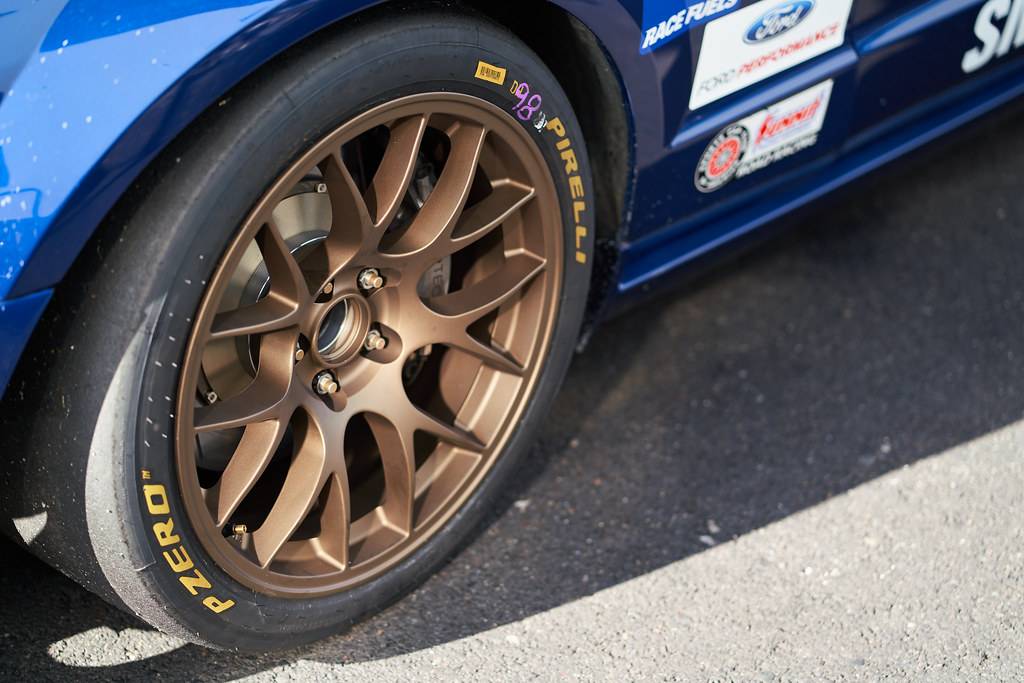

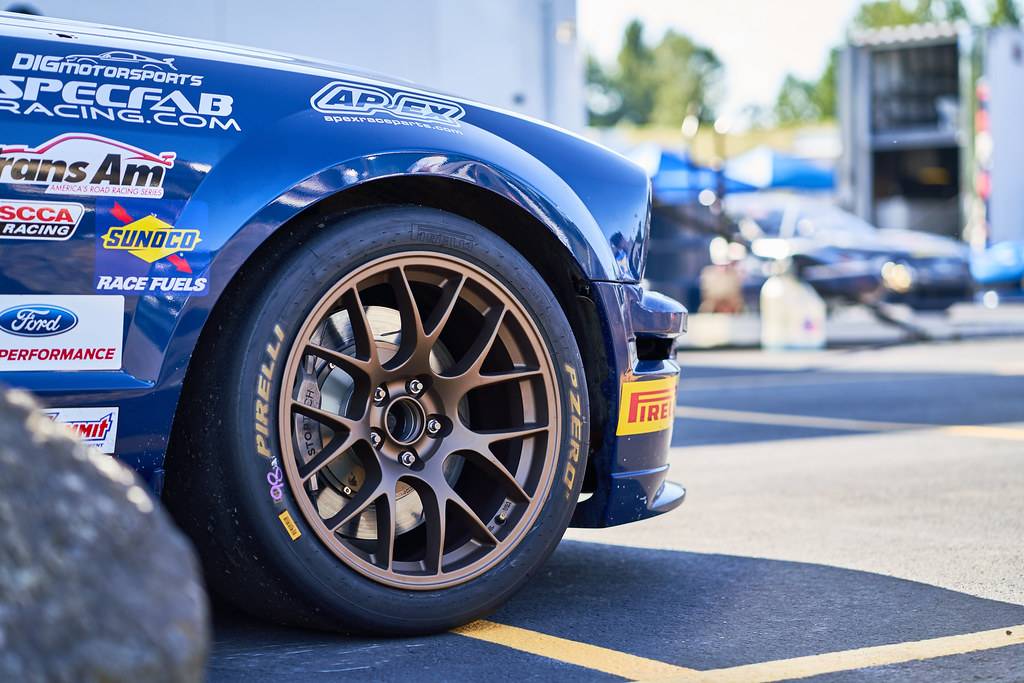

Here are some more good closeup photos of the DIG Motorsports S197 at PIR.

APEX Wheel Fitment Specs:

• Front/Rear: 18x11" ET52 EC-7s in Bronze Finish
• Tires: 305/645-18 Pirelli DH Slicks



[TeeLew]

Nice wheels. They're not shy with the camber, are they?



[duns]

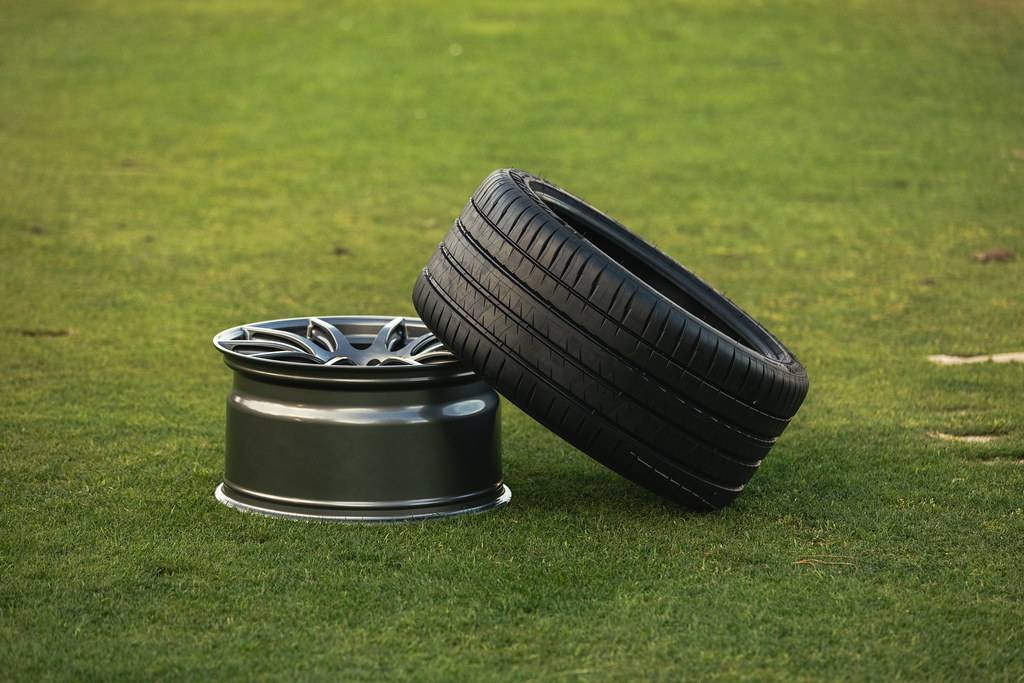

Charles wanted to do something different with his nicely modded GT500, so he reached out to us about picking up a set of SM-10 wheels for his ride, but with an intriguing question. Does 19x11.5" fit up front? After some careful measurements back and forth, we're happy to report it does! Combined with Cortex offset coilovers and just 1/2" spacers, he's rocking 19x11.5" ET56 all around wrapped in 305 Michelin PS4S tires. 325s are coming soon, with a slightly larger spacer.

- Cory

Holly cow! What size 305's went on there?



[Apex Wheels]

Holly cow! What size 305's went on there?

Those are 305/30-19 all around.



[Apex Wheels]

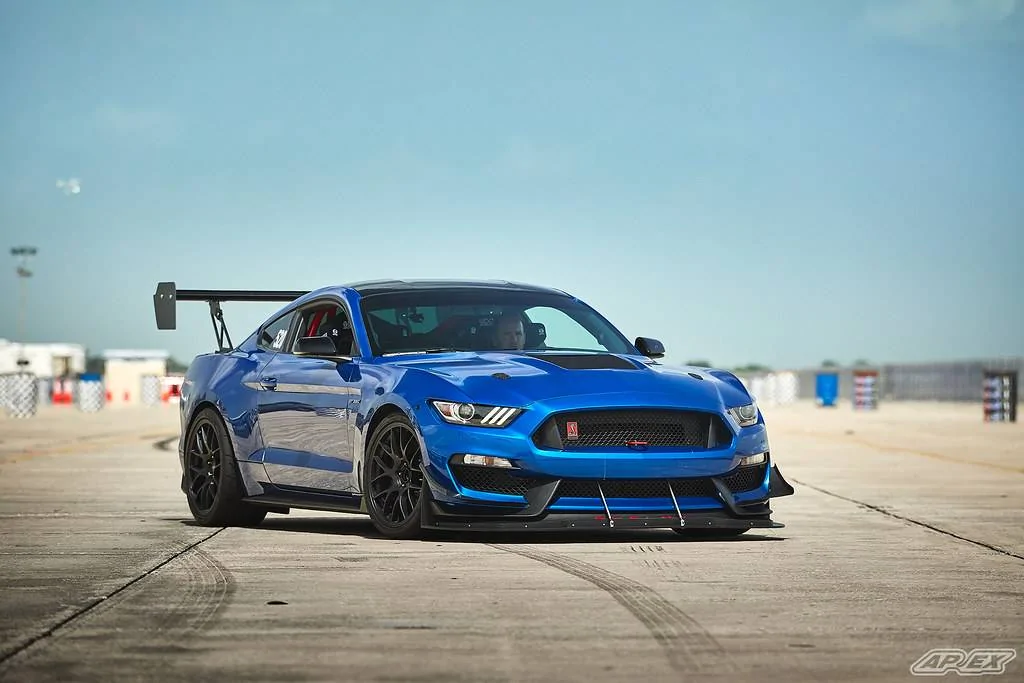

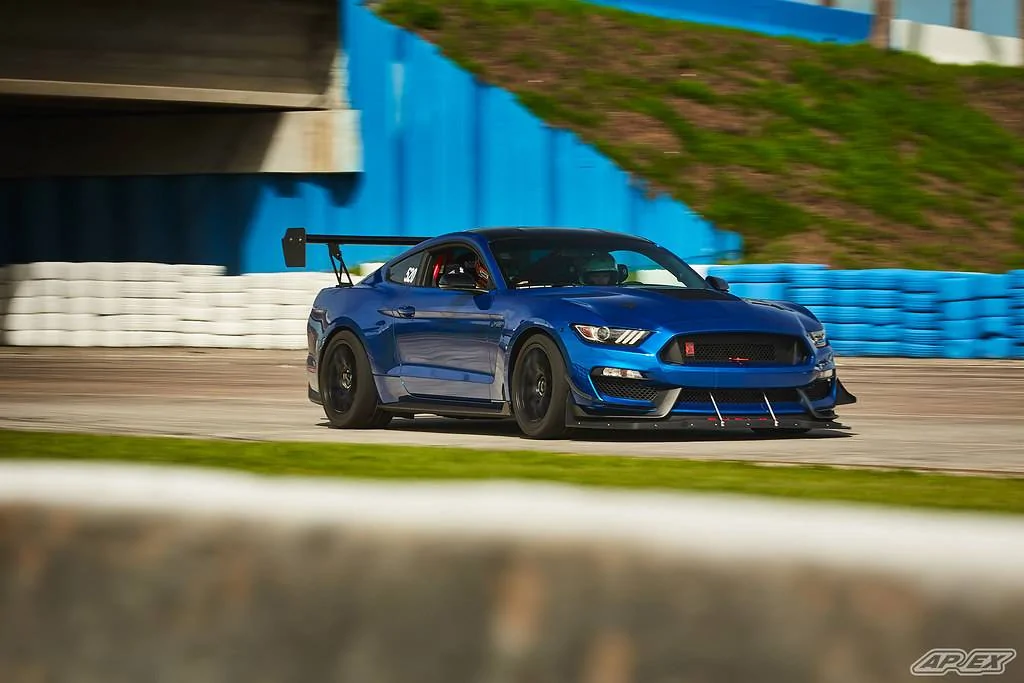

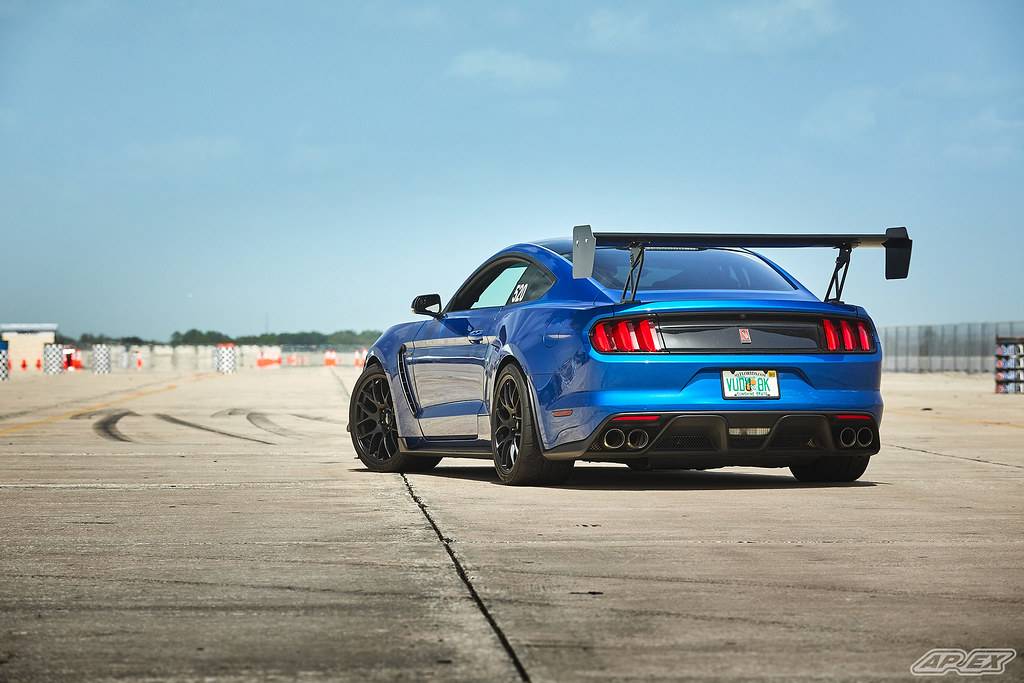

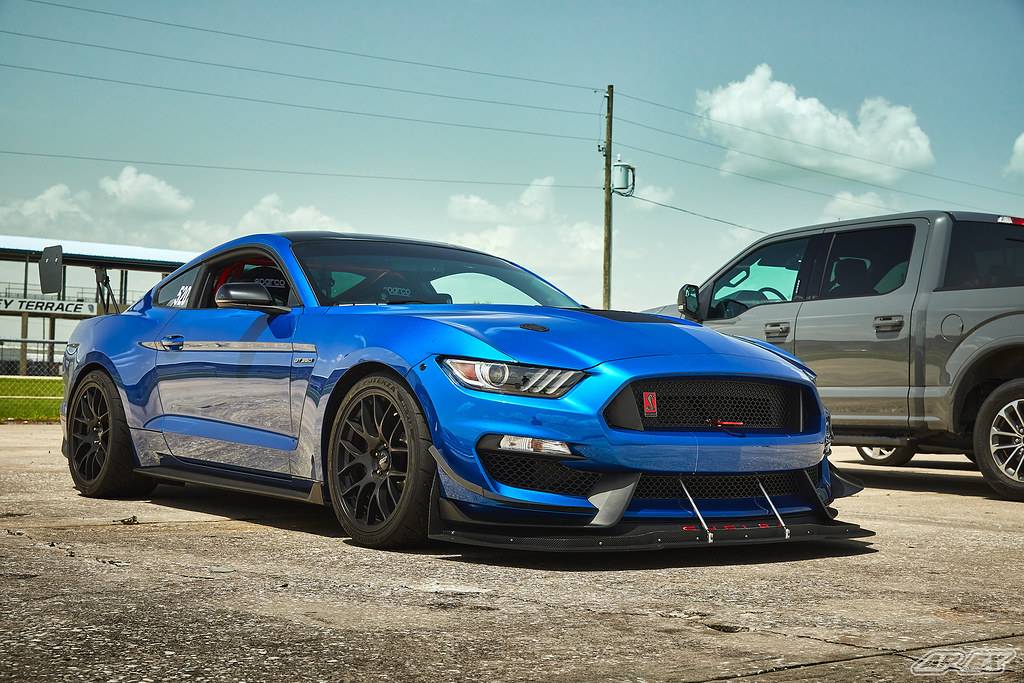

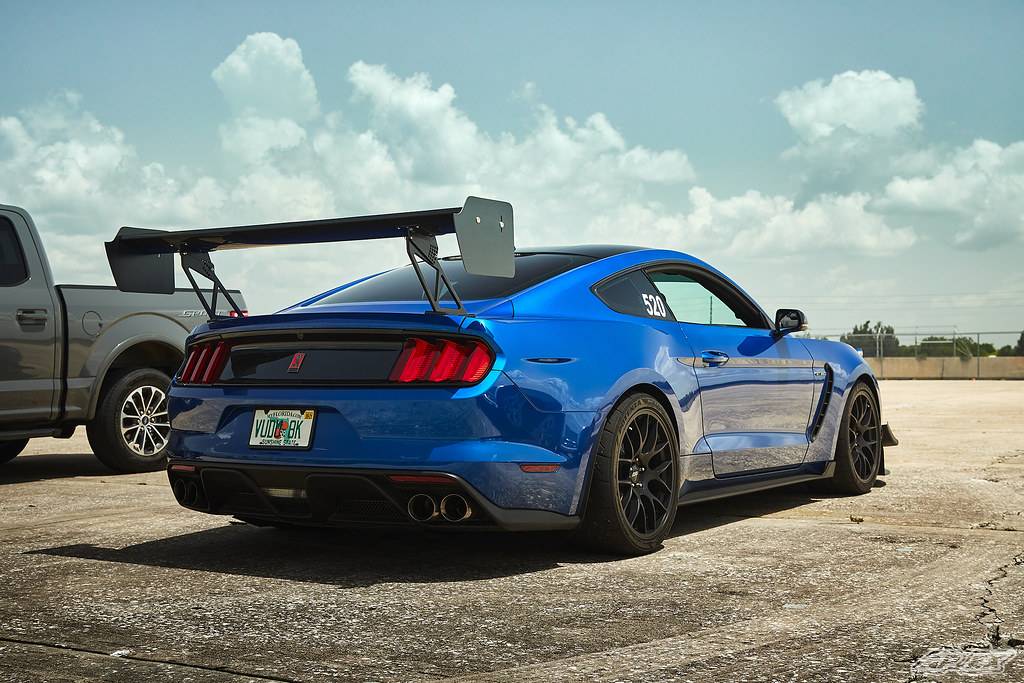

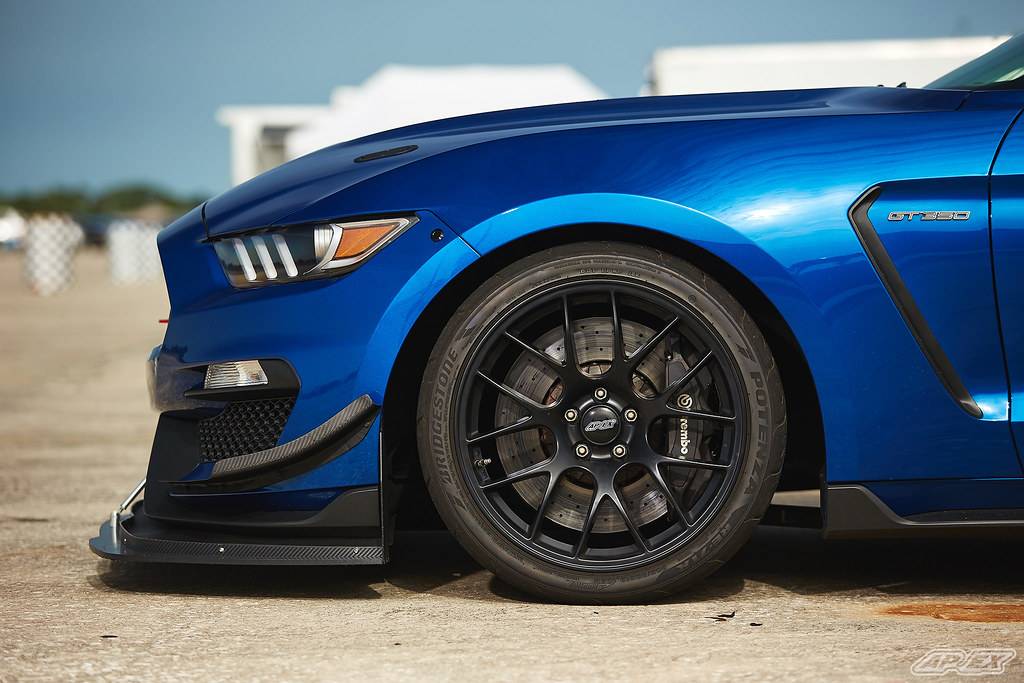

Jeff's 2017 Shelby GT350 with 19" EC-7 Wheels in Satin Black

APEX Wheel Fitment Specs:

• Front/Rear: 19x11" ET52 EC-7 with Bridgestone RE-71R 305/30/19 Tires
• Suspension: Ford Performance Springs and Maximum Motorsports Camber Plates
• Hardware: 25MM Front Spacers with ARP Extended Studs Front and Rear

Owner's Instagram: @thejeffashton



[Apex Wheels]

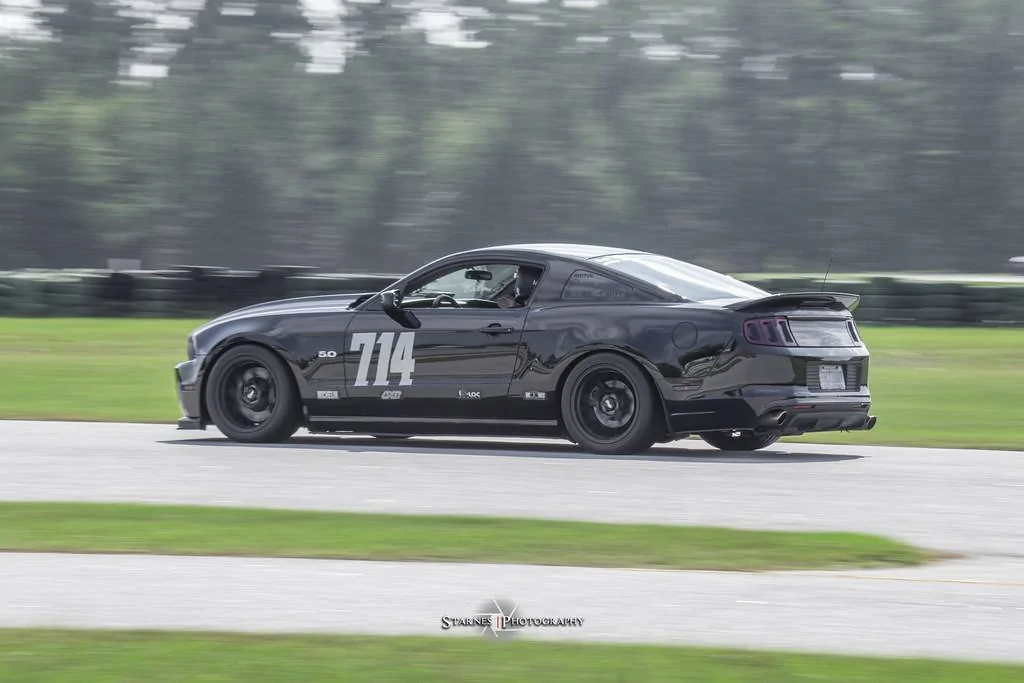

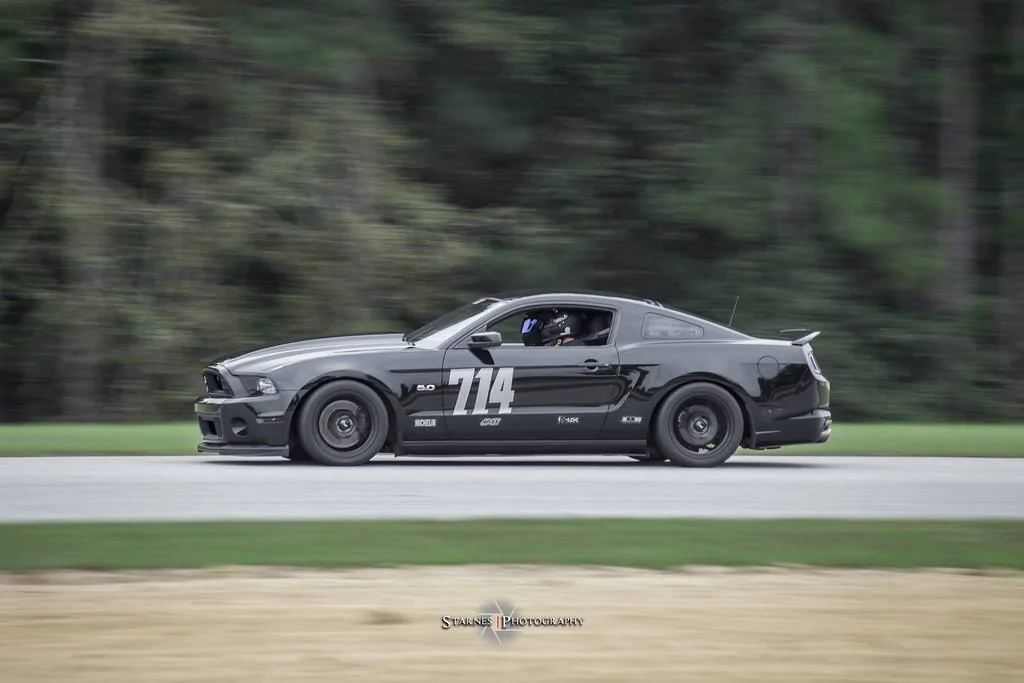

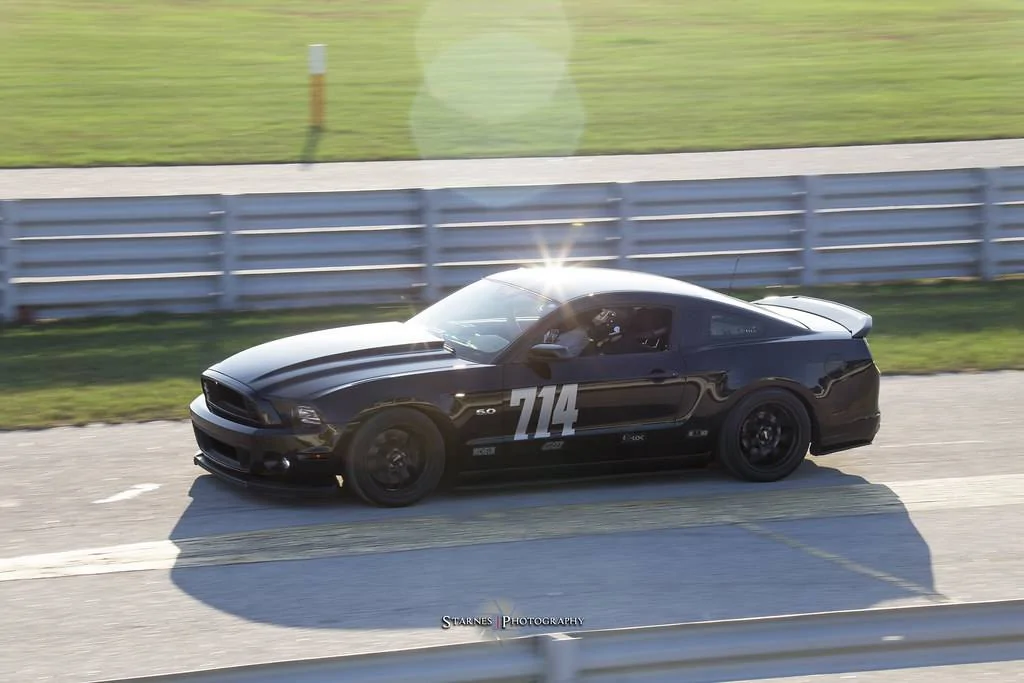

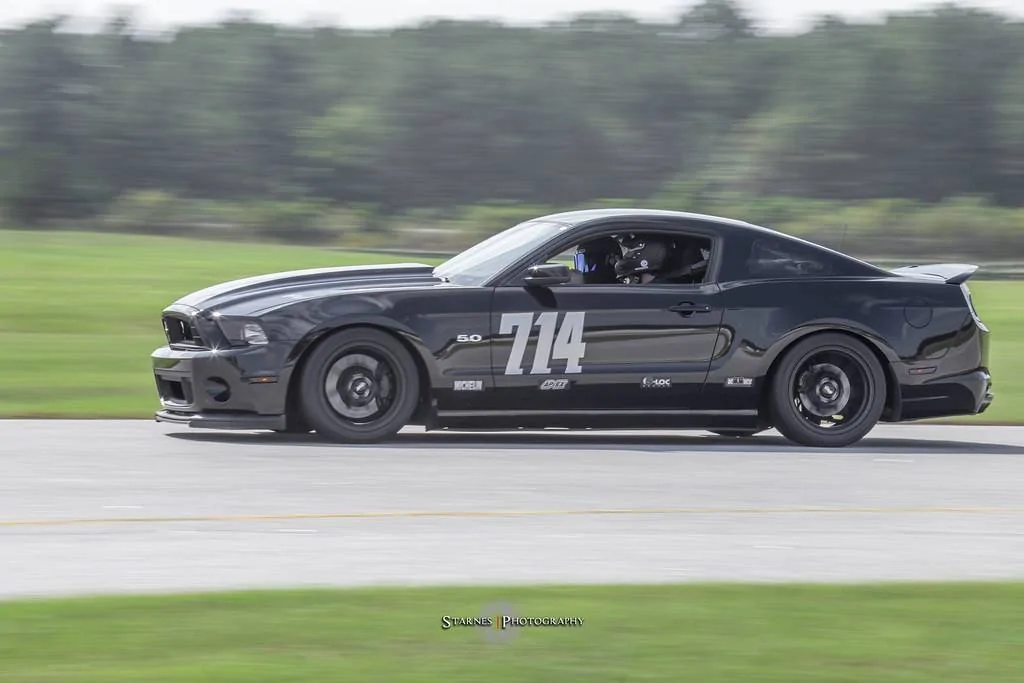

Some good rolling shots of Matt's S197 with APEX EC-7 wheels.

APEX Wheel Fitment Specs:

• Front/Rear: 18x10" ET43 EC-7 Wheels in Satin Black swith 295/35-18 Michelin Pilot Super Sport Tires
• Additional modifications: ARP 3" Wheel Studs, Vorshlag Lugs , 15mm spacer

Owner's Instagram: @mattthecarman



[Apex Wheels]

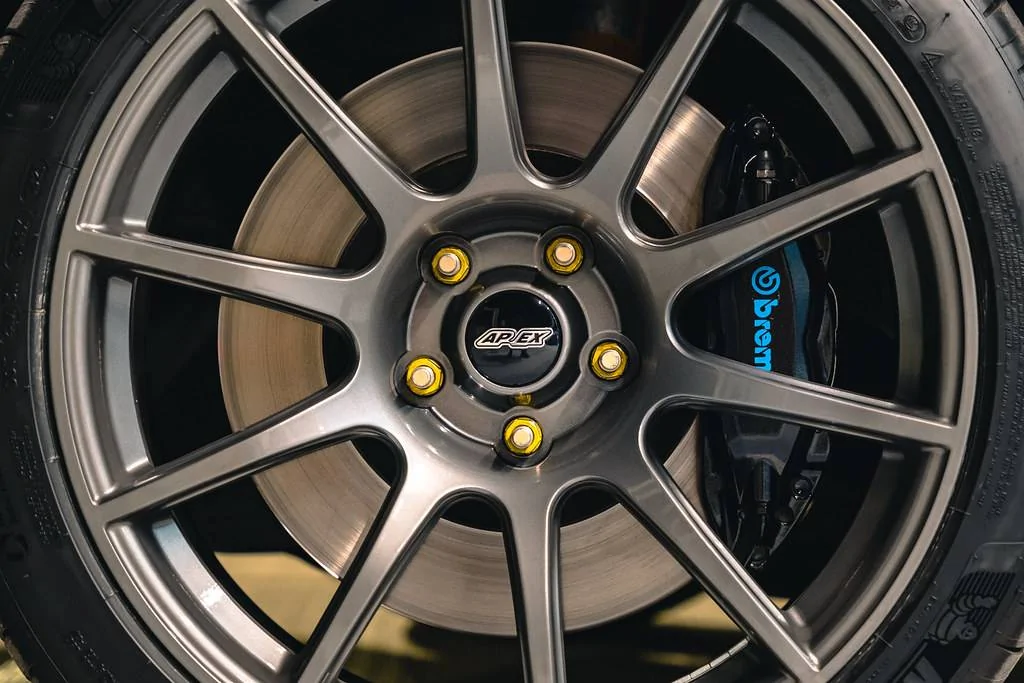

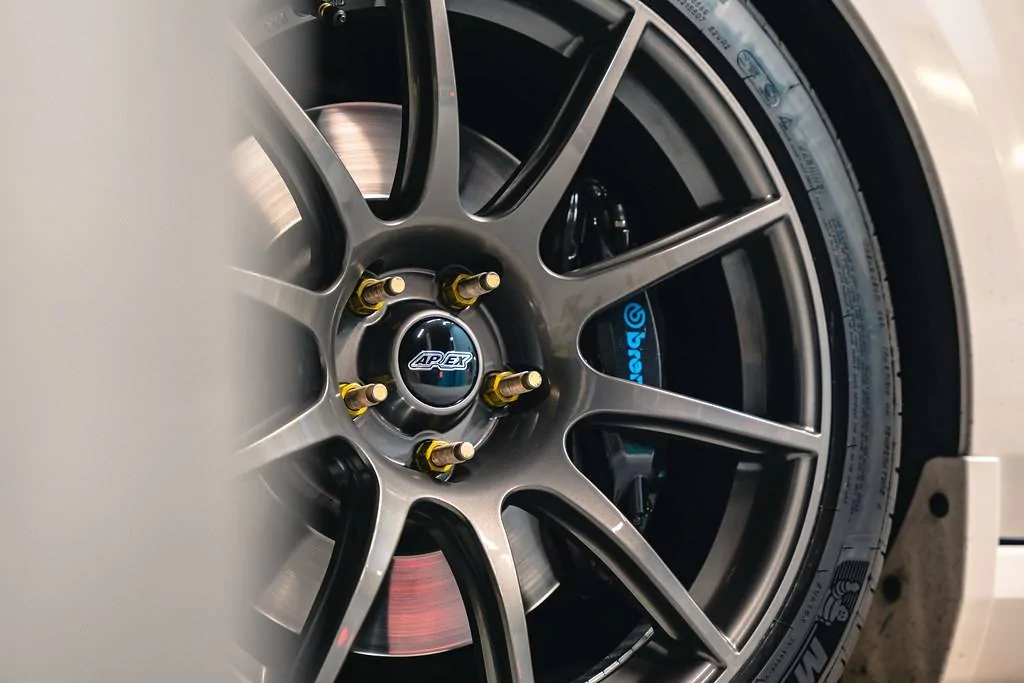

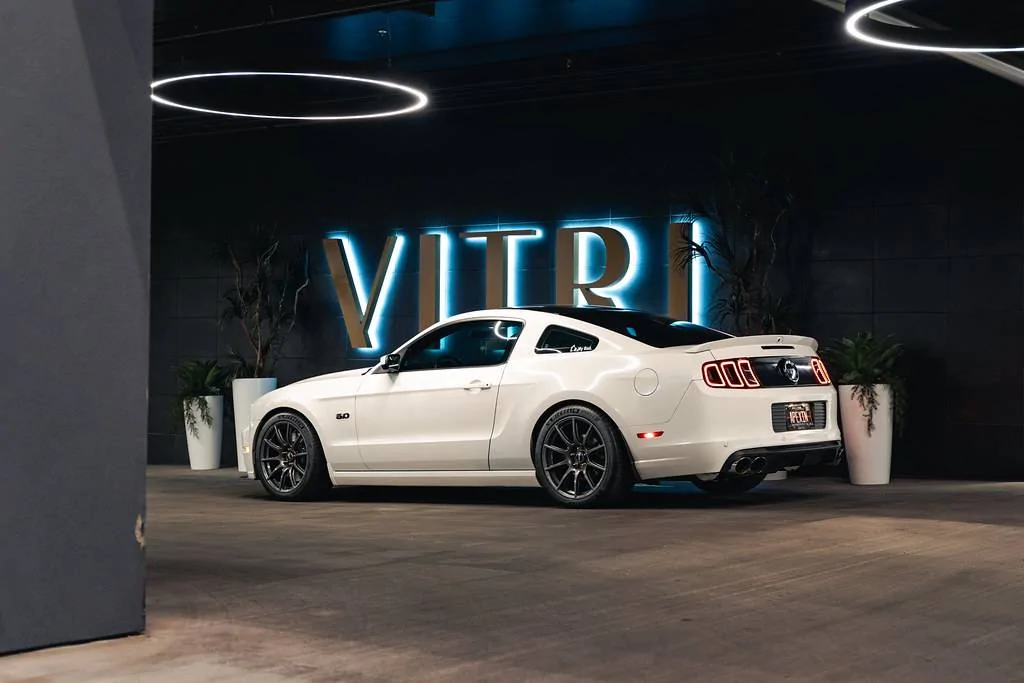

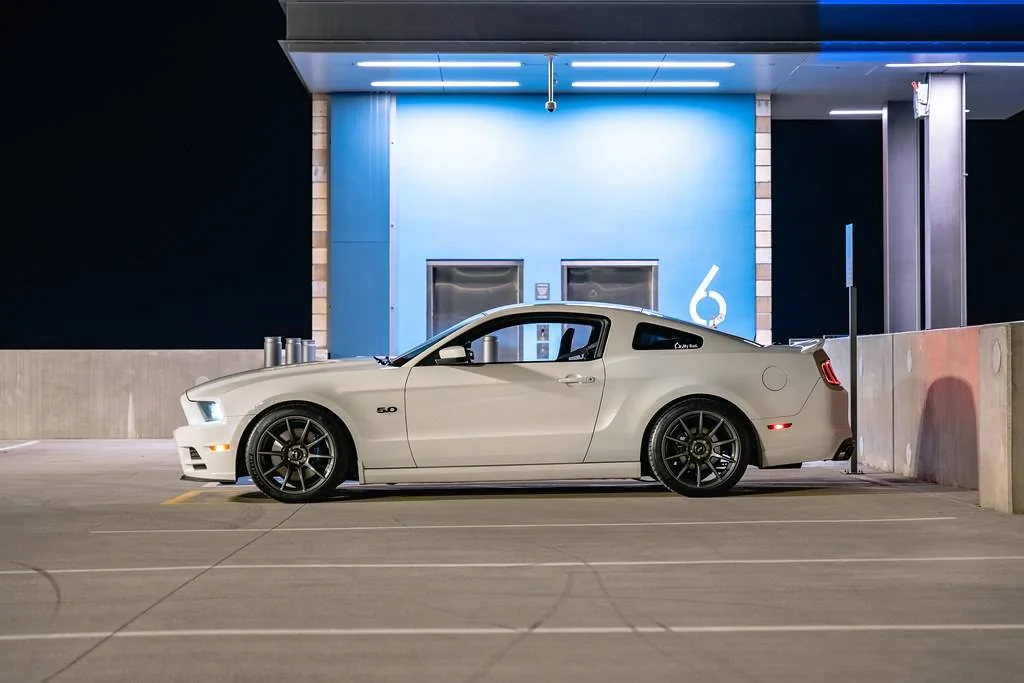

Massimo's S197 on 19" APEX SM-10 wheels in Anthracite Finish

APEX Wheel Fitment Specs:

• Front/Rear: 19x10" ET40 with Michelin PS4S Tires

Owner's Instagram: @massimo.raw



[Steve68Cougar]

Finally got the 19x11s put on the car over the weekend. I used Vorshlag plates, 25mm spacers and extended studs along with 305/30-19 Falken Azenis RT660s. I've got an alignment set up for this Thursday and will be autocrossing it this Saturday and Sunday. Looking forward to seeing how much better it handles.



[Apex Wheels]

Finally got the 19x11s put on the car over the weekend. I used Vorshlag plates, 25mm spacers and extended studs along with 305/30-19 Falken Azenis RT660s. I've got an alignment set up for this Thursday and will be autocrossing it this Saturday and Sunday. Looking forward to seeing how much better it handles.

Oh that's going to be REAL GOOD. Post more please
