Official APEX Wheels Showroom Gallery Thread

Discussion in 'Wheels & Tires' started by ApexRaceParts, Feb 21, 2017.

  1. ApexRaceParts

    ApexRaceParts Well-Known Member
    Gold Sponsor


    Vehicle(s):
    Mustang
    Joined:
    Dec 27, 2016
    Location:
    Bay Area
    Posts:
    599
    Likes Received:
    214
    0   0   0
    #1 ApexRaceParts, Feb 21, 2017
    Last edited: Feb 5, 2019





    With an increasing number of Mustang enthusiasts mounting APEX wheels on their vehicles, and wider 18" and 19" Mustang wheels in development, we wanted to create a thread where the community could collectively share photos, fitment information, and any feedback on the wheels in one centralized location. Feel free to just post up pictures, and if you don't mind, please also include the following since many tire sizes are not a direct fitment, and members would like to know the specifics of how to achieve the same fit/look:

    • Wheel Model, Color, Size & Offset
    • Front and Rear Tire sizes, Tire Make & Model
    • Suspension Modifications, Camber Plates or camber bolts
    • Any required alignment settings such as added negative camber
    • Any other required modification (Spacers, Fender Rolling, Trimming etc.)

    We will kick things off with Josh's personal track machine from Trinity Autosport, also a 6G sponsor. Josh has ran our EC-7 18x10 square fitment for some time now, and has killed off countless sets of 275 and 285 tires at So Cal tracks in the process :headbang: His current setup is listed below:

    2015 S550 Mustang GT 5.0 - Performance Pack

    • APEX Wheels: EC-7 in Race Silver
    • Front: 18x10” ET43 EC-7 with 305/35-18 NT01
    • Rear: 18x10” ET43 EC-7 with 305/35-18 NT01
    • Spacers: 15mm up front with extended stud kit
    • Suspension: Swift lowering springs
    • Camber: F: -2.5 degrees, R: -1.8 degrees




    job likes this.
  2. wildcatgoal

    wildcatgoal @sirboom_photography

    Vehicle(s):
    TBD
    Joined:
    Feb 8, 2016
    Location:
    USA
    Posts:
    6,596
    Likes Received:
    2,455
    0   0   0
    If you want to send me a set of those extended lugs in the same box as four of those wheels, I'll be glad to post a photo here... haha, hehe... uh. :( I'll go away...

  3. job

    job Active Member

    Vehicle(s):
    74 Capri, 85 Audi, 2005 Dodge 2500,2017 GTPP
    Joined:
    Aug 16, 2016
    Location:
    Roseville
    Posts:
    34
    Likes Received:
    10
    0   0   0
    IF I could get the wheels I would share the pictures.

  4. OP
    OP
    ApexRaceParts

    ApexRaceParts Well-Known Member
    Gold Sponsor


    Vehicle(s):
    Mustang
    Joined:
    Dec 27, 2016
    Location:
    Bay Area
    Posts:
    599
    Likes Received:
    214
    0   0   0
    :headbonk:

    Did you participate in our recent Group Buy? :D

    - Ryan

  5. job

    job Active Member

    Vehicle(s):
    74 Capri, 85 Audi, 2005 Dodge 2500,2017 GTPP
    Joined:
    Aug 16, 2016
    Location:
    Roseville
    Posts:
    34
    Likes Received:
    10
    0   0   0
    Yes, when are the wheels coming?

  6. OP
    OP
    ApexRaceParts

    ApexRaceParts Well-Known Member
    Gold Sponsor


    Vehicle(s):
    Mustang
    Joined:
    Dec 27, 2016
    Location:
    Bay Area
    Posts:
    599
    Likes Received:
    214
    0   0   0
    Right on, appreciate the support. The wheels are in production as we speak, and we are looking to ship out all Group Buy orders by 4/1. I know everyone is eager to get these wrapped in tires ASAP.

    - Ryan

  7. OP
    OP
    ApexRaceParts

    ApexRaceParts Well-Known Member
    Gold Sponsor


    Vehicle(s):
    Mustang
    Joined:
    Dec 27, 2016
    Location:
    Bay Area
    Posts:
    599
    Likes Received:
    214
    0   0   0
    2015 S550 Mustang GT 5.0 - Performance Pack

    • APEX Wheels: EC-7 in Anthracite
    • Front: 18x10” ET43 EC-7 with 305/35-18 NT01
    • Rear: 18x10” ET43 EC-7 with 305/35-18 NT01
    • Spacers: 15mm up front with extended stud kit (for strut clearance)
    • Suspension: Ridetech Coilovers







  8. Ghost.5.0

    Ghost.5.0 Well-Known Member

    First Name:
    Tommy
    Vehicle(s):
    2018 Mustang GT PPL1
    Joined:
    Nov 19, 2016
    Location:
    Texas
    Posts:
    175
    Likes Received:
    52
    Rating:
    100%
    1   0   0
    I'm in on the group buy!

    ApexRaceParts likes this.
  9. job

    job Active Member

    Vehicle(s):
    74 Capri, 85 Audi, 2005 Dodge 2500,2017 GTPP
    Joined:
    Aug 16, 2016
    Location:
    Roseville
    Posts:
    34
    Likes Received:
    10
    0   0   0
    #9 job, Mar 28, 2017
    Last edited: Mar 28, 2017

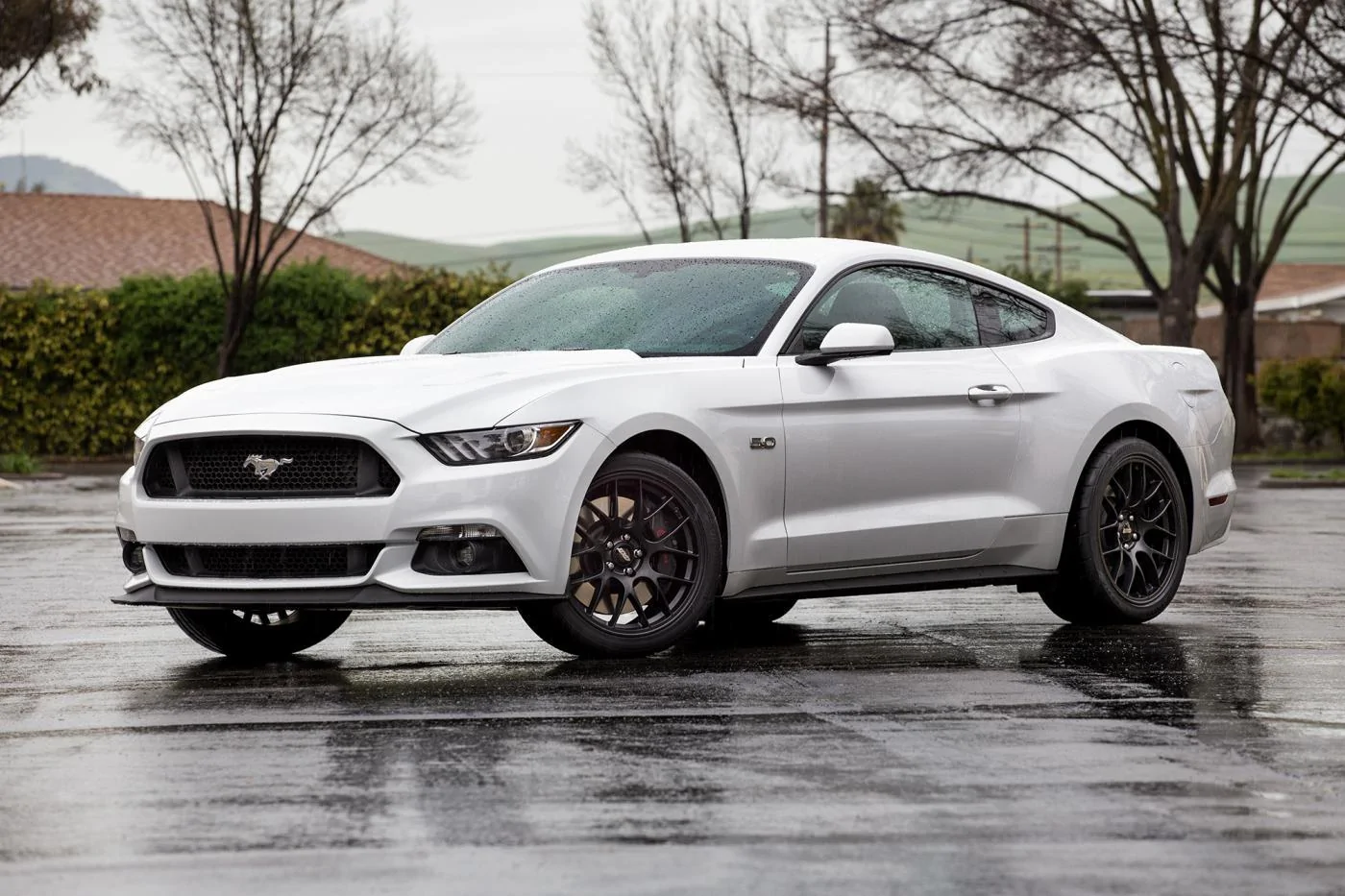

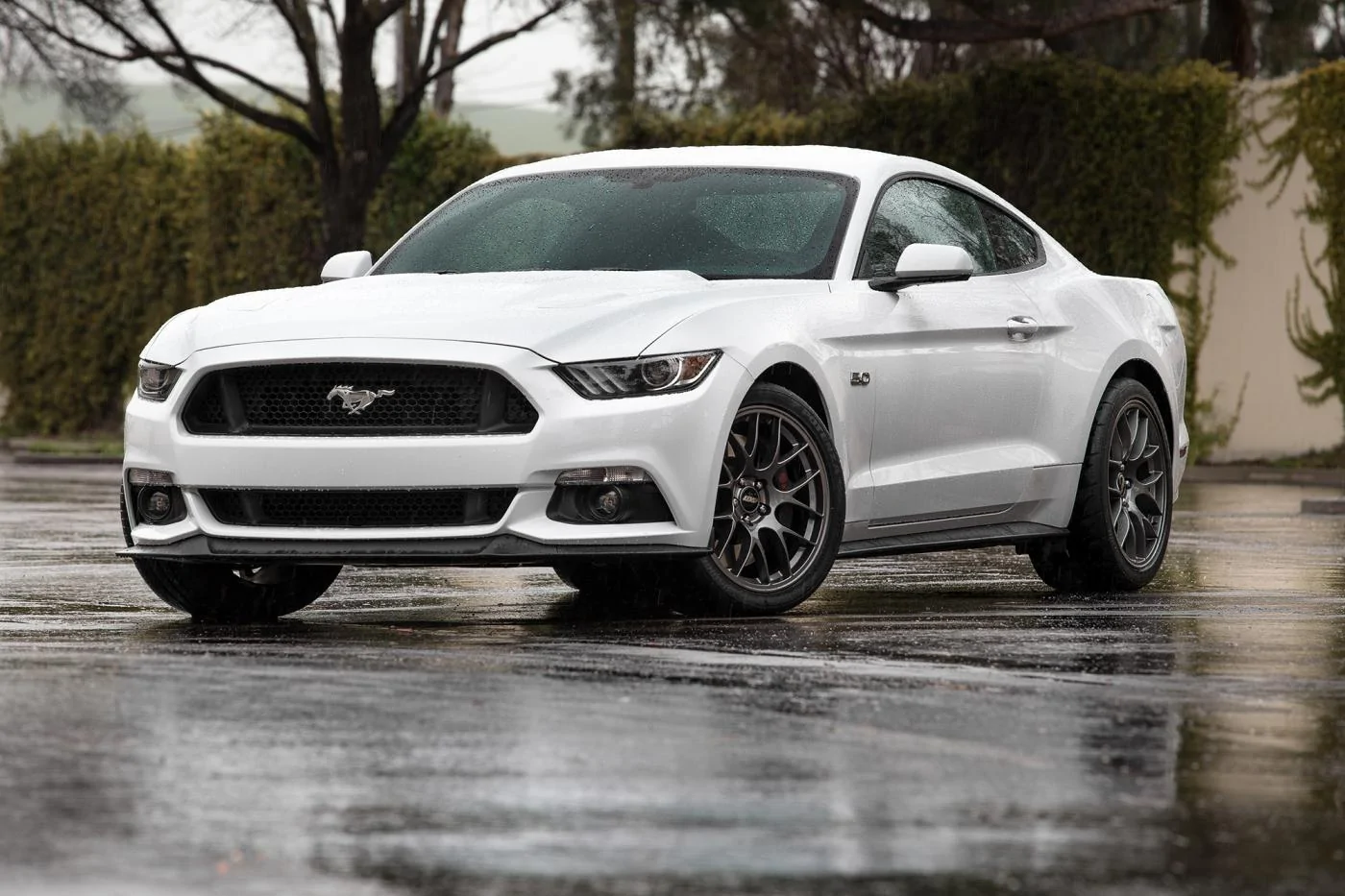

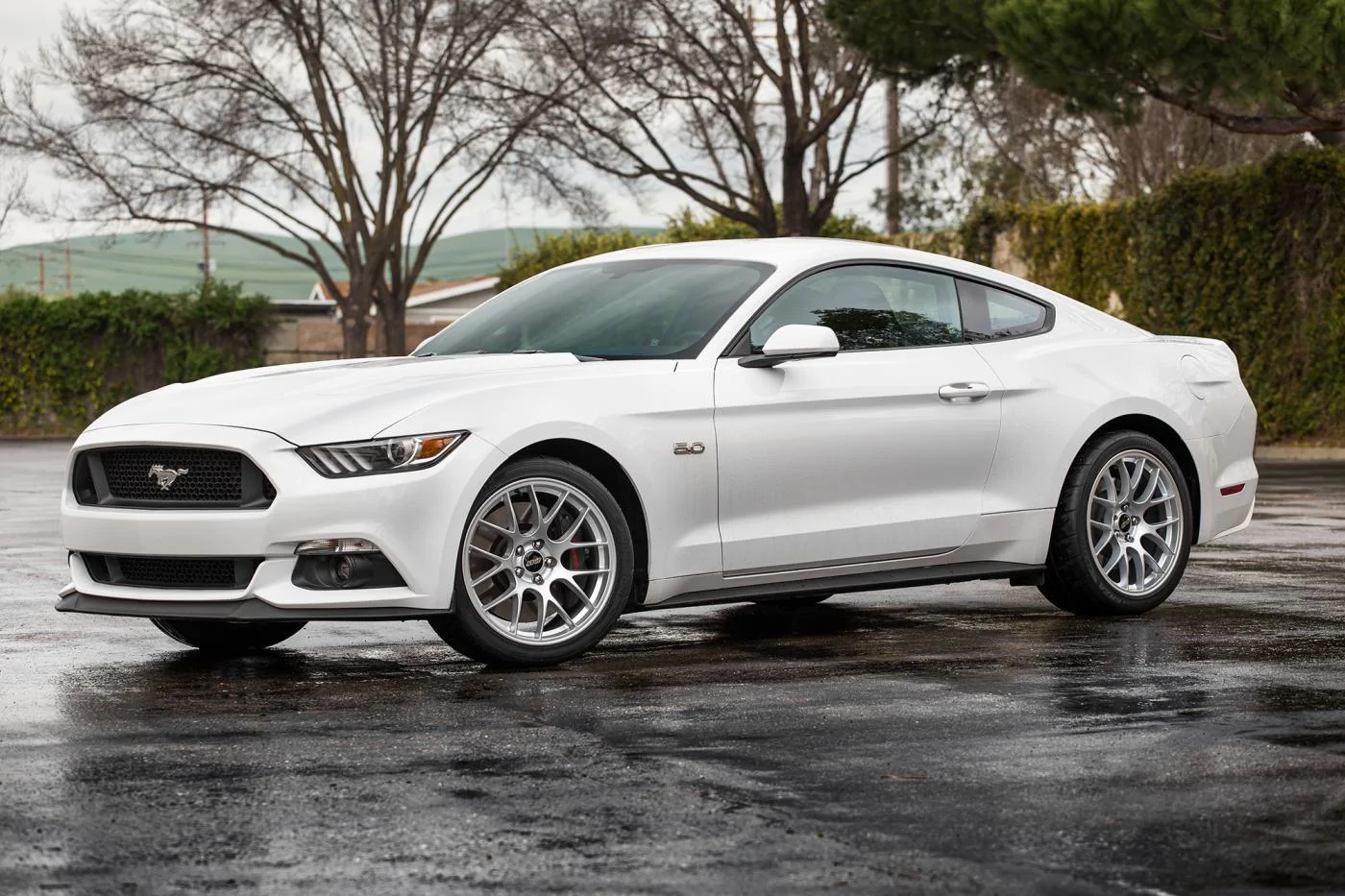

    Apex 19x10 ET43

    I dropped my car off the other day and Apex tried on some new shoes.

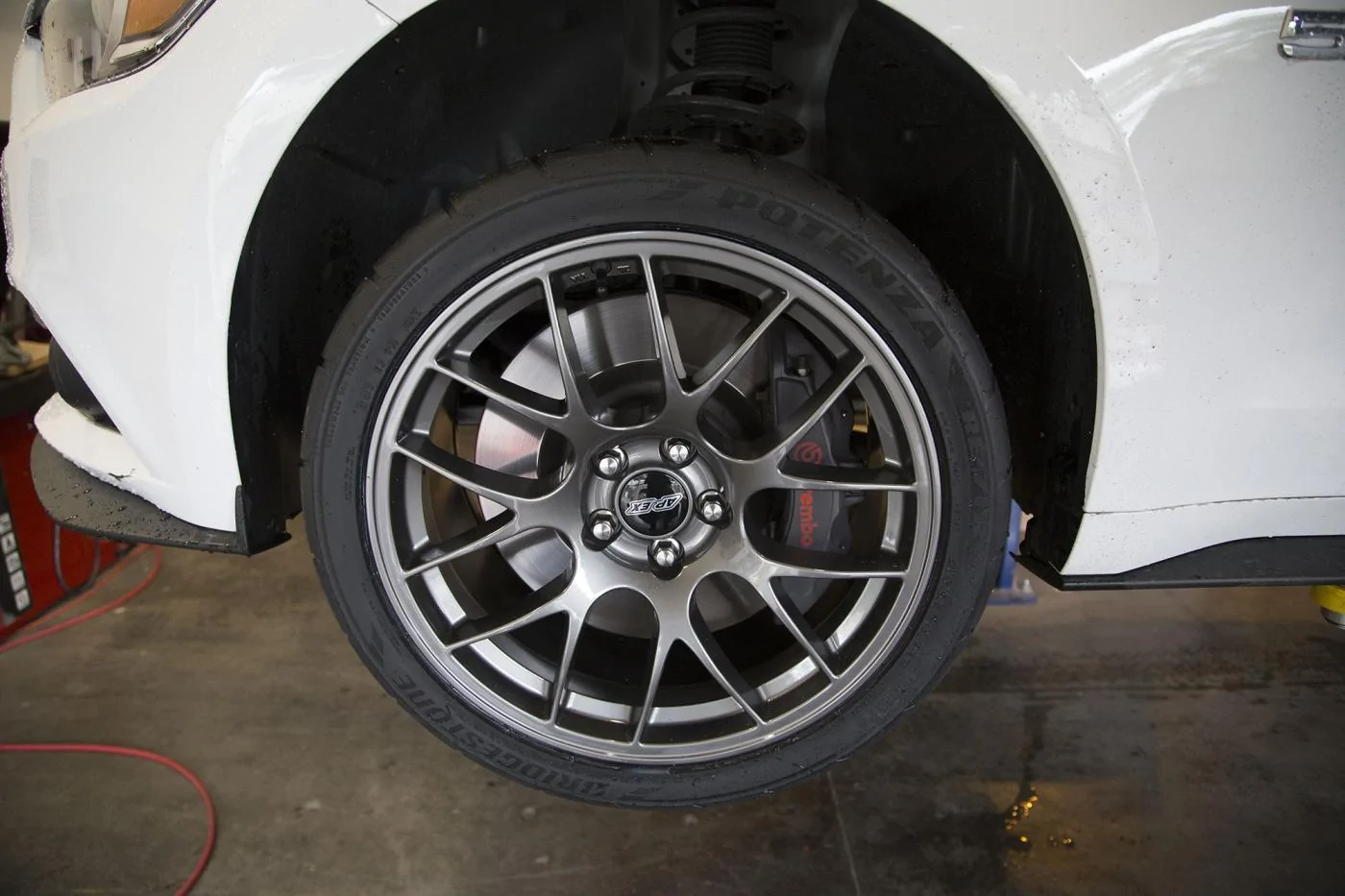

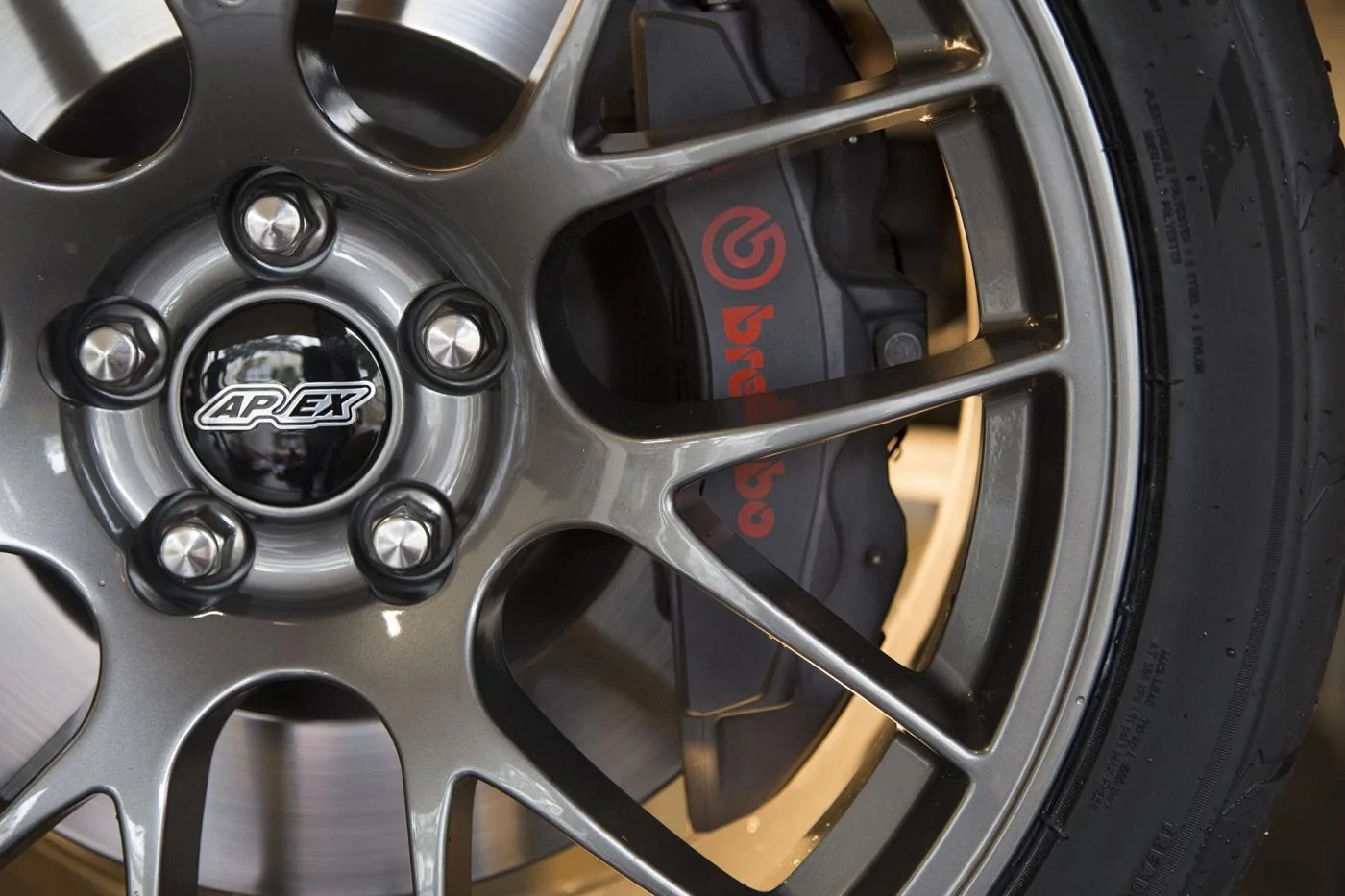

    All the wheels are 19X10 ET 43 with 275/35/19 RE-71R no spacers, and factory hardware.

    I did participate in the 18X10 group buy... IMG_2957-Edit.jpg IMG_2929-LeveledCrop-Edit.jpg IMG_2875-Edit.jpg closeup1.jpg closeup3.jpg

    Martinnfb and ApexRaceParts like this.
  10. hulk_smash

    hulk_smash Well-Known Member

    Vehicle(s):
    2016 Mustang GT
    Joined:
    Jun 2, 2016
    Location:
    Los Angeles, CA
    Posts:
    347
    Likes Received:
    75
    Rating:
    100%
    2   0   0
    I'd love to post photos but I need the GB to ship so I can mount the wheels!

  11. Hawk296

    Hawk296 Well-Known Member

    Vehicle(s):
    16' GT PP
    Joined:
    May 11, 2015
    Location:
    Waterford, MI
    Posts:
    115
    Likes Received:
    51
    0   0   0
    They have a day or two to make the claimed April 1st ship date :frusty:

  12. Brent Dalton

    Brent Dalton Sua Sponte

    Vehicle(s):
    2016 Mustang GT PP
    Joined:
    Mar 1, 2015
    Location:
    GA
    Posts:
    650
    Likes Received:
    304
    0   0   0
  13. Grintch

    Grintch Well-Known Member

    Vehicle(s):
    2015 GT PP
    Joined:
    Nov 7, 2014
    Location:
    Hunstville
    Posts:
    1,441
    Likes Received:
    467
    0   0   0
    I thought the new 19x10s were supposed to be ET40 rather than ET43?

    Do we have weights on the new 19 wheels yet?

  14. job

    job Active Member

    Vehicle(s):
    74 Capri, 85 Audi, 2005 Dodge 2500,2017 GTPP
    Joined:
    Aug 16, 2016
    Location:
    Roseville
    Posts:
    34
    Likes Received:
    10
    0   0   0
    You're right, but this is the information I was given.
    I did not ask the weights.

    ApexRaceParts likes this.
  15. OP
    OP
    ApexRaceParts

    ApexRaceParts Well-Known Member
    Gold Sponsor


    Vehicle(s):
    Mustang
    Joined:
    Dec 27, 2016
    Location:
    Bay Area
    Posts:
    599
    Likes Received:
    214
    0   0   0

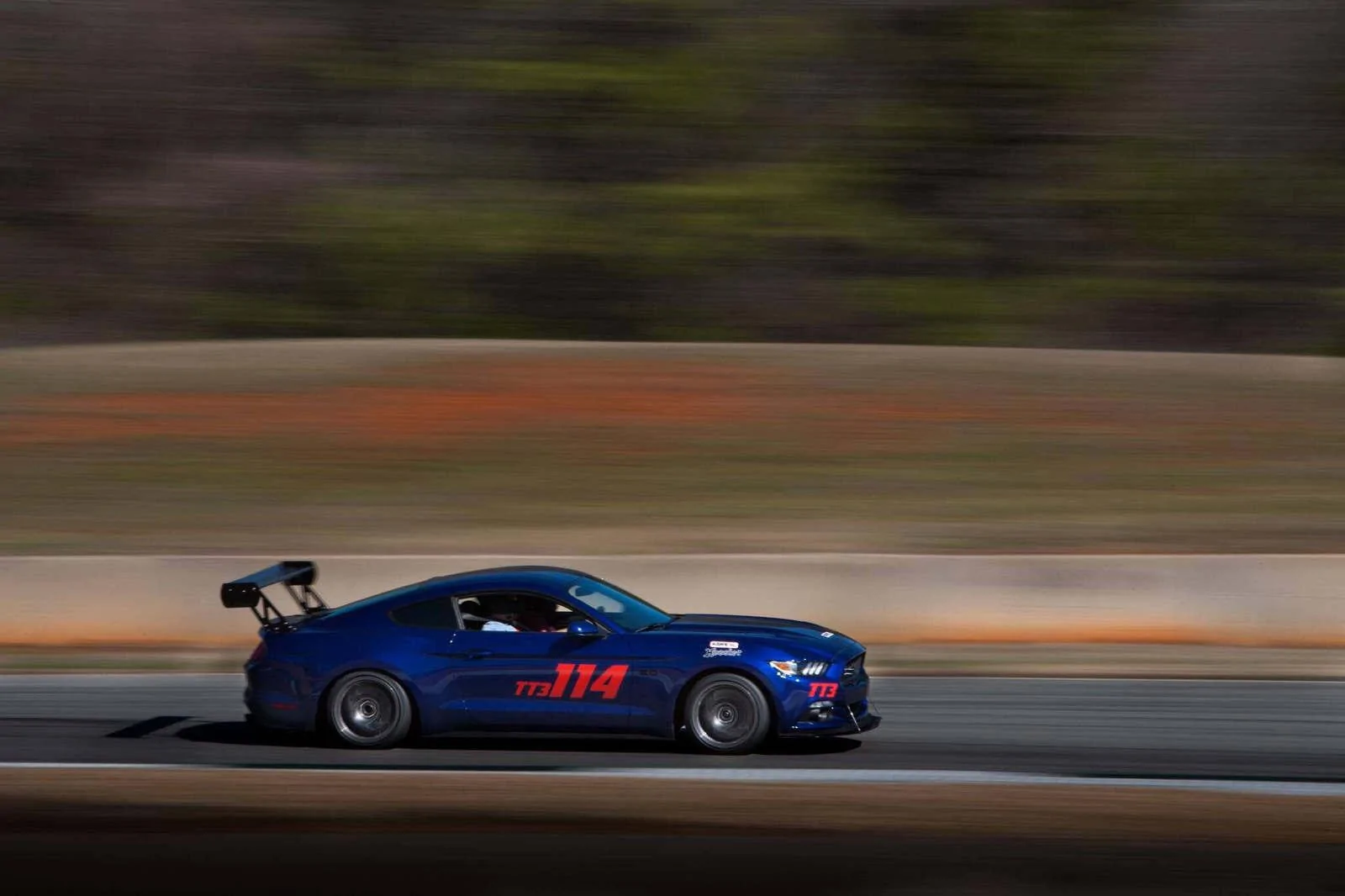

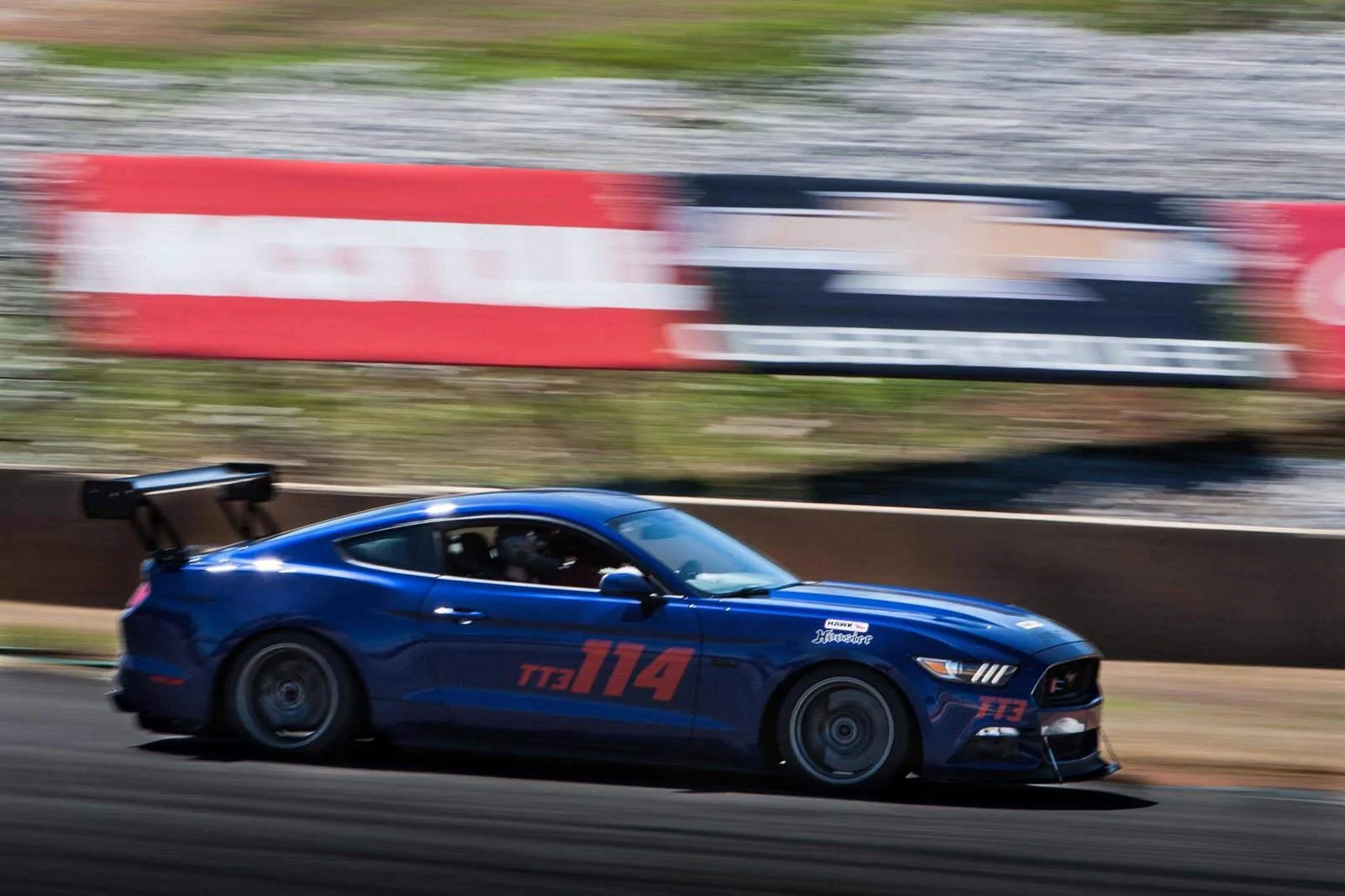

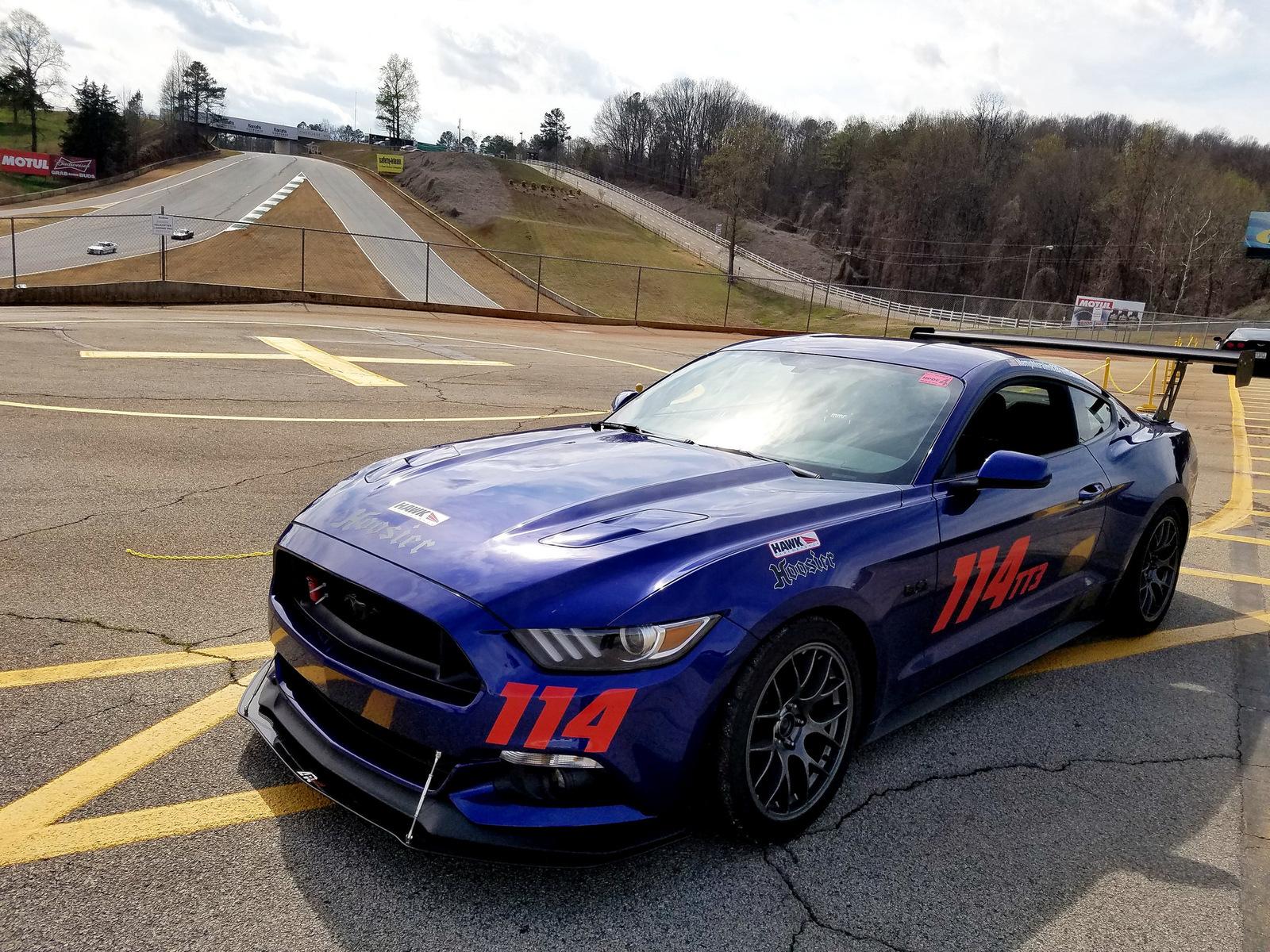

    You never disappoint Brent! We love that you are using these bad boys as they were intended :headbang:

    You are correct, when we mapped out the new 19" wheel specifications, we decided to slightly alter the 10" wheel offset from the exiting ET43 to an ET40. This will supply enthusiasts with slightly better strut clearance up front, and a more flush fitment on the fender side :D

    Wheel weights are incoming soon, stay tuned!

    - Ryan
