Intercooler duct?

[Cochise]

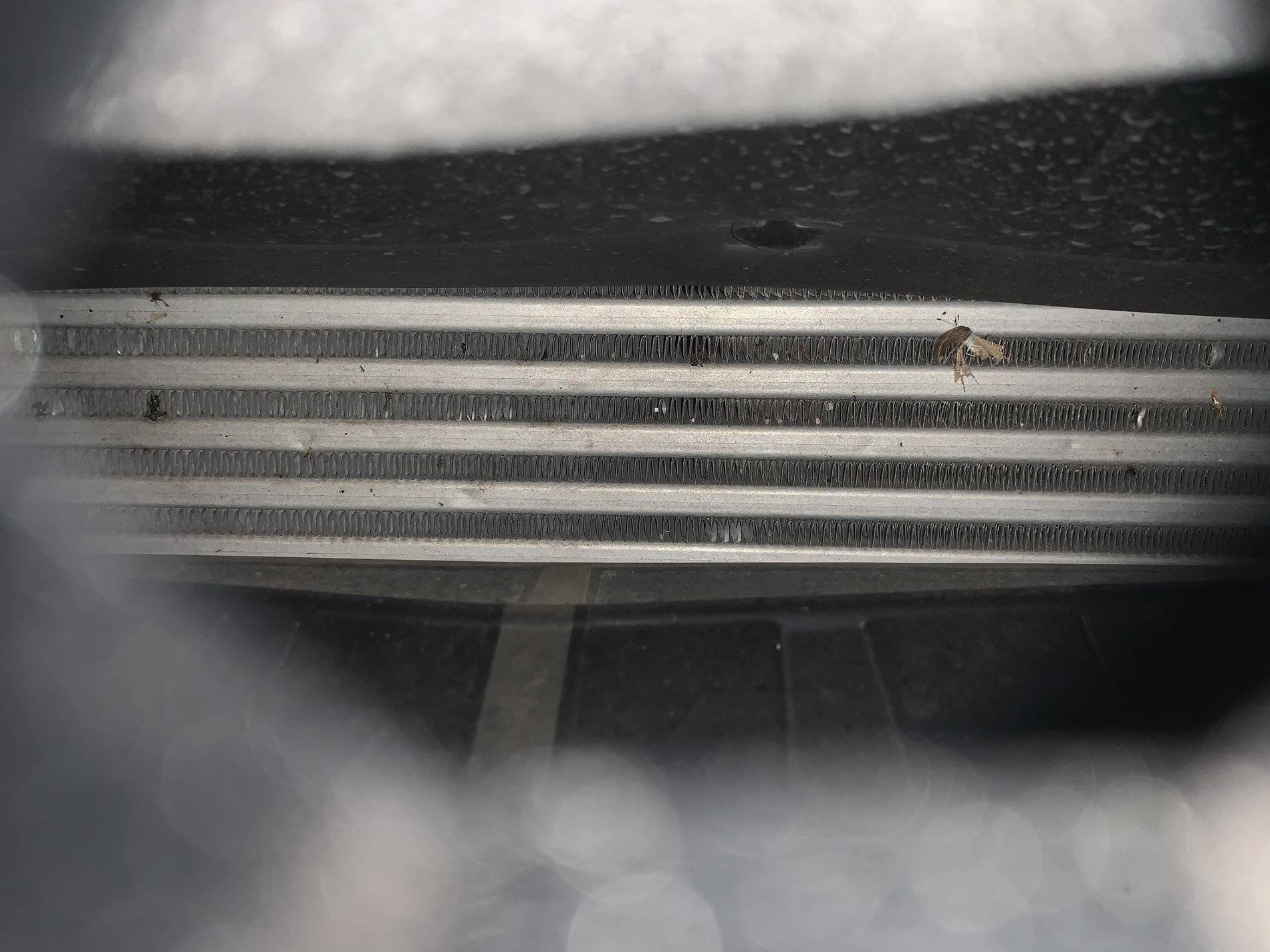

Installed the bullitt lower grill on my 18 ecoboost performance pack (no shutters) today. Reinstalled the bumper and now I look through, and only see about 5 ribs of the intercooler showing, where the ducting blocks the rest. Is this correct or did I misalign that duct somehow? Can someone please post a pic through the original grill?

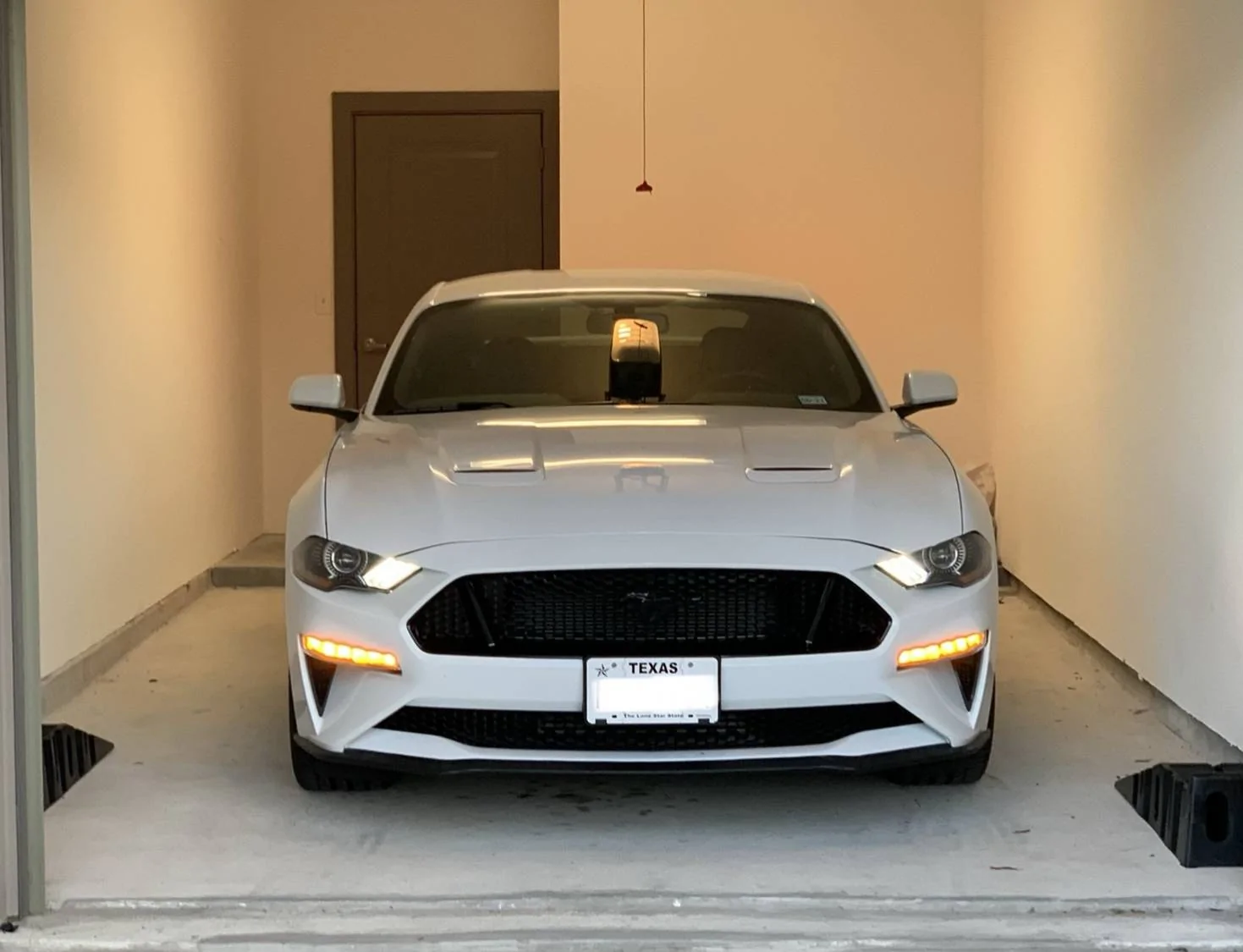

Also, car pic because I couldn’t help it!

Sponsored



[Cochise]

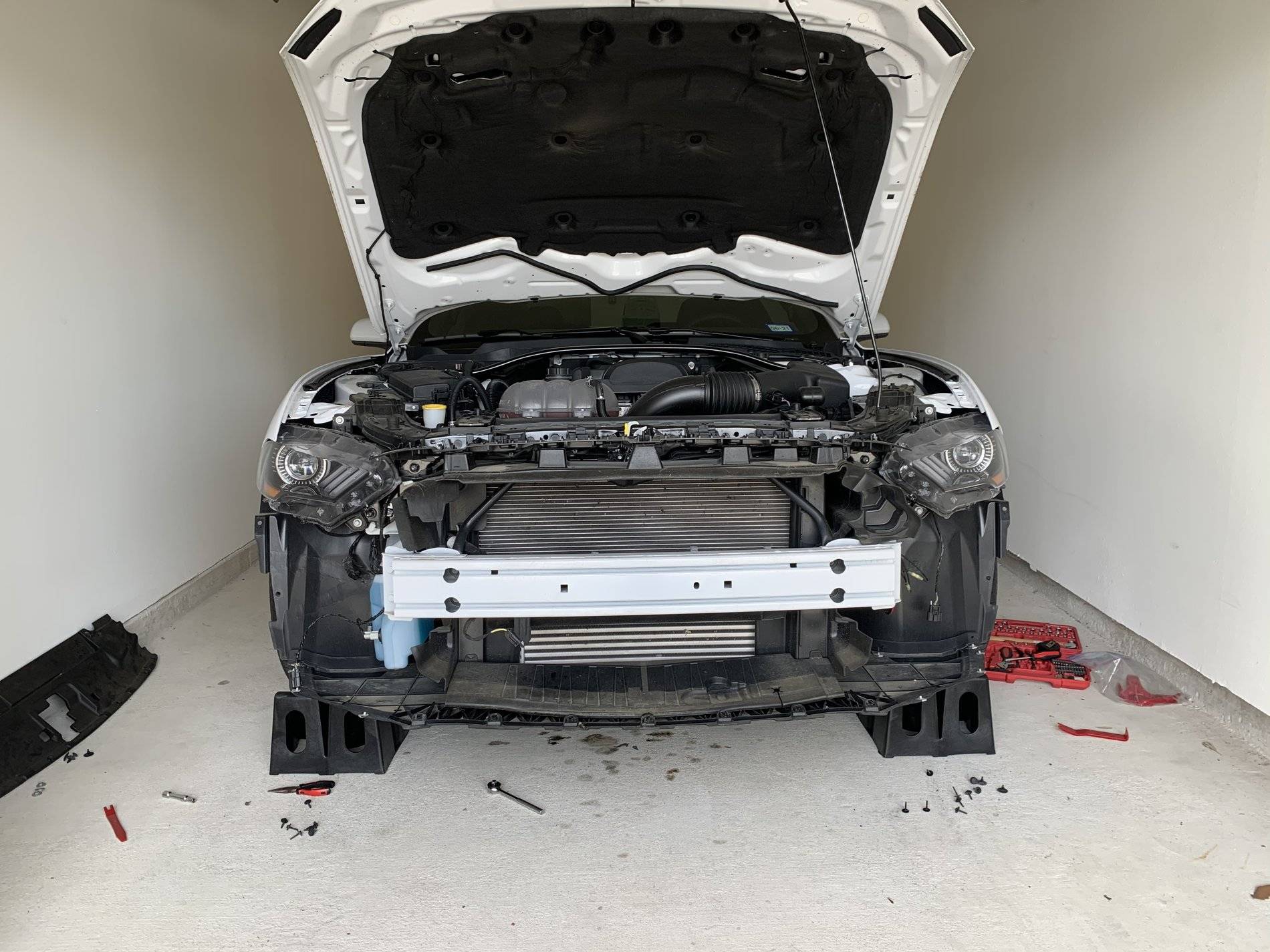

I forgot about this picture which answered my own question... So only a little more than half of the already small intercooler is exposed?
