    I lost one of my FoMoCo Performance air/oil separator screws and want to know if anyone knows how to source a replacement?

    The screw is a 4mm allen head A2-70 M5-0.8 25mm screw with two built in washers. There are four on the A/O separator that hold the top in place (this is the Ford Performance Part: M-6766-A50S Mustang GT350 Oil Separator). One of them fell when I was checking the inside, and is gone. Here is a picture of one of my remaining screws for reference...

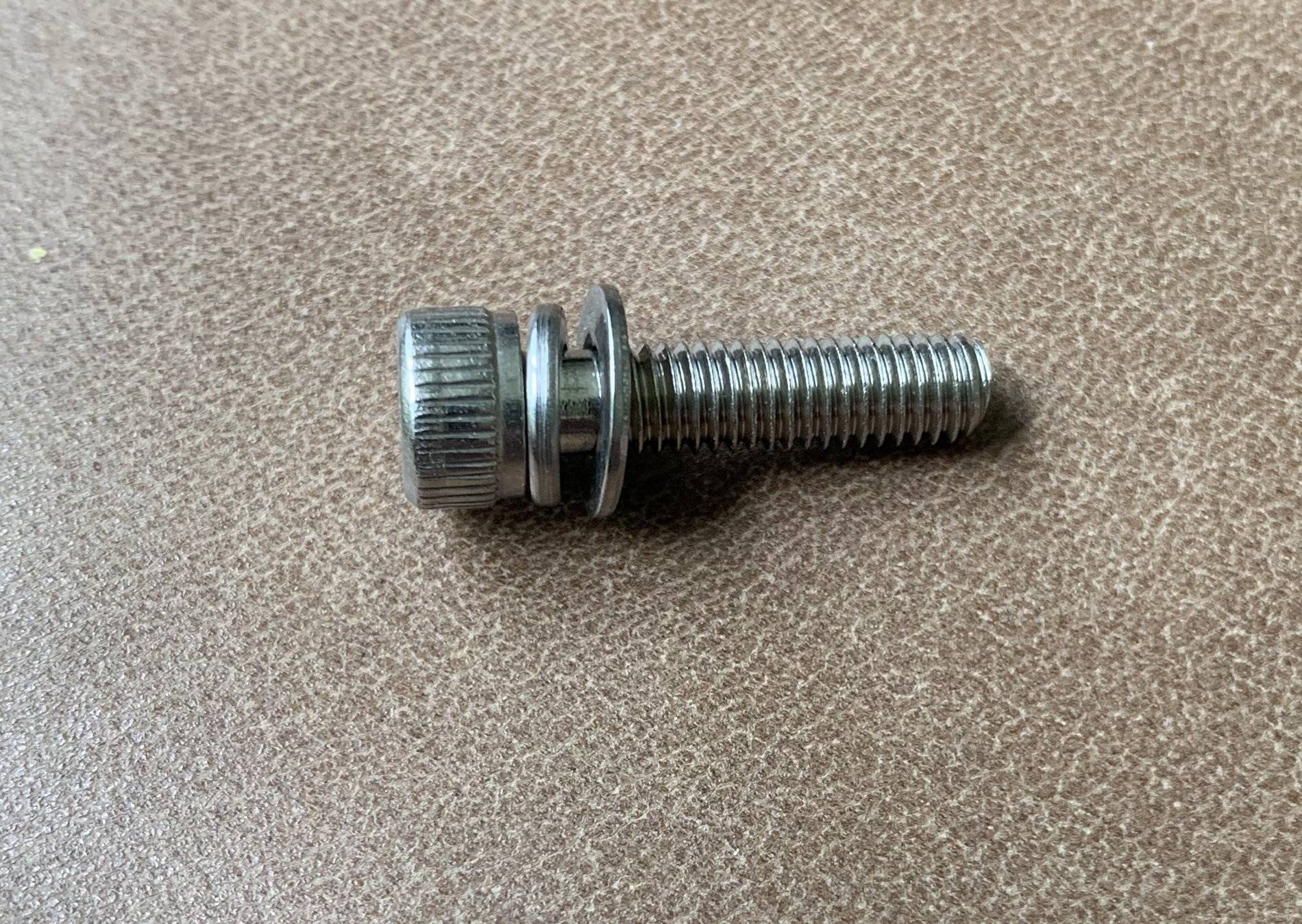

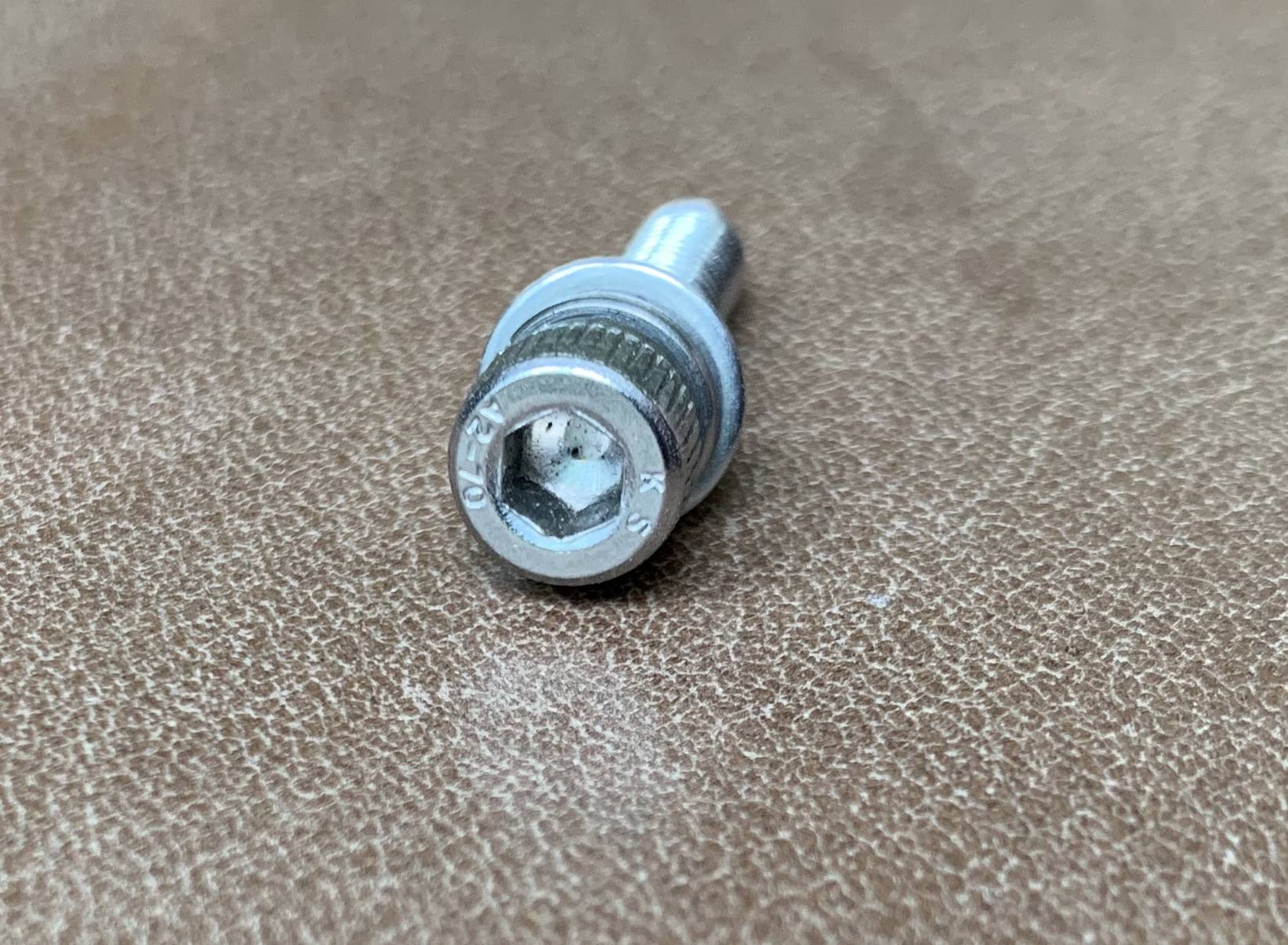

    IMG_4272.jpg IMG_4271.jpg

  2. Epiphany

    Epiphany Well-Known Member

    Vehicle(s):
    I like to disassemble things.
    Joined:
    Oct 11, 2015
    Location:
    Global
    Posts:
    5,130
    Likes Received:
    6,354
    Occupation:
    Philanthropist and ballroom dancer extraordinaire
    0   0   0
    What is the UHL (under head length)?

  3. OP
    OP
    datadatum

    datadatum Well-Known Member

    Vehicle(s):
    '18 GT350
    Joined:
    Aug 19, 2018
    Location:
    JAX
    Posts:
    330
    Likes Received:
    211
    0   0   0
    #3 datadatum, Jun 13, 2020
    Last edited: Jun 13, 2020
    LOL - of course I just put the screw back in the car. Give me 5 minutes to go back out, remove, measure, and then edit this post...

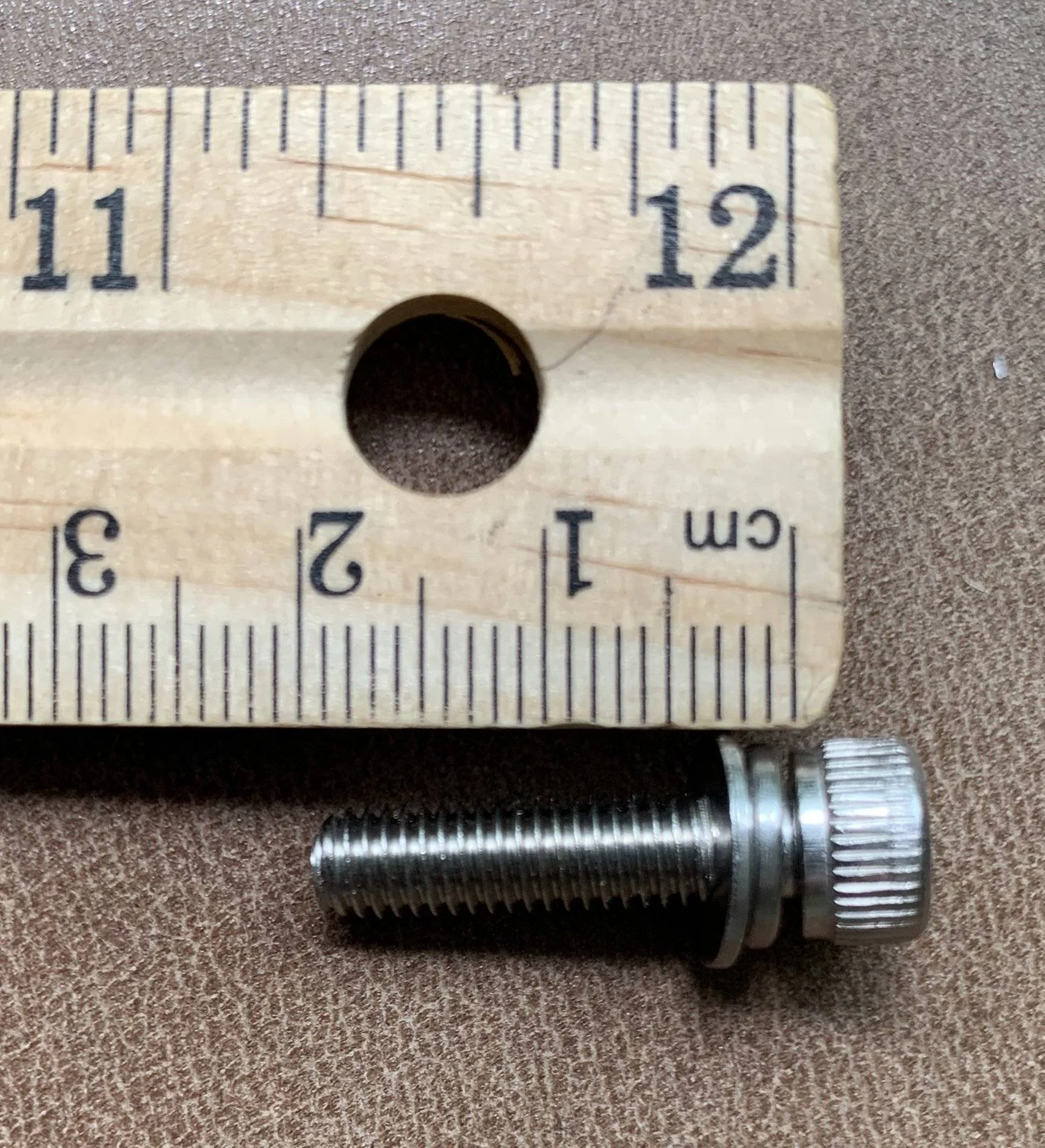

    EDIT: if I’m measuring correctly, looks like about 20mm (including the washers)

  4. 460Fred

    460Fred Well-Known Member

    First Name:
    Fred
    Vehicle(s):
    ‘19 GT350
    Joined:
    Oct 19, 2019
    Location:
    California
    Posts:
    396
    Likes Received:
    260
    0   0   0
    Easiest fix for me would be to hit a hardware store for a close enough match.
    You could change out all four if the subtle difference bothers you.

    cantdrive55 likes this.
  5. OP
    OP
    datadatum

    datadatum Well-Known Member

    Vehicle(s):
    '18 GT350
    Joined:
    Aug 19, 2018
    Location:
    JAX
    Posts:
    330
    Likes Received:
    211
    0   0   0
  6. OP
    OP
    datadatum

    datadatum Well-Known Member

    Vehicle(s):
    '18 GT350
    Joined:
    Aug 19, 2018
    Location:
    JAX
    Posts:
    330
    Likes Received:
    211
    0   0   0
    Thanks! I have found something very similar on Amazon, it just doesn’t have the built in washers. I’ll get that if nobody knows how to source the same part.

  7. Epiphany

    Epiphany Well-Known Member

    Vehicle(s):
    I like to disassemble things.
    Joined:
    Oct 11, 2015
    Location:
    Global
    Posts:
    5,130
    Likes Received:
    6,354
    Occupation:
    Philanthropist and ballroom dancer extraordinaire
    0   0   0
    So it looks as though you have a UHL of 20mm and a head or 5mm tall. UHL is critical and many vendors cause confusion when it comes to length because of it.

    I think the brand of fastener that FP used here was Holo-Krome and you can get them from Fastenal. Note - photo may not be representative of the actual fastener.

    https://www.fastenal.com/products/details/MS2540020A20000
    https://www.fastenal.com/content/product_specifications/HK.M.SHCS.4762.A2-70.00.pdf

    I prefer McMaster-Carr...

    https://www.mcmaster.com/91292A128

    I don't see stainless socket headed cap screws with integral washers so these must have been a specialty order from HK to FP. You can size them and add them yourself no doubt.

    datadatum likes this.
  8. OP
    OP
    datadatum

    datadatum Well-Known Member

    Vehicle(s):
    '18 GT350
    Joined:
    Aug 19, 2018
    Location:
    JAX
    Posts:
    330
    Likes Received:
    211
    0   0   0
    Thanks for the research, this is very helpful (and educational regarding the fastener websites)!

    Bummer regarding the part likely being special order - but perhaps not too surprising. FP has a bin somewhere with 100,000 of these just laying around.

  9. Scoobs

    Scoobs Well-Known Member

    Vehicle(s):
    2017 MG GT350 sold, 2019 MG GT350R KR569
    Joined:
    Jun 23, 2016
    Location:
    Ontario
    Posts:
    355
    Likes Received:
    283
    0   0   0
    The day after you replace this you will find the old one lying on the garage floor.

    datadatum likes this.
  10. OP
    OP
    datadatum

    datadatum Well-Known Member

    Vehicle(s):
    '18 GT350
    Joined:
    Aug 19, 2018
    Location:
    JAX
    Posts:
    330
    Likes Received:
    211
    0   0   0
    LOL - you know it! Like the matching sock you find after you already threw out the lonely survivor.

    [I think it is truly gone, though. Lost it about a year ago, and replaced it with a non-matching machine screw. It's been nagging at me to replace it for a long time, and I finally got around to finding the part number today. Of course, there was no part number (that I could find)... thus this thread.]
