Fuel pressure gauge orientation

Discussion in 'Forced Induction - 5.0L V8 Engine' started by Bmaughan, Mar 9, 2020.

  1. Bmaughan

    Bmaughan Well-Known Member

    First Name:
    Ben
    Vehicle(s):
    2015 procharged mustang gt
    Joined:
    Sep 26, 2019
    Location:
    Az
    Posts:
    328
    Likes Received:
    26
    0   0   0
    Any issue with running a fluid filled fuel pressure gauge horizontally ? It’s the only position in my set up but it seems it will work… But I’ve not seen anyone run it this way so I just wanted to be sure it won’t cause me any problems

    Thanks for the help! image.jpg

  2. Jay-rod427

    Jay-rod427 Well-Known Member

    Vehicle(s):
    2016 GT C/S
    Joined:
    Jun 8, 2016
    Location:
    Kansas
    Posts:
    2,293
    Likes Received:
    865
    Rating:
    100%
    4   0   0
    Run it any direction ya like

  3. OP
    OP
    Bmaughan

    Bmaughan Well-Known Member

    First Name:
    Ben
    Vehicle(s):
    2015 procharged mustang gt
    Joined:
    Sep 26, 2019
    Location:
    Az
    Posts:
    328
    Likes Received:
    26
    0   0   0
    Awesome.. thanks man!

  4. OP
    OP
    Bmaughan

    Bmaughan Well-Known Member

    First Name:
    Ben
    Vehicle(s):
    2015 procharged mustang gt
    Joined:
    Sep 26, 2019
    Location:
    Az
    Posts:
    328
    Likes Received:
    26
    0   0   0

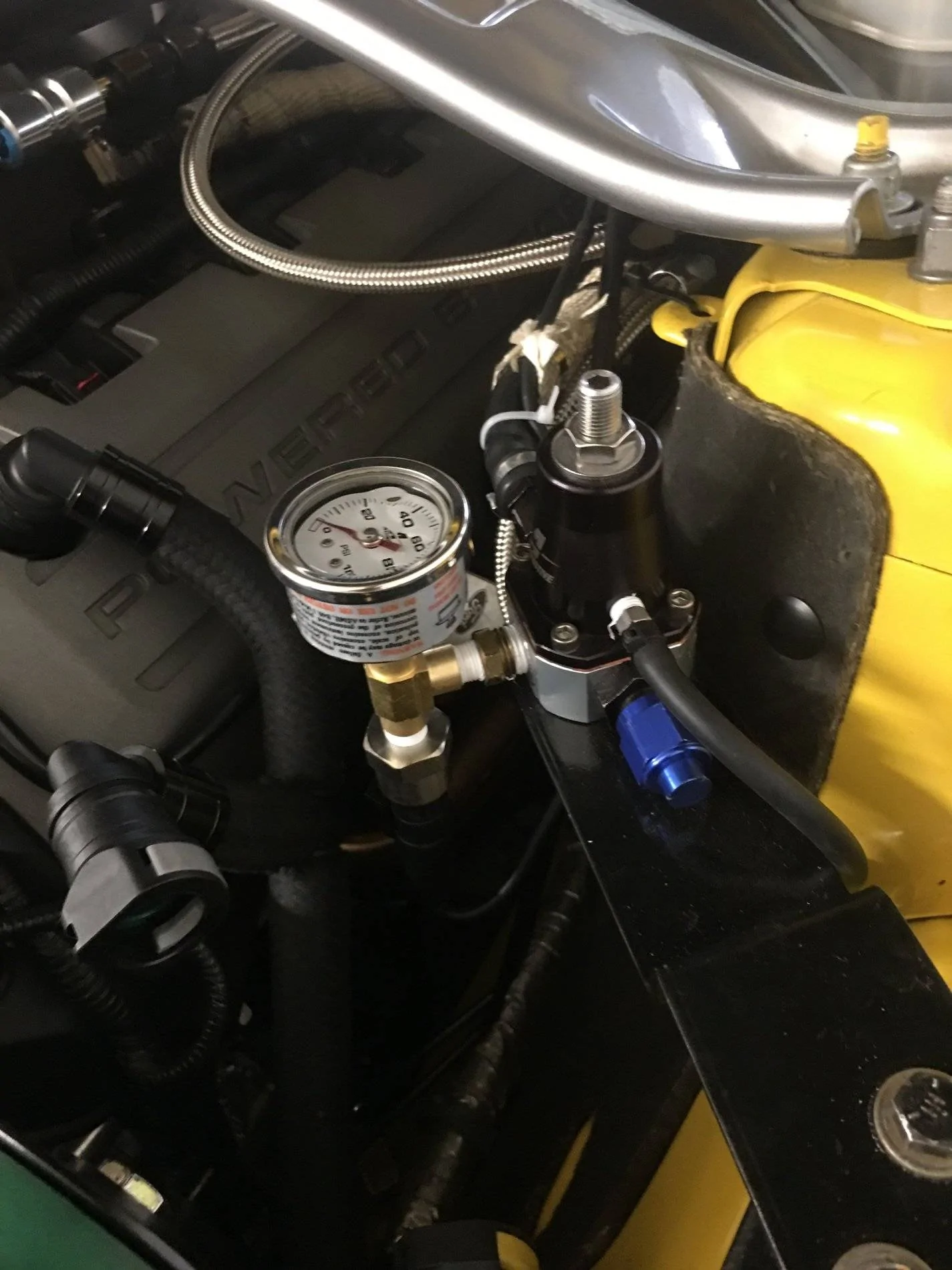

    One more question if you don’t mind.... this is probably a stupid one, but do you see any issue with running the dial gauge and a cheap analog pressure sender on a t fitting like in the picture?
    I didn’t know if they could potentially interfere with one another being so close...

  5. Jay-rod427

    Jay-rod427 Well-Known Member

    Vehicle(s):
    2016 GT C/S
    Joined:
    Jun 8, 2016
    Location:
    Kansas
    Posts:
    2,293
    Likes Received:
    865
    Rating:
    100%
    4   0   0
    No issue

  6. lx347cd

    lx347cd Well-Known Member

    First Name:
    Tony
    Vehicle(s):
    2017 GT and 2003 Cobra
    Joined:
    May 10, 2019
    Location:
    PA
    Posts:
    105
    Likes Received:
    17
    Occupation:
    OEM Vehicle Engineer
    0   0   0
    don't run a fluid filled gauge.

  7. OP
    OP
    Bmaughan

    Bmaughan Well-Known Member

    First Name:
    Ben
    Vehicle(s):
    2015 procharged mustang gt
    Joined:
    Sep 26, 2019
    Location:
    Az
    Posts:
    328
    Likes Received:
    26
    0   0   0
    Why is that?

  8. lx347cd

    lx347cd Well-Known Member

    First Name:
    Tony
    Vehicle(s):
    2017 GT and 2003 Cobra
    Joined:
    May 10, 2019
    Location:
    PA
    Posts:
    105
    Likes Received:
    17
    Occupation:
    OEM Vehicle Engineer
    0   0   0
    , A liquid filled pressure gauge is very susceptible to heat, changing its reading with the temperature of the gauge.

  9. lx347cd

    lx347cd Well-Known Member

    First Name:
    Tony
    Vehicle(s):
    2017 GT and 2003 Cobra
    Joined:
    May 10, 2019
    Location:
    PA
    Posts:
    105
    Likes Received:
    17
    Occupation:
    OEM Vehicle Engineer
    0   0   0
    Unless your using the pin style aeromotive type and if that is the case it requires mounting so the face of the gauge is perpendicular to the ground, and with the pin-valve/plug assembly on top.

  10. OP
    OP
    Bmaughan

    Bmaughan Well-Known Member

    First Name:
    Ben
    Vehicle(s):
    2015 procharged mustang gt
    Joined:
    Sep 26, 2019
    Location:
    Az
    Posts:
    328
    Likes Received:
    26
    0   0   0
    Interesting... I only really use it to set base pressure. I do notice it’s about 3psi off from the cheap transducer I also use. Its an amazon special so I just assumed it was wrong and the gauge was correct..

  11. OP
    OP
    Bmaughan

    Bmaughan Well-Known Member

    First Name:
    Ben
    Vehicle(s):
    2015 procharged mustang gt
    Joined:
    Sep 26, 2019
    Location:
    Az
    Posts:
    328
    Likes Received:
    26
    0   0   0
    The one I have is an aeromotive...what do you mean by pin/valve? Why would it’s orientation mater?... I kind of thought it might but I have heard otherwise on this thread.

  12. lx347cd

    lx347cd Well-Known Member

    First Name:
    Tony
    Vehicle(s):
    2017 GT and 2003 Cobra
    Joined:
    May 10, 2019
    Location:
    PA
    Posts:
    105
    Likes Received:
    17
    Occupation:
    OEM Vehicle Engineer
    0   0   0
    If its the aeromotive pin style which it looks like it is then yes it supposed to be mounted the way i describe. Its on their website.

  13. OP
    OP
    Bmaughan

    Bmaughan Well-Known Member

    First Name:
    Ben
    Vehicle(s):
    2015 procharged mustang gt
    Joined:
    Sep 26, 2019
    Location:
    Az
    Posts:
    328
    Likes Received:
    26
    0   0   0
    Shoot... that sucks.

  14. OP
    OP
    Bmaughan

    Bmaughan Well-Known Member

    First Name:
    Ben
    Vehicle(s):
    2015 procharged mustang gt
    Joined:
    Sep 26, 2019
    Location:
    Az
    Posts:
    328
    Likes Received:
    26
    0   0   0
    For what it’s worth... I did some reading and it seems the only reason the orientation matter for the aeromotive pin valve style gauges is the actuation of the pin valve itself. Since I’m only using it for setting the base pressure the gauge doesn’t get that warm in the time it takes to do that so I think it should work fine.

  15. illtal

    illtal Well-Known Member

    Vehicle(s):
    2018 Mustang GT
    Joined:
    Nov 16, 2018
    Location:
    USA
    Posts:
    302
    Likes Received:
    48
    0   0   0
    Fluid Gauge in the bay is better than a regular one the vibration kills the non fluid filled ones. Also you should be able to run a sender off of it if you want to.
