CV Fab Intercooler Review and Datalogs

Discussion in 'I4 2.3L EcoBoost Engine / Mods: Bolt-ons, Exhaust,' started by It'sMr.Smith, Mar 4, 2019.

  1. It'sMr.Smith

    It'sMr.Smith New Member

    First Name:
    James
    Vehicle(s):
    2017 Mustang Ecoboost PPP
    Joined:
    Mar 4, 2019
    Location:
    Washington
    Posts:
    3
    Likes Received:
    5
    0   0   0
    hey guys, I recently got lucky enough to get my hands on CVFab's new intercooler for the Ecoboost mustang and I'm beyond happy with it! let's start this short and sweet, beautiful TIG welds, full aluminum tanks, double stock size, more than 40 degree drop in AIT (my own data logs, not some trumped up number in perfect settings!) Not to mention this company is actually in the US, which means fantastic customer service and install support. Oh and lets not forget about half the price of the "big names"!
    Now to the more technical. Shipping was a breeze, package showed up two days after I placed the order. Everything was there, including two mounting brackets and all hardware needed. Install wasn't too difficult at all. Removing the front bumper was the only tricky part. Once the bumper is off, remove the grill shutters and the intercooler is fully exposed. Once the piping is disconnected there's a few more bolts and the cooler just wiggles out. Now comes the fun part, you'd think being twice the size it'd be difficult to install. CVFab has beautifully found a way around this with the install brackets. Simply put the intercooler in place, connect the pipes, then finally place the brackets provided into the OEM slots, three bolts to the intercooler and you're DONE! all in all it took me about three hours on a lift with minimal tools. Like I said before this thing drops IAT massively, I swear I can feel the added power as soon as I hit WOT. As far as spool up time goes, I haven't noticed any difference from the larger intercooler. Also I do feel like I can here the turbo more, which is always nice. All in all I'm glad I decided to give CVFab a shot, the customer service I received was amazing and the intercooler was excellent quality . I'll be recommending their products for a long time to anyone and everyone with a mustang!

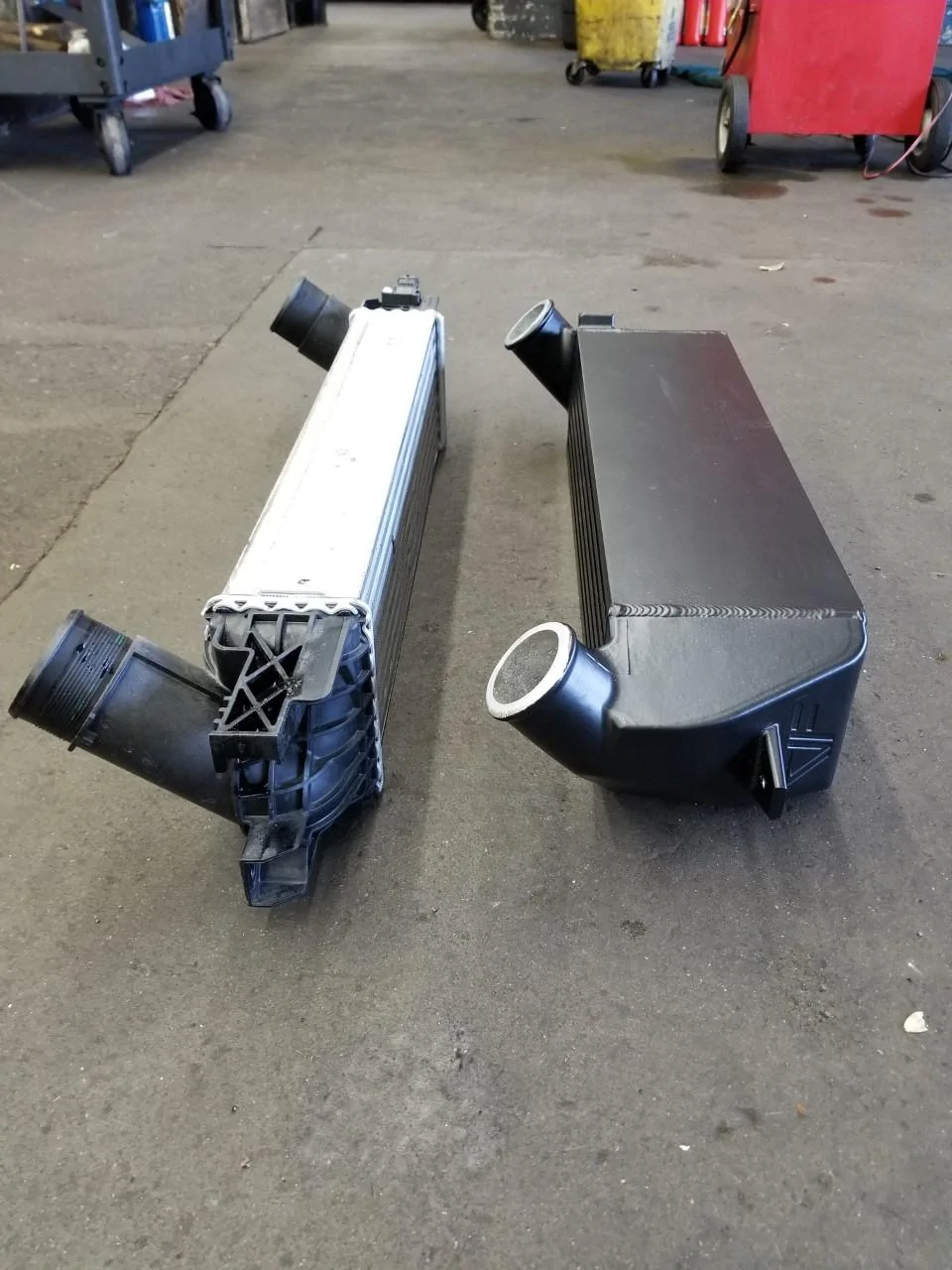

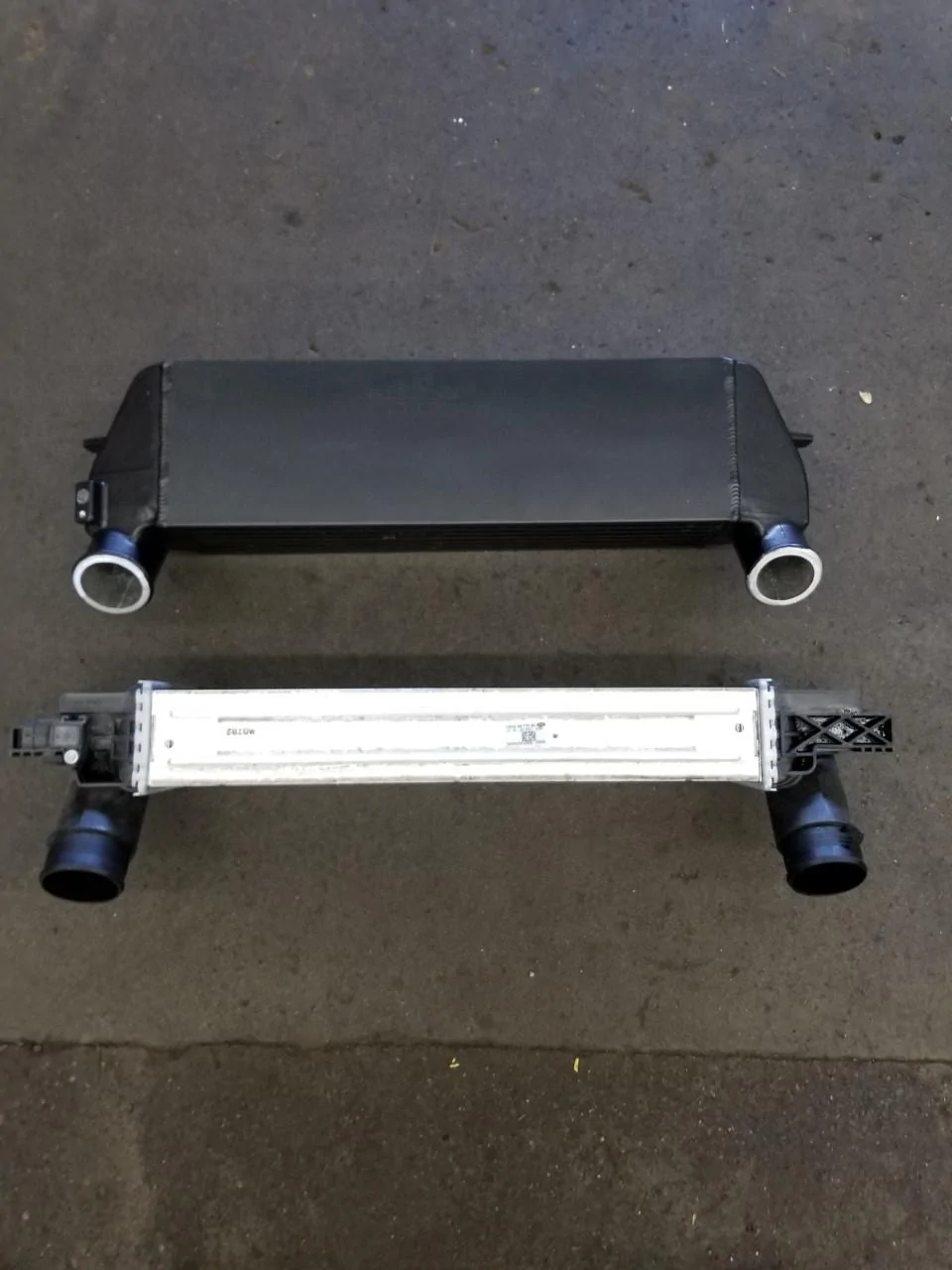

    datalog1.png datalog2.png intercooler1.jpg intercooler2.jpg

    Texstang, TicTocTach, DUNDEM and 2 others like this.
  2. Hellman109

    Hellman109 Well-Known Member

    Vehicle(s):
    2017 Mustang Ecoboost Convertible (See my garage)
    Joined:
    Jul 3, 2017
    Location:
    Melbourne, Australia
    Posts:
    414
    Likes Received:
    158
    Garage Profiles:
    1
    0   0   0
  3. OP
    OP
    It'sMr.Smith

    It'sMr.Smith New Member

    First Name:
    James
    Vehicle(s):
    2017 Mustang Ecoboost PPP
    Joined:
    Mar 4, 2019
    Location:
    Washington
    Posts:
    3
    Likes Received:
    5
    0   0   0
    yes sir, this is a second gear through fourth gear pull at wide open throttle!

  4. cvf-jason

    cvf-jason Well-Known Member
    Gold Sponsor


    First Name:
    Jason
    Vehicle(s):
    2018 Ecoboost Mustang
    Joined:
    May 15, 2018
    Location:
    Miami
    Posts:
    244
    Likes Received:
    49
    0   0   0
    First of all, we'd like to thank It'sMr.Smith for taking the time to provide us with his time and for helping us produce unbiased, third-party data!

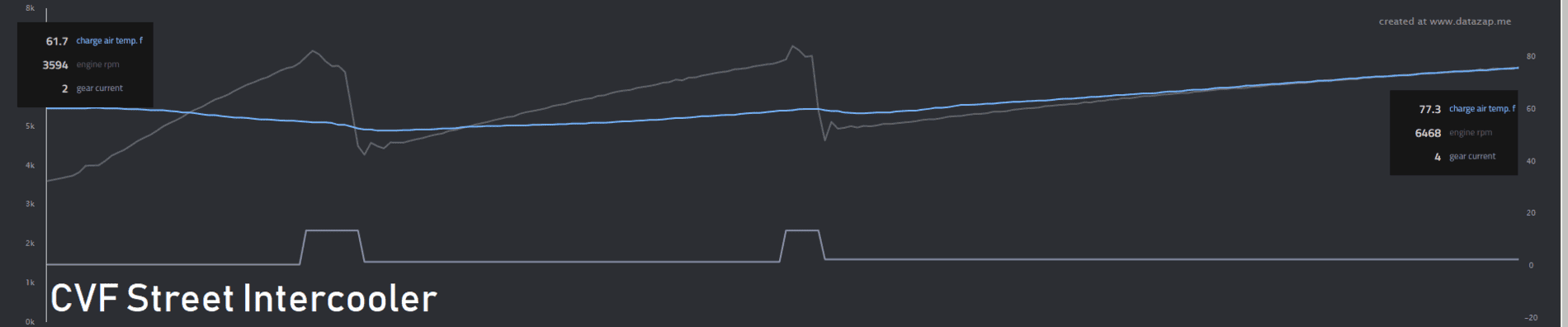

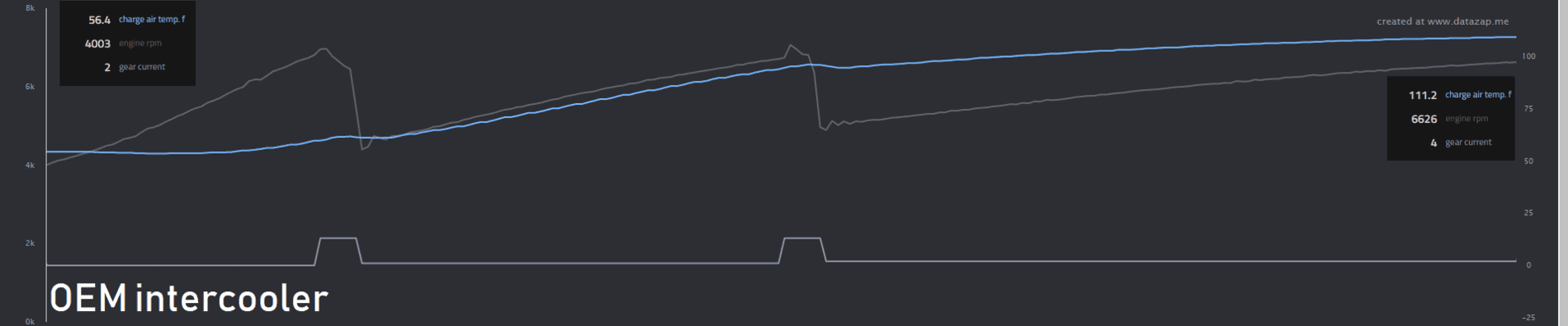

    As you can see from the screen shots, the OEM FMIC starts at 56 degrees in 2nd gear and skyrockets up to 111 degrees at the end of 4th gear - a 55 degree increase. On the other hand, the CVF Street Intercooler goes from 62 to 77, only 15 degrees. The CVF Street intercooler facilitated a whopping 40 degree reduction in charge air temperatures.

    As always, we offer a forum discount to all members to give you a bit more money off an already unbeatable price - feel free to reach out! :)

    DUNDEM likes this.
  5. Ghost3366

    Ghost3366 Active Member

    Vehicle(s):
    2017 Ecoboost Mustang Premium
    Joined:
    Nov 17, 2018
    Location:
    United States
    Posts:
    27
    Likes Received:
    4
    0   0   0
    Thank you for posting the pictures and logs, since I am going to be purchasing one also. I do have a question in relation to installation. I see from your post your using a lift which I will not have access to, just stands or ramps how do you feel the install would have went without a lift? I am been talking to Jason at CVFab and he mentions no need to modify the shutters. Videos I have seen replacing the Intercooler the person was not able to remove the shutters like you mention just losen the bottom part to move it a little out of the way. Did you fully remove the shutters or remove them then put them back on? Any insight you could provide would be appreciated.

    It'sMr.Smith likes this.
  6. OP
    OP
    It'sMr.Smith

    It'sMr.Smith New Member

    First Name:
    James
    Vehicle(s):
    2017 Mustang Ecoboost PPP
    Joined:
    Mar 4, 2019
    Location:
    Washington
    Posts:
    3
    Likes Received:
    5
    0   0   0
    #6 It'sMr.Smith, Mar 7, 2019
    Last edited: Mar 7, 2019
    The lift really wasn't needed, just for ease of access so I wasn't on my back when connecting and disconnecting the charge pipes. You dont NEED to remove the shutter for installation but it's only 4 bolts two push pins and a plug so I removed it completely. Again you dont have to, but it is really easy to do. I did reinstall the shutter afterwards, no problems fitting the intercooler there.
    EDIT: I forgot about the plastic bracket holding the shutters on. So a total of six bolt to remove shutters, extra ten minutes tops.

  7. cvf-jason

    cvf-jason Well-Known Member
    Gold Sponsor


    First Name:
    Jason
    Vehicle(s):
    2018 Ecoboost Mustang
    Joined:
    May 15, 2018
    Location:
    Miami
    Posts:
    244
    Likes Received:
    49
    0   0   0
    Just wanted to give you guys a head's up that these bad boys are now back in stock! Feel free to shoot over any questions you may have. :rockon:

    Mach VII likes this.
  8. FourdBanger18

    FourdBanger18 New Member

    First Name:
    Andrew
    Vehicle(s):
    2018 Ecoboost Mustang
    Joined:
    Mar 20, 2019
    Location:
    Los Angeles
    Posts:
    2
    Likes Received:
    0
    0   0   0
    So many positive reviews! Would there happen to be any in stock this weekend? California heat is killing me right now.

  9. cvf-jason

    cvf-jason Well-Known Member
    Gold Sponsor


    First Name:
    Jason
    Vehicle(s):
    2018 Ecoboost Mustang
    Joined:
    May 15, 2018
    Location:
    Miami
    Posts:
    244
    Likes Received:
    49
    0   0   0
    PM’d!
