Presenting the AWE Mustang GT Exhaust Suite. Available now as dual or quad tip!

Discussion in 'V8 5.0L Engine / Mods: Bolt-ons, Exhaust, Tuning' started by Josh/AWE, Mar 2, 2017.

  1. Josh/AWE

    Josh/AWE Well-Known Member
    Diamond Sponsor


    Vehicle(s):
    EcoBoost, GT
    Joined:
    Feb 8, 2017
    Location:
    Horsham, PA
    Posts:
    623
    Likes Received:
    163
    0   0   0
    #1 Josh/AWE, Mar 2, 2017
    Last edited: Apr 25, 2018
    Performance. Sound. Fitment. Options. Muscle.

    Presenting the AWE Performance Mustang GT Exhaust Suite: available online at AmericanMuscle.com, and through AWE Premium Dealers.


    • Dual and quad tip cat-back configurations available for genuine GT350 and GT350 “style” replica valances
    • No compromises: All the muscle with zero drone
    • Proudly engineered, designed, and manufactured in-house, in the USA
    • Cat-back and axle-back options available
    • Available as valved SwitchPath™ Exhaust (with SwitchPath™ remote), sophisticated Touring Edition or unleashed Track Edition

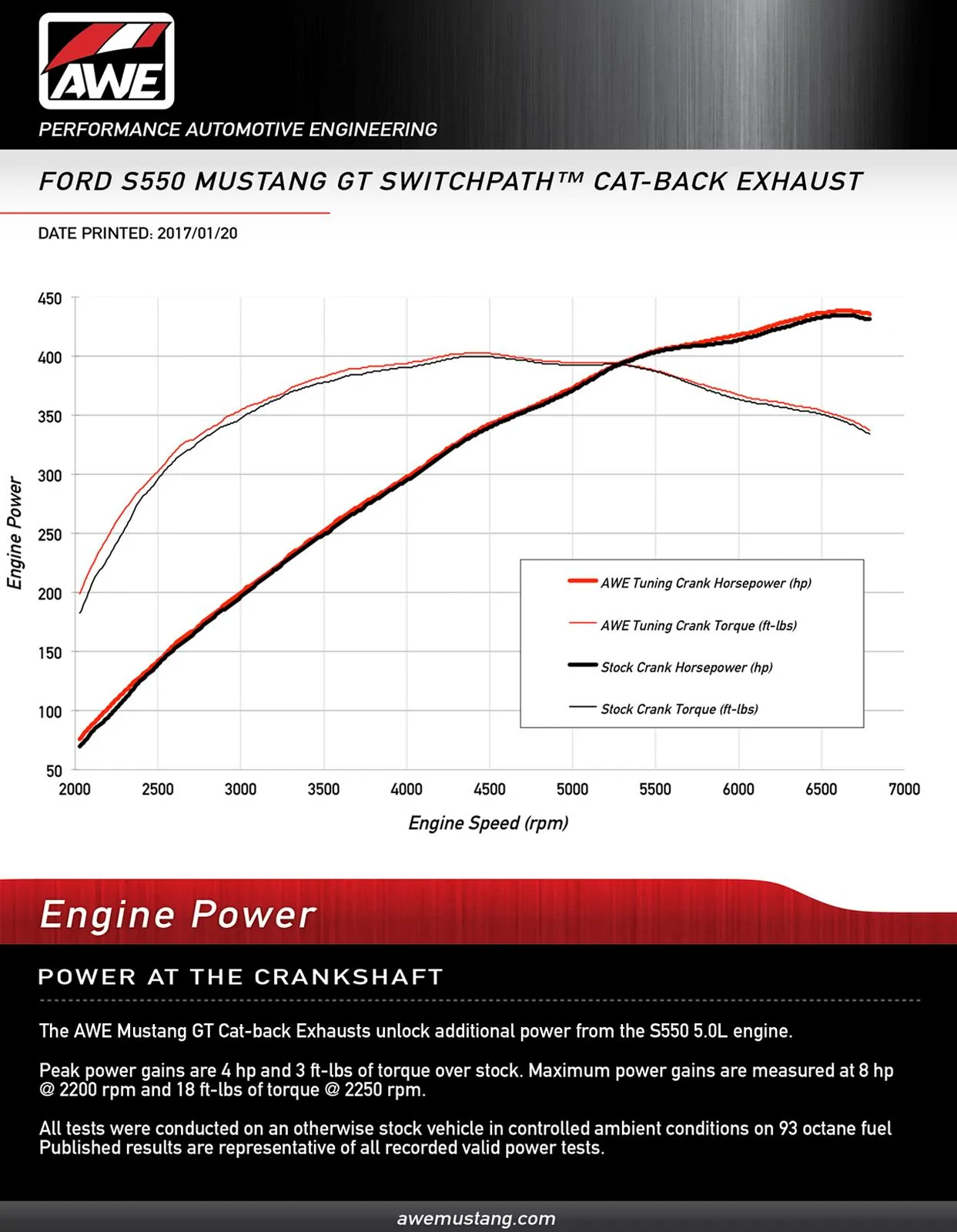

    • Max gains of 8 hp and 18 ft-lbs of torque to the crank
    • Touring Edition features AWE’s proprietary drone-canceling solution, 180 Technology®
    • Precision-engineered H-pipe included in each cat-back configuration
    • Full 3” diameter system on cat-back
    • 4” double-walled tips available in chrome silver or diamond black
    • Less is more: clean, non-baffled, straight-through design maximizes performance
    • Handcrafted from U.S.-sourced CNC mandrel-bent .065” wall T304L stainless steel
    • Direct bolt-on system for factory-like simplicity
    • No Check Engine Light - Guaranteed
    • Perfect Fitment - Guaranteed
    • Featuring the AWE Lifetime Exhaust Warranty


    The Options:

    Touring Edition Exhausts

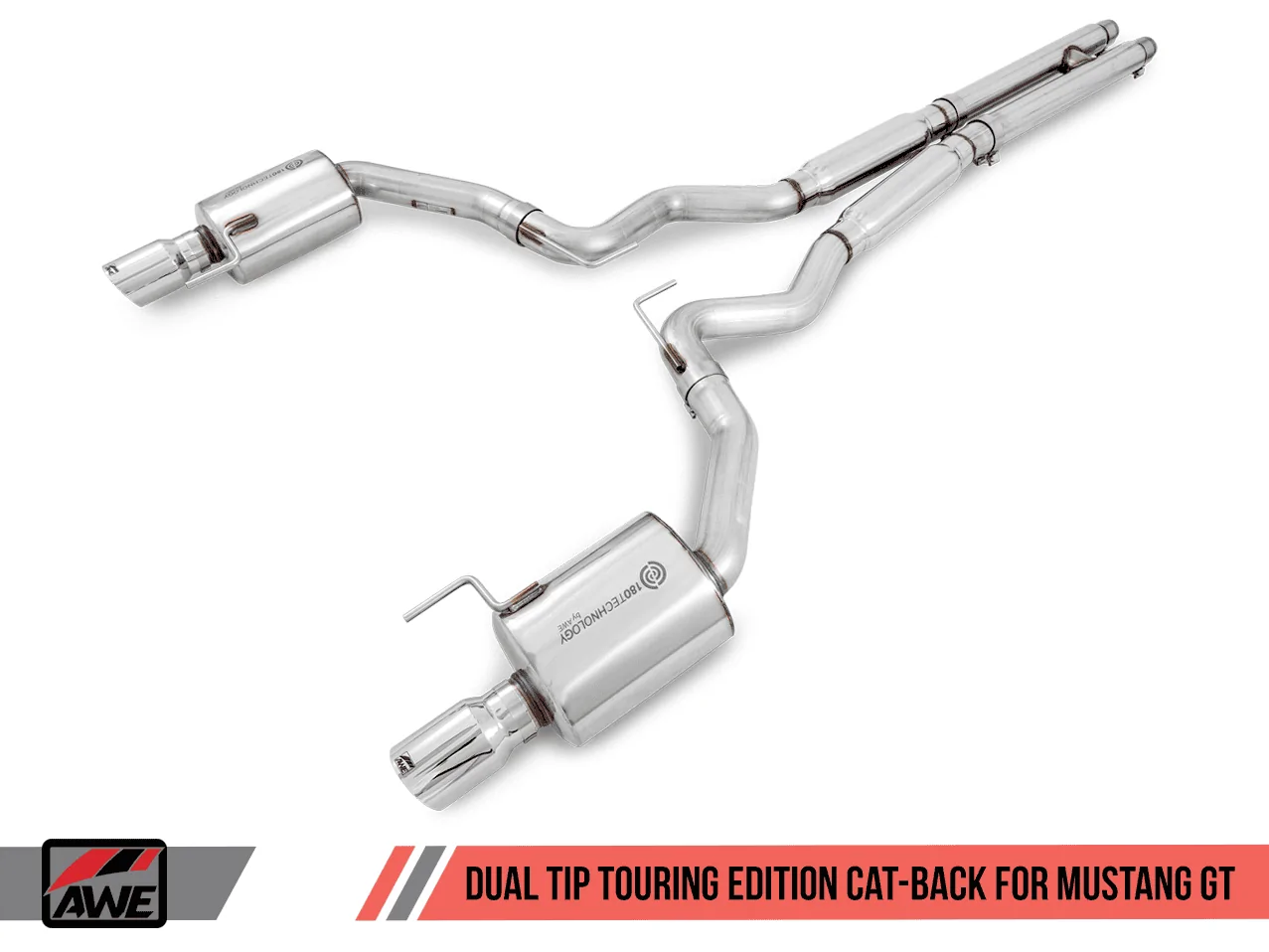

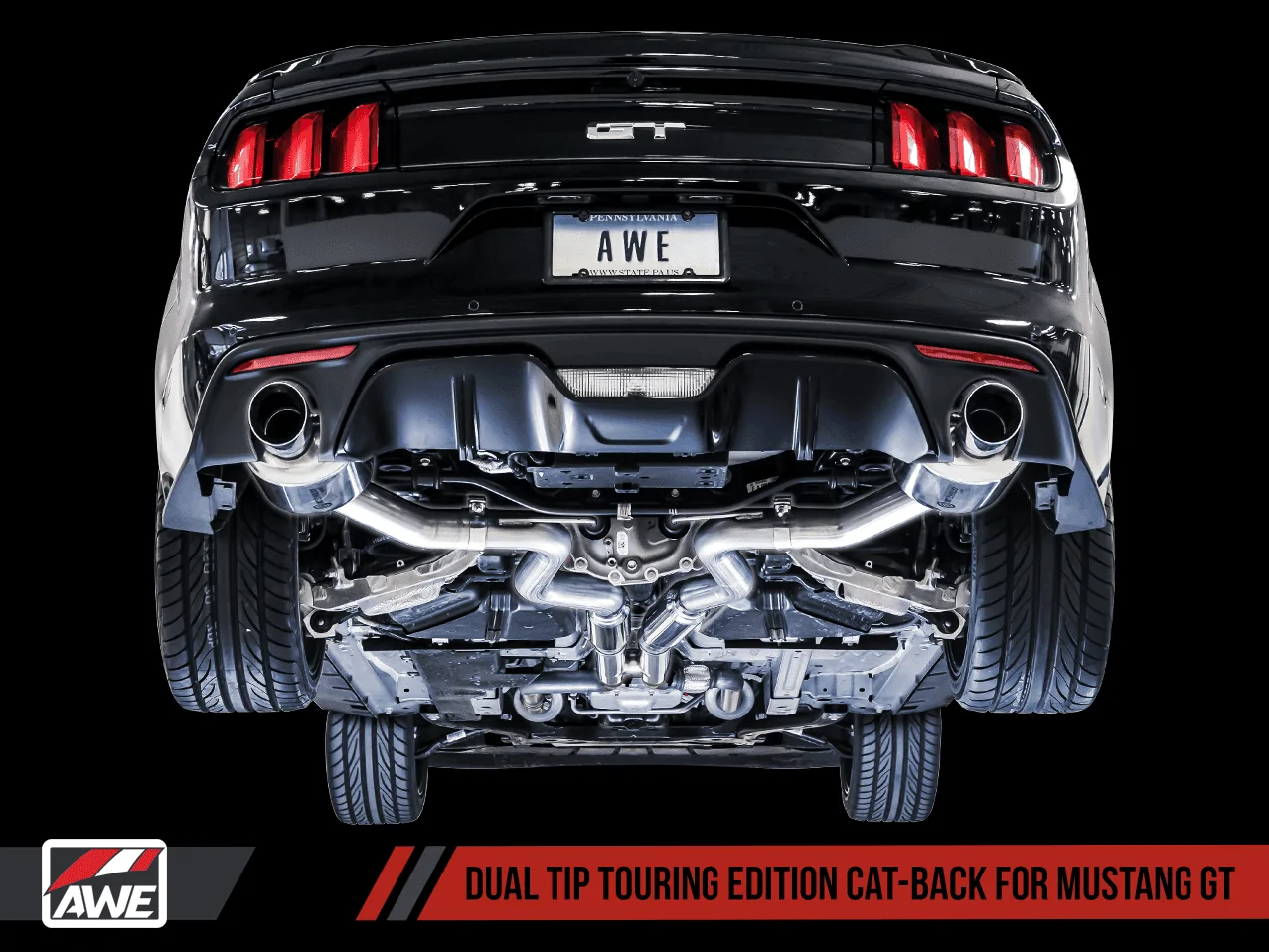

    Cat-back Exhaust

    [ame=""]AWE Mustang GT Touring Edition Cat-back Exhaust[/ame]

    [ame=""]AWE Mustang GT Touring Edition Cat-back Exhaust[/ame]

    A direct bolt-on, straight through design, the Touring Edition Exhaust is a full 3” diameter exhaust featuring two bullet style resonators and an H-pipe that brings out a smooth muscle tone with no drone throughout the entire range… all of the time, thanks to AWE’s 180 Technology®.

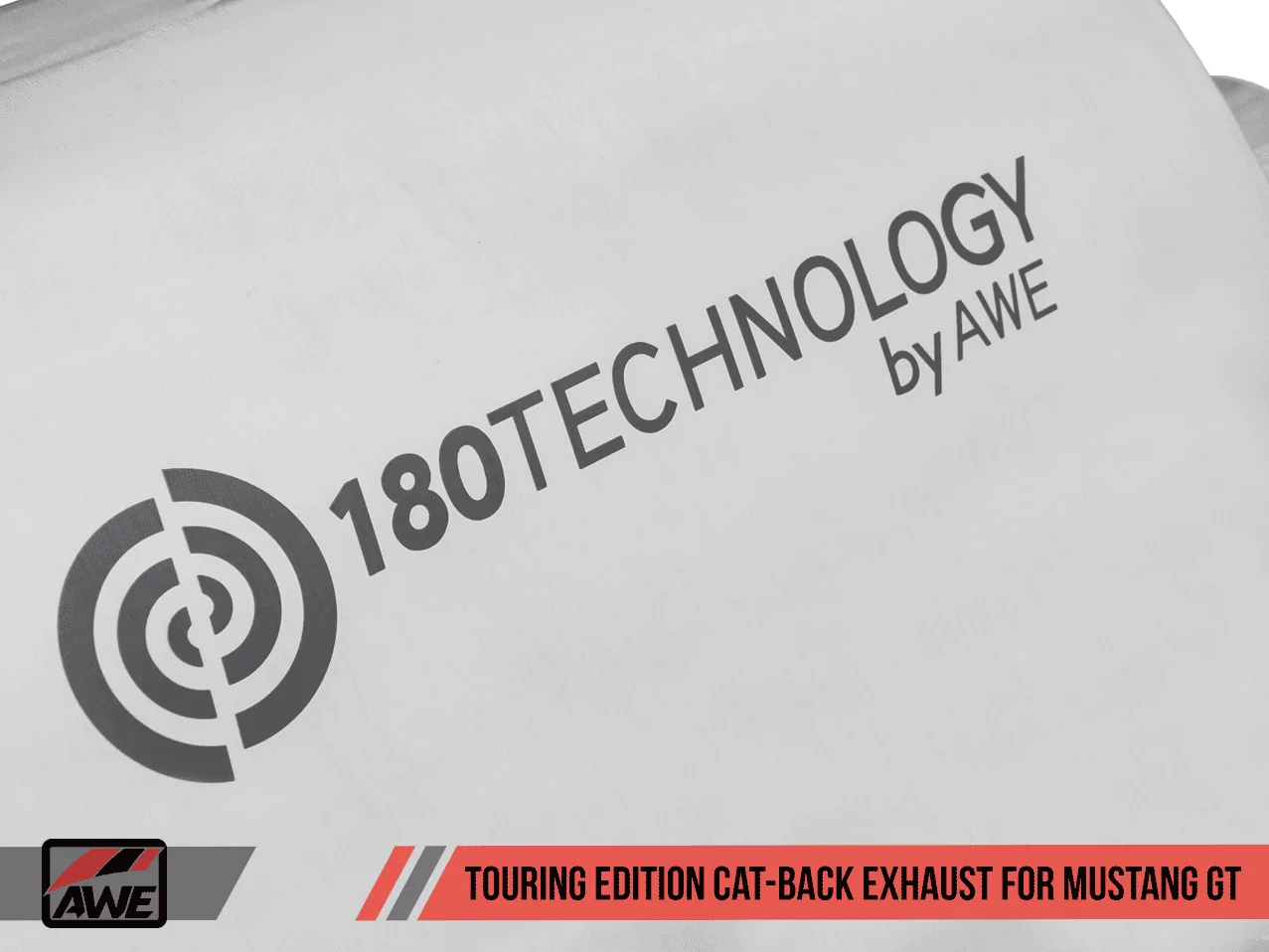

    Sound Perfection: 180 Technology® by AWE:

    As exhaust gases exit the Mustang GT’s 5.0L engine and flow into an AWE 180 Technology® equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. More on 180 Technology® by AWE right this way.


    Axle-back Exhaust

    [ame=""]AWE Mustang GT Touring Edition Axle-back Exhaust[/ame]

    In axle-back form, the Touring Edition retains the GT’s factory mid section which then opens up to the 2.5” Touring Edition Axle-back Exhaust. Maintaining a straight-through design featuring AWE’s drone-canceling solution, 180 Technology®, the Touring Edition Axle-back ups the tone of the GT while also cutting weight from the rear.


    Track Edition Exhausts

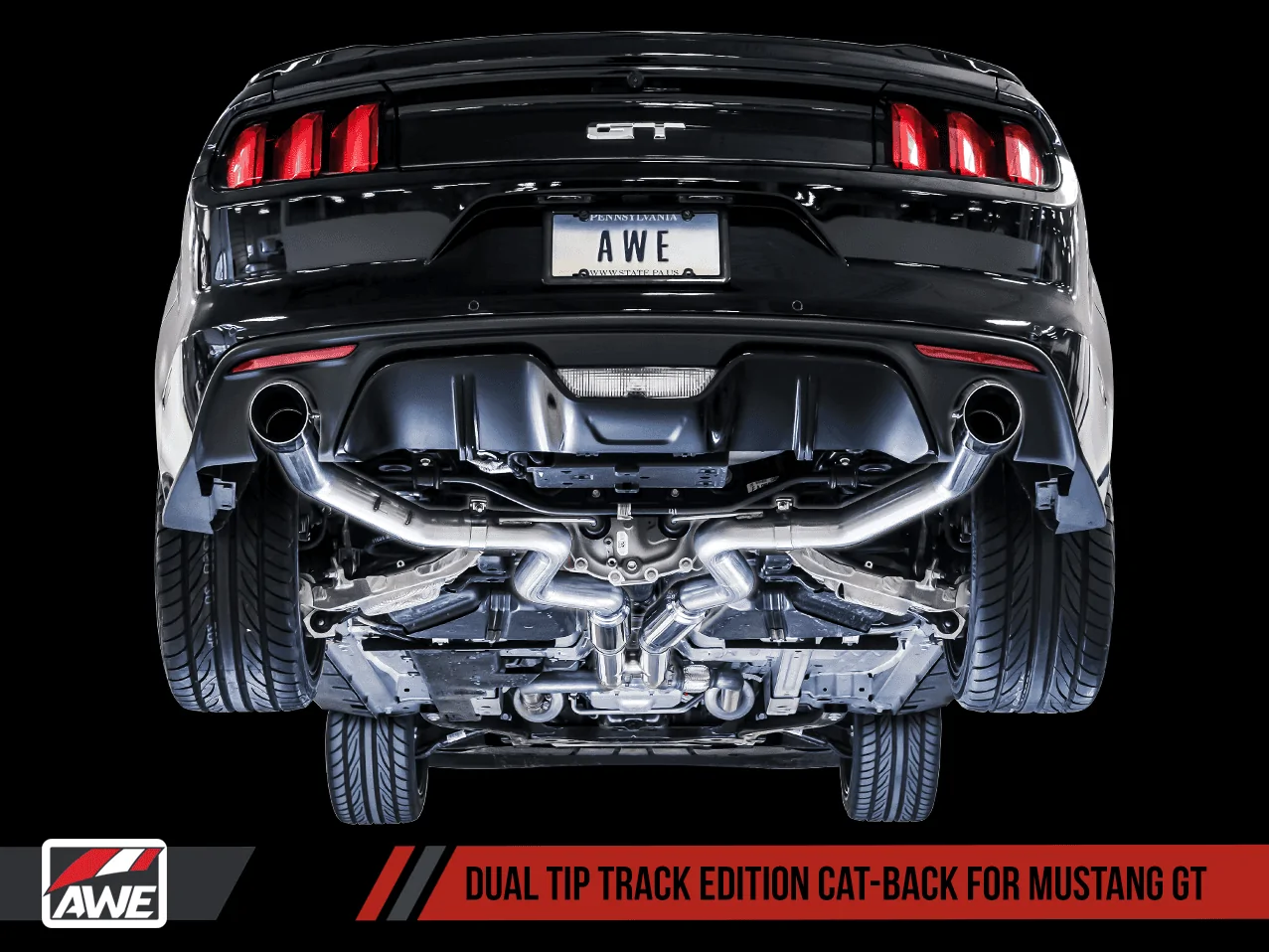

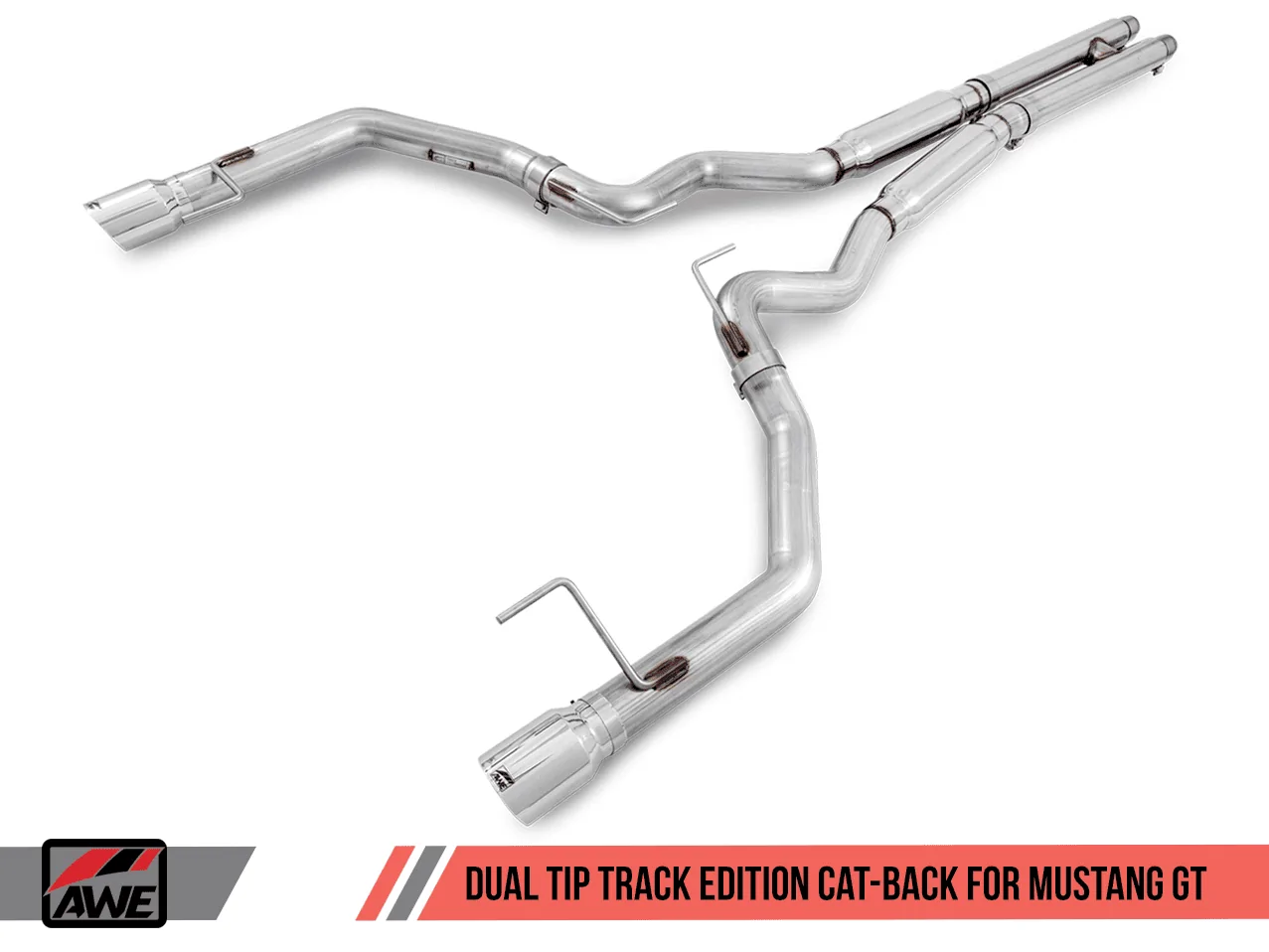

    Cat-back Exhaust

    [ame=""]AWE Mustang GT Track Edition Cat-back Exhaust[/ame]

    [ame=""]AWE Mustang GT Track Edition Cat-back Exhaust[/ame]

    If raw and rowdy are your speed, the Track Edition is your dose of steel. The loudest of the lot, the Track Edition Cat-back Exhaust retains all the engineering and precision of the Touring Edition, including the H-pipe and 3” diameter tubing, minus the 180 Technology®. The result? Completely raw wake-the-dead level muscle.





    Axle-back Exhaust

    [ame=""]AWE Mustang GT Track Edition Axle-back[/ame]

    The Track Edition Exhaust in axle-back form provides the most cost-effective aggression in the lineup by retaining the GT’s factory mid section and replacing the rear sections with Track Edition straight pipes.

    These versions are known to get rowdy in the mid range, and may be too much for many. For that reason, this particular version cannot be returned due to sound preference. Prepare yourself.


    SwitchPath™ Cat-Back Exhaust

    From sophisticated to rowdy with the touch of a button.

    The SwitchPath™ Exhaust is a full 3” diameter cat-back system featuring two bullet style resonators and electronically controlled valving that enables drivers to toggle between sophisticated and aggressive at the press of a button, at any time, all while remaining drone-free thanks to AWE’s proprietary drone-canceling solution, 180 Technology®.








    Volume. Simplified.

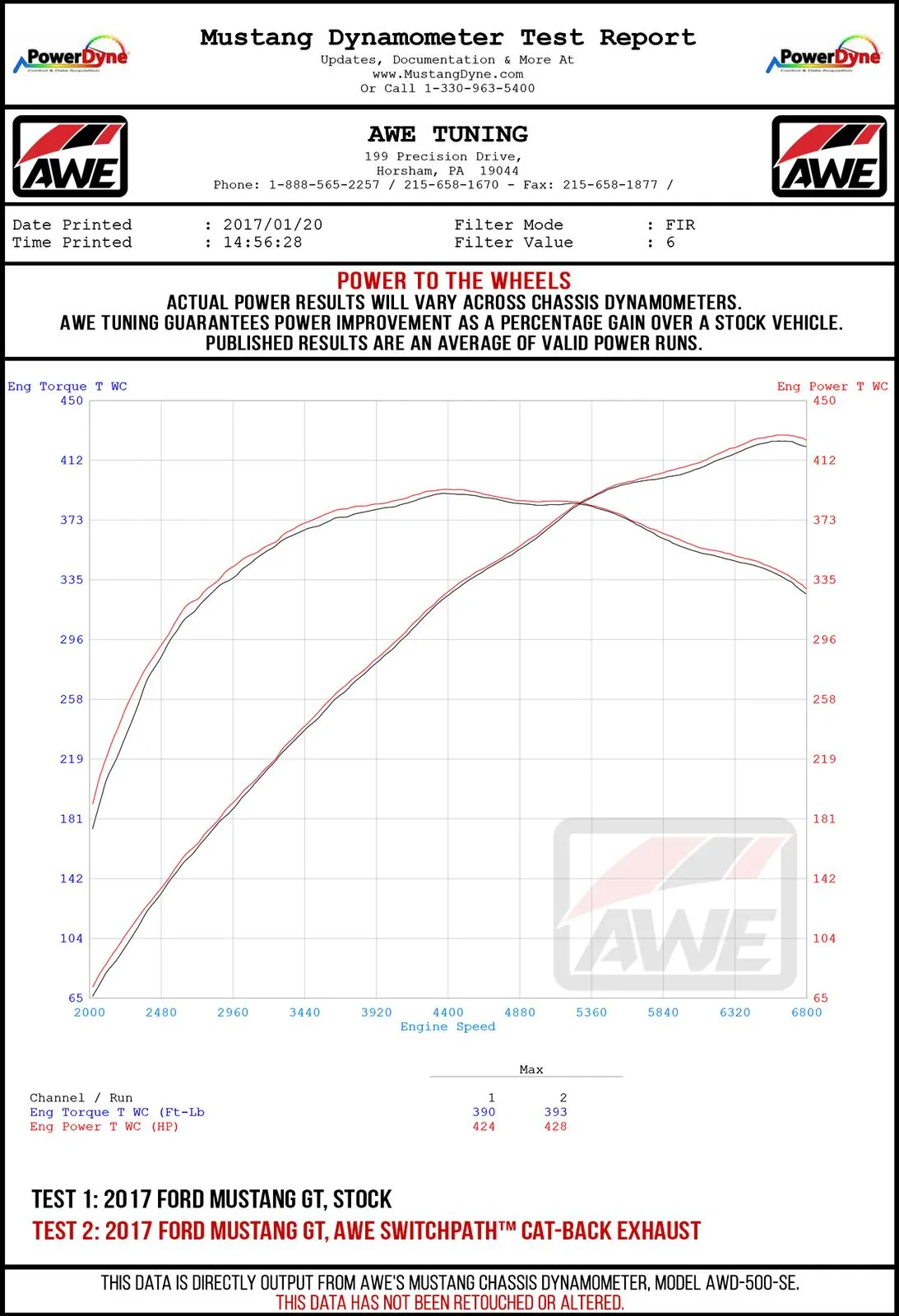

    Data:



    Tip Options:

    All tip options include the AWE logo and double walling to ensure a mirror finish even under hard usage. All tips are individually adjustable, allowing depth into the bumper to be set according to personal taste.

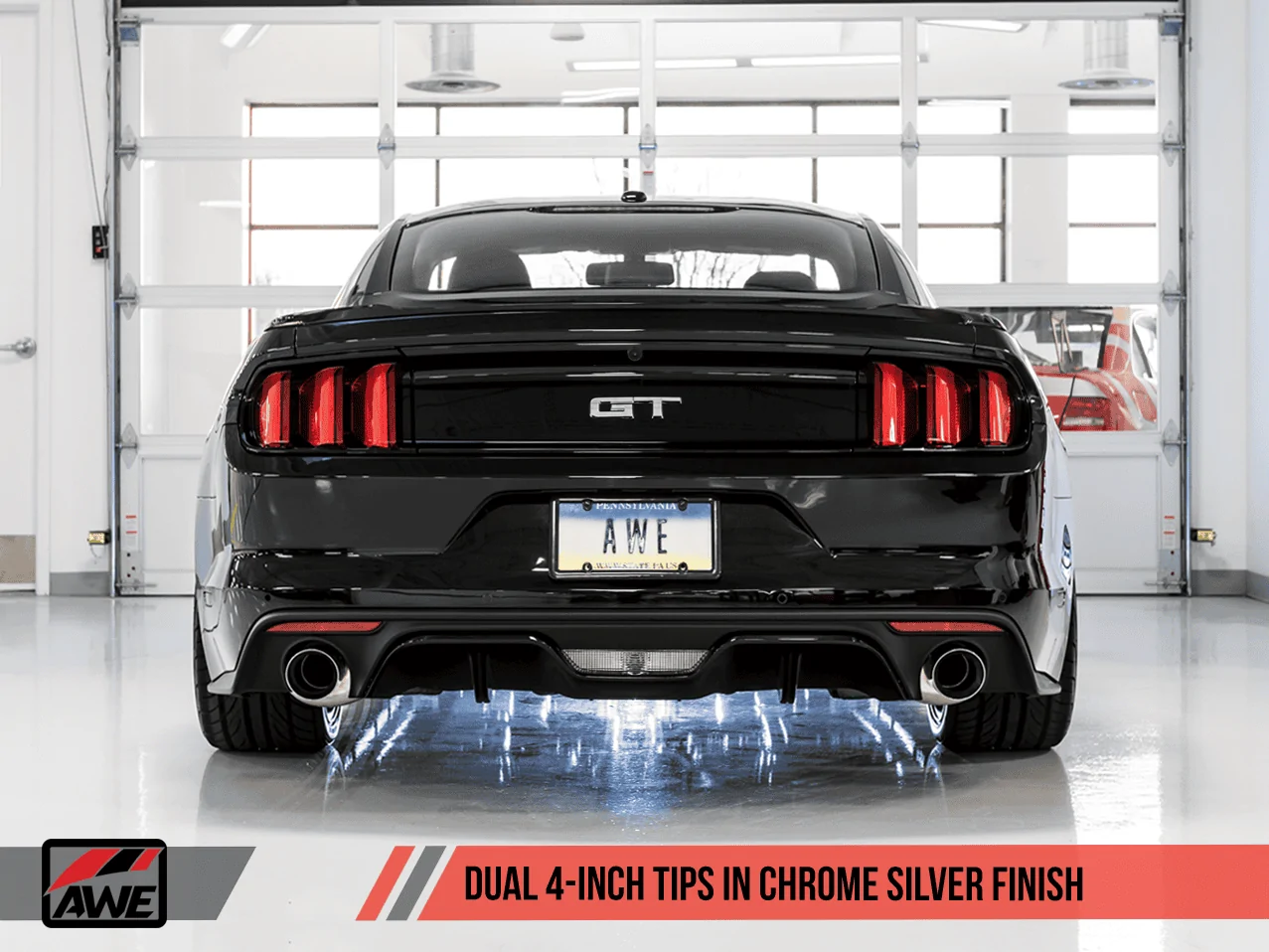

    • 4” slash-cut diamond black tips
    • 4” slash-cut chrome silver tips





    You’ve got questions? We've got answers. Hit me here, direct via email, or call 215.658.1670.​

  2. HavasuCat

    HavasuCat Well-Known Member

    Vehicle(s):
    2015 GT Base, Competition Orange
    Joined:
    Apr 22, 2016
    Location:
    AZ
    Posts:
    366
    Likes Received:
    56
    0   0   0
    Nice.
    Could you post a vid of the GT Touring Edition axle back using the stock resonator?

  3. Eisman

    Eisman Well-Known Member

    First Name:
    Mike
    Vehicle(s):
    Mustang.... Duhhhh
    Joined:
    Feb 19, 2016
    Location:
    Petawawa Ontario
    Posts:
    354
    Likes Received:
    213
    0   0   0
    Sub

  4. JuRuKi

    JuRuKi Well-Known Member

    Vehicle(s):
    2016 GT/PP
    Joined:
    May 2, 2016
    Location:
    SoCaL
    Posts:
    922
    Likes Received:
    235
    0   0   0
    Love the tone on these exhausts! Would you say the quiet mode sounds like the touring version and the loud mode sounds like the track version?

  5. 2morrow

    2morrow DesignR/DriveR/RiceEatR

    First Name:
    Todd
    Vehicle(s):
    '16 Mustang GTPP
    Joined:
    Nov 15, 2015
    Location:
    415/707/925/530/916
    Posts:
    4,482
    Likes Received:
    2,923
    0   0   0
    Sounds great! I would love to hear it in person.

  6. plc268

    plc268 Well-Known Member

    First Name:
    Patrick
    Vehicle(s):
    2015 Mustang GT Premium Race Red
    Joined:
    Jun 2, 2015
    Location:
    Central Texas
    Posts:
    1,818
    Likes Received:
    608
    Rating:
    100%
    4   0   0
    Finally some exhaust vids. Well done, btw.

    Maybe it doesn't translate well in video, but I was hoping for more of a difference in the variable exhaust. Quiet doesn't seem that much quieter... just a different tone.

    But again, these types of things usually need to be heard in person.

  7. JuRuKi

    JuRuKi Well-Known Member

    Vehicle(s):
    2016 GT/PP
    Joined:
    May 2, 2016
    Location:
    SoCaL
    Posts:
    922
    Likes Received:
    235
    0   0   0
    ^^ I was expecting a bigger change in volume too

  8. earlingy

    earlingy Well-Known Member

    Vehicle(s):
    2016 Mustang GT Premium Performance Package
    Joined:
    Nov 18, 2015
    Location:
    Rocket City, AL
    Posts:
    245
    Likes Received:
    54
    0   0   0
    Yeah, so loud mode closes off the H pipe? Kinda weird...
    I too was expecting more of a difference... Maybe it is easier to tell in person, but it seems almost identical...

    BmacIL likes this.
  9. millhouse

    millhouse Well-Known Member

    Vehicle(s):
    2016 Ruby Red GT PP
    Joined:
    Jun 27, 2016
    Location:
    Simpsonville SC
    Posts:
    2,609
    Likes Received:
    1,187
    0   0   0
    With headphones on, the difference is noticeable. Everything does however sound a bit muffled. Hopefully american muscle can get some videos up soon with these exhausts to compare them to their other videos.

  10. Terminated

    Terminated GTFO_0009

    First Name:
    Marcus
    Vehicle(s):
    Bagged & Boosted 50th Anniversary
    Joined:
    Oct 7, 2014
    Location:
    MA
    Posts:
    1,162
    Likes Received:
    783
    0   0   0
    Definitely a deep and throaty American muscle sound! The remote for the switch path is really cool. Is that a totally wireless fob?

  11. mustank

    mustank Well-Known Member

    Vehicle(s):
    2016 mustang gt
    Joined:
    May 23, 2016
    Location:
    APO
    Posts:
    184
    Likes Received:
    37
    0   0   0
    The sound on the touring cat-back is really nice. Well done.

    I still haven't picked up a cat-back yet. I was dead set on Corsa sport based on exhaust note and no drone, but I might just wait a while for this to get out in the wild and see others' impressions.

  12. OP
    OP
    Josh/AWE

    Josh/AWE Well-Known Member
    Diamond Sponsor


    Vehicle(s):
    EcoBoost, GT
    Joined:
    Feb 8, 2017
    Location:
    Horsham, PA
    Posts:
    623
    Likes Received:
    163
    0   0   0
    Thanks! With the valve in the open state it is the equivalent to Touring Edition, and with it open, it's not quite Track Edition, rather an amplified, more aggressive Touring Edition tone. This is because the SwitchPath™ Cat-back features 180 Technology®, while the Track Edition does not. It's essentially the best of both world minus the headache-coaxing drone. :)

    Thank you!

    I know the wait was nearing painful, but thank you!

    Yes, loud mode closes the crossover. Open=scavenging.

    I encourage headphone usage. Definitely can't hurt.

    Agreed! Correct, the SwitchPath™ communicated to the controller wirelessly.

  13. OP
    OP
    Josh/AWE

    Josh/AWE Well-Known Member
    Diamond Sponsor


    Vehicle(s):
    EcoBoost, GT
    Joined:
    Feb 8, 2017
    Location:
    Horsham, PA
    Posts:
    623
    Likes Received:
    163
    0   0   0
    Thanks for the kind words. I highly encourage holding off. :amen:

  14. Performance nut

    Performance nut Well-Known Member

    Vehicle(s):
    2018 Mustang GT A10
    Joined:
    Feb 10, 2015
    Location:
    TX
    Posts:
    1,174
    Likes Received:
    315
    Garage Profiles:
    1
    0   0   0
    I'm assuming this is with stock exhaust manifolds. Have you tested with headers at all? I'm wondering if the quiet setting is a moot point.

    As far setup, I was expecting cutouts rather than a balancing valve. I'm assuming the location of the crossover tube is ideal with pressure waves and sound cancelling. Still sounds good though. :cheers:

  15. khannected

    khannected Well-Known Member

    First Name:
    Sohaib
    Vehicle(s):
    Black 2016 Mustang GT
    Joined:
    Jul 13, 2016
    Location:
    Hillsboro, OR
    Posts:
    97
    Likes Received:
    27
    0   0   0
    Since track edition does not include the 180 technology, should we expect any drone with that system?
