Post your 20" wheel and tires!

[Airborne5.0]

I would love to see everyone's 20" set ups. I've seen a few threads about posting your 19" set ups but not a 20" thread.

Don't forget your offset and wheel specs

Sponsored



[MAGS1]

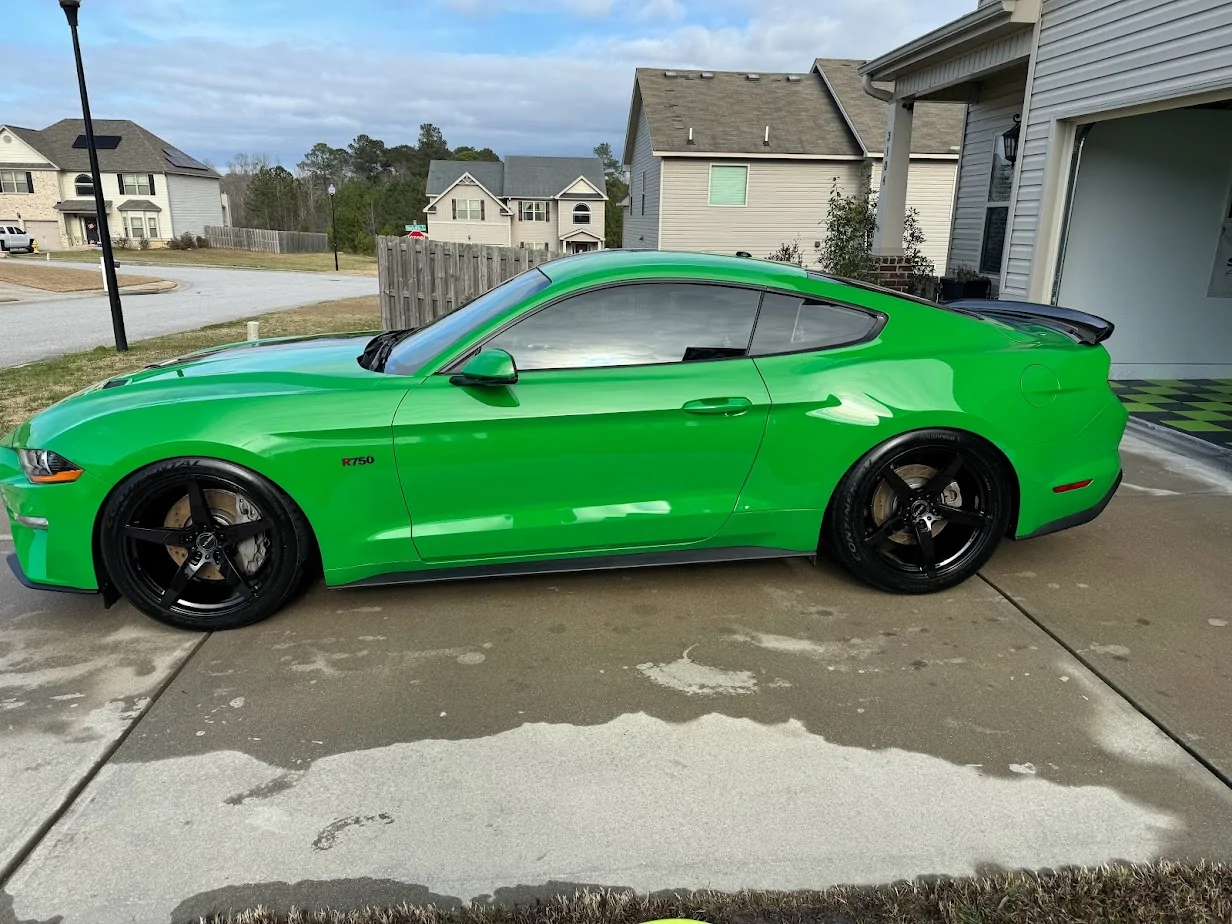

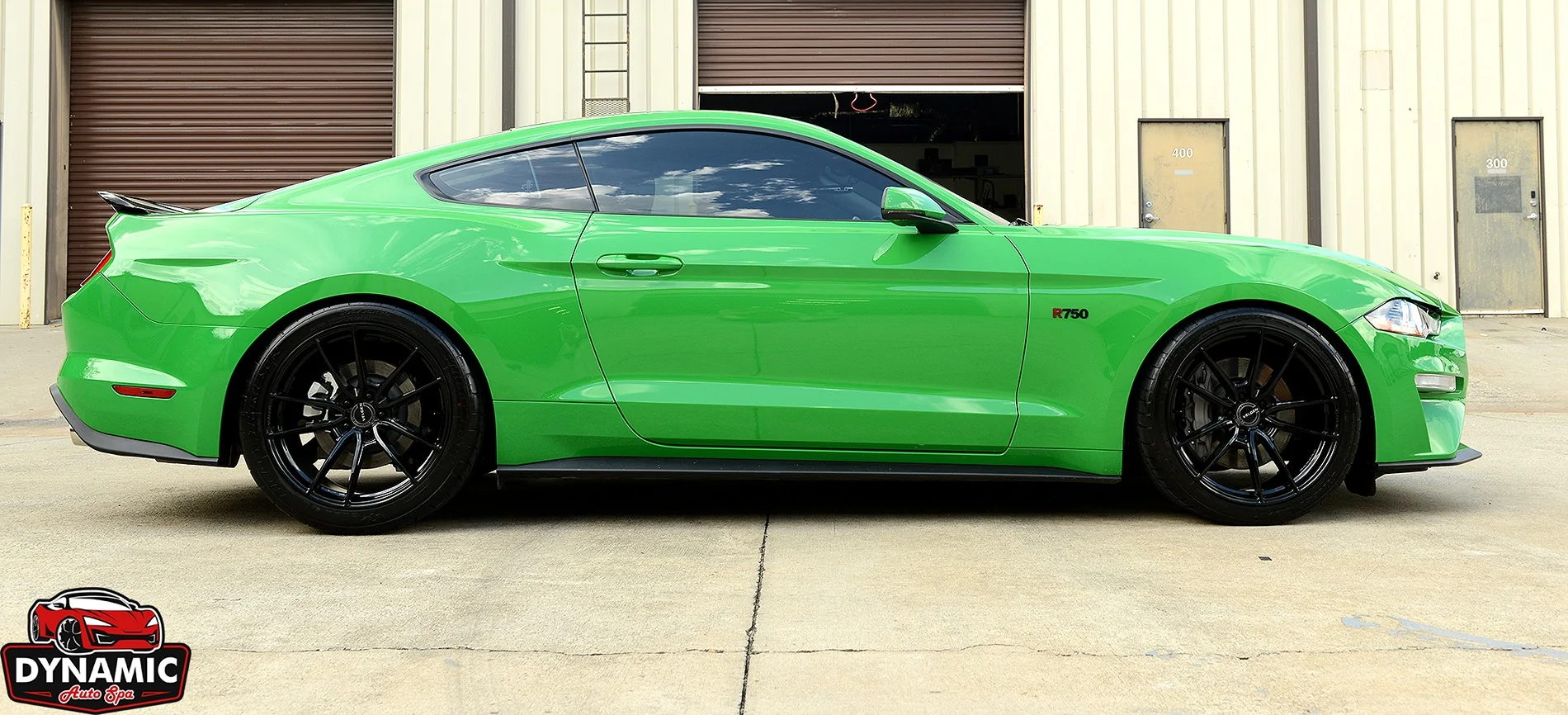

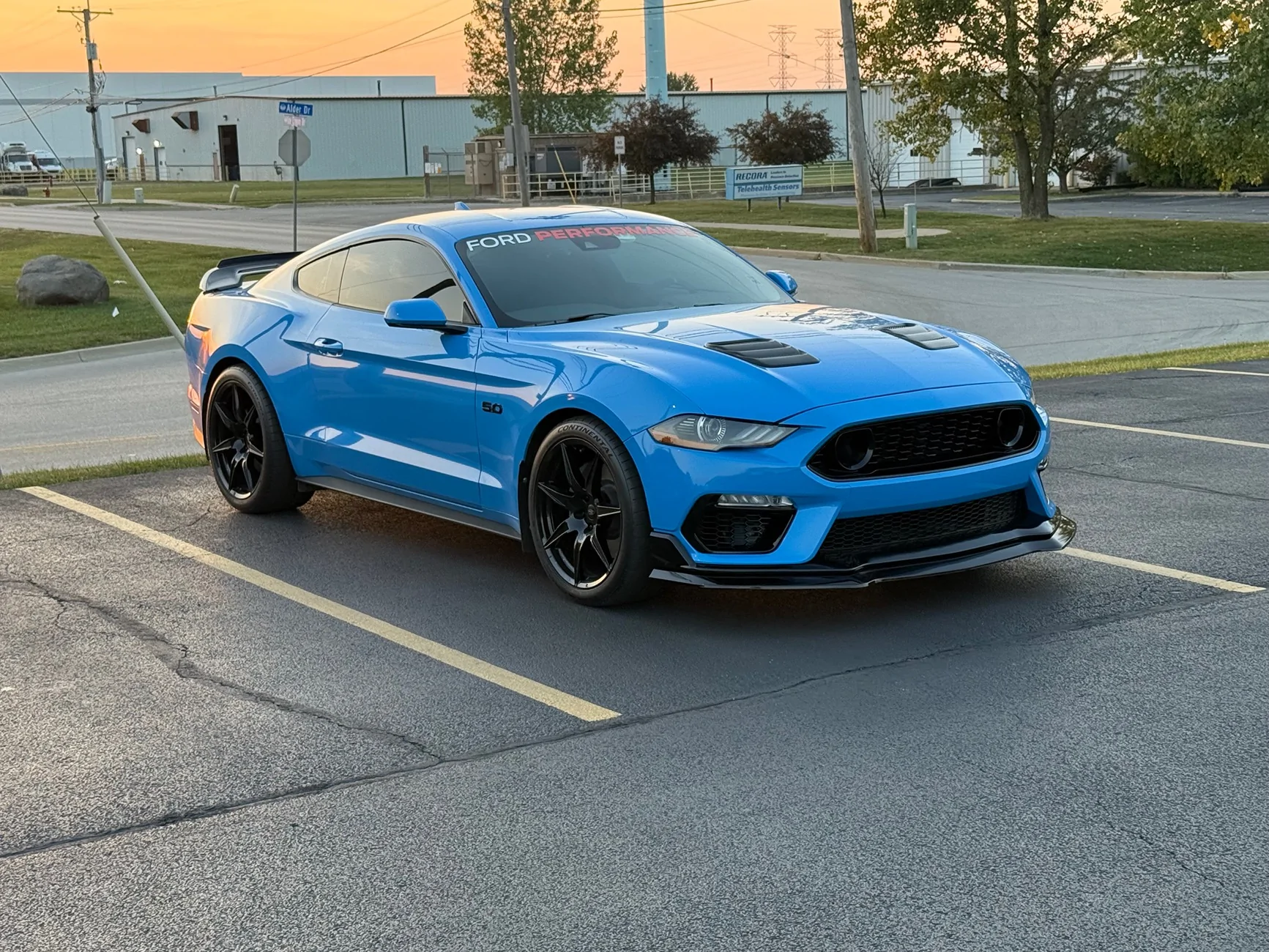

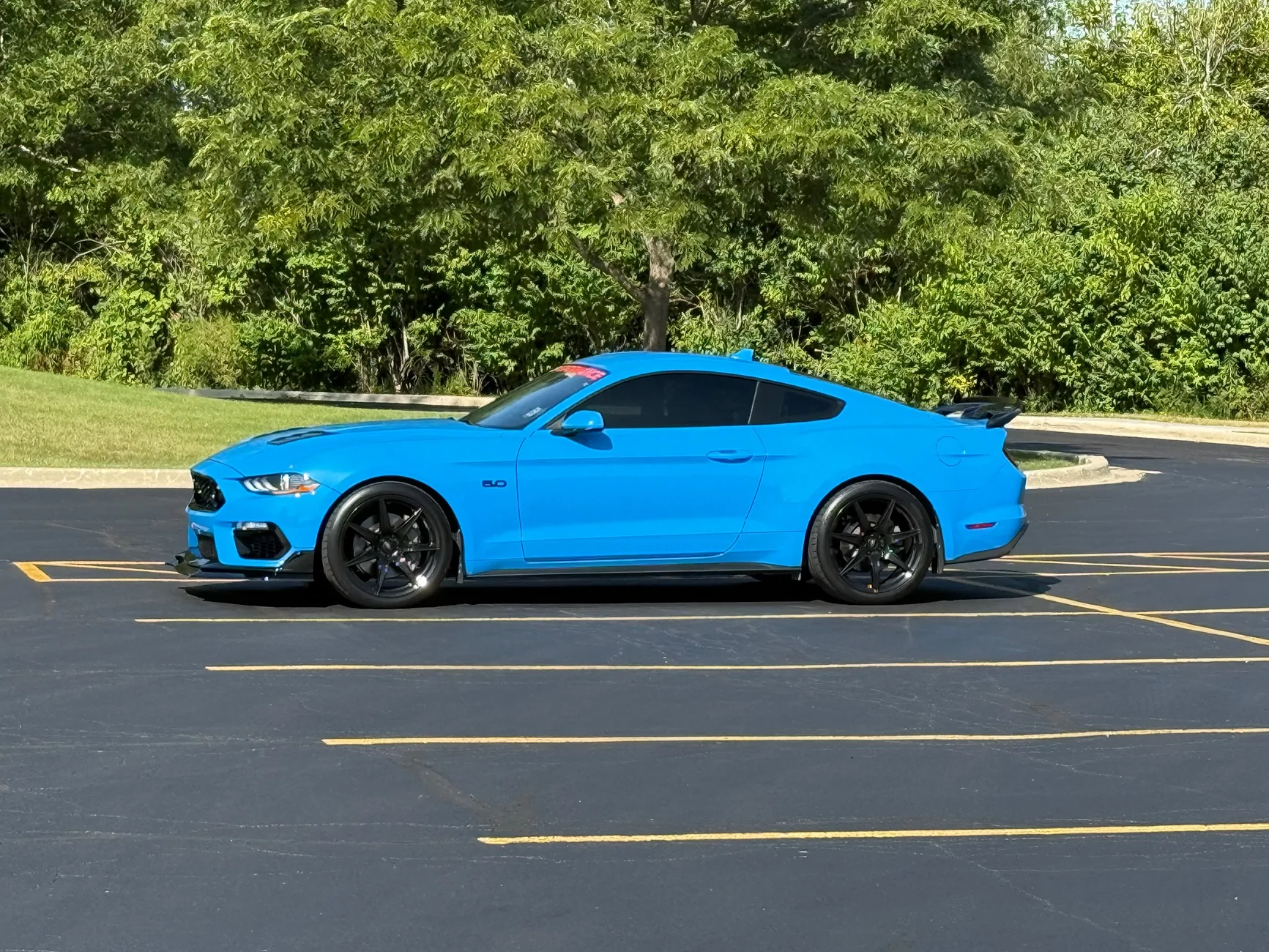

SVE CFX. 20x10 +35 all the way around. 285/35 Continental Extreme Contact Sport tires. Stock suspension



[Airborne5.0]

Looks great, thinking of any suspension in the future?



[m3incorp]

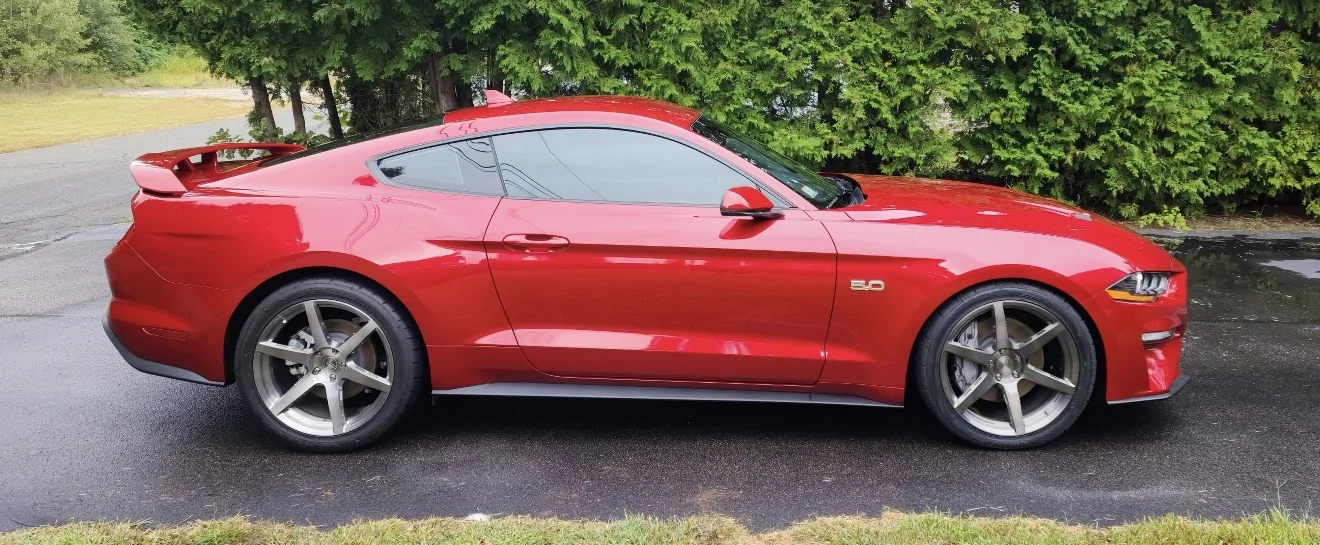

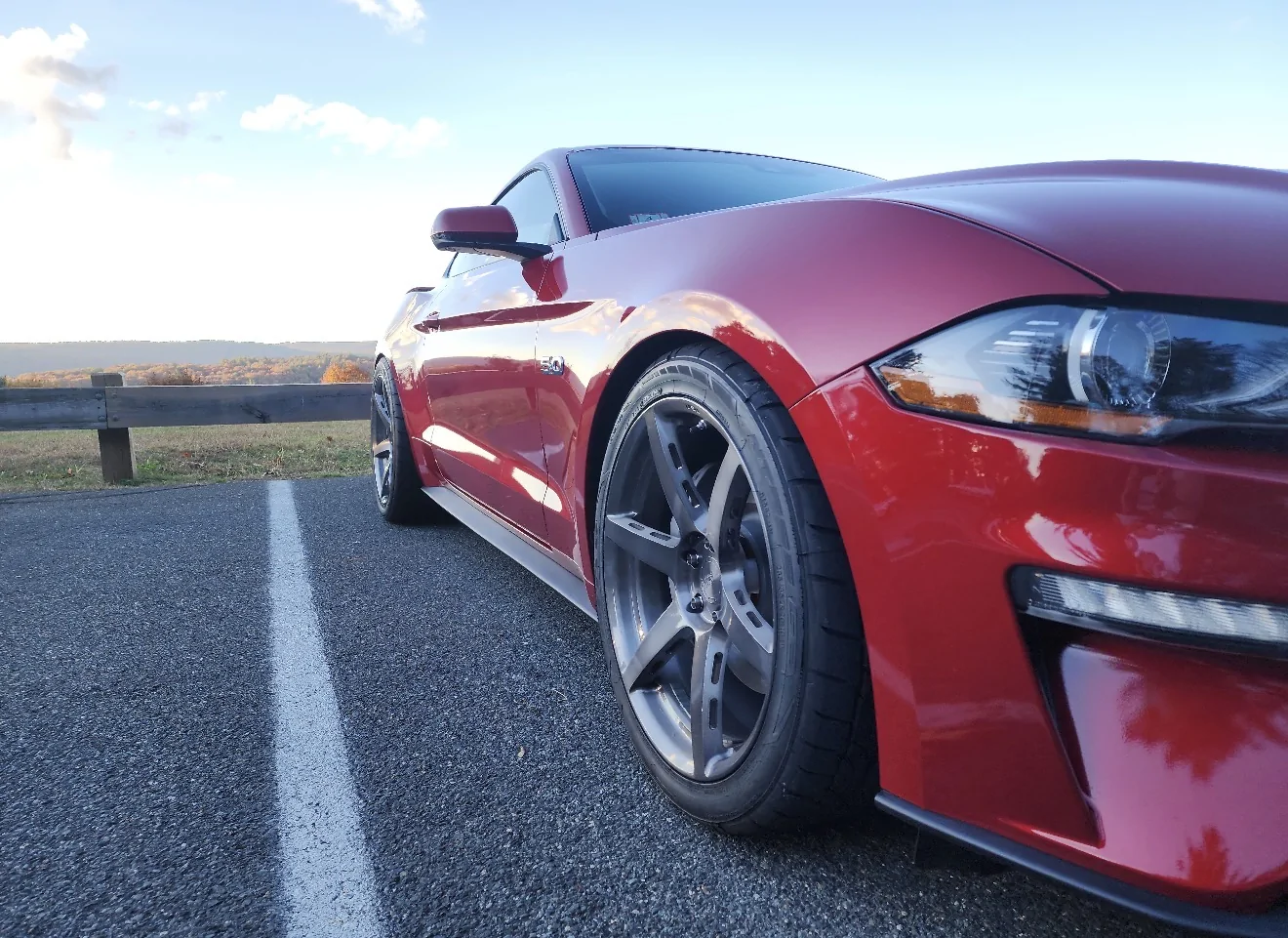

There is a thread "Aftermarket Wheels" that has a lot of 20" setups. Both sets of mine are Velgen 20x11 et 52 and 20x10 et 34 with 305/35r20 on the rear and 285/35r20 on the front on one set and 275/35r20 on the second set. Velgen VF9 top photo. Velgen Classic5 V2 bottom photo.



[Headless Horseman]



[AcceptableNebula]

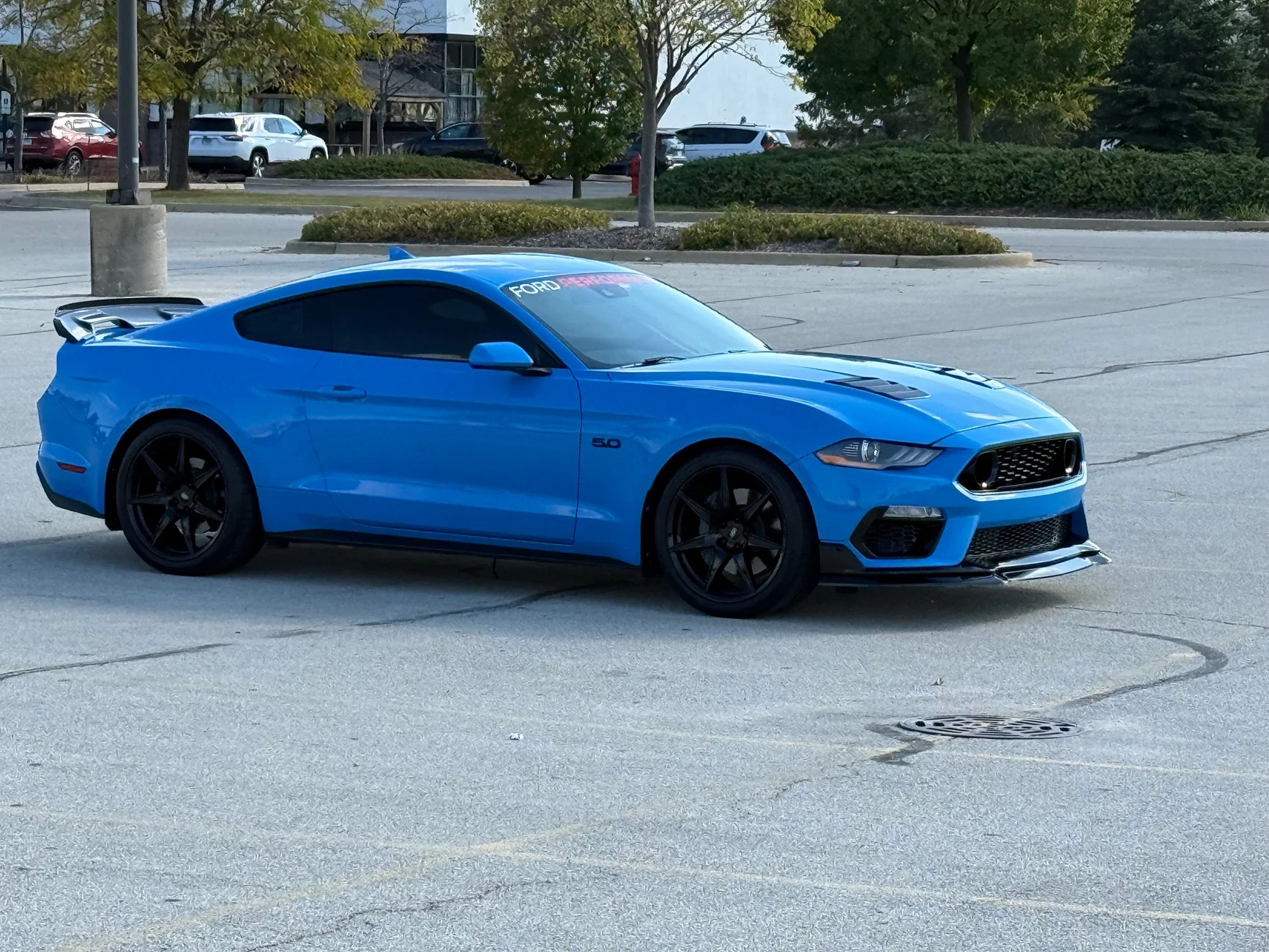

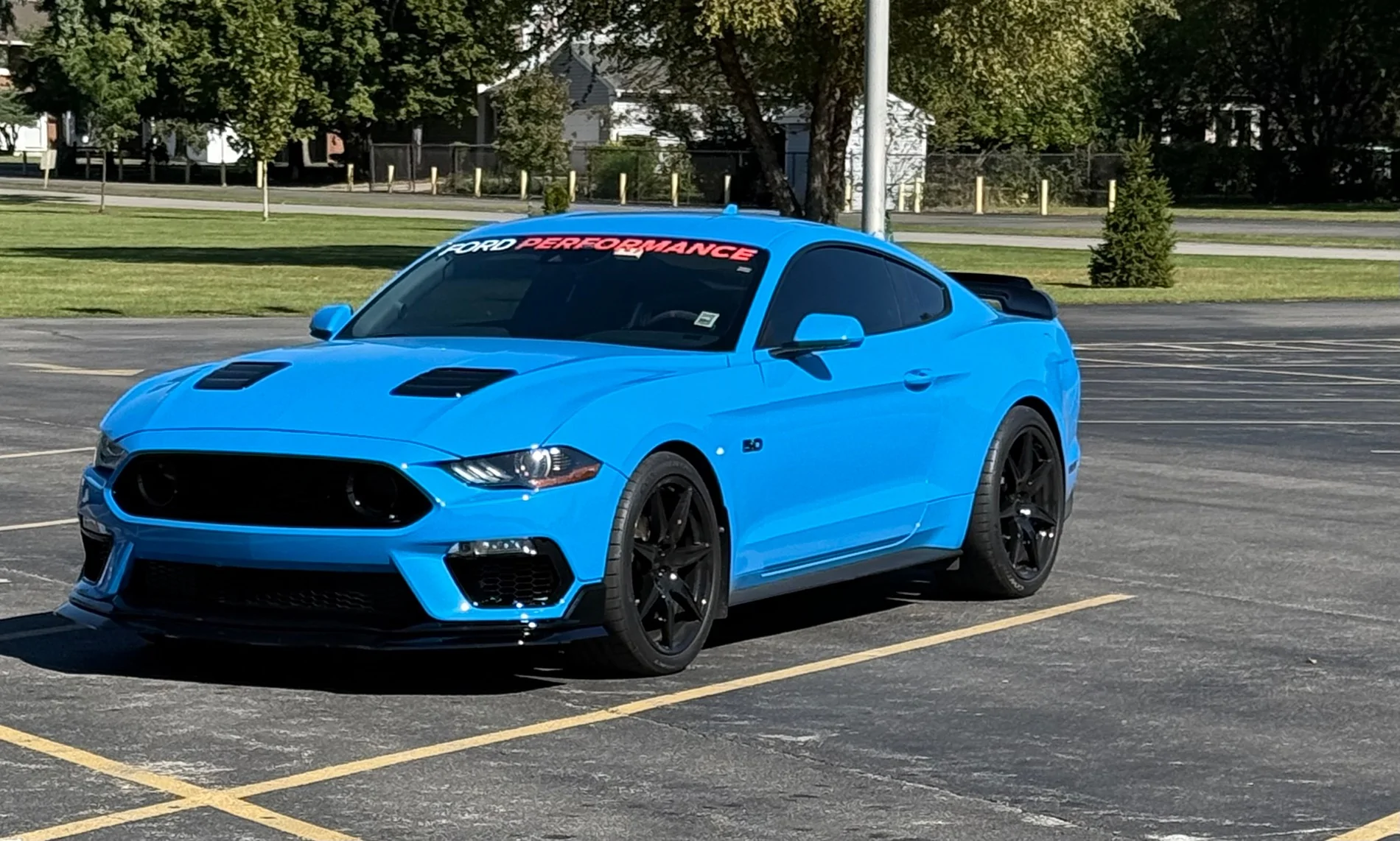

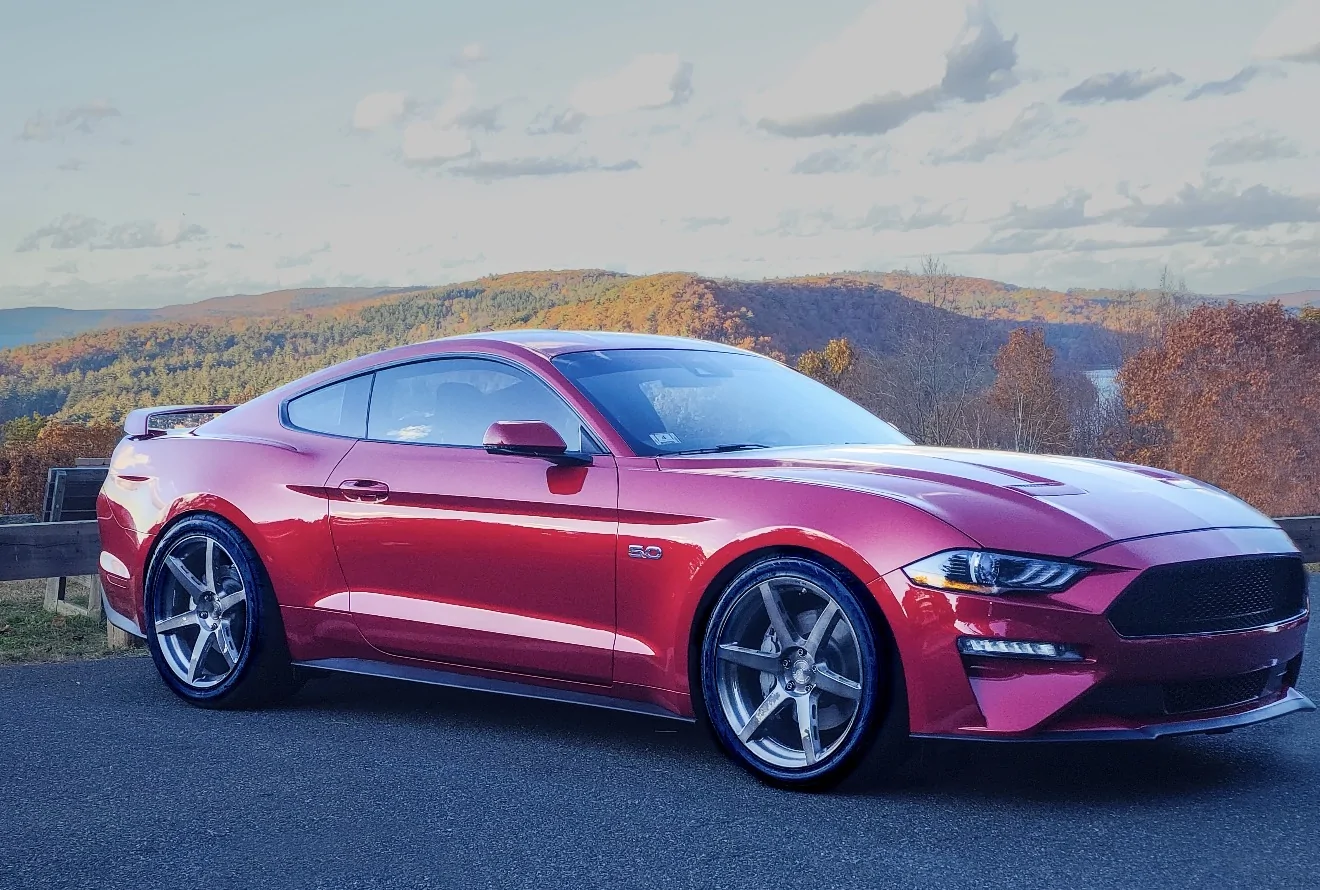

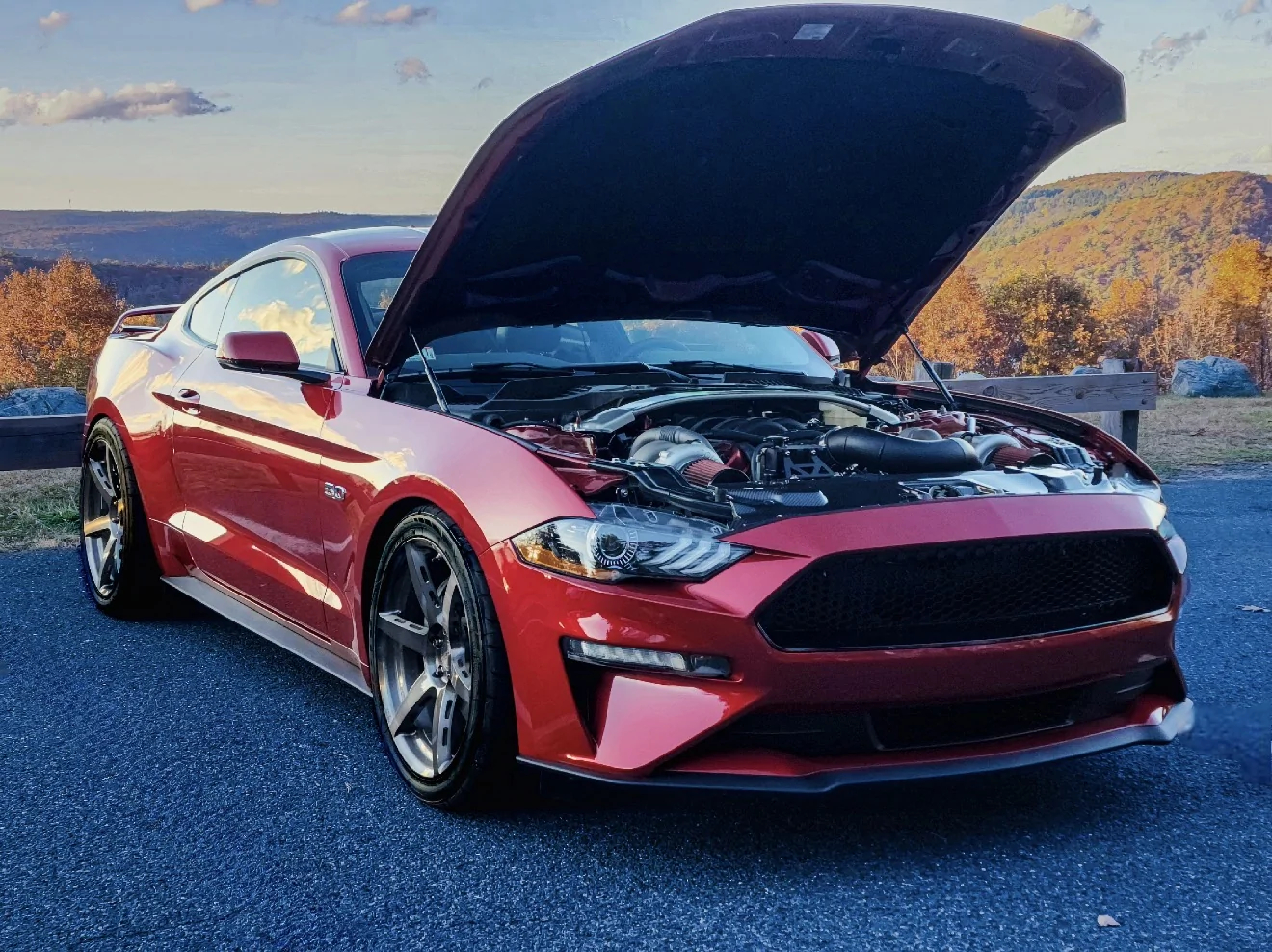

RSR Forged Monoblocks in Brushed Titanium
20x10 35
20x11 50
Car is lowered 1.25”

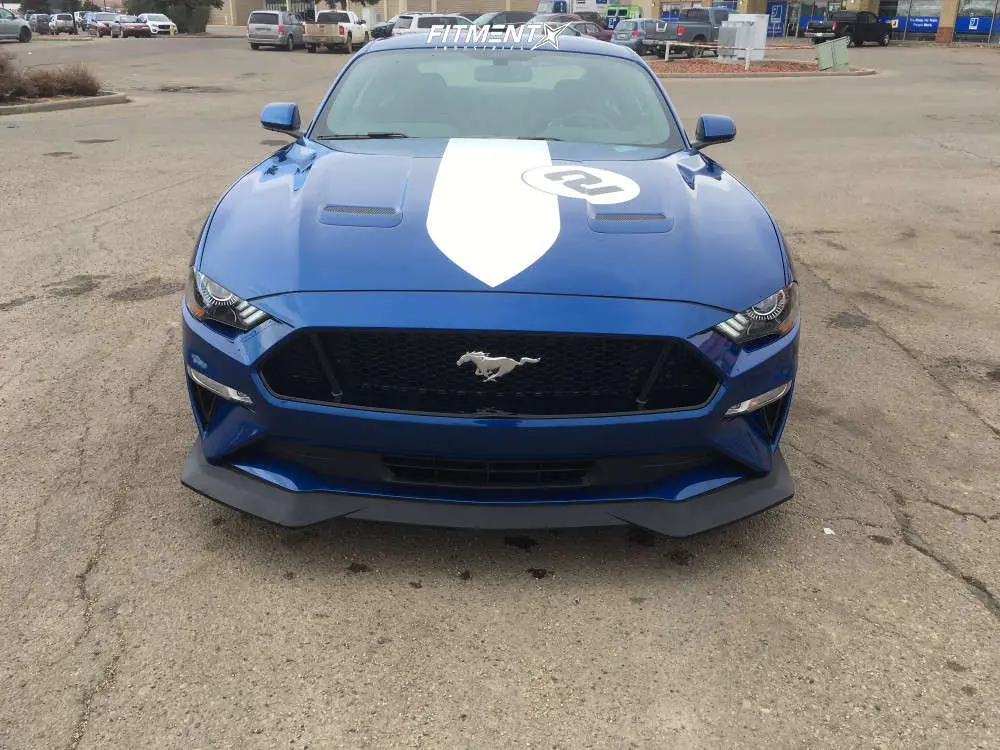

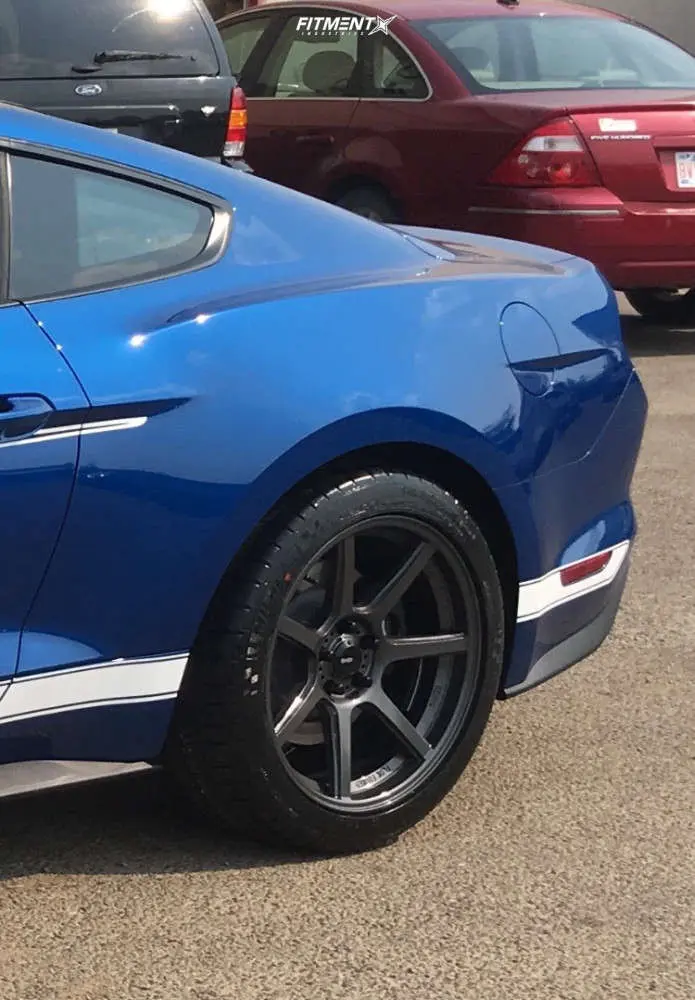

[FitmentIndustries]

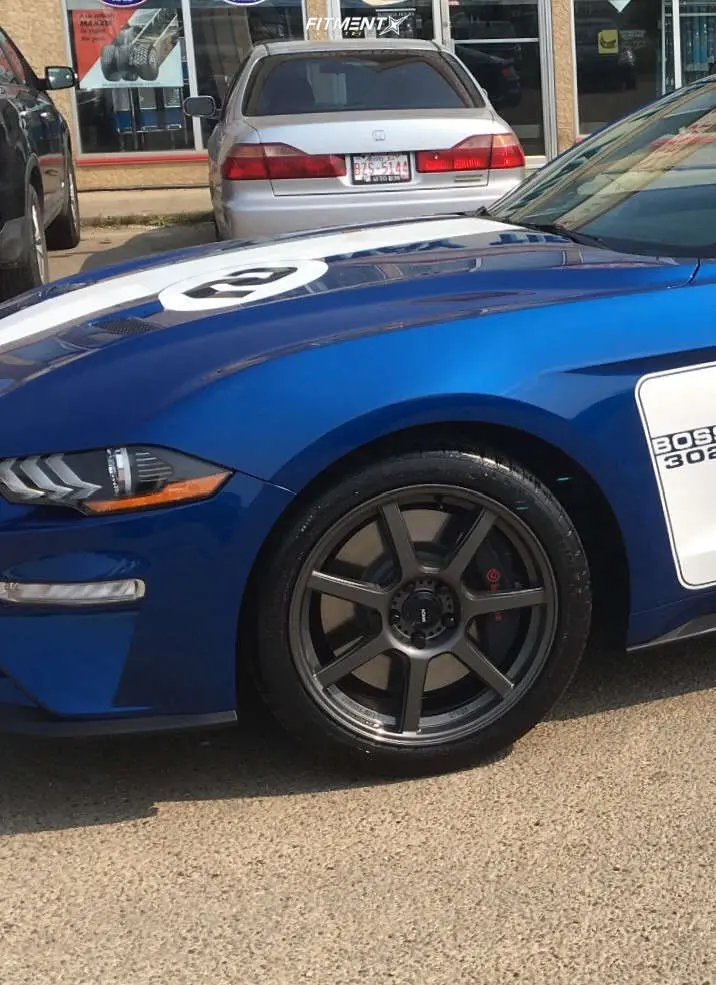

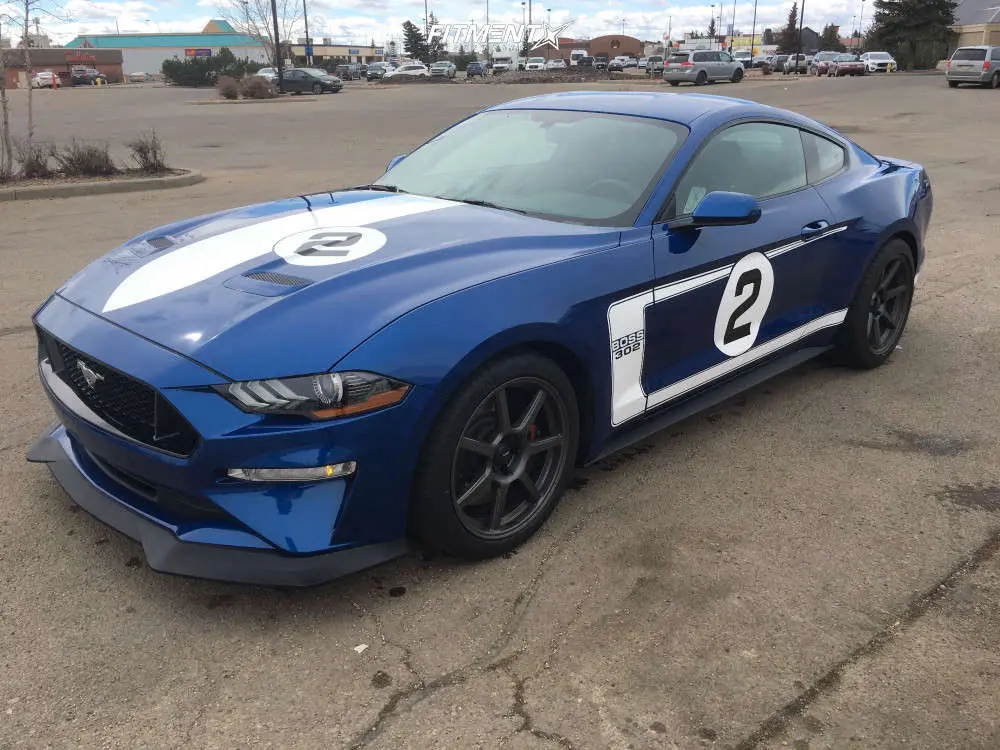

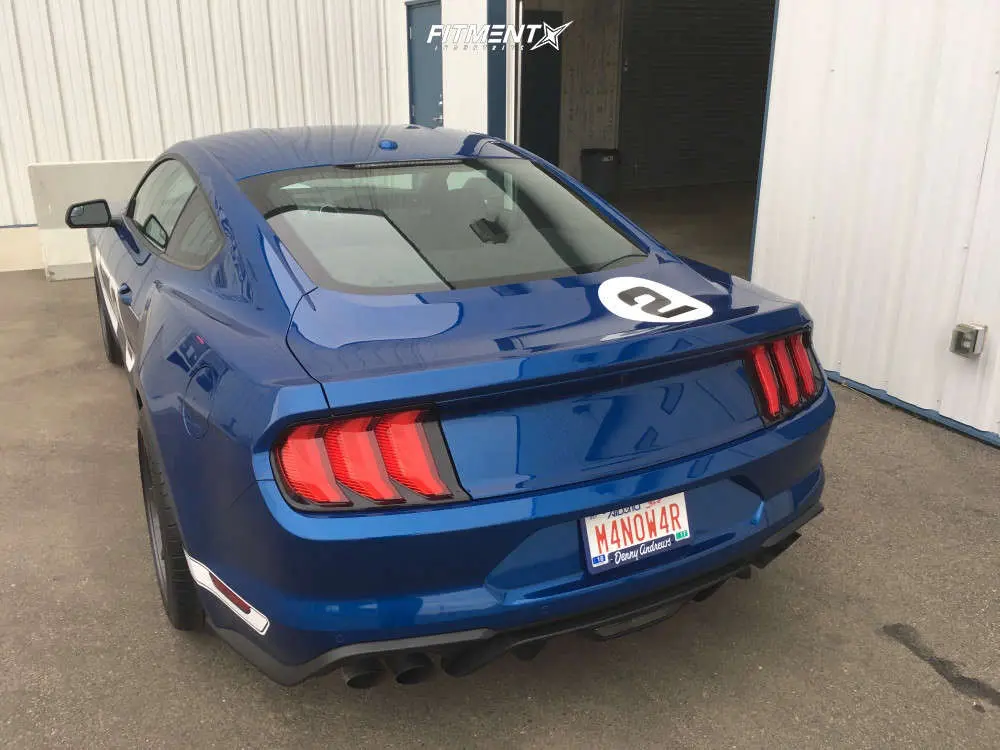

2018 Ford Mustang GT

Wheels - Konig Ultraform Front: 19x9 +35 Rear: 19x10.5 +40 (Front Backspacing: 6.4 | Rear Backspacing: 7.3)
Tires - Michelin Pilot Super Sport Front: 255/40 Rear: 305/35 | OEM Stock
Build: RTR chin spoiler. Whipple 3L gen5 Supercharger. MMD trunk panel.
Suspension: Stock



[MAGS1]

Looks great, thinking of any suspension in the future?

Sorry, totally forgot to respond. At some point I’m probably going to do the Ford Performance Track springs and dampers. Should lower the car about an inch. I’m also contemplating going to 19” wheels. I like the 20’s but they’re a bit on the heavy side. Would either go Apex or Project6GR in 19x10 up front and 19x11 in the rear



[Golgo69]

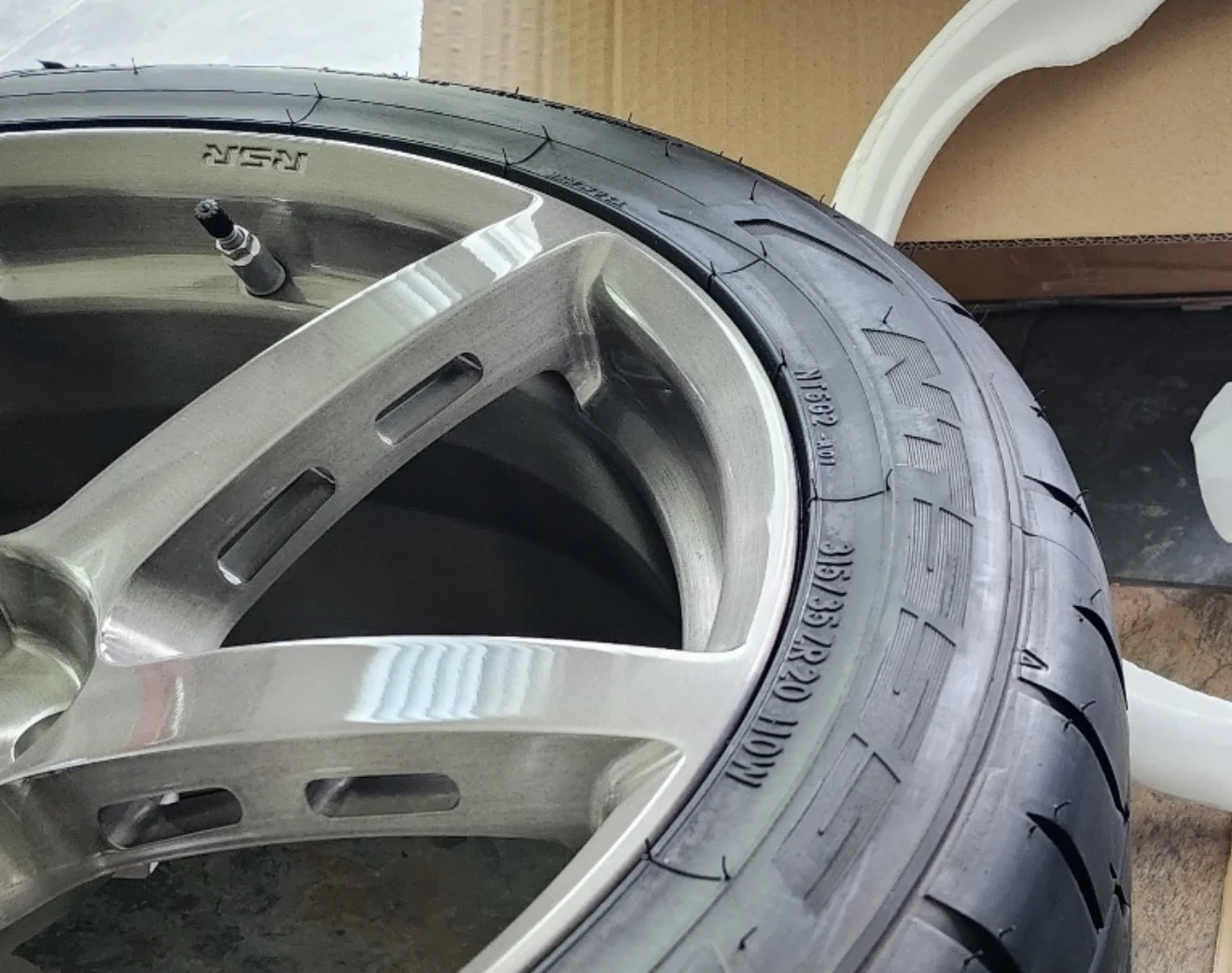

what Nittos are those? G2/

RSR Forged Monoblocks in Brushed Titanium
20x10 35
20x11 50
Car is lowered 1.25”



[AcceptableNebula]

what Nittos are those? G2/

Yes those are for just driving around with the boost turned down. I bought 2 sets of those wheels so I can have a set of R888Rs on them for events.



[Airborne5.0]

There is a thread "Aftermarket Wheels" that has a lot of 20" setups. Both sets of mine are Velgen 20x11 et 52 and 20x10 et 34 with 305/35r20 on the rear and 285/35r20 on the front on one set and 275/35r20 on the second set. Velgen VF9 top photo. Velgen Classic5 V2 bottom photo.

Any rubbing issues?

RSR Forged Monoblocks in Brushed Titanium
20x10 35
20x11 50
Car is lowered 1.25”

Looks awesome, any issues with rubbing



[AcceptableNebula]

Any rubbing issues?


Looks awesome, any issues with rubbing

No rubbing



[Airborne5.0]

No rubbing

Thanks for the reply, What are your tire specs?



[AcceptableNebula]

Thanks for the reply, What are your tire specs?

Technically mine did rub a touch on the inner fender but that’s because I relocated my fuse box behind the bumper to get the turbos up top in the engine bay. That pressed out the inner fender some, and I had one harness that I had stacked that started to kiss it. I have all the front harnesses stripped and am in the process of relocating the fuse box and pcm into the battery box area. Plus I’m lowered 1.25” in the front with GT350 front suspension. So safe to say they shouldn’t rub if your car isn’t altered extensively like mine.

Front 285/35/20
Rear 315/35/20



[LetItRide1978]

Shelby Super Snake Wheels:
Front: 20x9.5 +40
Rear: 20x11 +50

Michelin Pilot Sport All Season 4 Tires:
Front: 275/35/20
Rear: 305/35/20 (this tire was not yet available in 305/30/20 at the time)
