Paxton sanity/fitment check please

[jellyrole]

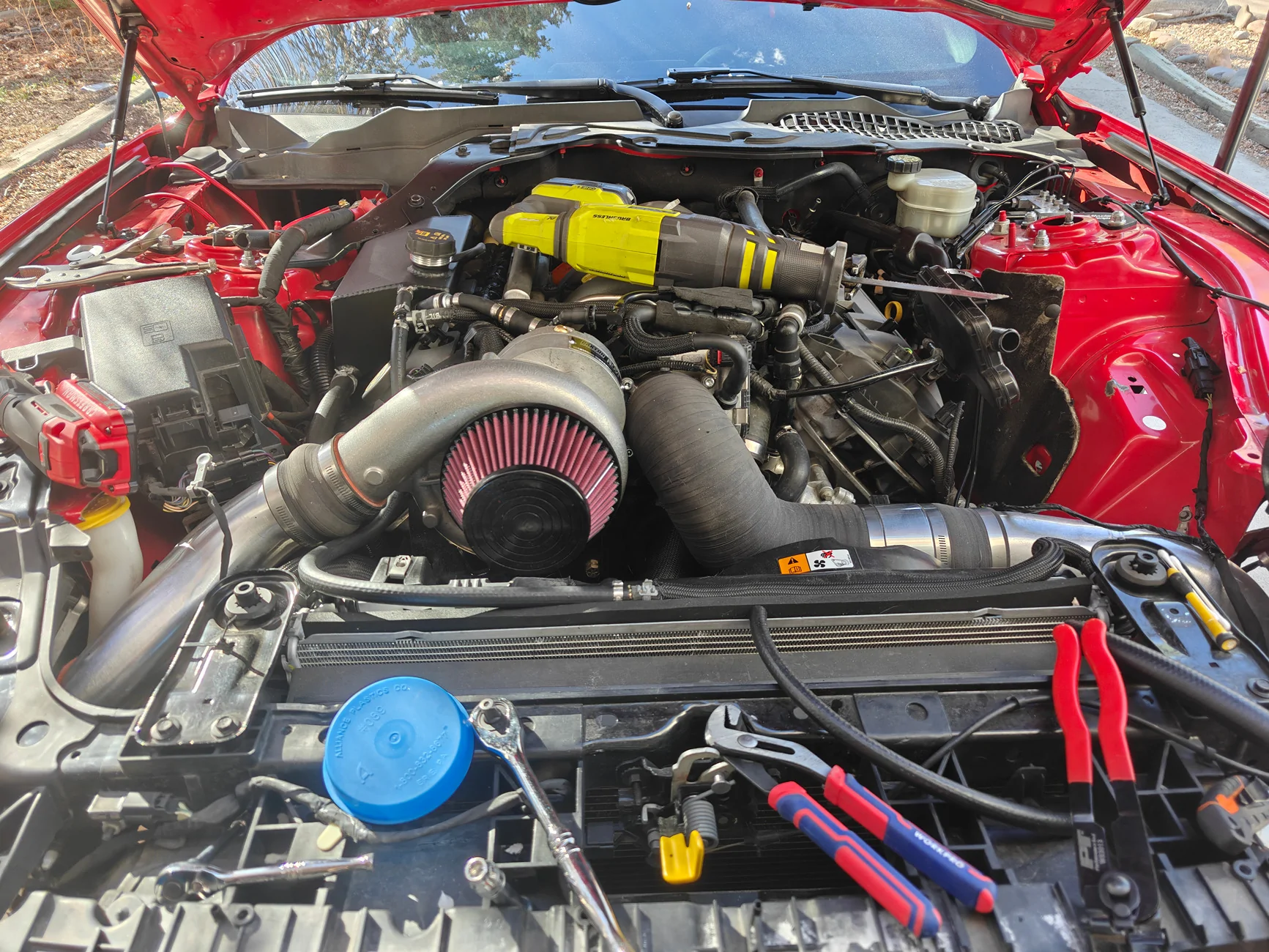

Happy Easter or Happy Sunday fellow Mustang nerds! Looking to get eyes on this Paxton 1200SL install for my 2017 GT before I tighten everything up. Any feedback or suggestions or hey you messed that ups are welcome.

Thanks guys!

https://photos.app.goo.gl/CLk8WJL8L4aAufVA9

Sponsored



[eisenhauer01]

Looks good, I just did a 2200sl on my 15 over the winter. Make sure your intercooler piping is not touching any of the body.



[jellyrole]

Thank you. I was able to avoid all body contact. The only thing I'm touch is the ac condenser line from what I can tell. I'm going to go ahead and tighten it all up.



[eisenhauer01]

Yes I had to gently bend the AC line slightly to prevent it from touching.



[jellyrole]

Awesome thanks for that. What did you do about the wiper fluid reservoir? Think about zip tieing it back under more towards the headlight



[eisenhauer01]

I originally did that. It would have worked fine, but I ended up buying all new silicone boots for all connections and they were a little longer. This gave me a little more room on it's own.



[jellyrole]

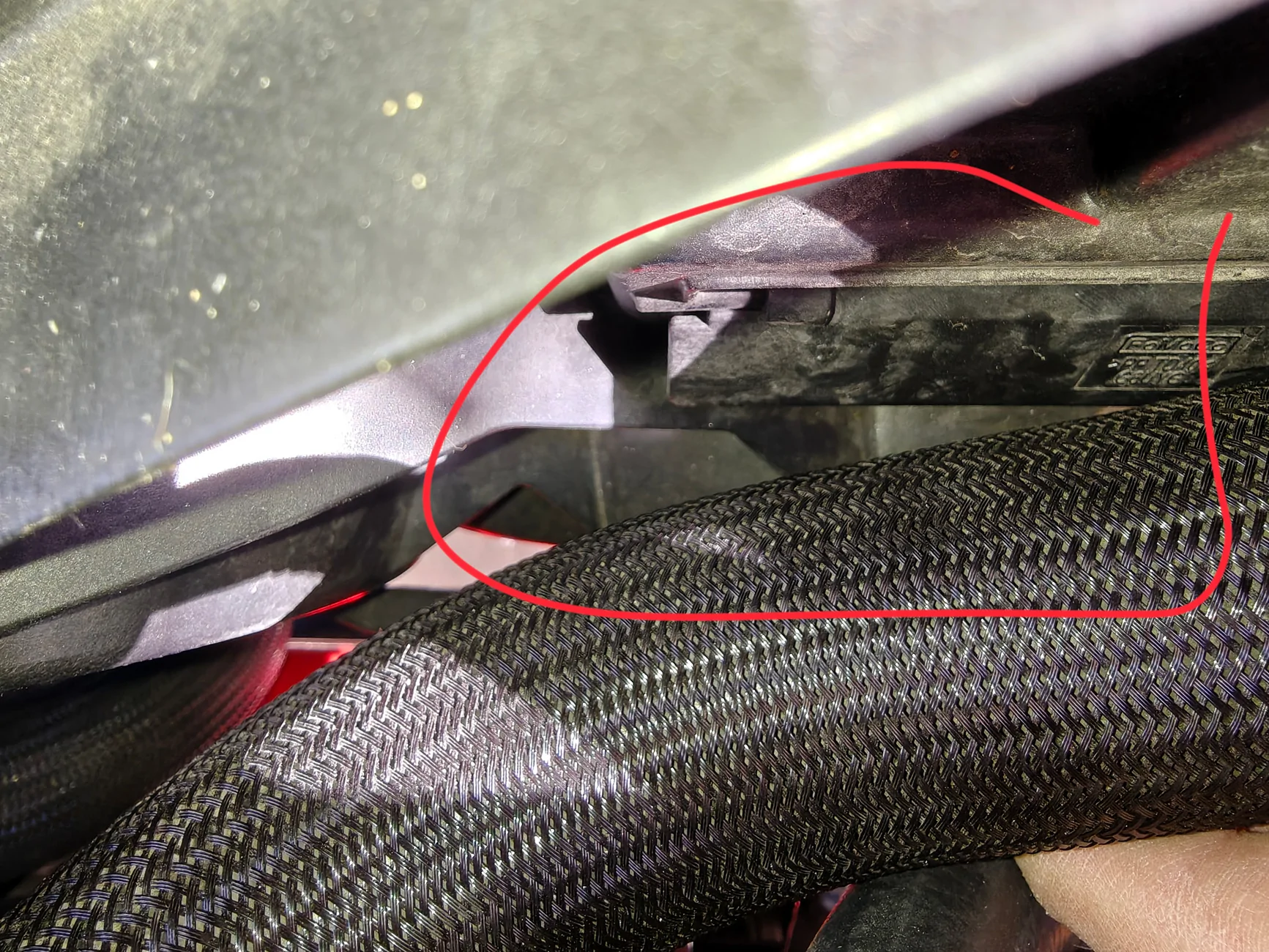

What did you do about the flap on the fan shroud? Can't decide if I should leave it closed, break it off, or prop it open. The radiator hose is blocking it



[eisenhauer01]

Pretty sure I just left the hose in front of it if I remember right



[jellyrole]

Did you do an intake for it just a filter on head unit? Not sure if I'm supposed to do the air inlet assembly instructions portion or not



[eisenhauer01]



[jellyrole]

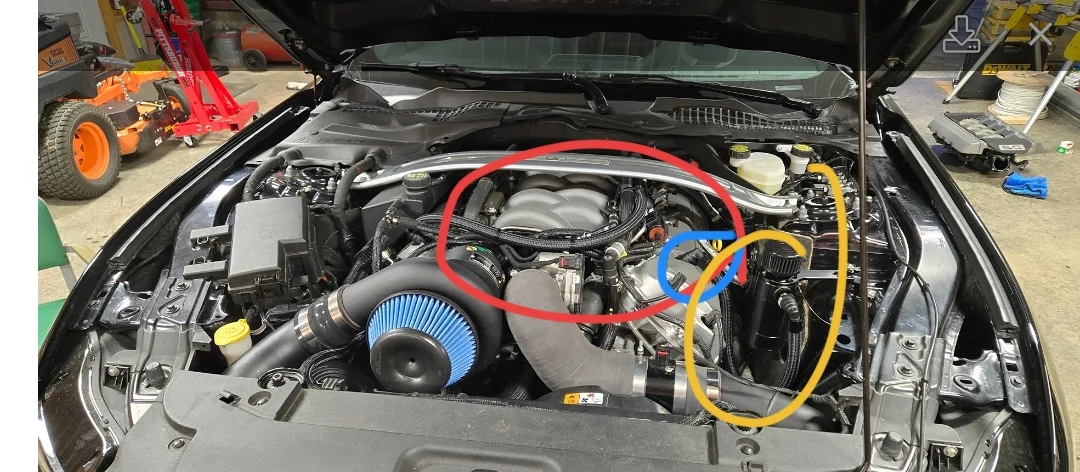

Do you have a good picture of red?
Edit by good I meant close up

I don't have anything plugged into that pcv port on blue.

And what's yellow?



[eisenhauer01]

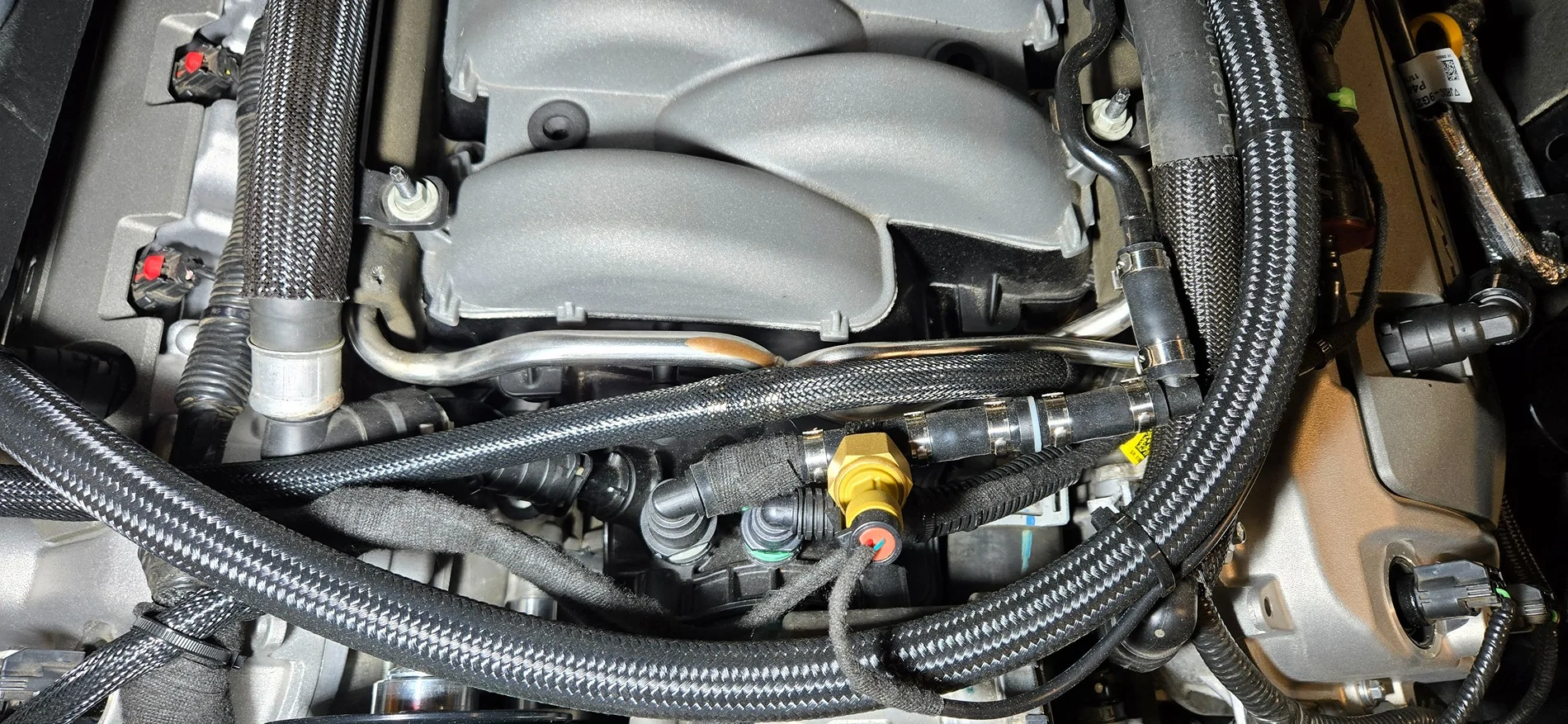

I did the catch can and it's hooked up to both valve covers as you can see.

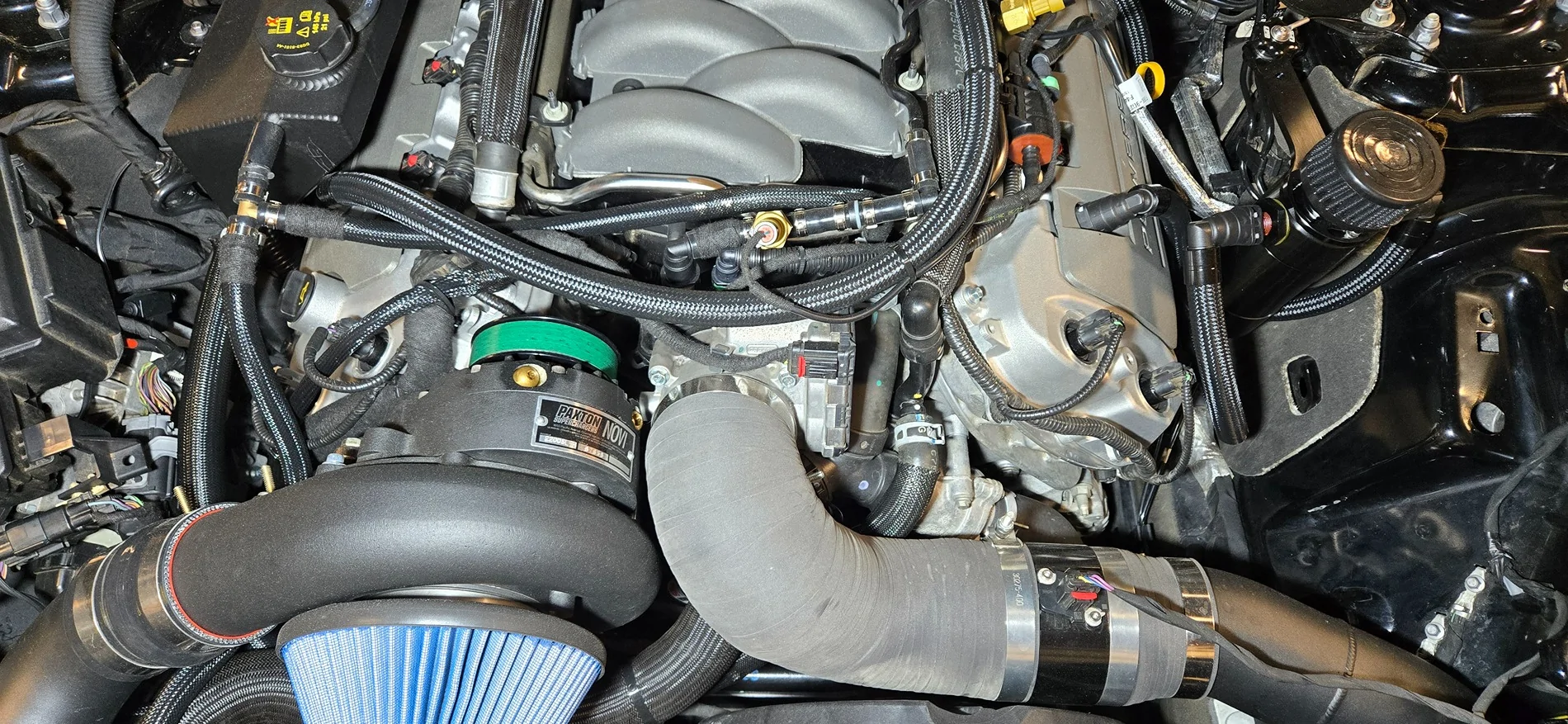

I did the vacuum a little different than most but it worked out really well. I'll try to get a pic in a little bit.



[jellyrole]

Beefcake told me to ignore the air inlet instructions but that also leaves the double check valve thing in the way. Thank you. Much appreciated. It's so close



[eisenhauer01]

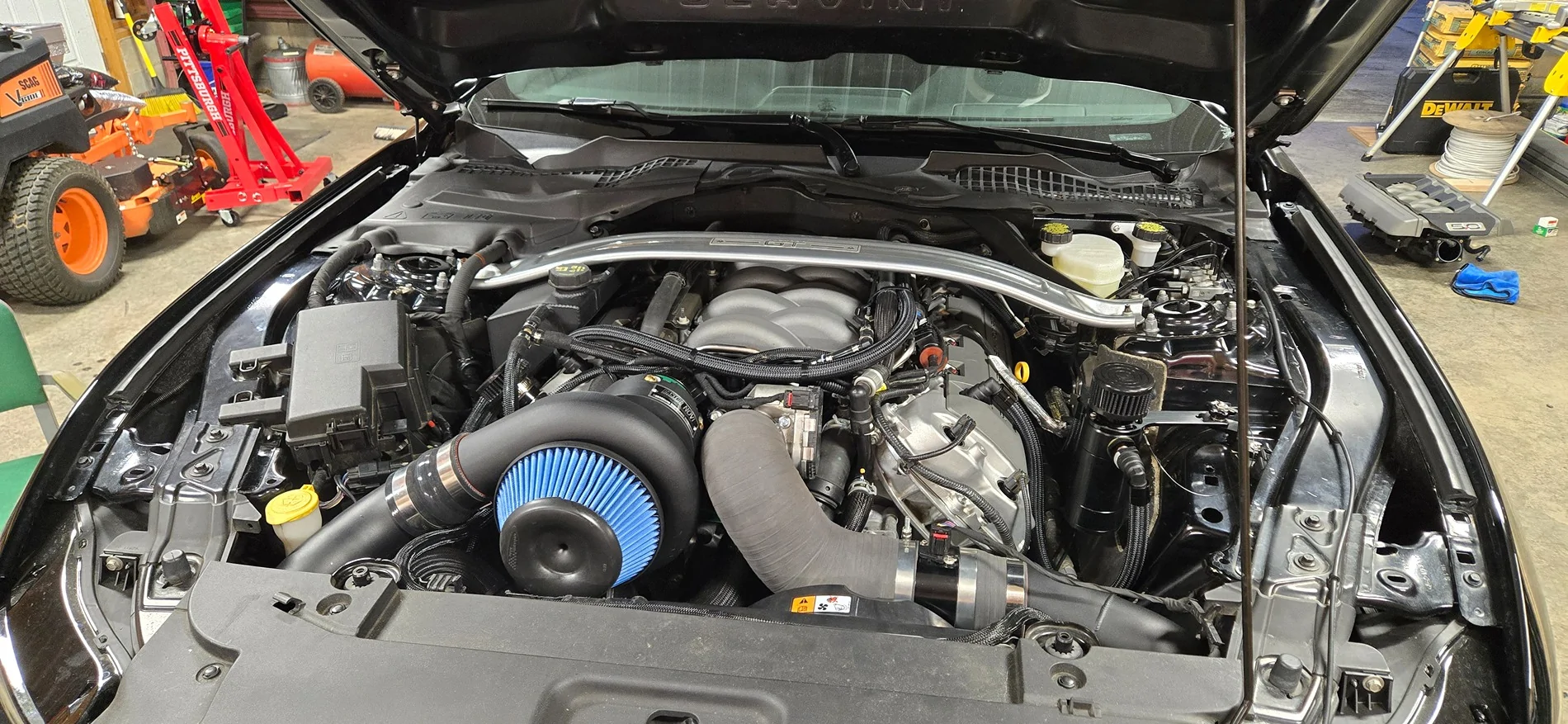

I put an 18+ intake on my car.
I got rid of the double check valve thing.

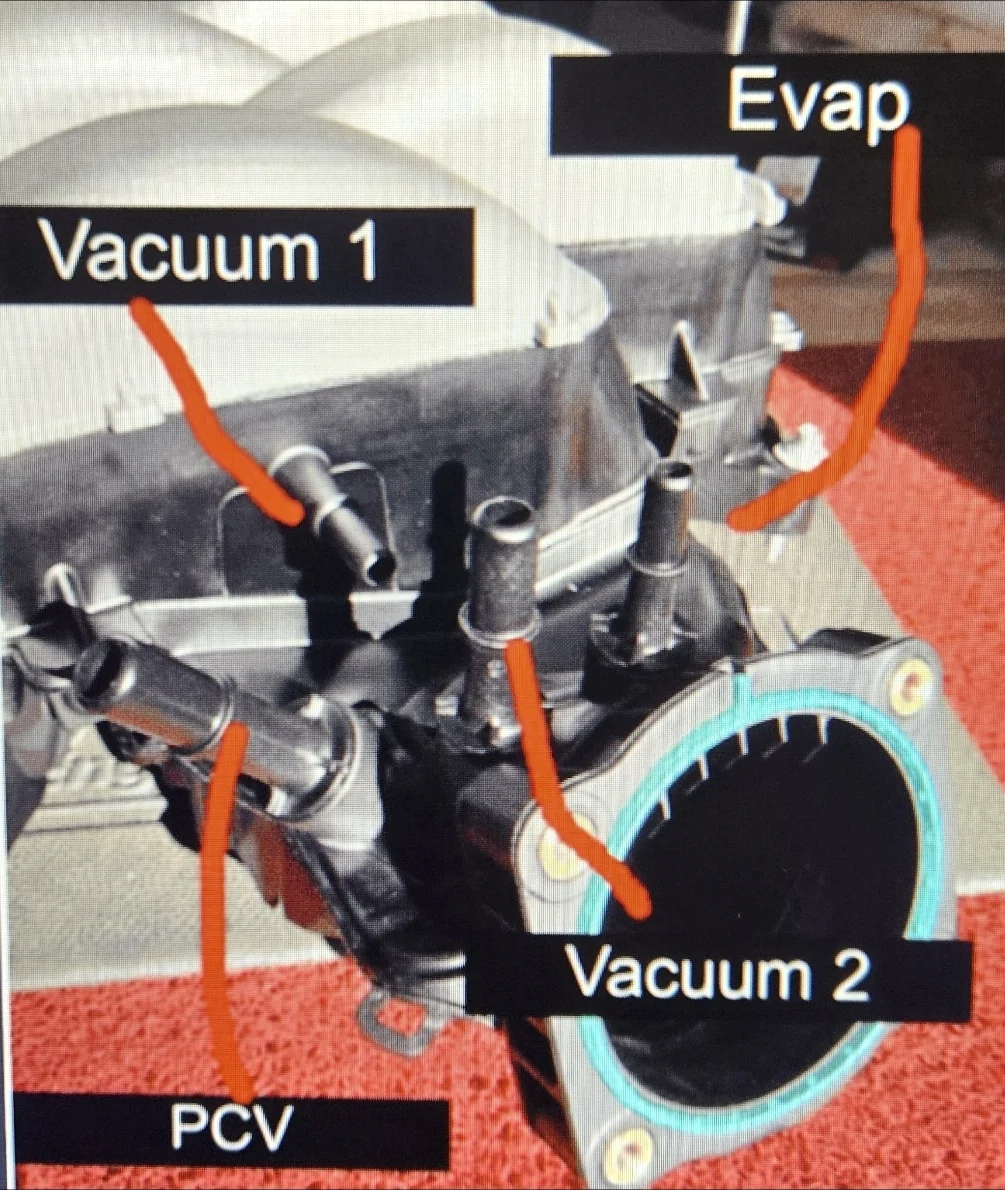

Vacuum is supplied as follows:
-Evap for Evap. I purchased the 18+ purge valve, evap line, and pigtail connector for a clean install.
-Vacuum 2 for the brake booster (has a small in-line check valve. Also I'm feeding my vacuum/boost sensor here as you can see.
-PCV for the BOV reference
-Vacuum 1 is blocked off. Note, this is not actually vacuum, its just a pass through tube for the IMRC's on the back of the intake (which I have locked out).



[qwiknotch]

Those filters are a huge restriction, in my experience.. You are better off putting the paxton elbow on it with the stock airbox. . On the dyno, I made more power with the stock airbox.
I also recommend getting tbolts and removing the worm clamps
