Looking for a wire from the ECU

[lsiunsuex]

Installing the Snow Performance Methanol kit today

Last wire

Does anyone know where the high flow fuel rail pressure sensor output wire to ECU is ?

Thanks guys

Sponsored



[RubyRed15]

Connector: C1551E
Pin Circuit Gauge Circuit Function
37 LE238 (GY) 20 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE (FRP)



[lsiunsuex]

Connector: C1551E
Pin Circuit Gauge Circuit Function
37 LE238 (GY) 20 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE (FRP)

Where is the actual module ? Is it the one in the driver footwell or ?

Thank you!



[RubyRed15]

Front left corner (facing the engine). Big 'ol plug.

This is from a '15 manual - not sure if '16 is different.



[Bull Run]

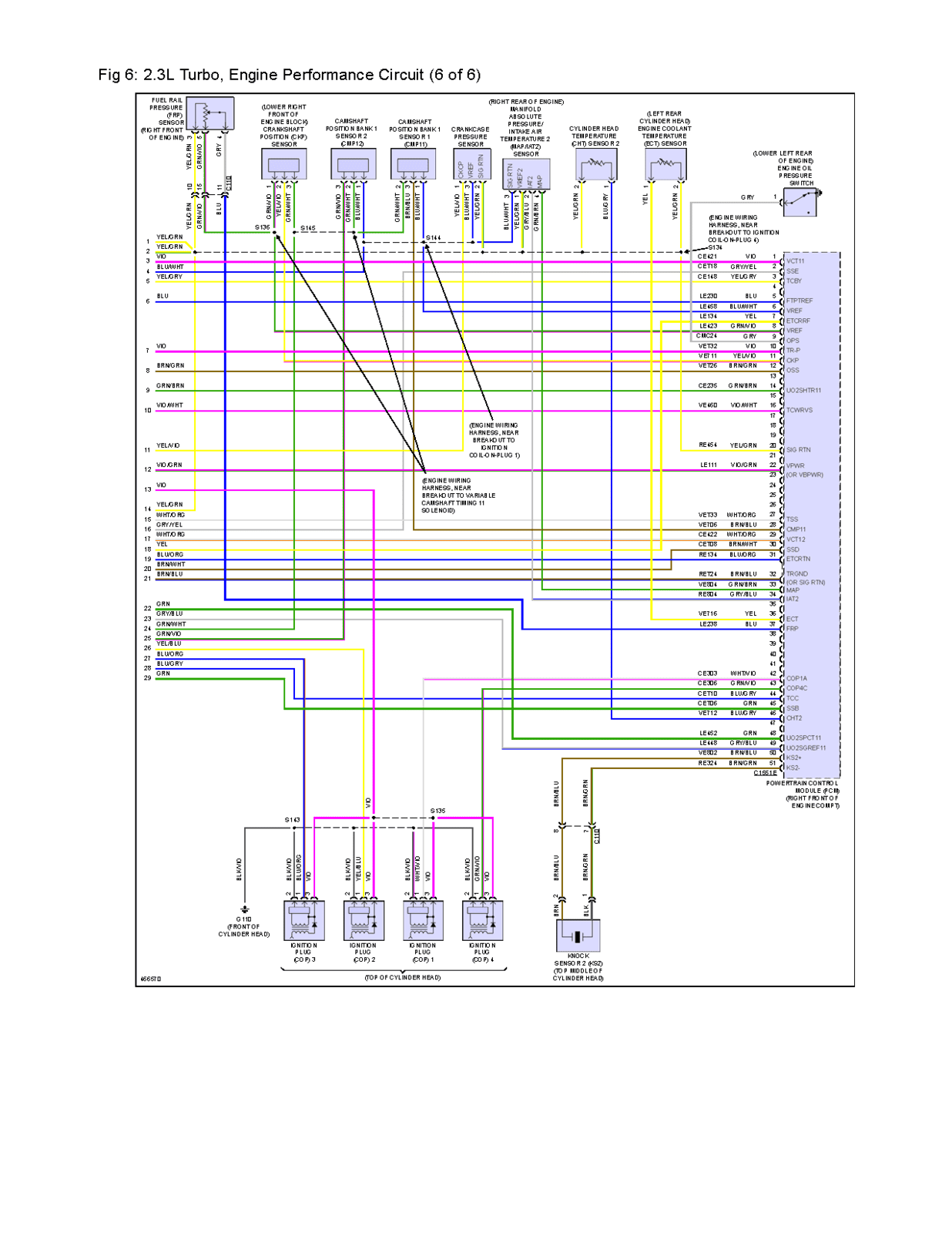

Hopefully, this wiring diagram will help.

23:23 shows the location of the ECU harness. Don't use the wire mentioned in the video as it's for the TPS wire used for the WMI failsafe.

EDIT: Added the PDF version of the diagram, which is clearer.



[lsiunsuex]

Thanks guys.

I emailed snow and they said you don't "need" the wire. The controller can read from boost pressure, fuel rail pressure or both. So it's fine with just boost pressure, but can provide a more accurate reading / better control if it has both.

Still - I'd like to use the wire / hook it up. Between the video and the wiring diagrams I should be able to find it this weekend.

Thanks again.



[Bull Run]

Just following up to see how your install went. Interested in seeing the results of using both fuel rail pressure and boost pressure for controller amount of fluid injected.
