Hey all,
I want to preface by stating that this is one of the first few times that I've worked on my car. I've pulled off my Whipple supercharger and sold it as a kit. I installed a Hellion sleeper kit and am at the last step of connecting everything. I had a lot of help from YouTube and Ford's diagram however I legitimately can not figure out what to plug into what port on the intake manifold. If someone has part numbers, that would greatly be appreciated. I don't own any of the OEM hoses & connection pieces since I bought this car 'as is' with a Whipple on it.
There's 4 'ports' on the face of the intake manifold that I don't have the connectors / hoses to.
1. I have a UPR dual catch can so I believe that the most left port is going to be plugged off since my catch can would take it's end connection location at the passenger PCV tube. / I may attach a vacuum block to this port if needed.

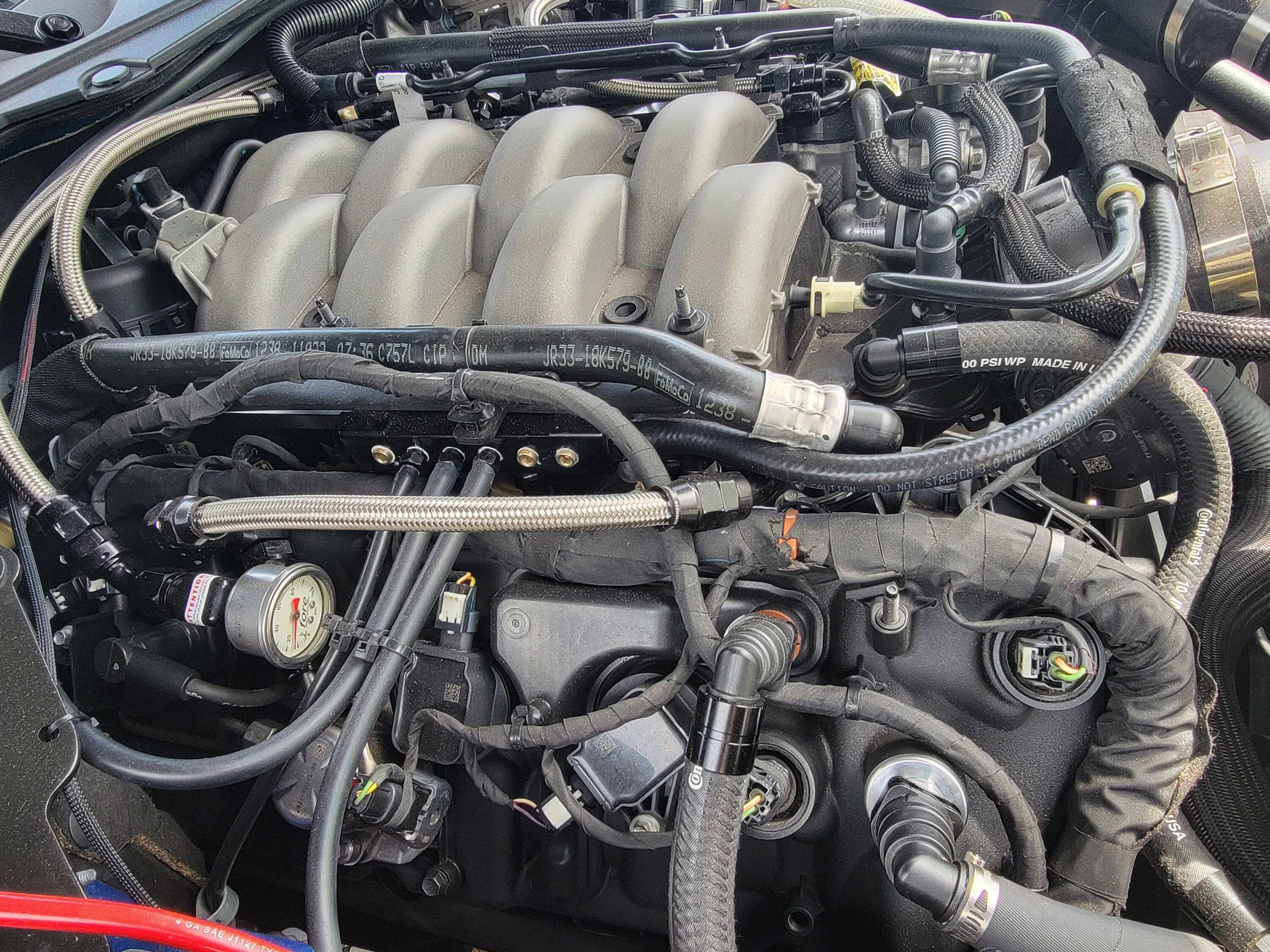

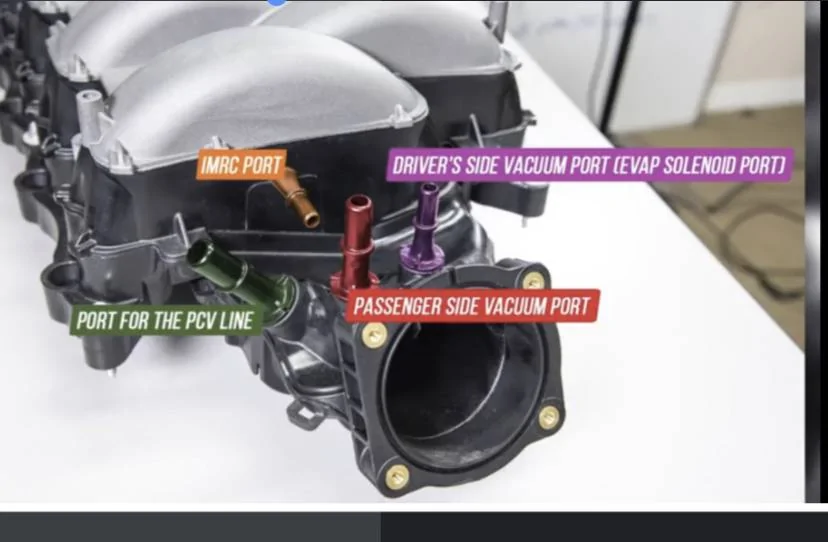

2. For the top port facing me, I believe that’s the IMRC port. I would need the part number to connect & the end connecting location.
3. For the left bottom port (facing straight up), I think that’s the passenger side vacuum port. No clue where that goes.

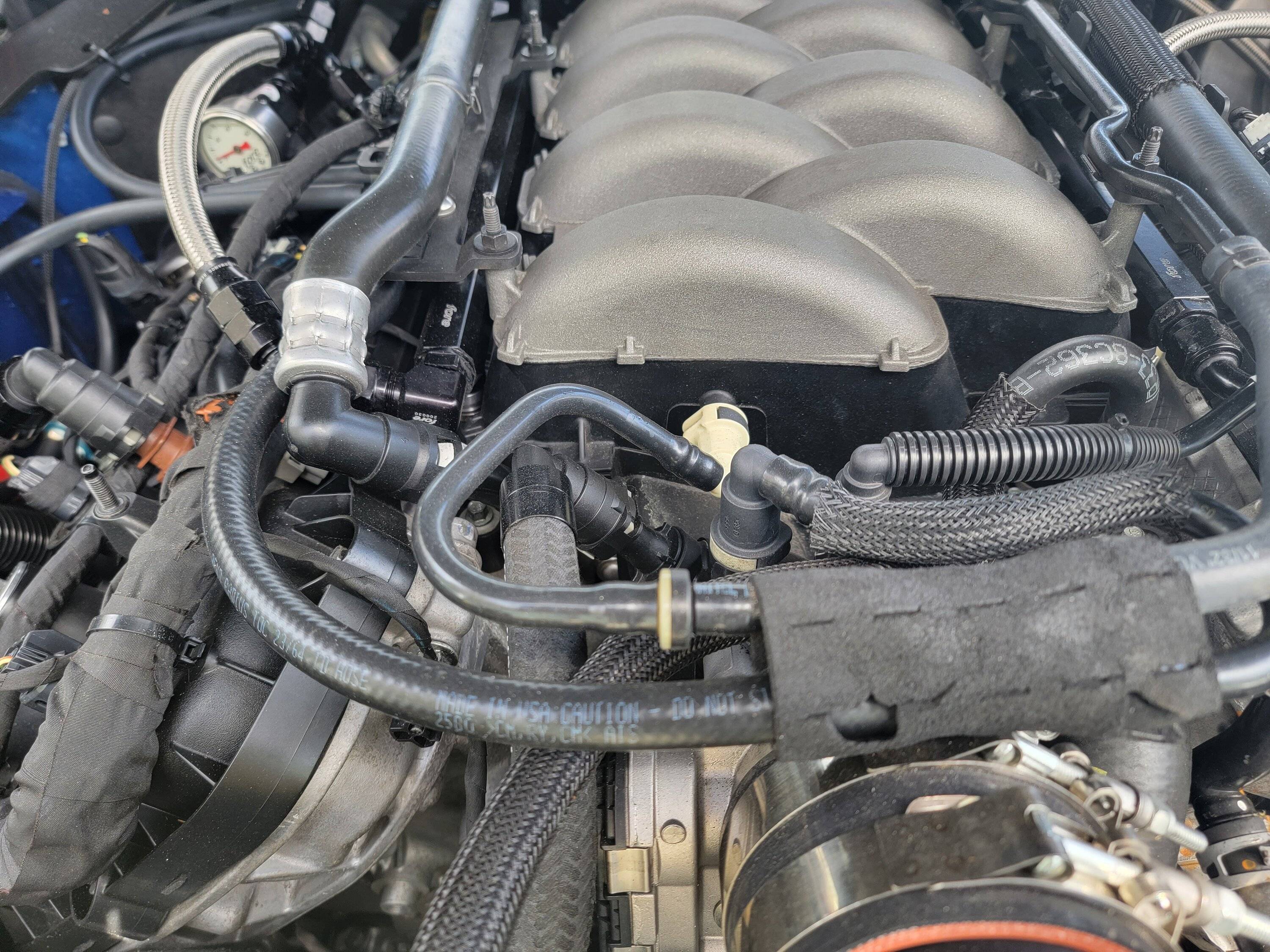

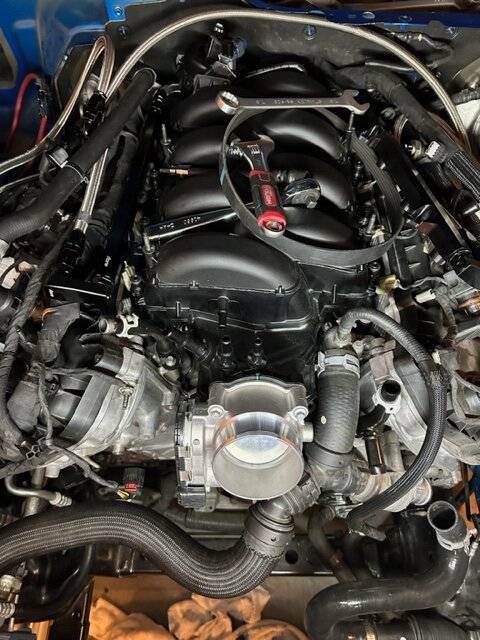

4. on the right bottom port, that’s the driver side vacuum port or the evap port. I’m guessing that connects into a line on my 2nd picture.

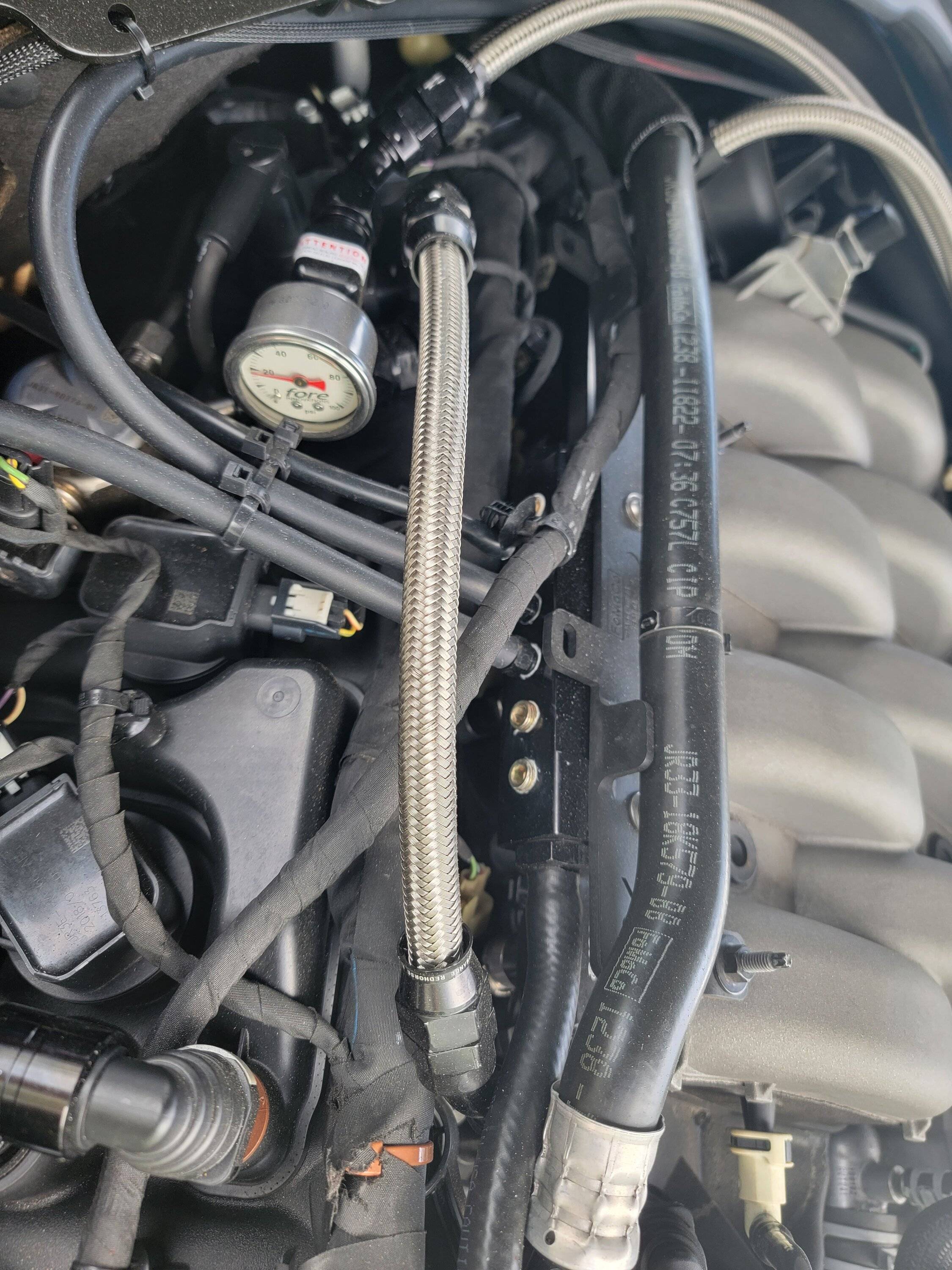

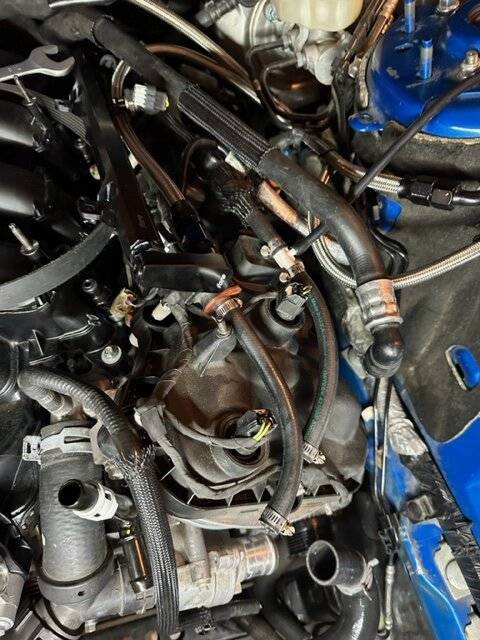

5. On the 2nd picture, there's 2 smaller hoses with clamps at the end where I'm not entirely sure of where they'll end up either (the one furthest to the right is my heater hose and I do know where this one ends up). This all came off when I had to remove the Whipple so I'm not sure if there's a stock end connection that I need to purchase or what.
I will more than likely have to make another post about the coolant hose connections but thankfully ford actually has a decent diagram on how it's supposed to go with related parts to each. For the intake manifold, Ford's OEM website just shows the intake a very basic design of where everything BUT the hoses are supposed to go.
Any help is greatly appreciated and thank you for your time!
I want to preface by stating that this is one of the first few times that I've worked on my car. I've pulled off my Whipple supercharger and sold it as a kit. I installed a Hellion sleeper kit and am at the last step of connecting everything. I had a lot of help from YouTube and Ford's diagram however I legitimately can not figure out what to plug into what port on the intake manifold. If someone has part numbers, that would greatly be appreciated. I don't own any of the OEM hoses & connection pieces since I bought this car 'as is' with a Whipple on it.
There's 4 'ports' on the face of the intake manifold that I don't have the connectors / hoses to.
1. I have a UPR dual catch can so I believe that the most left port is going to be plugged off since my catch can would take it's end connection location at the passenger PCV tube. / I may attach a vacuum block to this port if needed.
2. For the top port facing me, I believe that’s the IMRC port. I would need the part number to connect & the end connecting location.
3. For the left bottom port (facing straight up), I think that’s the passenger side vacuum port. No clue where that goes.
4. on the right bottom port, that’s the driver side vacuum port or the evap port. I’m guessing that connects into a line on my 2nd picture.
5. On the 2nd picture, there's 2 smaller hoses with clamps at the end where I'm not entirely sure of where they'll end up either (the one furthest to the right is my heater hose and I do know where this one ends up). This all came off when I had to remove the Whipple so I'm not sure if there's a stock end connection that I need to purchase or what.
I will more than likely have to make another post about the coolant hose connections but thankfully ford actually has a decent diagram on how it's supposed to go with related parts to each. For the intake manifold, Ford's OEM website just shows the intake a very basic design of where everything BUT the hoses are supposed to go.
Any help is greatly appreciated and thank you for your time!
