BCM-B wiring

Trude1400

Member
Joined
Nov 18, 2019
Threads
3
Messages
22
Reaction score
1
Location
Germany
First Name
Rene
Vehicle(s)
Mustang GT 2018 Basic PP US-Version
I'm getting lost with the wiring for the BCM-B modul located in the luggage compartment.
Regarding official wiring diagrams two connectors should be used.

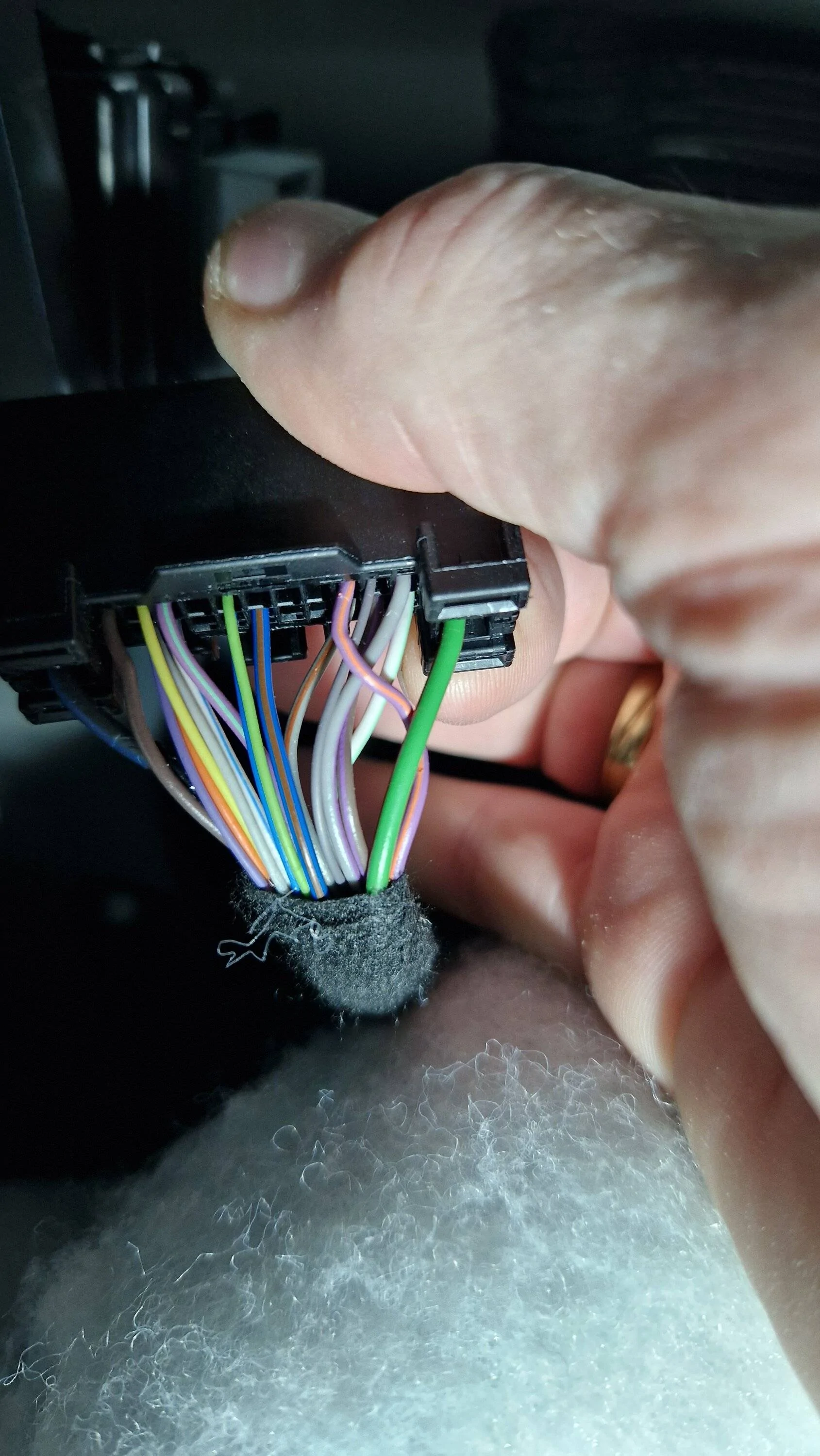

I only have C4368A used but there are more pins connected compare to original wiring plans.

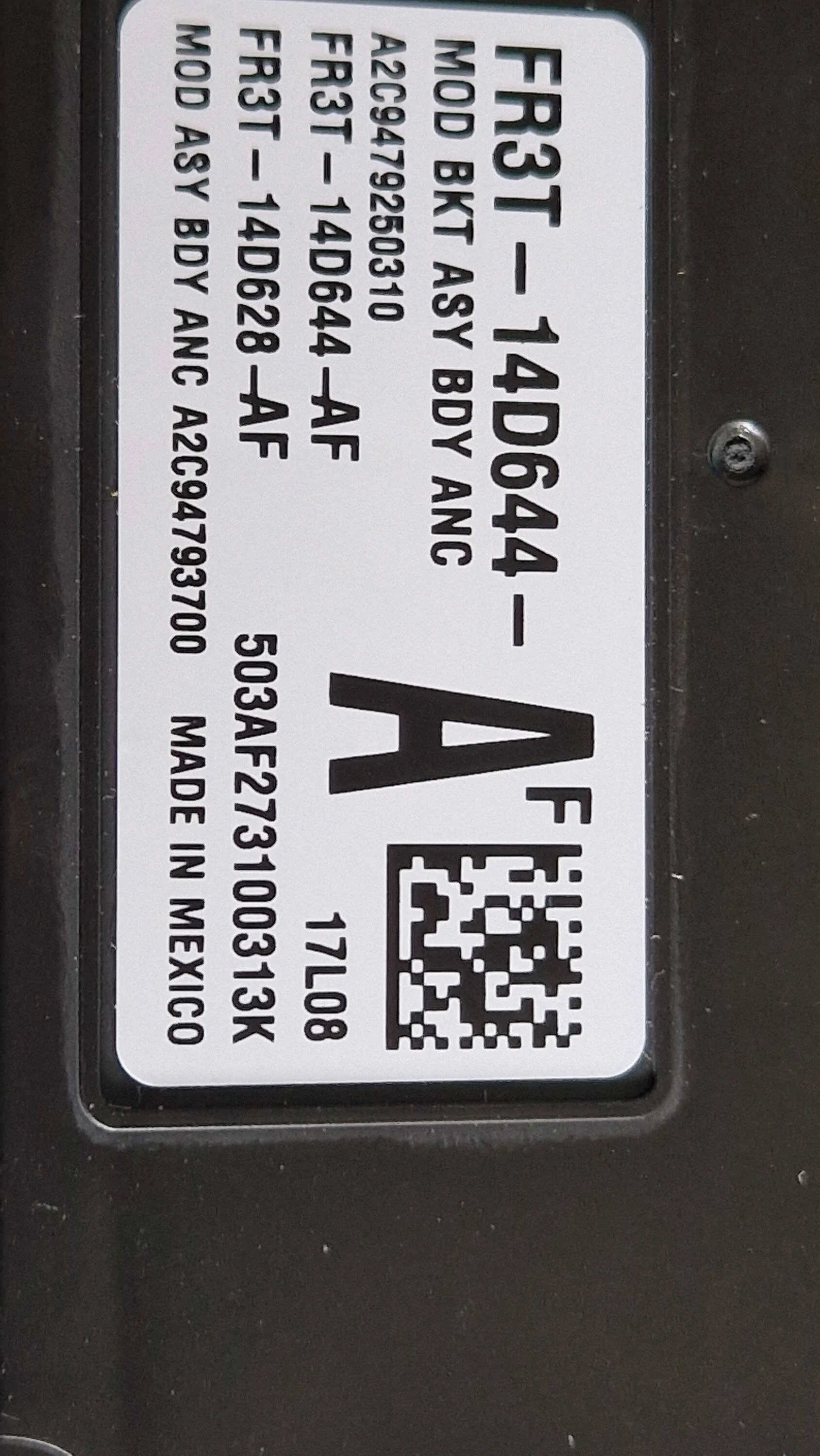

The label shows FR3T-14d644-AF
with A2C9479250310

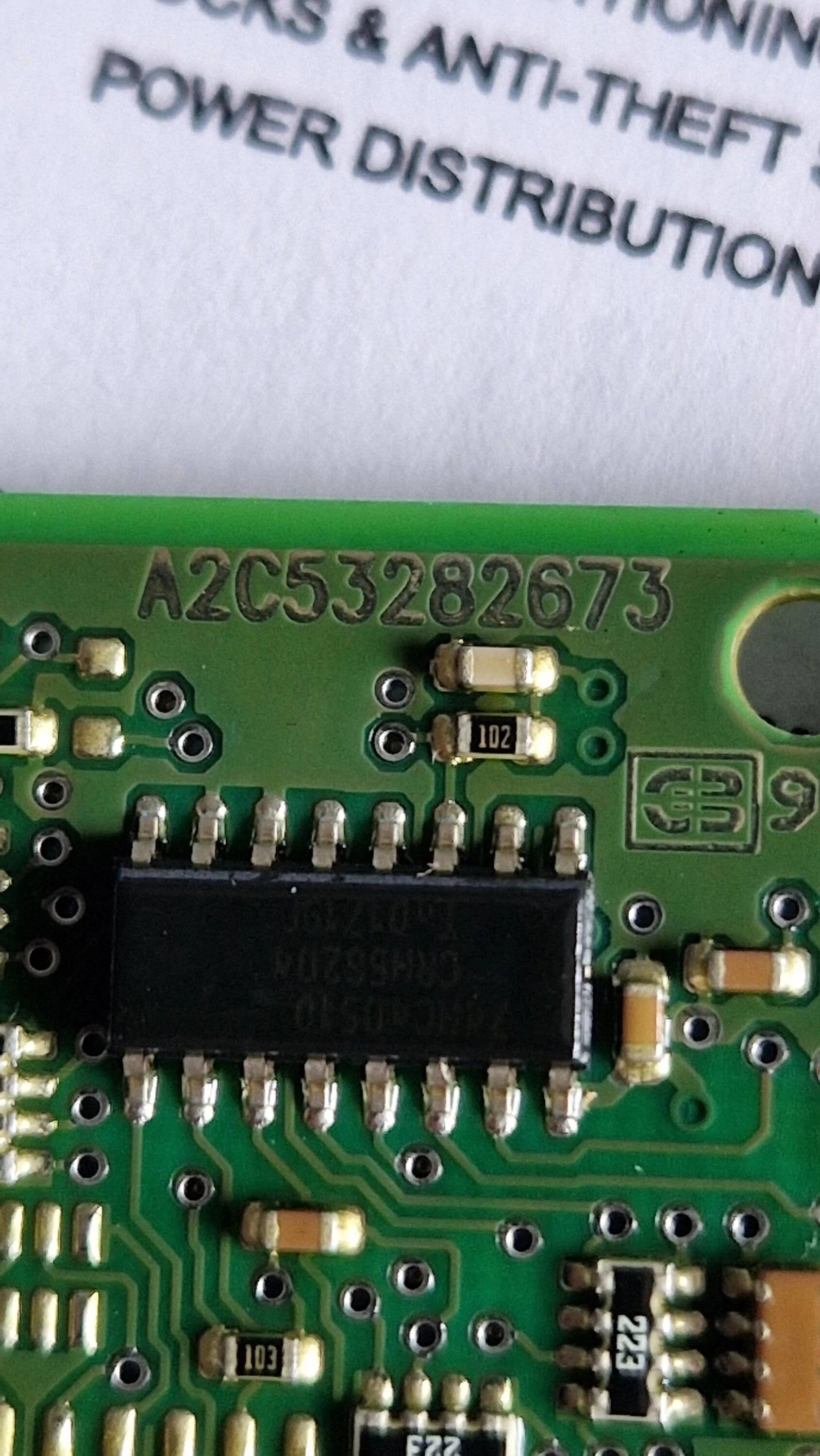

If I look onto the PCB-board inside the number is A2C53282673

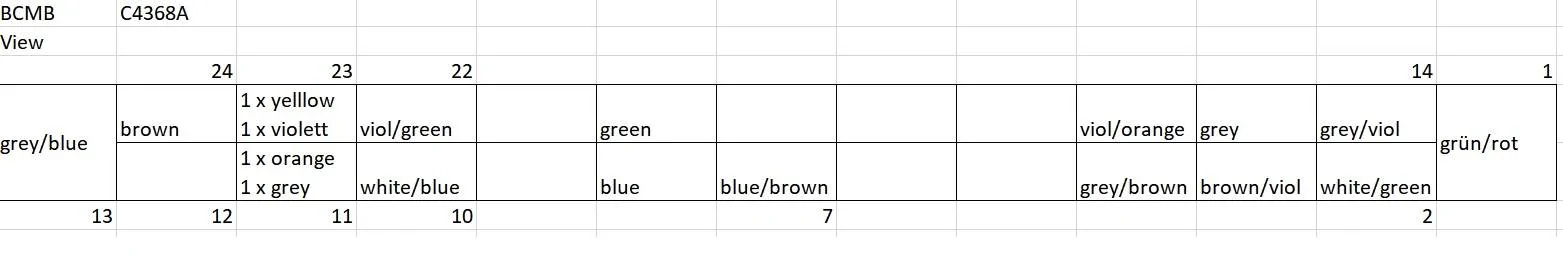

Pictures of PINout attached.
Can anybody help on this?
