    Who wants to run up to a 15x12.5" wheel on their S550!!! Now you can, the new AED 15-19 Knuckles now available exclusively at Team Beefcake Racing.

    Limited Supply available!

    AED Rear IRS Knuckle fits 15x12 Wheel (15-19 Mustang) * In Stock!


    Tickitty Tock likes this.
  2. Cardude99

    Cardude99 Well-Known Member

    First Name:
    Sam
    Vehicle(s):
    2018 Ecoboost
    Joined:
    Feb 14, 2016
    Location:
    Phoenix, AZ
    Posts:
    2,237
    Likes Received:
    949
    0   0   0
    Is this meant more for drag racing? What are the benefits other than wheel fitment?

  3. Nagare

    Nagare Well-Known Member

    Vehicle(s):
    2017 Lightning Blue V6
    Joined:
    Feb 1, 2017
    Location:
    Ft Lauderdale
    Posts:
    3,463
    Likes Received:
    1,746
    Garage Profiles:
    1
    0   0   0
    Yes, and probably lighter weight too. Here is the product description:

    A lot more to it than just swapping the knuckle, but it seems like this is for the hardcore drag guys that have drag brake kits and also do everything they can to win their brackets.

  4. esacteksab

    esacteksab Well-Known Member

    Vehicle(s):
    2015 Mustang GT
    Joined:
    Apr 4, 2015
    Location:
    CO & KS
    Posts:
    1,424
    Likes Received:
    231
    0   0   0
    Did I miss the price? Will this reuse s550 brakes or do I need s197 brakes?

    Any dimensions on that 15*12.5" wheel? Is that a double beadlock or 15*10 with double beadlock?

  5. Slater_5.0

    Slater_5.0 Well-Known Member

    First Name:
    Derek
    Vehicle(s):
    2019 Cali
    Joined:
    Jun 6, 2016
    Location:
    Denton, TX
    Posts:
    49
    Likes Received:
    12
    Occupation:
    Goodyear LTS General Manager
    0   0   0

    What else is needed to run these? The way you are describing them, you just throw these on and run 15's and I find that hard to believe.

  6. Nagare

    Nagare Well-Known Member

    Vehicle(s):
    2017 Lightning Blue V6
    Joined:
    Feb 1, 2017
    Location:
    Ft Lauderdale
    Posts:
    3,463
    Likes Received:
    1,746
    Garage Profiles:
    1
    0   0   0
    I don't get why vendors aren't allowed to at least link to the product page on these announcement posts, would clear up questions for everyone that can't google:


  7. OP
    OP
    beefcake

    beefcake Well-Known Member
    Diamond Sponsor


    Vehicle(s):
    2015 Ford Mustang
    Joined:
    Oct 18, 2014
    Location:
    Bethel
    Posts:
    8,838
    Likes Received:
    2,667
    Rating:
    100%
    6   0   0
    we have a nice video on the item page

  8. mbusch84

    mbusch84 Active Member

    Vehicle(s):
    Triple yellow 15
    Joined:
    Mar 12, 2017
    Location:
    Youngstown Ohio
    Posts:
    32
    Likes Received:
    2
    0   0   0
    Do you have the exact specs of the wheel they ran with these?

  9. OP
    OP
    beefcake

    beefcake Well-Known Member
    Diamond Sponsor


    Vehicle(s):
    2015 Ford Mustang
    Joined:
    Oct 18, 2014
    Location:
    Bethel
    Posts:
    8,838
    Likes Received:
    2,667
    Rating:
    100%
    6   0   0
    they are running a 15x11.5 beadlock which measrues, 15x12.5, we are running a 15x11" beadlock which measure 15x12 on our car. we just finihsed up a new part # with baer today as well. so you can run your oem brake calipers with s197 rotors, or baer now has an offering specific to our knuckle kit

  10. mbusch84

    mbusch84 Active Member

    Vehicle(s):
    Triple yellow 15
    Joined:
    Mar 12, 2017
    Location:
    Youngstown Ohio
    Posts:
    32
    Likes Received:
    2
    0   0   0
    Any pictures of your guys setup wheel/tire on car? What backspacing are you running?

  11. OP
    OP
    beefcake

    beefcake Well-Known Member
    Diamond Sponsor


    Vehicle(s):
    2015 Ford Mustang
    Joined:
    Oct 18, 2014
    Location:
    Bethel
    Posts:
    8,838
    Likes Received:
    2,667
    Rating:
    100%
    6   0   0

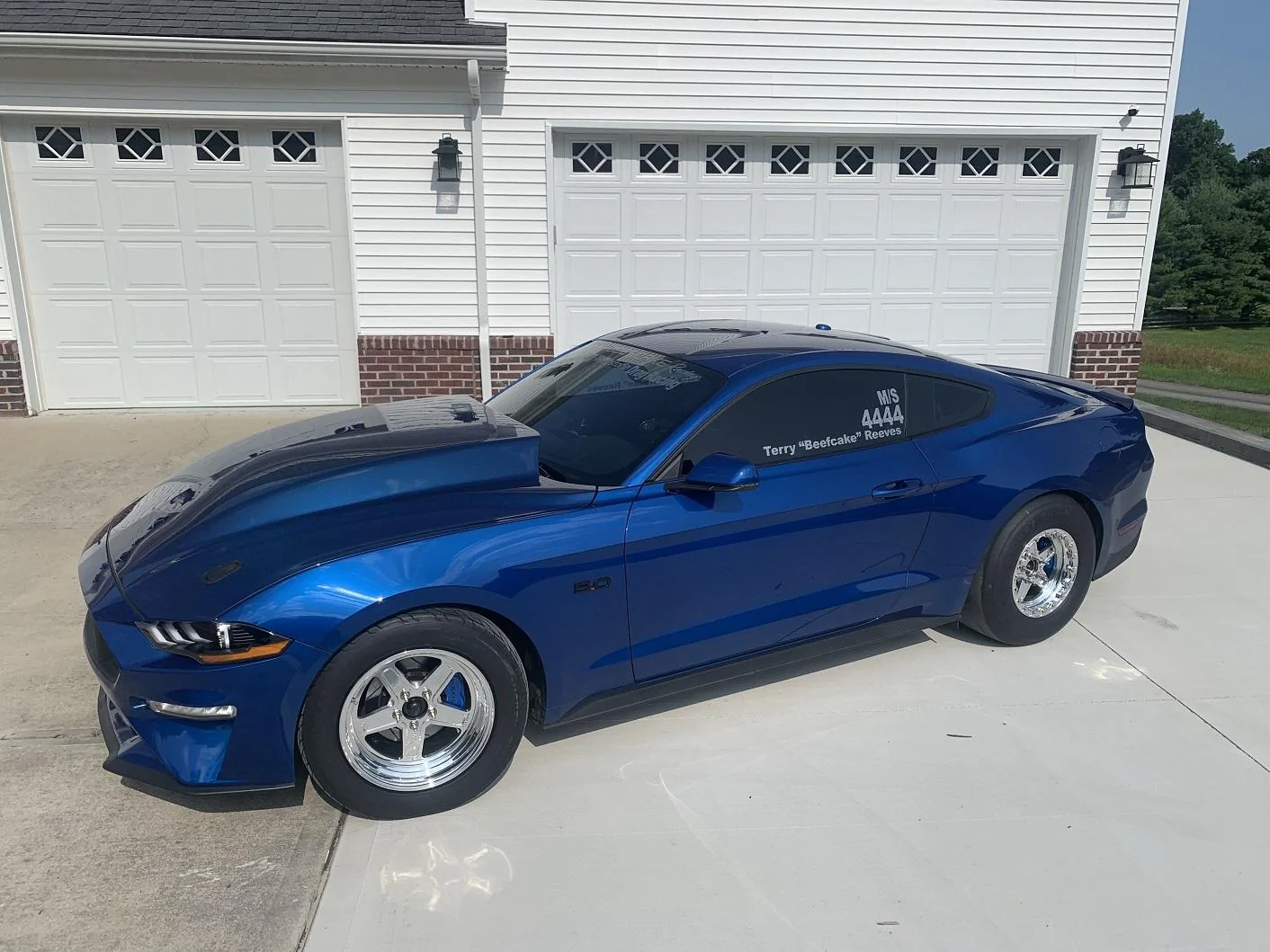

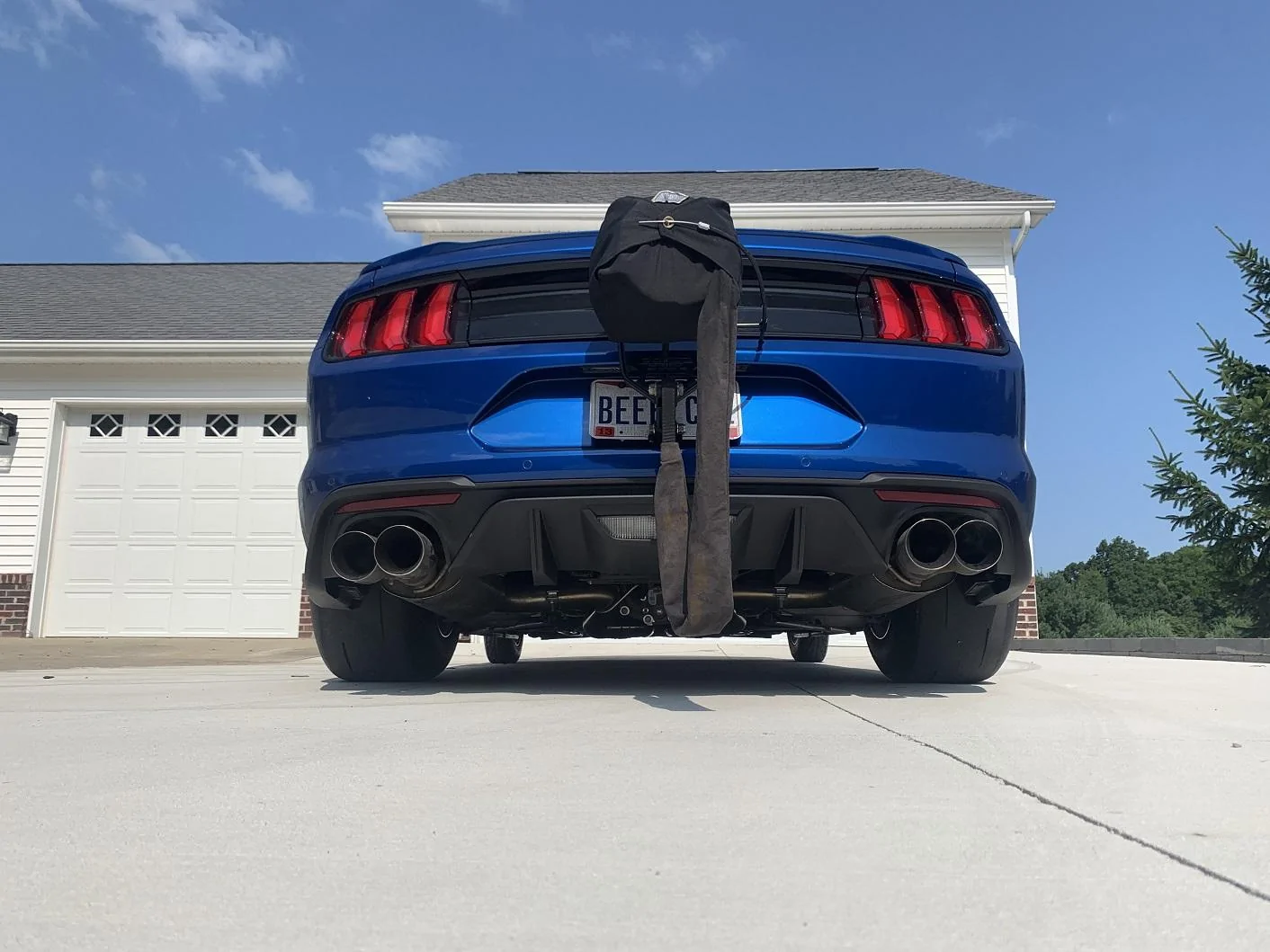

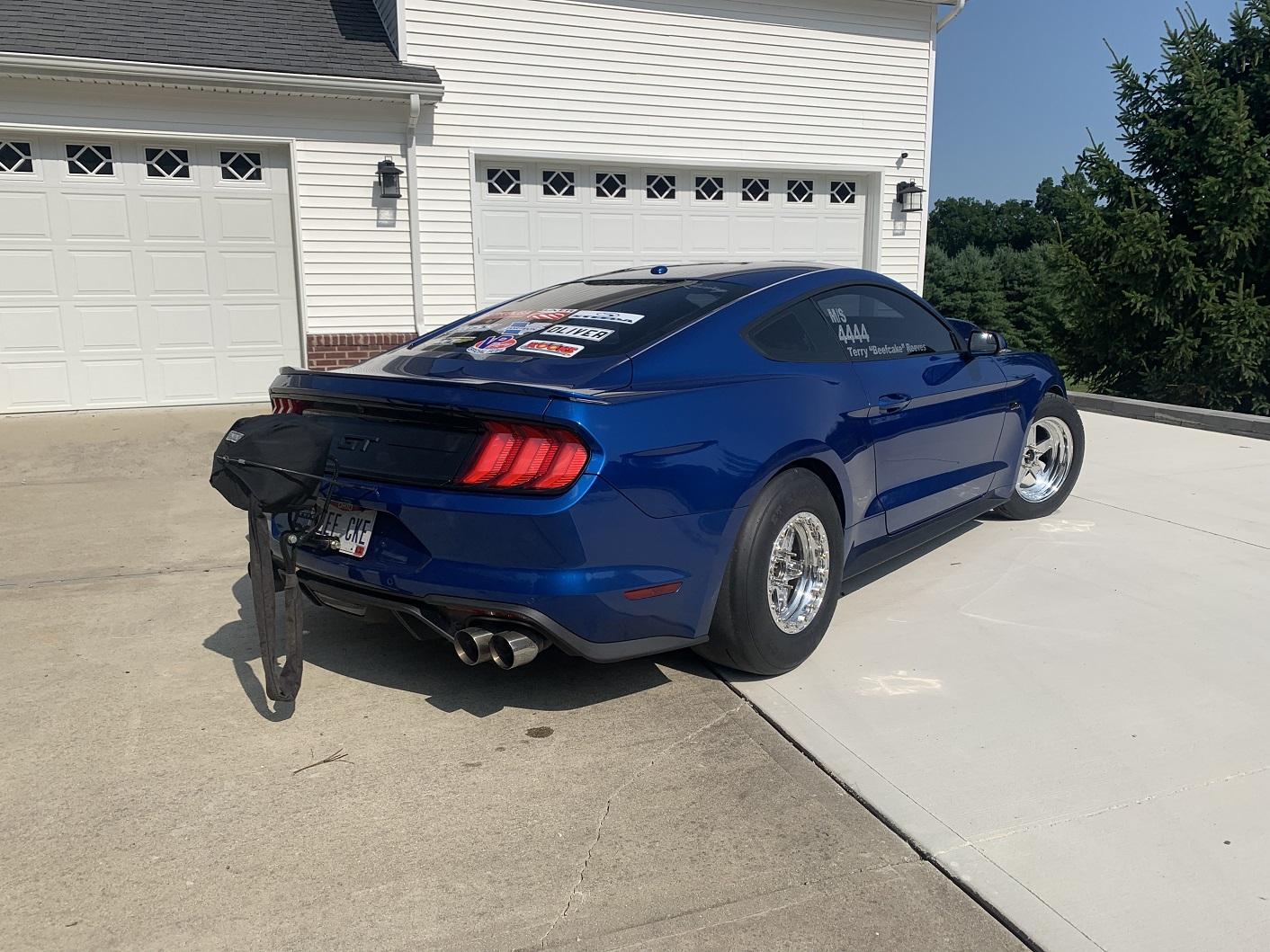

    ask and ye shall receive. backspace is 15x8.75, but we needed a small spacer, as they shorted me on the back pad a little bit, so about 8.5 on my car, new wheels would be 8.75 if your ordering

    and, the beautiful thing is, i'm running a +.2 camber, vs the 15x9 setups where you have to run a -1 to -1.5 to get the wheel to not hit, so on launch, all the tire plants IMG_2484.jpg IMG_2498.jpg IMG_2510.jpg
