2019 GT 350 Puddle Lamps

Discussion in 'Shelby GT350 Mustang' started by MYSNAKE, Jan 17, 2019.

  1. alec_pr

    alec_pr Member

    Vehicle(s):
    GT350
    Joined:
    Dec 13, 2017
    Location:
    PR
    Posts:
    9
    Likes Received:
    1
    0   0   0
    Im planning on doing both!

    Zeromaz likes this.
  2. Zeromaz

    Zeromaz Well-Known Member

    Vehicle(s):
    GT350R
    Joined:
    Aug 24, 2018
    Location:
    Las Vegas
    Posts:
    170
    Likes Received:
    71
    0   0   0
    Please let us know about it. I’d like the lane assist at least but both would be awesome

  3. fordtj69

    fordtj69 Well-Known Member

    Vehicle(s):
    1969 and 2016 & 2017 fastbacks
    Joined:
    Mar 3, 2016
    Location:
    sydney
    Posts:
    97
    Likes Received:
    93
    0   0   0
    following from oz

  4. Niz55

    Niz55 Well-Known Member

    Vehicle(s):
    17 GT350
    Joined:
    May 10, 2015
    Location:
    Us
    Posts:
    3,466
    Likes Received:
    1,073
    Rating:
    100%
    6   0   0

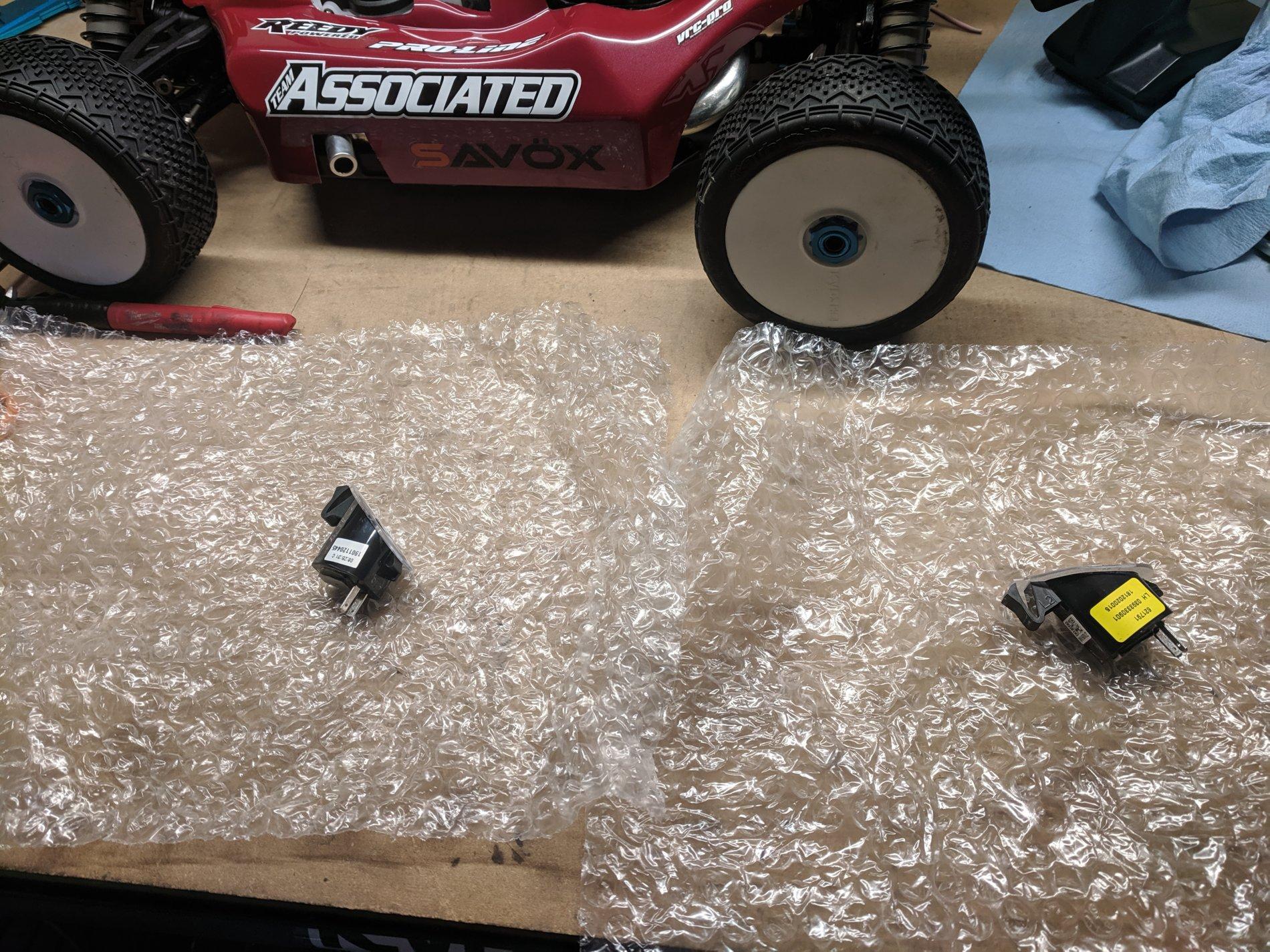

    Got them. No pricing yet but they will charge my credit once they get the pricing. IMG_20190523_093520.jpg

    BodySnatcher and datadatum like this.
  5. Niz55

    Niz55 Well-Known Member

    Vehicle(s):
    17 GT350
    Joined:
    May 10, 2015
    Location:
    Us
    Posts:
    3,466
    Likes Received:
    1,073
    Rating:
    100%
    6   0   0
  6. Niz55

    Niz55 Well-Known Member

    Vehicle(s):
    17 GT350
    Joined:
    May 10, 2015
    Location:
    Us
    Posts:
    3,466
    Likes Received:
    1,073
    Rating:
    100%
    6   0   0
    Guys this is tons of work running the wires. Lol IMG_20190523_133021-1600x1200.jpg IMG_20190523_133027-1600x1200.jpg

  7. MustangGuy

    MustangGuy Well-Known Member

    Vehicle(s):
    2016 Mustang GT 401A 6M Ruby Red
    Joined:
    Nov 15, 2016
    Location:
    Denver USA
    Posts:
    281
    Likes Received:
    117
    0   0   0
    If I'm understanding correctly, it's not plug and play to install the puddle lamps on a 2016 GT. You would have to update the entire mirror assembly to a 2019 MY?

  8. rvlyssup

    rvlyssup Vag...Gun...Stang-NUT

    First Name:
    Rand
    Vehicle(s):
    Lotsa...
    Joined:
    Apr 11, 2015
    Location:
    Palmdale...The High Desert of SoCal.
    Posts:
    1,217
    Likes Received:
    441
    0   0   0
    Are you modifying the stock housing or swapping them both out?

    I take it with all that wiring, there are no existing plumbing to light up the puddles...

  9. Niz55

    Niz55 Well-Known Member

    Vehicle(s):
    17 GT350
    Joined:
    May 10, 2015
    Location:
    Us
    Posts:
    3,466
    Likes Received:
    1,073
    Rating:
    100%
    6   0   0
    You have to cut out the existing plastic on the bottom to install the light.

    No harness at all so you have to run the wiring.

    In order to get the wiring through the body you have to notch the body so the wires can fit through the hole as you can see in the first pictures.

    It is lots of work. IMG_20190523_140430-1280x960.jpg IMG_20190523_141147-1024x1365.jpg IMG_20190523_094708-1280x960.jpg IMG_20190523_100019-1024x1365.jpg

  10. Niz55

    Niz55 Well-Known Member

    Vehicle(s):
    17 GT350
    Joined:
    May 10, 2015
    Location:
    Us
    Posts:
    3,466
    Likes Received:
    1,073
    Rating:
    100%
    6   0   0
    Grey wire with purple strip for positive connection and ground it on the bolt. I also ran a inline fuse. IMG_20190523_143623-1024x768.jpg

  11. Niz55

    Niz55 Well-Known Member

    Vehicle(s):
    17 GT350
    Joined:
    May 10, 2015
    Location:
    Us
    Posts:
    3,466
    Likes Received:
    1,073
    Rating:
    100%
    6   0   0
    Not only that you also have to run wires.

    Or you can do what I did.

  12. Niz55

    Niz55 Well-Known Member

    Vehicle(s):
    17 GT350
    Joined:
    May 10, 2015
    Location:
    Us
    Posts:
    3,466
    Likes Received:
    1,073
    Rating:
    100%
    6   0   0
    Here is video. When the light turns off and fades away, it is perfectly smooth. Don't know why the video is showing something different.

    Anyways, driver side will be done on Saturday.


  13. Epiphany

    Epiphany Well-Known Member

    Vehicle(s):
    Quick
    Joined:
    Oct 11, 2015
    Location:
    Global
    Posts:
    3,533
    Likes Received:
    4,311
    0   0   0
    Nice job.

    Niz55 likes this.
  14. ryanr24

    ryanr24 Well-Known Member

    First Name:
    Ryan
    Vehicle(s):
    2016 gt350
    Joined:
    May 8, 2017
    Location:
    El cajon
    Posts:
    59
    Likes Received:
    24
    0   0   0
    Damn that is so awesome! But tons of work. I hope there is a better/easier way.

  15. MustangGuy

    MustangGuy Well-Known Member

    Vehicle(s):
    2016 Mustang GT 401A 6M Ruby Red
    Joined:
    Nov 15, 2016
    Location:
    Denver USA
    Posts:
    281
    Likes Received:
    117
    0   0   0
    I already have the factory pony puddle lamps (401A package). Was hoping it would be a simple swap.

  16. Niz55

    Niz55 Well-Known Member

    Vehicle(s):
    17 GT350
    Joined:
    May 10, 2015
    Location:
    Us
    Posts:
    3,466
    Likes Received:
    1,073
    Rating:
    100%
    6   0   0

    For you yes it will be. Very easy. It will probably take you 5min for both side.

    08fordgt and MustangGuy like this.
  17. MustangGuy

    MustangGuy Well-Known Member

    Vehicle(s):
    2016 Mustang GT 401A 6M Ruby Red
    Joined:
    Nov 15, 2016
    Location:
    Denver USA
    Posts:
    281
    Likes Received:
    117
    0   0   0
    I was hoping that would be the case. Thanks for sharing your efforts. Definitely a significant undertaking. Looks Great!

  18. Zeromaz

    Zeromaz Well-Known Member

    Vehicle(s):
    GT350R
    Joined:
    Aug 24, 2018
    Location:
    Las Vegas
    Posts:
    170
    Likes Received:
    71
    0   0   0
    Welp..... it looks fantastic. The install is keeping me from doing this. I hope you enjoy it. I thought it would be cheesy but it makes it pretty fancy imo

  19. drummerboy

    drummerboy Well-Known Member

    Vehicle(s):
    '19 GT350
    Joined:
    Mar 15, 2019
    Location:
    SoCal
    Posts:
    78
    Likes Received:
    39
    0   0   0
    The refresh rate of the camera and the LEDs are not the same.

    Nice work! :like:

    Niz55 likes this.
  20. NickBlack

    NickBlack Well-Known Member

    Vehicle(s):
    2019 Ford Mustang GT PP1
    Joined:
    Jun 6, 2018
    Location:
    Colorado
    Posts:
    193
    Likes Received:
    39
    0   0   0
