Does anyone have a picture of the wiring diagram for connector C505 please I just want to see the diagram for a little project I’m doing for s550 2015+

Sponsored



[ihasnostang]

front door lock switch with with/out memory?



[Rationalbirch3]

front door lock switch with with/out memory?

Yes that one and without memory



[ihasnostang]

i didnt want to say with twice in a row. do you need the memory or non memory version ( assuming we're talking seats here)



[Rationalbirch3]

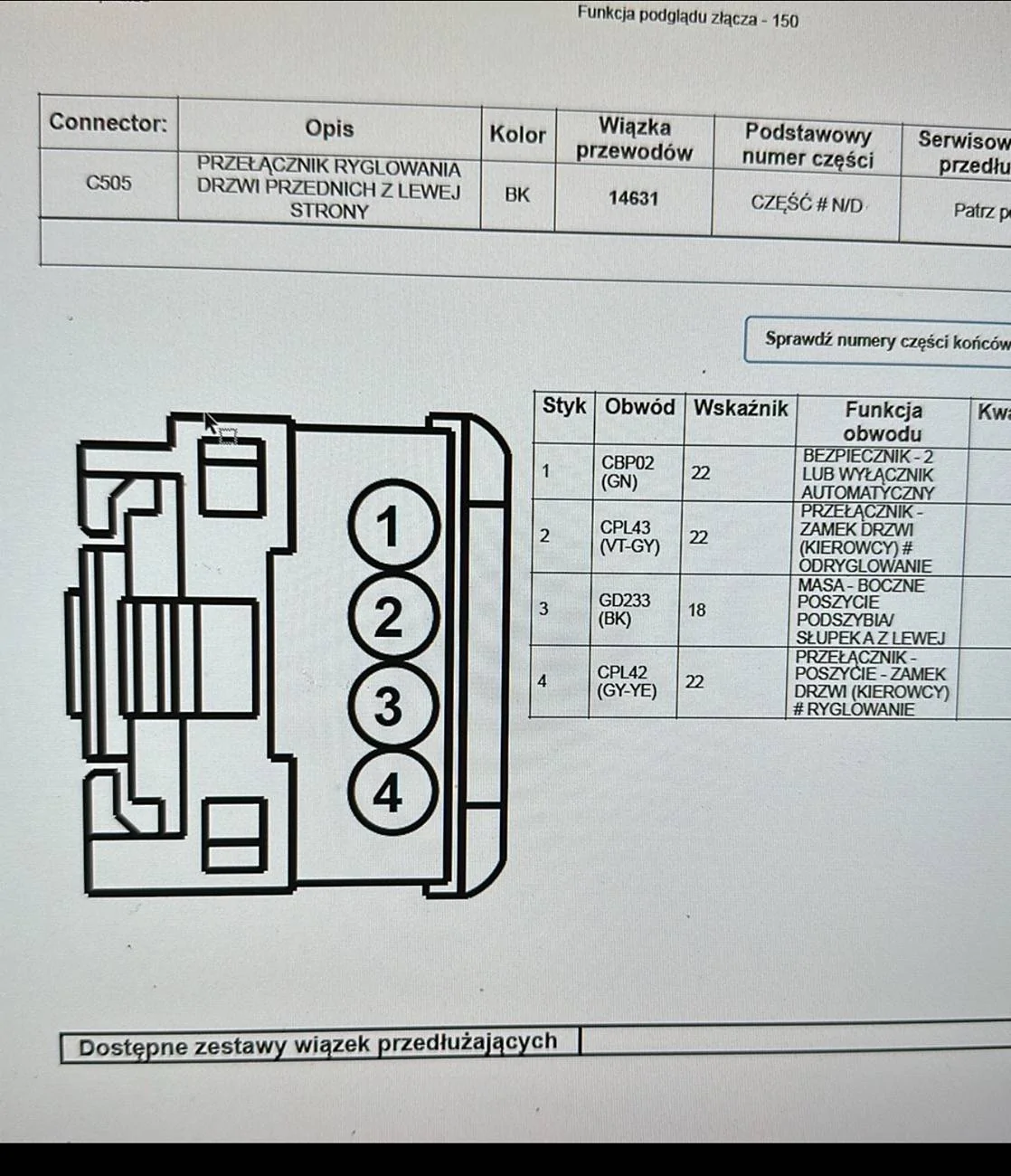

I have it in polish but I need a English version ( don’t ask why I have it polish lol)



[eisenhauer01]

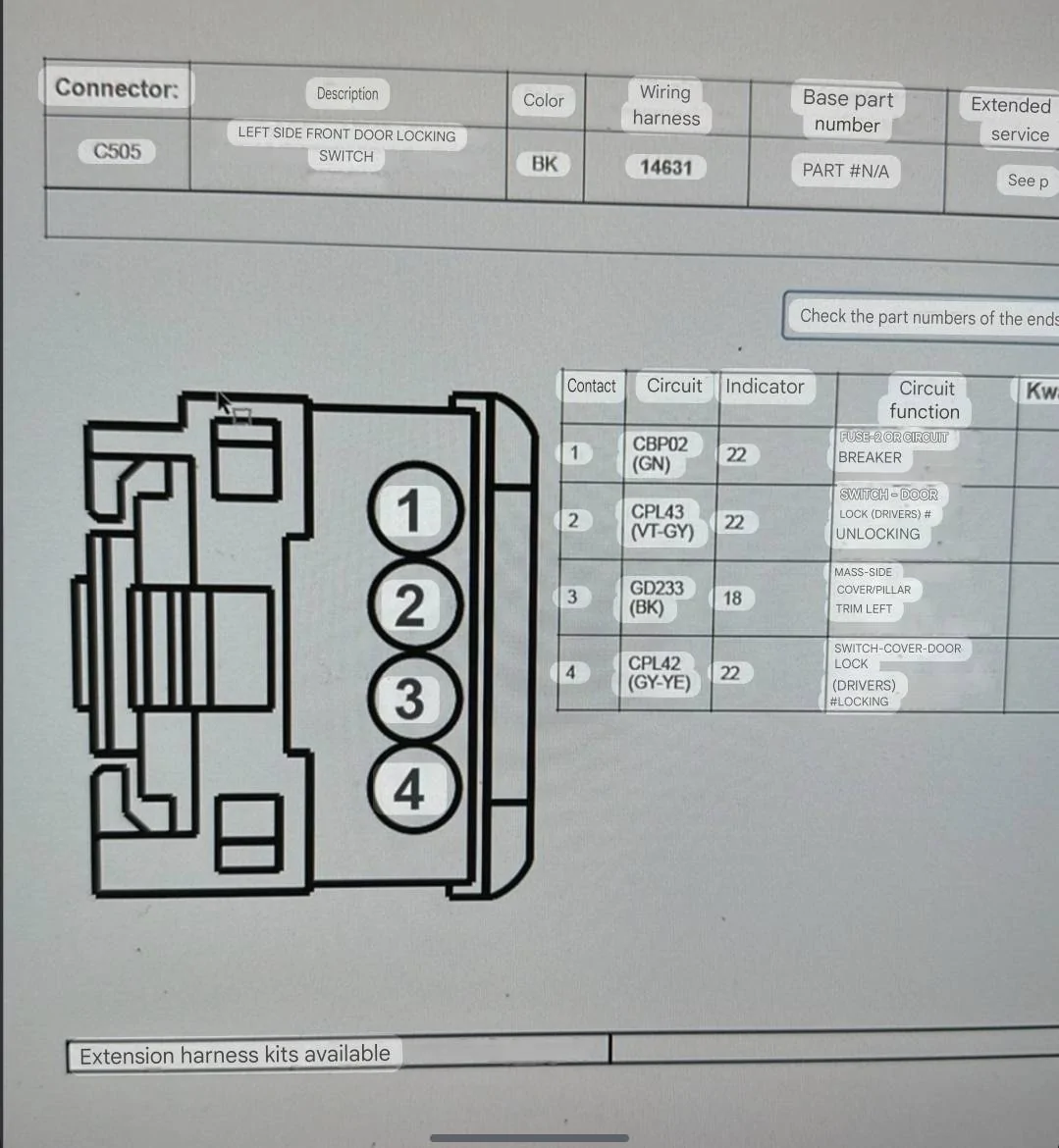

Idk if it's helpful but here it is after Google translate got done with it



[Rationalbirch3]

Idk if it's helpful but here it is after Google translate got done with it

I I did that already but what I’m trying to figure out, is if it’s the same pin outs to the negative and positive. Since this is a Poland diagram one do you think it’s the same as the US diagram? but Thanks for responding

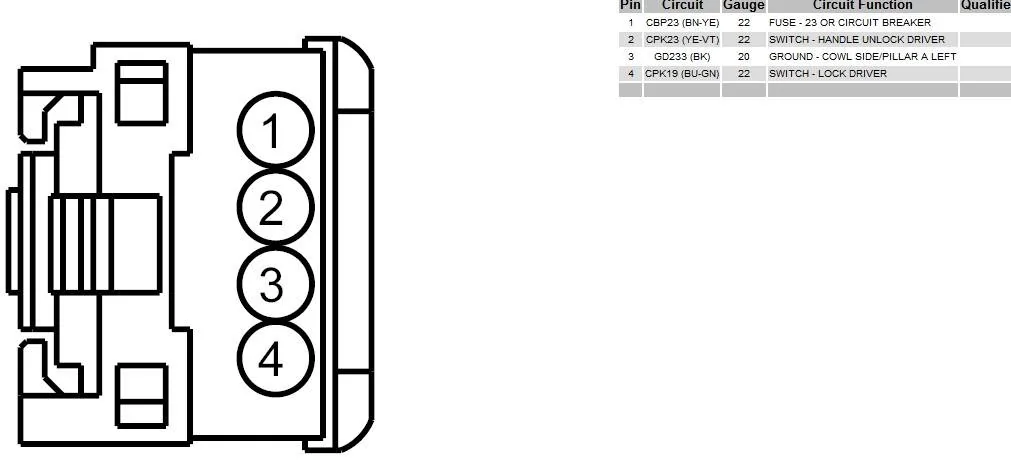

[Snakebyte]



[Rationalbirch3]

Thanks bro i appreciate it
