Wiring diagram for 2019 B&O system?

[Gbk]

I looked everywhere and haven't seen it posted anywhere.

I have a 2019 GT Premium PP1

Does anyone have the wiring diagrams for the 12 speaker B&O system?

I specifically need the diagram for the 4 pin subwoofer connector.

Thanks guys.

Sponsored



[eddison]

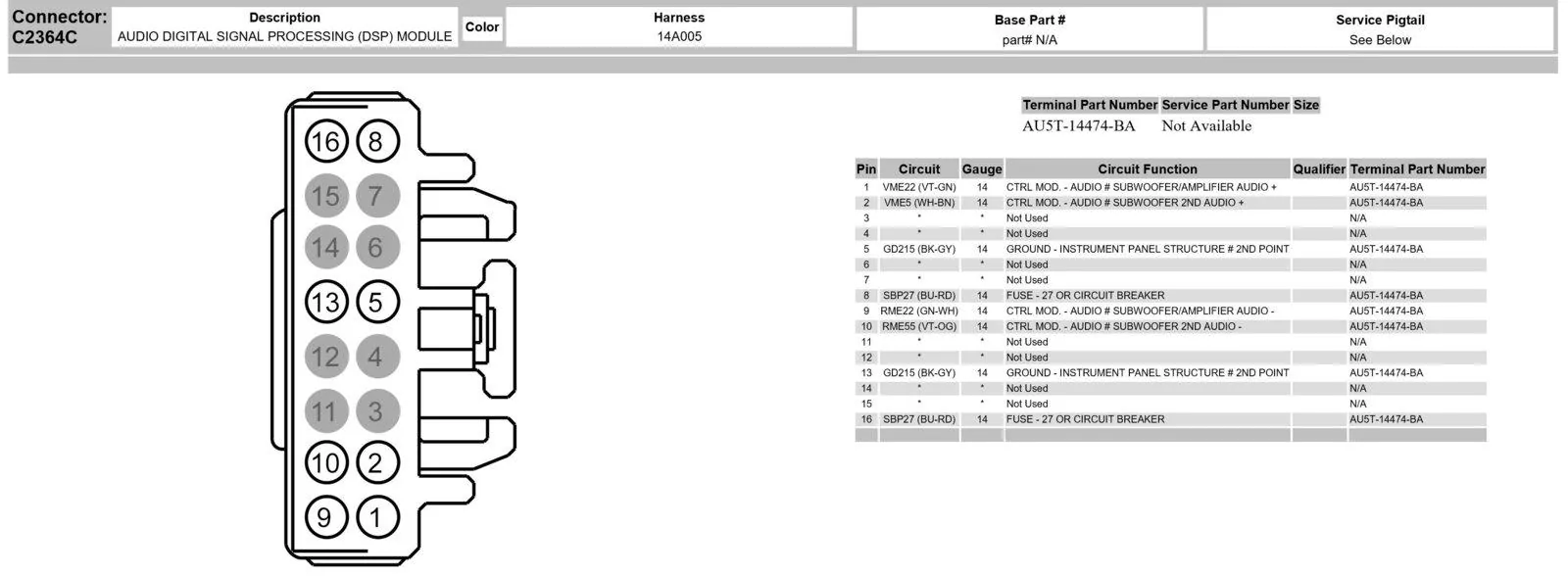

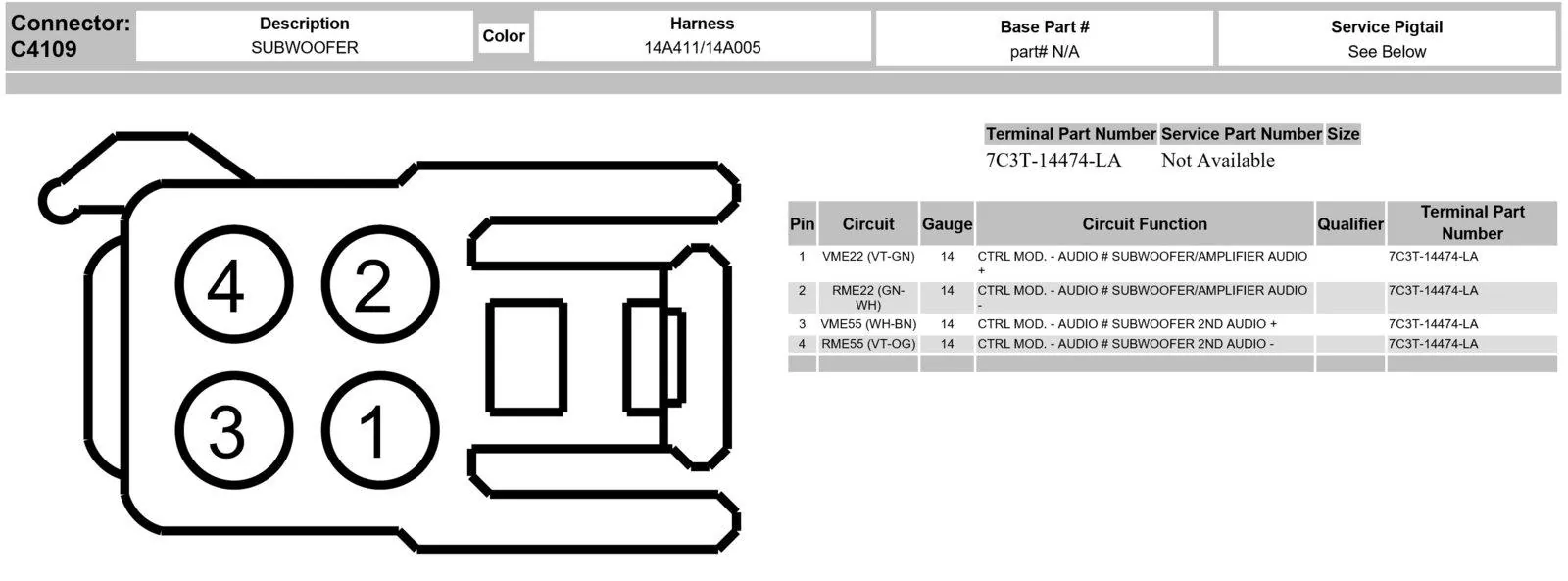

Connector views and layout attached.



[Gbk]

Thank you so much!



[Aidenanderson275]

Do you happen to have the wiring diagram coming from the amp to all speakers?



[eddison]

Do you happen to have the wiring diagram coming from the amp to all speakers?

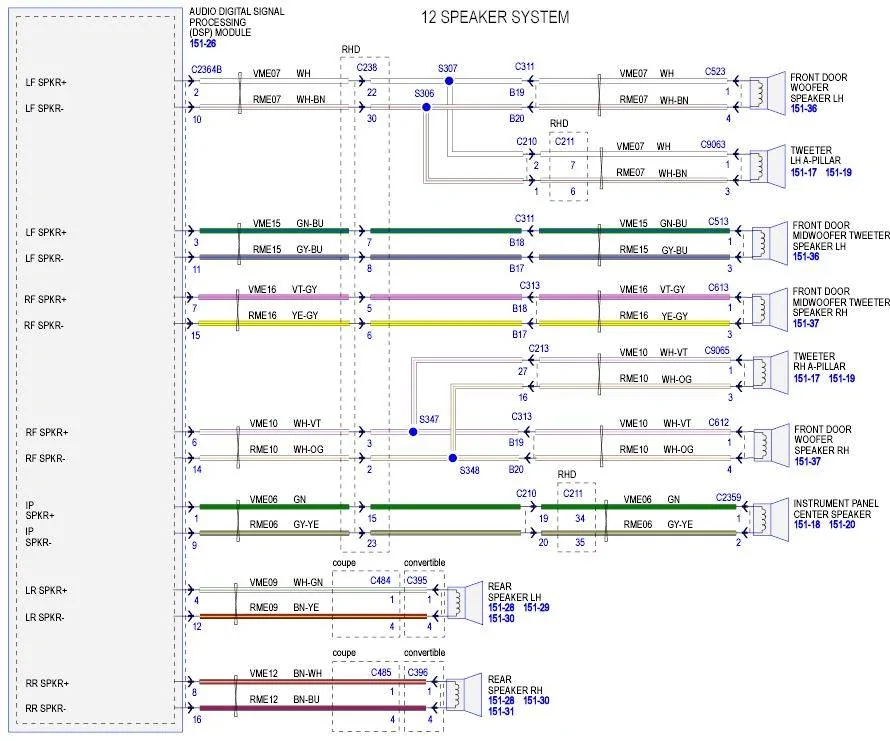

Here is the wiring for the 2019 12 Speaker.



[Aidenanderson275]

Here is the wiring for the 2019 12 Speaker.

Thanks for the post. I don’t see the subwoofer channel.



[eddison]

Thanks for the post. I don’t see the subwoofer channel.

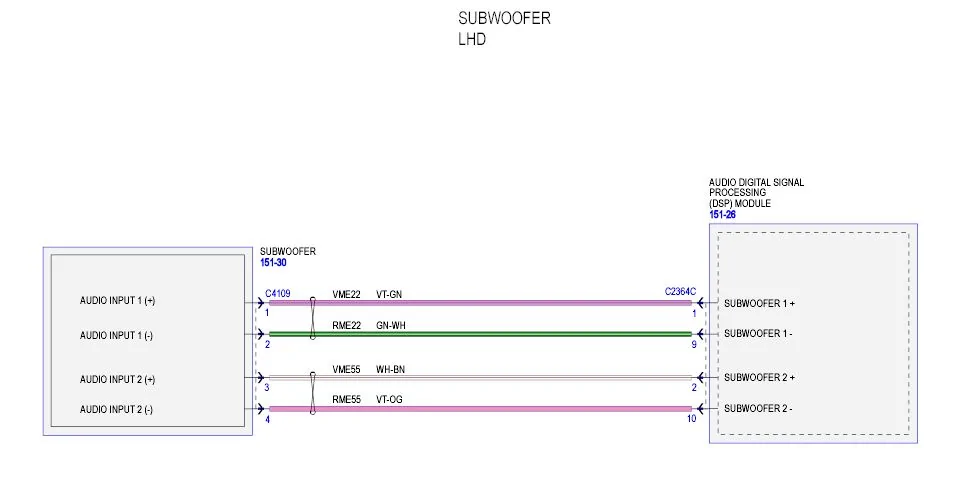

Is this what you're looking for? This is the overview for the two connectors posted higher up in the thread.



[Aidenanderson275]

Is this what you're looking for? This is the overview for the two connectors posted higher up in the thread.

Yes! I’m looking for the noise canceling lines from the center unit to the amp in addition.



[eddison]

Yes! I’m looking for the noise canceling lines from the center unit to the amp in addition.

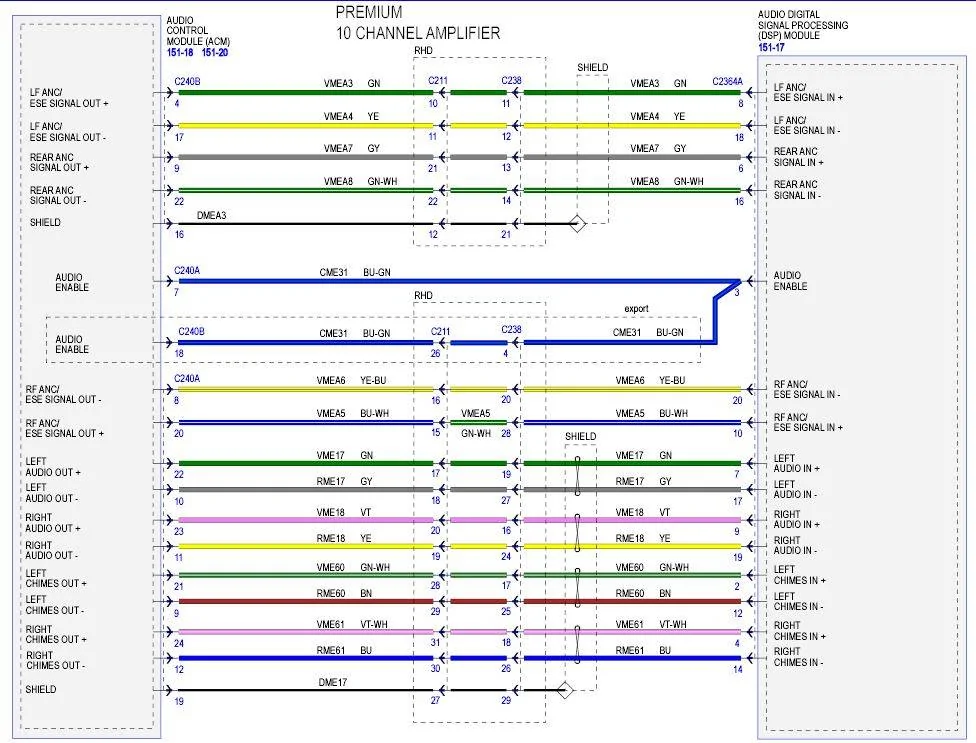

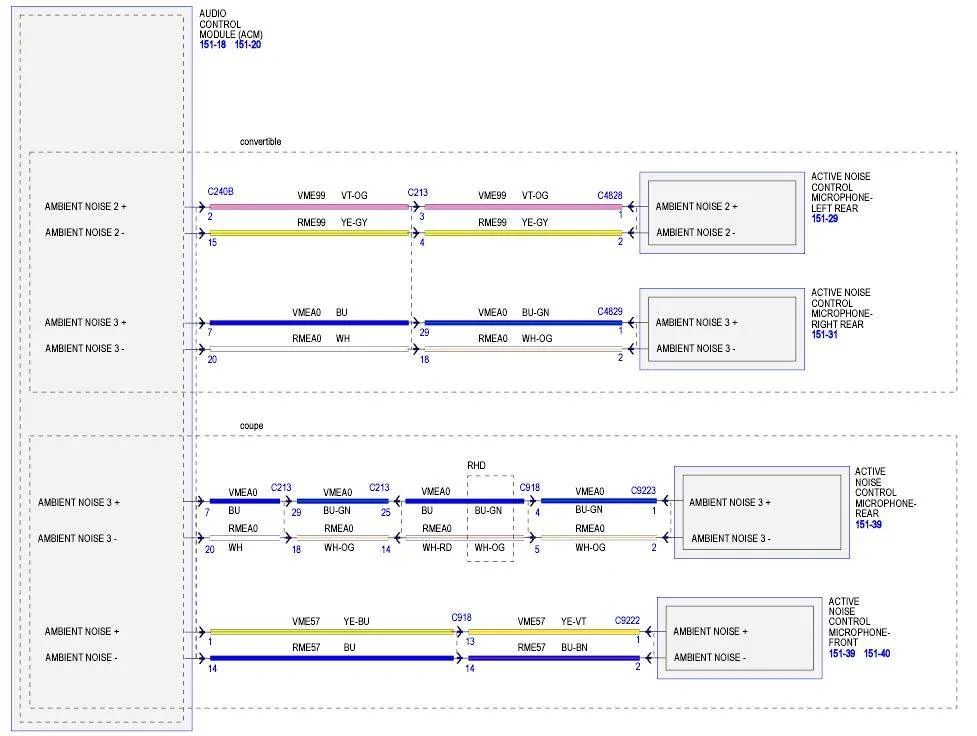

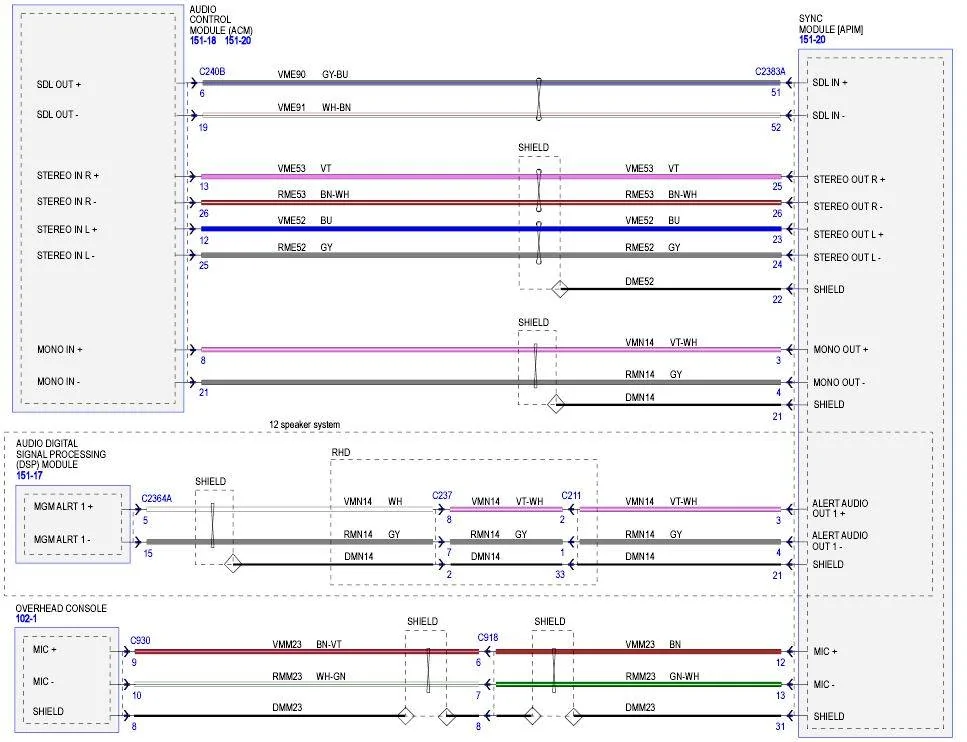

I grabbed a few more that look like might apply - let me know if that's not what you need and I'll take another look. I'm assuming the 10 channel premium amp is for the B&O.



[Aidenanderson275]

This is

I grabbed a few more that look like might apply - let me know if that's not what you need and I'll take another look. I'm assuming the 10 channel premium amp is for the B&O.

I grabbed a few more that look like might apply - let me know if that's not what you need and I'll take another look. I'm assuming the 10 channel premium amp is for the B&O.

This is so awesome. Thank you so much!



[StangTime]

FYI the L and R rear deck speakers are counted as 4 speakers even though they are just 2-way coaxials. Ford's marketing people .

Thanks for posting. It's nice to have all these diagrams in one place.



[Aidenanderson275]

This is




This is so awesome. Thank you so much!

One question. It’s a hit or a miss. But is there anyway to tell what pins coming from the 9 speaker head unit to the amp are for the ANC? What I’m trying to do is disconnect the ANC on both B&O amp and 9 speaker amp directly at the amp.



[Meggsie]

FYI the L and R rear deck speakers are counted as 4 speakers even though they are just 2-way coaxials. Ford's marketing people .

Thanks for posting. It's nice to have all these diagrams in one place.

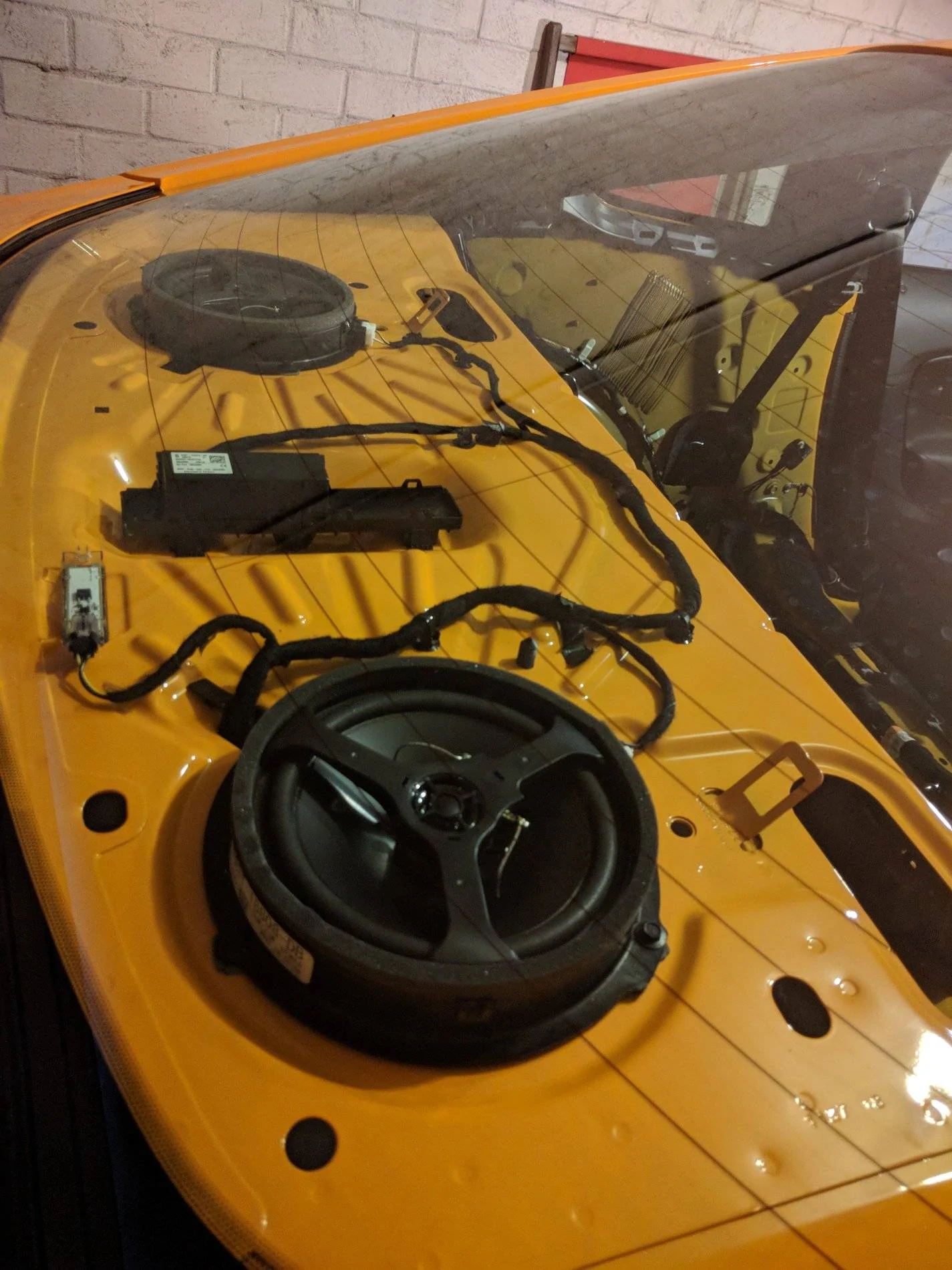

Here's a picture of my rear deck. The ANC mic in the overhead map lights pod is needed for BlueTooth quality purposes.
