Let the light shine !! :D

Finally, after 4 weeks of waiting (:crazy:), the LED stripes arrived today :cheers:

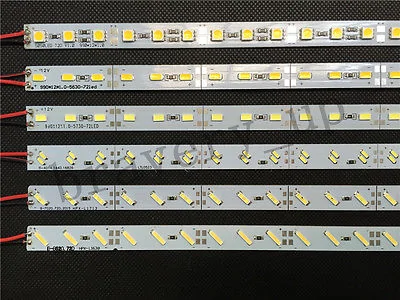

Link to the LED ($ 6.63) :
http://www.ebay.com/itm/371435170019?_trksid=p2060353.m2749.l2649&ssPageName=STRK:MEBIDX:IT


For the connection between the stripes, I found some Solderless Clip-on Coupler, no too expensive, and went to order 5 of them :

Link to the Solderless Clip-on Coupler (You need the : 5050 10mm 2pin L Shape) ($ 2.16 for 5pcs) :
http://www.ebay.com/itm/28184806130...49&var=580828734473&ssPageName=STRK:MEBIDX:IT


After you ordered all this, let the fun begin.

Estimation of the installation time for me (pictures included :D) : Around 45 minutes

Now, some before/after picture, and these are true pictures, the difference is amazing !! :eyebulge:

Before/After :




Solderless Clip-on Coupler :



Thanks again [MENTION=12253]papinist[/MENTION] for giving me such crazy ideas !! :paddle: :headbonk: :clap2:

Update with the connection :


I used some AMP Superseal contact I had in house to make the connection. Link for example : http://www.ebay.com/itm/10pcs-AMP-S...026925?hash=item3ab151bbed:g:89MAAOxydB1SnJr0

I crimp the AMP Superseal contacts to the cables that cames with the LED stripe, then plugged everything together. And yes, then just maked a continuous loop using lengths of LED strip and the solderless connectors together.




Isolated everything with electrical tape :




And hide everything in the OEM hole in the 'roof' :
