Question on heads

[whatsup62]

For those of you that have disassembled and reassemble coyote heads...have a question.
Putting together a set of heads for motor build and thought I had all the pieces and parts.
Then I read something about a thrust washer but I cant seem to find it anywhere in a parts break down.
Anyone can help on that? Is there one, where does it go and where do you find it. Thanks.

Sponsored



[rainmaker]

For those of you that have disassembled and reassemble coyote heads...have a question.
Putting together a set of heads for motor build and thought I had all the pieces and parts.
Then I read something about a thrust washer but I cant seem to find it anywhere in a parts break down.
Anyone can help on that? Is there one, where does it go and where do you find it. Thanks.

I don’t know the answer but I’m pulling my heads apart this weekend so I’ll let you know if I find anything matching your discription



[pro 5.0]

There is only 1 thrust washer in a Coyote engine, it sits in the block side behind the number 5 main cap.



[whatsup62]

There is only 1 thrust washer in a Coyote engine, it sits in the block side behind the number 5 main cap.

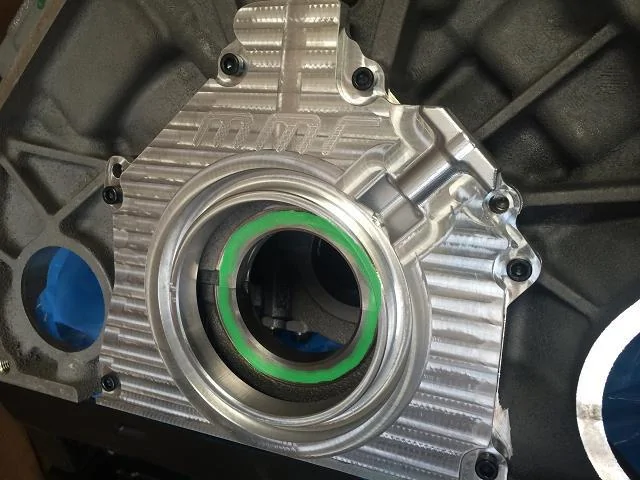

Green in picture ...correct?



[pro 5.0]

Yes
