Blue Trim Dash Clip

[CaptFlan]

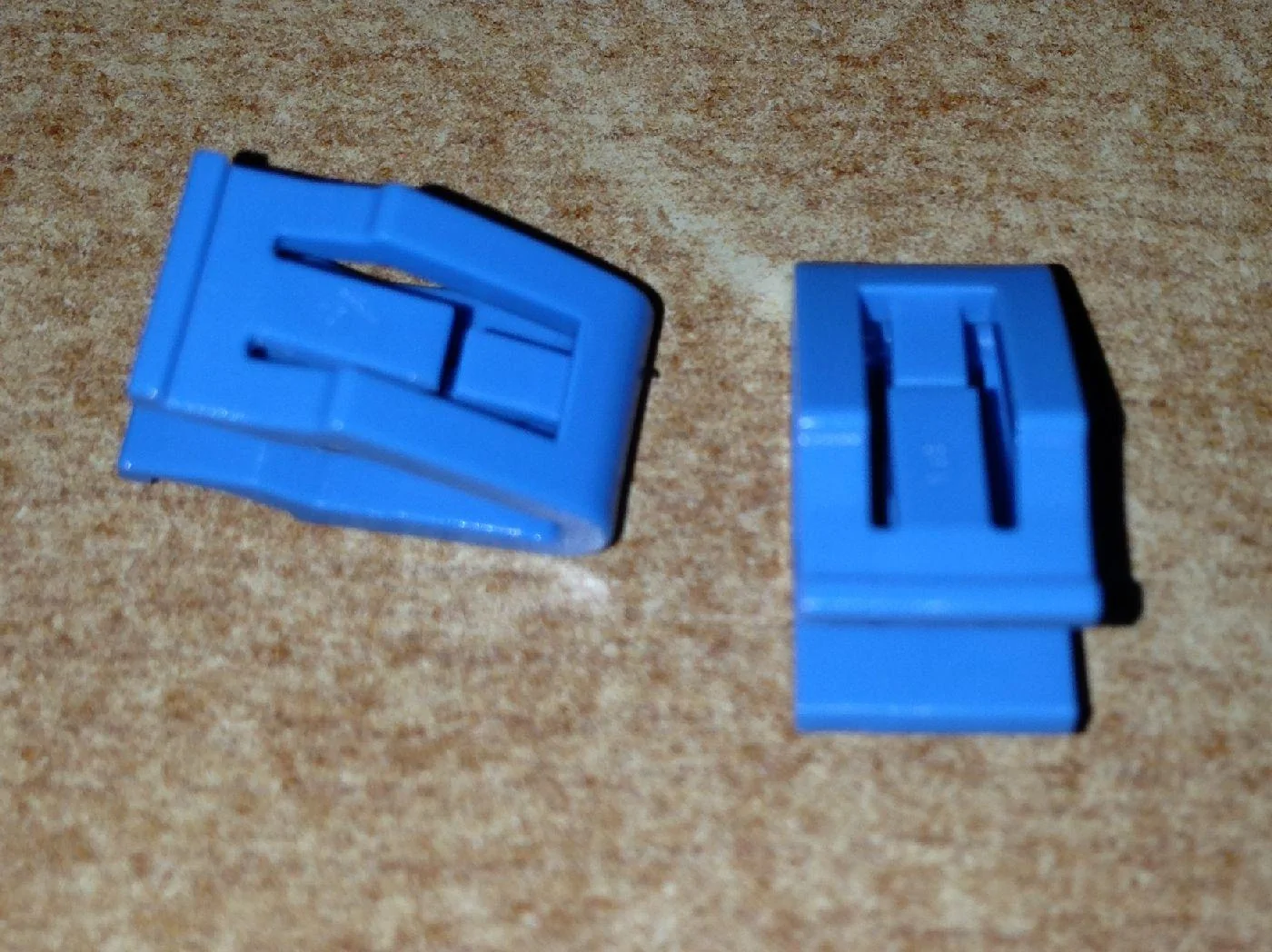

Does anyone know where to pick up some of these blue clips? Or have a part number? They are from the interior panels. Thanks!

Sponsored



[RoninRed]

i broke like 4 of mine, subd.



[chriseco]

Pep boys actually sells a lot of diffrent size clips I would try them out and if not I would just call the ford body shop and they probably know or even have a few laying around



[TricarboNate]

Bump....

Can't find these clips anywhere!



[CaptFlan]

So I found these on AliExpress.

http://www.aliexpress.com/item/20PC...298063083.html?spm=2114.01010208.3.187.zrjBgd

They are the wrong color, but the dimensions seem to match. I ordered a batch, I will let you guys know if they work when come in 15-20 days.



[TricarboNate]

Found em!

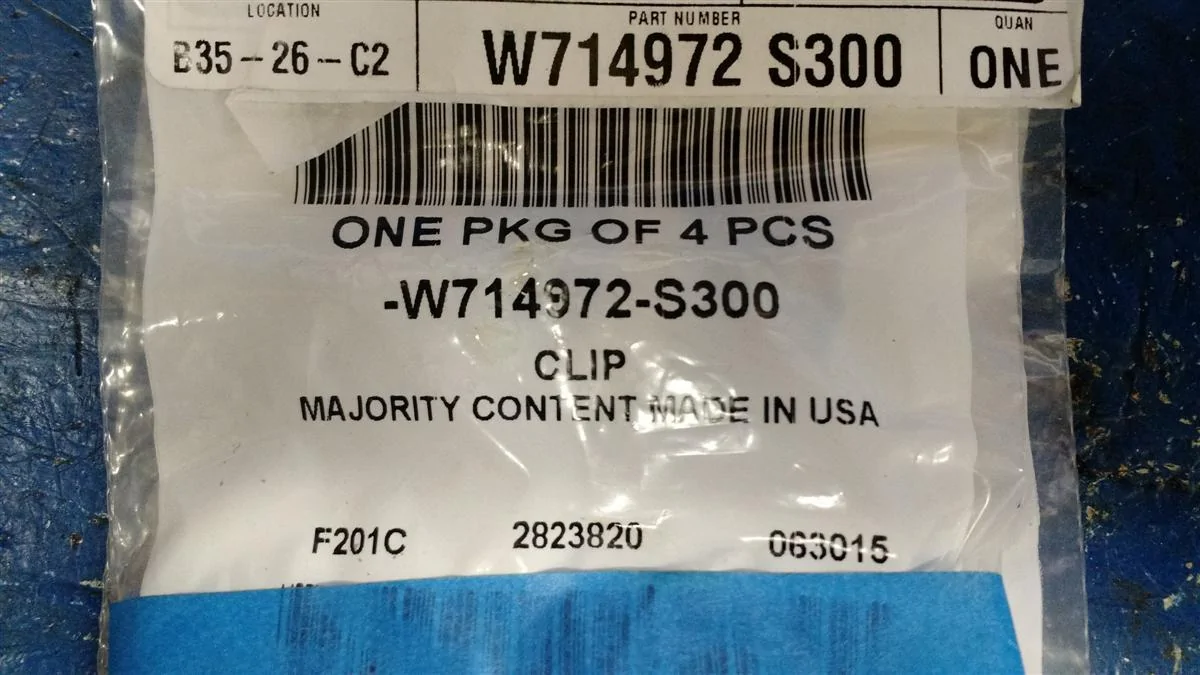

Ford Part#: W714972S300

Now these are clear, but are otherwise the exact same clip. I bought 3 and they are identical and fit perfectly. Expensive though at about $3.00 a clip!



[Racemaster]

Blue clips

Ok guys,here you go.

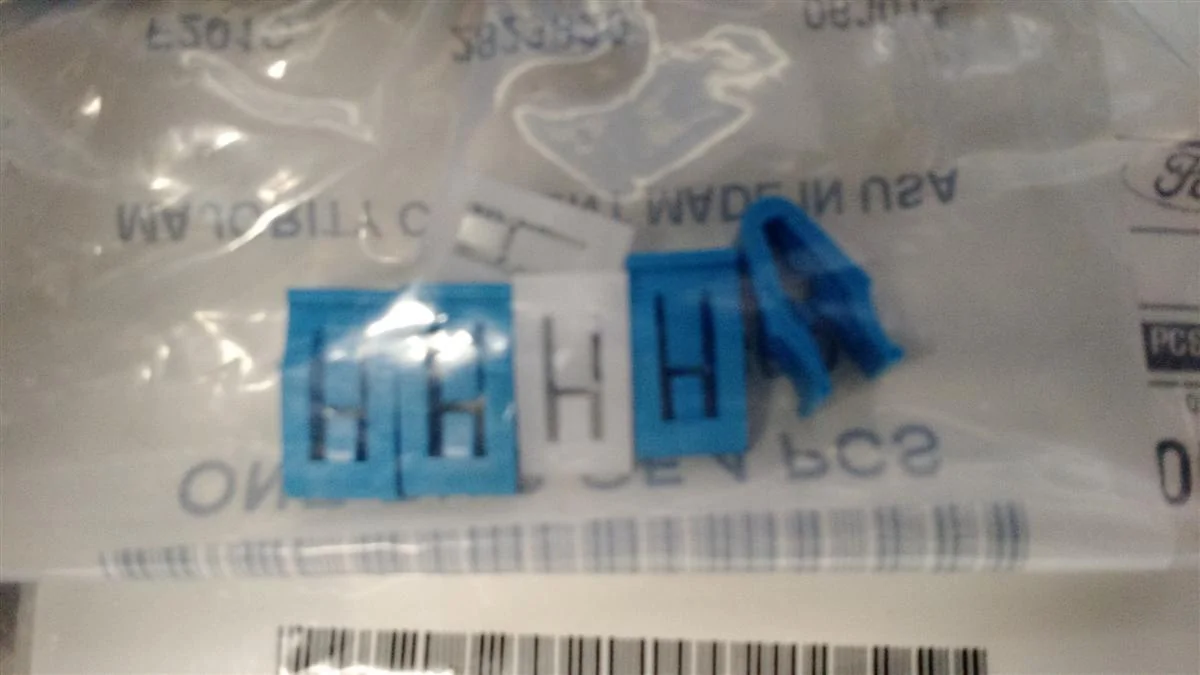

Blue clips.

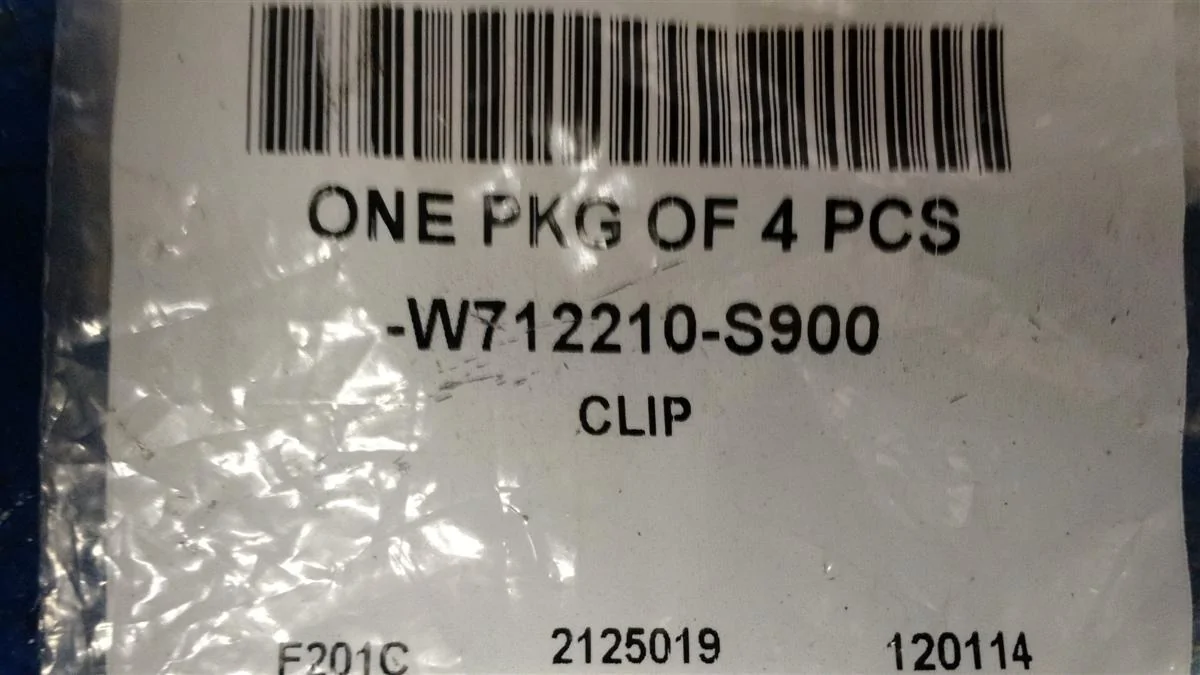

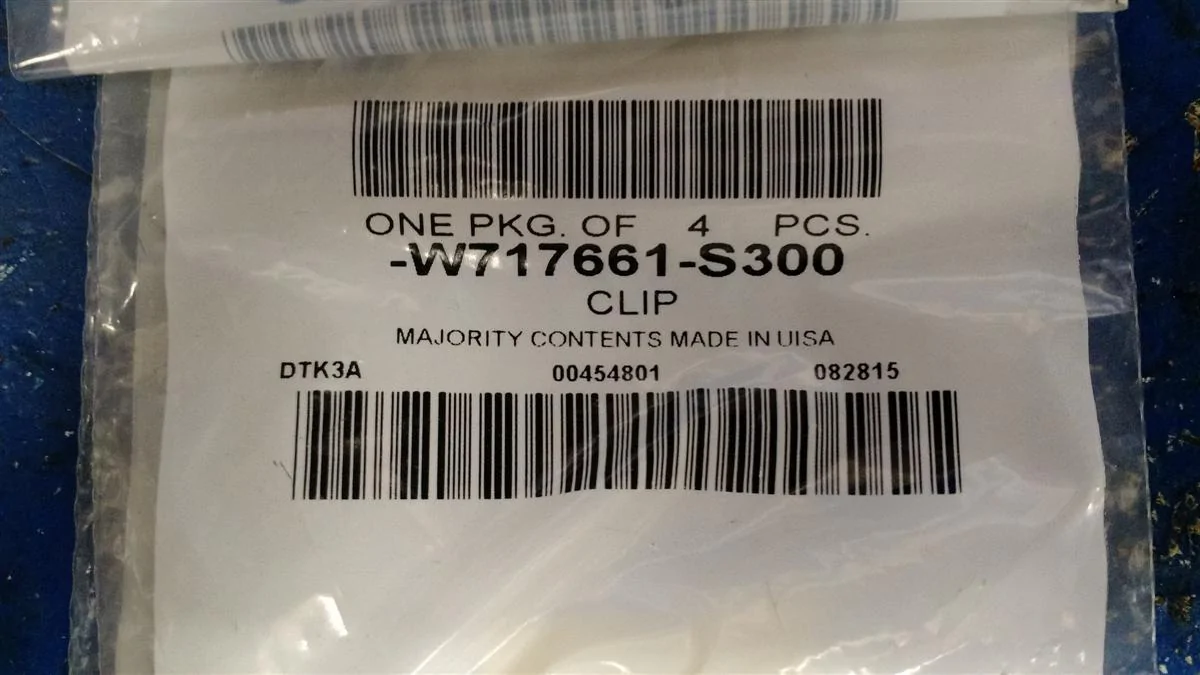

White or yellow, I can not remember which.

It does not really matter which one you use,as they measure the same.They seem to use blue,white and yellow.I can only assume that it for the "line workers" at assembly time to put a specific color on the parts.

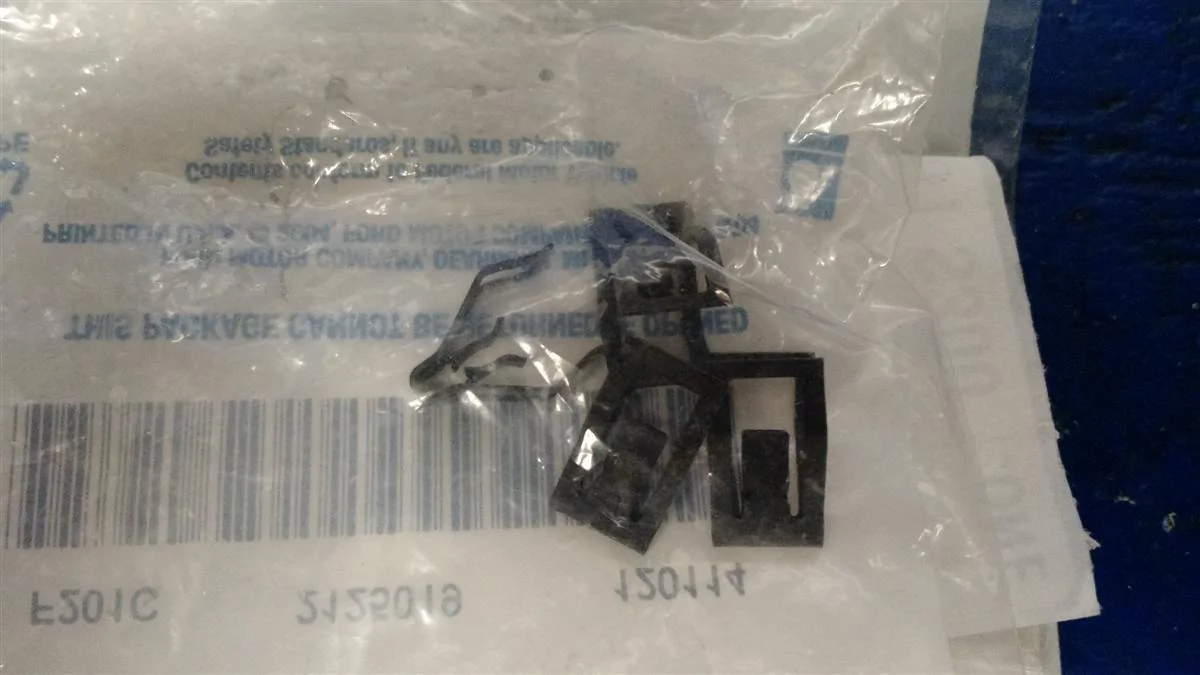

Also,here are the metal clips that are in the dash and kick panels.

Hope this helps you guys out,as this was a bit of a pain to find these.


Jeff



[clicklogical]

Ok guys,here you go.

Blue clips.

White or yellow, I can not remember which.

It does not really matter which one you use,as they measure the same.They seem to use blue,white and yellow.I can only assume that it for the "line workers" at assembly time to put a specific color on the parts.

Also,here are the metal clips that are in the dash and kick panels.

Hope this helps you guys out,as this was a bit of a pain to find these.


Jeff

Do you remember where you got the plastic clips? I can't seem to find them with any certainty. That is, I find sites that say it is that part number, but the pictures look very different.



[Bahndvr]

Call Steve at Tasca Ford, he'll square you away.
