2015+ mustang GT Convertible - rear subframe brace?

Does your 2015+ Mustang Convertible have a OEM rear subframe brace?

  • Yes

    Votes: 14 100.0%
  • No

    Votes: 0 0.0%

  • Total voters
    14
  • Poll closed .

Mixedup

Active Member
Joined
Jan 7, 2017
Messages
26
Reaction score
9
Location
Tampa
Vehicle(s)
2016 Mustang GT
Does your's have an OME one? If not, can you let me know your year, and option package? I've been told not all 2015 and up convertible have the factory rear subframe brace.





Advertisement



Redcruzer

Well-Known Member
Joined
Jun 23, 2015
Messages
703
Reaction score
331
Location
Redwood City
First Name
Chris
Vehicle(s)
2015 eco boost premium convertible, Ruby red
Not sure I'd know it if I saw it. Any pics?


markbento

Well-Known Member
Joined
Feb 4, 2016
Messages
293
Reaction score
31
Location
USA
Vehicle(s)
2015 S550 V6 Drop top
Look under your car from the rear if you have what looks like a y going from the rear of the car to both sides of the car you have the brace the brace also covers your exhaust system so you would not be able to remove the exhast system with out removing the brace


DANA44

Well-Known Member
Joined
Dec 27, 2015
Messages
293
Reaction score
88
Location
Central Connecticut
First Name
Dave
Vehicle(s)
2016 v6 convertible
They all have it from the factory. The only way I could see it being removed is if someone was lazy with aftermarket exhaust.


MaskedRacerX

Driver
Joined
Sep 20, 2015
Messages
5,405
Reaction score
4,150
Location
Vilano Beach, FL
First Name
DT
Vehicle(s)
19 Mustang GT convertible, Orange Fury + Ebony, A10/PP/AE/MS/B&O
They all have it from the factory. The only way I could see it being removed is if someone was lazy with aftermarket exhaust.
Exactly. All convertible GTs (maybe all model variants) have the rear subframe brace - MY16+ with the Perf Package (N/A for MY15) have additional bracing (that could be the confusion).

OP

Mixedup

Active Member
Joined
Jan 7, 2017
Messages
26
Reaction score
9
Location
Tampa
Vehicle(s)
2016 Mustang GT
  • Thread starter
  • Thread Starter
  • #6
Convertible brace

Exactly. All convertible GTs (maybe all model variants) have the rear subframe brace - MY16+ with the Perf Package (N/A for MY15) have additional bracing (that could be the confusion).
That is what I though too, however my "Performance Shop" who I have used for many mod's on my car, told me that some models of the 2015+ Mustang Convertibles do NOT have the brace .... thus I thought I would reach out to everyone and ask what they have.

I think this weekend, I'll go to a dealer and look at GT's and other model 'Verts to see if I can find any "unbraced."


DANA44

Well-Known Member
Joined
Dec 27, 2015
Messages
293
Reaction score
88
Location
Central Connecticut
First Name
Dave
Vehicle(s)
2016 v6 convertible
The coupe and convertible while similar are a different chassis. The rear support is on all verts V6-V8 from the factory. The removable 2 piece bolted black brace is a structural component of the car that ties into the rear rocker section, and rear subframe/chassis area to the unique to a vert spot welded brace under the spare tire well. The coupes have the roof as part of the cars structure the verts have the brace in its place with some other reinforcements.

My guess one day there will be a video where someone removes it and we will get to see what part of the body bends or creases after hard use and how the doors line up.


MaskedRacerX

Driver
Joined
Sep 20, 2015
Messages
5,405
Reaction score
4,150
Location
Vilano Beach, FL
First Name
DT
Vehicle(s)
19 Mustang GT convertible, Orange Fury + Ebony, A10/PP/AE/MS/B&O
That is what I though too, however my "Performance Shop" who I have used for many mod's on my car, told me that some models of the 2015+ Mustang Convertibles do NOT have the brace .... thus I thought I would reach out to everyone and ask what they have.

I think this weekend, I'll go to a dealer and look at GT's and other model 'Verts to see if I can find any "unbraced."
I suppose it's _possible_ there's some weird early production anomalies.

Out of curiosity, why do you ask? It looks like you have a MY16, and I'm assuming you've confirmed you have the brace.


Kcode

Well-Known Member
Joined
Jul 7, 2014
Messages
49
Reaction score
21
Location
Toronto, Canada
First Name
Robb
Vehicle(s)
TY EcoBoost Prem Vert Auto PerfPkg Nav
2015 Ecoboost PP Vert had full rear brace installed.

OP

Mixedup

Active Member
Joined
Jan 7, 2017
Messages
26
Reaction score
9
Location
Tampa
Vehicle(s)
2016 Mustang GT
  • Thread starter
  • Thread Starter
  • #10
Convertible Subframe brace update

Just to bring closure to the thread - As said before, my Shop that has done a bunch of mod's for me, told me I didn't need my subframe brace - AFTER they chopped it up putting in and aftermarket full exhaust system.

I thought they were crazy, but hey they work on mustangs all the time and he said it so convincingly.

So I turned to you all for clarification and as I thought many of you helped me out to know the truth - ALL 15+ CONVERTIBLES DO HAVE A FACTORY SUB FRAME BRACE under the car.

A new brace is over $500 from ford, so I found another shop to make a chrome moly brace to replace the chopped up area's of the original brace.

Thanks again all for sharing your knowledge.


CVCashmere

Well-Known Member
Joined
Mar 28, 2017
Messages
977
Reaction score
448
Location
South Jersey
First Name
Carl
Vehicle(s)
15 GT Vert w/Steeda lower brace, PP sways, 50th wh

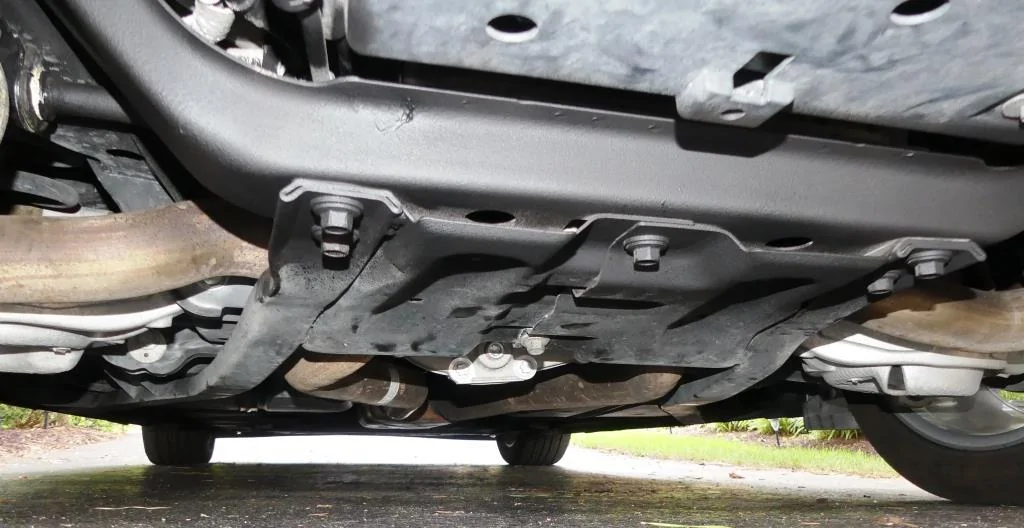

Here's what The Brace Looks Like

see picture. I just undercoated mine.

CVCashmere
Subframe Compressed Undercoat.jpg


cbrookre

Well-Known Member
Joined
May 8, 2014
Messages
2,188
Reaction score
784
Location
Ridgefield, WA
First Name
Chris
Vehicle(s)
2015 Mustang GT Convertible 50th app
Just to bring closure to the thread - As said before, my Shop that has done a bunch of mod's for me, told me I didn't need my subframe brace - AFTER they chopped it up putting in and aftermarket full exhaust system.

I thought they were crazy, but hey they work on mustangs all the time and he said it so convincingly.

So I turned to you all for clarification and as I thought many of you helped me out to know the truth - ALL 15+ CONVERTIBLES DO HAVE A FACTORY SUB FRAME BRACE under the car.

A new brace is over $500 from ford, so I found another shop to make a chrome moly brace to replace the chopped up area's of the original brace.

Thanks again all for sharing your knowledge.
I would definitely have a conversation with them about chopping up your car's bracing without your consent and they should help you pay for a new one. Ford does not just waste money putting bracing on a car if it does not serve a purpose, and you should have the ability to make that decision not them.


Rob00GT

Well-Known Member
Joined
Nov 3, 2014
Messages
412
Reaction score
56
Location
Montgomery, TX
Vehicle(s)
'15 GT Ragtop
I would definitely have a conversation with them about chopping up your car's bracing without your consent and they should help you pay for a new one. Ford does not just waste money putting bracing on a car if it does not serve a purpose, and you should have the ability to make that decision not them.
Agreed. A year or two from now when your doors no longer open or close properly you'll miss the additional structural reinforcement. Sooner if you indulge in "performance" driving that stresses the chassis.

OP

Mixedup

Active Member
Joined
Jan 7, 2017
Messages
26
Reaction score
9
Location
Tampa
Vehicle(s)
2016 Mustang GT
  • Thread starter
  • Thread Starter
  • #14
Agreed. A year or two from now when your doors no longer open or close properly you'll miss the additional structural reinforcement. Sooner if you indulge in "performance" driving that stresses the chassis.
I have replace the brace - not to worry, and will not be going back to the shop.

End of thread


sdiver68

Well-Known Member
Joined
Jun 28, 2018
Messages
723
Reaction score
414
Location
St. Louis
Vehicle(s)
18 GT PP1 10R80 Vert
Vehicle Showcase
1
I just ran into this question and got it answered in the suspension section. It's interesting because I've received some IRS parts and springs that "fit 2018 Convertibles" but no mention in any of the instructions or online videos about removing/reinstalling the brace. Raising this thread from the dead for awareness.
