SEMA Led rear Marker Lights

[Diode Dynamics]

This product is now available on our website and through our dealers.

We will be shipping orders March 7th. Dealers may be shipping a few days earlier. We're basically shipping to them first so they can fulfill orders, then shipping directly to our online customers. Thanks!

Sponsored



[Slyfox]

Just ordered the clear for my silver mustang, think they will go good with the clear front turn signal with the switchbacks in them



[John577]

Did you have something available for the EU market ?

Let me explain, as we don't have any connectors on the car, it'll be difficult for us to mod something on the car. So, did you know where we can find this connector ?

Or can you provide something for us ?

Thanks a lot for your help



[chrisgonzales]

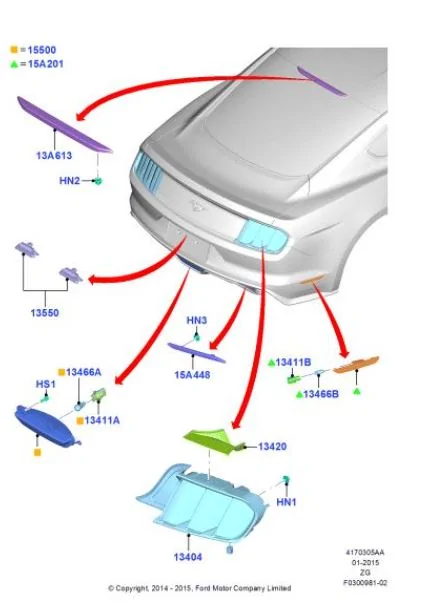

This might help some but this looks like the sides are tied into the license plate lite on my car (US spec) based on this http://www.fordparts.com/Commerce/P...search=true&year=2016&make=Ford&model=Mustang

I'm assuming it's the blue harness



[chrisgonzales]

here is also a video of CJ pony installing a quad valance. they have shots of the wiring in the bumper. 6:08 mark

[ame]



[John577]

Thanks mate for the link with the harness.

But sadly it's not so easy for us to swap the entire harness, on the US 'Stang, the reverse light has only 1 bulb so 1 connector, on the EU 'Stang we have 3 bulbs (2 for reverse and 1 for the rear fog light) so need 3 connectors ...

It'll be easy for us to plug to the licence plate light, but for that we need the connector to plug it to the side markers and to plug the new cables on the lights.



[chrisgonzales]

You could try hitting up these guys, they are doing EURO spec rear stuff so they may have some insight on the differences.
[MENTION=16625]Dirtyblueshirt[/MENTION] [MENTION=16474]ohbuckeyes[/MENTION]

http://www.mustang6g.com/forums/showpost.php?p=830162&postcount=6290
http://www.mustang6g.com/forums/showthread.php?t=38780&highlight=fog
http://www.mustang6g.com/forums/showpost.php?p=1023406&postcount=9330



[John577]

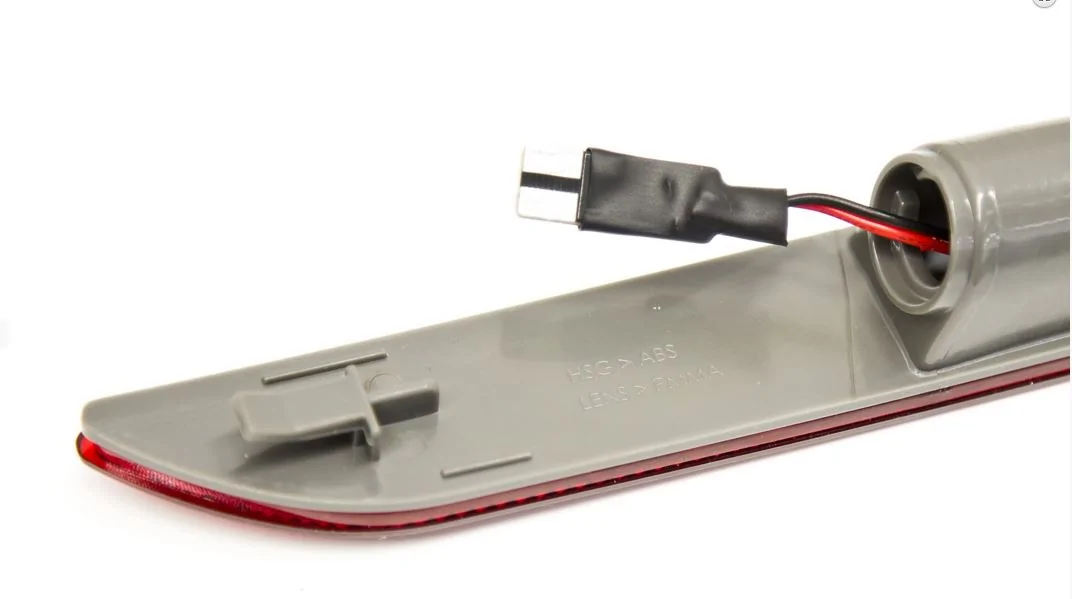

Seems I found one of the missing parts, the side markers bulb socket, now need to find the connector ...

http://www.ebay.com/itm/Ford-Mustan...ht-Parking-Lamp-Bulb-Socket-OEM-/321975215654

If someone can have a look on his car and share with us some pictures of the socket and the connector, that could really help us to find the good stuff



[John577]

maybe this connector can work ?

http://www.oreillyauto.com/site/c/d...14684_-1&pt=06393&ppt=C0189#compatibilityTab_



[chrisgonzales]

http://www.fordparts.com/Commerce/P...search=true&year=2016&make=Ford&model=Mustang

http://www.amazon.com/Genuine-Ford-Pigtail-Motorcraft-3U2Z14S411RPC/dp/B00TNELRV0

14S411A (WPT-1243)

time mark 1:28
[ame]



[chrisgonzales]

also a good reference of ford connectors

http://www.fordservicecontent.com/pubs/content/connectors/images/connectorcatalog.pdf



[John577]

Thanks a lot mate for your help, this are VERY USEFUL informations for us

So, if I resume.

- Bulb socket : http://www.ebay.com/itm/Ford-Mustan...ht-Parking-Lamp-Bulb-Socket-OEM-/321975215654

This will work with the side markers ?

- Bulb socket connector : http://www.amazon.com/Genuine-Ford-Pigtail-Motorcraft-3U2Z14S411RPC/dp/B00TNELRV0

This are the one we need to connect them to the car ?



[chrisgonzales]

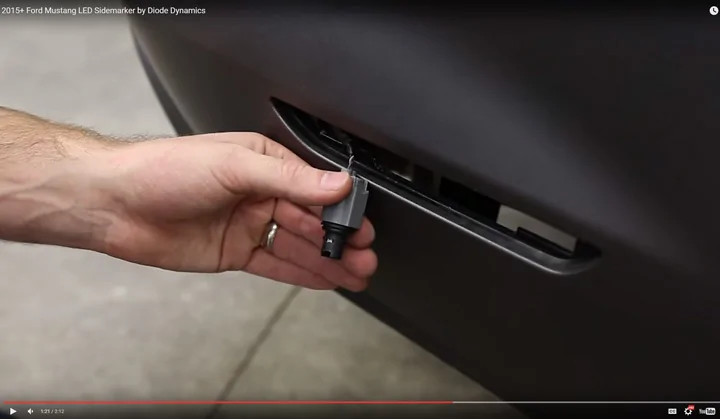

Yes i believe those to together make up the necessary connector, similar to the capture of the diode dynamics vid



[John577]

Just found another bulb socket connector and now seems to be the good one :

Link : http://www.fordparts.com/Commerce/P...search=true&year=2016&make=Ford&model=Mustang

On fordparts, the socket is 13411B, and on google found the OEM part number : 9E5Z-13411-B

Link to amazon : http://www.amazon.com/Genuine-Ford-9E5Z-13411-B-Socket-Assembly/dp/B00FZGN9CK



[chrisgonzales]

that ford link looks correct but the amazon link looks to be for the Ford Fusion only, ford names some of their parts similar usually is the first part of the number 9E5Z-13411-B that makes it car specific.

your ebay looks more like the real part
