Engine bay wiring/hose routing

[madweazl]

Engine swap was completed this week and everything looks pretty good under hood except for this line (not sure what it is). I have a clip floating in an area that doesn't appear to have a hole for it to snap into. Can somebody snap of picture of their vehicle so I can try to figure it out? This is right next to the fuse block on the passenger side.

Sponsored



[JAJ]

Engine swap was completed this week and everything looks pretty good under hood except for this line (not sure what it is). I have a clip floating in an area that doesn't appear to have a hole for it to snap into. Can somebody snap of picture of their vehicle so I can try to figure it out? This is right next to the fuse block on the passenger side.

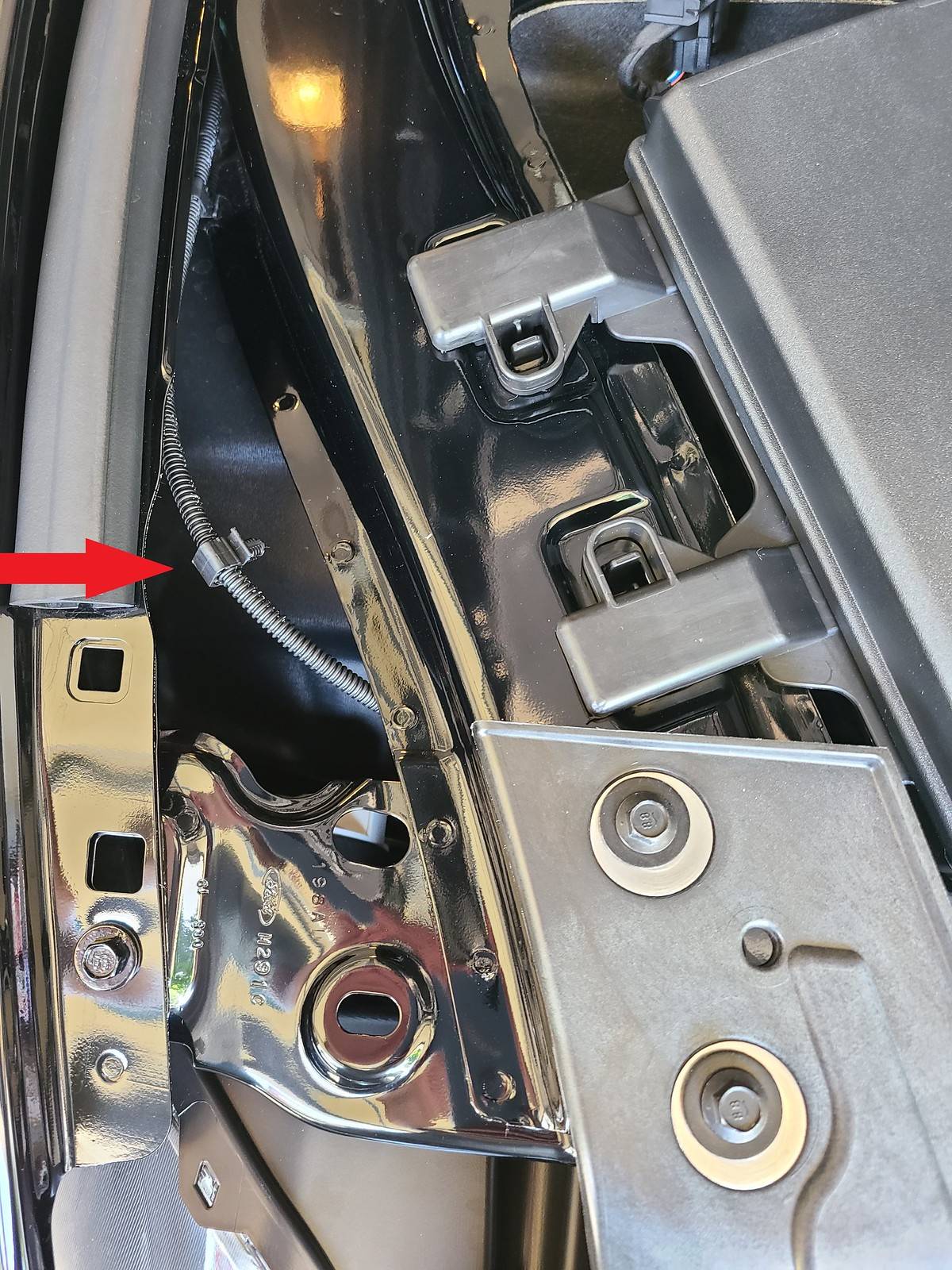

On my 2016, that clip goes into a hole in a metal panel that's down inside the hollow under the fender seam, more or less directly under the arrow you drew. Reach down into the opening where the wire is and feel to the left (in the picture) and you should find a structural bracket that's part of the fender (I think). There should be a hole in it. You can see it if you put your head down over the fuse box and look to the outside.



[madweazl]

Thank you , I'll go check .



[madweazl]

Ran out to check and I still can find anything down there. I'm wondering if the clip behind this one is actually in the wrong spot and maybe this one goes there?

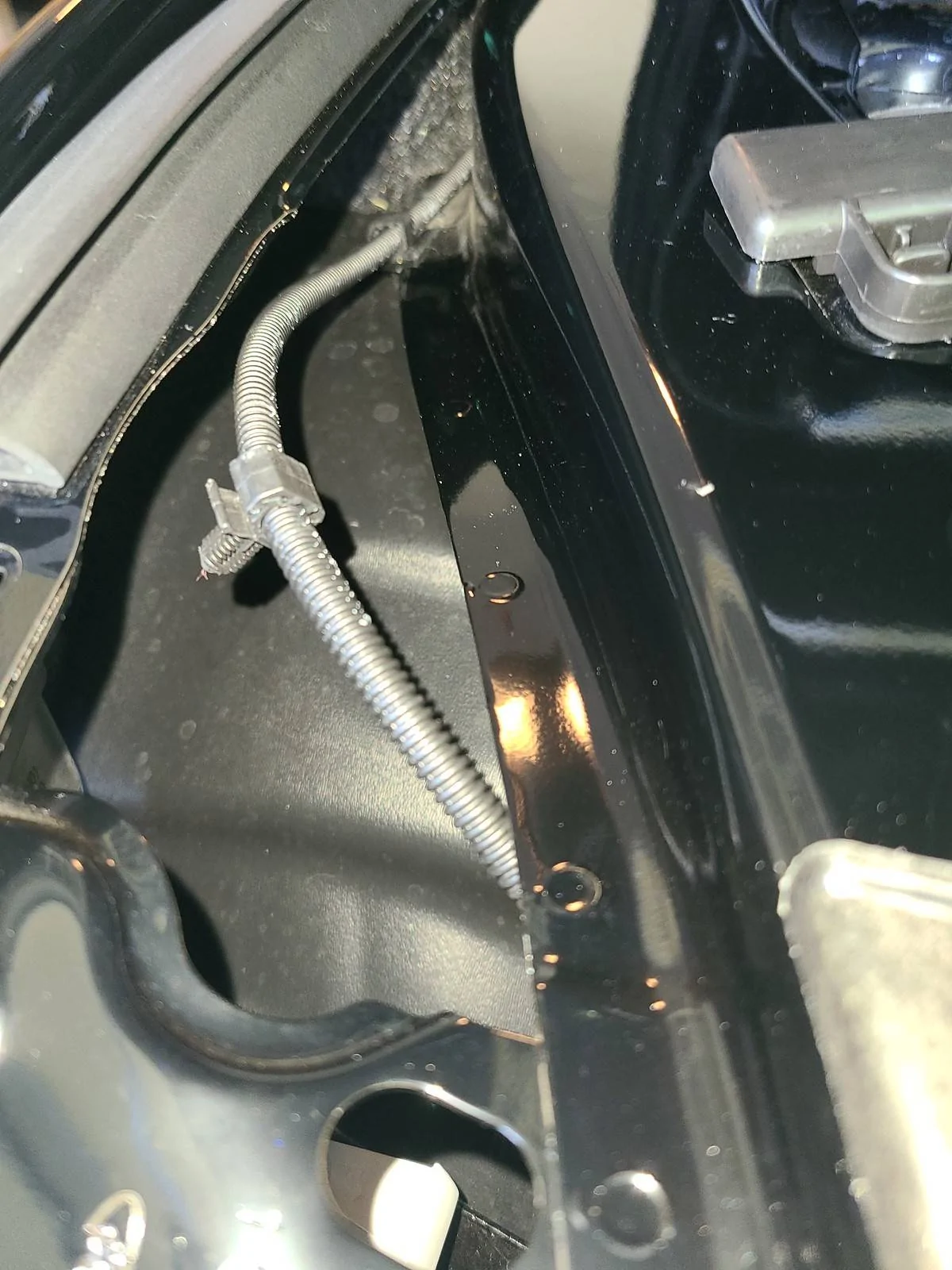

Edit: got in there with a camera and was able to find it (I think).



[sox3]

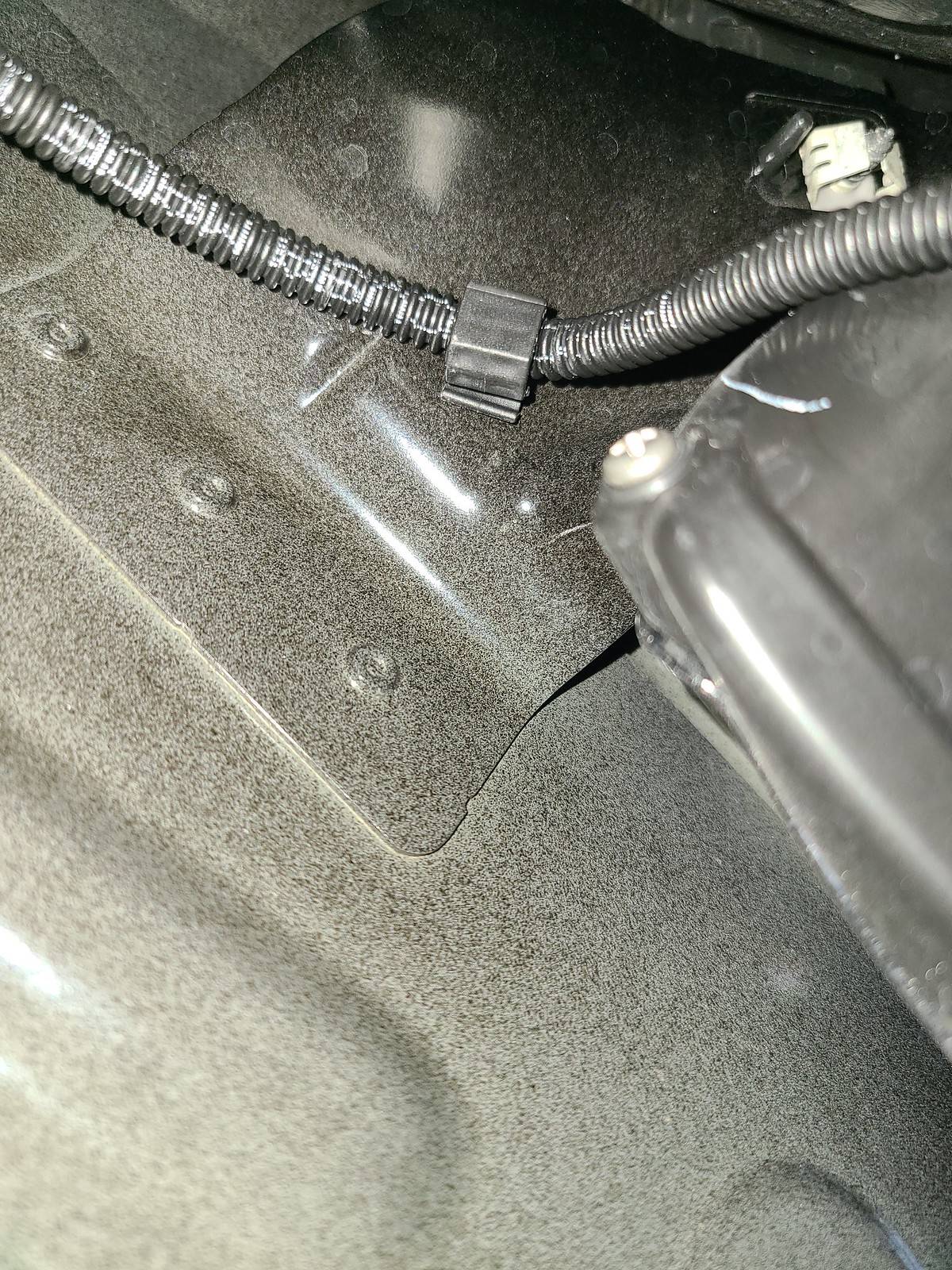

Here's where it goes, at least on mine. Hope this helps



[madweazl]

Thanks for the help; it was driving me nuts LOL.



[sox3]

Glad you got it figured out



[matthewr87]

That same clip was loose on my car, except my engine was never replaced. Took me a while to find the right hole too!
