ARP WHEEL STUD KITS NOW AVAILABLE

[scott_0]

I checked your site, I dont see any spacers...........

Sponsored



[Optimum Performance]

I checked your site, I dont see any spacers...........

They are coming, we are expecting them soon, they are out for anodizing (Black) Once they are in our hands they will be on the site. What size are you interested in?

We will have 8mm, 15mm, and our exclusive .650"(16.5mm) with intergral dust cap, which if you run a racing wheel with no center cap it covers the hub nut opening. Any size is available for special order. All our spacers are CNC Machined Billet Aluminum and are Hub Centric from 0-12mm and Hub and Wheel Centric above 12mm.

It has taken far longer to perfect them than expected.



[Brent Dalton]

Nice work on getting these done. Great price as well!



[scott_0]

They are coming, we are expecting them soon, they are out for anodizing (Black) Once they are in our hands they will be on the site. What size are you interested in?

We will have 8mm, 15mm, and our exclusive .650"(16.5mm) with intergral dust cap, which if you run a racing wheel with no center cap it covers the hub nut opening. Any size is available for special order. All our spacers are CNC Machined Billet Aluminum and are Hub Centric from 0-12mm and Hub and Wheel Centric above 12mm.

It has taken far longer to perfect them than expected.

Im thinking 12mm, Ill get better measurements once I lower the car next week. I was just looking for pricing, since Ill be buying your ready to use front hub with extended studs



[Optimum Performance]

Spacers Are In And Going Quick

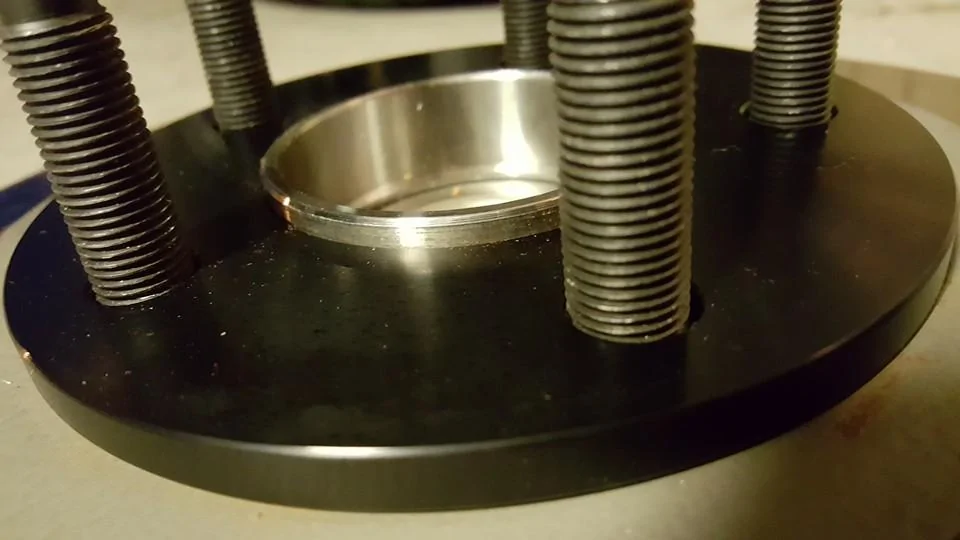

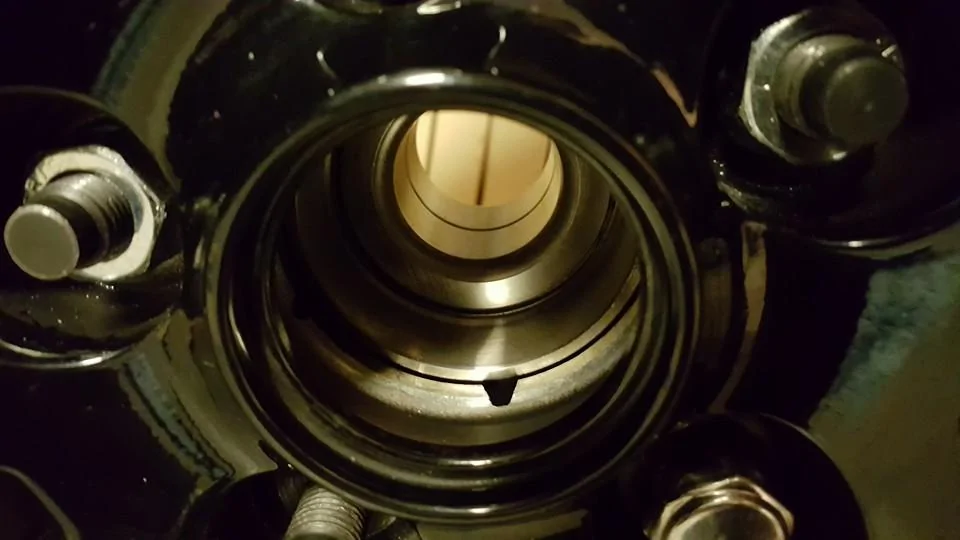

We will be getting more done. But here is the finished product on an assembled hub-rotor-factory PP wheel.

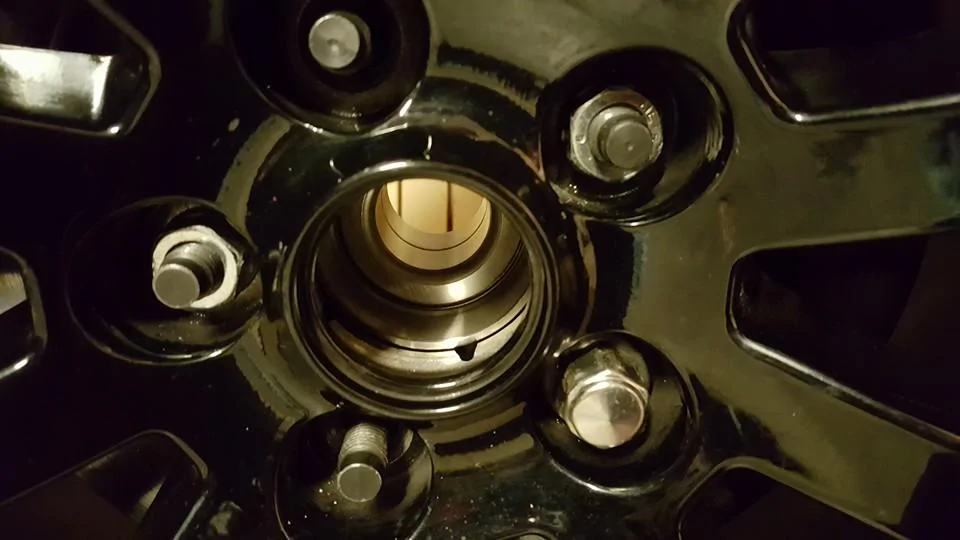

These pictures are of the 8mm spacer with our 14mm mid-length extended stud. You can still use the factory lug nuts with this combination.

On our website HERE



[Optimum Performance]

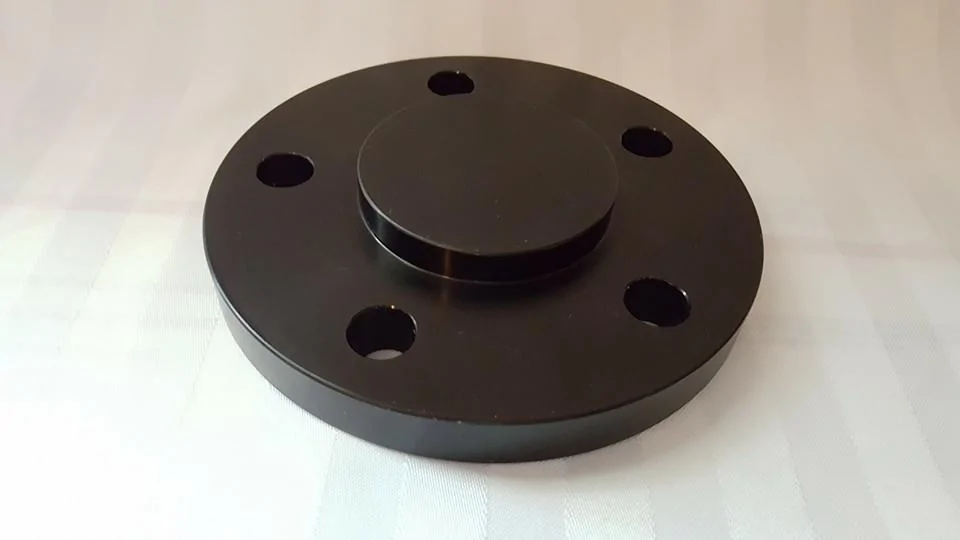

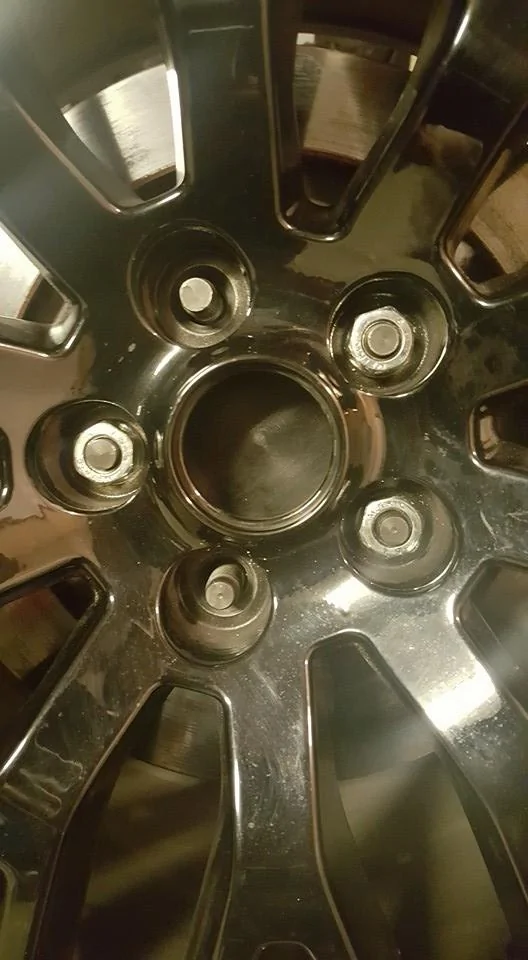

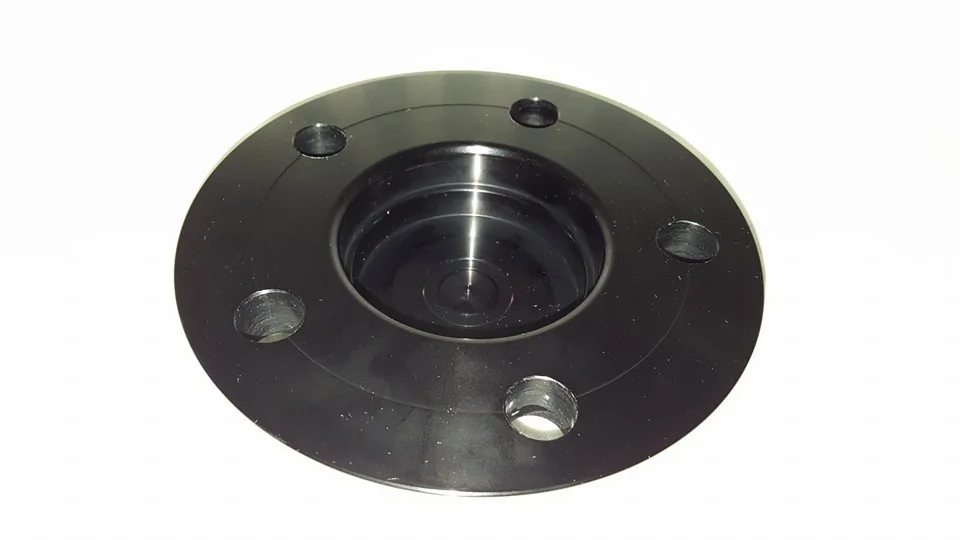

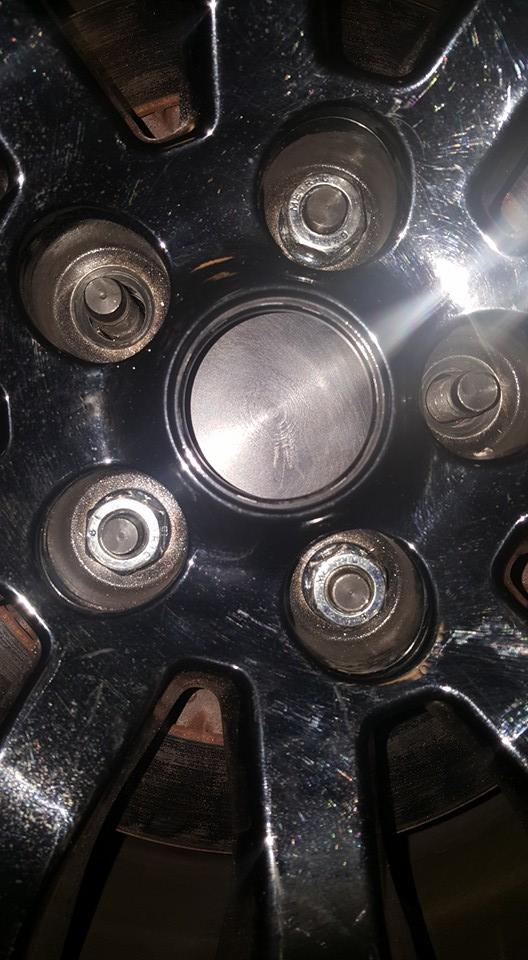

16.5MM Capped Spacer

As you can see, this spacer is designed with an integrated dust cap. If you are running a racing type wheel with an open center, this covers up the axle nut and keeps out the debris. We didn't think our 14mm Mid-Length extended studs would be long enough but you get plenty of nut engagement with a spacer this thick .650" (16.5mm) Again stock lug nuts can be used with this combination.

Pretty slick finishes off the wheel nice if you don't run center caps.

Available from our website HERE



[BTM]

sub'd



[XLR8EDMUSTANG]

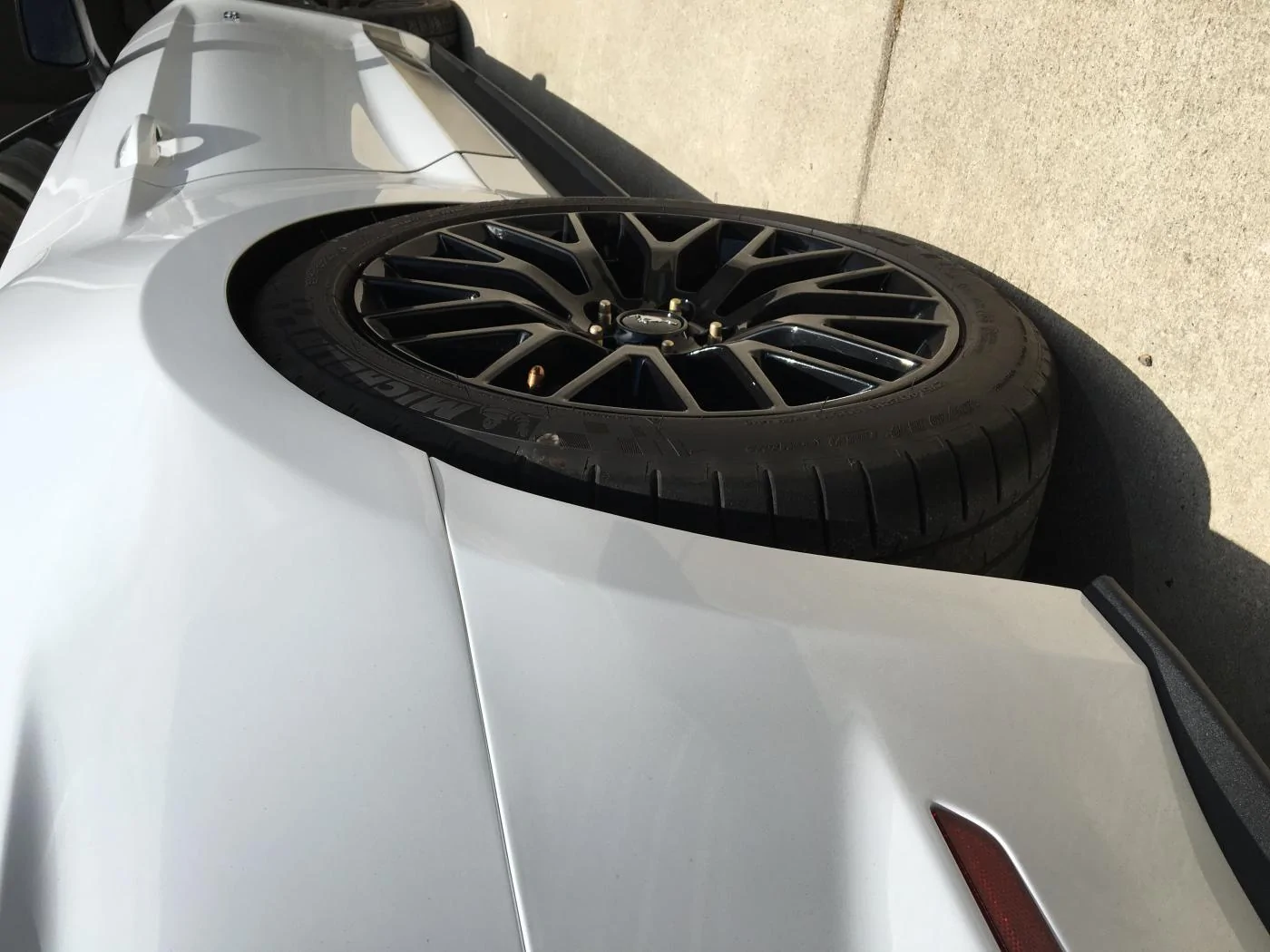

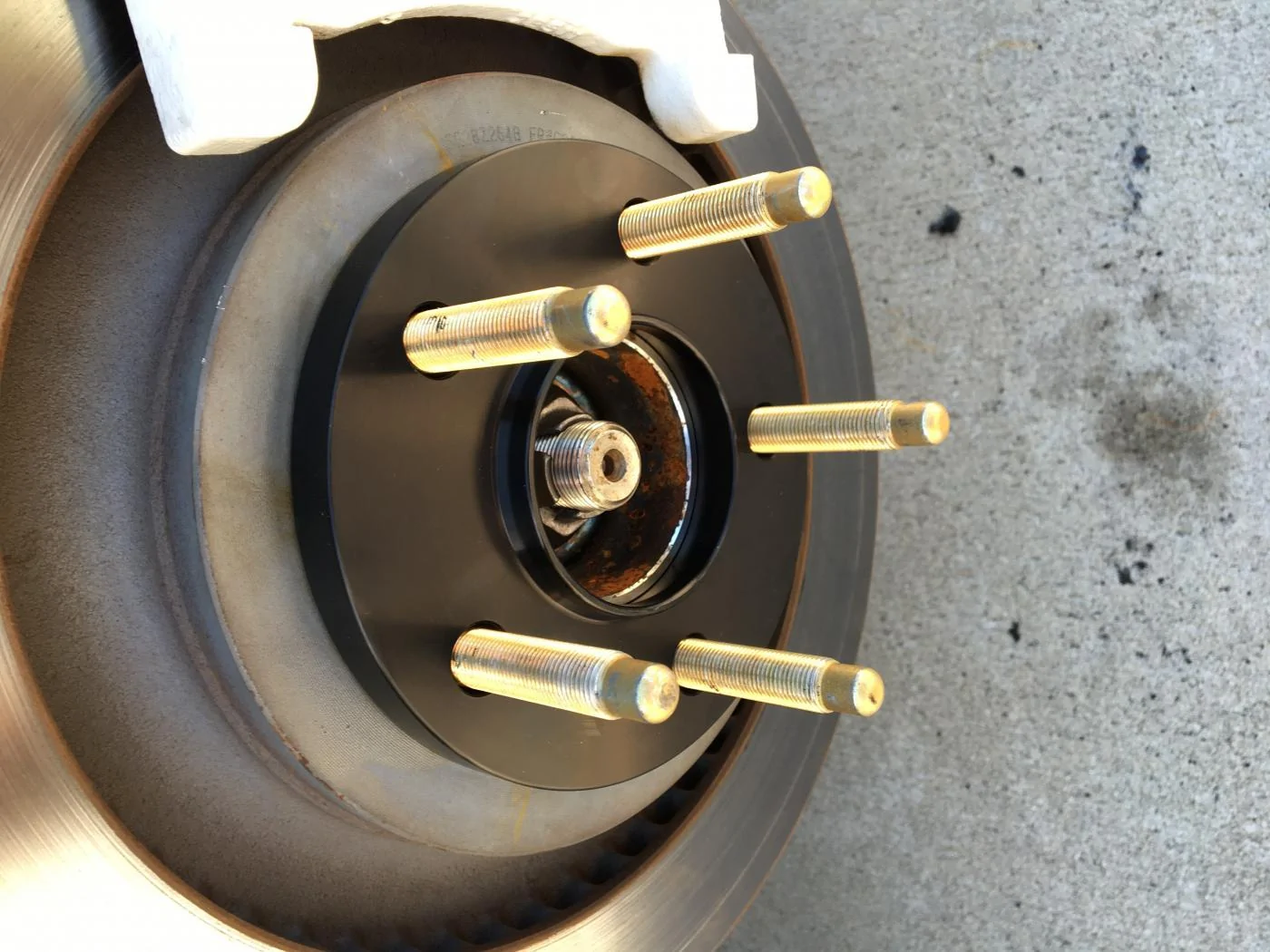

Here are some pics of my APR studs with 15mm spacers installed. Thank you so much to the guys at Optimum Performance for taking care of me. The 15mm spacer with the rear Performance Pack wheel is the perfect match! The fronts are good too depending on how much camber you are running. Thanks!



[Optimum Performance]

Glad they worked out for you! Wheel def. sits in the right spot now. :cheers: Thank you for sharing the finished product.



[Optimum Performance]

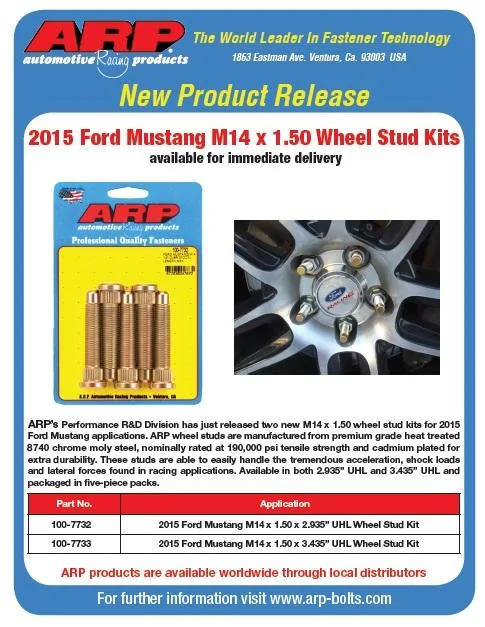

14MM ARP Stud Kits Available - SOON

We just added to the site, read more about them HERE

We will still offer our 1/2" ARP as well as our 14MM Solutions, all of which can be found HERE



[HeelToeHero]

14MM ARP Stud Kits Available - SOON

We just added to the site, read more about them HERE

We will still offer our 1/2" ARP as well as our 14MM Solutions, all of which can be found HERE

Can you get the studs installed in the hub while it is on the car? Some videos of other vehicles I've seen people having to take a hammer to the dust shield or grind down part of the head to get them in place.



[Optimum Performance]

Can you get the studs installed in the hub while it is on the car? Some videos of other vehicles I've seen people having to take a hammer to the dust shield or grind down part of the head to get them in place.

The dust shield unbolts. You can change them on the car.
