2020 GT500 map sensor pinout

[Davem3261]

Where can I find a 2020 GT 500 map sensor pin out? Part number K2GZ-9F479-A. I am trying to build a temporary harness to measure and log boost on my GT 350 using the AC pressure sensor wiring. I have done a lot of Google searching and can’t find anything. Thanks.

Sponsored



[Boyd]

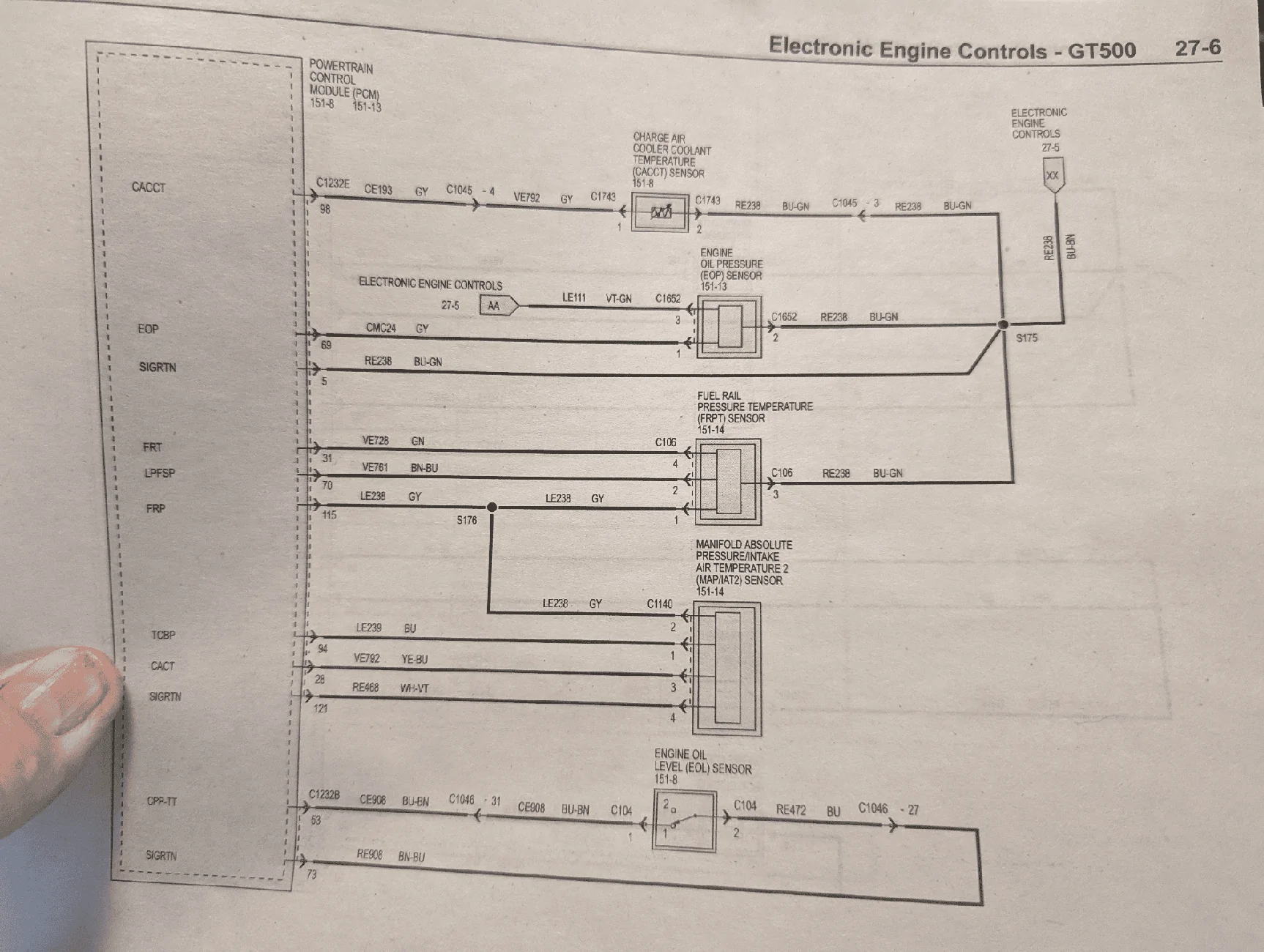

This is for a 2021. Best I can do and hope it helps.



[Davem3261]

Yes it does. I found a YouTube video where they did an aftermarket lid. Saw the plug and it was 1 blue,2 grey, 3 yellow, 4 white. Going off your schematic blue would be MAP, grey +5 VDC, yellow IAT, white -5 VDC. Thanks



[Boyd]

Haapy to help!! Good luck with the project...
