side view mirrors

[ETCH]

does anyone have a video on how to remove the side view mirror caps on the 2015 GTs. i am replacing my white caps with black one. i couldnt find anything on youtube

thanks ahead of time

rich

Sponsored



[Kennocha]

Maybe this video will help? They have it pretty disassembled in here, and can probably help you figure it out.

[ame]



[Vanel27]

Etch: if you dont mind me asking...where did you get the black covers?? (i been looking for a while..the carbon fiber option is not for me,)
thanks!



[ETCH]

Maybe this video will help? They have it pretty disassembled in here, and can probably help you figure it out.

i watched that video already. i appreciate it, but they dont take the covers off. they take part the front part.

Etch: if you dont mind me asking...where did you get the black covers?? (i been looking for a while..the carbon fiber option is not for me,)
thanks!

i got them from Fuller ford. in the parts department. they were 68 a piece



[G-Rell]

pics when done please!



[Kennocha]

i watched that video already. i appreciate it, but they dont take the covers off. they take part the front part.



i got them from Fuller ford. in the parts department. they were 68 a piece

Sorry about that, best I could find!



[B.Corso]

It looks like you have to disassemble the entire mirror.

1) Remove the mirror glass: can be down by inserting a flat blade screwdriver between the glass and motor. Twist the screwdriver to remove the glass. Once the glass is free, disconnect the electronic connectors.

2) Remove the mirror motor: first remove the mirror bezel by removing two screws and release the tabs. Next remove the screws from the motor and disconnect the electrical connectors.

3) Remove the mirror cover: disconnect the mirror turn signal, next remove the screw & release the tabs to remove to cover.

Good luck!



[ETCH]

Well it was a lot easier than I thought. Took less than a minute to do both mirrors. I used a flat plastic tool I had that was using to remove the saddle bags for my Harley. I pulled the side view mirror cap away from the housing unit, just enough to put the plastic in between the housing and the cap. I used the plastic tool like a flat head screw driver and pried it apart. You have to be a little aggressive with it and it just pops off. Pop the new cap on and you are done.

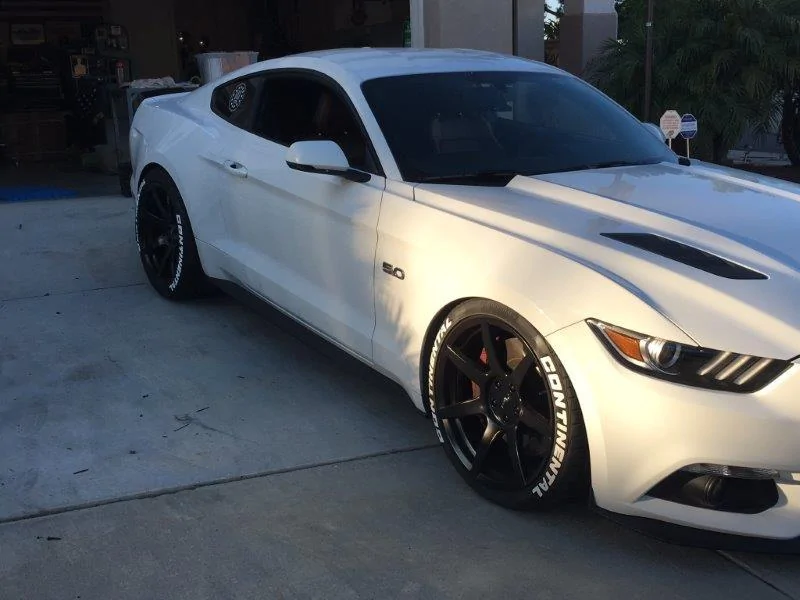

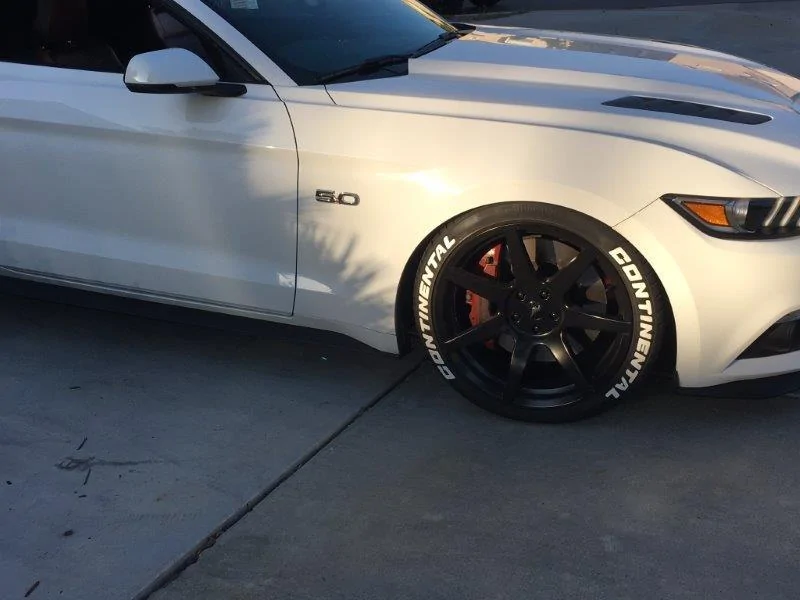

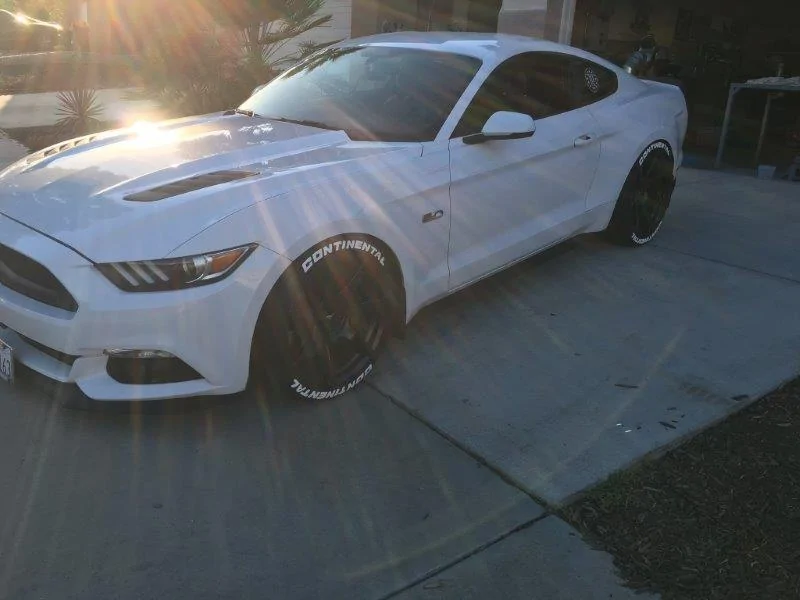

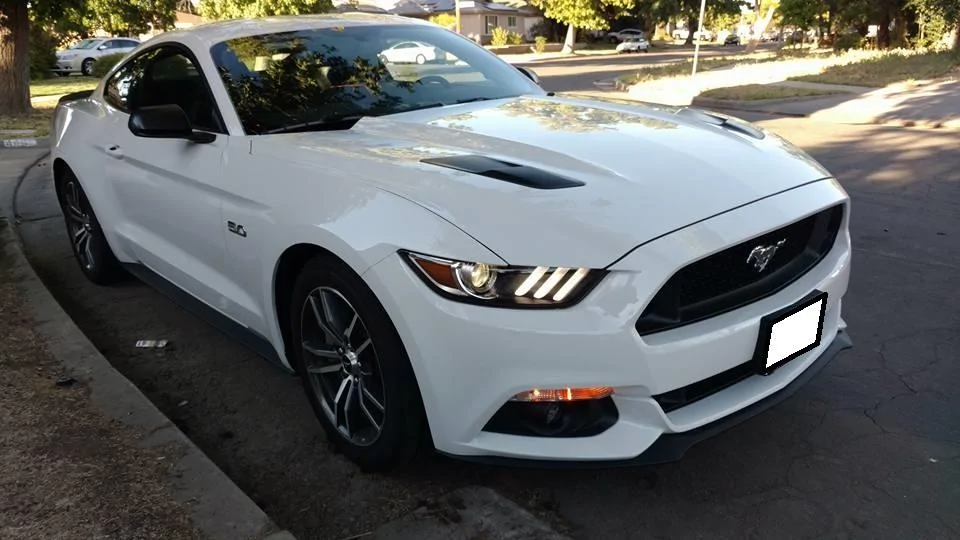

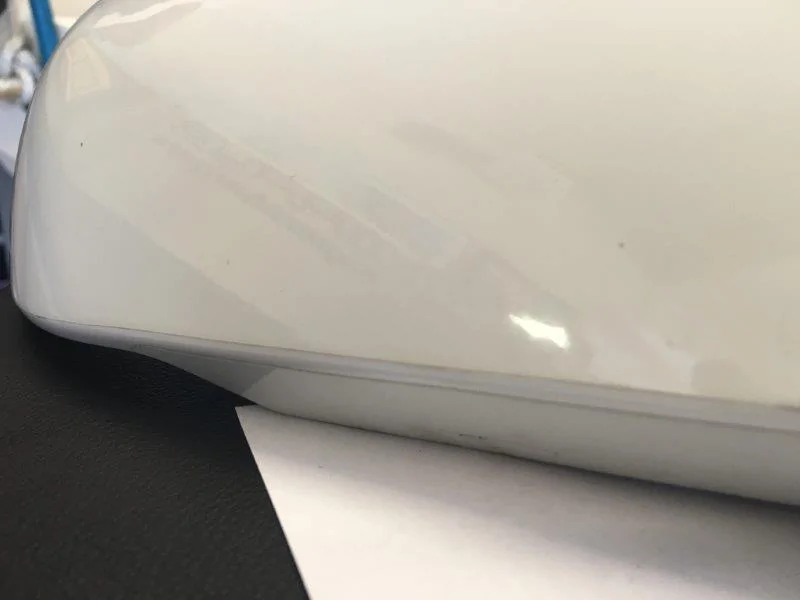

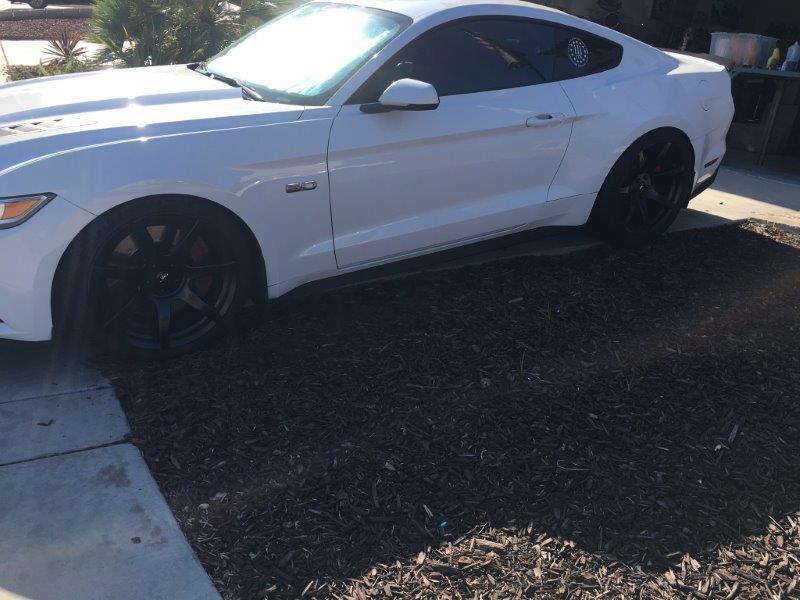

before is the top pics

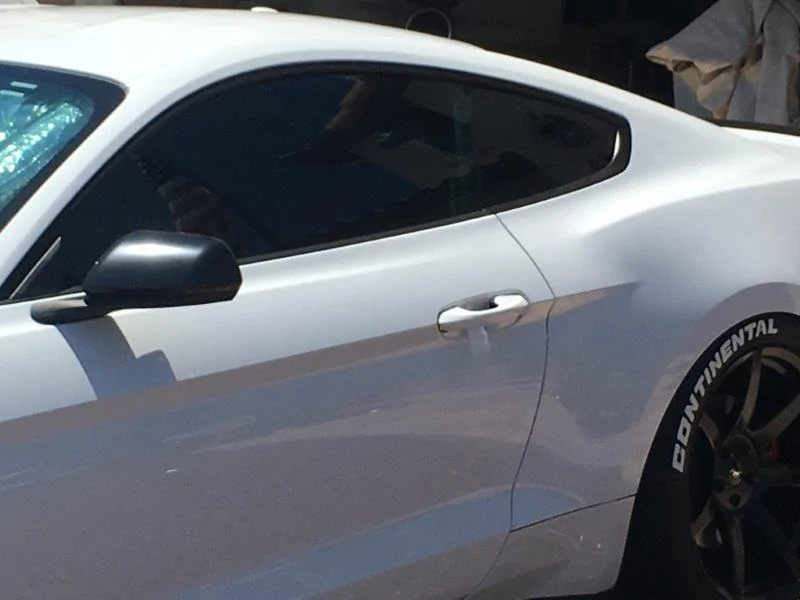

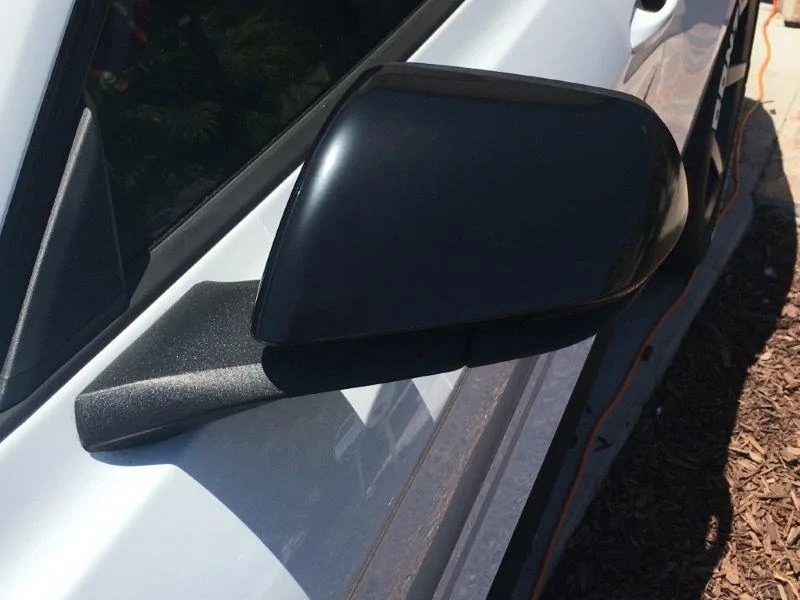

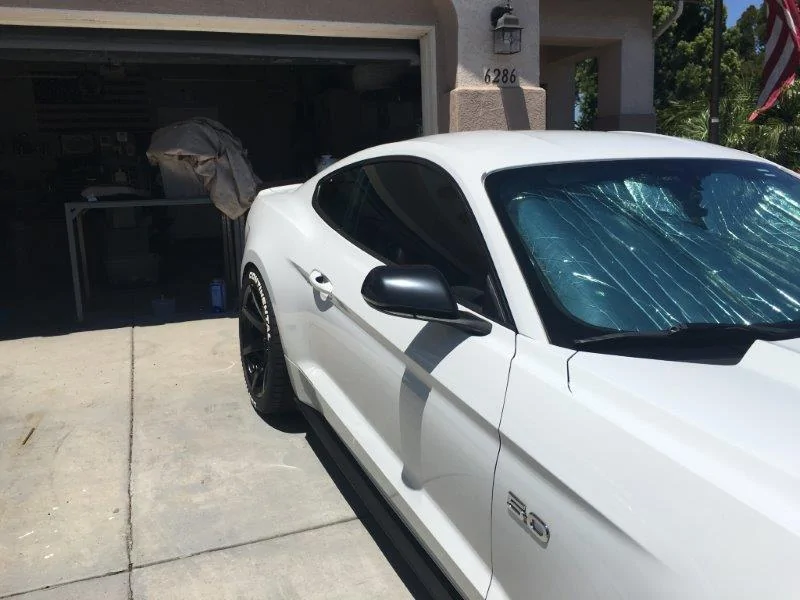

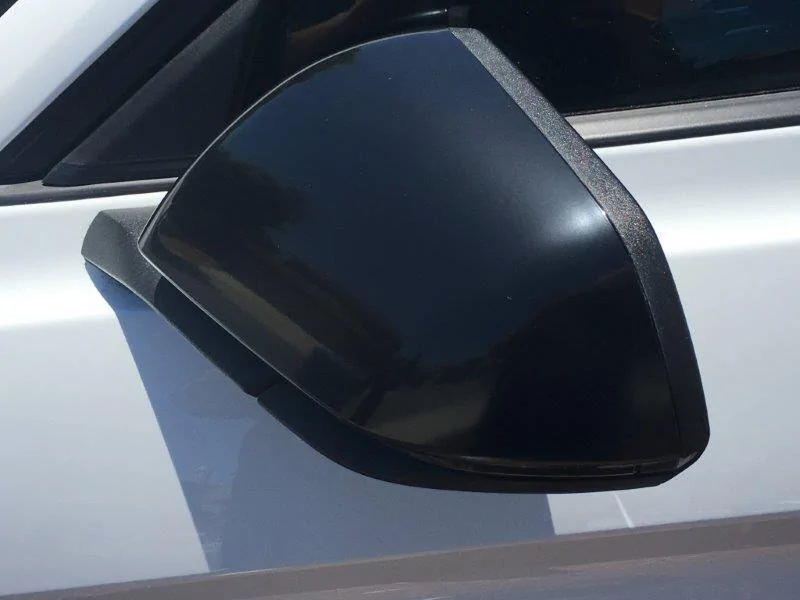

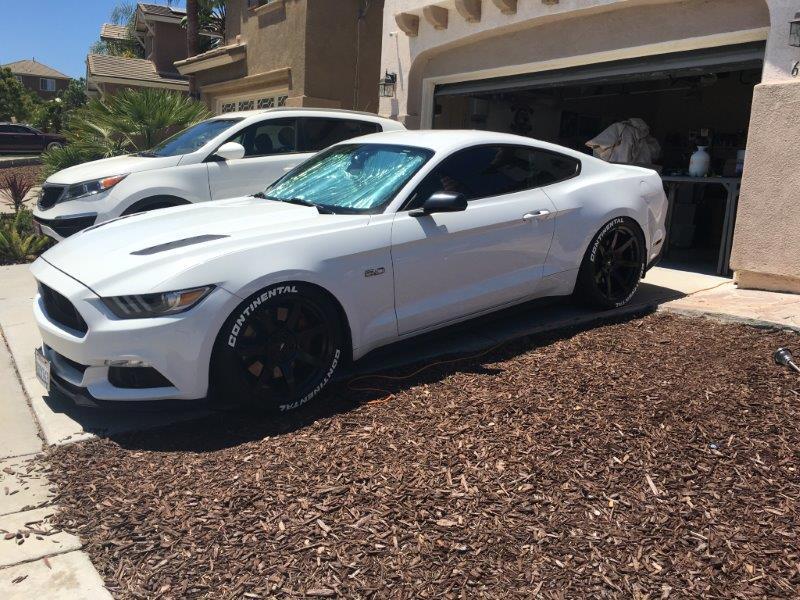

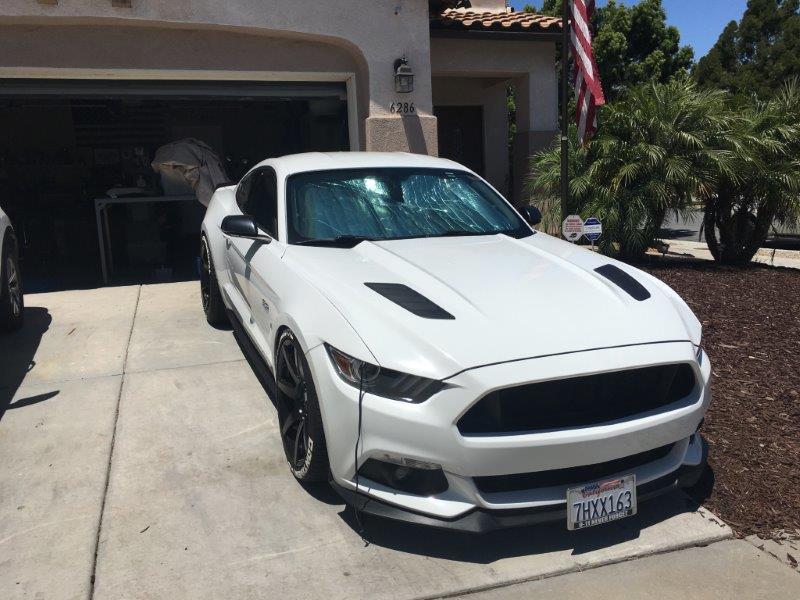

and after below

thanks for the help guys



[ETCH]

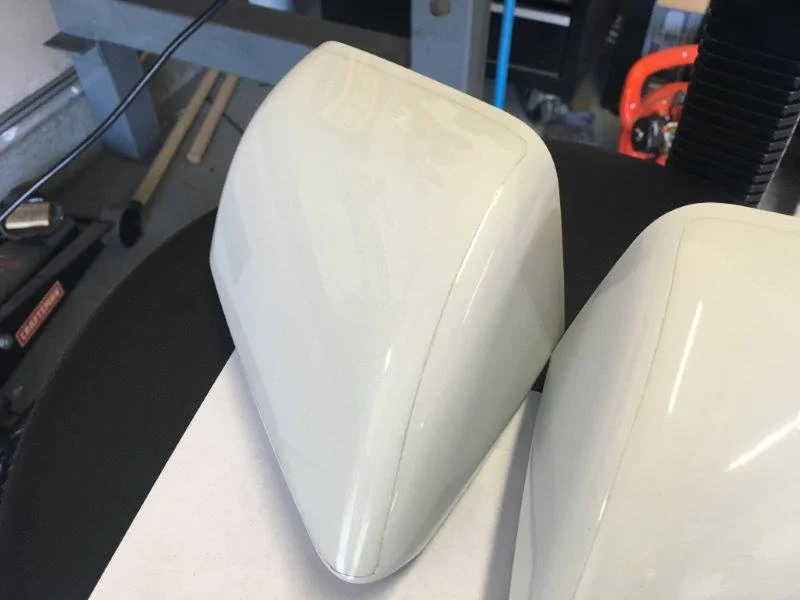

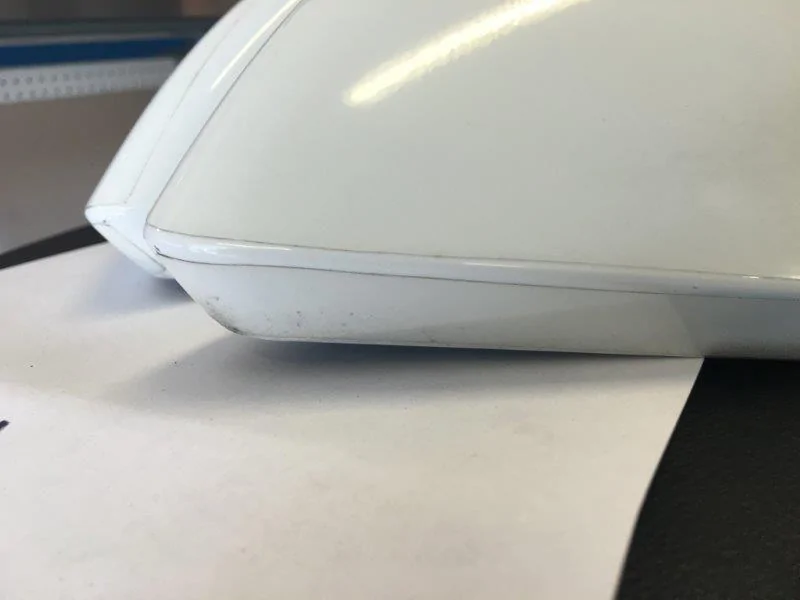

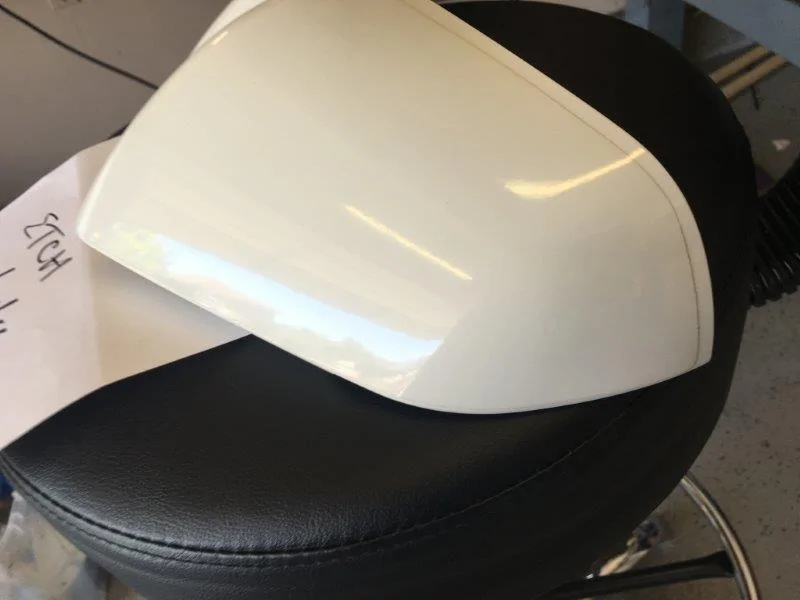

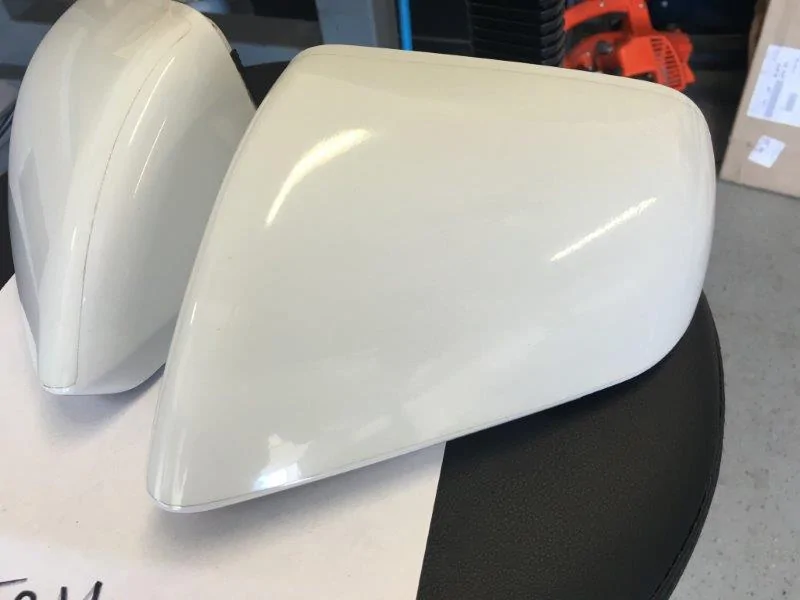

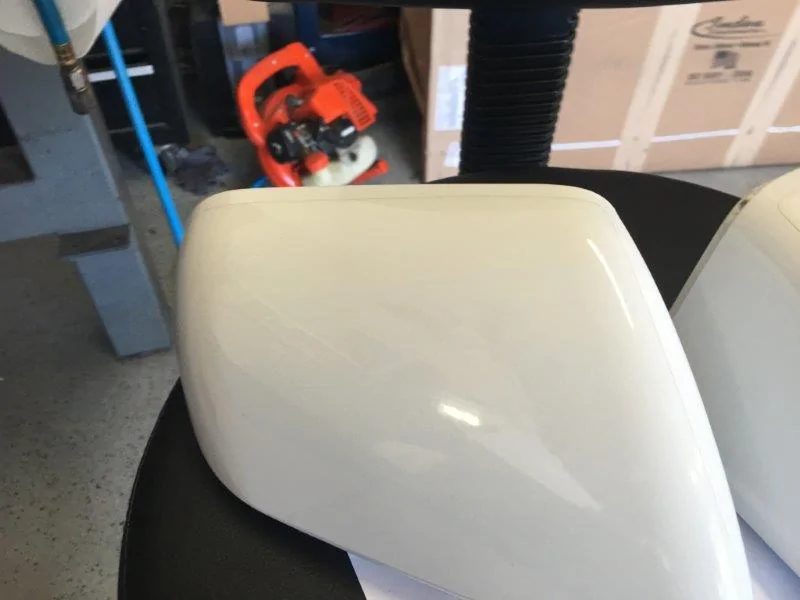

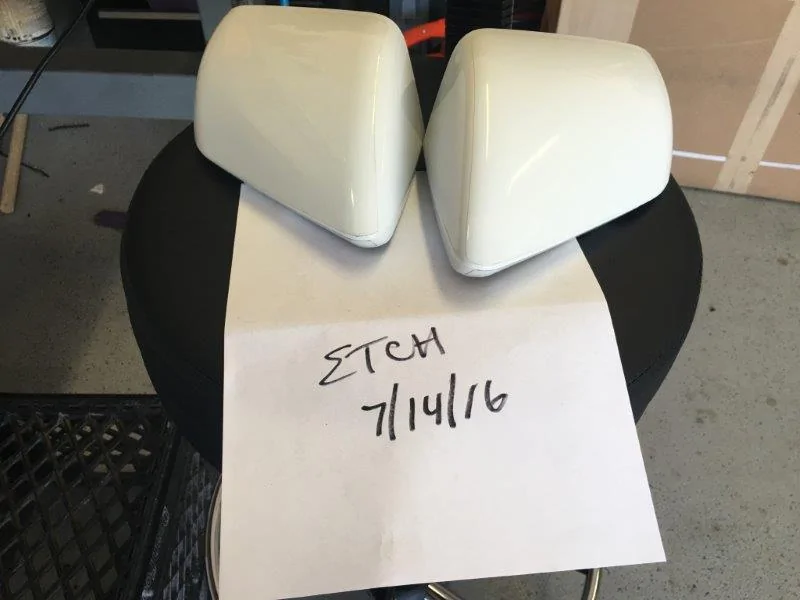

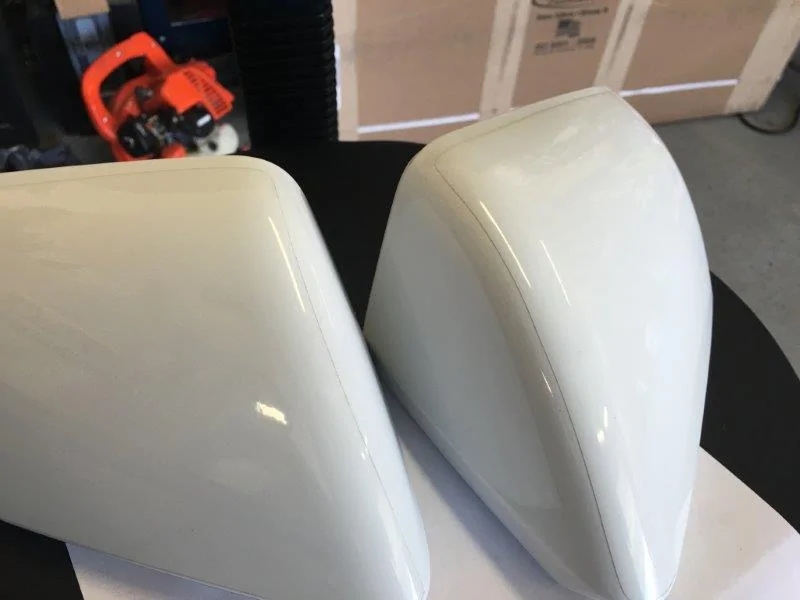

now i have the white caps for sale. they also have the clear bra on them. anyone interested IM me $60 for the pair shipped US Only shipping for free.



[Vanel27]

Damn son..that looks great!..clean AF too.....



[ETCH]

thank you



[Azzurro]

thank you

Car looks great but WTH did you do to your front lawn??? LOL.

I'm just messing with you. I actually put in a drought resistant front lawn too but am holding on with the back yard.



[ravengenesis]

Hey I did some of that color mods you did! Side mirrors, extractors and spoiler.

Except I'm broke so I plasti dipped it



[ETCH]

you still have a beautiful car buddy....



[plc268]

Those look like the plain unpainted mirror caps. From the pics, they look like like a semigloss black which is how the unpainted mirror caps arrive.
