QuickJacks on sale boys!!!

Alain

Well-Known Member
Joined
Jan 24, 2018
Threads
18
Messages
755
Reaction score
330
Location
Northern NJ
First Name
Alain
Vehicle(s)
2016 Challenger Hellcat / 2019 350R #413
https://www.ecstuning.com/News/Quic...mpaign=Catch_All_QuickJack_04282020_EP_MKT423


when I bought my 7,000 lbs extended QuickJacks over a year ago I payed more than they are asking for at ECS.

they are worth the price if you can afford them. I’ve had my R on my QuickJacks already and it’s easy peasey. I had to drive the front wheels up on a wooden plank to get clearance in the front. Other than that, it’s a breeze to get all 4 wheels off the ground.
Sponsored



Deleted member 37397

Guest
Got mine for $800 last fall at Costco. They are the 5000 lb and have all the new hardware connectors so it’s not like they were getting rid of old stock


Sponsored

ronaldwalter

Well-Known Member
Joined
Jun 12, 2018
Threads
13
Messages
60
Reaction score
14
Location
Long Beach CA
Vehicle(s)
2018 Shelby
https://www.ecstuning.com/News/Quic...mpaign=Catch_All_QuickJack_04282020_EP_MKT423


when I bought my 7,000 lbs extended QuickJacks over a year ago I payed more than they are asking for at ECS.

they are worth the price if you can afford them. I’ve had my R on my QuickJacks already and it’s easy peasey. I had to drive the front wheels up on a wooden plank to get clearance in the front. Other than that, it’s a breeze to get all 4 wheels off the ground.
What is the max height you can lift with this? Which model did you get?

OP
OP
Alain

Alain

Well-Known Member
Joined
Jan 24, 2018
Threads
18
Messages
755
Reaction score
330
Location
Northern NJ
First Name
Alain
Vehicle(s)
2016 Challenger Hellcat / 2019 350R #413
What is the max height you can lift with this? Which model did you get?
I got the 7,000 pound extended version.
I couldn’t tell you off the top of my head exactly how high it goes but I’ll tell you that there’s nothing you’ll ever need to do under the car that you wouldn’t be able to do with this lift.

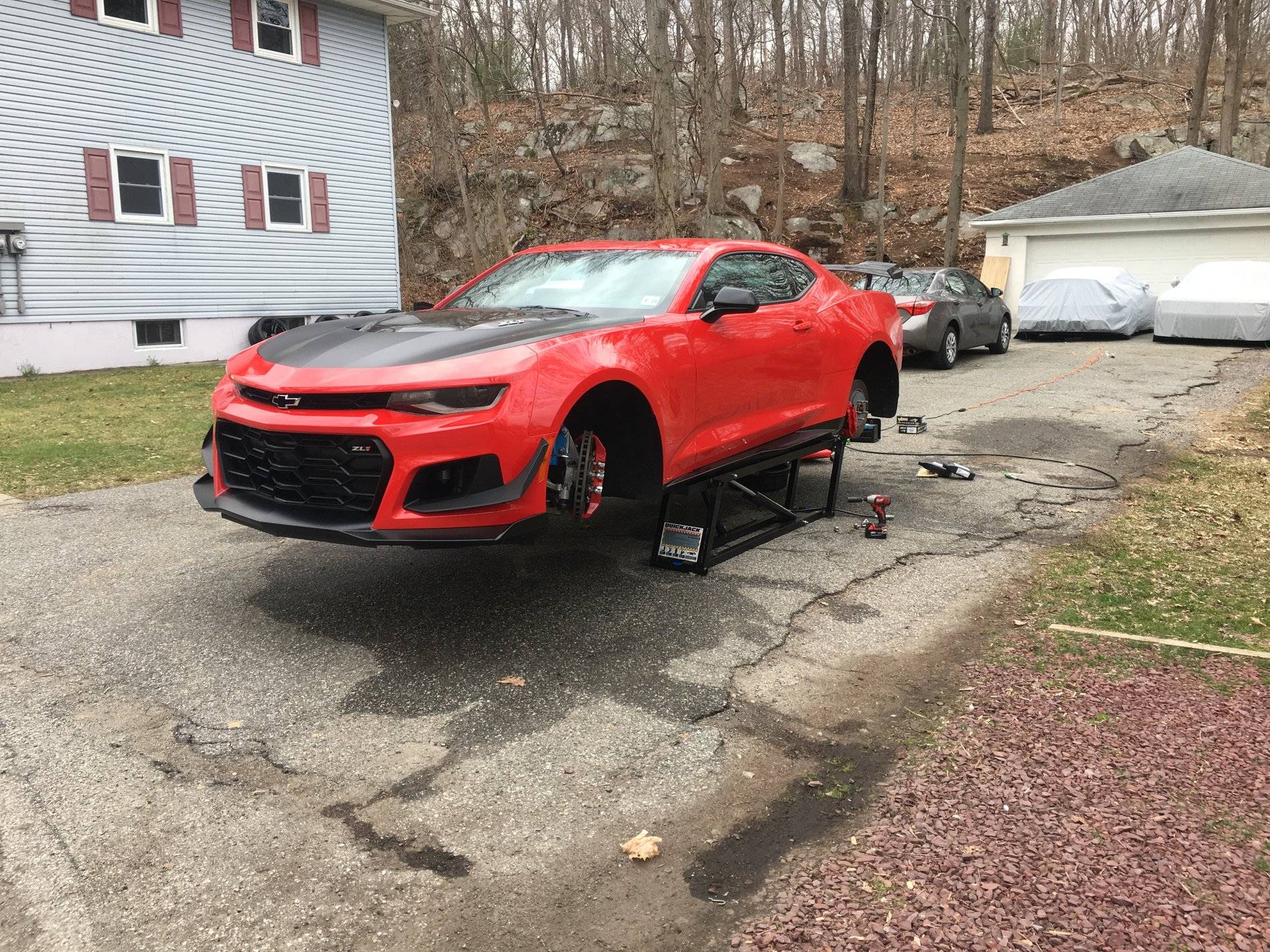

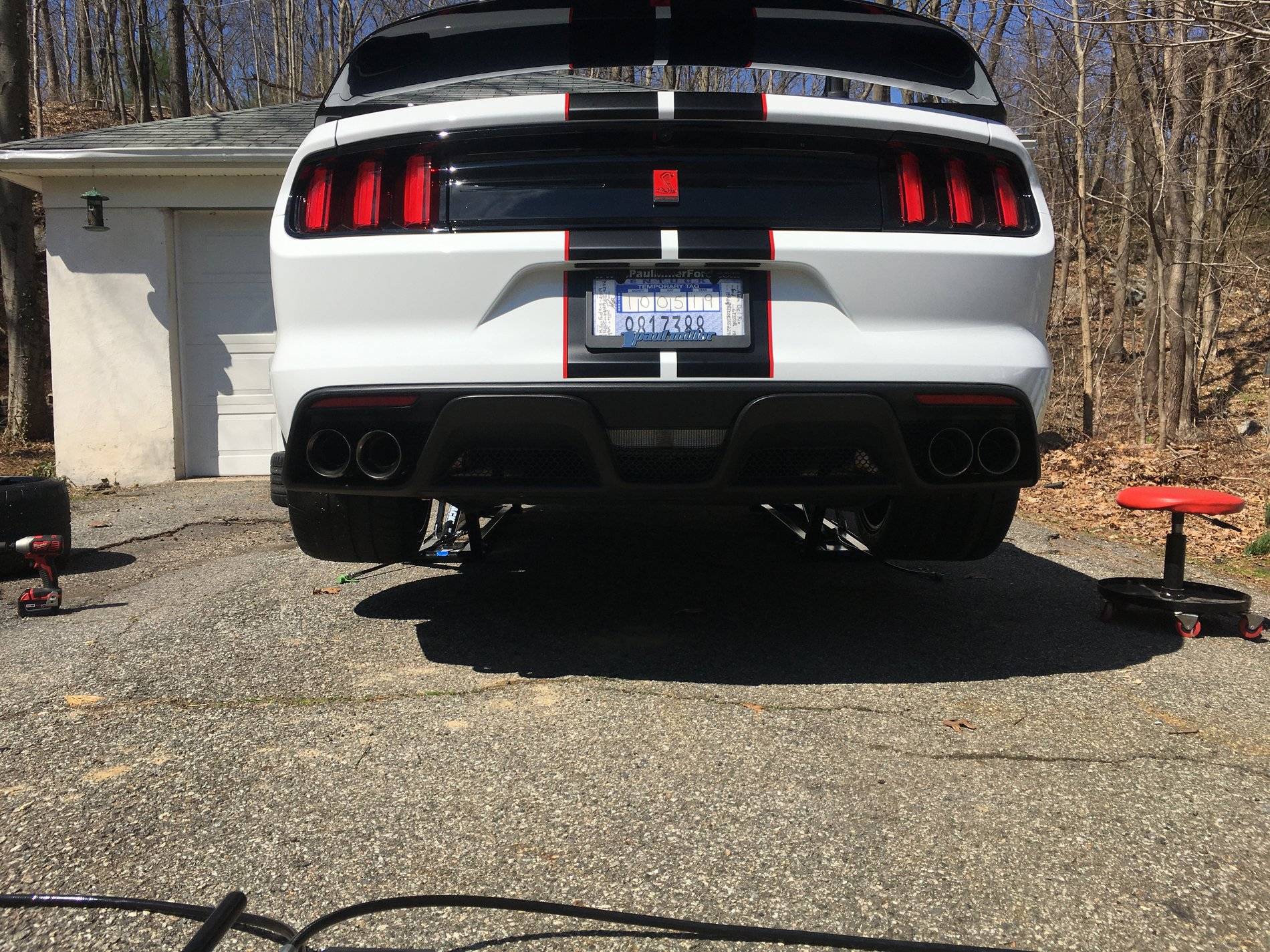

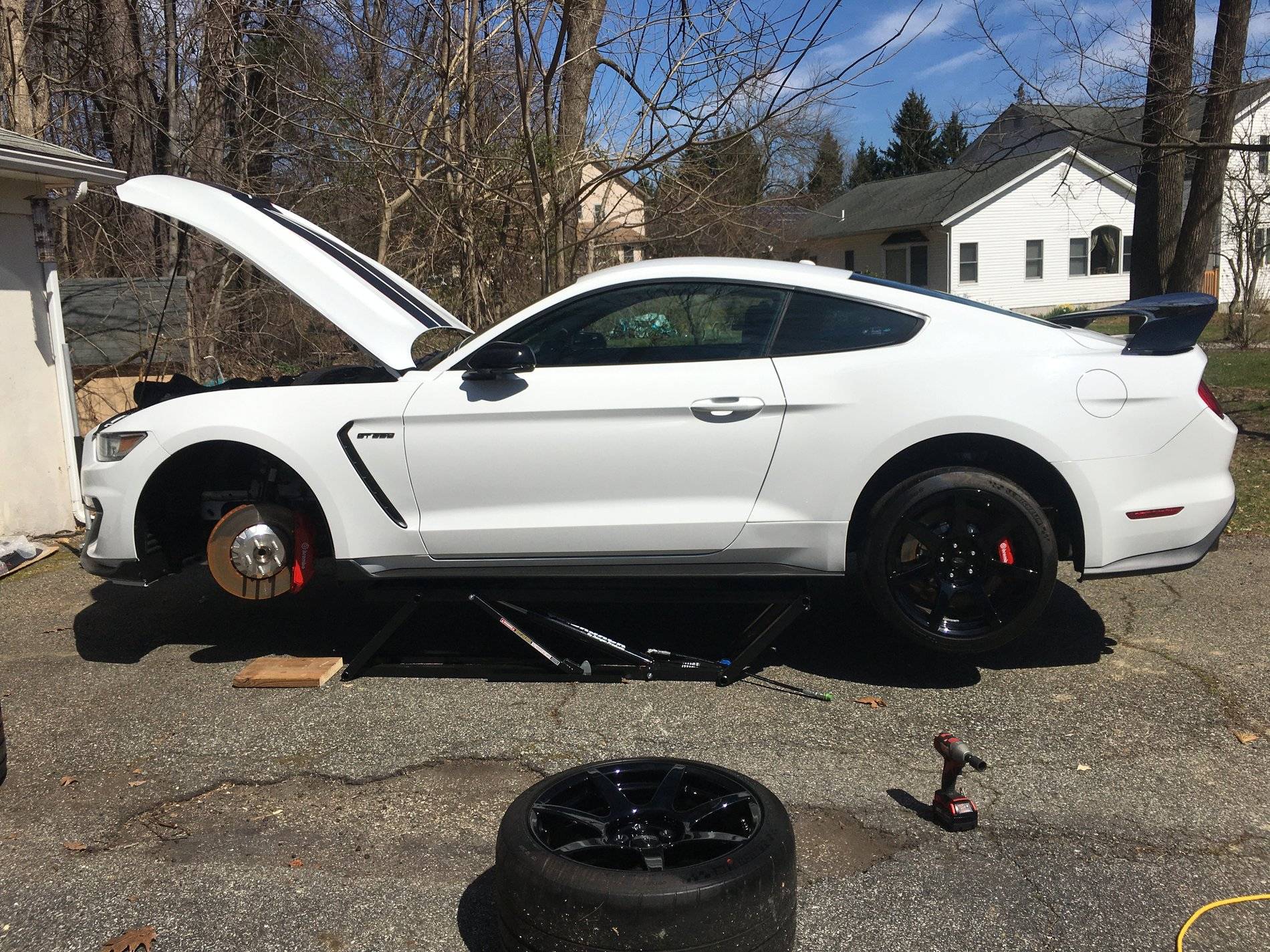

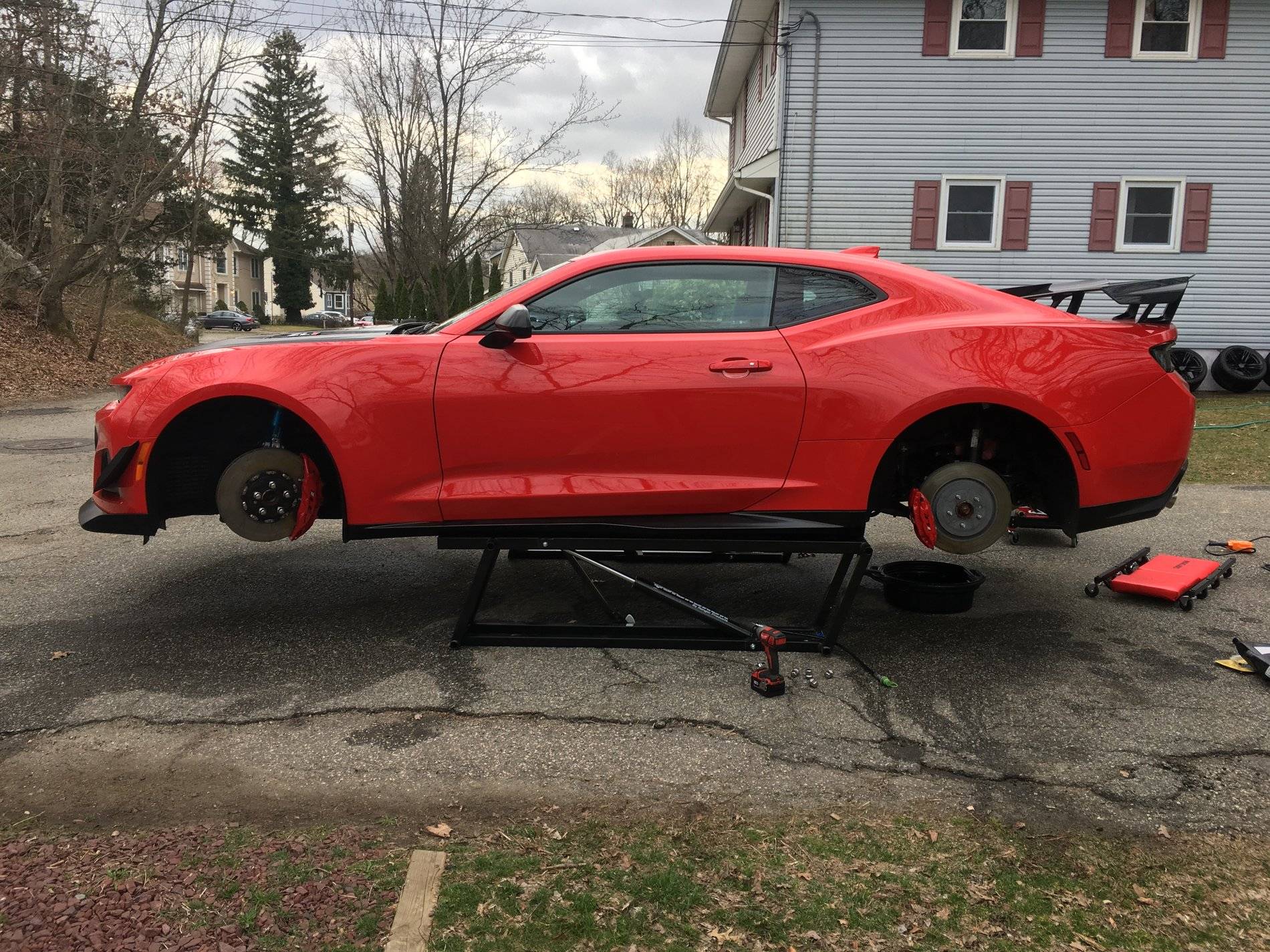

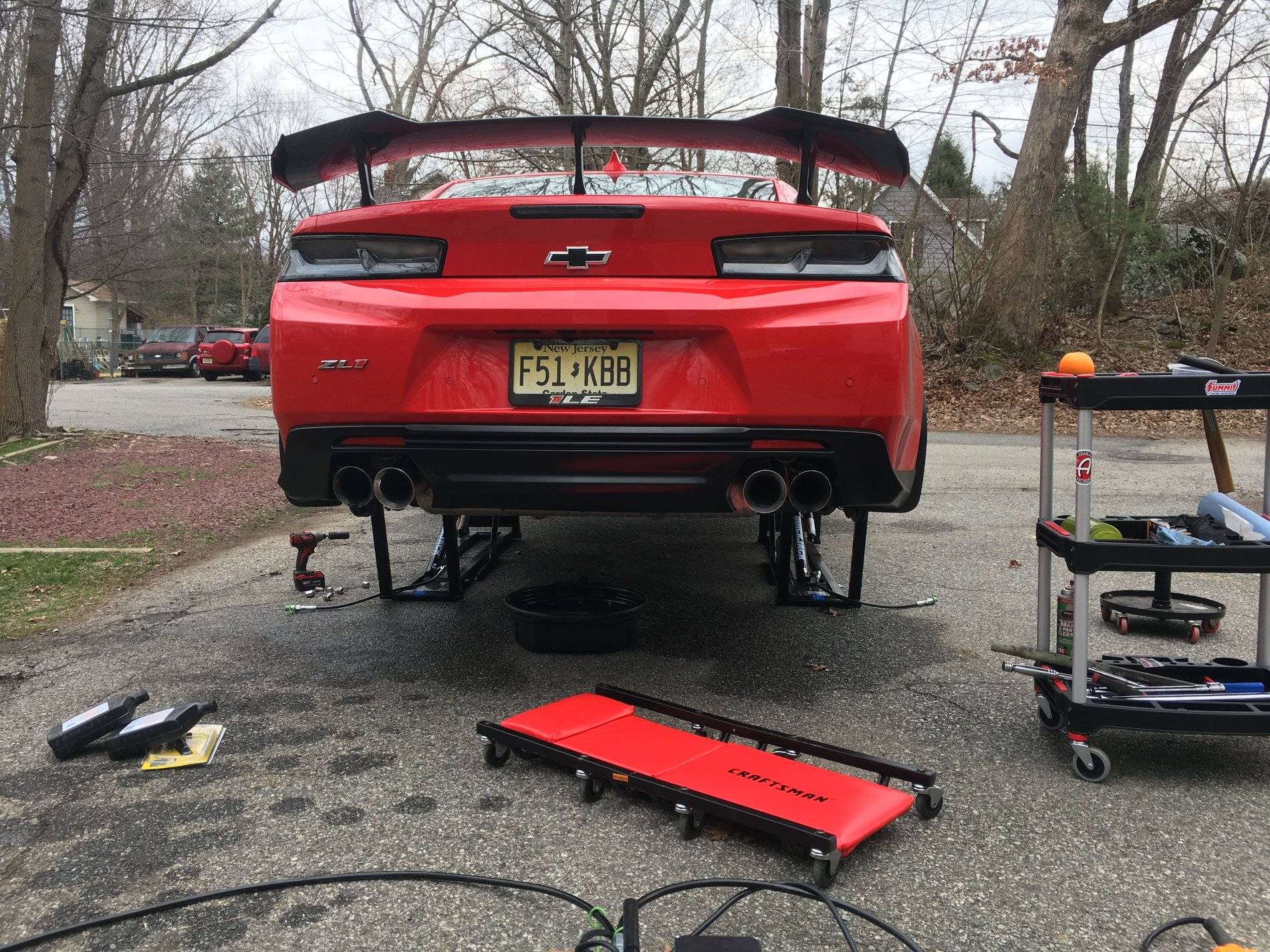

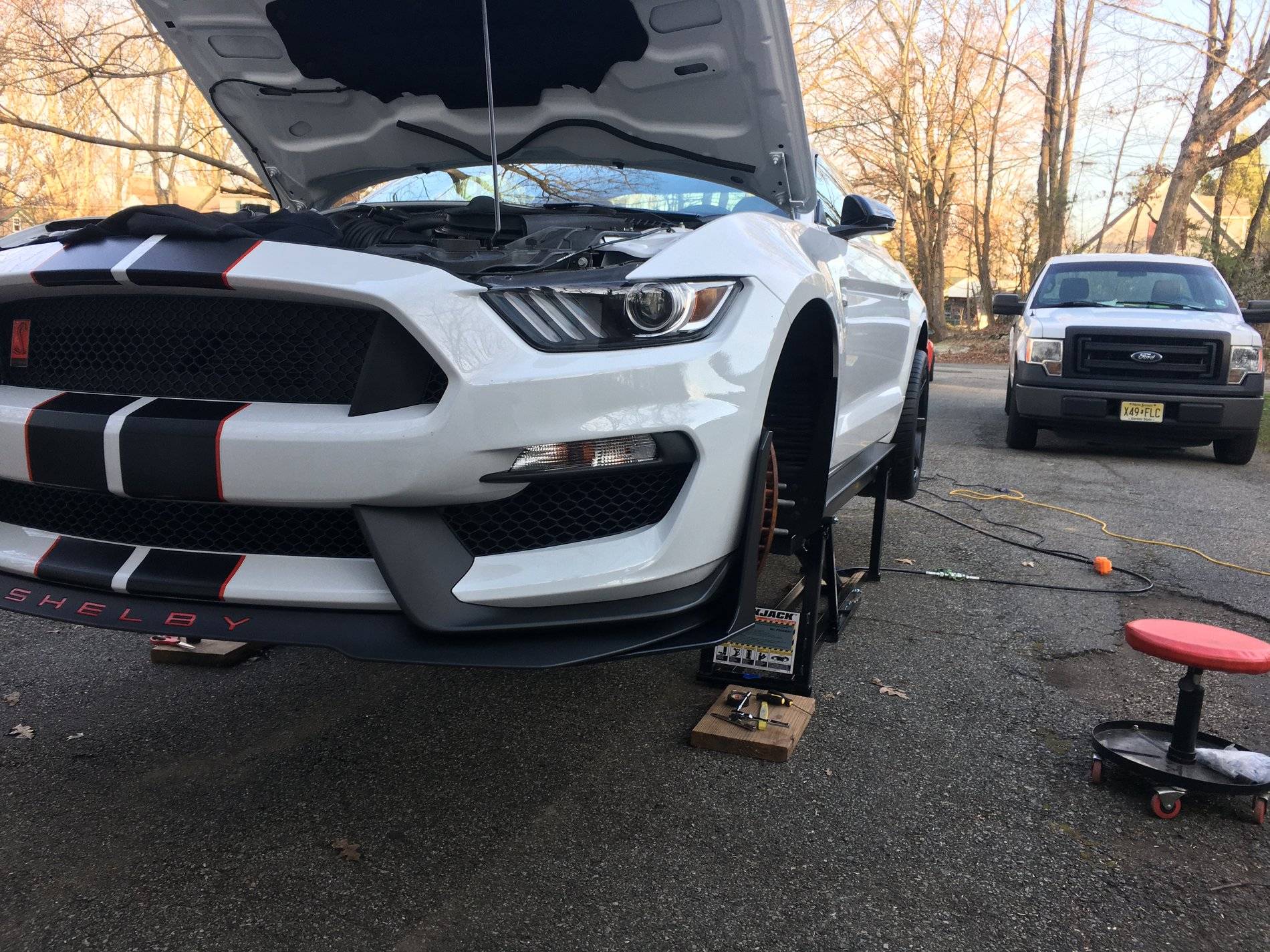

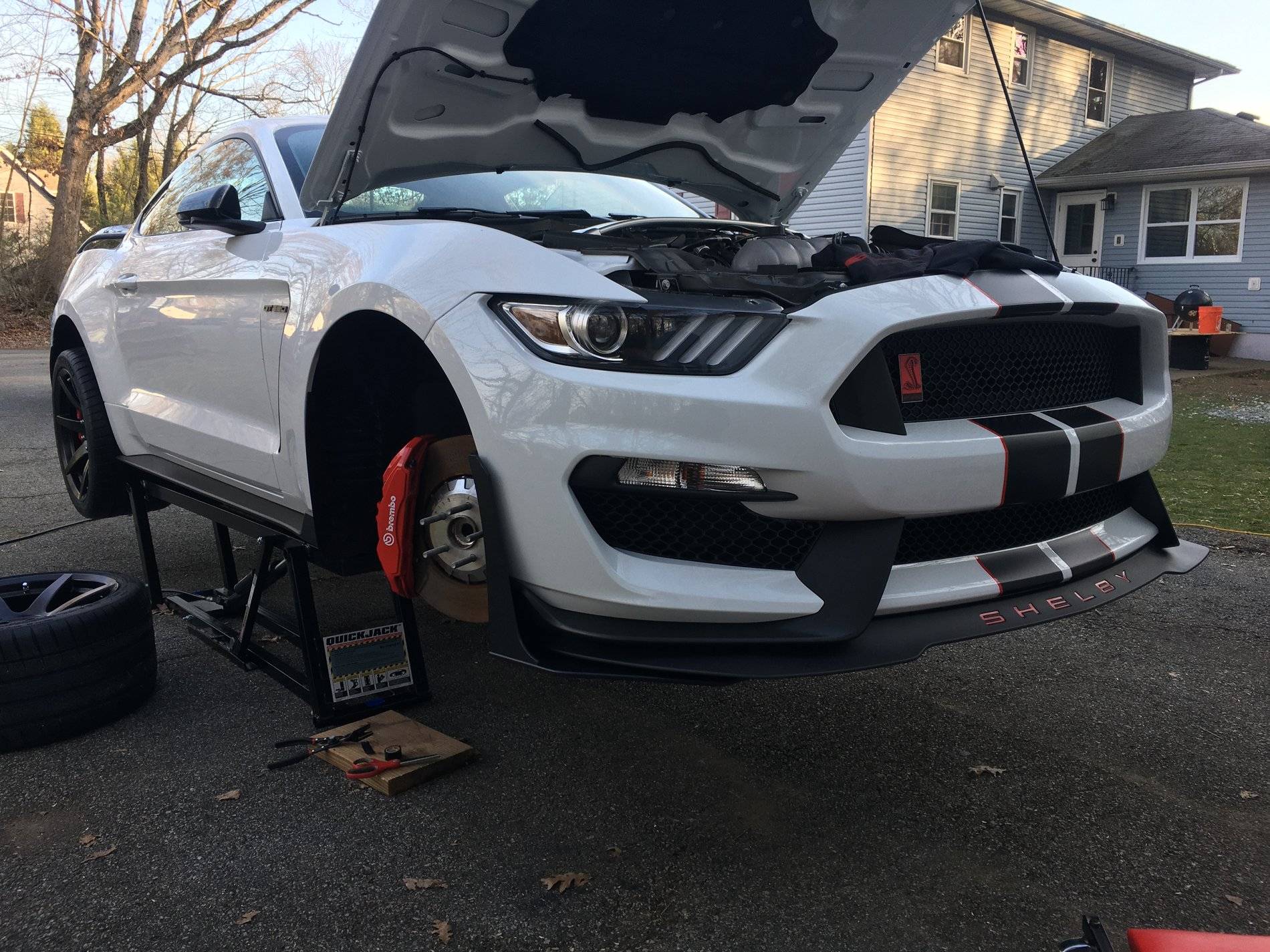

I am uploading some pictures of me using it on my cars a month ago. Hopefully you’ll be able to tell if the height satisfies your needs by looking at the pictures.

I’m sure you could go on their website and find the actual height.


NoXiDe

Well-Known Member
Joined
Jun 26, 2018
Threads
72
Messages
860
Reaction score
461
Location
GA
Vehicle(s)
GT350
Do you need a separate air compressor unit or is the 110 Volts Power Unit from QuickJacks and a possible an extension cord all you need?


Sponsored

Deleted member 37397

Guest
Do you need a separate air compressor unit or is the 110 Volts Power Unit from QuickJacks and a possible an extension cord all you need?
Comes with everything you need, hydraulic hoses are fairly long. I don’t need an extension cord, depends what your garage setup is I suppose

OP
OP
Alain

Alain

Well-Known Member
Joined
Jan 24, 2018
Threads
18
Messages
755
Reaction score
330
Location
Northern NJ
First Name
Alain
Vehicle(s)
2016 Challenger Hellcat / 2019 350R #413
Do you need a separate air compressor unit or is the 110 Volts Power Unit from QuickJacks and a possible an extension cord all you need?
You don’t need anything. Plug it into the wall and you’re good to go. They offer a variety of power units which run on different volt levels.
I got the one which runs on a regular wall outlet.


DonnieO

Well-Known Member
Joined
Jun 1, 2019
Threads
6
Messages
772
Reaction score
1,017
Location
29301
First Name
Donnie
Vehicle(s)
2017 mustang gt cs
Think you can install a set of headers on these?

OP
OP
Alain

Alain

Well-Known Member
Joined
Jan 24, 2018
Threads
18
Messages
755
Reaction score
330
Location
Northern NJ
First Name
Alain
Vehicle(s)
2016 Challenger Hellcat / 2019 350R #413
Think you can install a set of headers on these?
I don’t see why not, plenty of room to slide the headers in from underneath.


FreddyG

Well-Known Member
Joined
Jul 1, 2014
Threads
4
Messages
448
Reaction score
48
Location
Planet Earth
Vehicle(s)
4 wheels and a seat

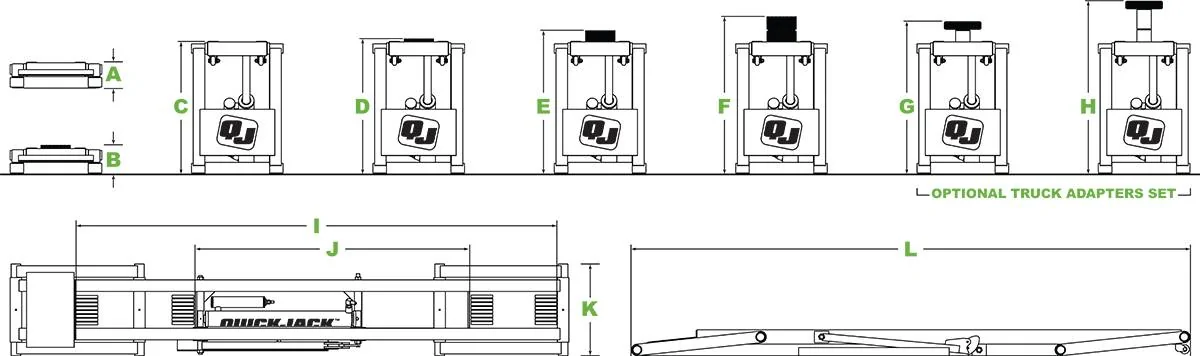

Here are the specs off of the Quickjack website:





Lifting capacity
7,000 lbs. (3,175 kg)
Lowered height
A - Frame only: 3.5" (89 mm)
B - With 2" block: 3.75" (95 mm)
Lifting height
C - Frame only: 18" (457 mm)
D - With 2" block: 18.25" (464 mm)
E - With 3" block: 19.25" (489 mm)
F - Max. height: 21.25" (540 mm)
G - With adapters: 21.25" (540 mm)
H - With adapters + pin: 24" (610 mm)
Compare All Specifications
Lift point spread
I - Maximum: 60" (1,524 mm)
J - Minimum: 31.5" (800 mm)
Frame dimensions (ea.)
K - Width: 12.5" (318 mm)
L - Length: 70" (1,778 mm)
A - Height: 3.5" (89 mm)
Weight: 96 lbs. (44 kg)
Other specs
Time to full rise: 30 seconds
Power unit weight: 15 lbs. (7 kg)
Total shipping weight: 242 lbs. (110 kg)
