Mikes GT Build

[350Mike]

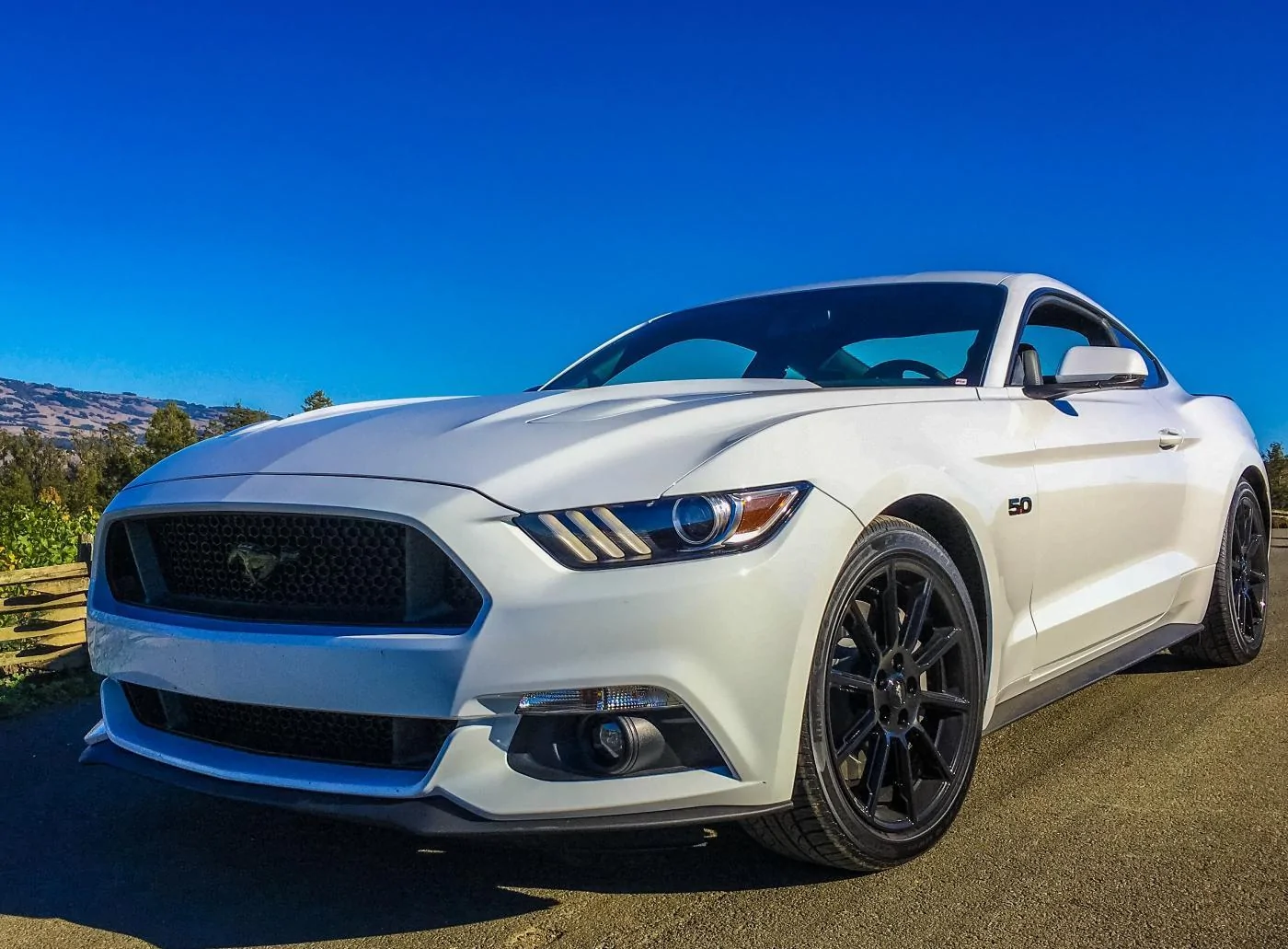

Well I think it's time I started a build thread. I didn't plan on doing much to this car as I was planning on getting a GT350. It didn't take long for me to start getting parts, in fact I had parts before I had a car.
It all started with me placing an order for a GT350, which fell through. Then I placed an order for a ingot silver GT PP, which did not make to me. It was recalled at its last rail stop. I then decided to just buy a GT off my dealers lot. I'm very happy I did.

Sponsored



[350Mike]

GT Performance Pack Splitter Install

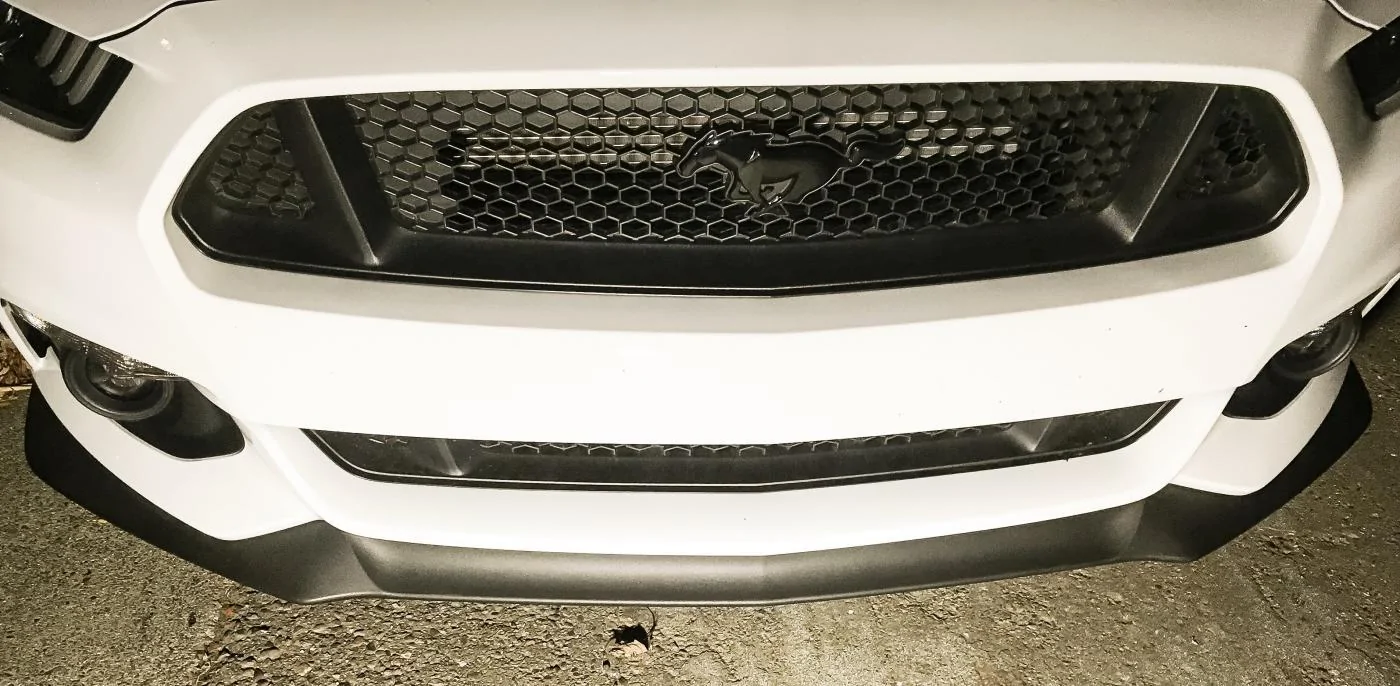

Today I installed the PP splitter and belly pan.



[350Mike]

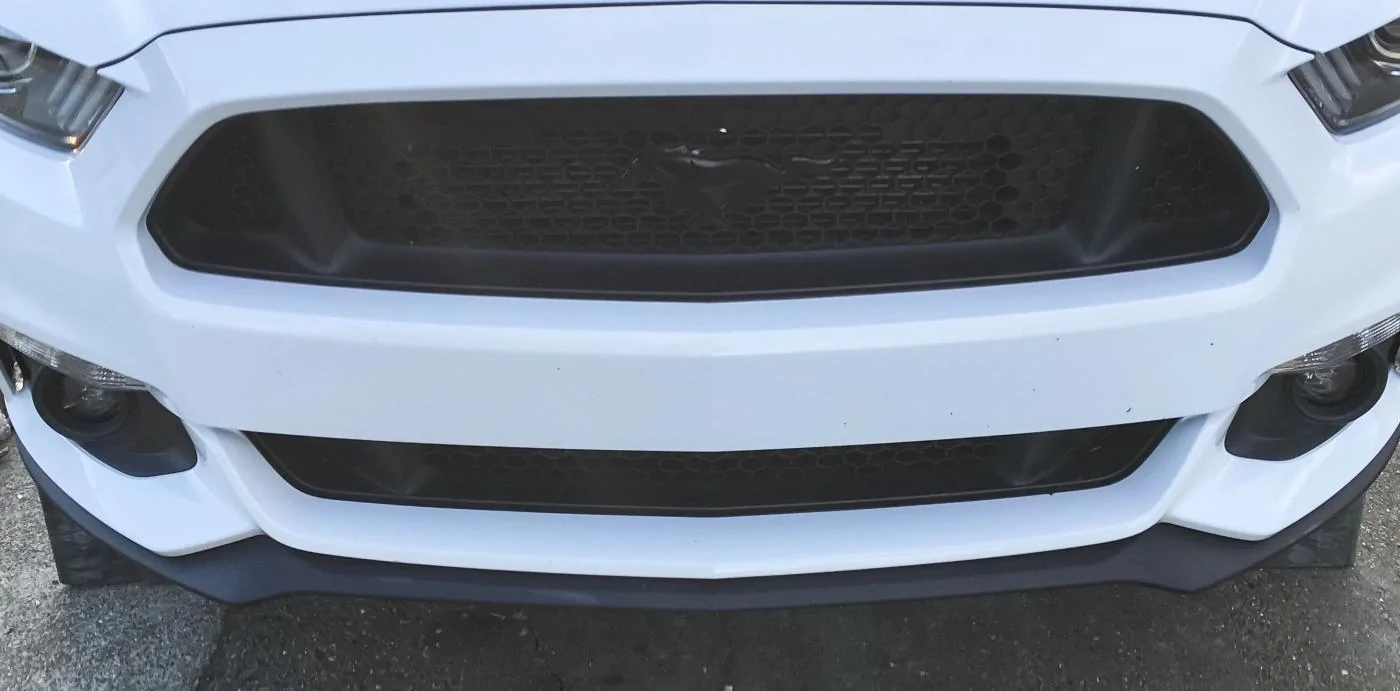

Before



[350Mike]

So for anyone planning to put a PP splitter on their car, there are some things to consider. 1. The swap requires the PP belly pan, and additional hardware at the very minimum. 2. There is a PP cover under the engine, which I skipped at this point. I just drilled (4) 1/4" holes in the GT cover for now and installed plastic push pins(later if I add PP bracing I may change that). 3. The front wheel fender liners need cut where the belly pan channels air to the brakes. Scissors work great for this or you can buy PP liners.



[350Mike]

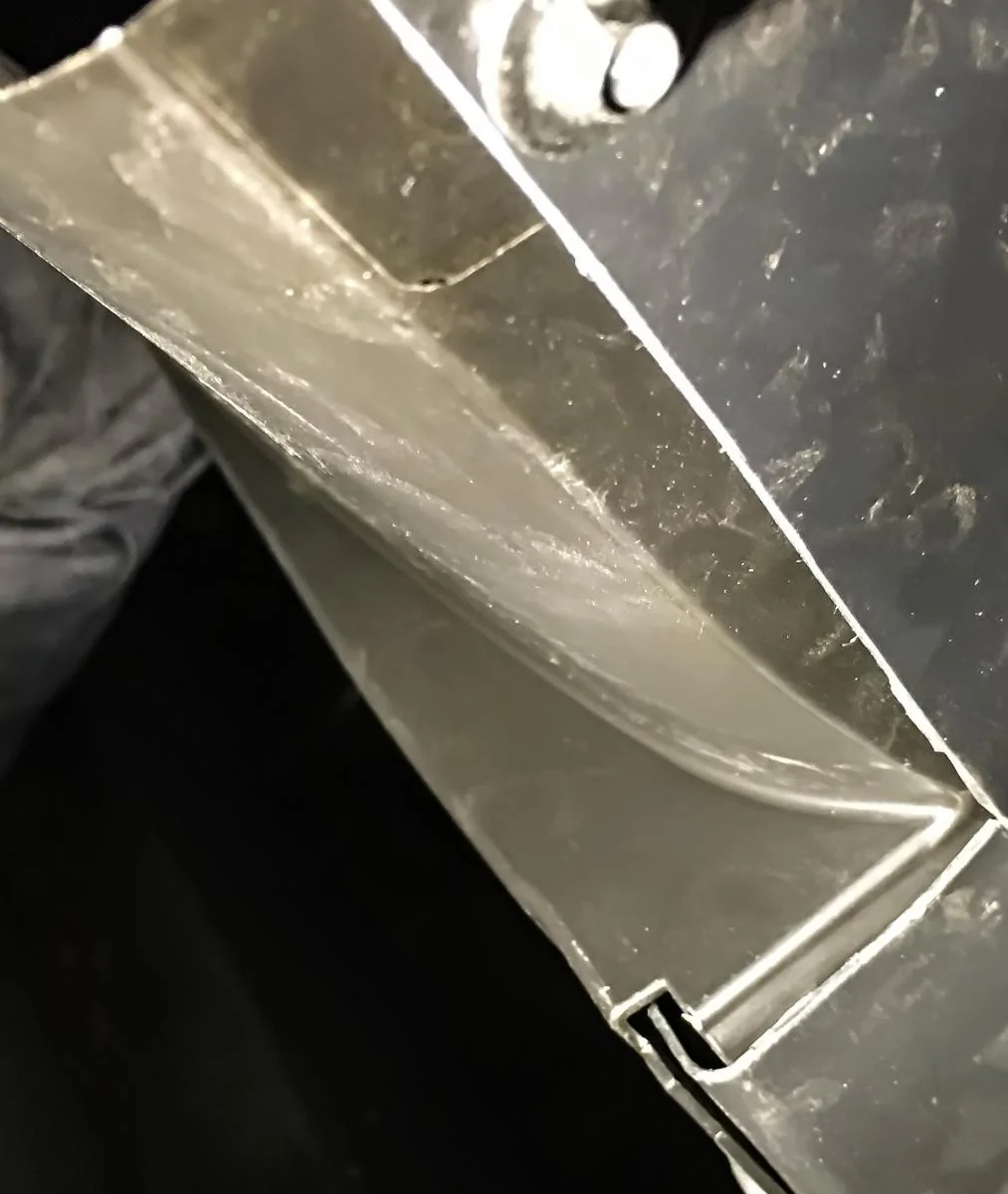

Air channel to brakes.



[350Mike]

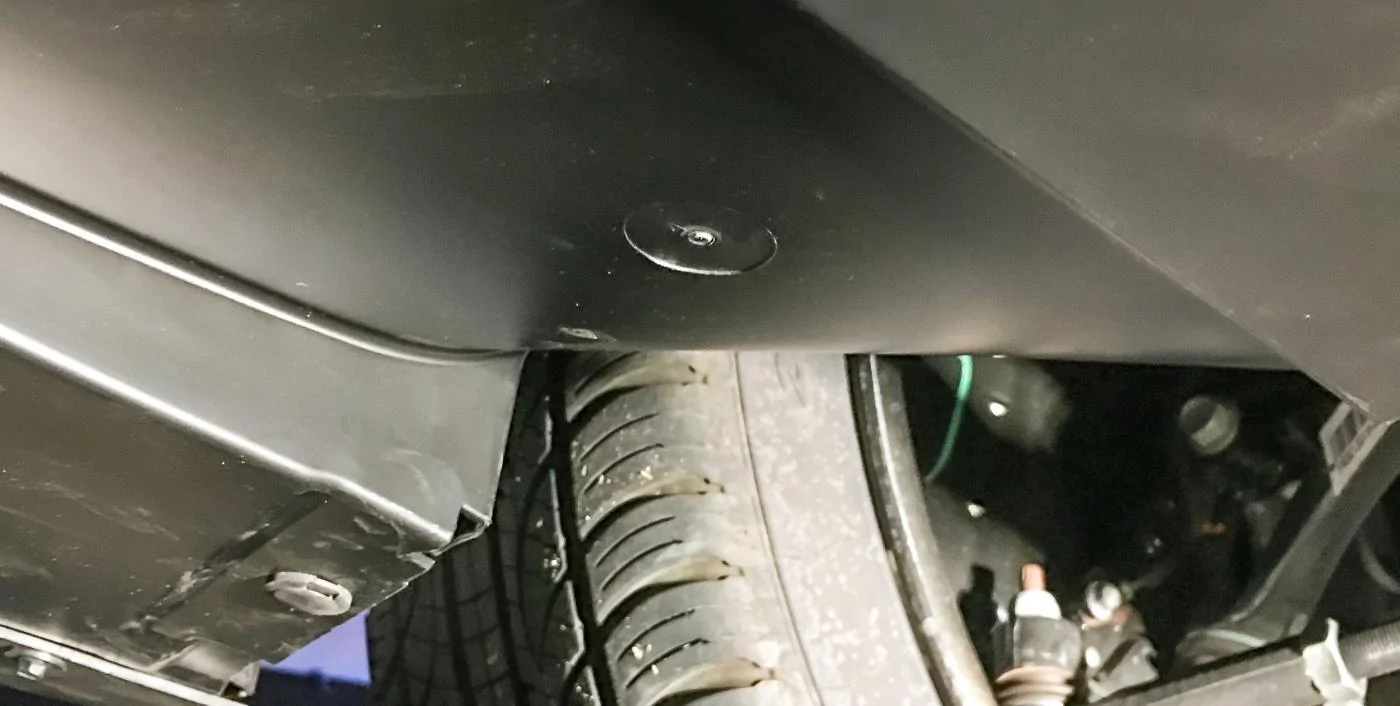

Air channel to brakes



[350Mike]

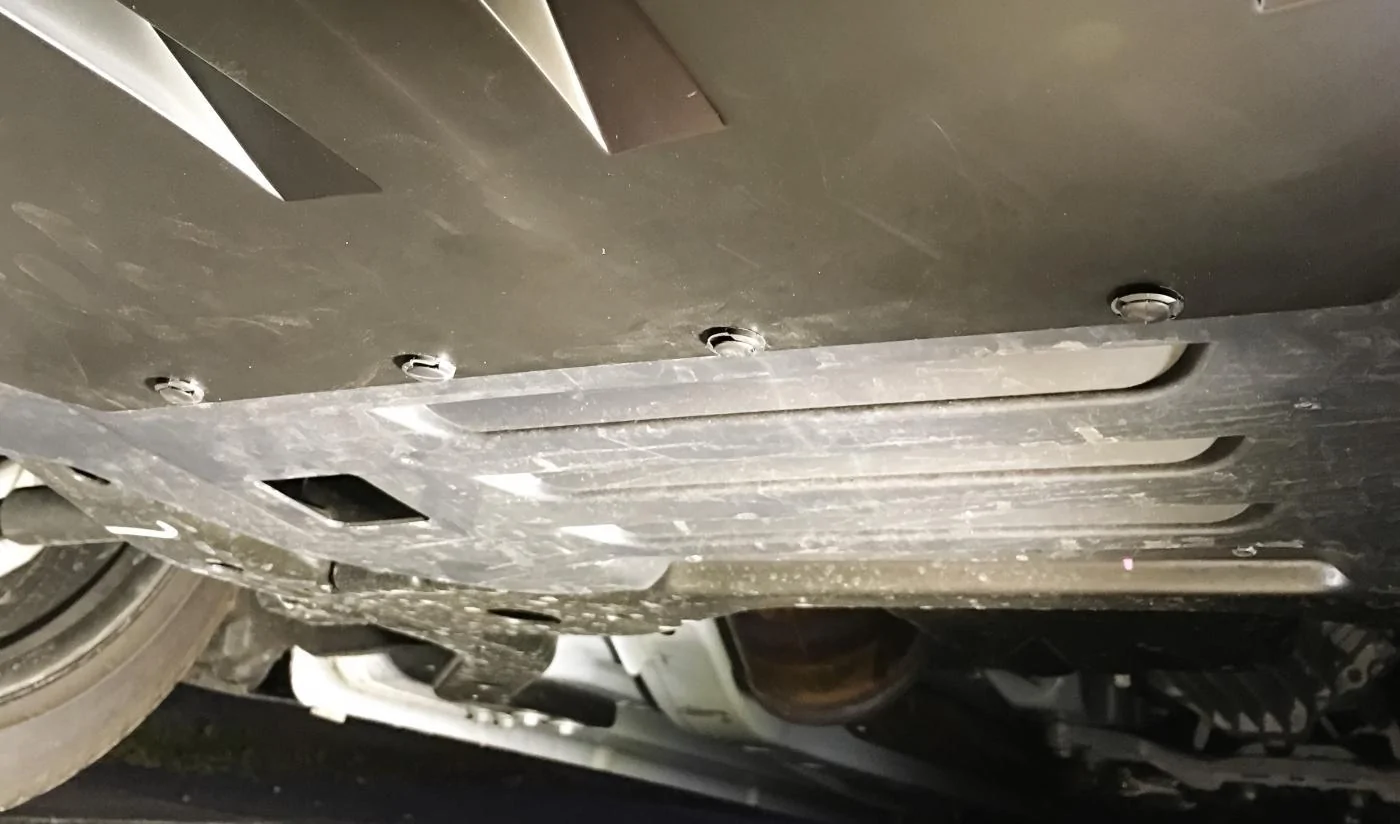

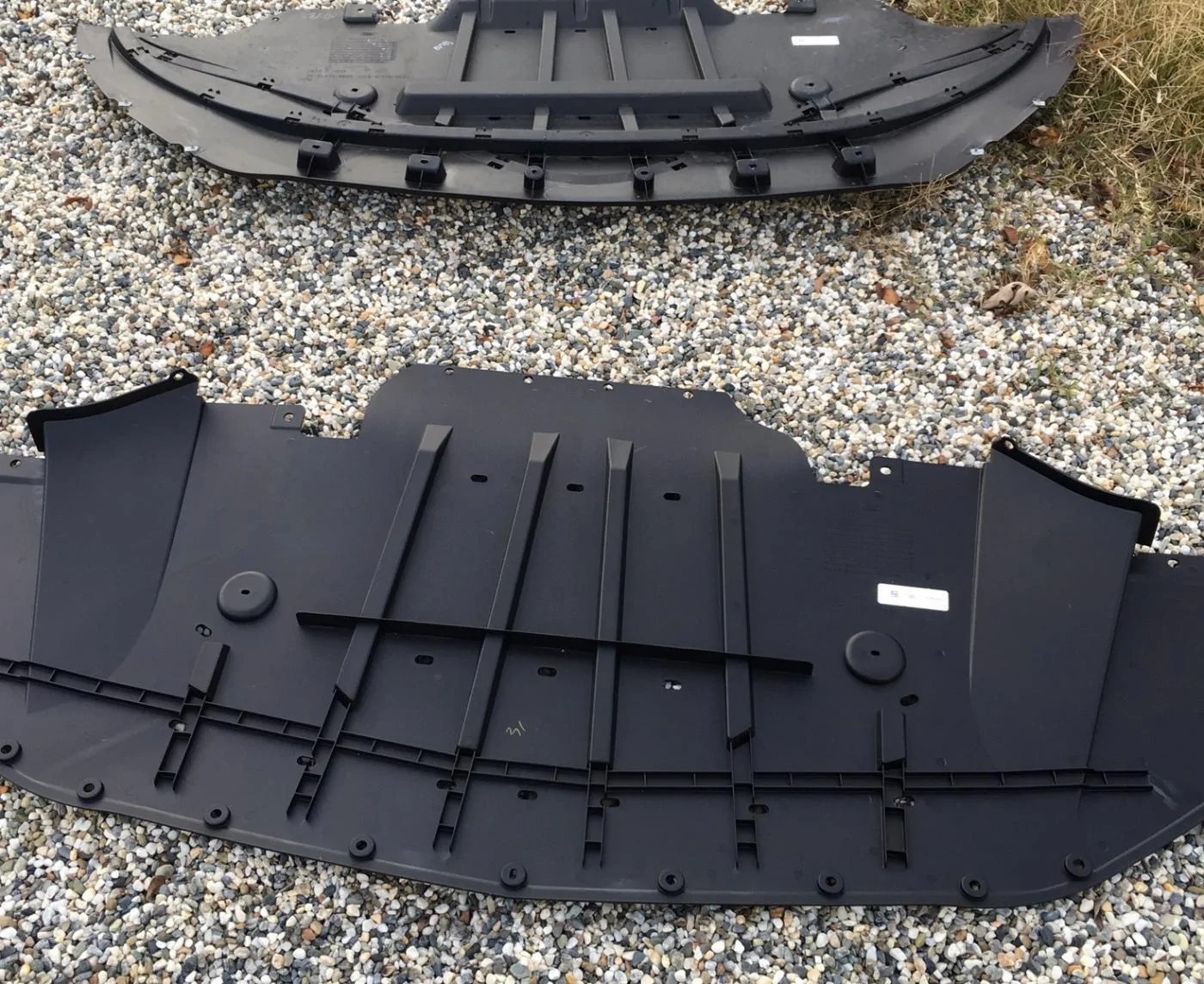

Belly pan



[350Mike]

Sorry for all the separate posts. I could hardly get the images up and had to severely crop everything.
