Hey y'all,

I picked up some sweet carbon fiber AEM gauges and have everything ready to go but I wanted to reach out and see where people pull their power from. I tried pulling from where the performance pack gauges go in the dashboard but they constantly have power since it seems that positive comes from the BCM, which comes from the main fuse box and battery.

Any recommendation on which wires to pull power from, something like accessories? and who has installed aftermarket gauges already, any suggestions?
Sponsored



JJSSI

Well-Known Member
Joined
Dec 10, 2019
Threads
5
Messages
159
Reaction score
78
Location
St Simons Island, Georgia
First Name
Jim
Vehicle(s)
2020 EcoBoost HPP w/Handling Package, 2004 Boxster S, 2013 Jeep JK,
Vehicle Showcase
2

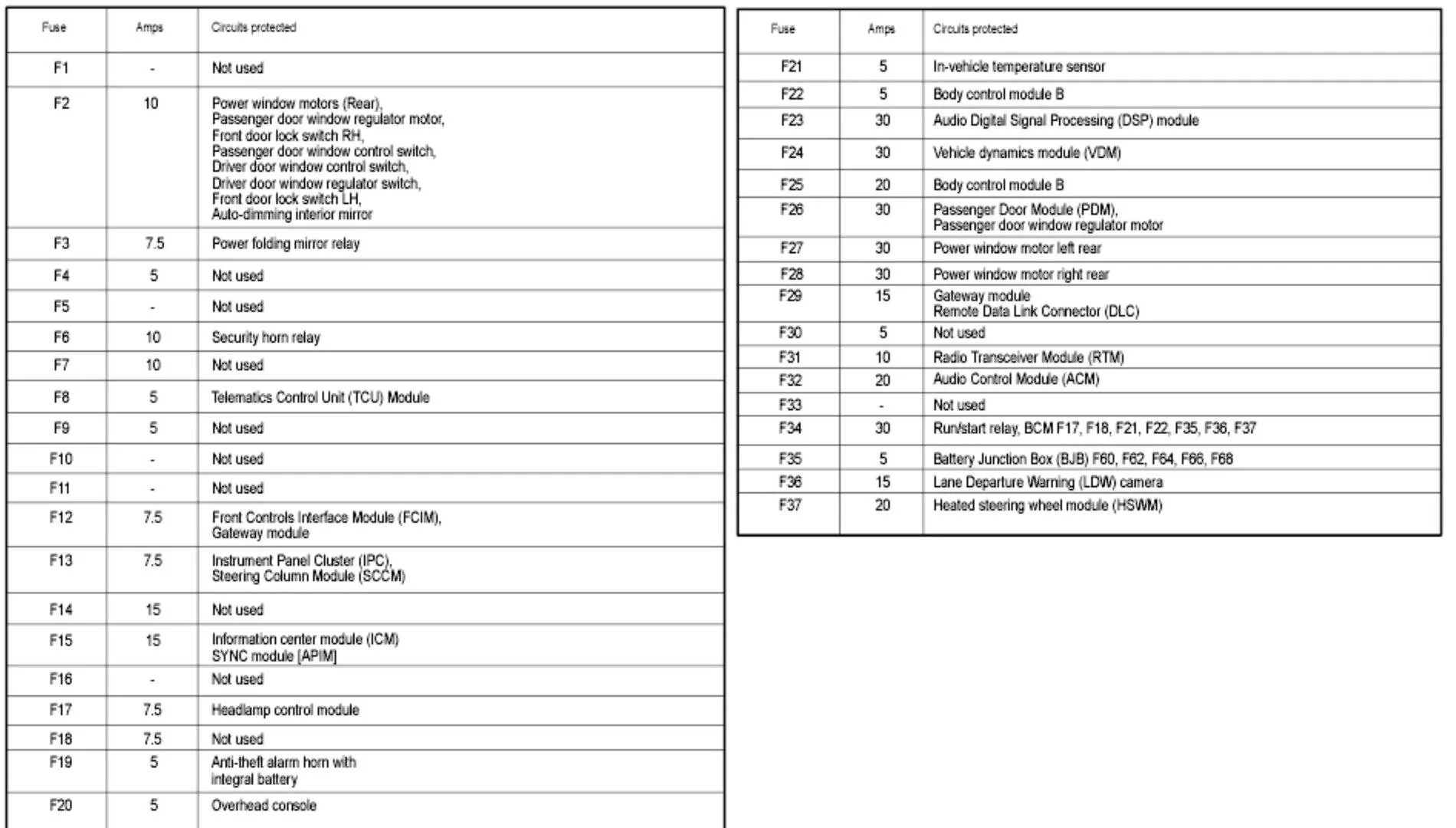

For my oil temp gauge, I used the passenger side fuse panel .
Switched Power Source:
#18 Micro3

OP
OP

Jroy333

Active Member
Joined
Feb 13, 2021
Threads
4
Messages
40
Reaction score
11
Location
Virginia
First Name
Joseph
Vehicle(s)
2020 Ford Mustang Ecoboost
For my oil temp gauge, I used the passenger side fuse panel .
Switched Power Source:
#18 Micro3
where did you get your fuse tap from?

OP
OP

Jroy333

Active Member
Joined
Feb 13, 2021
Threads
4
Messages
40
Reaction score
11
Location
Virginia
First Name
Joseph
Vehicle(s)
2020 Ford Mustang Ecoboost
and that fuse is the 17-18 slot for the headlight bezel switch. does it turn off with ignition? I am really just trying to make sure the gauges turn off when I open the door.


JJSSI

Well-Known Member
Joined
Dec 10, 2019
Threads
5
Messages
159
Reaction score
78
Location
St Simons Island, Georgia
First Name
Jim
Vehicle(s)
2020 EcoBoost HPP w/Handling Package, 2004 Boxster S, 2013 Jeep JK,
Vehicle Showcase
2
That slot is unused on my car. It is switched on with the ign switch. I don't remember where I purchased the tap. There is a spot on the fuse where you can test for current with a volt meter.
