With a few days off for the Holidays, I decided it was time to tackle a few installs for the Mustang. First on the list were the BMR spherical vertical links I had ordered a couple of weeks ago. (http://www.bmrsuspension.com/?page=products&productid=1502&superpro=0) Install was generally simple, if you can remove the wheels, you can install a vert links kit. All bolts are easy to get to and get good leverage.
Initial impressions of the vert link kit was very good, comparisons to stock can be seen in the pictures.
Steps
Remove rear wheels
Remove 2 factory bolts holding vert link in place (keep the bottom bolt as it is needed to install BMR links)
Remove stock vert links, mine took a little persuading with a wood hammer
Insert BMR vert link, mine went in without issue
Insert stock bottom bolt
Insert BMR top bolt
-I re-used the factory nut on the top bolt because it had a larger flange
Tighten both bolts
Install rear wheels
This was an easy and satisfying install. After this I proceeded to install the BMR diff lockout kit, which wasn't quite as easy. With these two products installed, I noticed a difference in putting the power down on the road. The car was more stable and tended not to "squat" down and lift the front headlights as much as before. Can't say how much was the diff lockout kit and how much was the rear vert links, but this combo makes the car feel more stable. Highly recommend. Also, I personally didn't notice any NVH increase with these kits, even the spherical setup for the vert links.
Pictures:

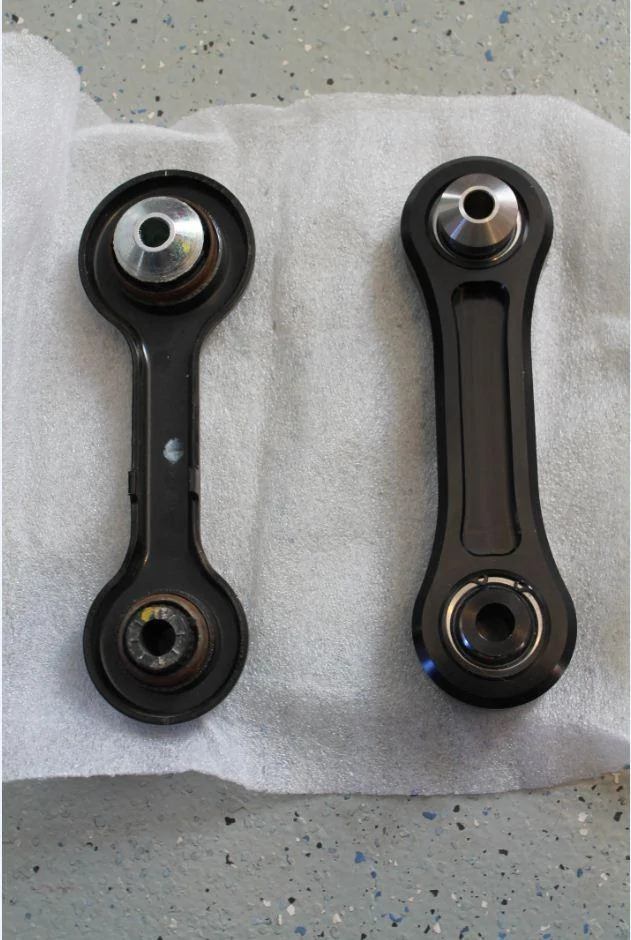

BMR vs. Stock vert links top

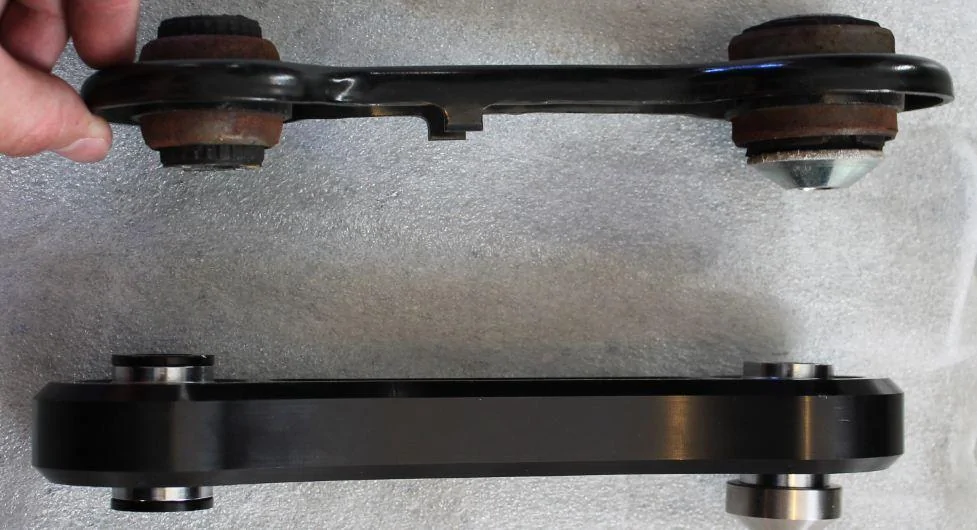

BMR vs. Stocker vert links side

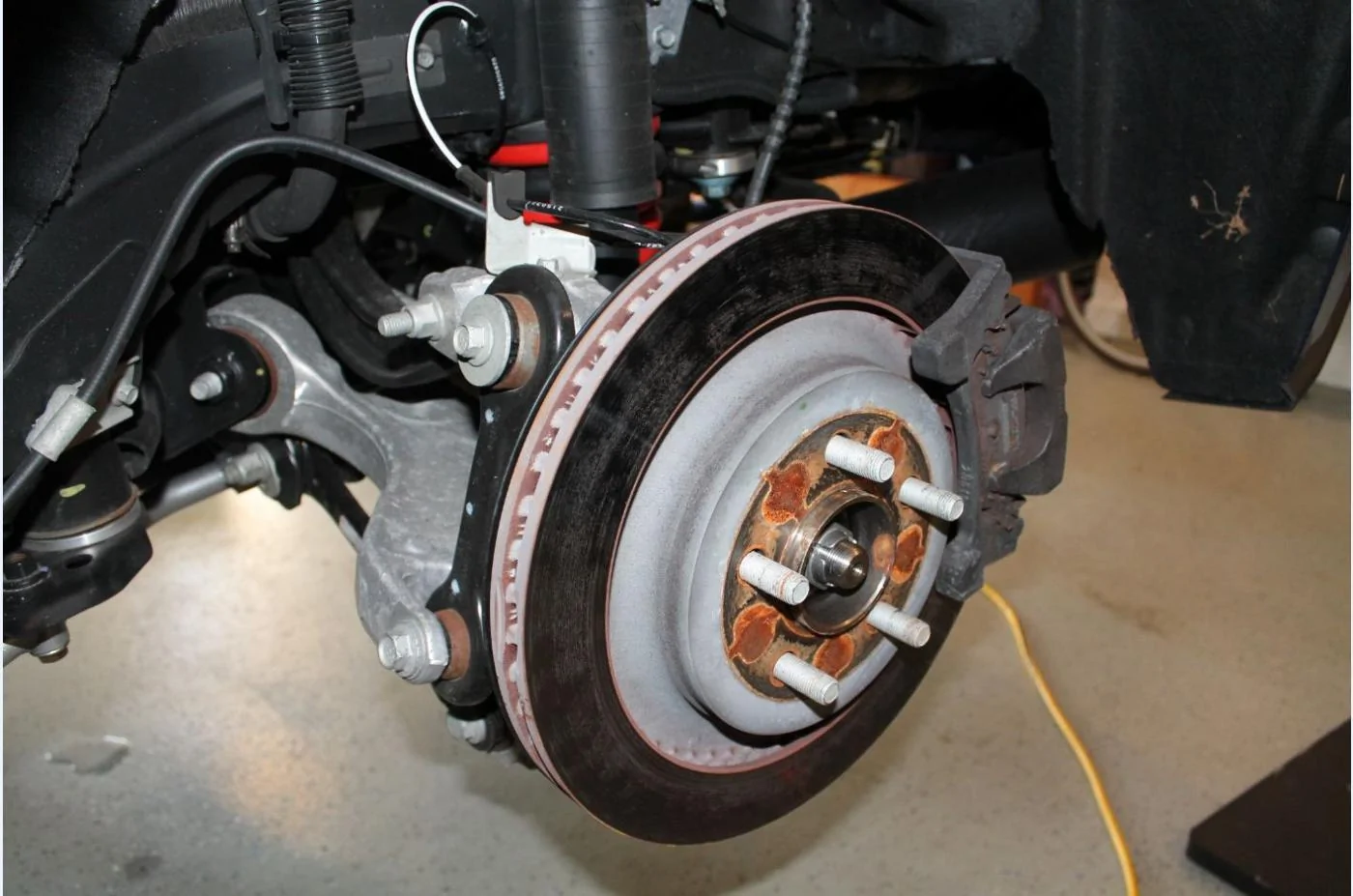

Stock Driver's side vert link installed

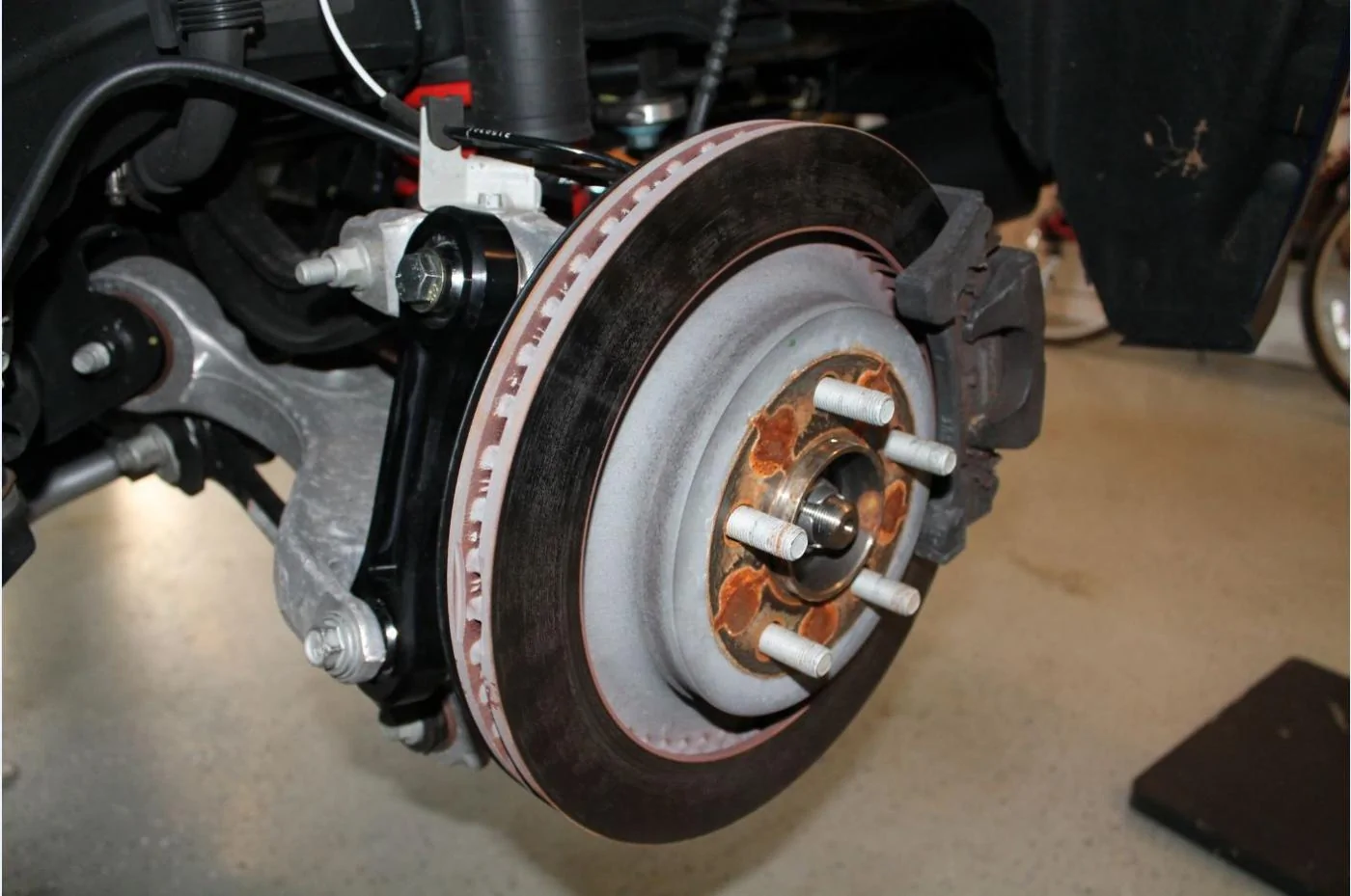

BMR Driver's side vert link installed

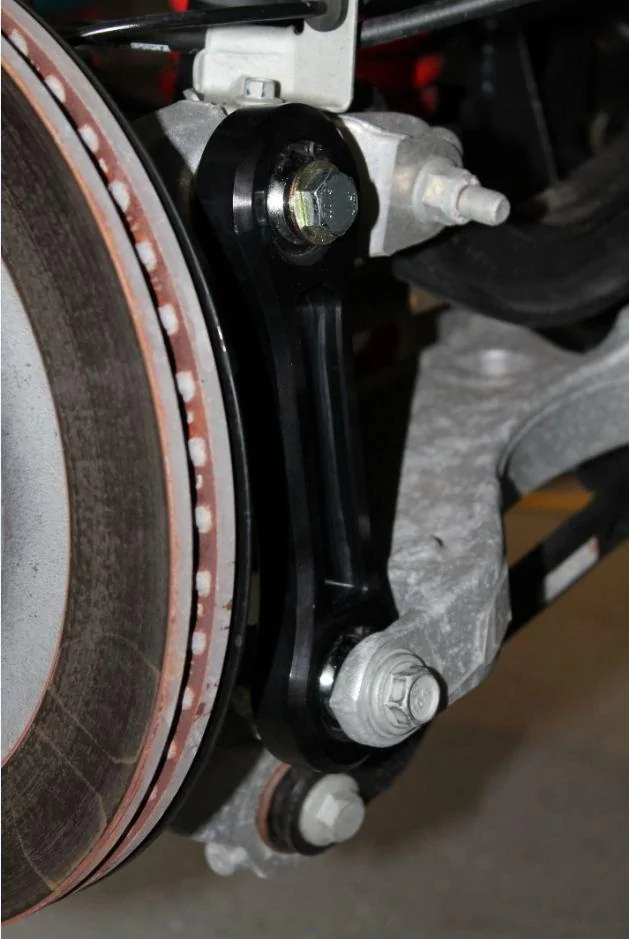

BMR Passenger side vert link installed
Initial impressions of the vert link kit was very good, comparisons to stock can be seen in the pictures.
Steps
Remove rear wheels
Remove 2 factory bolts holding vert link in place (keep the bottom bolt as it is needed to install BMR links)
Remove stock vert links, mine took a little persuading with a wood hammer
Insert BMR vert link, mine went in without issue
Insert stock bottom bolt
Insert BMR top bolt
-I re-used the factory nut on the top bolt because it had a larger flange
Tighten both bolts
Install rear wheels
This was an easy and satisfying install. After this I proceeded to install the BMR diff lockout kit, which wasn't quite as easy. With these two products installed, I noticed a difference in putting the power down on the road. The car was more stable and tended not to "squat" down and lift the front headlights as much as before. Can't say how much was the diff lockout kit and how much was the rear vert links, but this combo makes the car feel more stable. Highly recommend. Also, I personally didn't notice any NVH increase with these kits, even the spherical setup for the vert links.
Pictures:
BMR vs. Stock vert links top
BMR vs. Stocker vert links side
Stock Driver's side vert link installed
BMR Driver's side vert link installed
BMR Passenger side vert link installed
