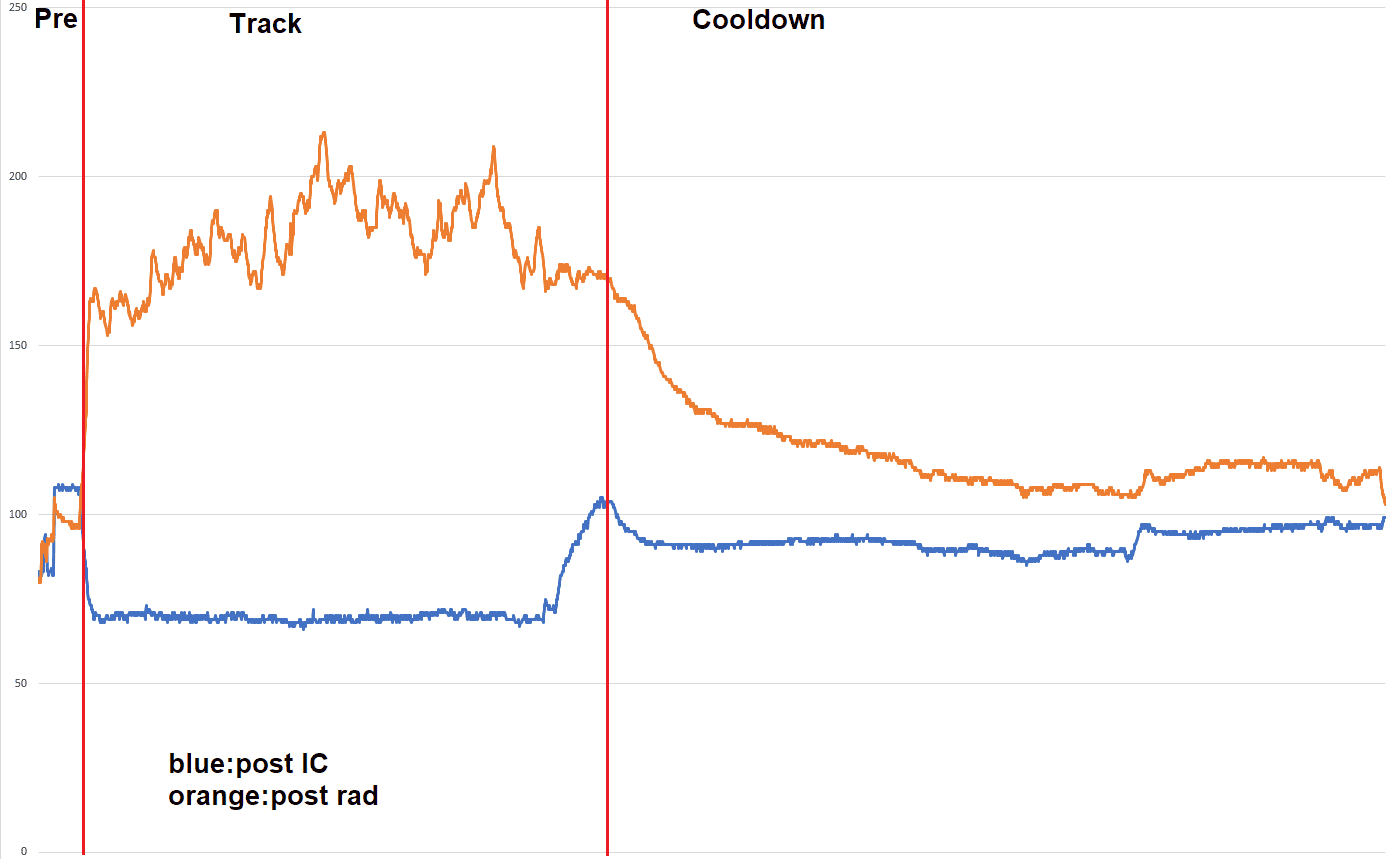

With this project i wanted to datalog air temperatures behind the intercooler as well as behind the radiator during track time, while being able to sync this data with datalog from the cobb accessport, which than can be overlayed onto track footage in RaceRender. I am by no means good at coding but i was able to write a code that reads two thermocouple temps every second and then writes to SD card. As soon as the arduino receives power the script automatically starts recording. The arduino and sd card module will be stored in the center console and routed behind the seat, along the door sill, through the door jam, and then along the fender. This setup is very low power and should have at least 24 hours of runtime from a 2000mAh battery pack. I have decided to add a set of 8 position DTM connectors under hood to split the harness into two parts. Wiring will start end of april

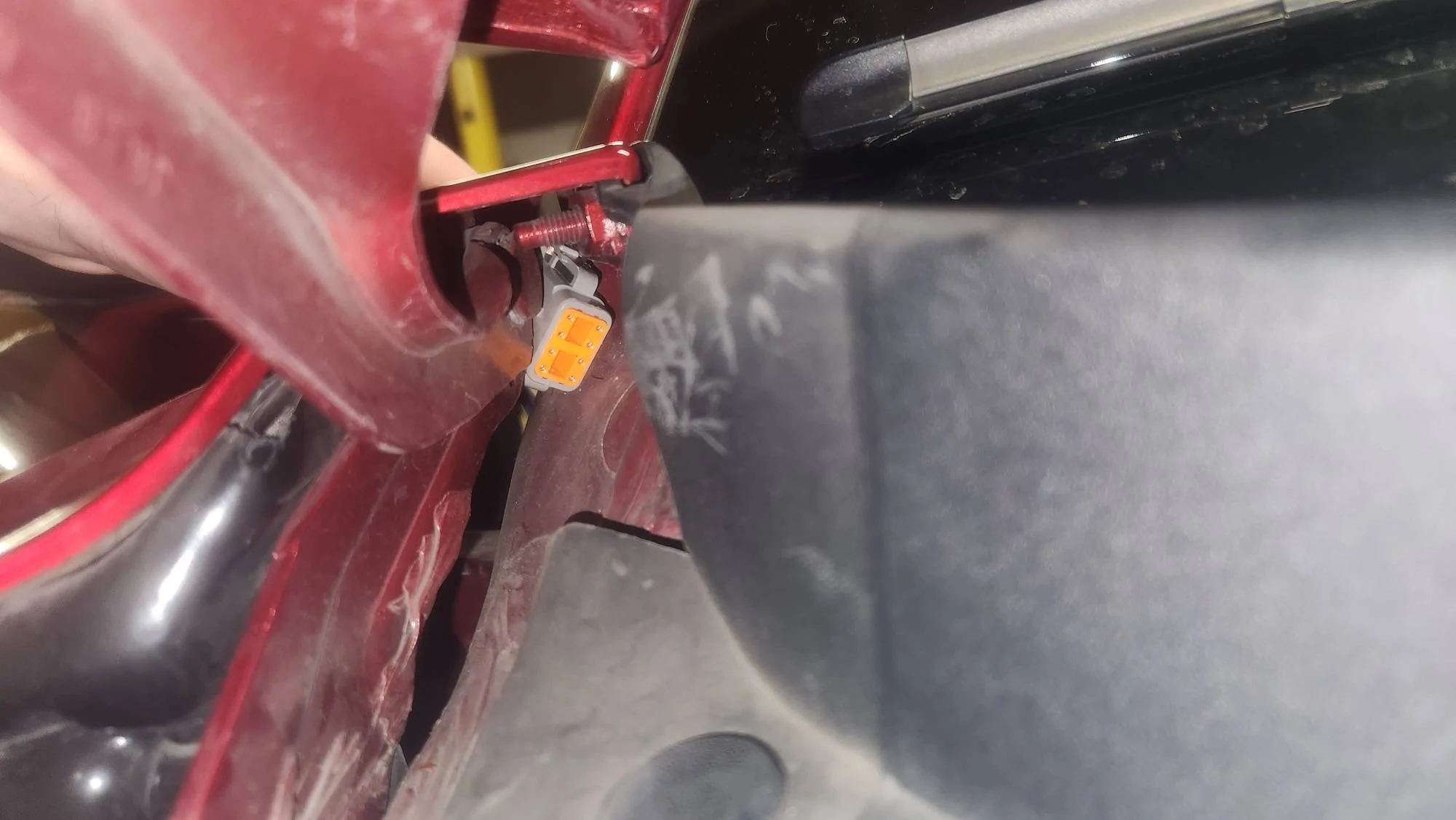

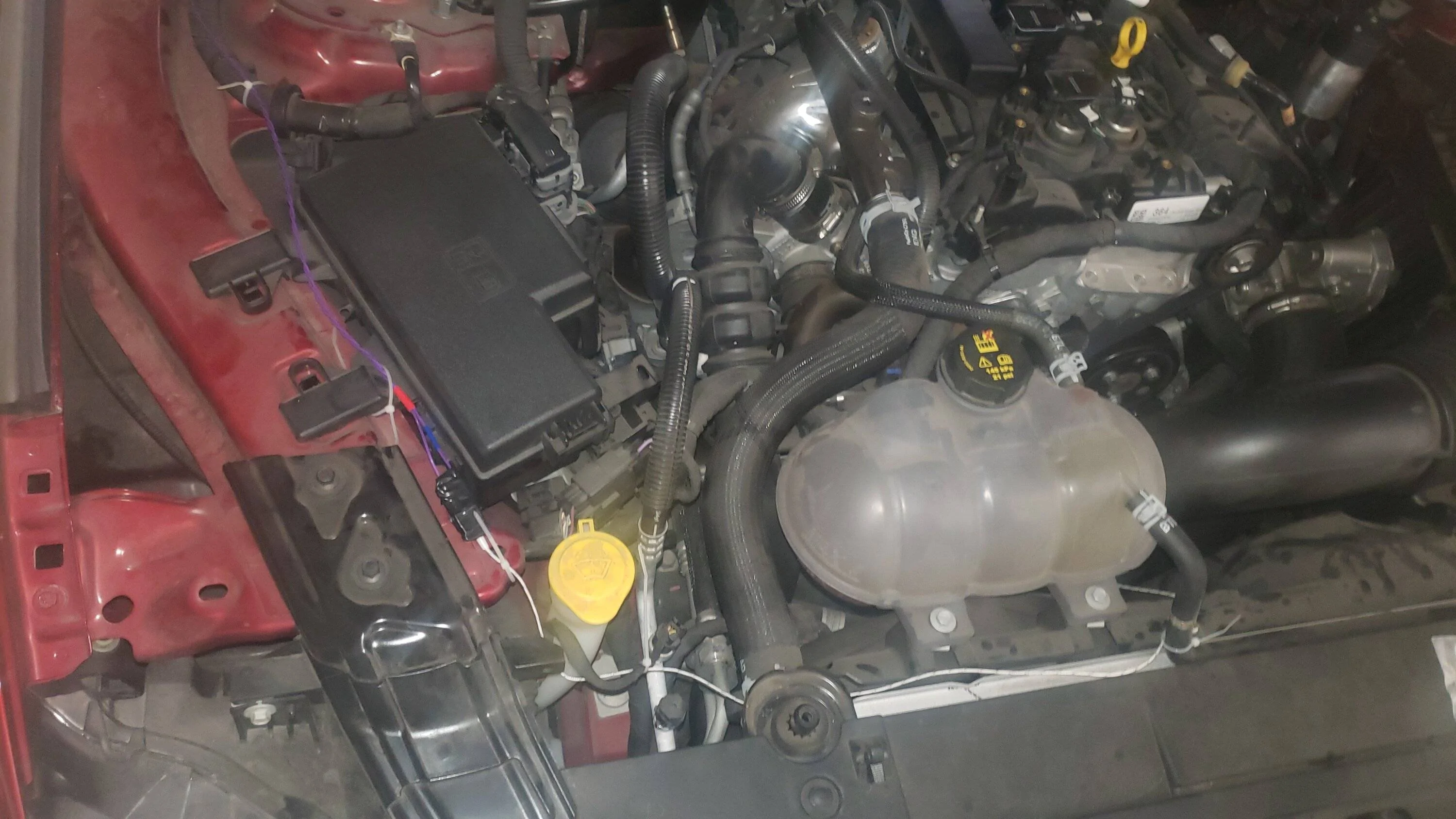

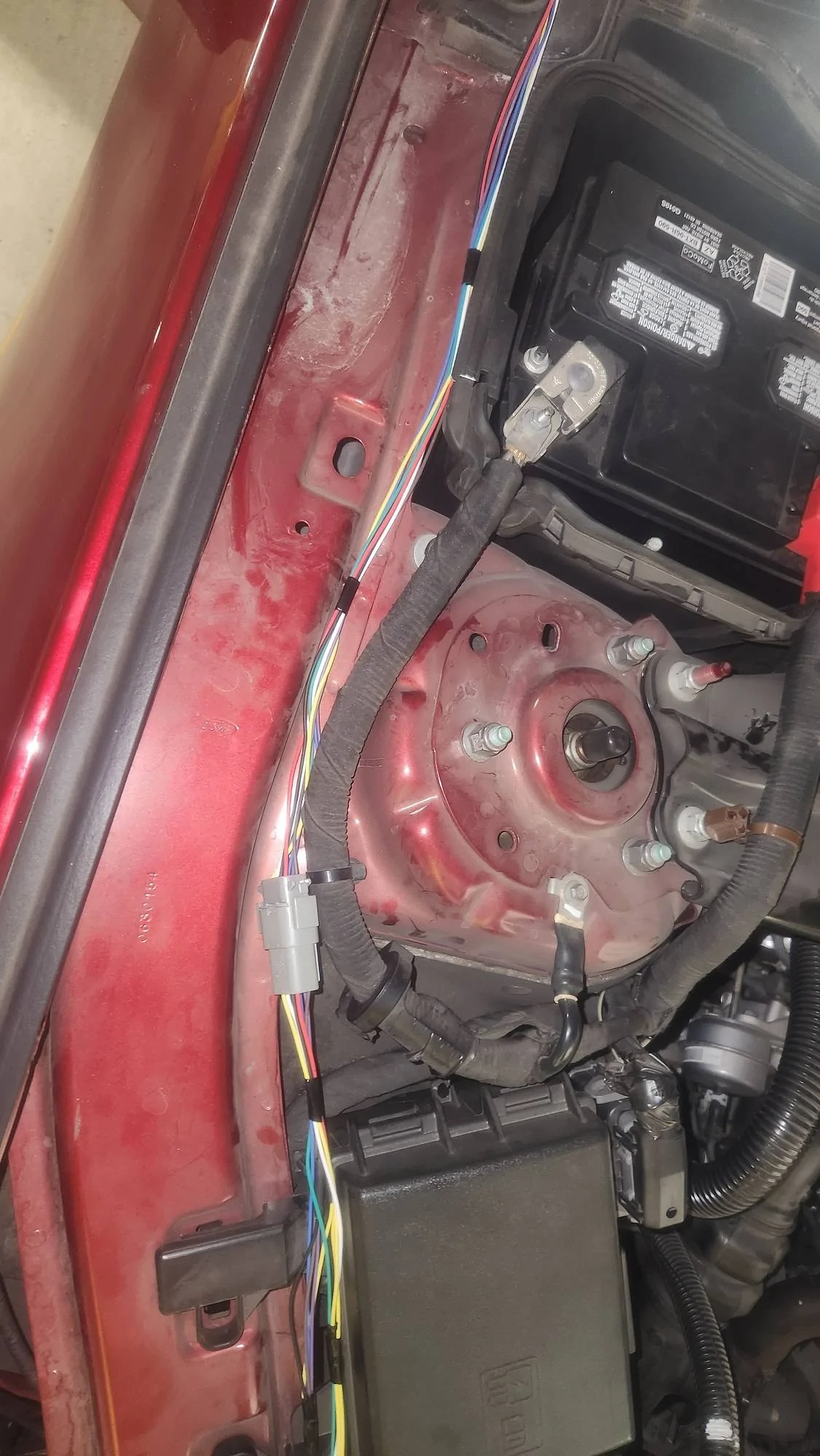

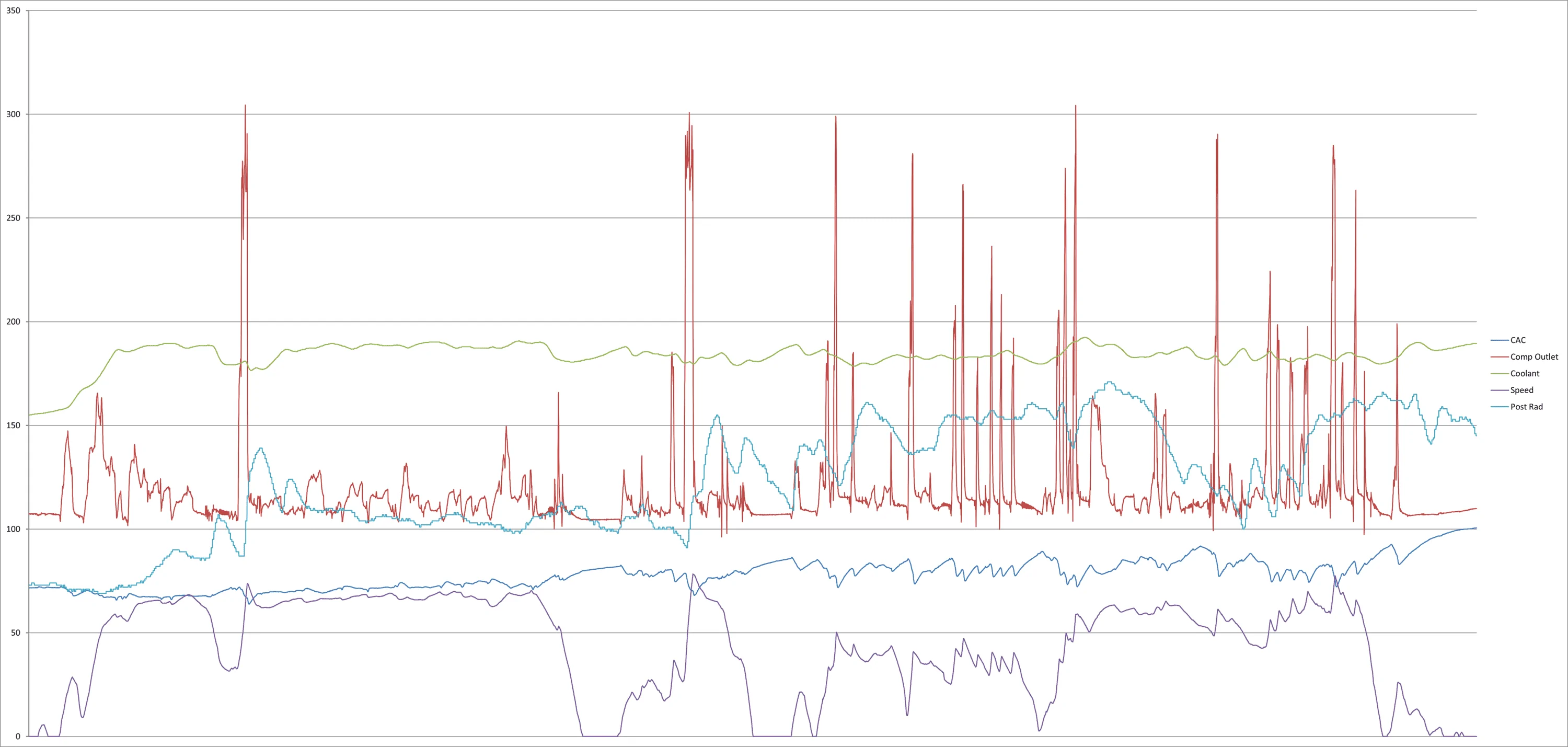

-Previous test using temperature function on a multi meter (pictures 1,2)

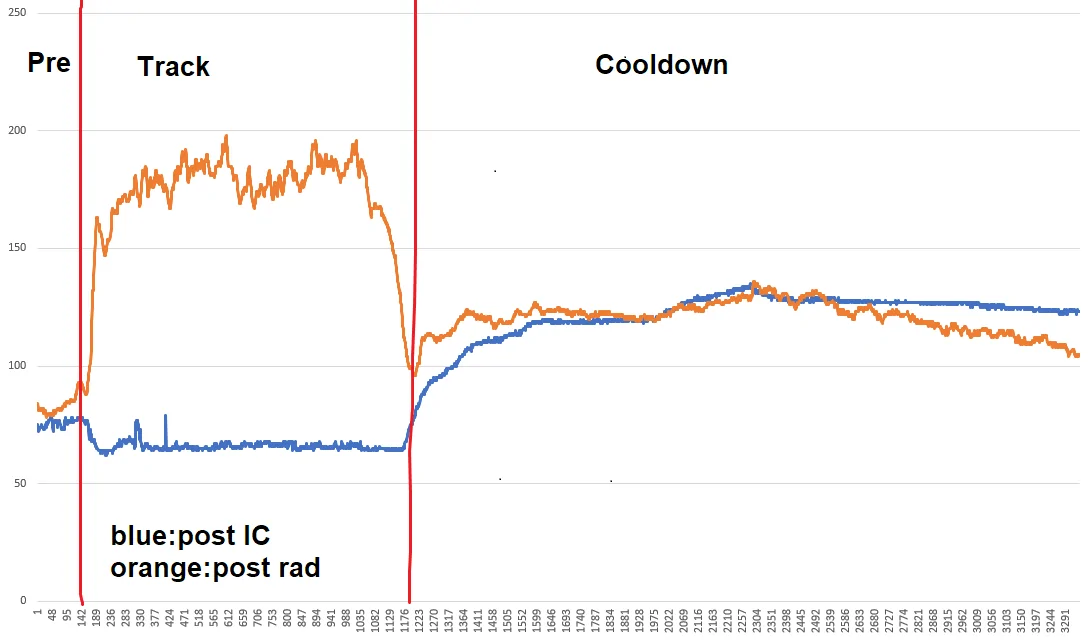

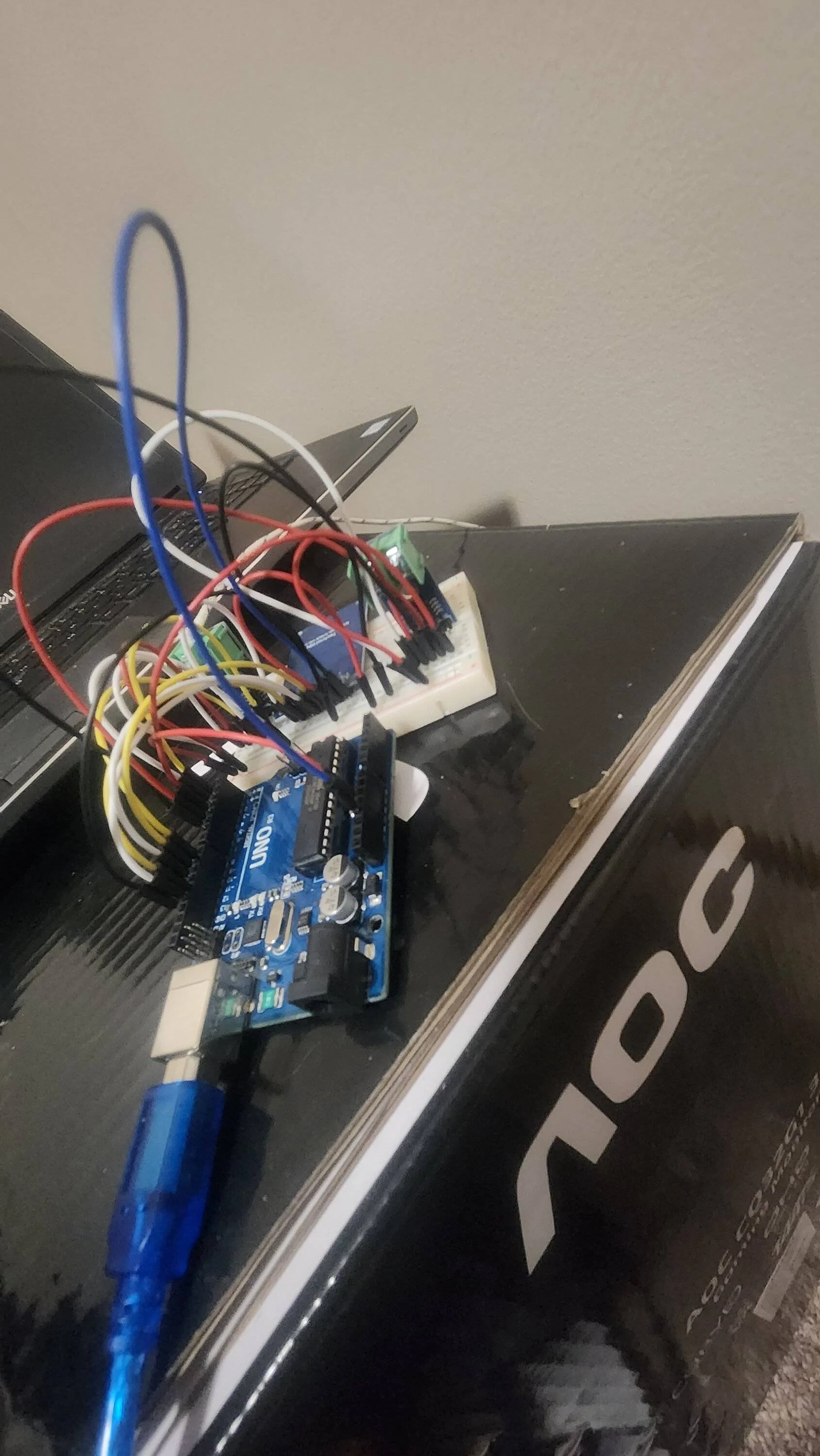

- testing code (picture 3)

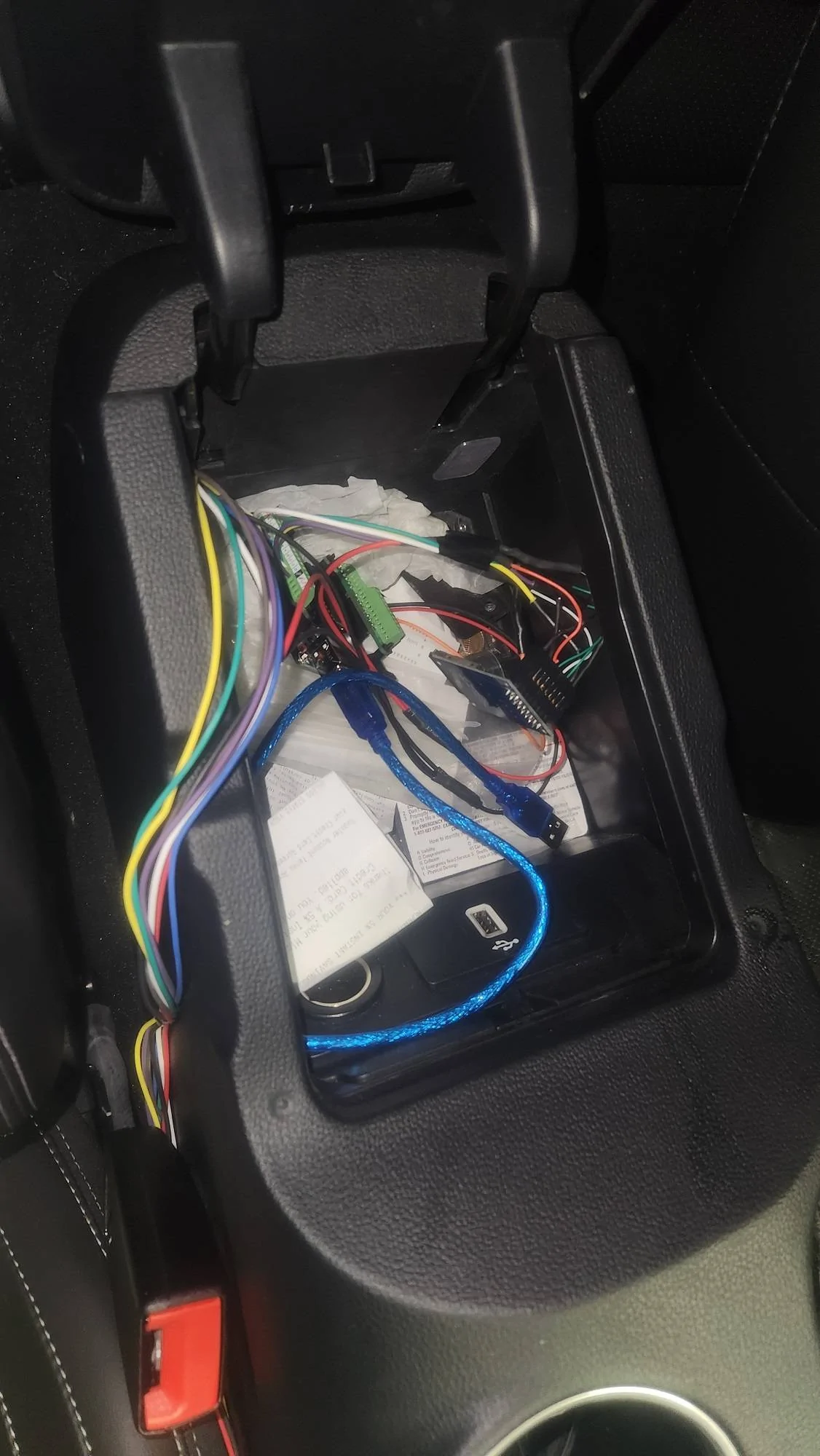

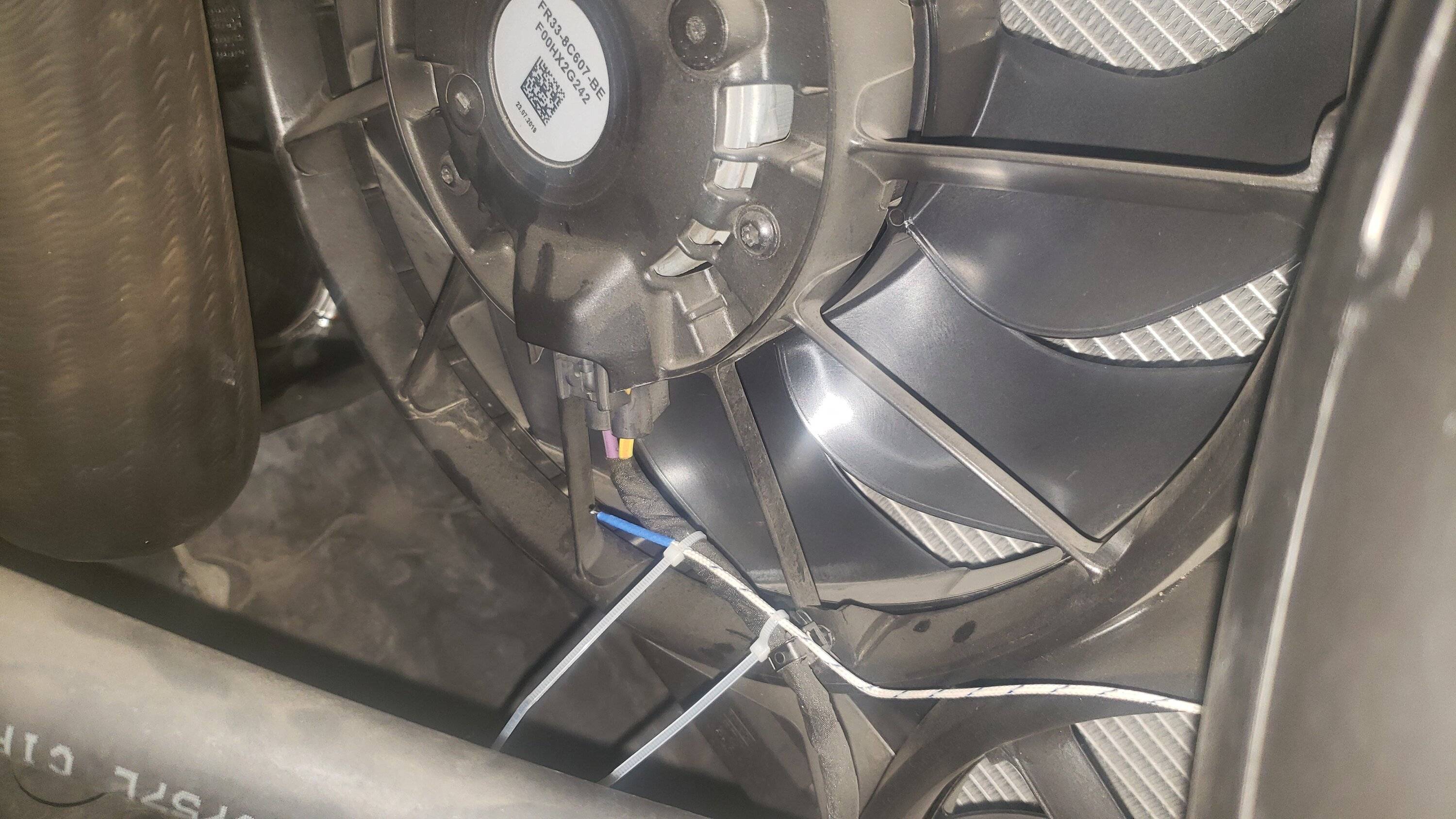

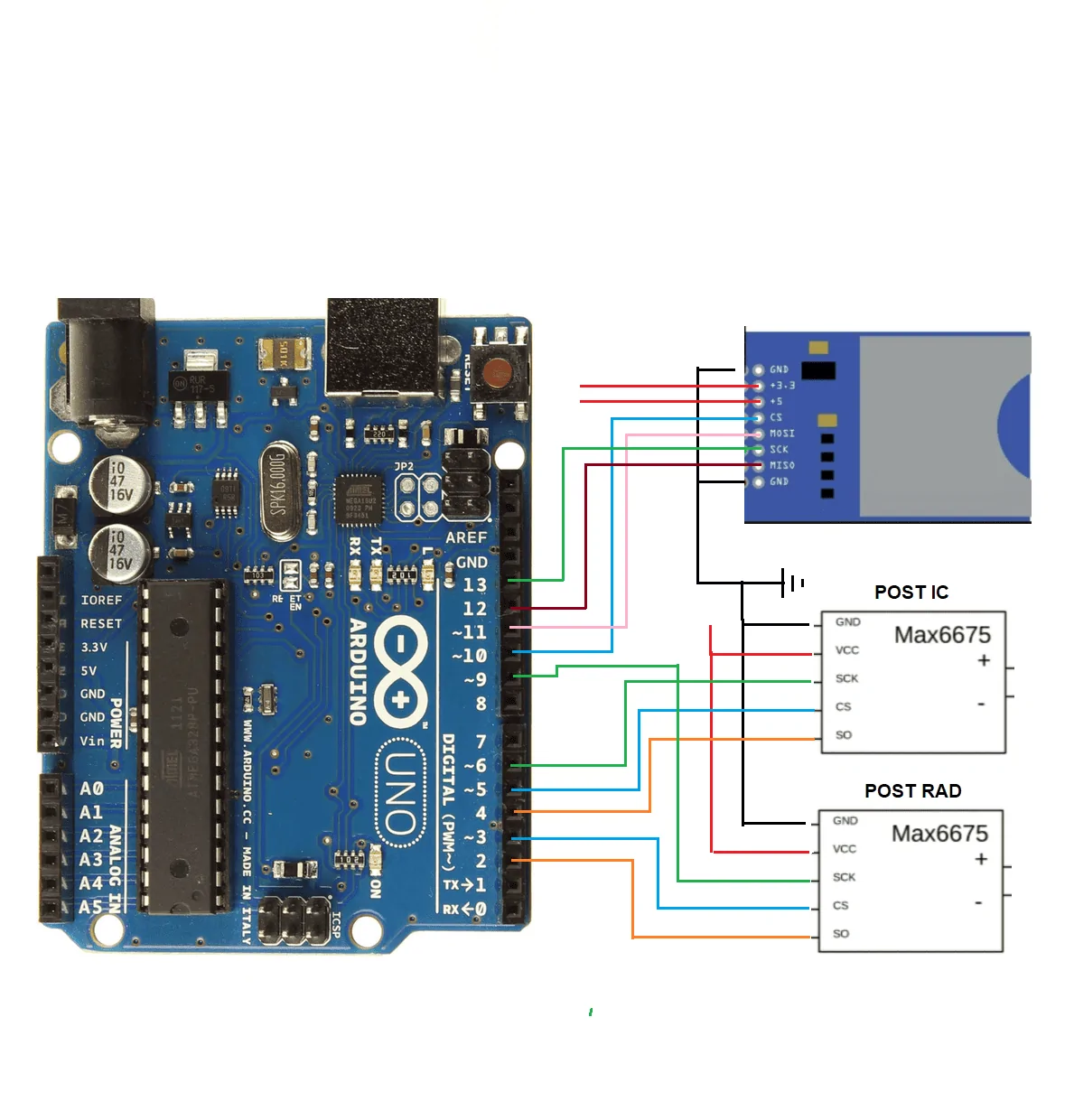

- wiring schematic (picture 4)

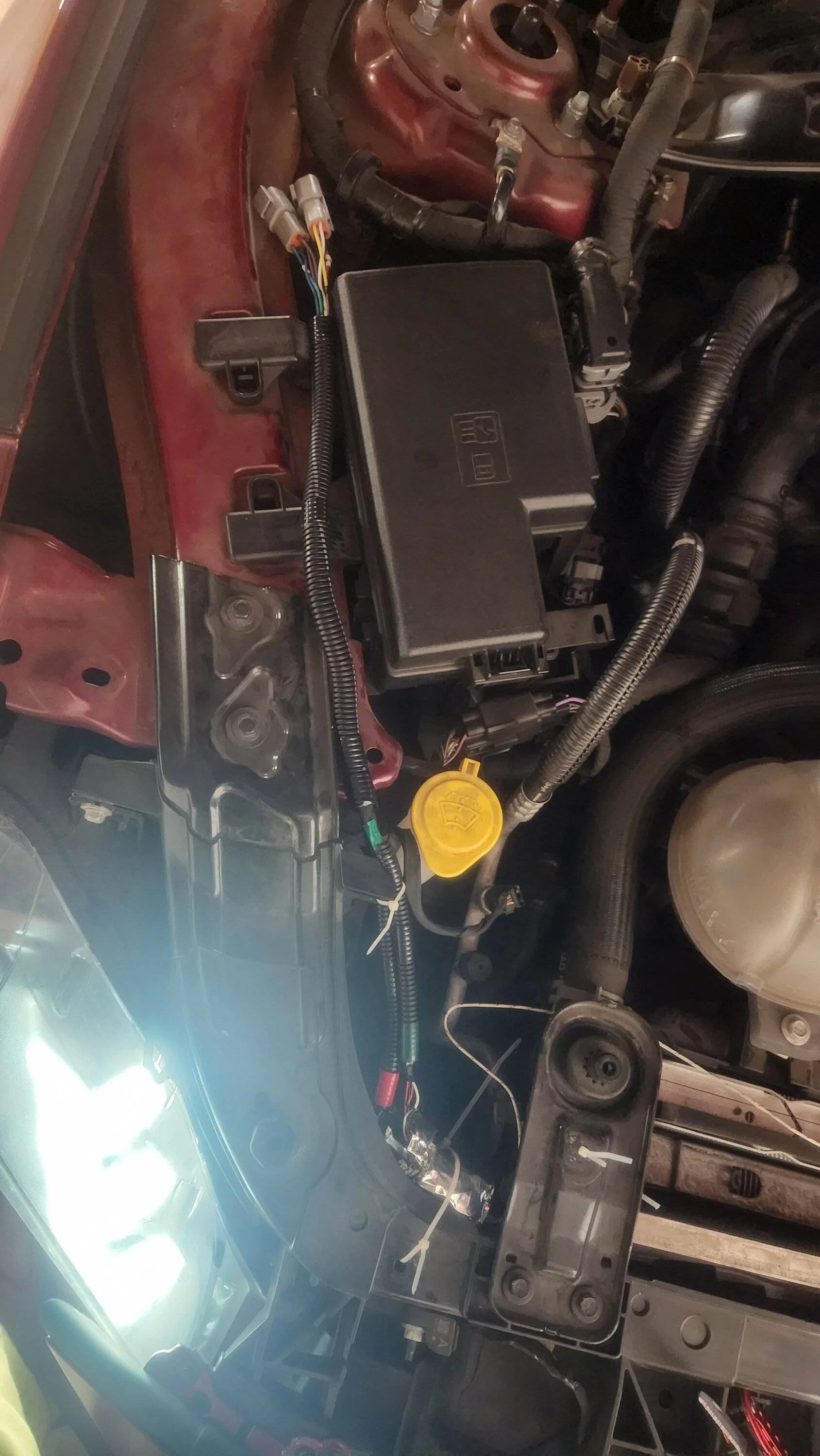

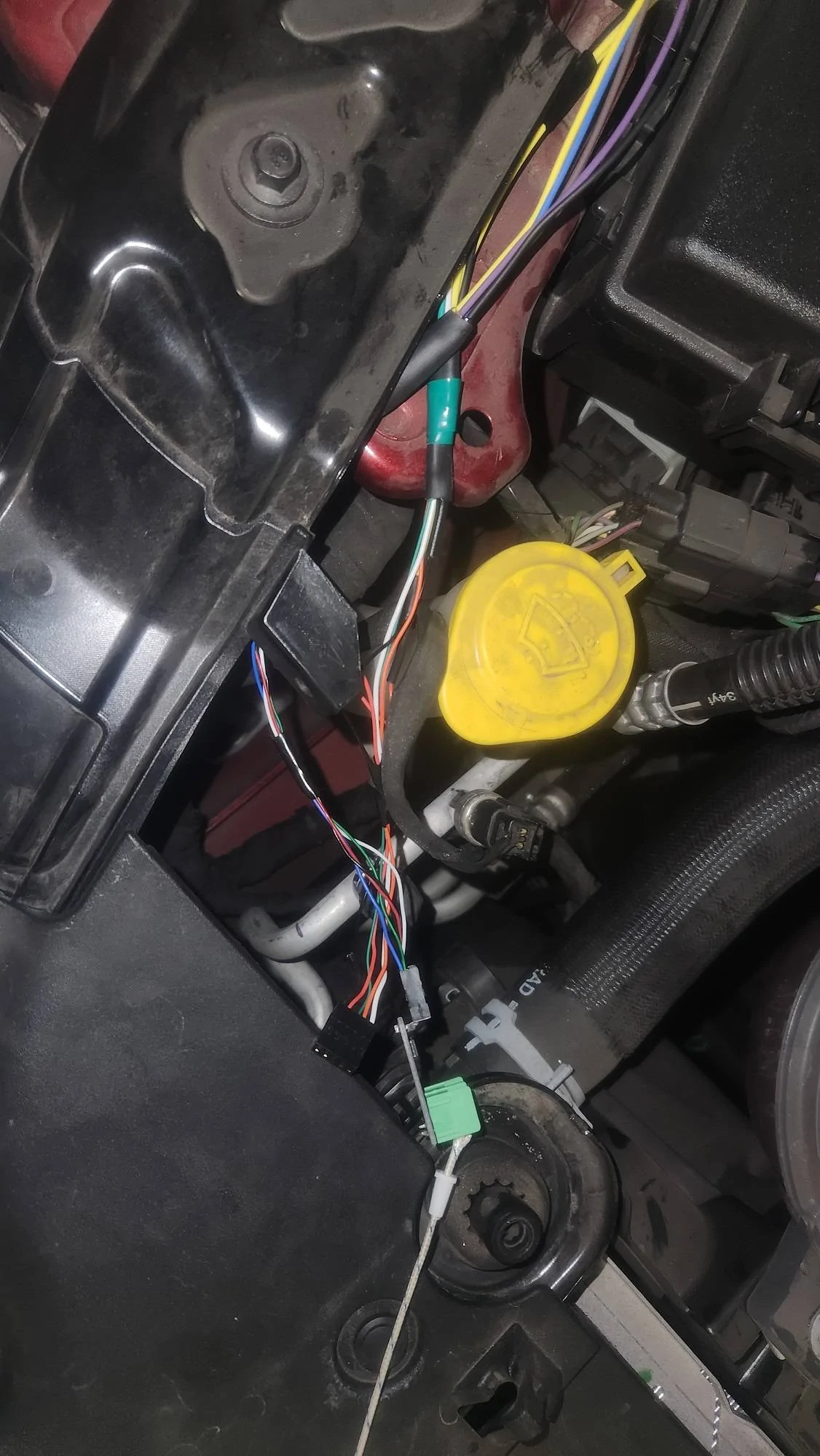

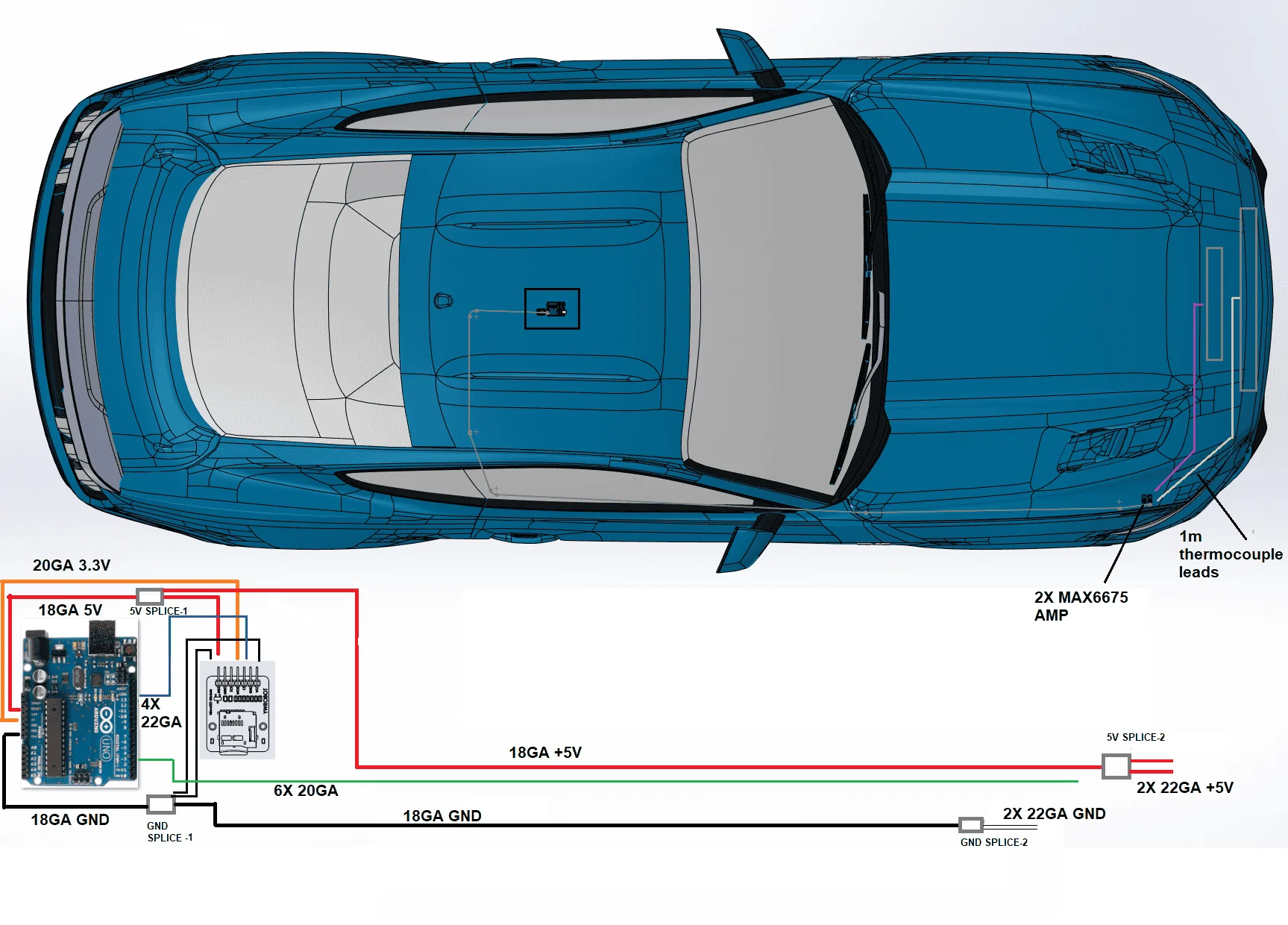

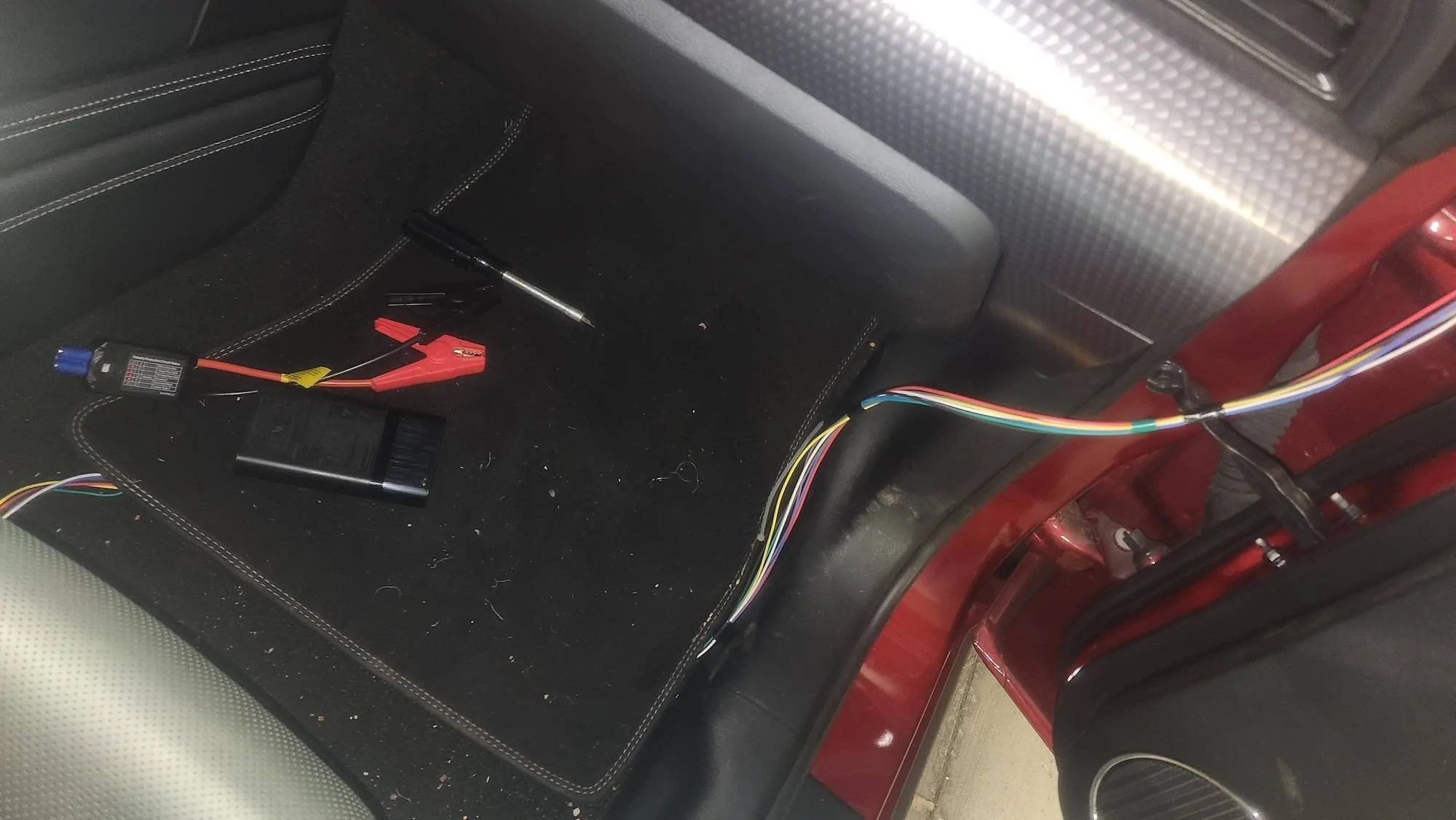

-wire routing (picture 5)
-BOM , wires not included but will be free from work(picture 6)
-Previous test using temperature function on a multi meter (pictures 1,2)
- testing code (picture 3)
- wiring schematic (picture 4)
-wire routing (picture 5)
-BOM , wires not included but will be free from work(picture 6)
