Turbosmart raceport + Gates belt = MOAR BOOOST

SolarFlare

Well-Known Member
Joined
Aug 24, 2015
Threads
76
Messages
4,019
Reaction score
2,199
Location
S. Fla
Vehicle(s)
2015 CO GT

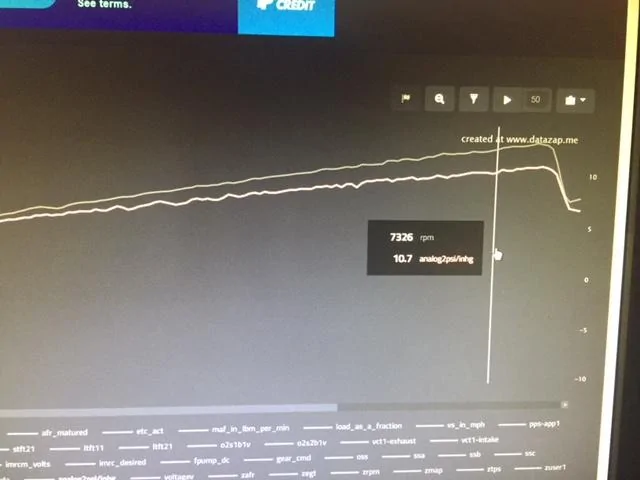

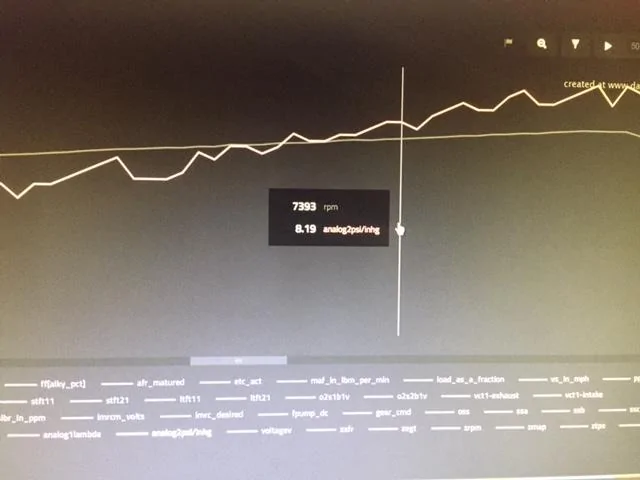

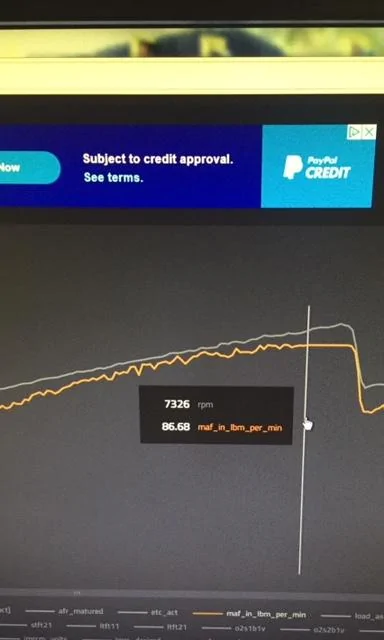

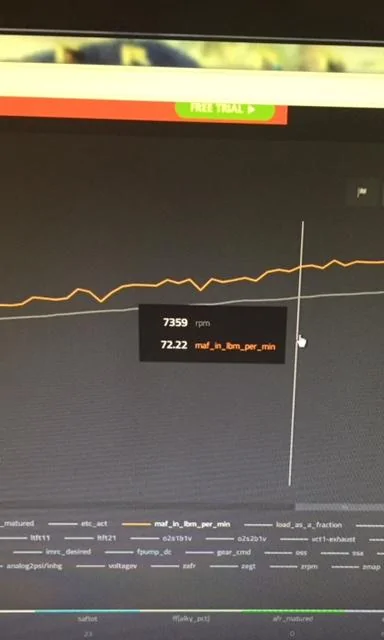

For a long time I’ve been considering making the swap from the Pro flo. Well finally did. There were never any signs of belt slip on the original belt, it was properly tensioned but decided to swap to Gates green belt since a lot of the big boy hellcat owners swear by them. Well results are below...gained 3psi...maf lbs went from low 70s to maxed out. All data taken at around 7300RPM and same ambient temps. Take it how you wish...
Sponsored



Tommy V

Well-Known Member
Joined
Jul 24, 2014
Threads
72
Messages
3,653
Reaction score
601
Location
Brookly park Md
First Name
Tommy
Vehicle(s)
2015 race red gt pp manual, recaros, 401al DOA "too much boost on 93", 2017 GT Auto
For a long time I’ve been considering making the swap from the Pro flo. Well finally did. There were never any signs of belt slip on the original belt, it was properly tensioned but decided to swap to Gates green belt since a lot of the big boy hellcat owners swear by them. Well results are below...gained 3psi...maf lbs went from low 70s to maxed out. All data taken at around 7300RPM and same ambient temps. Take it how you wish...
Yea u were losing boost somewhere because my d1 has always maxed out the maf sensor with the 4.75 or 4.88 pulley right at 7k.Maybe u were getting belt slip but that's awesome u got it straight now.


Tommy V

Well-Known Member
Joined
Jul 24, 2014
Threads
72
Messages
3,653
Reaction score
601
Location
Brookly park Md
First Name
Tommy
Vehicle(s)
2015 race red gt pp manual, recaros, 401al DOA "too much boost on 93", 2017 GT Auto

oesman

Well-Known Member
Joined
Feb 18, 2016
Threads
24
Messages
407
Reaction score
107
Location
Houston, TX
First Name
Dmitry
Vehicle(s)
2016 Mustang GT PP
Which gates belt is that? Mine was a gates (as far as I remember) from the factory for the stage 2 kit.


Sponsored

OP
OP
SolarFlare

SolarFlare

Well-Known Member
Joined
Aug 24, 2015
Threads
76
Messages
4,019
Reaction score
2,199
Location
S. Fla
Vehicle(s)
2015 CO GT
Which gates belt is that? Mine was a gates (as far as I remember) from the factory for the stage 2 kit.
Gates, green. I’ll get the number off it shortly.


Tatum337

Well-Known Member
Joined
Mar 27, 2016
Threads
24
Messages
249
Reaction score
70
Location
GA
Vehicle(s)
2016 GT
Gates came out with an RPM model now. Which is actually better than the HD model. Just put in RPM instead of HD and you should see it.


Sponsored

oesman

Well-Known Member
Joined
Feb 18, 2016
Threads
24
Messages
407
Reaction score
107
Location
Houston, TX
First Name
Dmitry
Vehicle(s)
2016 Mustang GT PP
Thanks guys! I'm definitely going to try these so that when I get re-tuned we're getting the most boost we can ;).


Tommy V

Well-Known Member
Joined
Jul 24, 2014
Threads
72
Messages
3,653
Reaction score
601
Location
Brookly park Md
First Name
Tommy
Vehicle(s)
2015 race red gt pp manual, recaros, 401al DOA "too much boost on 93", 2017 GT Auto
Anyone ever replace their BOV for a bigger valve and had it throw off your fuel trims?
U should just have to.drive it ittlle bit and let the fuel.trims adjust,believe it or not it does take a few miles for everything to adjust.

OP
OP
SolarFlare

SolarFlare

Well-Known Member
Joined
Aug 24, 2015
Threads
76
Messages
4,019
Reaction score
2,199
Location
S. Fla
Vehicle(s)
2015 CO GT
U should just have to.drive it ittlle bit and let the fuel.trims adjust,believe it or not it does take a few miles for everything to adjust.
Drove 10 miles back from shop, then another 5-6 miles the next day and nothing , Short term trims are pulling 30% at 1500 and 2500 rev holds. Just did a huge log for Lund, looks like he’s gonna have to go in and make adjustments


Dominant1

Well-Known Member
Joined
Jun 17, 2016
Threads
94
Messages
3,737
Reaction score
1,127
Location
USA
First Name
Dr Frankenstang
Vehicle(s)
2016 gt/cs auto 3:55 gears
Vehicle Showcase
1
Did you read my thread about the gates rpm belt ? When properly tensioned you can add 1-2 lbs over the green belt. its the same part # as the one you got only change the hd to rpm!!!! Im on the gates green now and love it the stock pc belt is not the same quality as these gates belts! I have an gates rpm belt on order!
