Trackspec GT4 center vent

Cardude99

Well-Known Member
Joined
Feb 14, 2016
Threads
69
Messages
2,474
Reaction score
1,056
Location
Phoenix, AZ
First Name
Sam
Vehicle(s)
2018 Ecoboost
Man this looks great on the 15-17 hoods. I wish their side vents replaced the 18 vents and didn't add to them


EFI

Well-Known Member
Joined
May 19, 2015
Threads
60
Messages
3,735
Reaction score
2,348
Location
Masshole central
Vehicle(s)
5.Br0

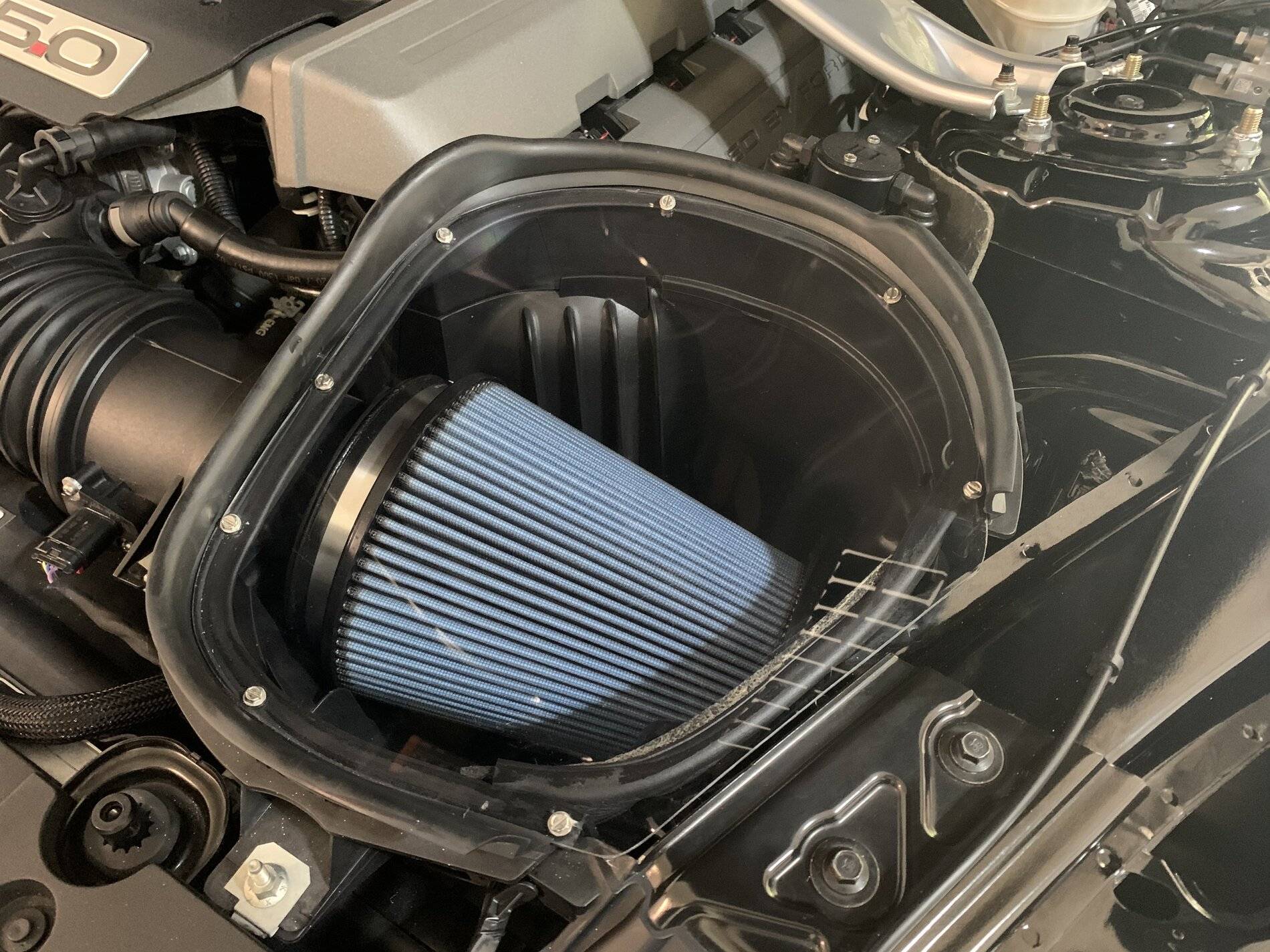

Do you have to have an inclosed CAI with these vents?
If you drive it on the street and/or track it in the rain yes.

Looking down the driver side vent, you see the entire airbox assembly. If it rains, it's all going to pool up on the bottom of the airbox.

You shouldn't really be driving this setup in the rain, while the engine is relatively waterproof I don't think it's good for rain to constantly pour all over your engine bay.





JohnD

Legend in his own mind
Joined
Sep 26, 2016
Threads
2
Messages
684
Reaction score
304
Location
beyond the pale
Vehicle(s)
16 GTPP
It is simple to put a plexiglass cover over it and that has the added benefit of preventing hot underhood air from getting into it. It does not seal well to the bottom of the hood, best to just abandon that whole idea and use a cover that will keep hot air out of it for sure. Plus no issues with rain with that cover.



Bridgie

Well-Known Member
Joined
May 25, 2015
Threads
28
Messages
406
Reaction score
491
Location
Raleigh, North Carolina
First Name
Dave
Vehicle(s)
2015 GT fastback. PP, 50th trim, Black

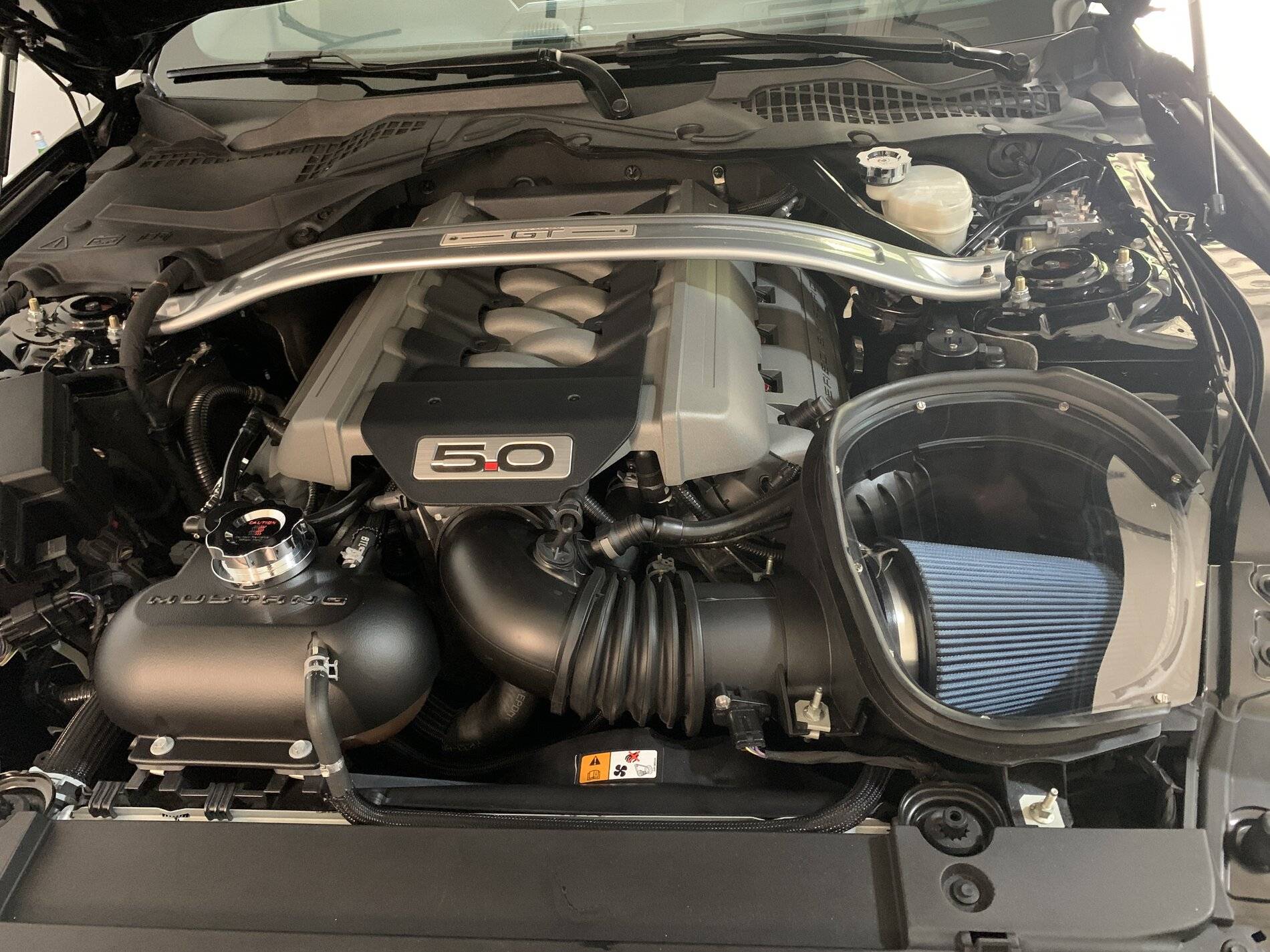

This worked for me...


Bridgie

Well-Known Member
Joined
May 25, 2015
Threads
28
Messages
406
Reaction score
491
Location
Raleigh, North Carolina
First Name
Dave
Vehicle(s)
2015 GT fastback. PP, 50th trim, Black

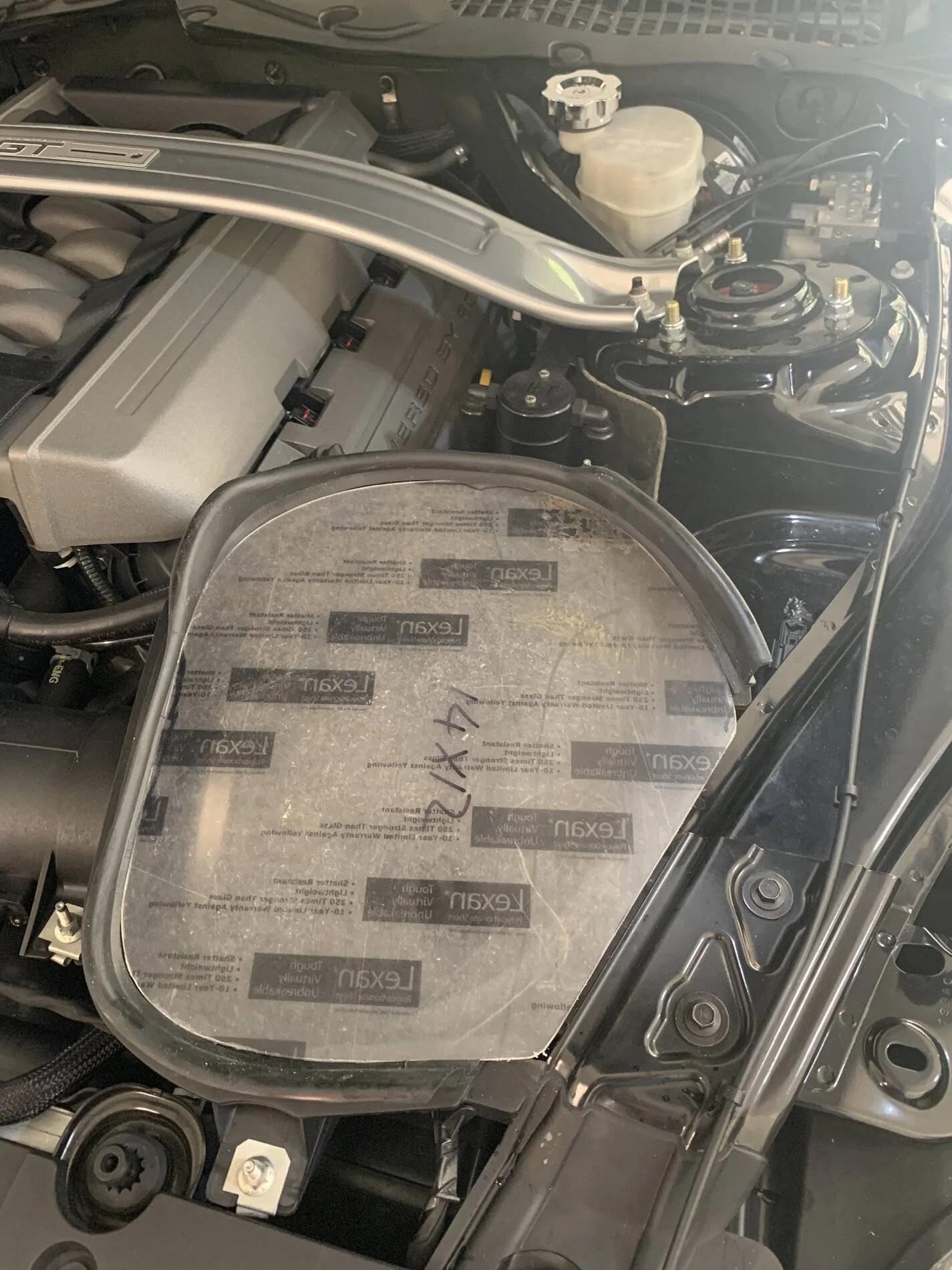

Took a piece of 2mm Lexan and cut to rough shape, then edge sanded to fit snug.
Used some self tapping screws for securing to the GT350 intake. No water ingress, does the job great..!

After fitting the vents and removing the under hood felt, the air box didn’t seal... intake temps soared.. There is now no heat wash from the engine bay now.


NightmareMoon

Well-Known Member
Joined
Nov 22, 2015
Threads
36
Messages
4,306
Reaction score
2,868
Location
Austin
Vehicle(s)
2016 Mustang GT PP
Vehicle Showcase
1
For those who've done this, is the hood removal and reinstall possible with one person, or do I need to find a buddy to help?


SVO MkII

Well-Known Member
Joined
Mar 1, 2018
Threads
29
Messages
617
Reaction score
270
Location
IL
Vehicle(s)
2018 Ecoboost, 6sp, PP, 2017 GT Convertible

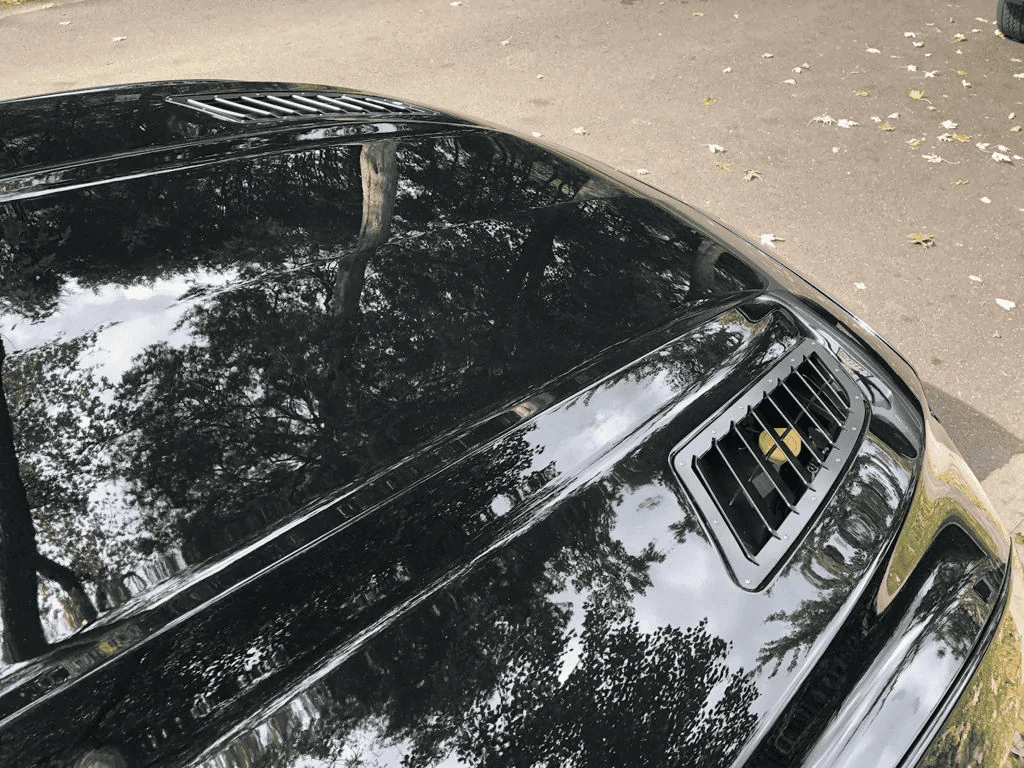

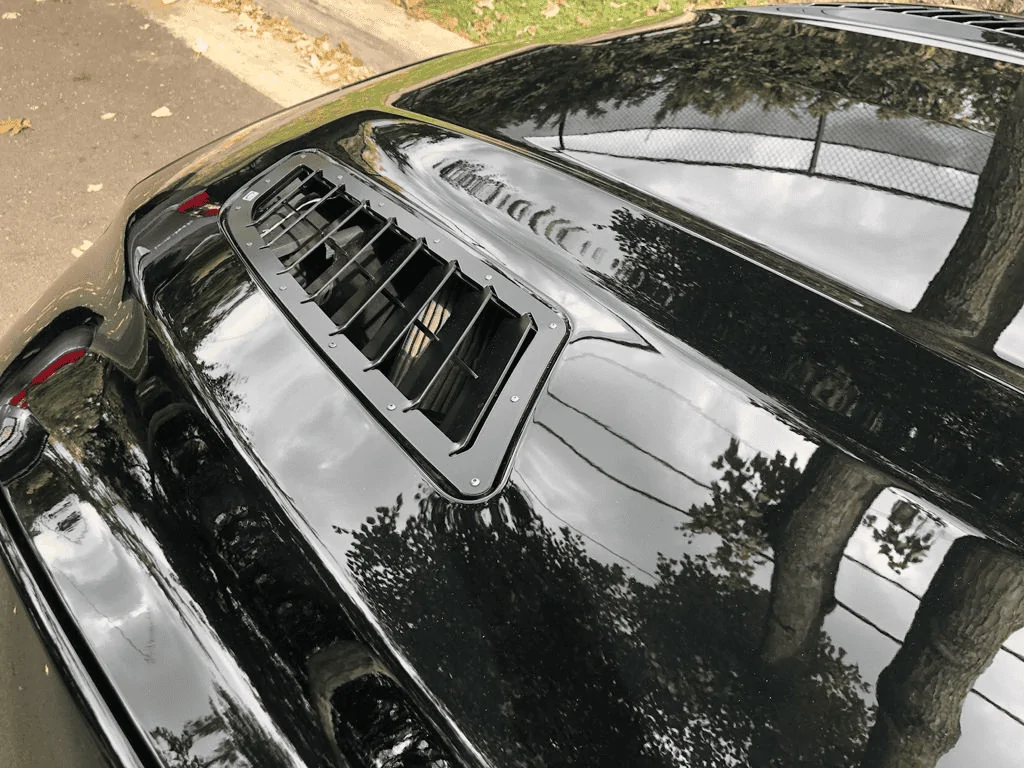

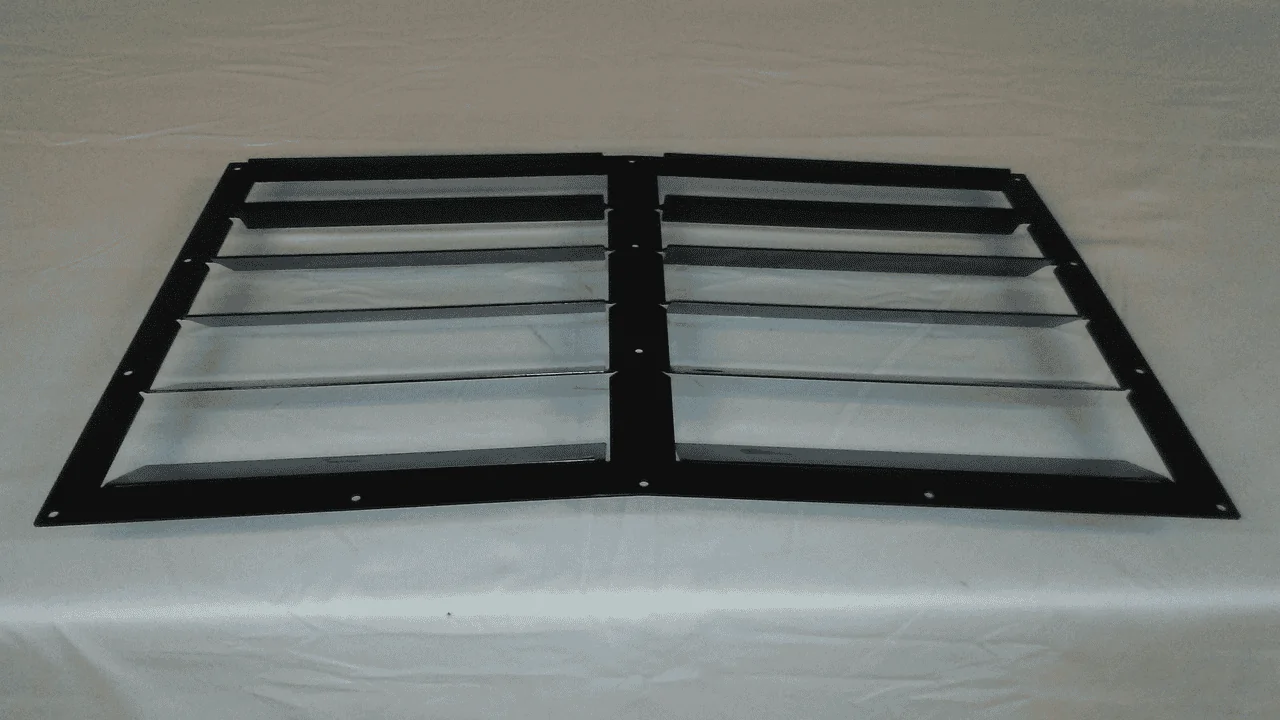

Does anyone know if there is much difference functionally between the Trackspec hood vents and the Race Louvers vents? The Trackspec is slightly larger overall, but the Race Louvers appears to be more open, with a more aggressive angle on the vents for extraction (see below).


NightmareMoon

Well-Known Member
Joined
Nov 22, 2015
Threads
36
Messages
4,306
Reaction score
2,868
Location
Austin
Vehicle(s)
2016 Mustang GT PP
Vehicle Showcase
1
Well, Race Louvers will tell you that theirs is better than their competitors. They have youtube videos and such.


Scootsmcgreggor

Well-Known Member
Joined
Oct 26, 2018
Threads
29
Messages
346
Reaction score
261
Location
CA
Vehicle(s)
2016 Ecoboost turned GT
Wind tunnel testing has shown that the wicker at the front of the racelouvers creates a bigger low pressure zone over the vent that allows more air to exit, making it more efficient.


SVO MkII

Well-Known Member
Joined
Mar 1, 2018
Threads
29
Messages
617
Reaction score
270
Location
IL
Vehicle(s)
2018 Ecoboost, 6sp, PP, 2017 GT Convertible
Wind tunnel testing has shown that the wicker at the front of the racelouvers creates a bigger low pressure zone over the vent that allows more air to exit, making it more efficient.
Yes, the Race Louvers design definitely looks like it would be more effective than the Trackspec. Arguably, the Trackspec looks a bit nicer, but I really want something functional that will bring temps down on track. Race Louvers is probably a bit better in that area.
