Stereo Information (Wiring, Upgrades, etc...)

Discussion in 'Infotainment and Electronics (Nav, Audio, Video, Bluetooth)' started by smdandb2, Jun 17, 2015.

  1. smdandb2

    smdandb2 ManBearPig

    Vehicle(s):
    2017 Toyota Corolla SE
    Joined:
    Oct 14, 2014
    Location:
    Uranus
    Posts:
    726
    Likes Received:
    377
    0   0   0
    #1 smdandb2, Jun 17, 2015
    Last edited: Feb 20, 2017
    I figured this information is kind of scattered everywhere, so I am trying to condense it all into one place to help everyone out.

    If there is information that needs to be edited or added, let me know. Hopefully I will be able to edit this later to keep it up to date.

    Speaker Info
    Base Model (6 Speaker Configuration)
    6.5" (Doors)
    Tweeters (A Pillars)
    6.5" (Rear Deck)

    Premium Models 200A/400A (9 Speaker Configuration)
    6.5" (Doors)
    3.5" (Doors)
    Tweeters (A Pillars)
    3.5" Center Channel (In dash)
    6.5" (Rear Deck)

    Premium Models w/ Shaker Audio 201A/401A (12 Speaker Configuration)
    6.5" (Doors)
    3.5" (Doors)
    Tweeters (A Pillars)
    3.5" Center Channel (In dash)
    6.5" Coax (Rear Deck)
    Subwoofer

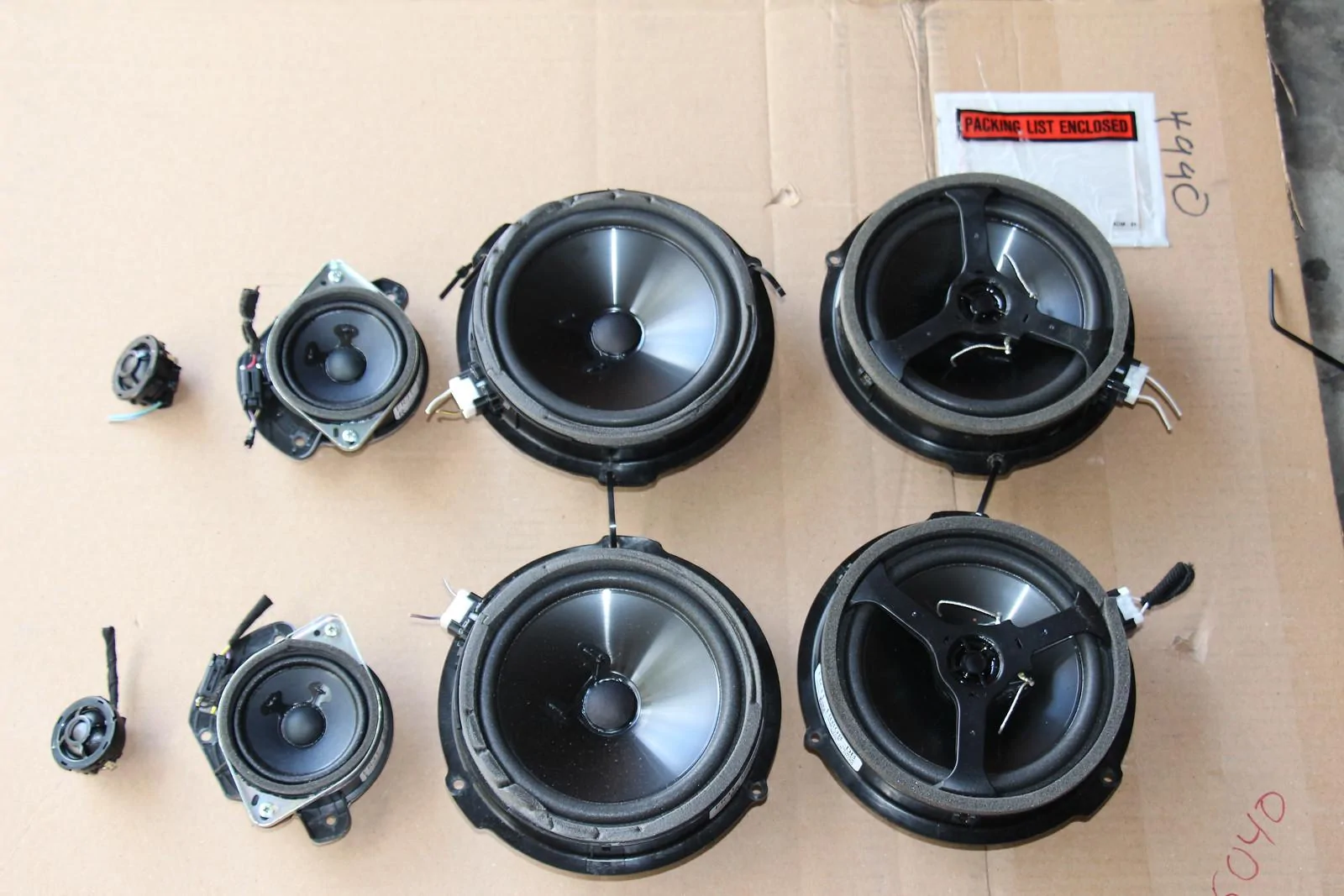

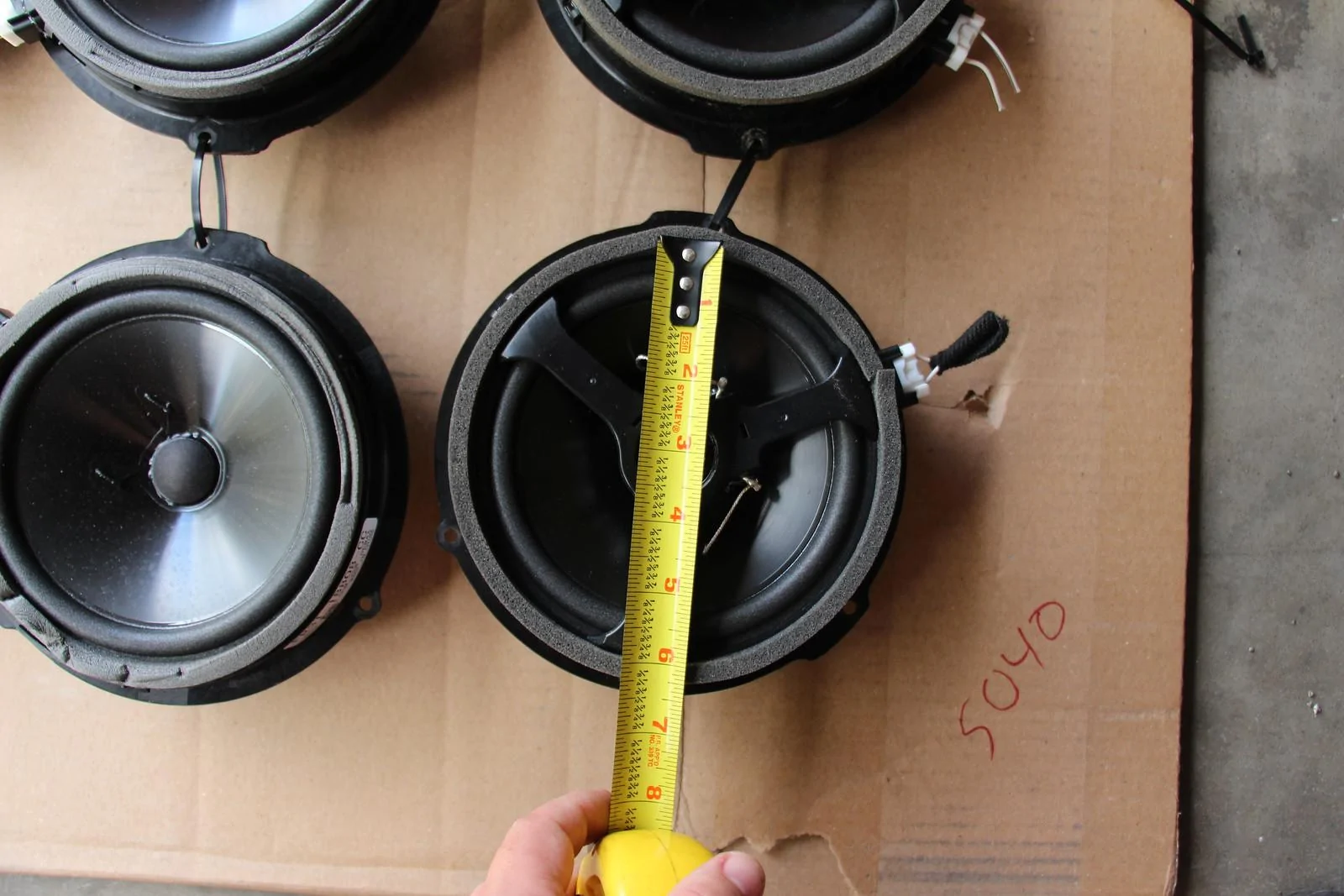

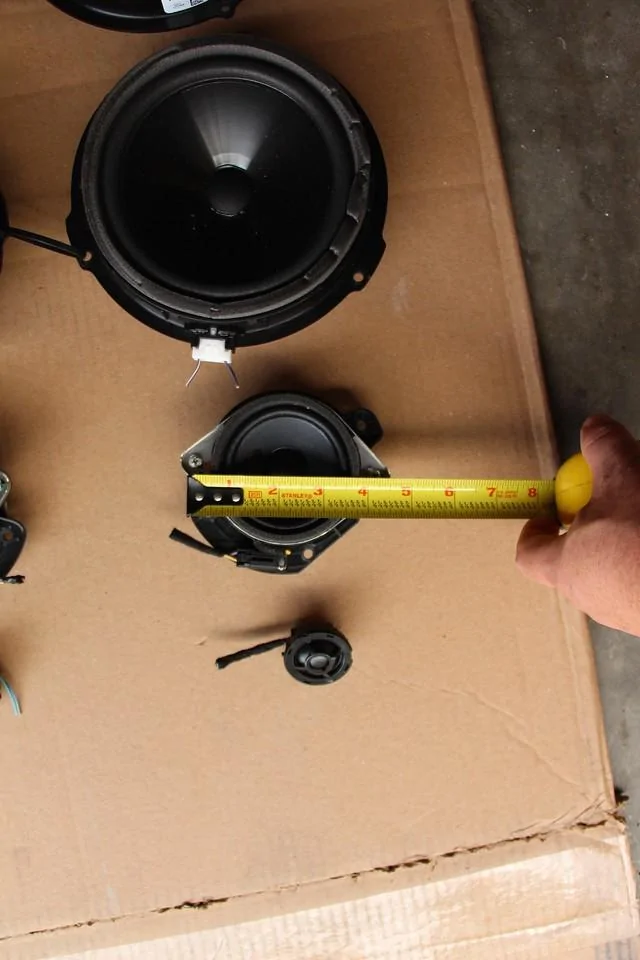

    Speaker Pictures (Premium Shaker Shown) - Thank you stoli!!

    Amplifier Information
    Base cars do not have an amplifier, all speakers are powered directly from the head unit.

    Premium/Shaker cars have an amplifier in the drivers side kick panel area that is driven from line level feeds from the head unit. The center channel is "created" by the amplifier itself, not the head unit. The sub signal also seems to be artificially created as I see no wiring to suggest it comes directly from the head unit.

    The subwoofer amplifier is located on the subwoofer box itself.

    Wiring Information

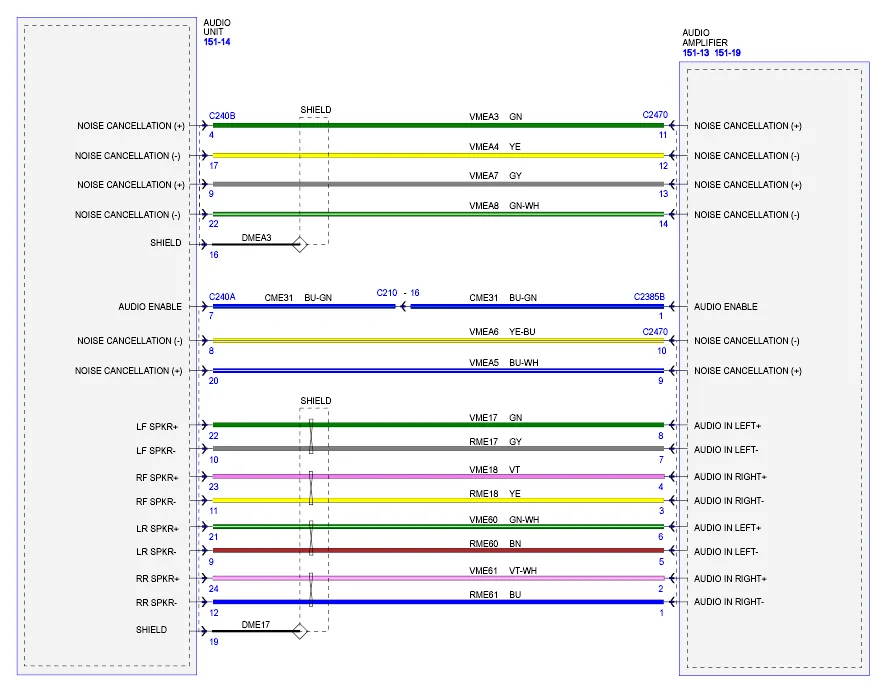

    Here are the wiring diagrams for the cars. Thank you Heinoceros.

    Base radio (only shows front speakers):

    Premium (including Shaker systems):

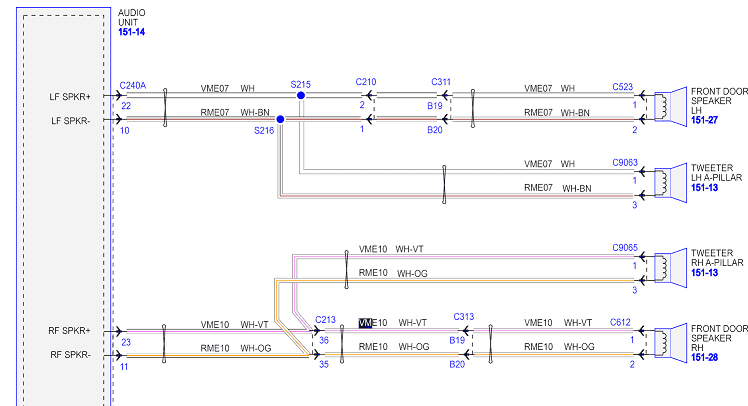

    Head Unit to Amplifier

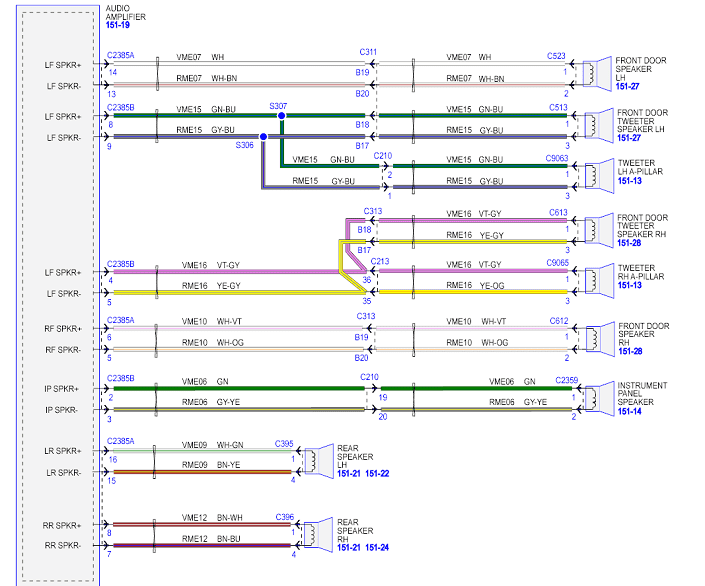

    Amplifier to Speakers

    Amplifier Connectors Thank you ThirtyThreePointThree and h65 for getting part numbers and the rest of this information.
    These are made by Molex and can be had from Mouser.com.

    34690-0160 - C4270 has the RCA-level audio and noise cancellation.
    http://www.mouser.com/Search/ProductDetail.aspx?R=34690-0160

    34690-0161 - C2385A has most of the speaker outputs.
    http://www.mouser.com/Search/ProductDetail.aspx?R=34690-0161

    34772-0142 - C2385B has the other speakers plus 6v Remote, 12V power and ground. Mouser does not stock the 34772-0142 plug so use the 34772-0140 variant. To use this you'll need to trim the bumps off the factory end. They come off easily with a boxknife. This is easier than trimming the inside of the new connector. It won't affect its ability to lock in place with the amp or the new connector.
    http://www.mouser.com/Search/ProductDetail.aspx?R=34772-0140

    Pre-Amp Signal Measurements - Thank you h65!
    The range is 0.04 volts at 20% volume to 1.53 volts at 80% volume (and 3.1 volts at max volume) with a CD audio source. Measurement was taken from pins 7 and 8 which represent the front left signal.

    12v Remote Turn-on Lead

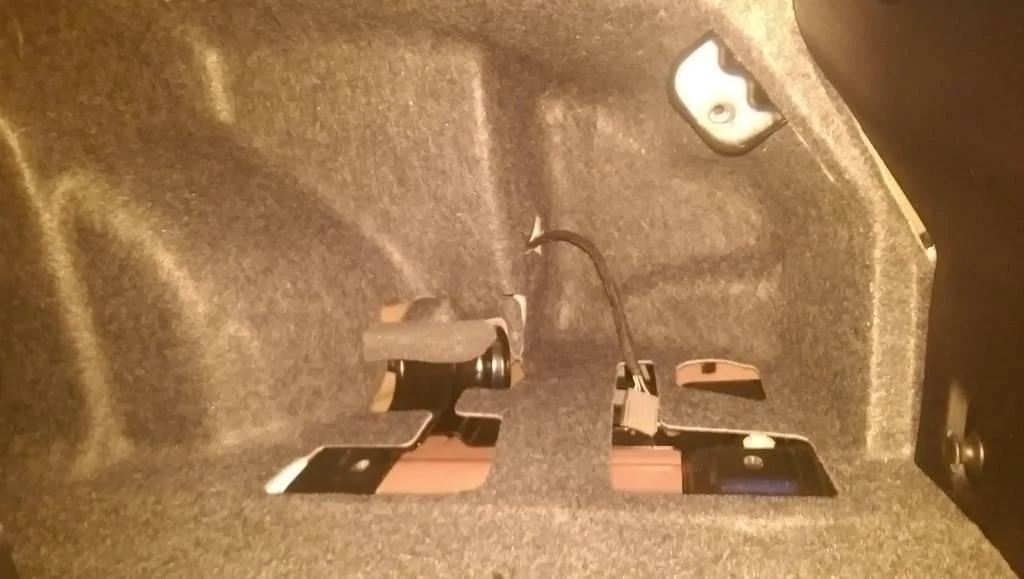

    There is one conveniently located in the trunk wiring harness near the right rear speaker. The wire you are looking for is the blue/white one.

    dirtrider, Ramn, Niz55 and 62 others like this.
  2. BubbaMc

    BubbaMc New Member

    Vehicle(s):
    A mustang (soon)
    Joined:
    Jun 17, 2015
    Location:
    Perth, Australia
    Posts:
    4
    Likes Received:
    1
    0   0   0
    This is great, thanks for compiling everything.

    What are the noise cancellation signals for?

  3. OP
    OP
    smdandb2

    smdandb2 ManBearPig

    Vehicle(s):
    2017 Toyota Corolla SE
    Joined:
    Oct 14, 2014
    Location:
    Uranus
    Posts:
    726
    Likes Received:
    377
    0   0   0
    The Ecoboost has active noise cancelling, probably because they were afraid people would hate the 4cyl sound. It has a microphone in the headliner that detects the engine noises and tries reducing them in cabin with some sorcery.

    It's assumed they do nothing on the GT cars.

  4. Noobtastic14

    Noobtastic14 Well-Known Member

    Vehicle(s):
    '15 EB ruby red
    Joined:
    Feb 17, 2015
    Location:
    United States
    Posts:
    111
    Likes Received:
    40
    0   0   0
    I may have missed it because the page is loading funny at work, but what coils are in the Premium sub? I'd like to do a simple swap of the subwoofer itself and matching coils would allow for a direct replacement.
    -Drew

  5. Reaper

    Reaper Well-Known Member

    Vehicle(s):
    2015 V6 Mustang
    Joined:
    Dec 11, 2014
    Location:
    Fairfax, Virginia
    Posts:
    291
    Likes Received:
    61
    0   0   0
    I responded to a different original post but the Metra 72-5602 harness kit seems to be a good alternative (after light modifications) to cutting the stock 6.5" speaker connectors for now. It doesn't seem like the usual suppliers have plans to release plug & play kits any time soon.


  6. stoli

    stoli Fat Guy Racing

    First Name:
    John
    Vehicle(s):
    '15 Black GT/PP
    Joined:
    Sep 18, 2014
    Location:
    Lakeland, FL
    Posts:
    3,232
    Likes Received:
    948
    0   0   0
    Nice work.

  7. Bryman

    Bryman Well-Known Member

    Vehicle(s):
    2015 Mustang GT
    Joined:
    Aug 30, 2014
    Location:
    Chicagoland
    Posts:
    312
    Likes Received:
    33
    0   0   0
    Excellent, thanks for taking the initiative.

  8. MotorJoe

    MotorJoe Banned

    Vehicle(s):
    DIB S550 GT Auto
    Joined:
    Feb 16, 2015
    Location:
    México
    Posts:
    65
    Likes Received:
    9
    0   0   0
    Great info, thanks!

    And everyone please update with all relevant information.

    Admin: please make this a STICKY.

  9. BubbaMc

    BubbaMc New Member

    Vehicle(s):
    A mustang (soon)
    Joined:
    Jun 17, 2015
    Location:
    Perth, Australia
    Posts:
    4
    Likes Received:
    1
    0   0   0
    It certainly needs to be a sticky.

    This is essential information for any PROPER amplifier and speaker upgrade to the factory system.

    EcoBOSS likes this.
  10. EcoBOSS

    EcoBOSS Well-Known Member

    Vehicle(s):
    2015 EcoBoost Premium, PP, 50th, RR
    Joined:
    Oct 10, 2014
    Location:
    Tejas!
    Posts:
    214
    Likes Received:
    37
    0   0   0
    #10 EcoBOSS, Jun 19, 2015
    Last edited: Jun 19, 2015
    Subwoofer:

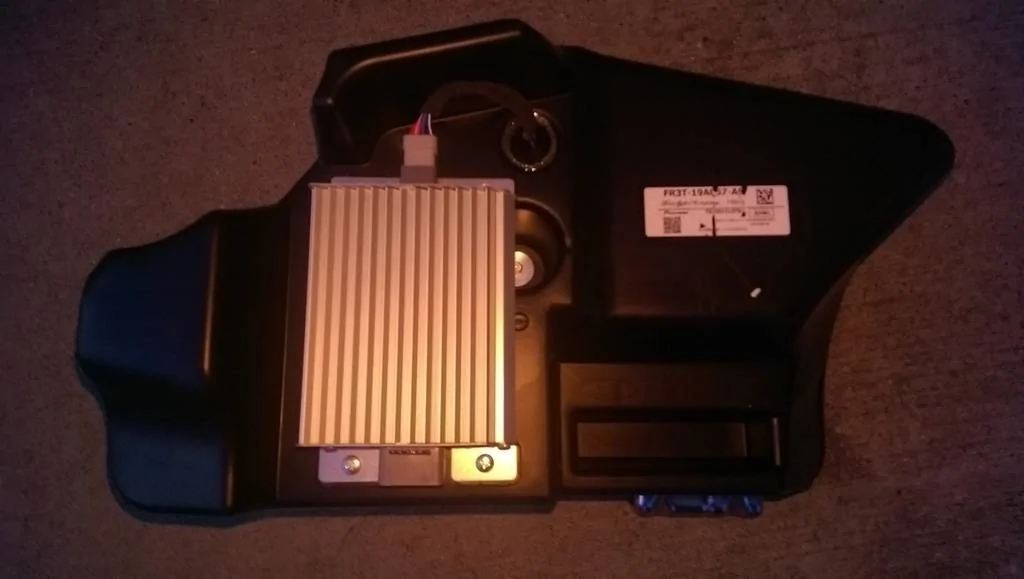

    Amp: YanFeng Visteon S69GA (From Shaker Mustang, Fusion, F150 and Lincoln MKS) P/N: BA1T-18C808-AA (50Wx2?).
    Speaker: 8 in. PAPER cone with foam surround model with 2 voicecoils (L, R) and the amp connection pinout is to follow. The sub has 6 T20 screws on the front that hold the grille to the case (through the SW flange) and one 8mm bolt that goes through the back of the case to the base of the Subwoofer. The speaker is only 4 in. deep and finding a replacement may be difficult. A Polk Audio db840dvc 8-inch dual voice coil subwoofer looks like a good match.

    I would LOVE to know if this amp is 2ohm stable and bridgeable, a 100W 2Ohm setup would be awesome - HIGHLY doubtful though.

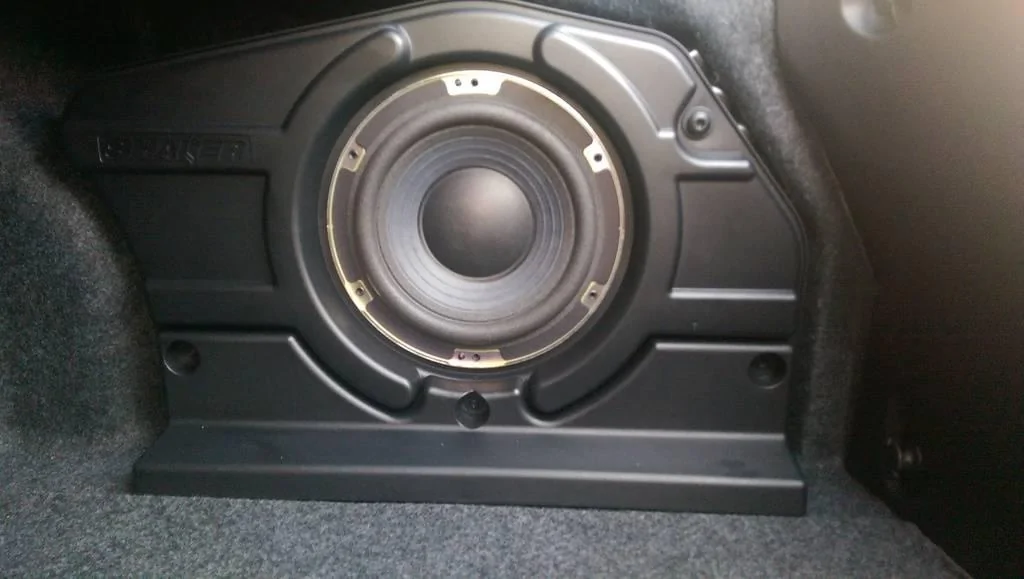

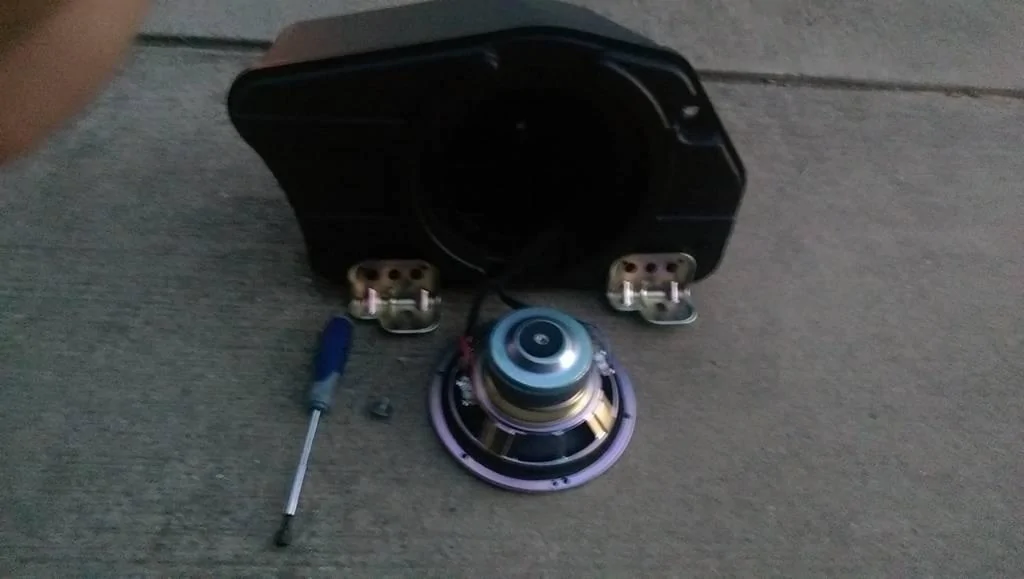

    Installed


    Cover

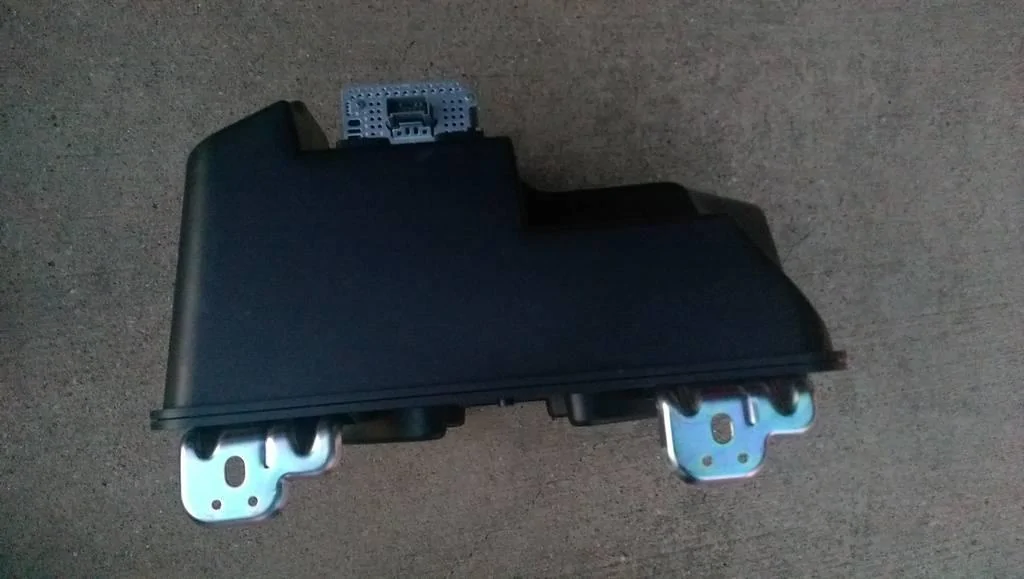

    Mounting area - One Torx bolt, 2 - 15mm bolts under the cover (2 T-20 screws)


    Bottom of unit showing Amp input connector

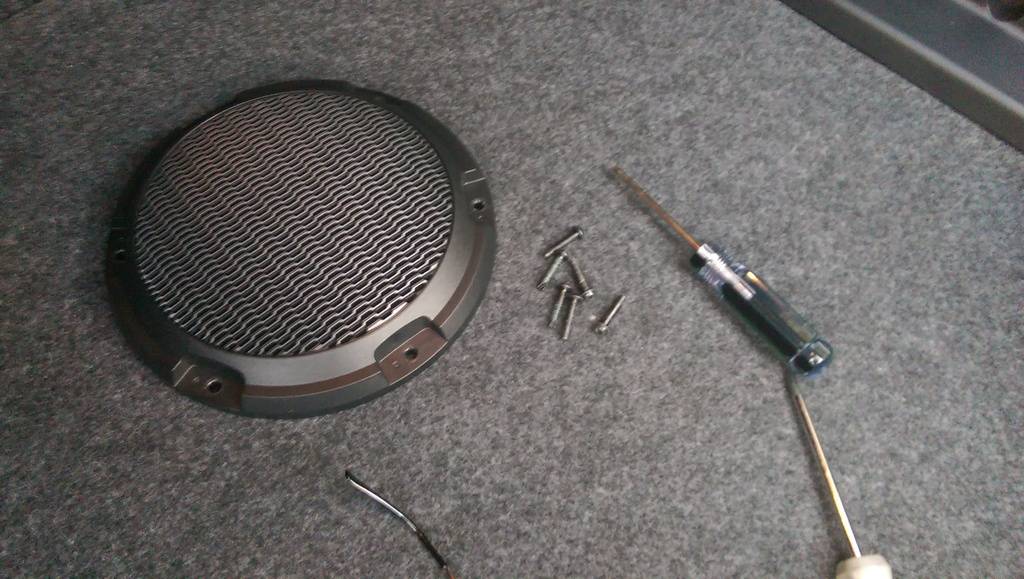

    Front, grille removed

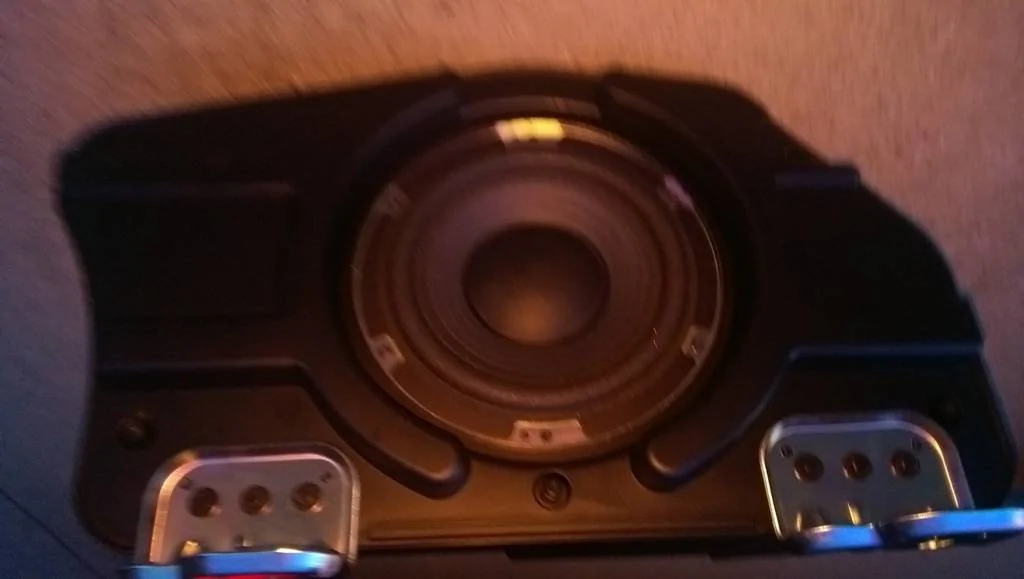

    Back with 8mm SW mounting bolt shown


    4 wires (L, R) to SW - ONLY marking is [CHINA] - Assuming 2 Channel 100W (50w+50w) 4 Ohm based on specs of the system overall.

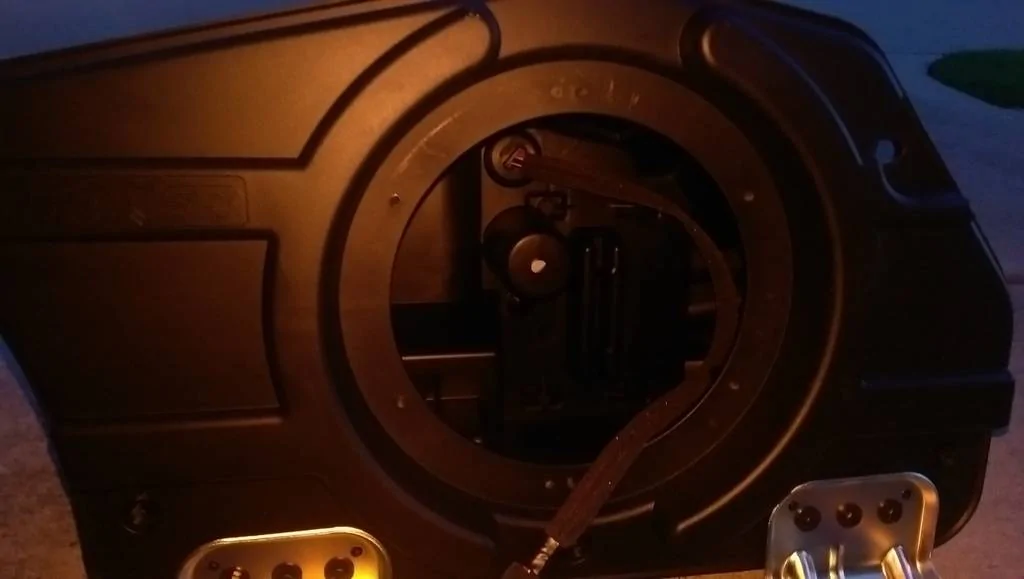

    Interior of SW cabinet with NO port, no seal between speaker and box, no batting material and the mounting post in the center; no doubt to control the vibrations from the back flexing.

  11. EcoBOSS

    EcoBOSS Well-Known Member

    Vehicle(s):
    2015 EcoBoost Premium, PP, 50th, RR
    Joined:
    Oct 10, 2014
    Location:
    Tejas!
    Posts:
    214
    Likes Received:
    37
    0   0   0
    The BIGGEST weakness I see is the TINY gauge power cable - maybe 20ga? [will check and post]

    Questions:
    Is this a full range input (pass-thru) from the front map?
    Does the amp do any Low Frequency Crossover?

  12. MX5Racer

    MX5Racer Well-Known Member

    Vehicle(s):
    2016 GT Convertible
    Joined:
    May 22, 2015
    Location:
    Saratoga Springs NY
    Posts:
    320
    Likes Received:
    123
    0   0   0
    So do the convertibles have the same rear speakers, only mounted in the side panels?

    Mickeymeanie likes this.
  13. RevvdMedia

    RevvdMedia Well-Known Member

    Vehicle(s):
    2015 Mustang GT Premium
    Joined:
    Aug 29, 2013
    Location:
    Canada
    Posts:
    718
    Likes Received:
    154
    0   0   0
    The power wires for the main speaker amp are tiny, the same diameter as the line level in wires. They are substantially smaller than the 18AWG wires I spliced in when adding the EQ. I can't say for sure, but I honestly think the power wires are 22 or 24AWG, and there are 2 of them (2 power, 2 ground).

    No idea how this system puts out "390 watts" with those tiny wires, if the subwoofer is 100 watts as shown in posts above. 290 watts (145rms?) through 2x 22 gauge? I don't think so. I can't see how that is safe.

    Based on an ampacity chart, 20 gauge (let's pretend 2x 22 gauge = 20...it's actually less) should only handle 11 amps as chassis wiring. 11amps x 13.8 volts = 151.8 watts.

    I dunno, I'm not an electrical engineer.

  14. EcoBOSS

    EcoBOSS Well-Known Member

    Vehicle(s):
    2015 EcoBoost Premium, PP, 50th, RR
    Joined:
    Oct 10, 2014
    Location:
    Tejas!
    Posts:
    214
    Likes Received:
    37
    0   0   0
    Yes. :thumbsup:

    davekro and MX5Racer like this.
  15. NewTekBuzz

    NewTekBuzz Well-Known Member

    First Name:
    Tim
    Vehicle(s):
    2015 Black GT 6M
    Joined:
    Mar 21, 2015
    Location:
    Flint, MI
    Posts:
    1,034
    Likes Received:
    140
    0   0   0
    I have the premium audio w/o shaker, would I have wiring in place for the shaker sub to just drop in?
    Thanks for the help, great write up

    Mickeymeanie likes this.
  16. B.Crowder

    B.Crowder Well-Known Member

    Vehicle(s):
    White 2015 Mustang GT Prem. M/T
    Joined:
    Apr 28, 2015
    Location:
    Markham, Canada
    Posts:
    160
    Likes Received:
    34
    0   0   0
    Thanks for the pictures and write-up. Is there any chance you can get a picture of the other end of the amp input cable shown above. ie. where it connects underneath the panelling? I'm looking for an input signal for a powered subwoofer on my non-Shaker Pro system.

  17. EcoBOSS

    EcoBOSS Well-Known Member

    Vehicle(s):
    2015 EcoBoost Premium, PP, 50th, RR
    Joined:
    Oct 10, 2014
    Location:
    Tejas!
    Posts:
    214
    Likes Received:
    37
    0   0   0
    #17 EcoBOSS, Jun 20, 2015
    Last edited: Jun 20, 2015
    Sure thing, I'll do it later tomorrow when I'm doing the pinouts.

    Polk Audio db840DVC 8 inch - Dual Voice Coil Sub
    Polk Audio db8G - Grille
    Polk Audio DXi6501 - 6.5 inch separates for the rear on order, arriving Wednesday-ish

    [​IMG]

    First time using GIMP - Not bad...

  18. rambunctious

    rambunctious Well-Known Member

    Vehicle(s):
    1930 Model A 50's hotrod, 2011 Diesel Superduty
    Joined:
    May 27, 2015
    Location:
    Holland, Michigan
    Posts:
    85
    Likes Received:
    14
    0   0   0
    excuse my ignorance
    what is the component and power difference between 200 and 400 systems
    assume similar for 201a and 401A ( just adds sub)?
    tks
    Ramb

  19. TheNameAndy

    TheNameAndy Well-Known Member

    Vehicle(s):
    2015 Ecoboost PP
    Joined:
    Apr 13, 2015
    Location:
    Las Vegas
    Posts:
    125
    Likes Received:
    8
    0   0   0
  20. EcoBOSS

    EcoBOSS Well-Known Member

    Vehicle(s):
    2015 EcoBoost Premium, PP, 50th, RR
    Joined:
    Oct 10, 2014
    Location:
    Tejas!
    Posts:
    214
    Likes Received:
    37
    0   0   0
    Speakers arrived, the 6.5 inch set has a set of adapter rings that look promising!

    [​IMG]

Loading...
