Preview: Diode Dynamics LED Turn Signal Housings!

Discussion in 'Diode Dynamics' started by Diode Dynamics, Aug 8, 2016.

  1. Diode Dynamics

    Diode Dynamics Well-Known Member
    Diamond Sponsor


    First Name:
    Nick C.
    Vehicle(s):
    2015 Mustang EcoBoost
    Joined:
    Sep 4, 2014
    Location:
    St. Louis, MO
    Posts:
    2,099
    Likes Received:
    705
    0   0   0
    #1 Diode Dynamics, Aug 8, 2016
    Last edited: Sep 19, 2017
    Hello,

    This product is NOT AVAILABLE YET! We are in design now for a release planned sometime next year. You will be able to find it at diodedynamics.com or your favorite Mustang retailer!

    That said, we started sharing some info based on another product release recently. Some users such as [MENTION=14834]John577[/MENTION] have offered some good suggestions, like a DRL option, so we wanted to get the discussion going and see if there's any other tweaks that might be possible before we release the product!

    Here's the fancy drawing from our engineers. The design started in late January, and has been all done from the ground-up by our engineers in St. Louis, including 3D scanning, 3D printing to confirm fitment, and all optical modeling and simulation.

    [​IMG]

    Basic information- this is our current plan, which we know is possible within our set timeframe:

    - 100% plug and play with integrated resistors- no "gallop"
    - OEM-style optic design, for clean appearance. It will be hard to tell that this is not a factory part.
    - Fully integrated light pattern, again, thanks to the optical design. We designed this with light simulation software in order to ensure a nice appearance and DOT compliant bright turn signal output- we did not want to sacrifice visibility and safety for the turn signal.
    - Sequencing amber turn signal option, lighting up in 3 segments to match the rear- this is optional, just unplug one of the connectors to make it static turn signal instead.
    - DRL mode (just added!) - one extra wire you can tap up at your headlight if you wish. If activated, it would dim down at night. Totally optional.
    - Large GORE vent patch to protect against moisture/condensation.
    - Smoked and clear lens options.
    - Designed and made in USA.
    - Pricing has not been finalized

    Let's hear your questions and feedback! We are pretty far along in production right now, but we will do what we can to accommodate any requests.

    Thanks!

    JB1 likes this.
  2. Ultimateone

    Ultimateone Yes is that's guy /\

    Vehicle(s):
    F32 435i Xdrive
    Joined:
    Jun 18, 2015
    Location:
    Boston, MA
    Posts:
    834
    Likes Received:
    176
    Rating:
    100%
    5   0   0
    You guys hiring? I see Solidworks haha

    Honestly I'm excited and want to see the real thing!

  3. OP
    OP
    Diode Dynamics

    Diode Dynamics Well-Known Member
    Diamond Sponsor


    First Name:
    Nick C.
    Vehicle(s):
    2015 Mustang EcoBoost
    Joined:
    Sep 4, 2014
    Location:
    St. Louis, MO
    Posts:
    2,099
    Likes Received:
    705
    0   0   0
    Yep, Solidworks with Optis plugin to handle the optical side of things- makes a great combo!

  4. John577

    John577 Well-Known Member

    Vehicle(s):
    2015 Oxford White Fastback Mustang GT
    Joined:
    Mar 28, 2015
    Location:
    FRANCE
    Posts:
    2,673
    Likes Received:
    902
    0   0   0
    Thanks a lot to have looked at my suggestion :thumbsup:

    The DRL option is something really nice and I think i'm not the only one who loves to have it on this light :thumbsup:

    Is it possible to have a preview of the light output and also the sequential. So we all can see how that will look like ?

  5. cbass

    cbass Well-Known Member

    First Name:
    God
    Vehicle(s):
    2015 400a A6
    Joined:
    Feb 26, 2016
    Location:
    Rochester, NY
    Posts:
    233
    Likes Received:
    97
    0   0   0
    Sub'd. Can't wait to see what they look like!

  6. OP
    OP
    Diode Dynamics

    Diode Dynamics Well-Known Member
    Diamond Sponsor


    First Name:
    Nick C.
    Vehicle(s):
    2015 Mustang EcoBoost
    Joined:
    Sep 4, 2014
    Location:
    St. Louis, MO
    Posts:
    2,099
    Likes Received:
    705
    0   0   0
    #6 Diode Dynamics, Aug 8, 2016
    Last edited: Aug 8, 2016
    Here is a simulation of the amber turn signal sequence. This is a little bit slow, and pretty dim, and it looks weird because it is directly from the optical simulation software. There is no other light in the image, the only light is coming from the turn signal LEDs, which is why everything else is pitch black.

    But it does give you an idea of the full-housing illumination. Basically, it is divided into three segments, completely lighting up. White is just white color, with the whole thing lit up. Again, we went with a very clean style and appearance.

    EDIT: Removed the animation until we get the timing right. Last one was way too slow!

    plc268 likes this.
  7. cbass

    cbass Well-Known Member

    First Name:
    God
    Vehicle(s):
    2015 400a A6
    Joined:
    Feb 26, 2016
    Location:
    Rochester, NY
    Posts:
    233
    Likes Received:
    97
    0   0   0
    You doing preorders? That just sold me.

  8. John577

    John577 Well-Known Member

    Vehicle(s):
    2015 Oxford White Fastback Mustang GT
    Joined:
    Mar 28, 2015
    Location:
    FRANCE
    Posts:
    2,673
    Likes Received:
    902
    0   0   0
    Hmm, regarding your sequential turn ... Don't know, something says I don't like the look of the 3 blocks... I was hopping to have something more 'smooth', like this, but in the turn light :

    [ame]

  9. cbass

    cbass Well-Known Member

    First Name:
    God
    Vehicle(s):
    2015 400a A6
    Joined:
    Feb 26, 2016
    Location:
    Rochester, NY
    Posts:
    233
    Likes Received:
    97
    0   0   0
    Two reasons we like the 3 block blink.
    -It matches the rear.
    -It allows us to chant "U S A" every time we turn.

    JohnDoe, MakStang and Diode Dynamics like this.
  10. OP
    OP
    Diode Dynamics

    Diode Dynamics Well-Known Member
    Diamond Sponsor


    First Name:
    Nick C.
    Vehicle(s):
    2015 Mustang EcoBoost
    Joined:
    Sep 4, 2014
    Location:
    St. Louis, MO
    Posts:
    2,099
    Likes Received:
    705
    0   0   0
    Yeah, I see what you mean. Our goal here was to maintain the segmented appearance and styling of the factory rear turns.

    Keep in mind- the animation above is a bit slow, it will be a bit more fluid than what you see there.

  11. John577

    John577 Well-Known Member

    Vehicle(s):
    2015 Oxford White Fastback Mustang GT
    Joined:
    Mar 28, 2015
    Location:
    FRANCE
    Posts:
    2,673
    Likes Received:
    902
    0   0   0

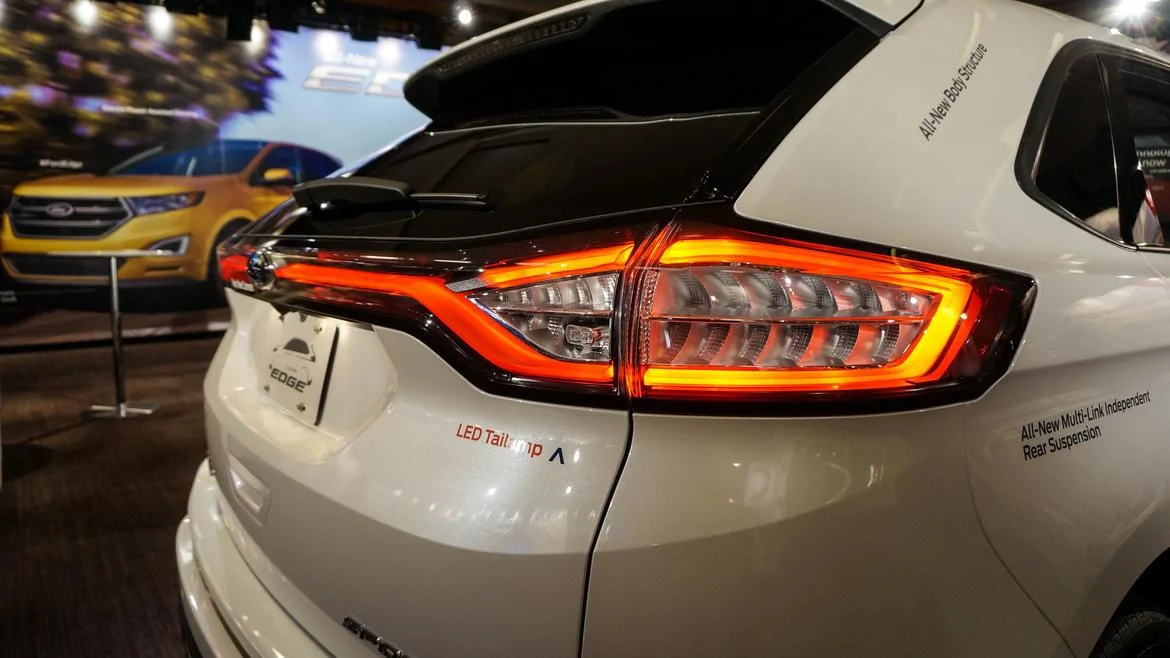

    Or maybe like the Ford Edge rear lights, adding more 'blocks' for the LED's so sequential will be smoother :


  12. Ultimateone

    Ultimateone Yes is that's guy /\

    Vehicle(s):
    F32 435i Xdrive
    Joined:
    Jun 18, 2015
    Location:
    Boston, MA
    Posts:
    834
    Likes Received:
    176
    Rating:
    100%
    5   0   0
    It's already designed...

  13. John577

    John577 Well-Known Member

    Vehicle(s):
    2015 Oxford White Fastback Mustang GT
    Joined:
    Mar 28, 2015
    Location:
    FRANCE
    Posts:
    2,673
    Likes Received:
    902
    0   0   0
    Yes it's designed but not in production now, so modifications can be possible...

  14. OP
    OP
    Diode Dynamics

    Diode Dynamics Well-Known Member
    Diamond Sponsor


    First Name:
    Nick C.
    Vehicle(s):
    2015 Mustang EcoBoost
    Joined:
    Sep 4, 2014
    Location:
    St. Louis, MO
    Posts:
    2,099
    Likes Received:
    705
    0   0   0
    The tooling is already completed. There are 6 LEDs to the turn signal with two lighting up for each one, so it would be possible, but I think we're going to stick with the factory style triple segments on this one.

  15. ststang

    ststang Well-Known Member

    First Name:
    Scott
    Vehicle(s):
    2017 GB EBM AT PP
    Joined:
    May 13, 2016
    Location:
    Syracuse, NY
    Posts:
    267
    Likes Received:
    266
    0   0   0
    Amber turn signals but are they bright white when not using the turn signal like your Switchback Turn Signal LED Kit? Which I have but haven't installed yet.

    Will the Mustang's bumper need to be removed to install these?

    Love the idea of the front turn signals matching the rears.
