Please post Alignment specs on lowered springs

Discussion in 'Suspension, Brakes & Chassis' started by Southview, Sep 15, 2016.

  1. Southview

    Southview Well-Known Member

    First Name:
    Herby
    Vehicle(s):
    2015 GT Premium Convertible
    Joined:
    May 2, 2016
    Location:
    Viera, FL
    Posts:
    676
    Likes Received:
    168
    Rating:
    100%
    2   0   0
    I would like to see what specs you are running after lowering your car. Please include; kit used
    how much drop
    Alignment spec sheet or specs

    Interested only in street driven cars. No track vehicles! THANKS:cheers:

  2. OP
    OP
    Southview

    Southview Well-Known Member

    First Name:
    Herby
    Vehicle(s):
    2015 GT Premium Convertible
    Joined:
    May 2, 2016
    Location:
    Viera, FL
    Posts:
    676
    Likes Received:
    168
    Rating:
    100%
    2   0   0
    :shrug:

  3. SpeedLu

    SpeedLu Well-Known Member

    Vehicle(s):
    2016 Mustang GT
    Joined:
    Feb 13, 2016
    Location:
    who cares
    Posts:
    1,671
    Likes Received:
    665
    0   0   0
    Interesting question, I would like to see some specs too.

  4. Dragster

    Dragster Well-Known Member

    Vehicle(s):
    2015 GT PP
    Joined:
    Nov 11, 2014
    Location:
    USA
    Posts:
    799
    Likes Received:
    154
    0   0   0
    I have Eibach Sportlines on my car (paired with Ford Racing dampers and BMR sway bars) and my car is aligned very closely to the recommended specs on the Ford Racing track handling pack. If I get a chance today, I'll post up my alignment printout.

  5. Bob_Whit

    Bob_Whit Well-Known Member

    Vehicle(s):
    2016 GT Premium PP
    Joined:
    Aug 4, 2016
    Location:
    Menomonee Falls, Wisconsin
    Posts:
    225
    Likes Received:
    50
    0   0   0
    I have the Steeda Progressive springs & I went with the stock settings.

  6. Optimum Performance

    Optimum Performance Well-Known Member
    Gold Sponsor


    First Name:
    Tommy
    Vehicle(s):
    '15 GT PP
    Joined:
    Mar 13, 2016
    Location:
    Titusville, Florida
    Posts:
    1,285
    Likes Received:
    664
    0   0   0
    Wouldn't one just align it to the spec for a street driven vehicle? Maybe some additionall front camber?

    NightmareMoon and Racerx009 like this.
  7. Rebellion

    Rebellion Well-Known Member

    Vehicle(s):
    2016 Competition Orange GT
    Joined:
    Aug 30, 2016
    Location:
    Houston
    Posts:
    1,053
    Likes Received:
    272
    0   0   0
    You can go with the base specs or PP specs...I wouldn't go any more aggressive for a street car.

  8. SpeedLu

    SpeedLu Well-Known Member

    Vehicle(s):
    2016 Mustang GT
    Joined:
    Feb 13, 2016
    Location:
    who cares
    Posts:
    1,671
    Likes Received:
    665
    0   0   0
    I would love to see those specs. I had mine aligned recently and it feels out of wack. I have the printout and I'm curious how it compares to yours.

  9. dsp4848

    dsp4848 Well-Known Member

    First Name:
    David
    Vehicle(s):
    2015 GT PP Magnetic
    Joined:
    Oct 26, 2014
    Location:
    Austin, Texas
    Posts:
    385
    Likes Received:
    107
    Rating:
    100%
    2   0   0

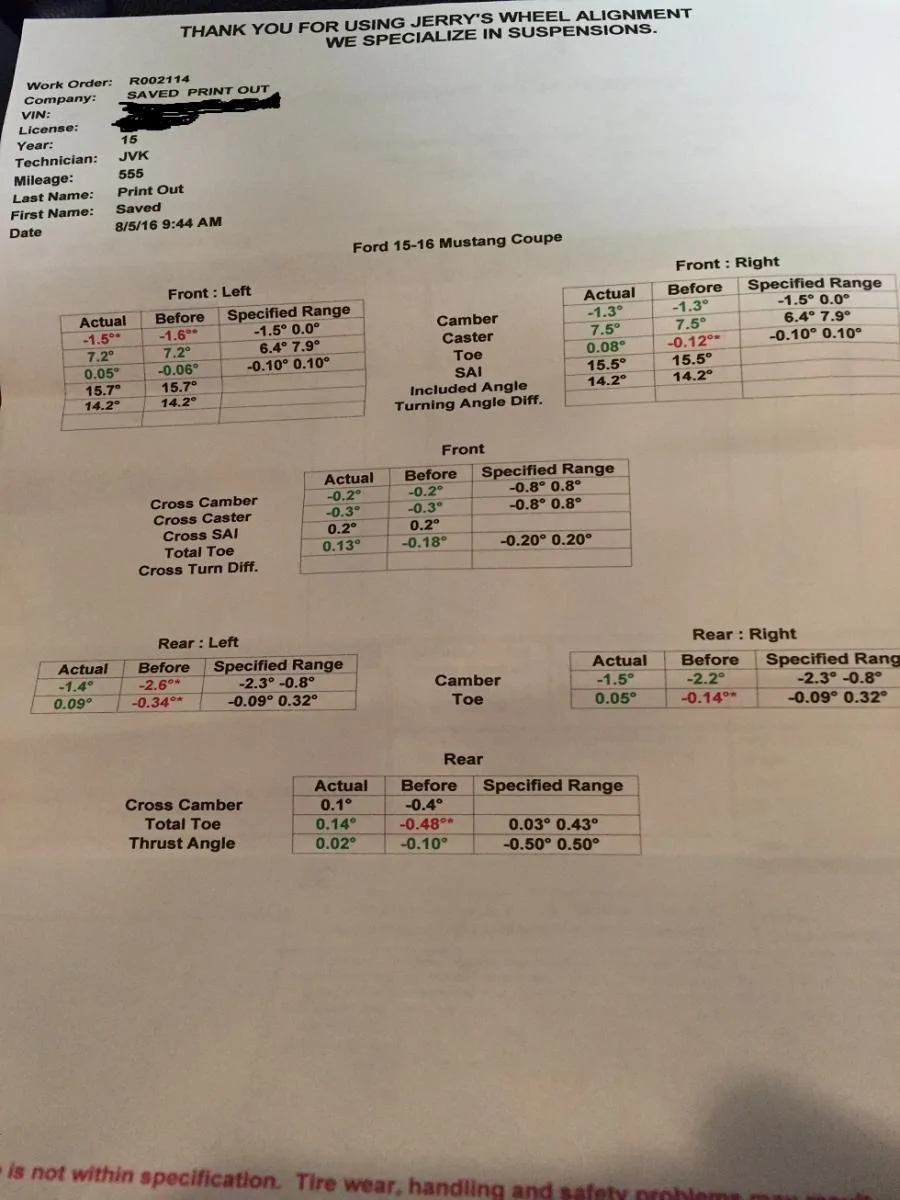

    Here's my alignment spec sheet from a couple months ago on my daily driver S550. I'm on Eibach Pro springs with Koni Yellow shocks/struts. I'm lowered about an inch all around.

    I was worried that I might need CC plates or camber bolts up front, but they were able to get it within specs without either. Alignment 080516 resize.jpg

  10. Optimum Performance

    Optimum Performance Well-Known Member
    Gold Sponsor


    First Name:
    Tommy
    Vehicle(s):
    '15 GT PP
    Joined:
    Mar 13, 2016
    Location:
    Titusville, Florida
    Posts:
    1,285
    Likes Received:
    664
    0   0   0
    I have attached the 2016 Factory Specs. If you look through this document you will see what we personally found to be true, the R model has much less rear camber and that is for a reason.


    Attached Files:

  11. SpeedLu

    SpeedLu Well-Known Member

    Vehicle(s):
    2016 Mustang GT
    Joined:
    Feb 13, 2016
    Location:
    who cares
    Posts:
    1,671
    Likes Received:
    665
    0   0   0
    Anyone have FRPP Track Pack alignment specs?

  12. OP
    OP
    Southview

    Southview Well-Known Member

    First Name:
    Herby
    Vehicle(s):
    2015 GT Premium Convertible
    Joined:
    May 2, 2016
    Location:
    Viera, FL
    Posts:
    676
    Likes Received:
    168
    Rating:
    100%
    2   0   0
    Thanks for posting specs. The factory have a lot of variance in the specs. That's why I want to see what people's specs are on a street car. KEEP POSTING:thumbsup:

  13. Dragster

    Dragster Well-Known Member

    Vehicle(s):
    2015 GT PP
    Joined:
    Nov 11, 2014
    Location:
    USA
    Posts:
    799
    Likes Received:
    154
    0   0   0

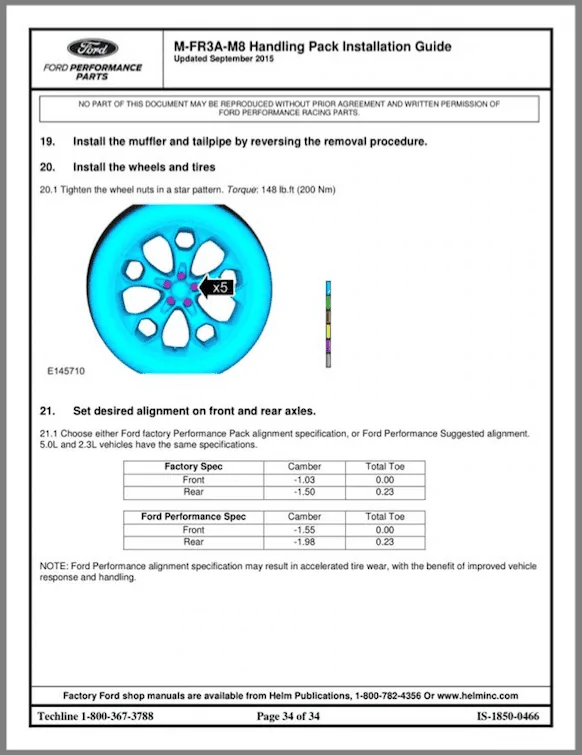

    So I finally got around to finding my alignment sheet. The first picture is from the Ford Racing track handling pack instructions. It shows the recommended alignment specs for both the stock 2015 GT as well as one with the Ford Racing track handling pack. The second picture is my personal car's alignment. It has Eibach Sportlines, Ford Racing dampers, and BMR sway bars. I do NOT have any CC plates or camber bolts, etc.. Please ignore the fact that the top of my alignment sheet lists "2012-2014"; my alignment was done at a Ford dealer (one of the few places that said they could get my car up on the rack), and the 2015 was not listed in the computer at the time.

    You can see that, overall, the alignment is very close to the Ford Racing specs: front camber is basically spot on, total toe is spot on, and rear camber is actually a little less than they recommend (I asked for this spec). All of this was done with no CC plates or camber bolts. If you want to get to the factory recommended specs, you may need them, however. My car is not a DD, so I don't mind at all.

    Hope that helps!

    EDIT: For some reason, the attachment with my alignment is not showing up in the post. Looks like you may have to download it. Not sure what the issue is. If no one else can see it, I'll try taking a picture of it and posting that. FRPP alignment specs.png


    Attached Files:

    Alloy likes this.
  14. Racerx009

    Racerx009 Well-Known Member

    First Name:
    Anthony
    Vehicle(s):
    2017 Ford mustang gt non pp
    Joined:
    Aug 20, 2018
    Location:
    North Carolina
    Posts:
    220
    Likes Received:
    39
    Garage Profiles:
    1
    Occupation:
    Retired law enforcement /FBI automotive tech
    0   0   0
    I had my 17 mustang gt done to factory but had - 1.5 camber up front

  15. import111

    import111 Well-Known Member

    Vehicle(s):
    2016 Mustang GT PP
    Joined:
    Oct 10, 2015
    Location:
    Tucson, AZ.
    Posts:
    108
    Likes Received:
    16
    0   0   0
    Swift Spec R springs lowered 1.1F 1R
    Koni yellow adj. shocks/struts
    Camber front -1.8 rear -1.3
    0 toe all 4 corners
