Opening OEM Grille Cells With Router Technique — For Maximum Air Intake Flow

[GTP]

For maximum air intake on track days, I have opened virtually all the grille cells in my GT PP1 grille. This was also to save money over purchasing an aftermarket grille, and to keep the OEM look.

I used my Bosch Colt 1/4" router and the Bosch offset base. I call this base a "flushing" or "facing" base because it allows to machine down a material that is proud of an otherwise flat reference surface. Basically it is an exposed bit that is offset from the router motor shaft and is driven by a toothed belt. I tried to keep in mind the "exposed bit" feature during the machining. This accessory served me well during my speakerbuilding days.

I came into a good deal on a used upper grille, so I had a chance to do a better job the second time around. Even though I had done it before, this technique still took me around 3 hours for setup, machining, cleanup, and then some detail trimming of excess flash around the cells with a small knife.

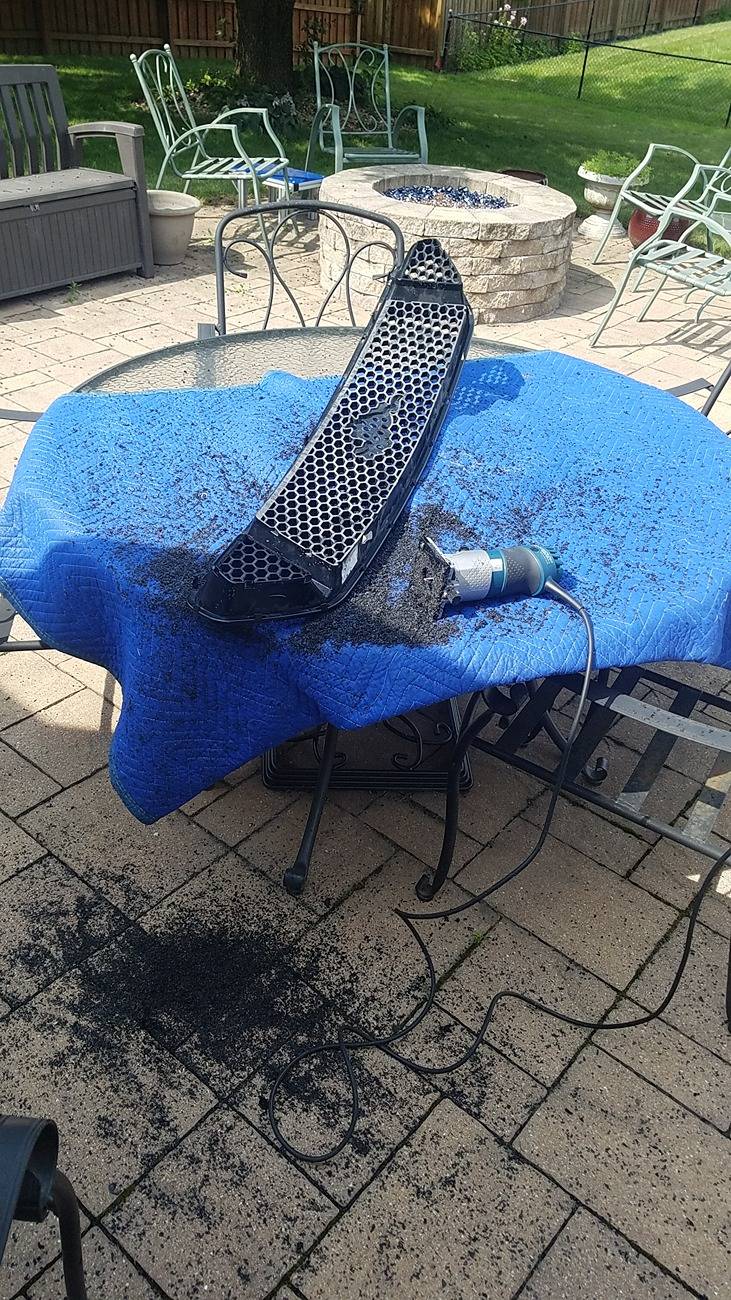

And it made a big mess as you can see.

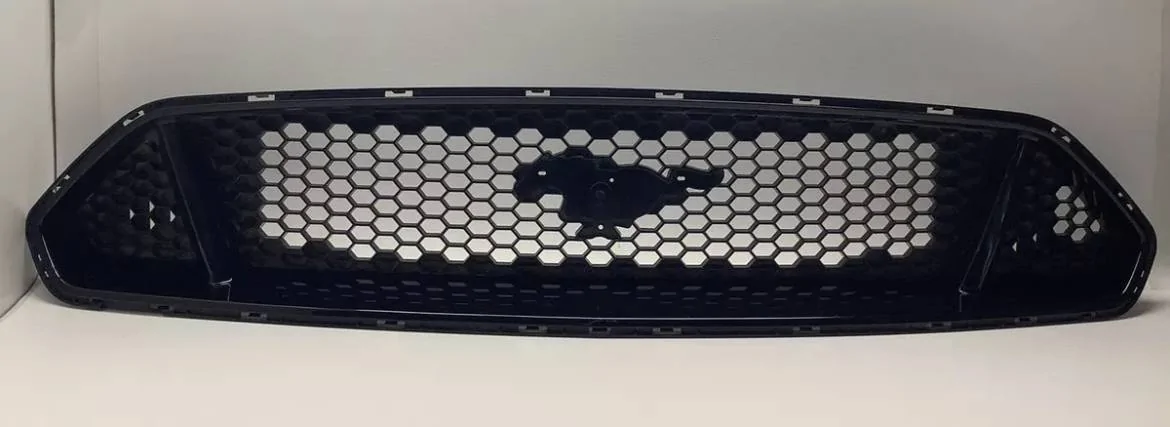

The advantage of this technique is that all the cells retain their maximum depth and the frontside definitely keeps that OEM look.

MORE PHOTOS:

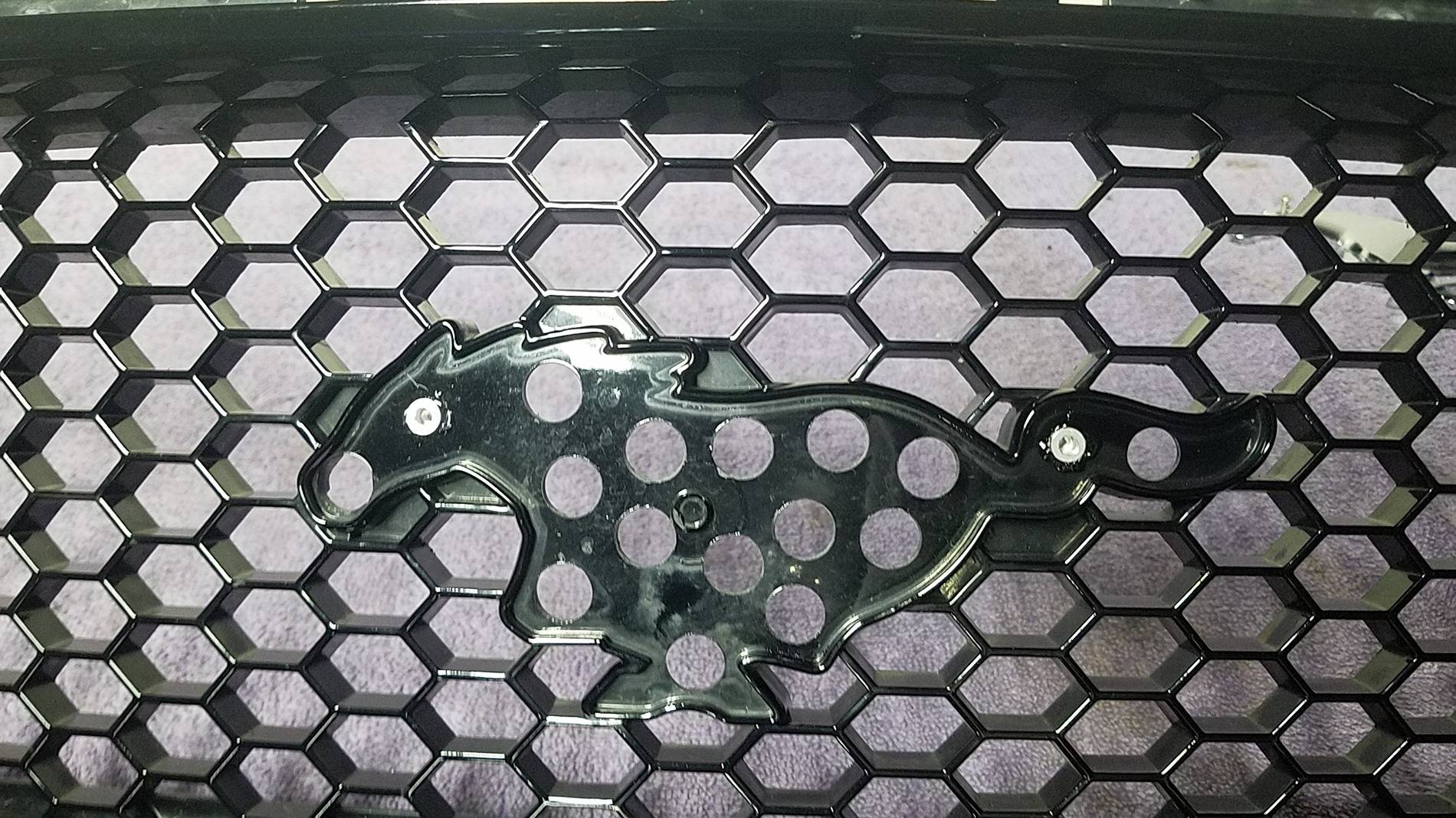

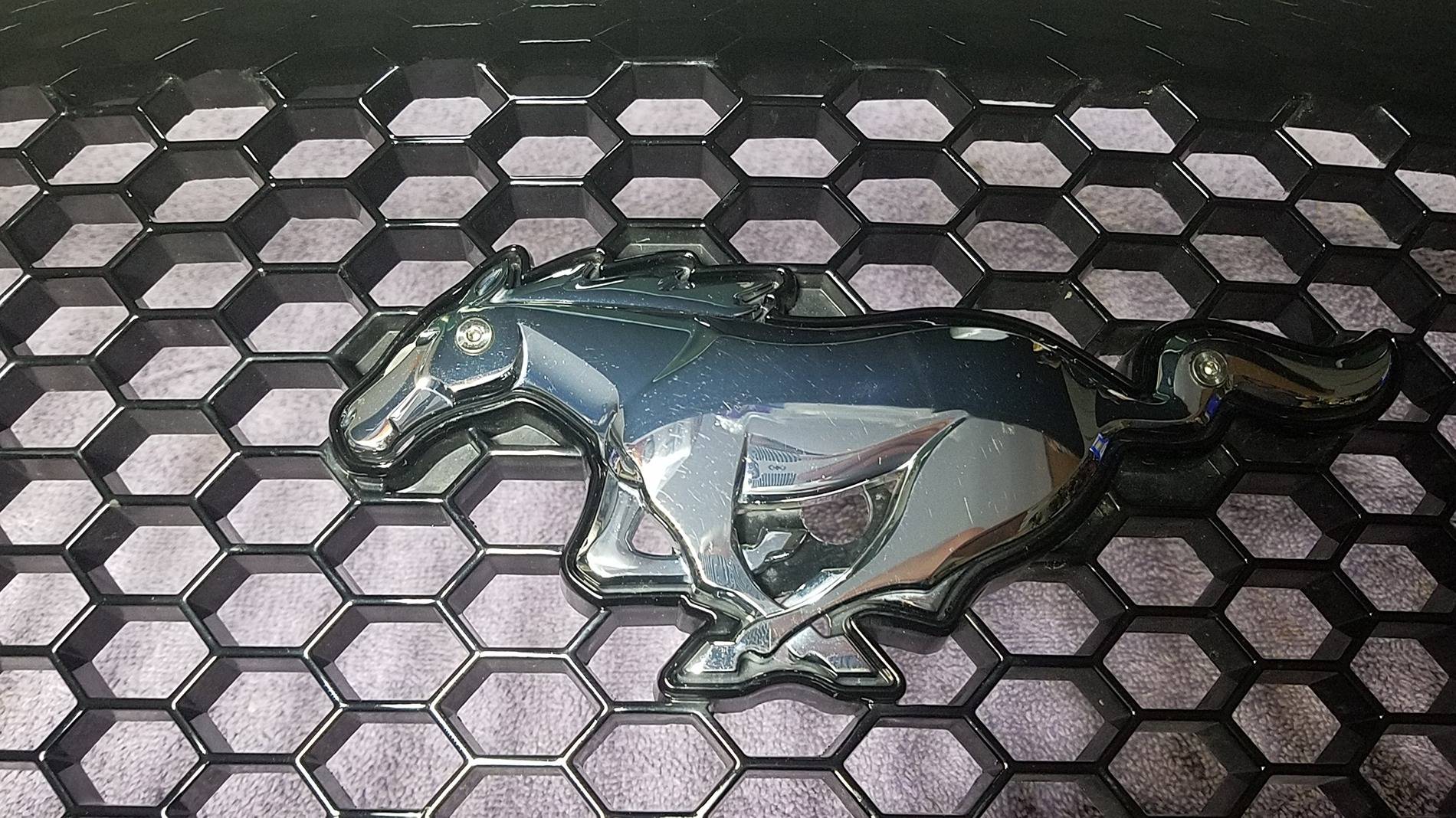

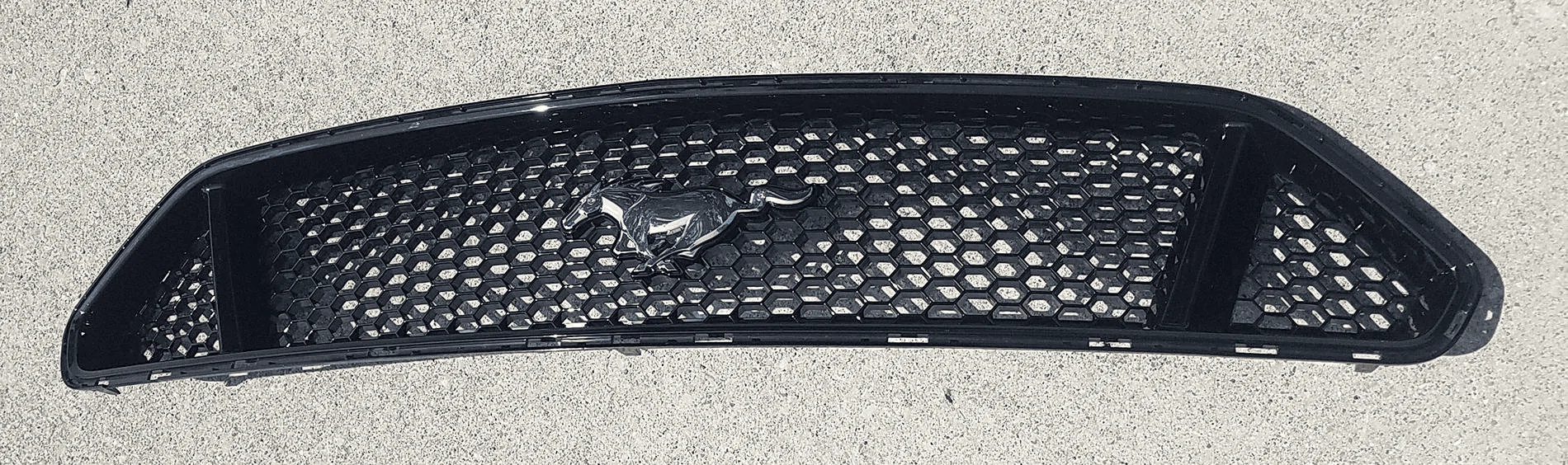

The pony is removable, so I can be stylin' back on the street. Notice the 6-32 flathead stainless screws at the head and tail.

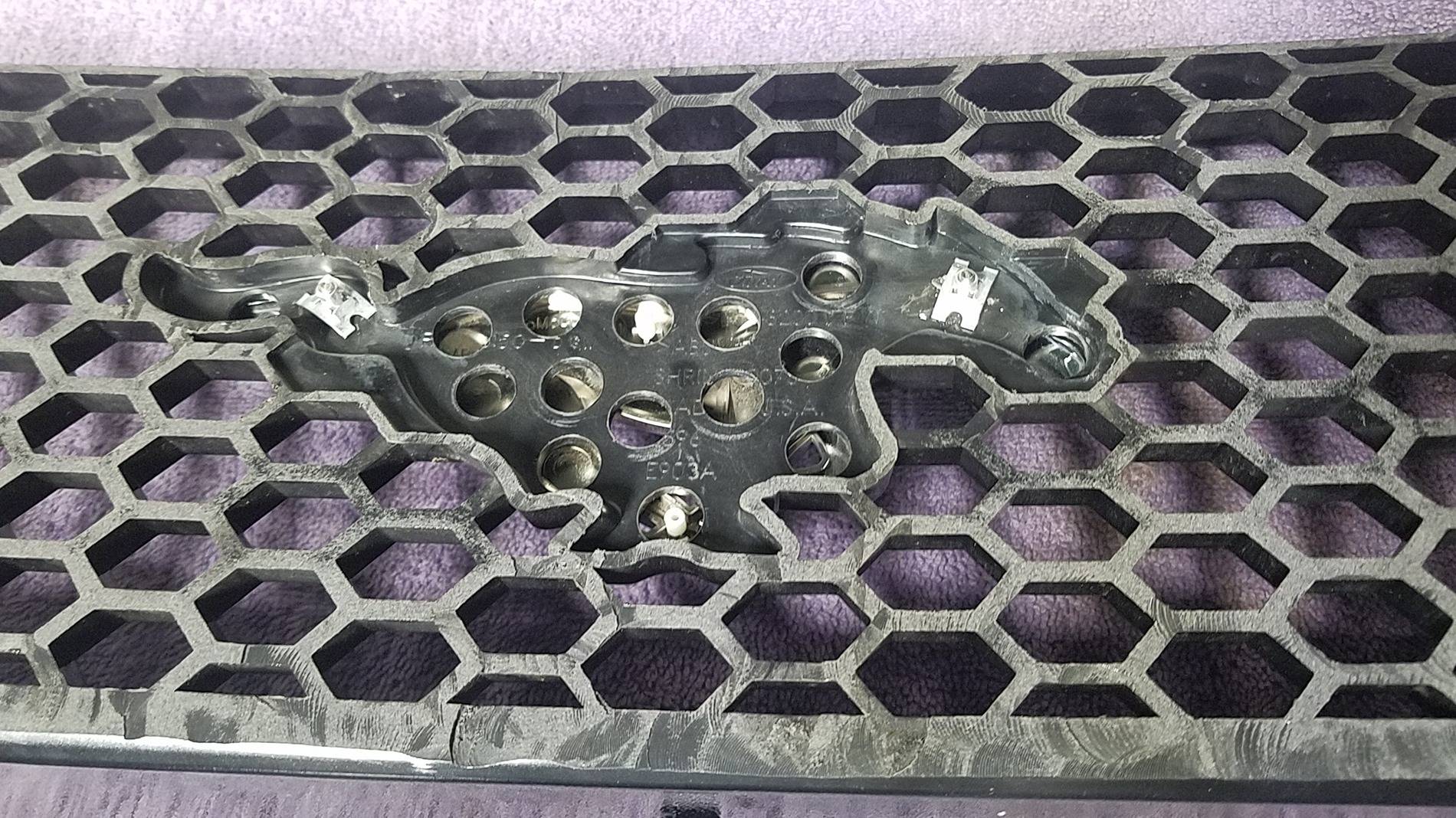

For track days, I ventilated the pony recess area with a 1/2" step drill. The rivet nut inserts were plastic welded in place:

Retainer clips were pushed onto them from the back. This was a safety backup, because I don't want to be That Guy on track whose pony badge fell off on the straightaway.

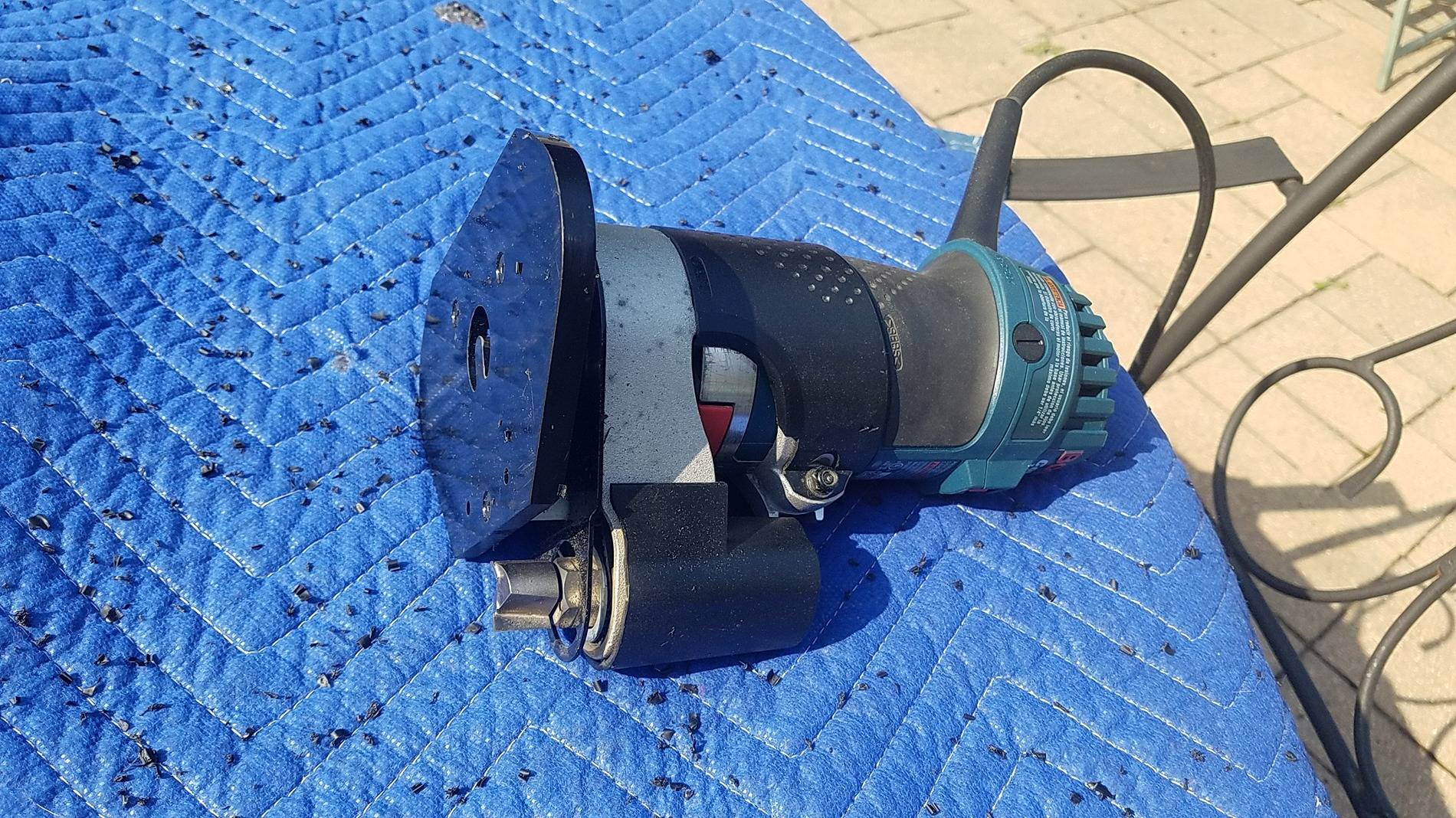

Offset router setup (tooth belt not visible):

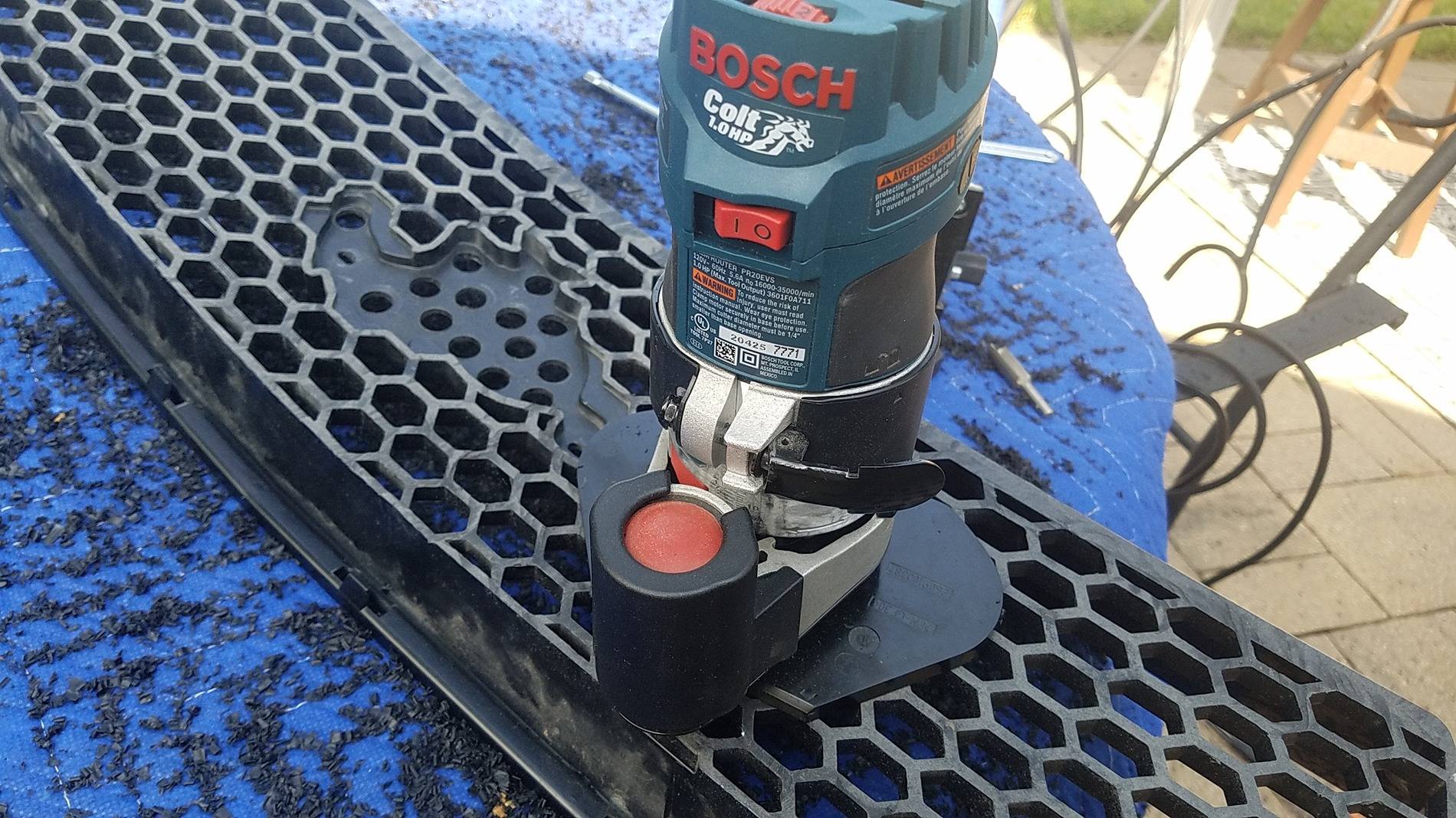

Machining from the back side:

The big mess:
