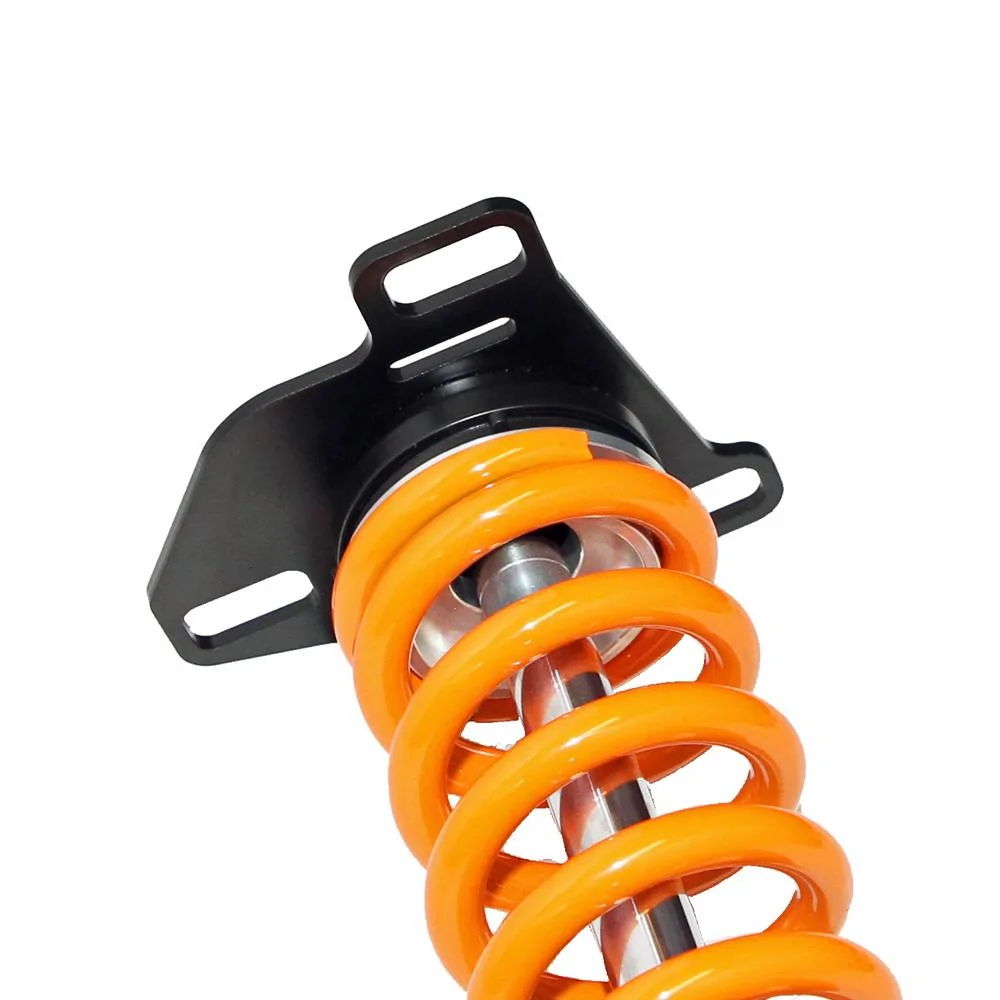

2005-2018 Mustang 2.5" Coil Over Conversion Kit

When installing Coil Over struts on your 2005-2018 Mustang that has Caster Camber Plates you will require this all new Part # 24240 Coil Over Conversion Adapter Kit from J&M Products/hotpart.com. The upper spring perch supplied in aftermarket Coil Over kits will not properly mate to the profile of the bottom of any aftermarket caster camber plate.

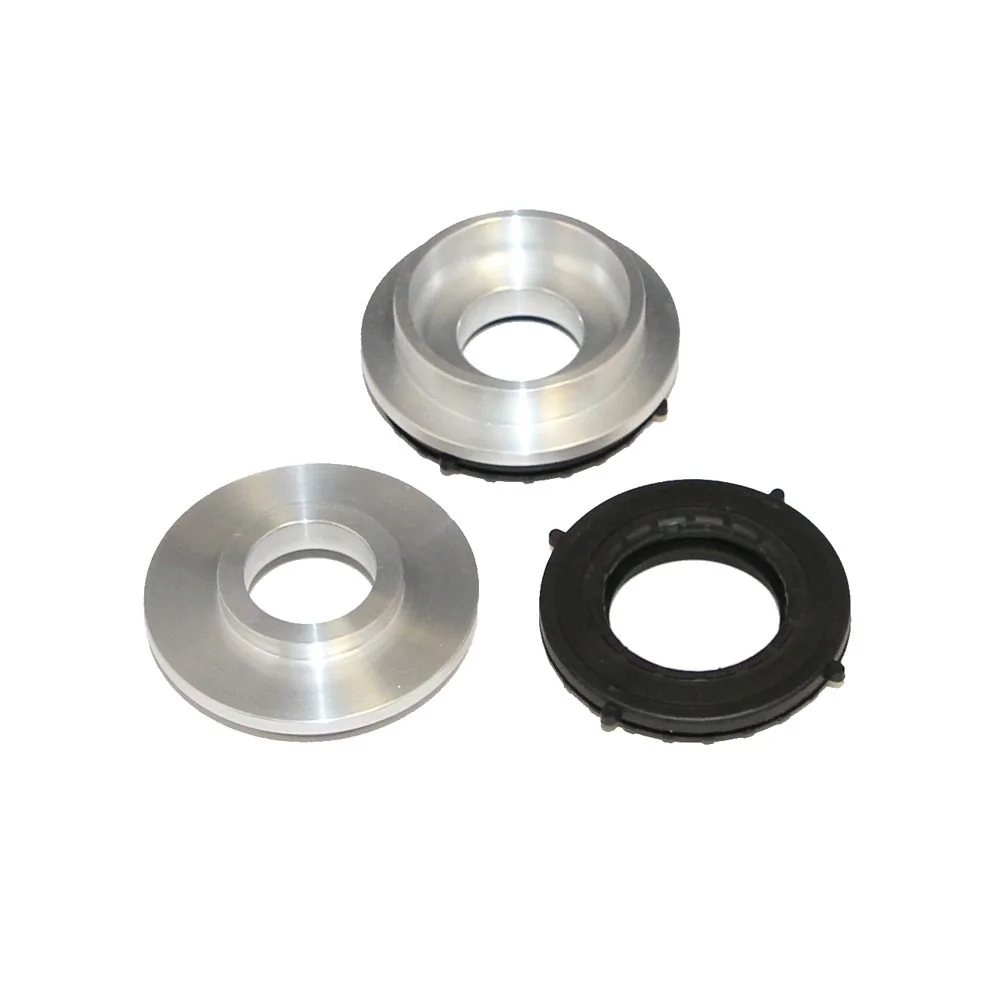

This conversion kit provides a new spring perch and all the related items to allow proper installation of any coil-over kit to any manufacturer’s caster camber plates that utilize the stock spring seat. Additionally the machined billet aluminum adapter has more material spanning the surface area of the spring to better distribute the vehicle weight over the suspension.

The benefits of this design are quite apparent from an engineering perspective, in that the weight of the car is not supported by the singular spherical bearing in the camber plate,but rather distributed across the surface area of the spring seat with the ball bearing assembly under the caster camber plates, the same as the major manufacturers design their load bearing suspension components. Spherical bearings are not designed to take axial (up and down) loading.

2005-2018 Mustang 2.5 Coil Over Conversion Kit features and benefits:

  • Ball bearing spring seat assembly
  • Billet aluminum machined adapter
  • Suspension loading is through the body of the camber caster plate and not the spherical bearing.
  • Fits all caster camber plates that use the stock style spring seat. (All 2005-Present J&M Plates and most others 2011-2017 excluding GT500)
Sponsored



Bluemustang

Well-Known Member
Joined
Nov 6, 2015
Threads
149
Messages
3,897
Reaction score
2,263
Location
Maryland
First Name
Ryan
Vehicle(s)
2015 Mustang Base GT
I was looking at possibly picking these up. But I need to know if I can use them for Maximum Motorsports caster camber plates to be used with RideTech Lvl 2 HQ coilovers. Will this work?


Hotpart.com

Well-Known Member
Diamond Sponsor
Joined
Dec 8, 2014
Threads
45
Messages
297
Reaction score
211
Location
San Luis Obispo, CA
Vehicle(s)
2002, 2006, 2015 Mustangs
We have never used the RideTech parts but if they use a 2.5" ground spring then yes these parts will fit using any camber plate that uses the factory spring seat and bearing.


Bluemustang

Well-Known Member
Joined
Nov 6, 2015
Threads
149
Messages
3,897
Reaction score
2,263
Location
Maryland
First Name
Ryan
Vehicle(s)
2015 Mustang Base GT
We have never used the RideTech parts but if they use a 2.5" ground spring then yes these parts will fit using any camber plate that uses the factory spring seat and bearing.
Yes they use 2.5" springs.
