Motive Brake Bleeder Adaptor

KS10

Well-Known Member
Joined
Jul 1, 2016
Threads
8
Messages
80
Reaction score
111
Location
Southeast
Vehicle(s)
'17 GT350R
Just thought I would give everyone a heads up on some motive brake bleeder adapter info that I just came across.

I am not sure about you all, but the motive brake bleeder kit is the best way I know of to bleed/flush brake systems, it works great. I read on another site that the motive GM adaptor is what is needed for the GT350, but there is more to the story that you all should know before ordering an adaptor. I read the GM 3 tab adaptor is what you need for the GT350, but that is only partially true. I was happy to read this because I also have a Z06 and I already have the GM 3 tab adaptor for this car that is supposed to fit, but when I went to test fit it this weekend it did not fit. My car ('17 GT350R) has a threaded brake fluid reservoir and the 3 tab adapter did not fit.

I called motive and they confirmed that Ford changed the brake fluid reservoir on the '17 350 to a threaded cap design, while the '16 350 uses the 3 tab design. If you have a '15 or '16 350 you need the 3 tab GM motive adaptor, but if you have a '17 you will need the Euro style (1109) threaded adaptor. The Gentleman I spoke with at motive seemed very up to speed on his info, but I will confirm fitment when mine arrives later this week. Anyway, I thought this info may help a fellow member from ordering the wrong adaptor for their GT350(R).
Sponsored



tdzee

Well-Known Member
Joined
Nov 4, 2015
Threads
32
Messages
866
Reaction score
346
Location
Atlanta Motorsports Park
First Name
Tom
Vehicle(s)
85 Corvette, 04 Corvette Z16, 08 350Z NISMO, 15 CTS-V Coupe, 17 GT350R
I have the exact same set up. Thanks for the info. Pls let us know once you get it that it works correctly.

My Z05 is a C5. Yours?


Zitrosounds

Well-Known Member
Joined
Oct 20, 2015
Threads
67
Messages
3,411
Reaction score
2,164
Location
Madison, AL
First Name
Harold
Vehicle(s)
16 GT350R/16 GT350TP/15 GT-PP/12 GT-PP
Just thought I would give everyone a heads up on some motive brake bleeder adapter info that I just came across.

I am not sure about you all, but the motive brake bleeder kit is the best way I know of to bleed/flush brake systems, it works great. I read on another site that the motive GM adaptor is what is needed for the GT350, but there is more to the story that you all should know before ordering an adaptor. I read the GM 3 tab adaptor is what you need for the GT350, but that is only partially true. I was happy to read this because I also have a Z06 and I already have the GM 3 tab adaptor for this car that is supposed to fit, but when I went to test fit it this weekend it did not fit. My car ('17 GT350R) has a threaded brake fluid reservoir and the 3 tab adapter did not fit.

I called motive and they confirmed that Ford changed the brake fluid reservoir on the '17 350 to a threaded cap design, while the '16 350 uses the 3 tab design. If you have a '15 or '16 350 you need the 3 tab GM motive adaptor, but if you have a '17 you will need the Euro style (1109) threaded adaptor. The Gentleman I spoke with at motive seemed very up to speed on his info, but I will confirm fitment when mine arrives later this week. Anyway, I thought this info may help a fellow member from ordering the wrong adaptor for their GT350(R).
whats the part number for the adapter needed for a 16 GT350?

Thanks,

OP
OP
KS10

KS10

Well-Known Member
Joined
Jul 1, 2016
Threads
8
Messages
80
Reaction score
111
Location
Southeast
Vehicle(s)
'17 GT350R
I have the exact same set up. Thanks for the info. Pls let us know once you get it that it works correctly.

My Z05 is a C5. Yours?

Mine is a C6, been an amazing car. Really at home on the track.


Sponsored

OP
OP
KS10

KS10

Well-Known Member
Joined
Jul 1, 2016
Threads
8
Messages
80
Reaction score
111
Location
Southeast
Vehicle(s)
'17 GT350R
1118 Black Label GM / Late Mustang 3-Tab Cap
To ensure you order the proper adapter I suggest everyone verify if their reservoir is the threaded or three tab design first and order the appropriate adapter accordingly just to be safe.


cjgt350

Adrenaline Junkie
Joined
May 29, 2015
Threads
27
Messages
864
Reaction score
485
Location
Central OK
Vehicle(s)
2014 F250 Platinum 2016 GT350 TP
I have a '16 as I and others have used the same as listed below with zero issues.

Motive Products Power Bleeder #0109 - European- Black Label

Last edited:

mattlqx

Driver
Joined
Aug 21, 2015
Threads
15
Messages
2,478
Reaction score
1,632
Location
Mesa, AZ
First Name
Matt
Vehicle(s)
'22 Mach 1, '16 F-150, '14 Fiesta ST, '14 Audi A7
1118 Black Label GM / Late Mustang 3-Tab Cap
I have this one, I can't get it to seal at all.

0109 appears to be the number of the bleeder bottle with the 1109 adapter. I'll give that adapter a try.


krt22

Well-Known Member
Joined
May 27, 2015
Threads
8
Messages
4,555
Reaction score
2,014
Location
CA
Vehicle(s)
2016 GT350 Track Pack
1118 Black Label GM / Late Mustang 3-Tab Cap
That is not correct. I bought it and it didnt fit.

109 (full kit) or 1109(just the threaded adapter) is what you need.

edit:what mattlqx said!


fpa1974

Well-Known Member
Joined
Dec 12, 2016
Threads
54
Messages
811
Reaction score
304
Location
GA
Vehicle(s)
'19 GT350R

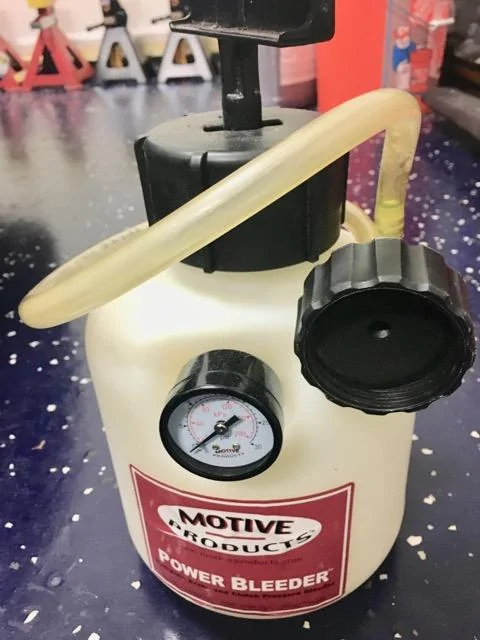

The euro bleeder works perfectly on a 17' GT350. I just checked. The bleeder is more than 10 years old (got it for my BMWs). Here is a picture of it:


Sponsored
OP
OP
KS10

KS10

Well-Known Member
Joined
Jul 1, 2016
Threads
8
Messages
80
Reaction score
111
Location
Southeast
Vehicle(s)
'17 GT350R
That is not correct. I bought it and it didnt fit.

109 (full kit) or 1109(just the threaded adapter) is what you need.

edit:what mattlqx said!
Thanks for clarifying guys. Looks like the motive guy may have been misinformed. Can anyone confirm they have a 3 tab reservoir 350 or are they all threaded regardless of year model. Sorry if I caused any confusion.


Zitrosounds

Well-Known Member
Joined
Oct 20, 2015
Threads
67
Messages
3,411
Reaction score
2,164
Location
Madison, AL
First Name
Harold
Vehicle(s)
16 GT350R/16 GT350TP/15 GT-PP/12 GT-PP
Thanks for clarifying guys. Looks like the motive guy may have been misinformed. Can anyone confirm they have a 3 tab reservoir 350 or are they all threaded regardless of year model. Sorry if I caused any confusion.
Thank you for the info! will be ordering mine TONIGHT!!!!


mattlqx

Driver
Joined
Aug 21, 2015
Threads
15
Messages
2,478
Reaction score
1,632
Location
Mesa, AZ
First Name
Matt
Vehicle(s)
'22 Mach 1, '16 F-150, '14 Fiesta ST, '14 Audi A7
Thanks for clarifying guys. Looks like the motive guy may have been misinformed. Can anyone confirm they have a 3 tab reservoir 350 or are they all threaded regardless of year model. Sorry if I caused any confusion.
Pretty sure they're all threaded. All of my recent Fords are.


BlkGT3

Well-Known Member
Joined
Aug 3, 2015
Threads
6
Messages
227
Reaction score
106
Location
Hot Spot
Vehicle(s)
13 GT86 Autox, 16 GT350 TP, 06 Civic Si TTD car
Pretty sure they're all threaded. All of my recent Fords are.
My 16 GT350 uses the same threaded adapter as my P Cars. It is NOT 3 tab.

Peter
