    Part 1: Prototype Design

    Over the past year we have been getting acquainted with our Mustang GT, and in the process we’ve developed an entire line of cooling products for it. In the spirit of staying cool, we are on to our next project, the Mustang GT Automatic Transmission Cooler.

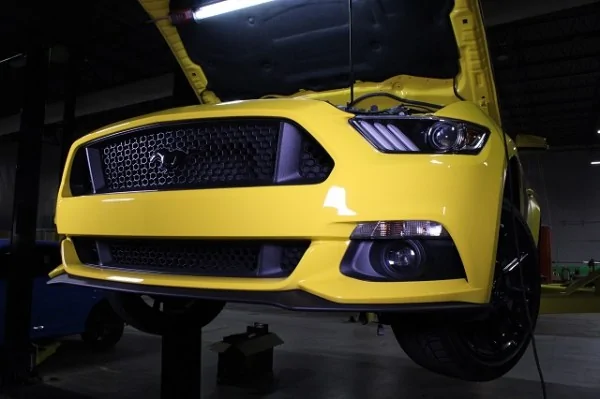

    Donor vehicle for Mustang GT trans cooler testing

    Heat is generally the enemy of an automatic transmission. In fact, the Ford factory service manual notes that when the GT’s computer senses the transmission overheating, it will limit RPMs until the temperature returns to a normal range. There is nothing worse than a track day ending early due to high temps of any kind, including in the transmission. Whether you are taking your GT to the track or doing any sort of hard driving, you may have considered the addition of a trans cooler. Ford certainly did; for this generation of Mustang they included an air-to-oil cooler rather than the water-to-oil coolers of older generations.


    Mishimoto’s Design Plans

    Our game plan is to go with the design that Ford laid out for this S550, but with some improvements. We will stick with the stock-style liquid-to-air heat exchanger, and increase its size.

    The stock trans cooler is located between the radiator and the AC condenser, so we do not have a ton of room to work with in increasing the width of the cooler. However, there is room to increase the height of the cooler, which will add some additional capacity.

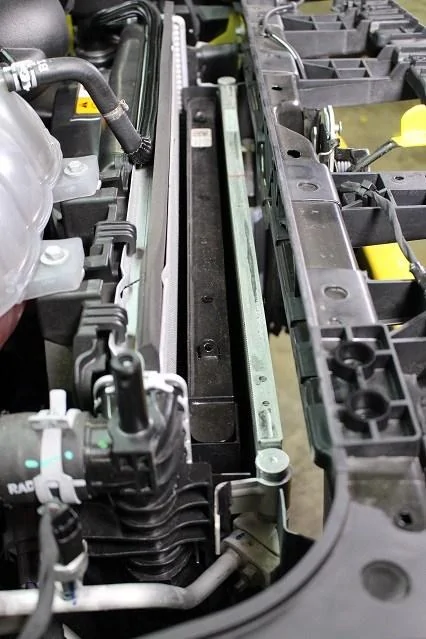

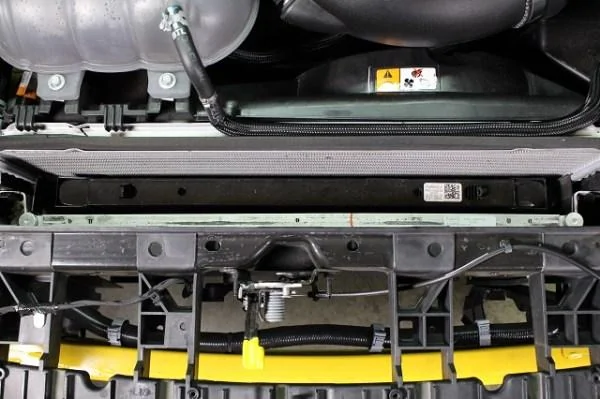

    Stock Mustang GT Trans Cooler

    Stock Mustang GT Trans Cooler

    Using data obtained from the GT and the stock cooler, we were able to create a model of what our prototype will look like. Check it out below!

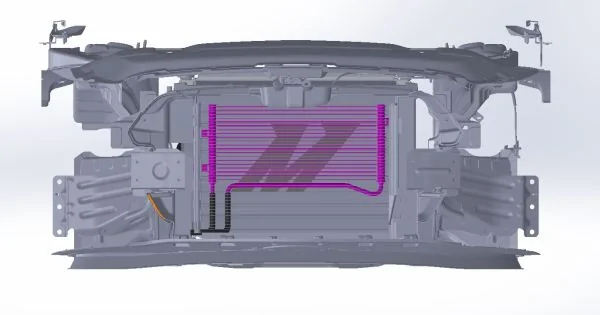

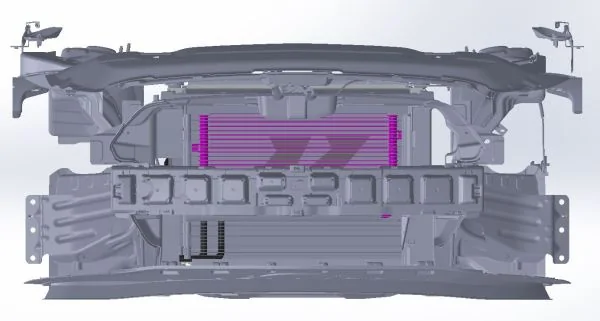

    Model of Mustang GT trans cooler

    Model of Mustang GT trans cooler

    Model of Mustang GT trans cooler

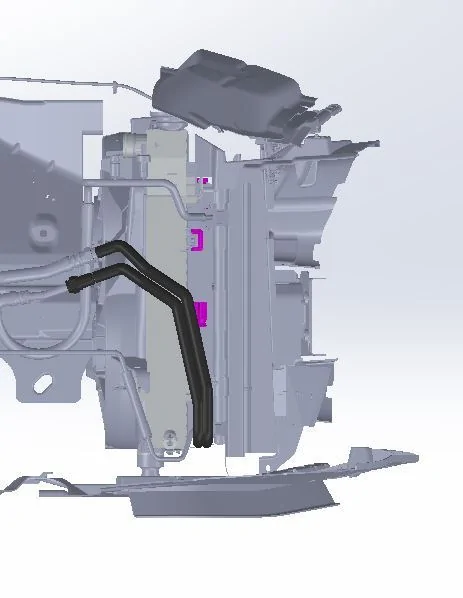

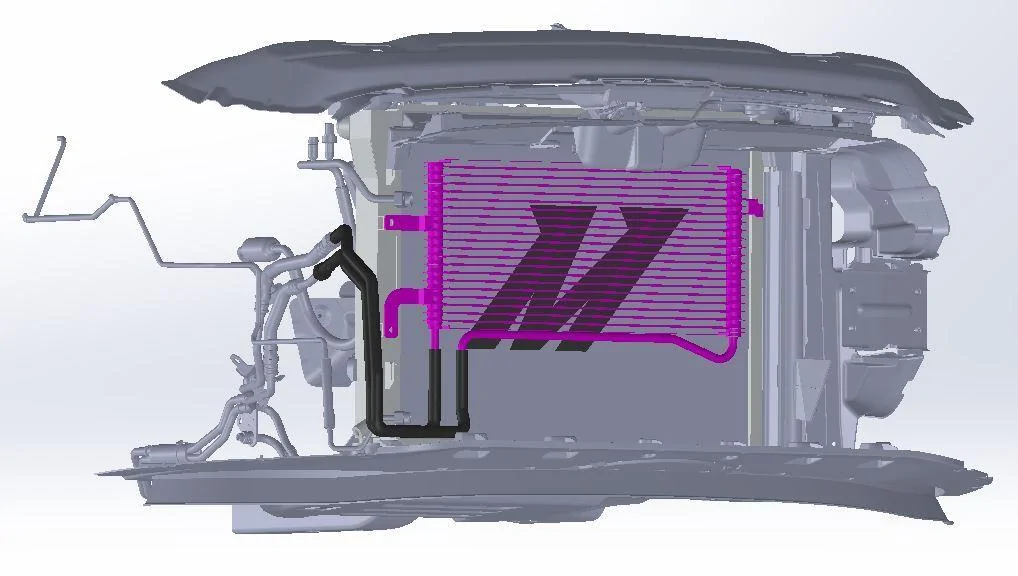

    Side-view of Mustang GT Trans Cooler


    Coming Up!

    Now that we have our prototype designed, next up is prototype test fitment. Stay tuned for a look at our actual prototype, and to see how it fits with our GT. In the meantime, let us know what you think of our Mustang GT auto trans cooler in the comments below.

    Thanks for reading!
    -Sara

  2. OP
    OP
    Mishimoto

    Mishimoto Well-Known Member

    Vehicle(s):
    2015 EcoBoost, 2016 GT
    Joined:
    Sep 3, 2014
    Location:
    Delaware
    Posts:
    1,047
    Likes Received:
    411
    Rating:
    100%
    2   0   0
    #2 Mishimoto, Sep 23, 2016
    Last edited: Sep 27, 2016
    Part 2: Prototype Fitment

    In our last post, we took a look at the stock Mustang automatic transmission cooler and our plans to make it even better. We designed the cooler in Solidworks, based off the measurements obtained from both the GT and the stock cooler. We will be doing our R&D with this bold yellow GT, but based on our research, this cooler will fit all models of S550 Mustang including the EcoBoost and V6. But enough about fitments, the prototype is complete! It is time to see how well our digital design translated into a real-life prototype.

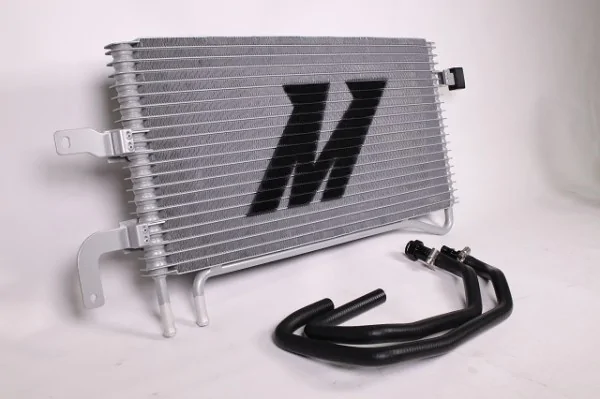

    Mishimoto Mustang trans cooler

    So far the trans cooler is looking good. It is much larger than the stock cooler, double the size to be exact. The stock cooler comes in at 10 rows, where the Mishimoto cooler doubles its size at 20 rows.

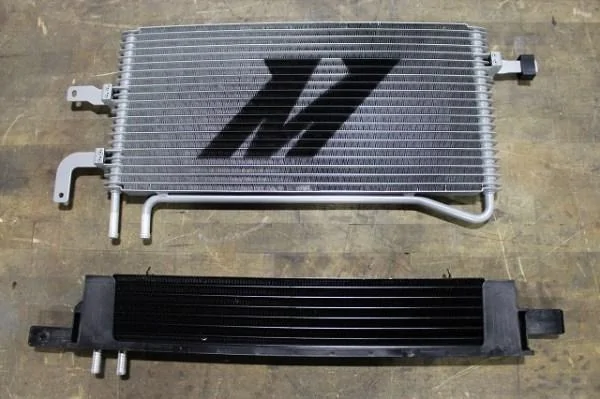

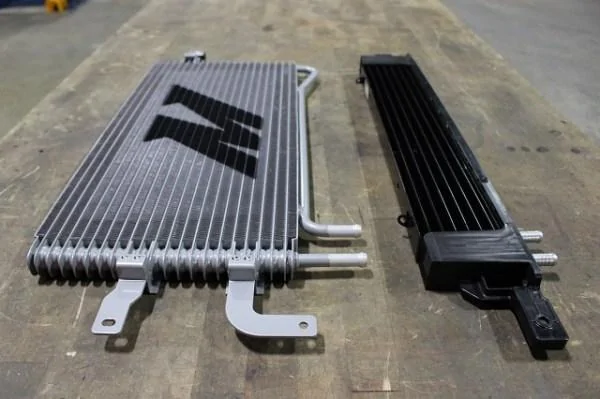

    Mustang Trans Coolers

    Mustang Trans Coolers

    With the stock cooler removed, we must now check the fitment of our trans cooler in the GT. Dan, our engineer, removed the bumper for better access to the cooler and lines.

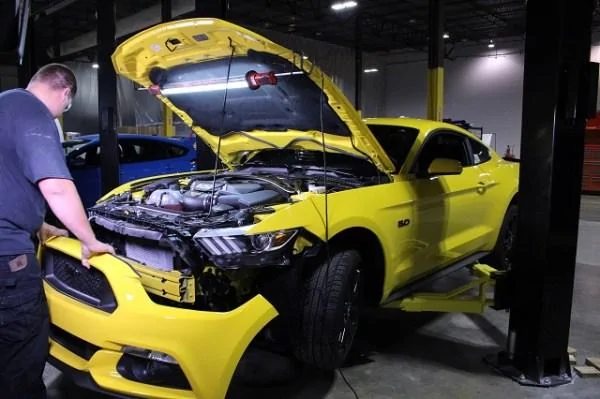

    Mustang GT donor vehicle

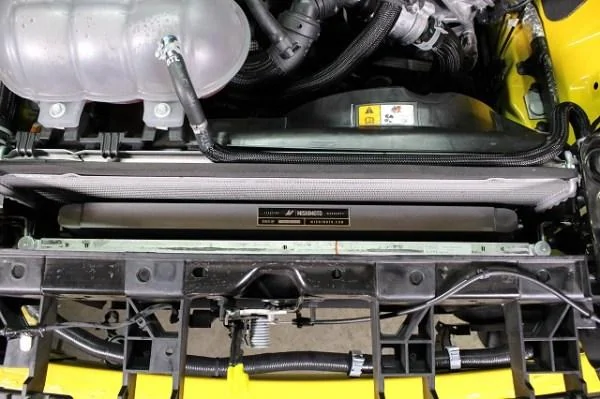

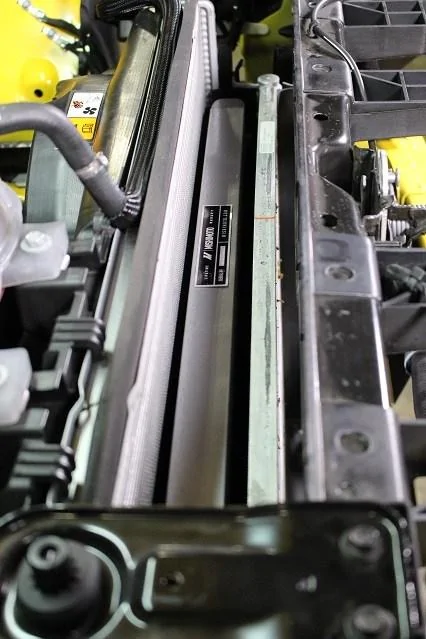

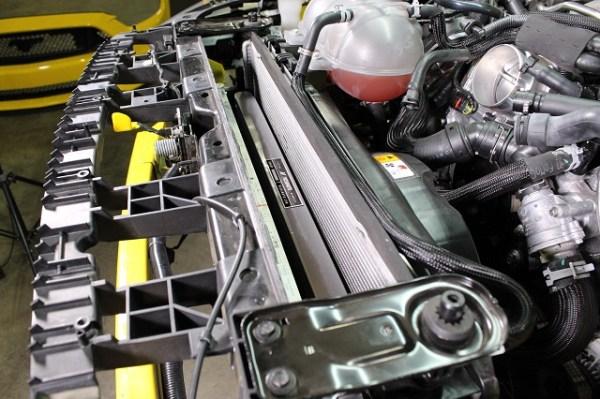

    Mustang trans cooler installed

    Mustang trans cooler installed

    Mustang trans cooler installed

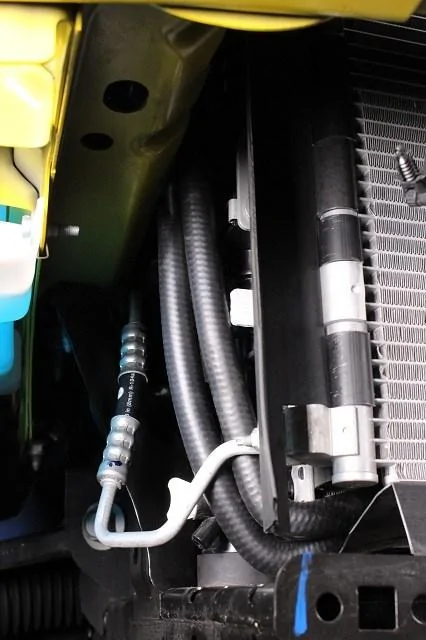

    Mustang auto trans cooler lines installed

    Success! The Mustang trans cooler fits in the GT like a dream, so there is only one thing left for us to do; nope, not kick up our feet and grab a cold one (that would be after hours) - it’s time to move on to testing!

    Coming Up!

    With fitment confirmed, we are on to the good stuff: testing! It is time to put this trans cooler through its paces to see what it can do. Stay tuned for the results of our Mustang GT auto trans cooler testing, and the upcoming pre-sale.

    Thanks for reading!
    -Sara

  3. 86merc

    86merc Well-Known Member

    Vehicle(s):
    2015 Mustang GT
    Joined:
    Sep 1, 2015
    Location:
    US
    Posts:
    353
    Likes Received:
    124
    0   0   0
    As someone with a higher stall converter in their car, I am happy to see this.

    You say "So far the trans cooler is looking good. It is much larger than the stock cooler, 50% larger to be exact. The stock cooler comes in at 10 rows, where the Mishimoto cooler doubles its size at 20 rows." I don't believe that is correct.

    First off is the stock unit really 10 rows? It doesn't seem to be 10 rows in the pictures. But even if it is 50% larger would mean the Mishimoto unit would be 15 rows. No? You can clearly see the Mishimoto unit is 20 rows in the picture. It is clearly larger than the stock one. But I am really curious is the stock one really is a 10 row unit.

    Does the Mishimoto unit have the same, less or more, fins per square inch compared to the stock one?

    Does the Mishimoto unit have the same, larger or smaller tubes than the stock unit?

    Thank you for updates and info as always. We appreciate it Sara! :cheers: I have a feeling I will be one of your first customers on these as well. :D

    Texican1911 likes this.
  4. Jmeo

    Jmeo You said member ;)

    First Name:
    Jaime
    Vehicle(s):
    2020 GT500
    Joined:
    May 28, 2014
    Location:
    Massachusetts
    Posts:
    5,699
    Likes Received:
    3,284
    Garage Profiles:
    2
    Occupation:
    El-Bombero
    Rating:
    100%
    17   0   0
    I'd be curious to know if this will work with Whipple's heat exchanger and dual fans.

  5. Cobra Jet

    Cobra Jet Well-Known Member

    Vehicle(s):
    2018 EB Prem. w/PP and 94 Mustang Cobra
    Joined:
    Feb 12, 2015
    Location:
    NJ
    Posts:
    5,793
    Likes Received:
    2,774
    Rating:
    100%
    3   0   0
    Will you offer stainless steel braided trans lines instead of what appears to be just regular old rubber psi lines?

    Any testing results yet - such as did you see the trans temp in the gauge cluster read lower temps than as opposed to the stock factory cooler?

  6. SolarFlare

    SolarFlare Well-Known Member

    Vehicle(s):
    2015 CO GT
    Joined:
    Aug 24, 2015
    Location:
    S. Fla
    Posts:
    2,740
    Likes Received:
    934
    Rating:
    100%
    2   0   0
    I asked about the need for a trans cooler a while back, most said not necessary. In hot climates trans temps easily hit 200. Our 6R80 is strong but life of internal parts can be extended if we could limit that to ~180*F.

  7. ahl395

    ahl395 Well-Known Member

    First Name:
    Allan
    Vehicle(s):
    2017 Mustang GT, 2006 Infiniti G35X
    Joined:
    Dec 30, 2015
    Location:
    NJ
    Posts:
    2,686
    Likes Received:
    1,081
    Rating:
    100%
    1   0   0
    Looks awesome! Way better looking than the stock cooler.

    Looking forward to seeing testing.

  8. OP
    OP
    Mishimoto

    Mishimoto Well-Known Member

    Vehicle(s):
    2015 EcoBoost, 2016 GT
    Joined:
    Sep 3, 2014
    Location:
    Delaware
    Posts:
    1,047
    Likes Received:
    411
    Rating:
    100%
    2   0   0
    Thanks for the kind words!

    It may not be completely necessary for the average Mustang, but for those doing any hard driving, or in hot climates like you said it could be very helpful.

    Our cooler sits in the factory location between the radiator and the A/C condenser. It does not change the location of either one of those components, so I don't see why it wouldn't fit.

    We are still looking for a Whipple GT to come to our facility in order to test-fit some of our components. If you know of anyone local to DE that wants to come in, have them shoot me a PM!

    -Sara

  9. OP
    OP
    Mishimoto

    Mishimoto Well-Known Member

    Vehicle(s):
    2015 EcoBoost, 2016 GT
    Joined:
    Sep 3, 2014
    Location:
    Delaware
    Posts:
    1,047
    Likes Received:
    411
    Rating:
    100%
    2   0   0
    We chose to use rubber lines rather than steel braided because rubber lines can be molded. It is important that our lines take the proper route through the engine bay without kinking to achieve proper flow. With rubber lines, we also have the option to use factory-style quick disconnect fittings for easier installation.

    Testing is scheduled for this week, so we should have data to post very soon!

    -Sara

    Apologies for the confusion in wording, the Mishimoto cooler is double the size of the stock cooler.

    The fin pitch and tube size are very similar to stock, the Mishimoto core is just taller.

    -Sara

    Texican1911 likes this.
  10. Epiphany

    Epiphany Well-Known Member

    Vehicle(s):
    I like to disassemble things.
    Joined:
    Oct 11, 2015
    Location:
    Global
    Posts:
    4,841
    Likes Received:
    5,986
    Occupation:
    Philanthropist and ballroom dancer extraordinaire
    0   0   0
    Superb R&D and a well thought out write up. Keep up the good work!

  11. OP
    OP
    Mishimoto

    Mishimoto Well-Known Member

    Vehicle(s):
    2015 EcoBoost, 2016 GT
    Joined:
    Sep 3, 2014
    Location:
    Delaware
    Posts:
    1,047
    Likes Received:
    411
    Rating:
    100%
    2   0   0
    Thanks for the kind words!

    -Sara

  12. OP
    OP
    Mishimoto

    Mishimoto Well-Known Member

    Vehicle(s):
    2015 EcoBoost, 2016 GT
    Joined:
    Sep 3, 2014
    Location:
    Delaware
    Posts:
    1,047
    Likes Received:
    411
    Rating:
    100%
    2   0   0
    Update!

    We are moving along quickly with this project so without any further delay we are kicking off the pre-sale! Testing data and more photos are on the way, but until then check out the pre-sale and let us know if you have any questions!

    Pre-Sale Link


    Sale Price: $344.95

    MSRP: $440.00

    Estimated Ship Date / Pre-Sale Expiration: Late October

    Fits:
    EcoBoost, V6, and GT S550 Mustangs

    Includes:
    (1) Transmission Cooler
    (2) Aluminum transmission cooler fittings
    (2) Nitrile Rubber transmission cooler hoses
    (1) Rubber transmission mount bushing
    Mounting Hardware
    Mishimoto Lifetime Warranty

    Pre-Sale Link

    If you have any questions let us know in the comments below!

    -Sara

    ahl395 likes this.
  13. montreal ponies

    montreal ponies Well-Known Member

    First Name:
    Dan
    Vehicle(s):
    ‘17 Ruby red GT350
    Joined:
    Jan 7, 2014
    Location:
    Montreal, Canada
    Posts:
    2,754
    Likes Received:
    992
    0   0   0
    Hey Sara, any chance of you guys working on a fix for us GT350 owners ? Thx

  14. Texican1911

    Texican1911 Ford Certified Sales Guy

    Vehicle(s):
    2018 GT 401a Lightning Blue with Midnight Blue 20" wheels Safe & Smart, Active Exhaust, Shaker
    Joined:
    Aug 8, 2014
    Location:
    Texas
    Posts:
    502
    Likes Received:
    87
    0   0   0
    I came here to say the same thing. They even say "doubles" the size, that is 100% bigger, not 50%. Plus you can see it is physically more than double the size.

  15. JWS

    JWS Well-Known Member

    First Name:
    James
    Vehicle(s):
    2015 WW-50th LE Auto-0745-Grandé
    Joined:
    May 3, 2014
    Location:
    Cocoa, Florida
    Posts:
    998
    Likes Received:
    209
    0   0   0
    Is the Cooler in the 50th Anniversary Limited Edition Performance Pack Car with Automatic the same size as the standard 5.0 Auto Cooler?
