    Installed the JL Stealthbox and JL XD300/1v2 Amp... WOW does it sound good! A little bass really evens out the stock system.

    Just wanted to make a thread with some tips for those who are looking install the stealthbox.

    My car is a premium so I decided to go the route of grabbing signals pre-amp. It was easy enough to get to in the drivers foot well. To do this I purchased the Molex connectors that are used in the factory audio harness (Thanks [MENTION=20499]mumbles[/MENTION]!). The harness is really just a pass through, all pins are loaded, and has female RCA's spliced in for the amp signal input. The RCA is ran from the kick panel, down the driver side sill to the trunk. Connectors and pins I used for the harness are below.

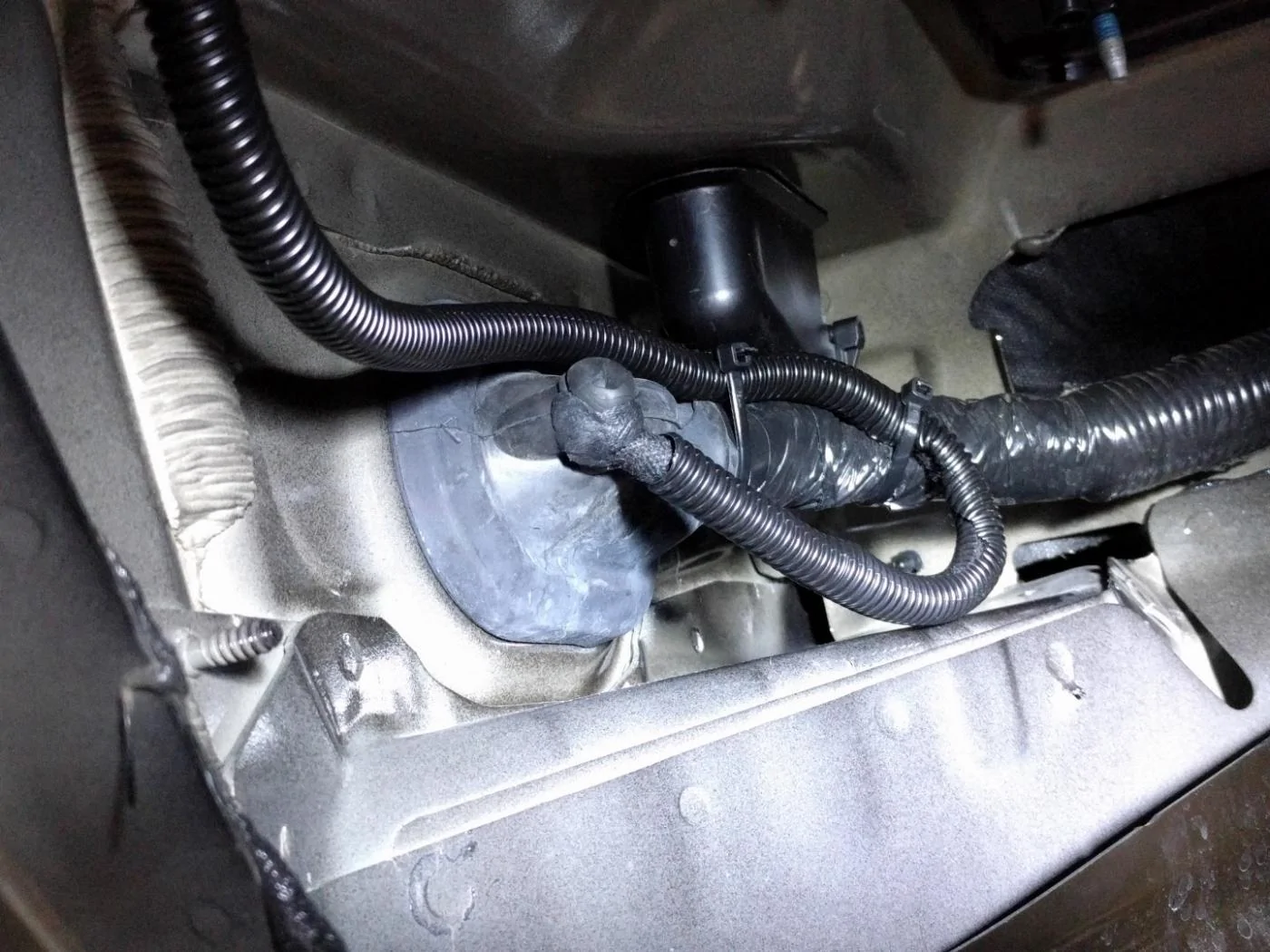

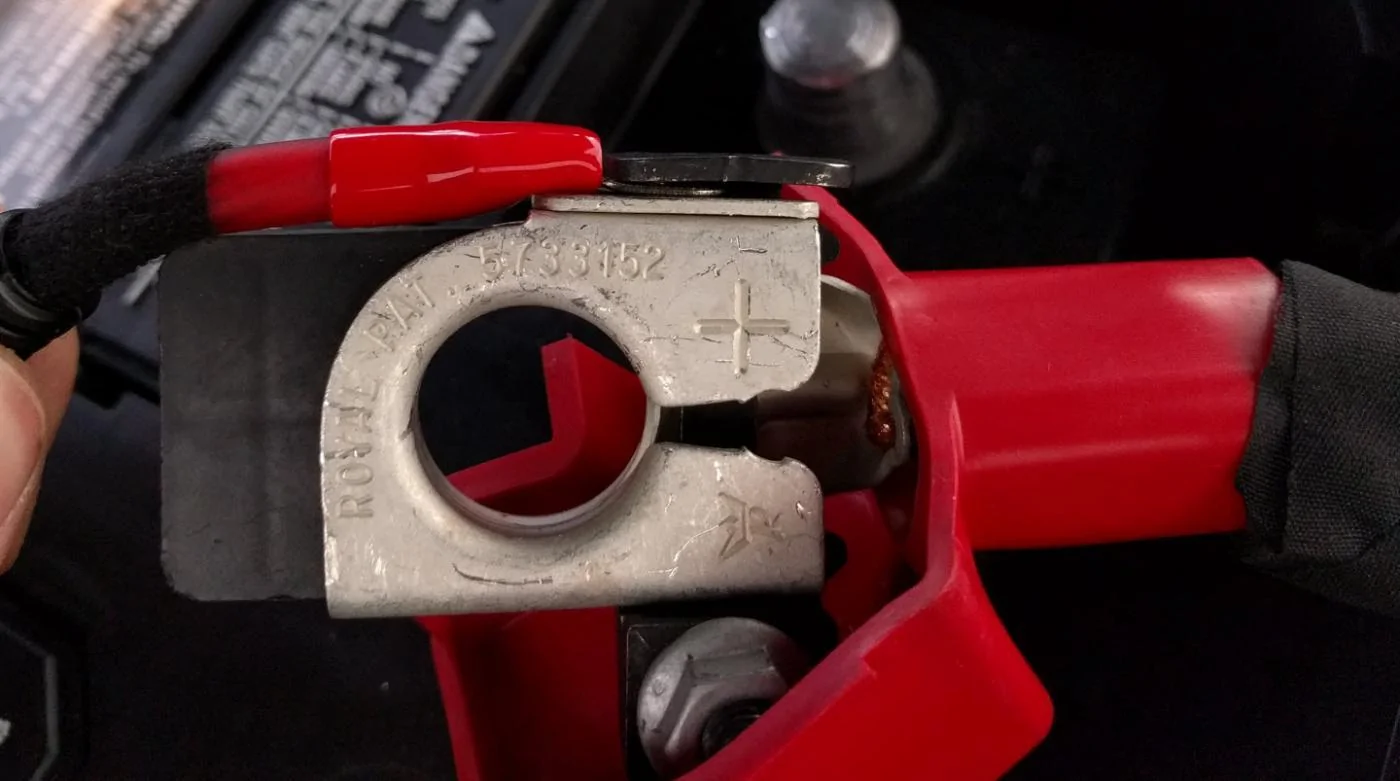

    Running the power cable is pretty straight forward, I used the grommet in the passenger side wheel well like a lot of guys do. Basically get the car off the ground and remove the passenger wheel well liner and the grommet is right there. Lucky me a buddy has a lift (and a '66 Fastback). I put some butyl rope on the cut grommet to seal it up. Also wrapped the cable with Tesa tape for a factory look. Once the rear seat was removed by depressing the two clips under each seat, I followed the factory harness into the trunk with zip ties along the way.

    One tip I have for running the power wire is to attach a socket extension to the wire end. It helps a lot to have something to push through the grommet and past the insulation and carpet.

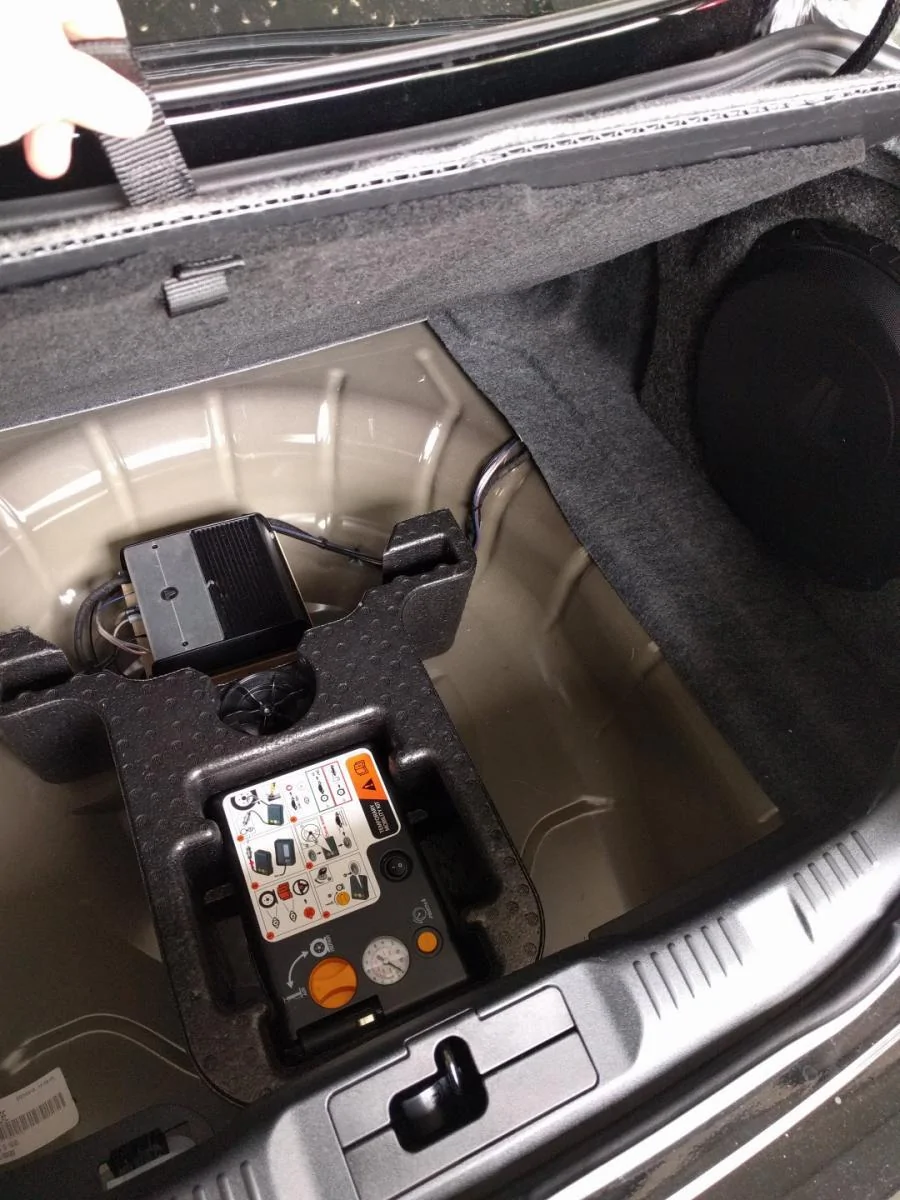

    The ground is the same as mike2017gt's thread. He has a great thread so check it out for more details. It uses the tie down bar for the spare tire or inflation kit. The thread size is M6x1 and utlizes the left side thru hole. Just grind the e-coat away and clean it up with some alcohol. I used a lock washer to secure the terminal.

    I tapped into the back up camera power wire for my 12v remote signal. It is a blue with white stripe wire found under the rear passenger speaker harness. Easy enough to get to. I was originally going to use the factory amp remote but discovered it was on a different connector (I think it was in the brown one if you look at the amp). It's 6v if anyone is wondering. The JL XD300 amp turns on right at 6v.

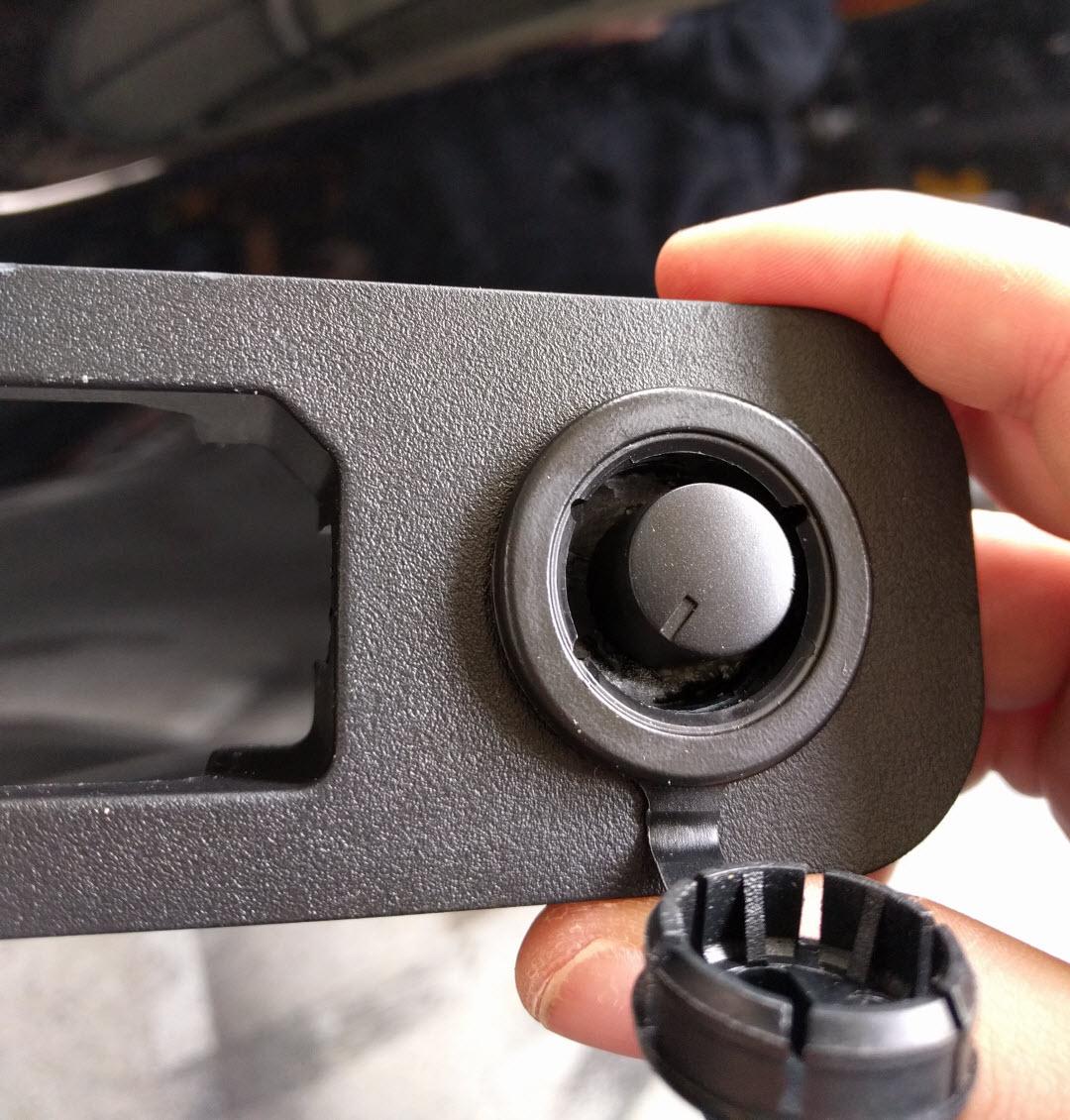

    I searched for where guys were mounting the remote level control for the sub and there were a lot of different places. I eventually settled inside the console as it was out of sight and easy to get to if I needed to adjust the sub. I decided to remove the 12v plug and re-purpose that hole for my level control. The whole panel that houses the USB port and 12v plug just pops right out. The plug itself was kind of a pain to remove even though it's just held in there with a couple small tabs. I cut a small hole under the console carpet and the phone wire for the part just runs under the carpet back to the trunk.

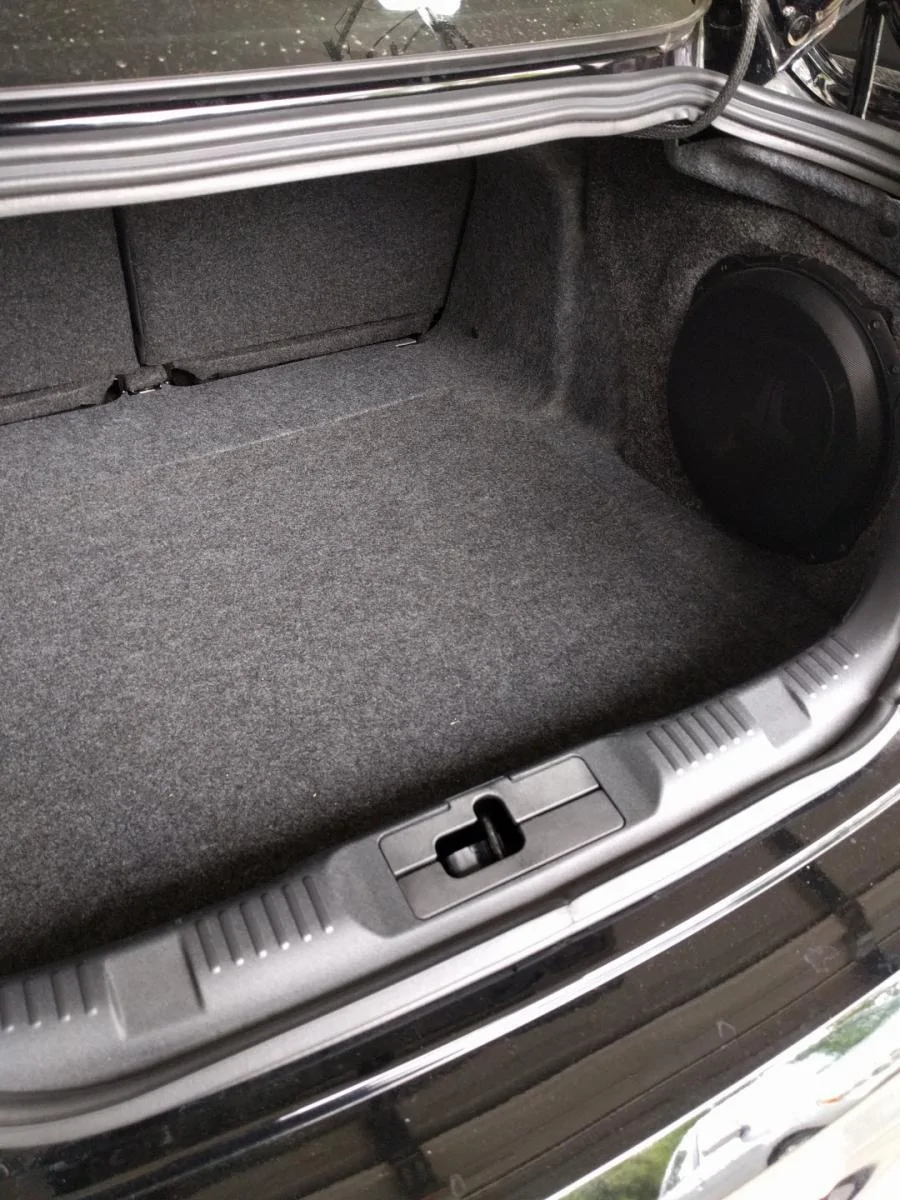

    Installing the stealthbox itself is a complete pain in the ass to be honest. The thing is so tight I had to grab a prybar, wrap it with electrical tape, and have a buddy pry it around until all the holes lined up. The instructions say to just "Guide it in place"...yea guide it with a pry bar! Other than that part the install manual is spot on and everything ended up fitting really nice.

    Overall the install wasn't too bad. I'd say it took 6 hours total. Some of that time I spent wrapping the power and ground cables with Tesa tape to make everything look a bit cleaner. The sub is paired nicely with the 300W JL amp. I thought it would be a bit under powered but it really sounds great. imagejpeg_0.jpg IMG_20170415_155323_R.jpg IMG_20170415_170533_R.jpg IMG_20170415_174011_R.jpg IMG_20170422_105554_R.jpg IMG_20170422_145622_R.jpg IMG_20170422_145635_R.jpg IMG_20170415_183254_R.jpg

    mikes2017gt, BDMACH1 and floydbanks28 like this.
  2. OP
    OP
    Fenix

    Fenix Well-Known Member

    Vehicle(s):
    2016 GT Premium Shadow Black
    Joined:
    Jul 3, 2016
    Location:
    Ohio
    Posts:
    179
    Likes Received:
    40
    0   0   0
    Notagain and floydbanks28 like this.
  3. scott_0

    scott_0 Well-Known Member

    Vehicle(s):
    2016 Mustang GT
    Joined:
    Apr 15, 2016
    Location:
    Oxford, Pennsylvania
    Posts:
    1,118
    Likes Received:
    269
    Rating:
    100%
    2   0   0
    nice job, awesome write up!

  4. Jmeo

    Jmeo You said member ;)

    First Name:
    Jaime
    Vehicle(s):
    2017 Premium A6 Magnetic
    Joined:
    May 28, 2014
    Location:
    Massachusetts
    Posts:
    4,170
    Likes Received:
    1,588
    Garage Profiles:
    1
    Rating:
    100%
    17   0   0
  5. Jmeo

    Jmeo You said member ;)

    First Name:
    Jaime
    Vehicle(s):
    2017 Premium A6 Magnetic
    Joined:
    May 28, 2014
    Location:
    Massachusetts
    Posts:
    4,170
    Likes Received:
    1,588
    Garage Profiles:
    1
    Rating:
    100%
    17   0   0
    Very nice write up I thank you very much. I absolutely love the harness you found to grab RCA signal. Would you be able to provide a link for this?

    Ingenious idea for the bass knob :thumbsup:


    Thanks again :cheers:

  6. OP
    OP
    Fenix

    Fenix Well-Known Member

    Vehicle(s):
    2016 GT Premium Shadow Black
    Joined:
    Jul 3, 2016
    Location:
    Ohio
    Posts:
    179
    Likes Received:
    40
    0   0   0

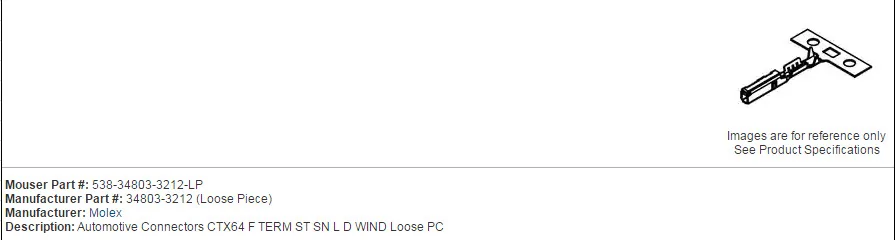

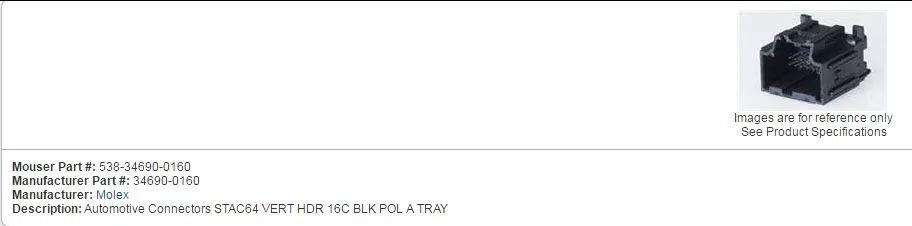

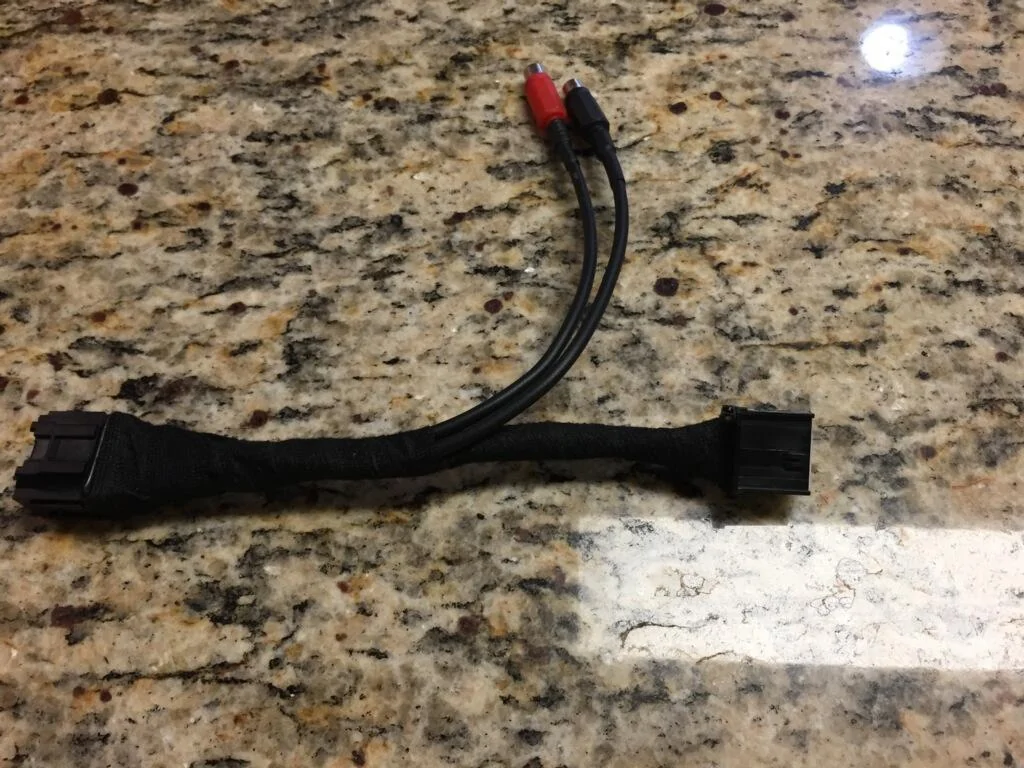

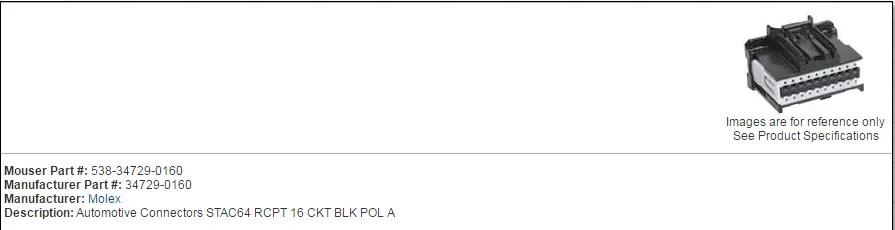

    Those connectors are what I used to make a pass through cable. I soldered in the RCA's to the right rear speaker wires in my harness. Check out the sticky for pin out info.

    The remote turn on is easiest to grab under the rear passenger speaker. It's a blue wire with white stripe, 12v ignition on, 0v ignition off.

    floydbanks28 likes this.
  7. mumbles

    mumbles Well-Known Member

    First Name:
    Eric
    Vehicle(s):
    '16 GT Prem OW
    Joined:
    Dec 22, 2015
    Location:
    ATL
    Posts:
    922
    Likes Received:
    252
    0   0   0
    Awesome job and writeup!

  8. BlackS550

    BlackS550 Well-Known Member

    Vehicle(s):
    2015 black s550 PP
    Joined:
    Mar 14, 2015
    Location:
    san jose
    Posts:
    560
    Likes Received:
    107
    0   0   0
    great writeup , it looks awesome too!

    im getting my stealthbox and phoenix gold sx2 amp installed on tuesday, i cannot wait

  9. BlackS550

    BlackS550 Well-Known Member

    Vehicle(s):
    2015 black s550 PP
    Joined:
    Mar 14, 2015
    Location:
    san jose
    Posts:
    560
    Likes Received:
    107
    0   0   0
    couple questions

    do you have any issues w over heating w the amp installed there?

    did u have any issues with active noise cancellation messing with your audio or turning your amp/bass lower?
    [MENTION=25138]Fenix[/MENTION]

  10. OP
    OP
    Fenix

    Fenix Well-Known Member

    Vehicle(s):
    2016 GT Premium Shadow Black
    Joined:
    Jul 3, 2016
    Location:
    Ohio
    Posts:
    179
    Likes Received:
    40
    0   0   0
    I have not had any issues with the amp overheating. I had that concern initially but it seems to be fine. I went on a 10 hour (one way) road trip recently and the stereo was blasting the whole time so if it would have overheated I'd like to think it would have done it then.

    I haven't noticed any funky stuff going on with the active noise canceling but honestly I'm not sure what it does in the car. The bass seems to stay where I put it

  11. BlackS550

    BlackS550 Well-Known Member

    Vehicle(s):
    2015 black s550 PP
    Joined:
    Mar 14, 2015
    Location:
    san jose
    Posts:
    560
    Likes Received:
    107
    0   0   0
    I think this sentence just solved all my problems...


    "My car is a premium so I decided to go the route of grabbing signals pre-amp. "


    took it back to install shop and theyre like yea theres two ways we could wire it, and we didnt do it that way. theyre re-wiring it right now and think that should solve my issue (when motor is on, amp/bass cut out.. when motor is off, sounds fing amazing)

  12. OP
    OP
    Fenix

    Fenix Well-Known Member

    Vehicle(s):
    2016 GT Premium Shadow Black
    Joined:
    Jul 3, 2016
    Location:
    Ohio
    Posts:
    179
    Likes Received:
    40
    0   0   0
    Did they use a line out converter to grab signals after the amp?

  13. BlackS550

    BlackS550 Well-Known Member

    Vehicle(s):
    2015 black s550 PP
    Joined:
    Mar 14, 2015
    Location:
    san jose
    Posts:
    560
    Likes Received:
    107
    0   0   0
    if thats the wrong way to do it... then yes lol

    they got it fixed now thankfully

  14. OP
    OP
    Fenix

    Fenix Well-Known Member

    Vehicle(s):
    2016 GT Premium Shadow Black
    Joined:
    Jul 3, 2016
    Location:
    Ohio
    Posts:
    179
    Likes Received:
    40
    0   0   0
    Nice, glad to hear it got resolved!

    BlackS550 likes this.
  15. floydbanks28

    floydbanks28 Active Member

    Vehicle(s):
    2016 eco boost premium
    Joined:
    Jun 2, 2017
    Location:
    MI
    Posts:
    31
    Likes Received:
    0
    0   0   0
    Thanks for the info, I just bought the connectors you suggested to make the pass through. Great write up wow. Life saver man. Any way you could go into more detail about how you made the pass through cable?

  16. floydbanks28

    floydbanks28 Active Member

    Vehicle(s):
    2016 eco boost premium
    Joined:
    Jun 2, 2017
    Location:
    MI
    Posts:
    31
    Likes Received:
    0
    0   0   0
    Also for the RCA's you put in feeding the amp, is it a full range signal? Sorry for the dumb questions, I'm just making sure before I go ahead and assume and damage something.

  17. OP
    OP
    Fenix

    Fenix Well-Known Member

    Vehicle(s):
    2016 GT Premium Shadow Black
    Joined:
    Jul 3, 2016
    Location:
    Ohio
    Posts:
    179
    Likes Received:
    40
    0   0   0
    The signal is full range as far as I know. It's coming straight out of the head unit / acm.

    The harness is pretty straight forward. You'll need crimpers if you don't have any and small wire. I used crimpers like these, they worked pretty well. (http://www.ebay.com/itm/IWISS-Profe...141198?hash=item3f5bcd9c4e:g:i2kAAOSwAuZX4M6d) I had to turn some of the pins to get then nice and square to fit in the connectors. The Molex brand crimpers are like $250 so that was out of the question. A little extra effort crimping wasn't that bad to me.

    I don't have pictures of the build process but once you have the wire stripped and the pin is crimped just insert the pin into the connector. Make sure it is in there snug with a slight pull after you insert the pin. I am unsure what wire gage I ended up going with. The jacket on the original wire was too thick to crimp properly. I ended up using some old wiring from a machine at work. It was probably 26 gage if I had to guess. It needs small gage wire.

    I just pinned every connector location on mine. Once it was all done I cut one of the rear speaker signal wires and soldered in the RCA's. Since you have the ecoboost you could omit the pins that produce the fake engine note if you want. Other option would be to disable the microphone under the headliner to disable the fake engine sound.

    floydbanks28 likes this.
  18. OP
    OP
    Fenix

    Fenix Well-Known Member

    Vehicle(s):
    2016 GT Premium Shadow Black
    Joined:
    Jul 3, 2016
    Location:
    Ohio
    Posts:
    179
    Likes Received:
    40
    0   0   0
    Forgot to say I wrapped it in Tesa tape so it looks somewhat factory in appearance but that's completely optional. The tape is pretty cheap on ebay though. Also used the Tesa tape to re wrap my solder connection for the amp remote turn on.

  19. floydbanks28

    floydbanks28 Active Member

    Vehicle(s):
    2016 eco boost premium
    Joined:
    Jun 2, 2017
    Location:
    MI
    Posts:
    31
    Likes Received:
    0
    0   0   0
    I don't know what you mean by this.

    So you had 2 RCA cables and you needed to trim them back and use RearRight positive RearRight negative and RearlLeft Positive and RearLeft negative to connect them right? so you needed 4 of those pins total right??

    One end of the RCA is sodered into the connector and the other is going to the amp correct?

  20. floydbanks28

    floydbanks28 Active Member

    Vehicle(s):
    2016 eco boost premium
    Joined:
    Jun 2, 2017
    Location:
    MI
    Posts:
    31
    Likes Received:
    0
    0   0   0
    And then all of the other pins just have wire going to the other connector.
    Do the pins that have the RCA's sodered on have a wire going to the other connector as well???
