Installing the FI interchiller on my Roushcharged Gen3 Coyote

[SH!FT]

I got a bunch done yesterday.

• Removed the heat exchanger
• Dropped the Roush reservoir tank/pump
• Mocked up the chiller mounting bracket

Removing the heat exchanger:

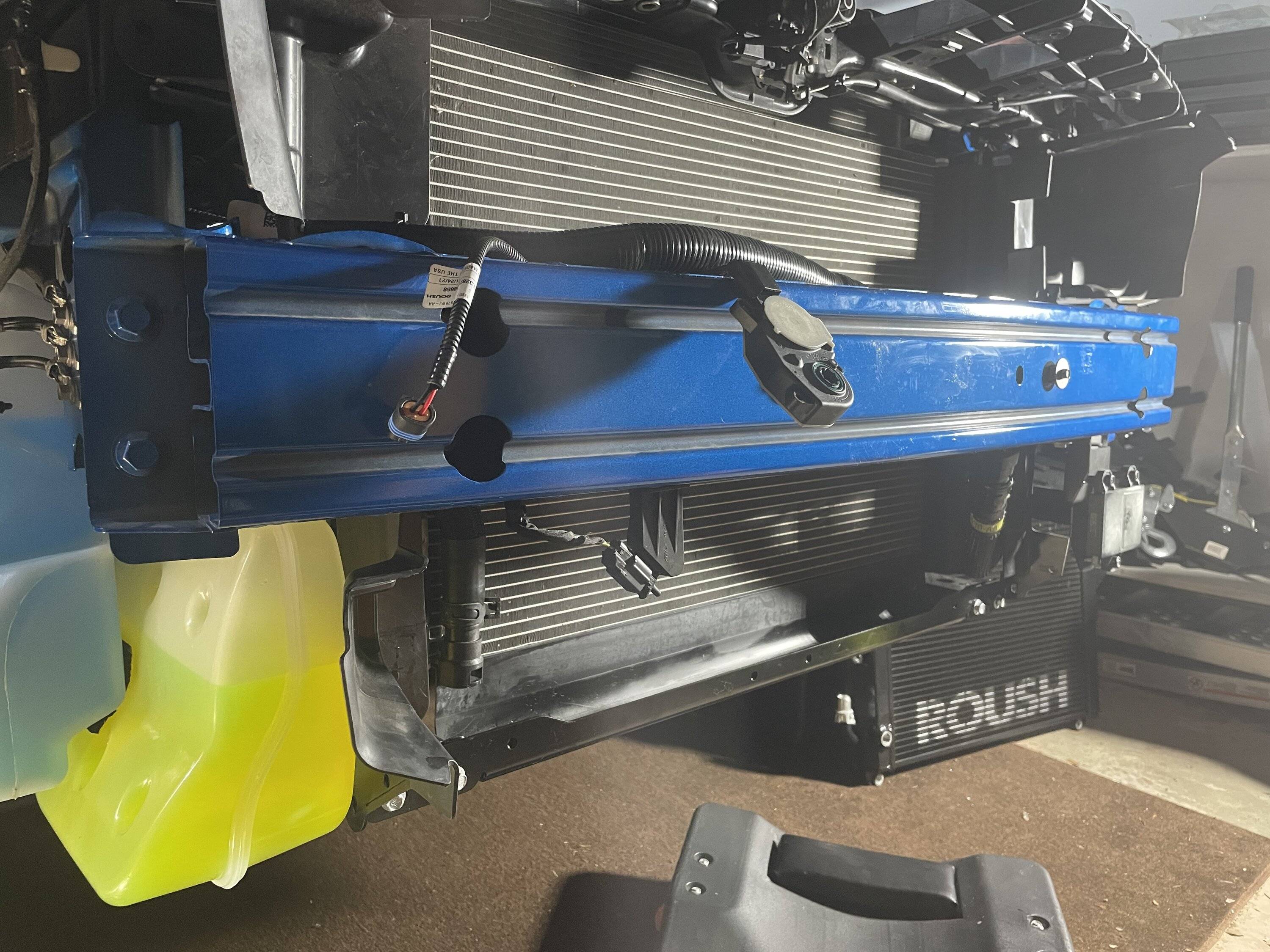

The LTR heat exchanger came out easy. I was super careful so spilled very little coolant. I hope to get an accurate idea of the IC coolant capacity with the chiller is installed.
Roush install instructions for reference.

Started by draining the LTR temp sensor port.

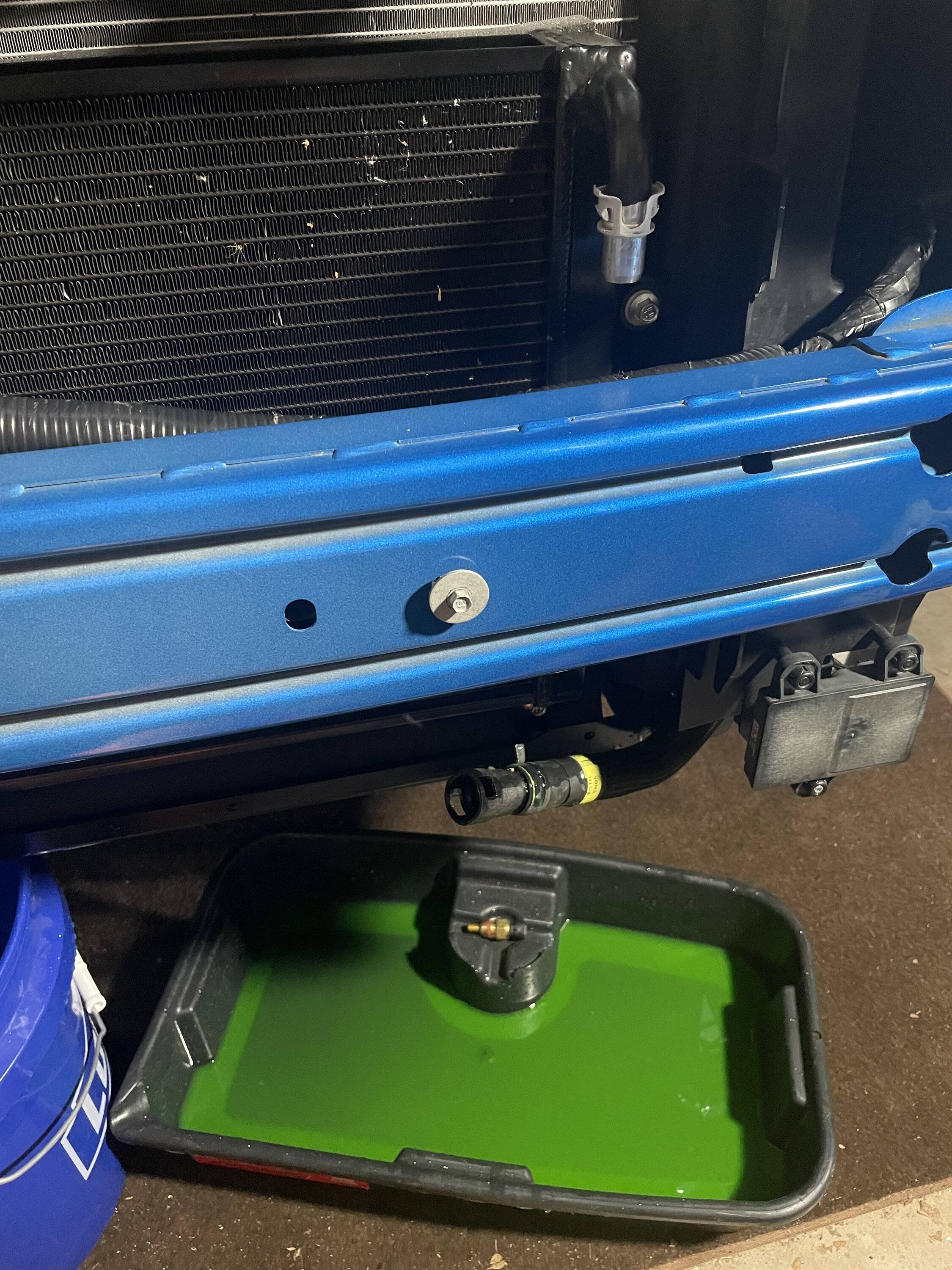

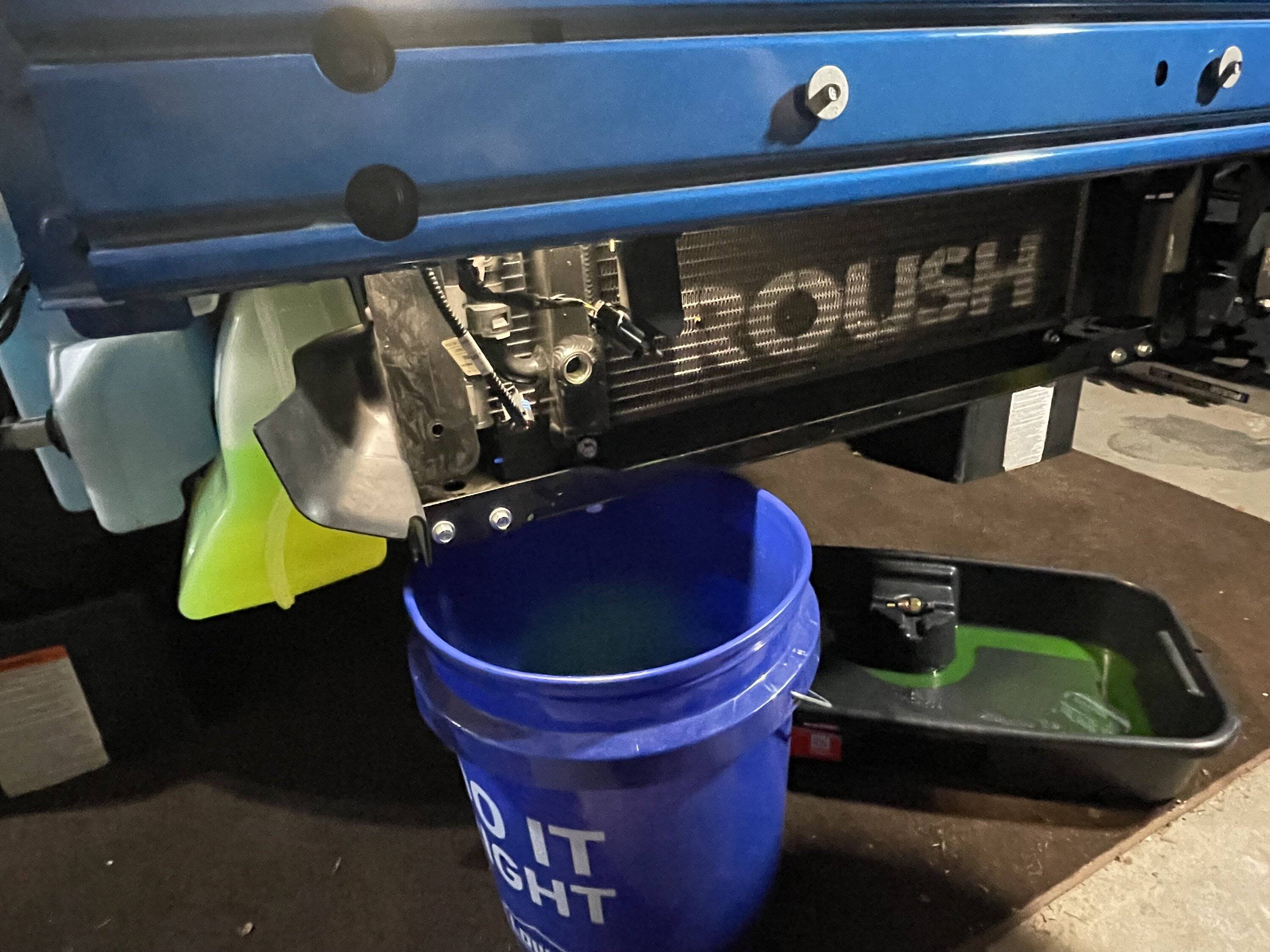

I setup catch pans across the length of the spanner bar. As expected, some coolant ran down the LTR then followed down the spanner. I opened the degas cap to increase the flow once the catch pans were set.

Looking back: I should've removed the spanner bar before draining the temp sensor port. All coolant would have likely flowed right into the bucket.

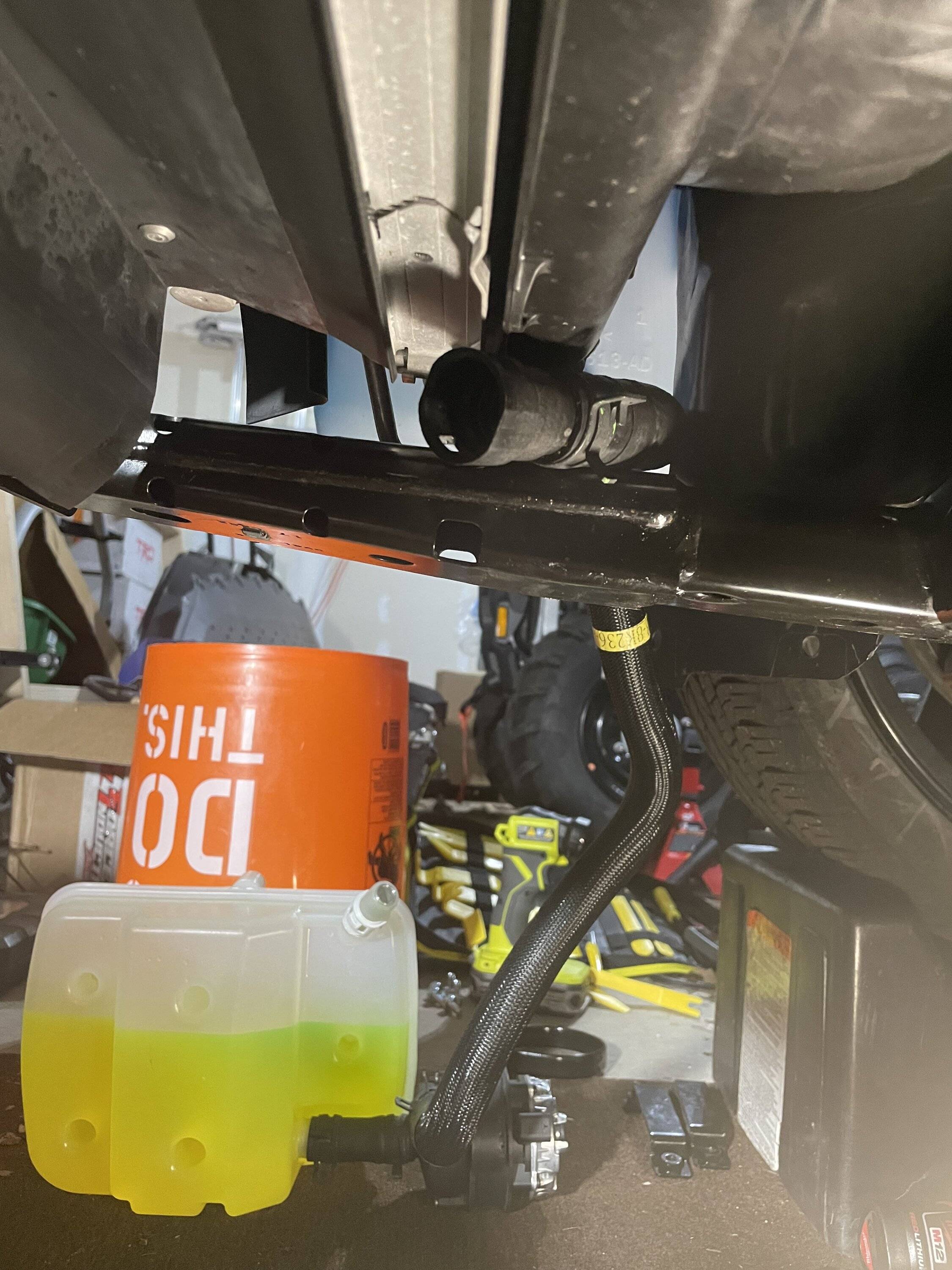

Res. tank level shown after sensor port was empty.

Next was the LTR outlet. A bit more coolant emptied, but from the hose only.

Last was the LTR inlet which I was dreading. Luckily none came out.

Probably not necessary, but I removed the spanner bracket before unbolting the LTR. Had a magnet handy for clips that fall into the frame.

A bit more coolant emptied from the LTR when tipped it over.

Dropping the Roush reservoir tank/pump:

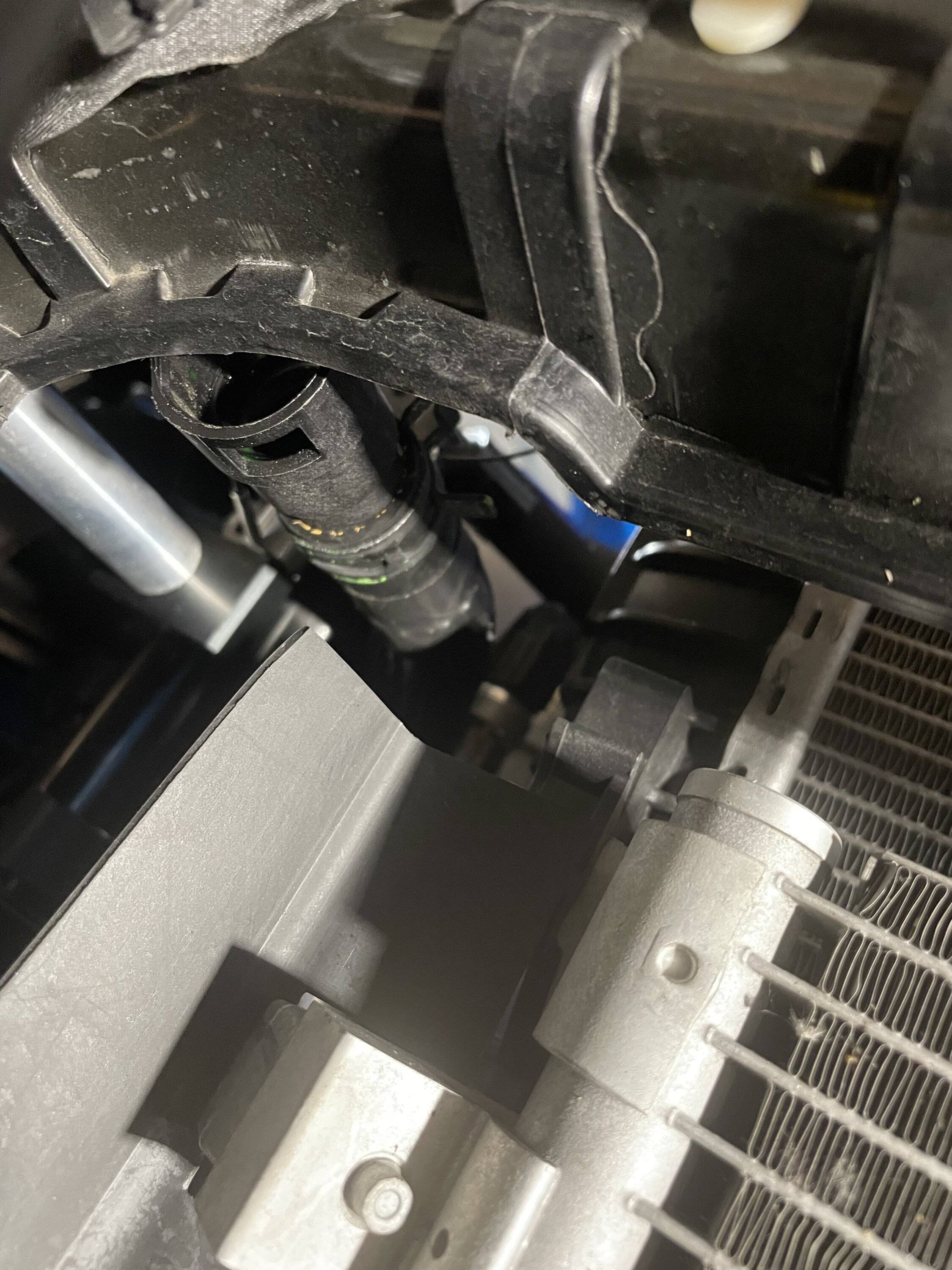

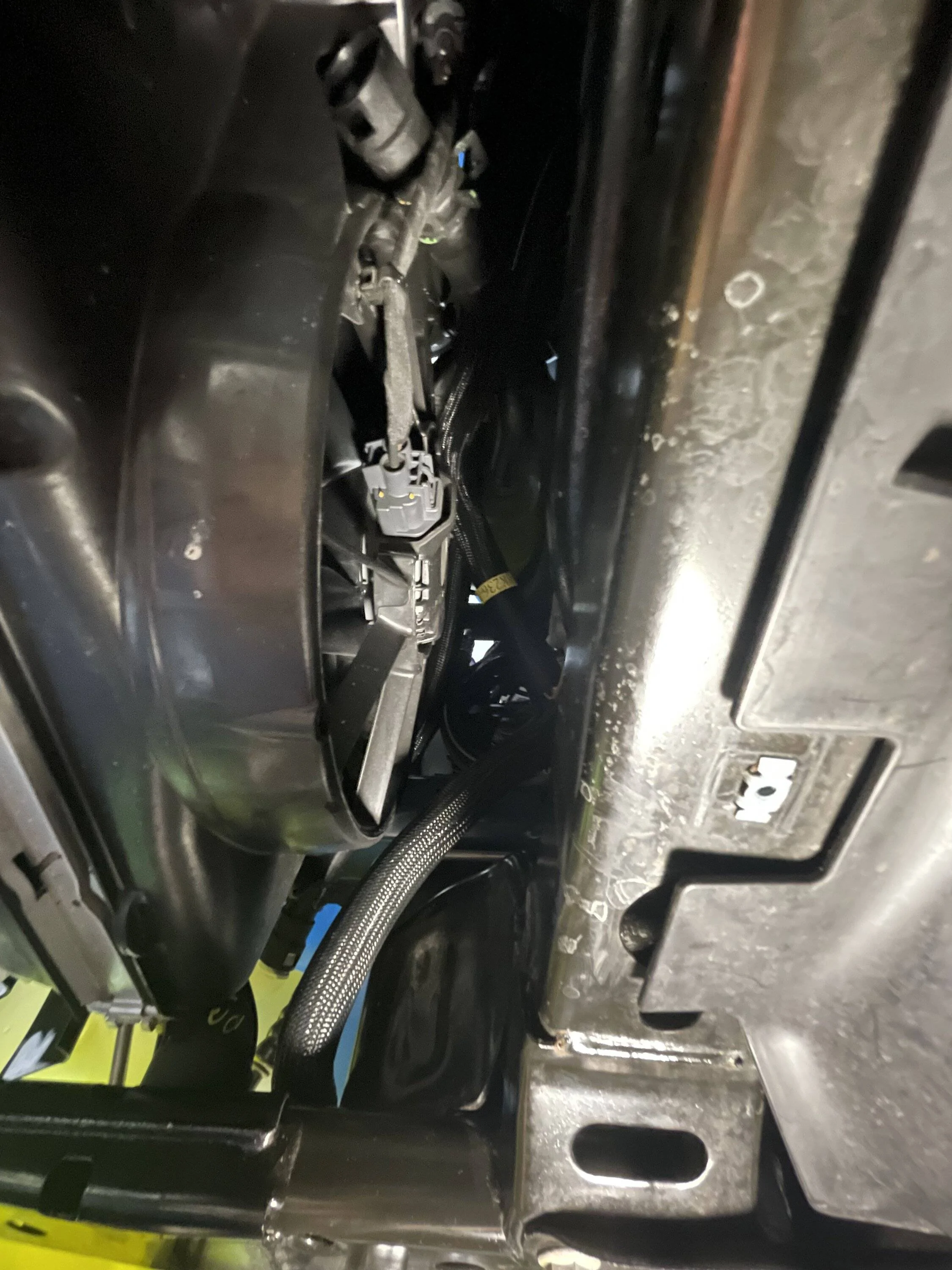

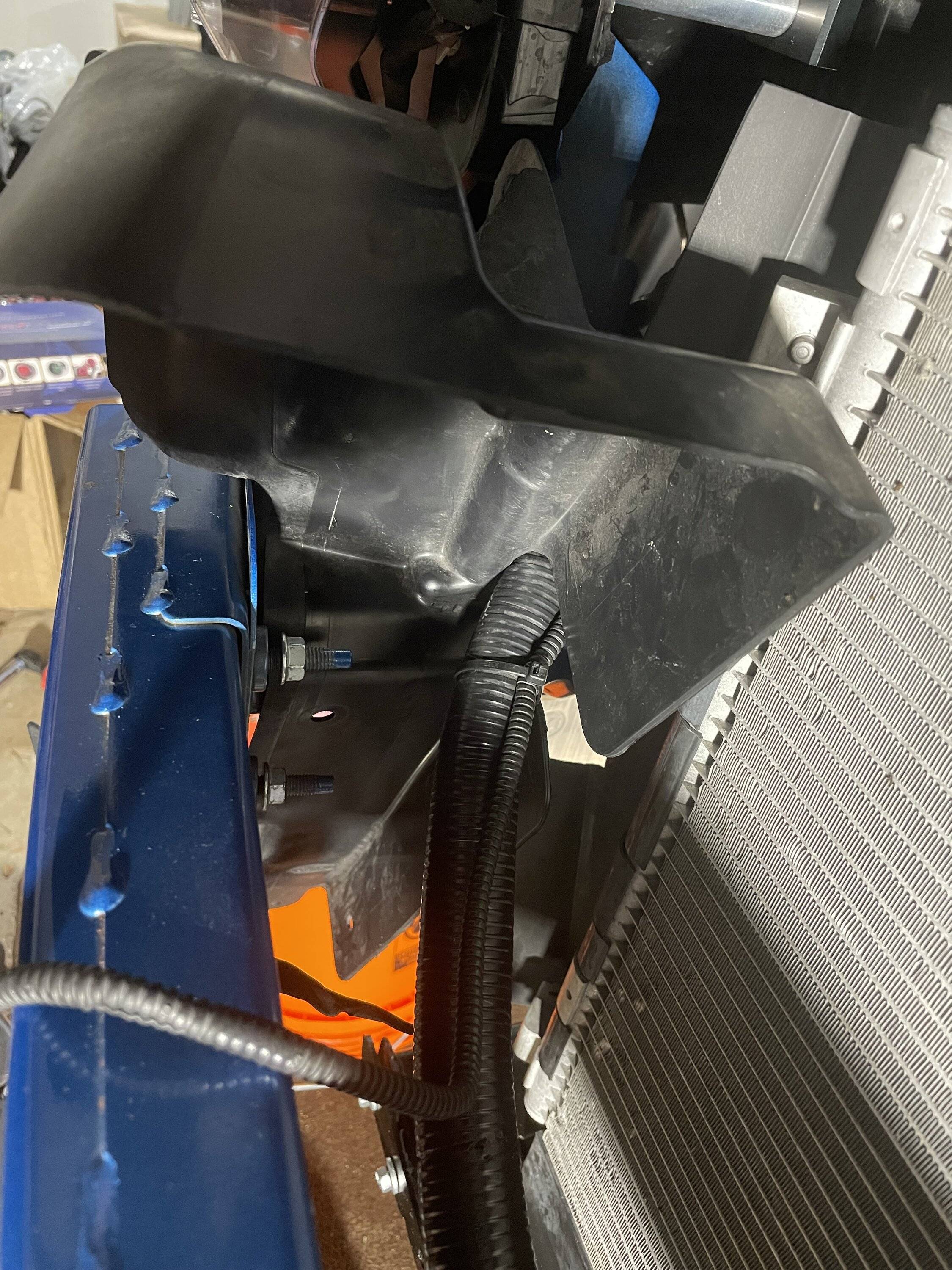

Carefully fished the LTR inlet hose back behind the fan shroud and hooked end on the fan harness.
Hose end must remain higher than the tank or coolant will spill.

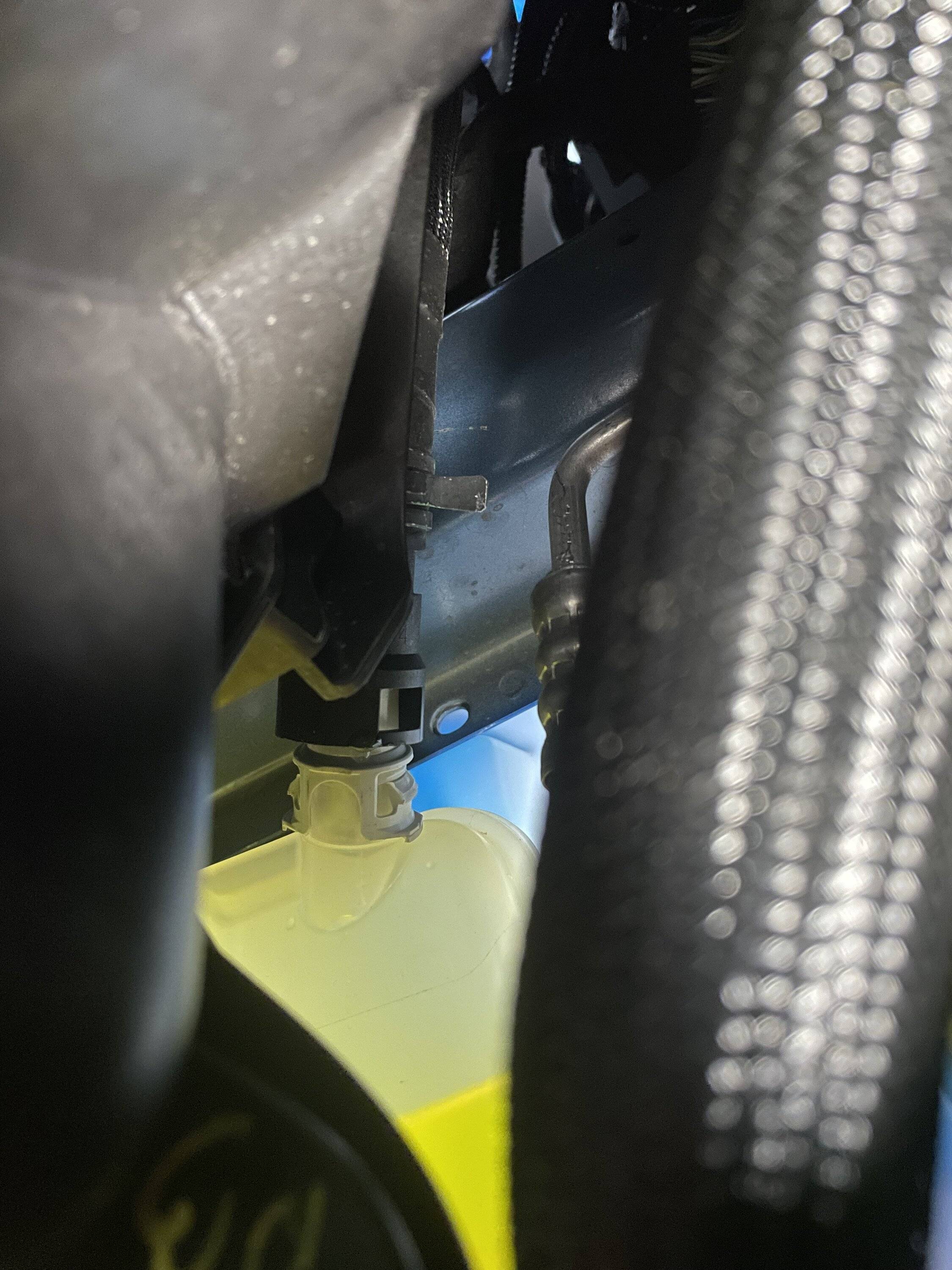

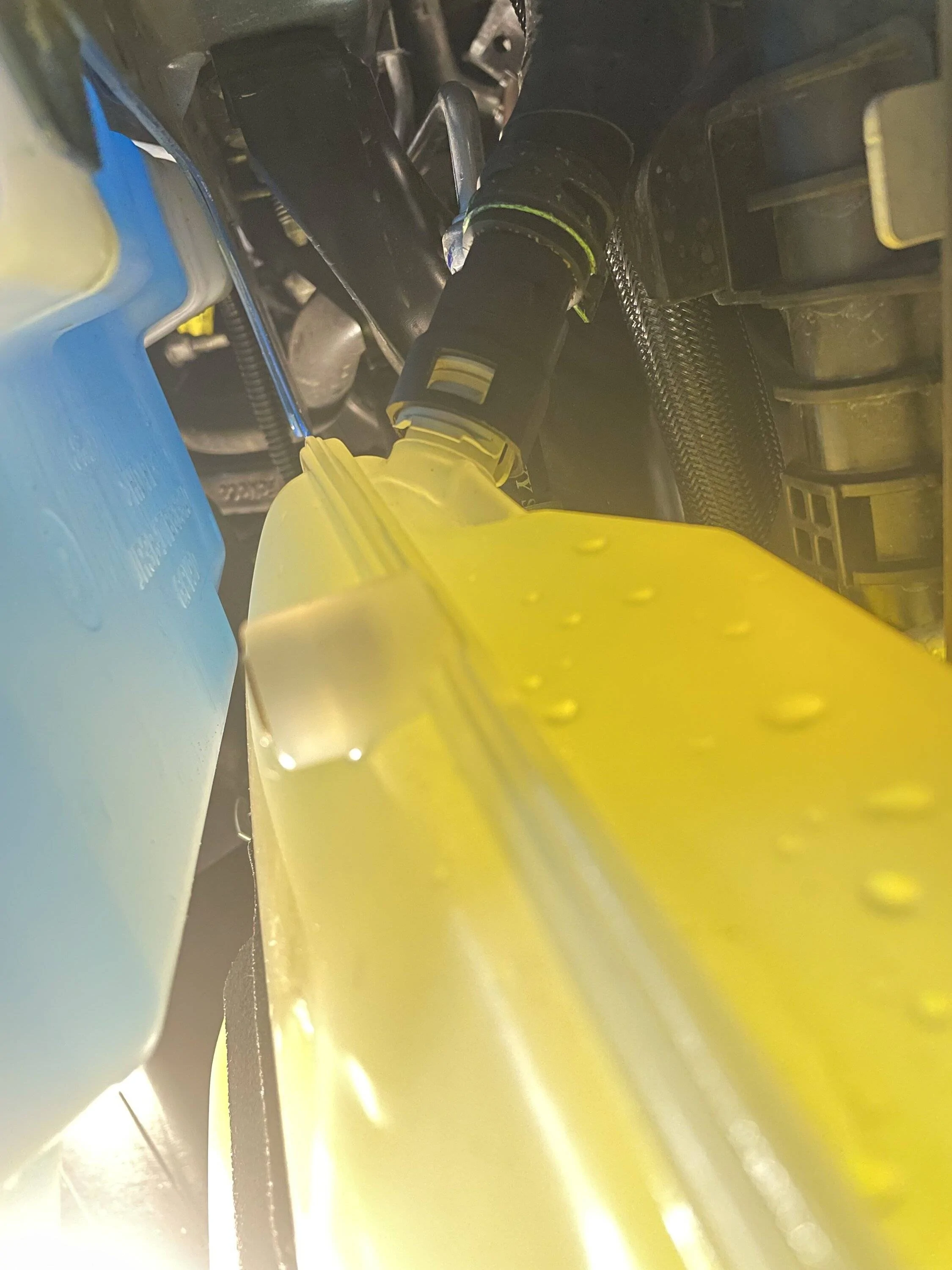

Next disassembled the tank/pump mounting bracket. The tank dropped slightly allowing access on both sides of the tank inlet connection. Both hands are needed. It's a PITA to disconnect.

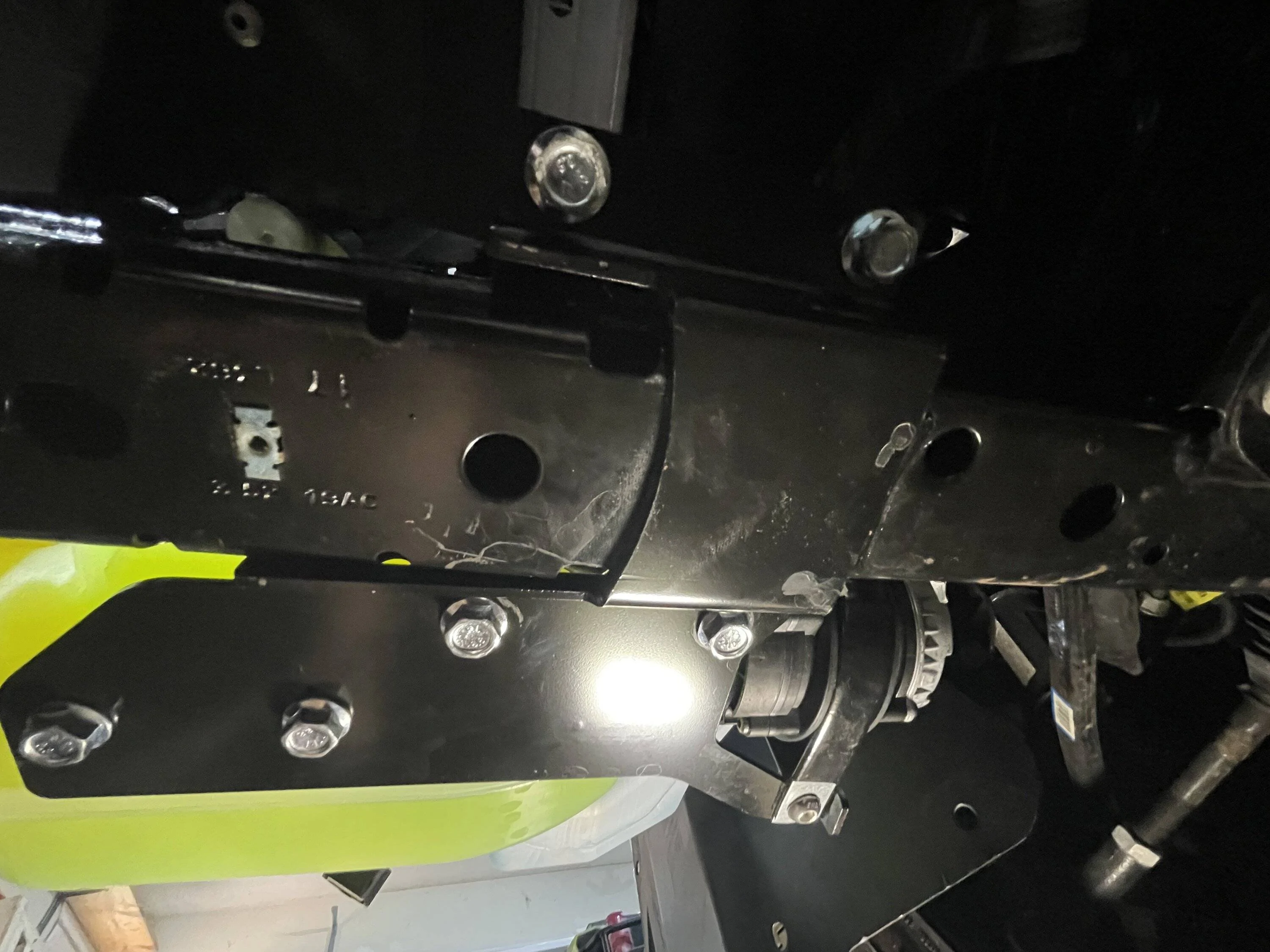

Tank/pump down.

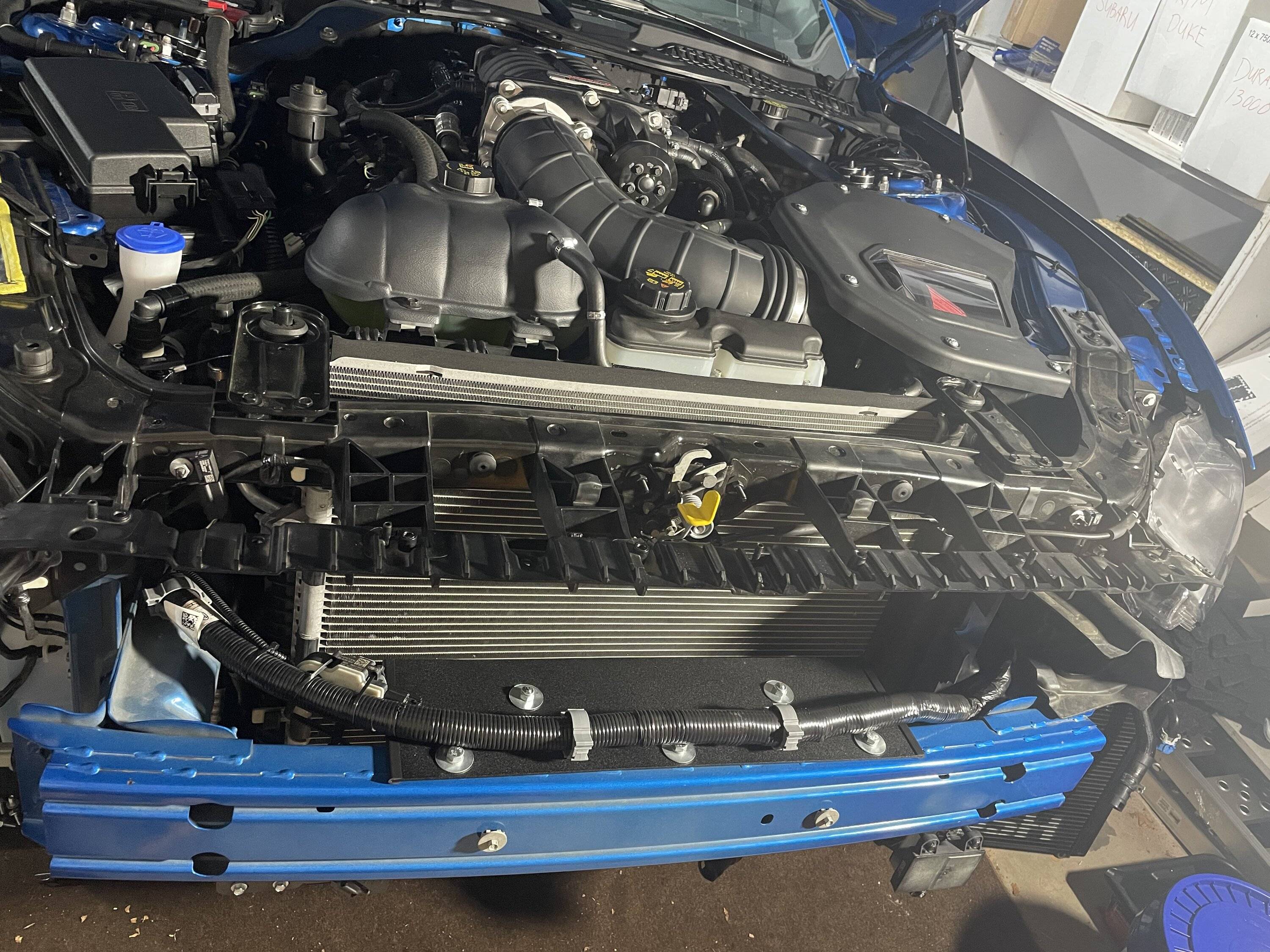

Removed the 2 plastic close-out panels.

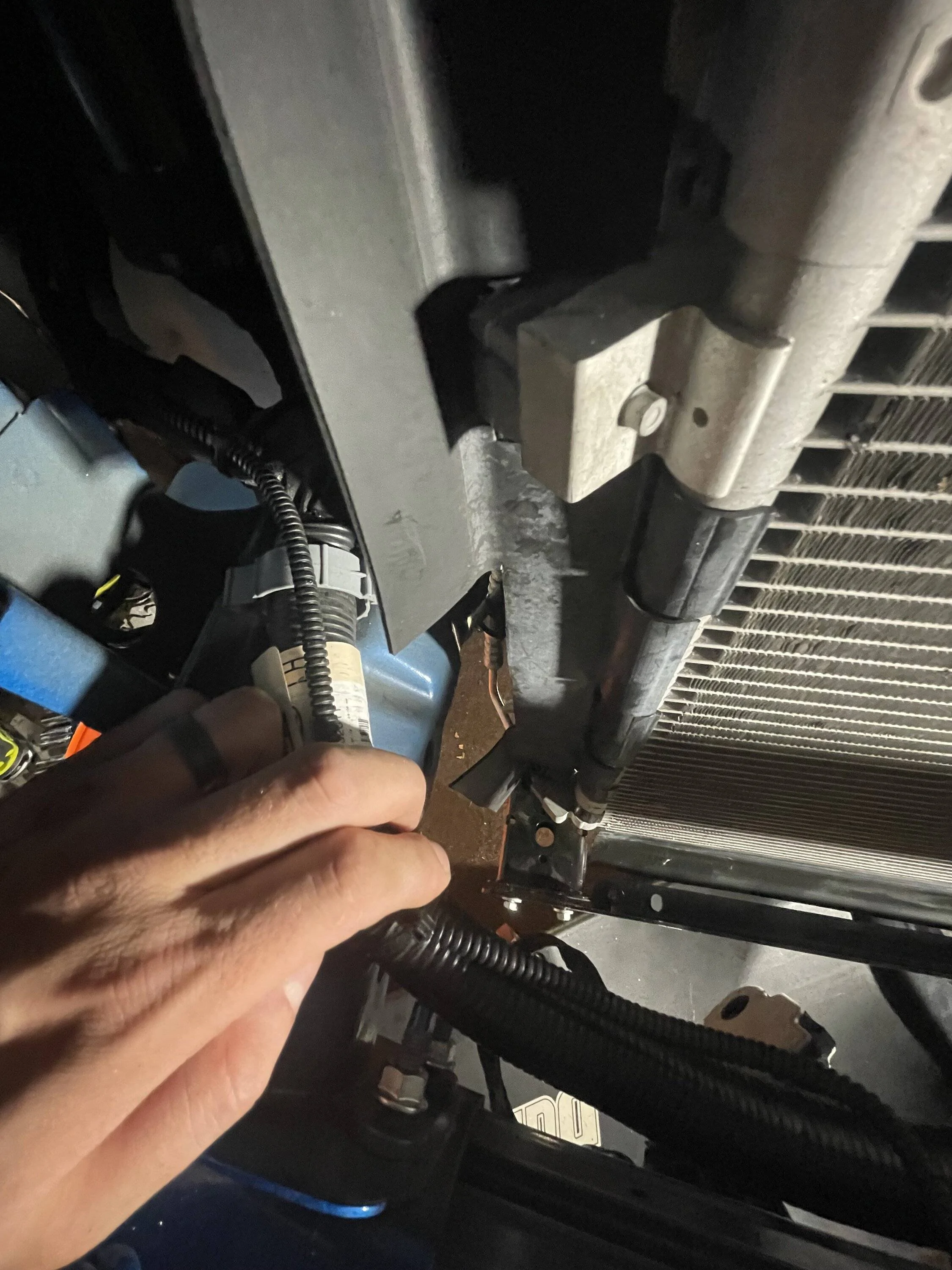

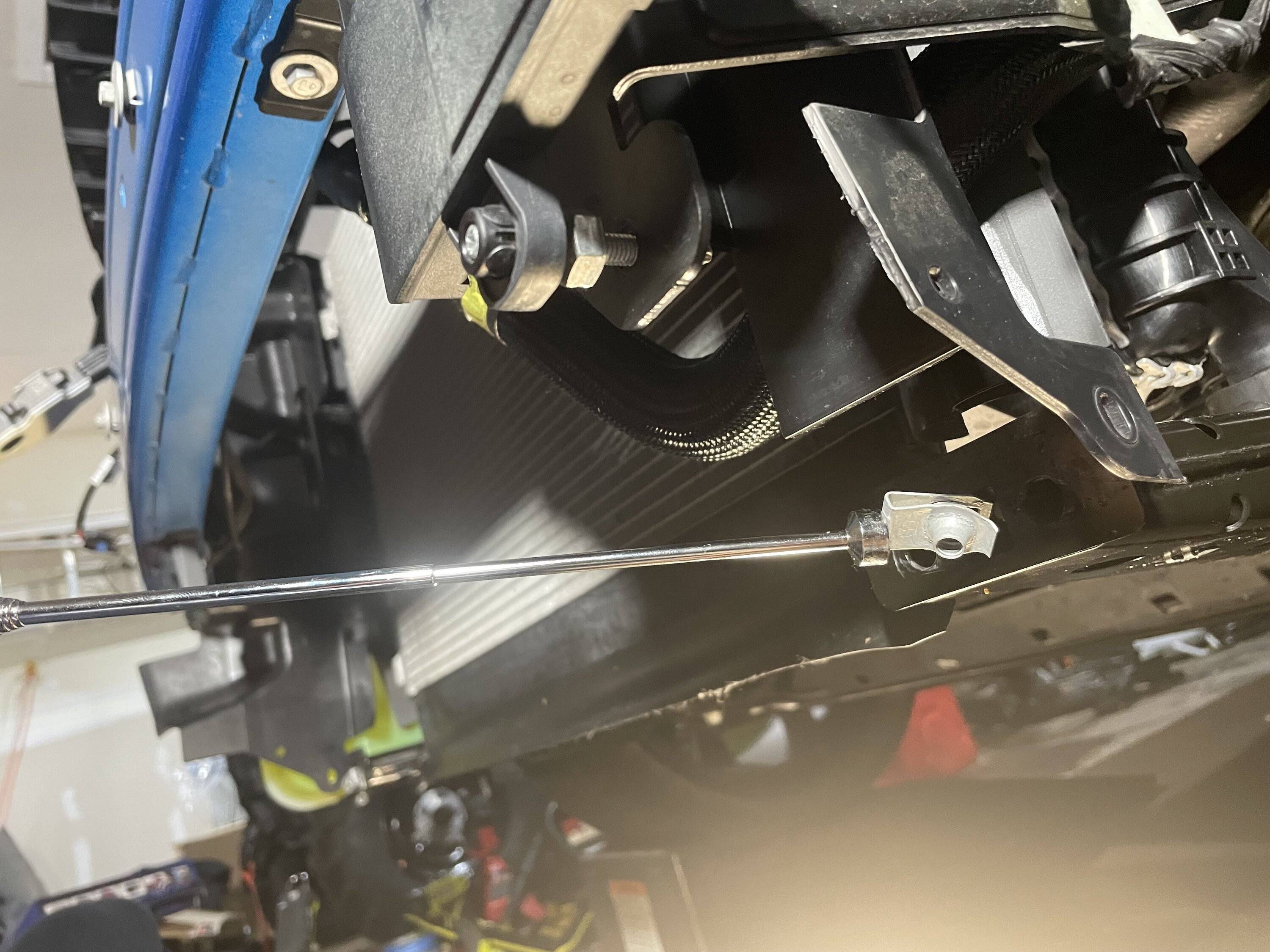

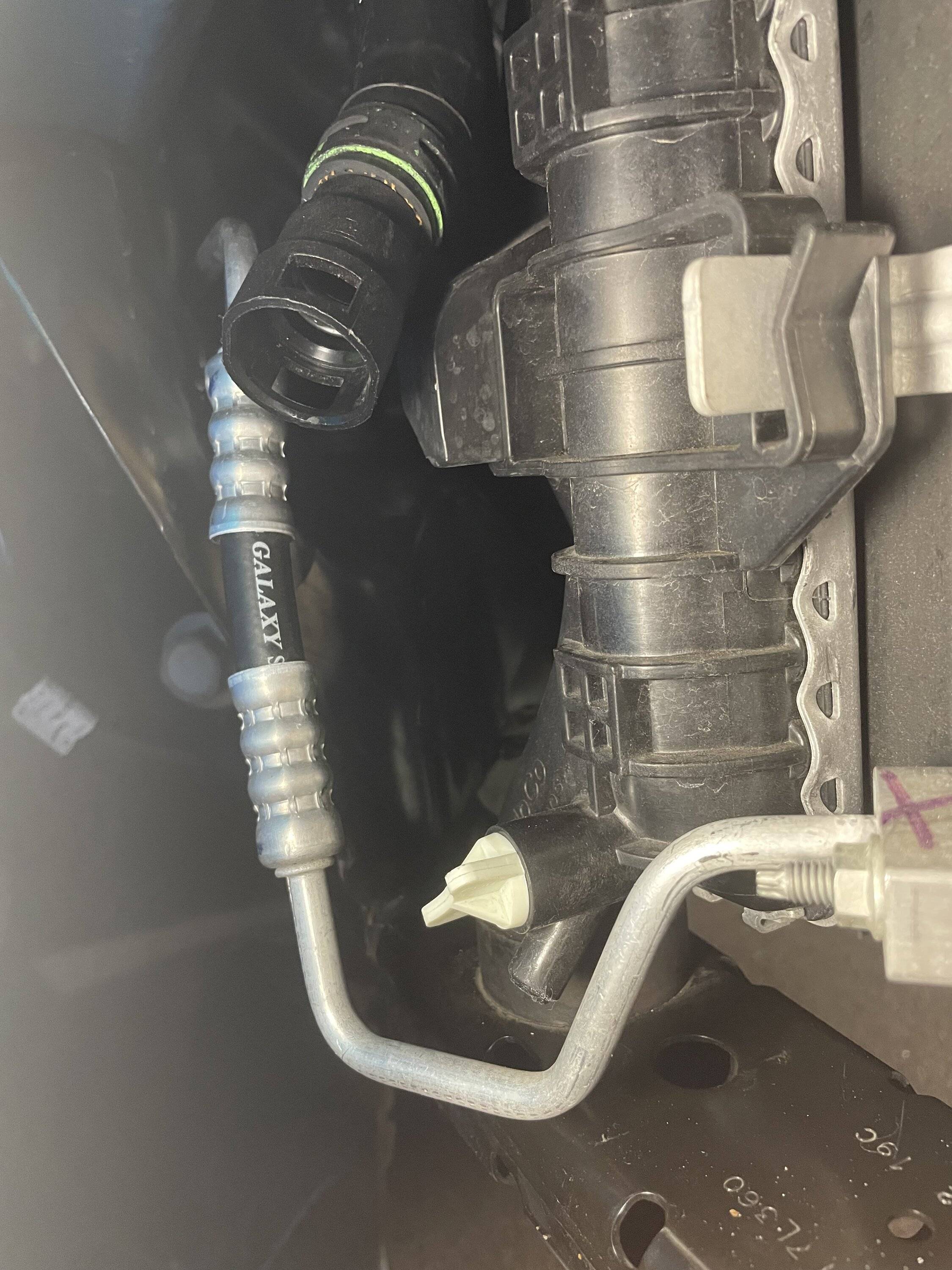

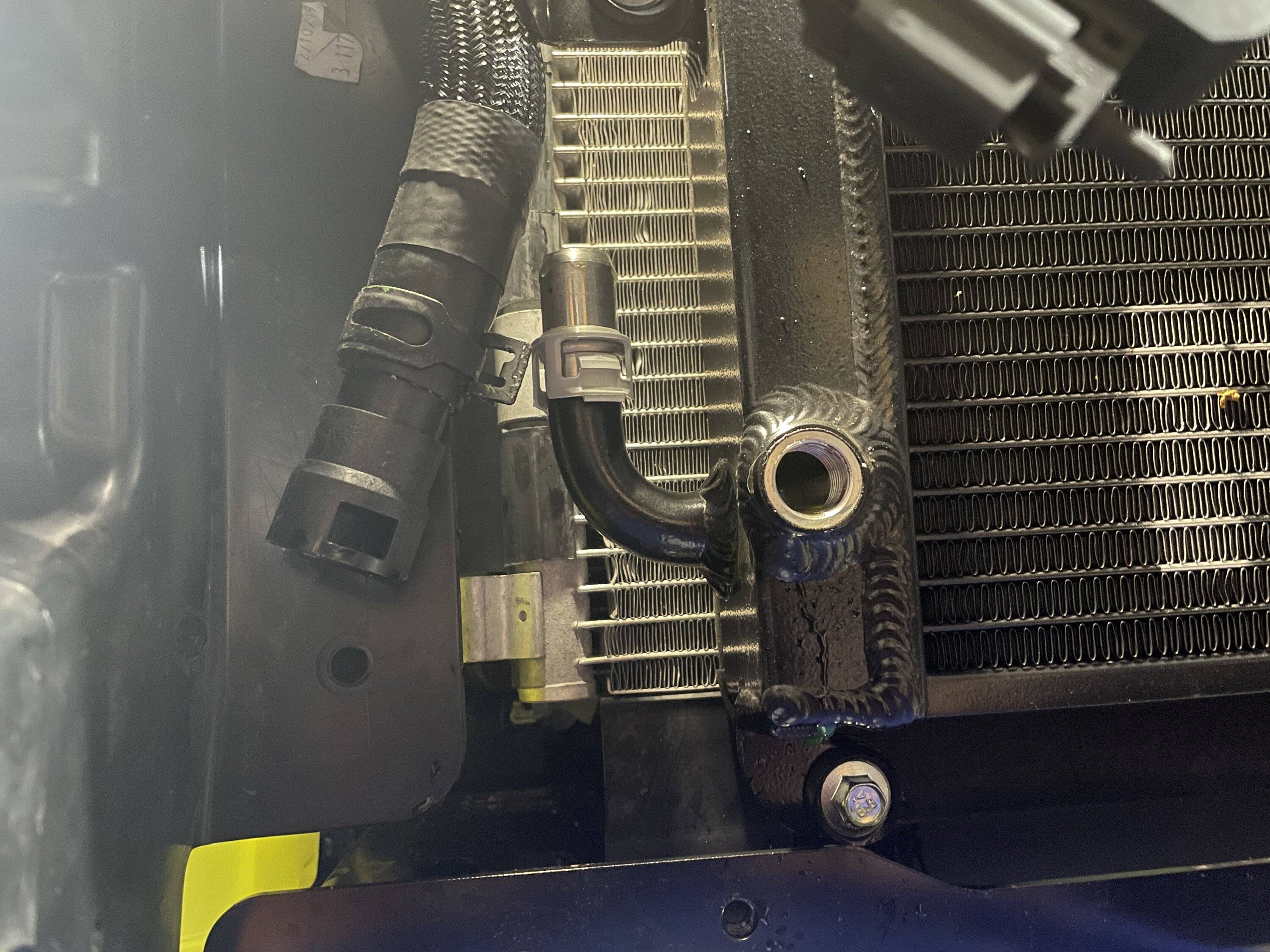

Access to HVAC liquid line:

Side note: The OD of the engine coolant petcock nozzle is 0.435". I'll be adding an extension so it can be drained without dropping the Roush components.

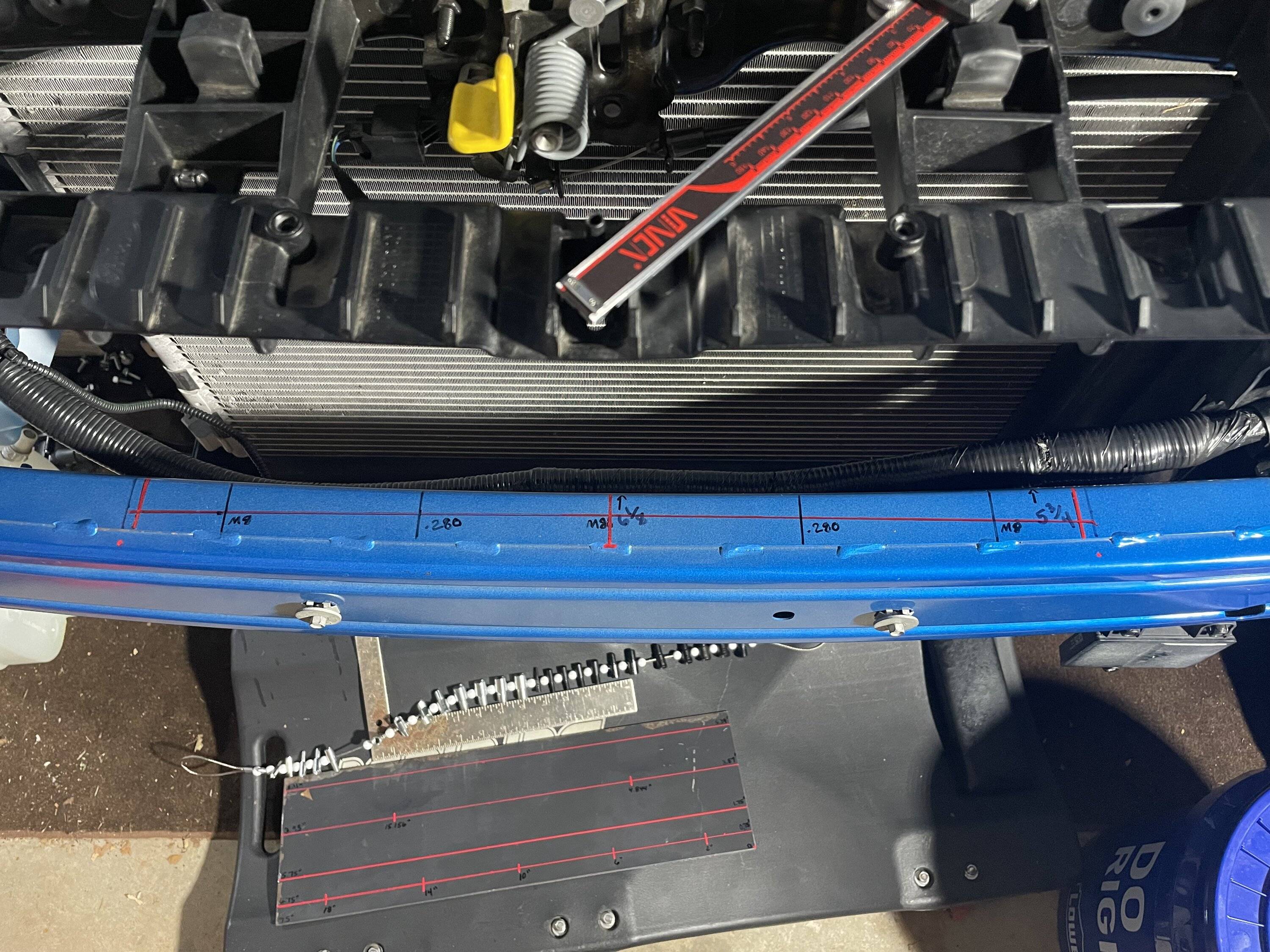

Mocking up the chiller mounting bracket:

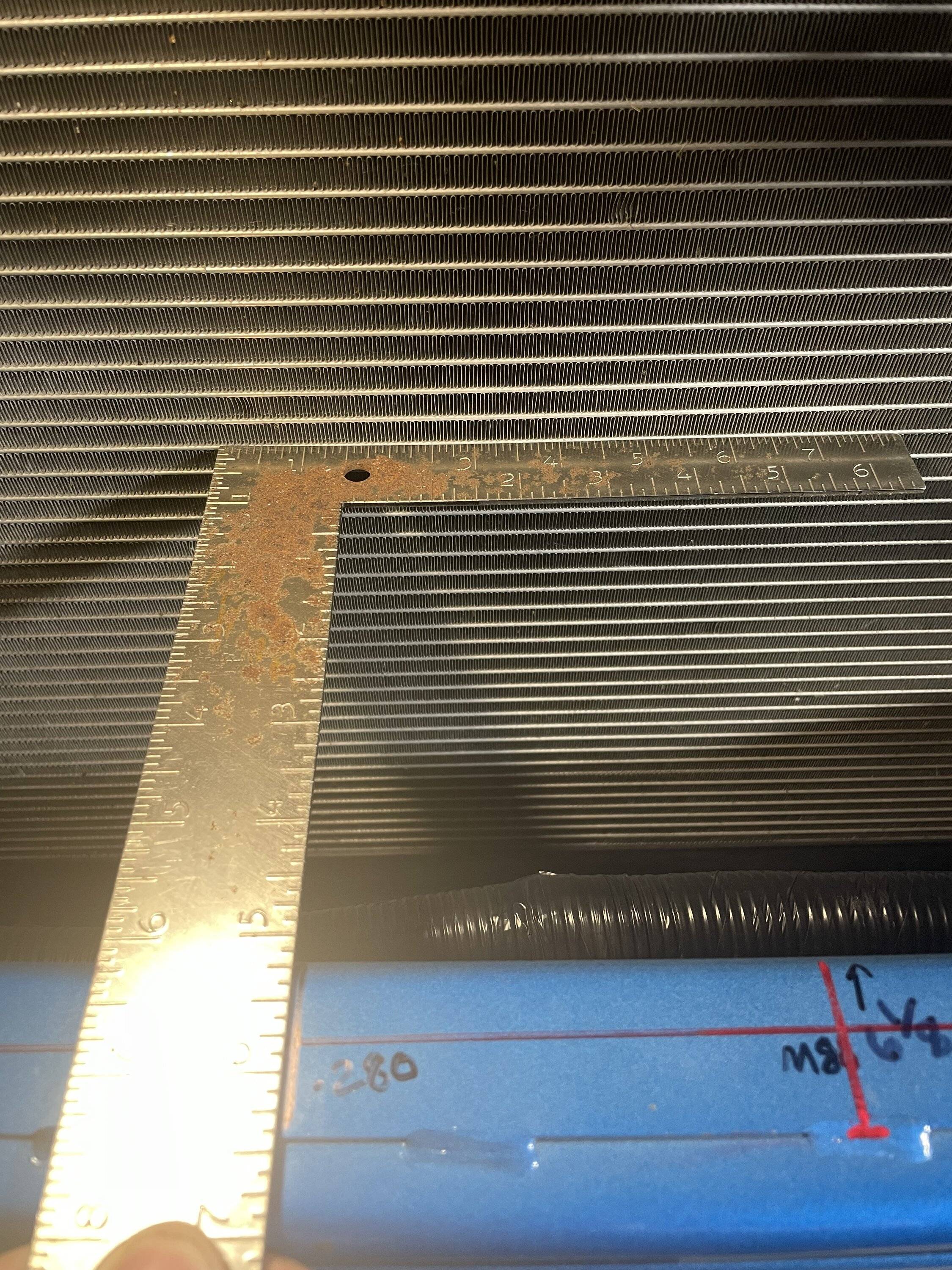

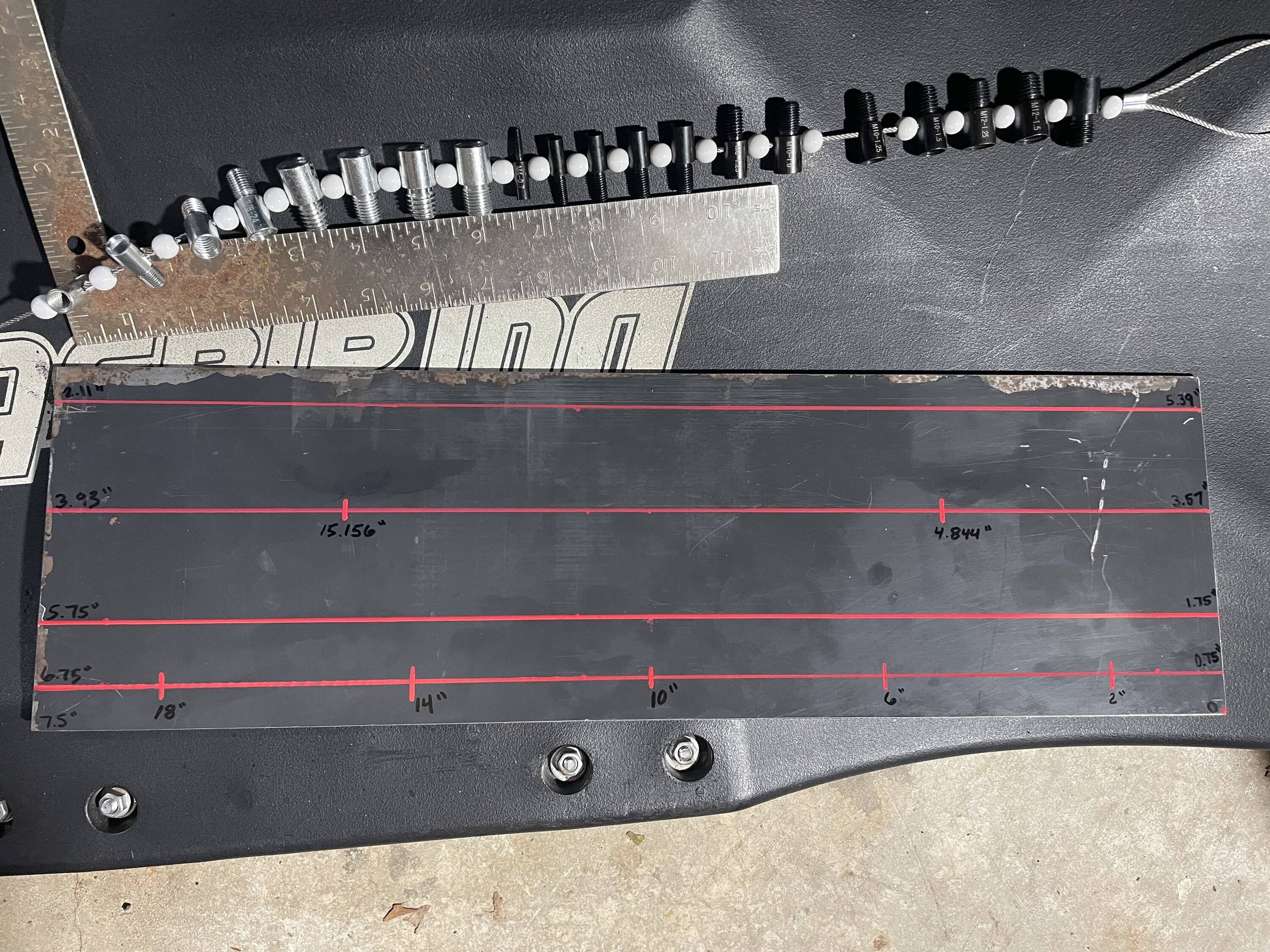

Started with a 6" x 20" steel plate 0.130" thick. All measurements are based on square to the condenser face. I plan to use M8 hardware.

I'll post more details once I confirm the mounting plate works.

Sponsored



[SH!FT]

Quick update.

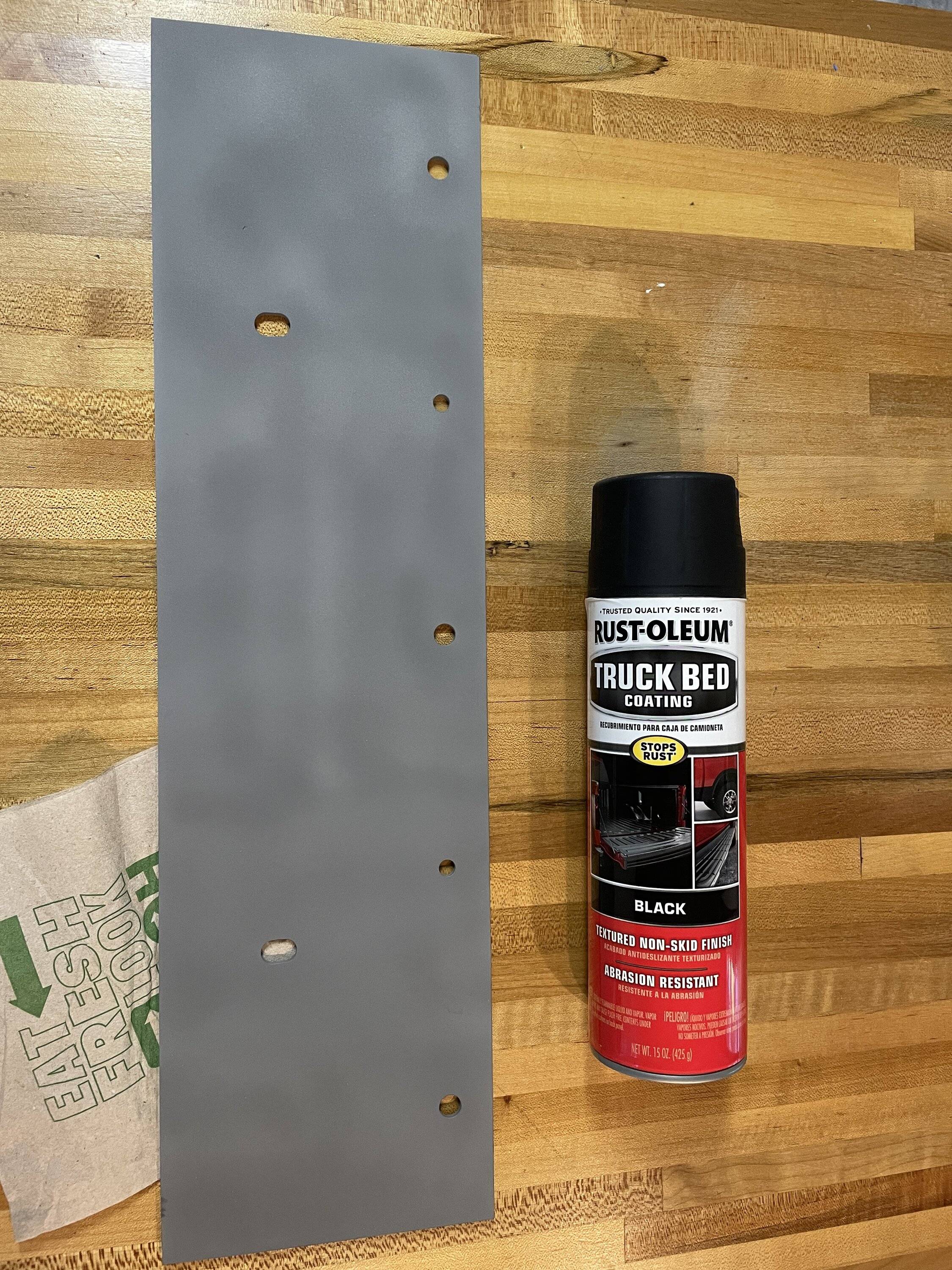

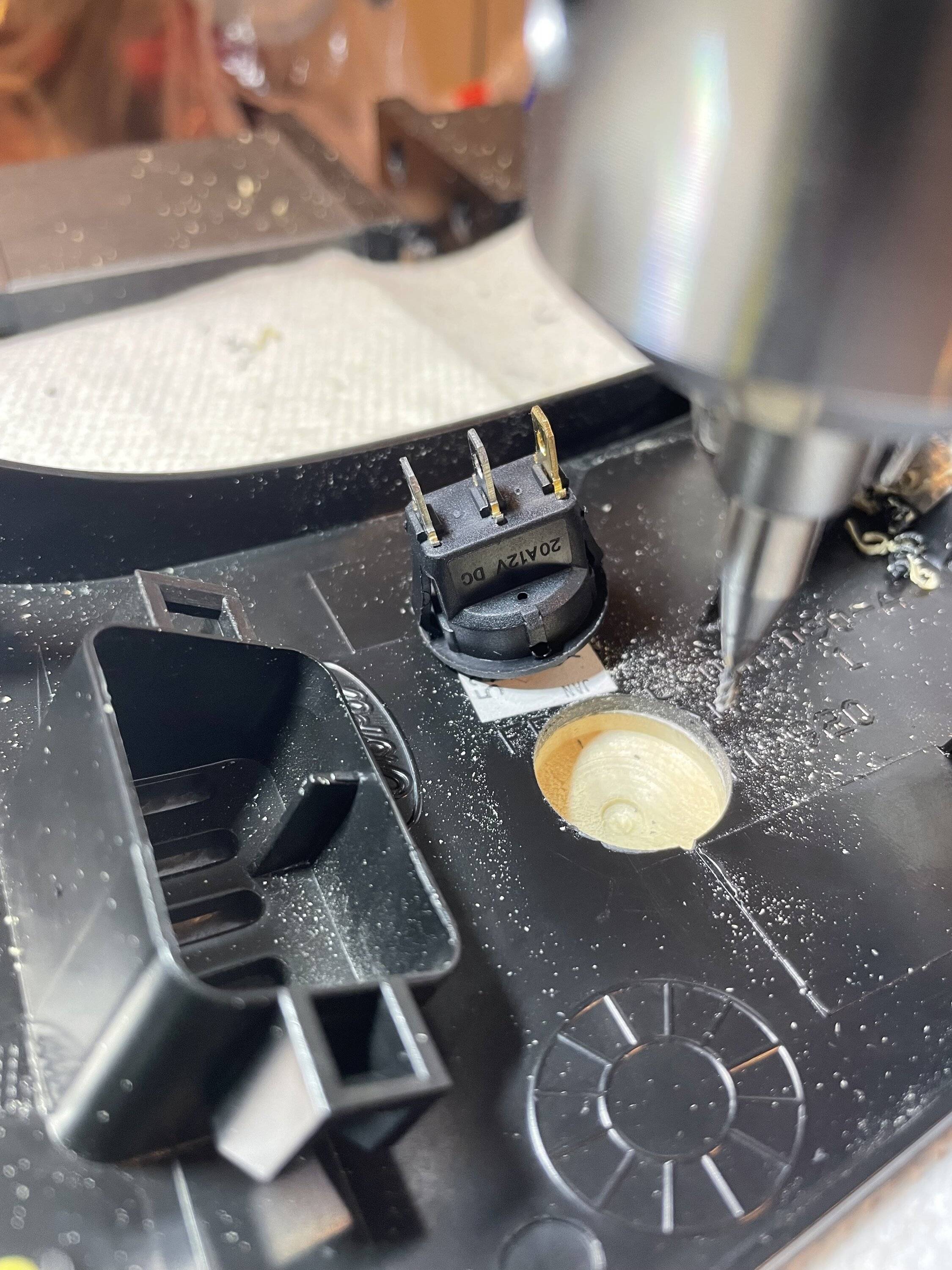

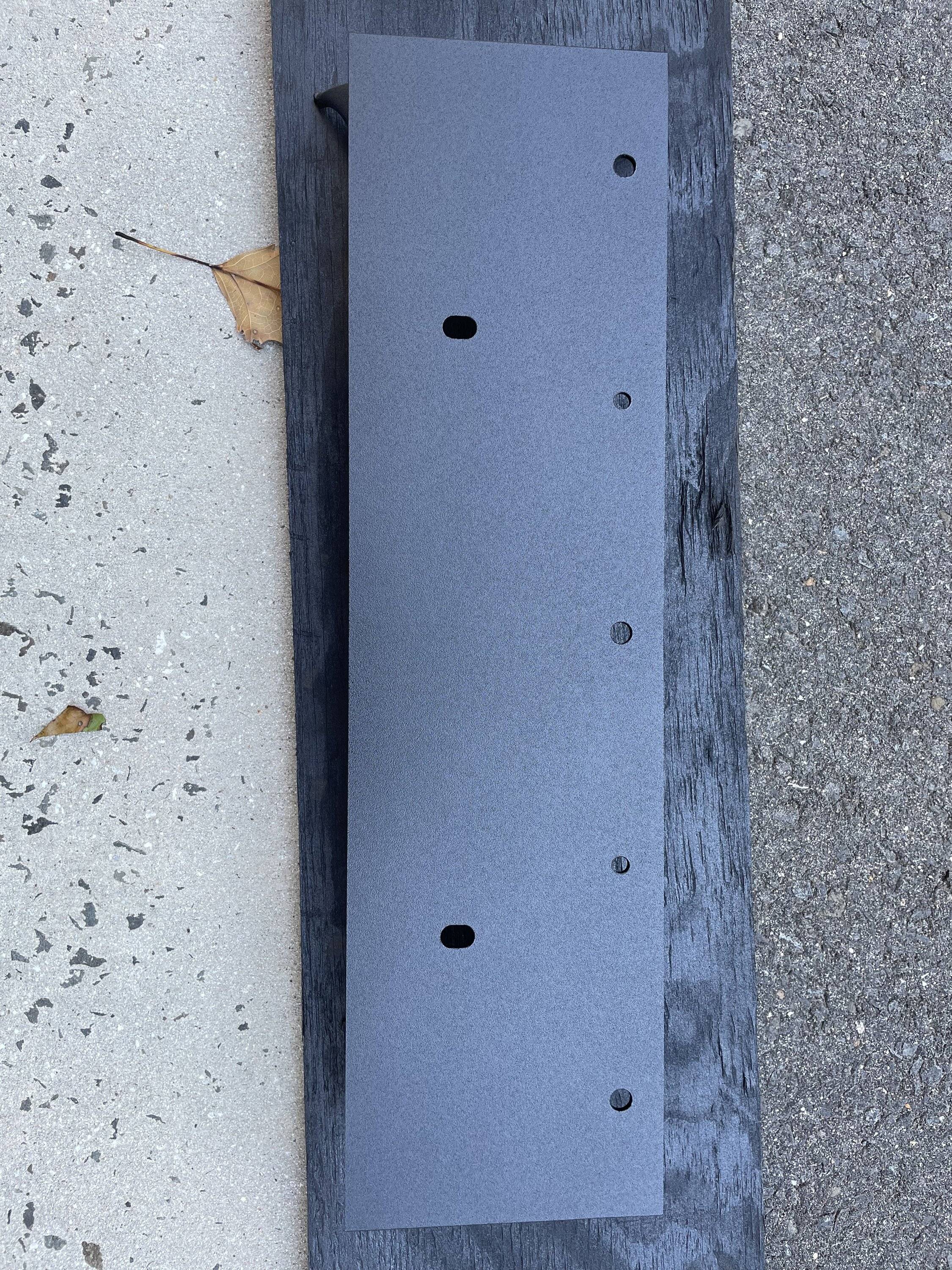

The chiller mounting plate is drilled, sandblasted, and painted. I should be test fitting it on Friday.

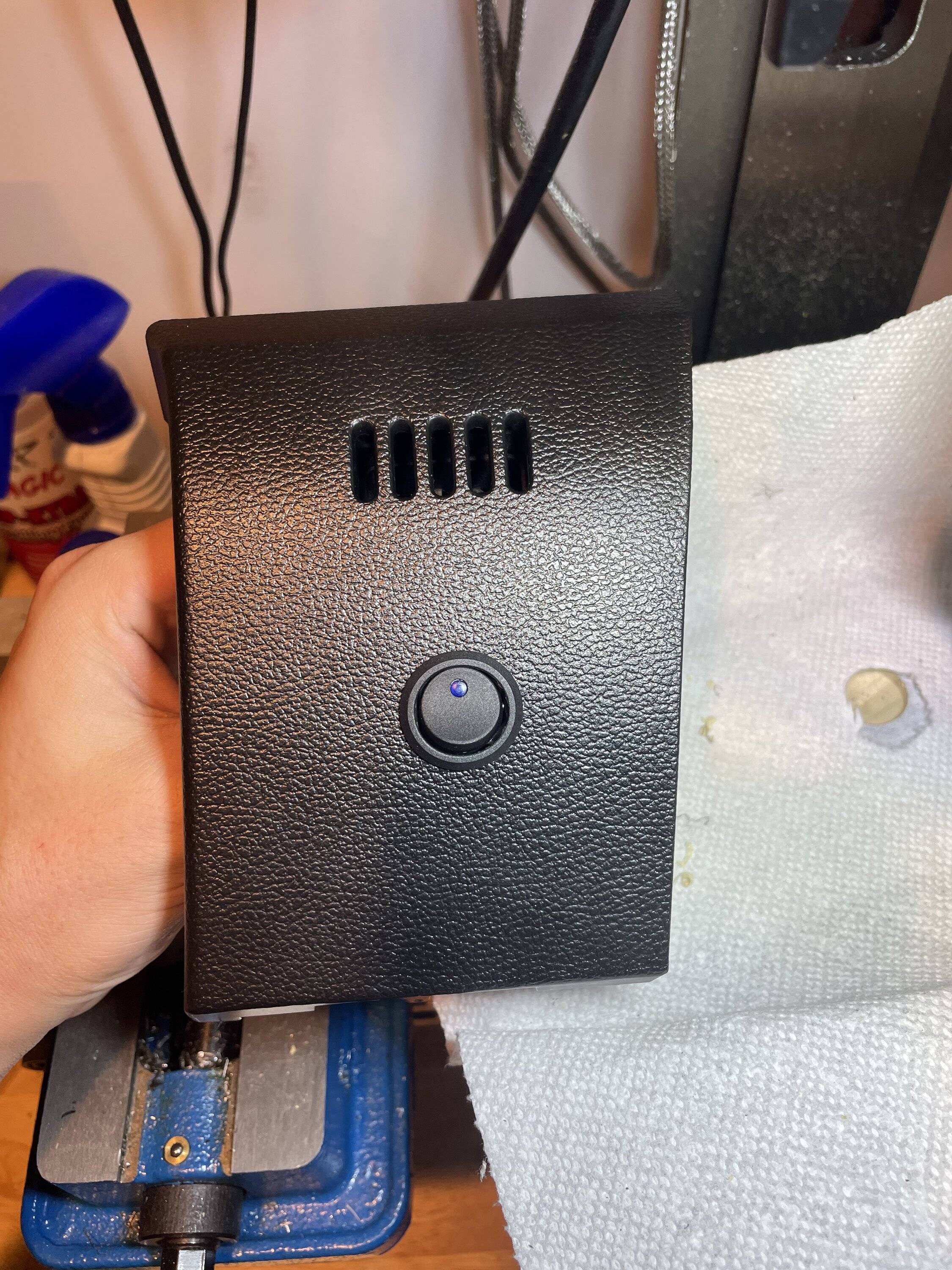

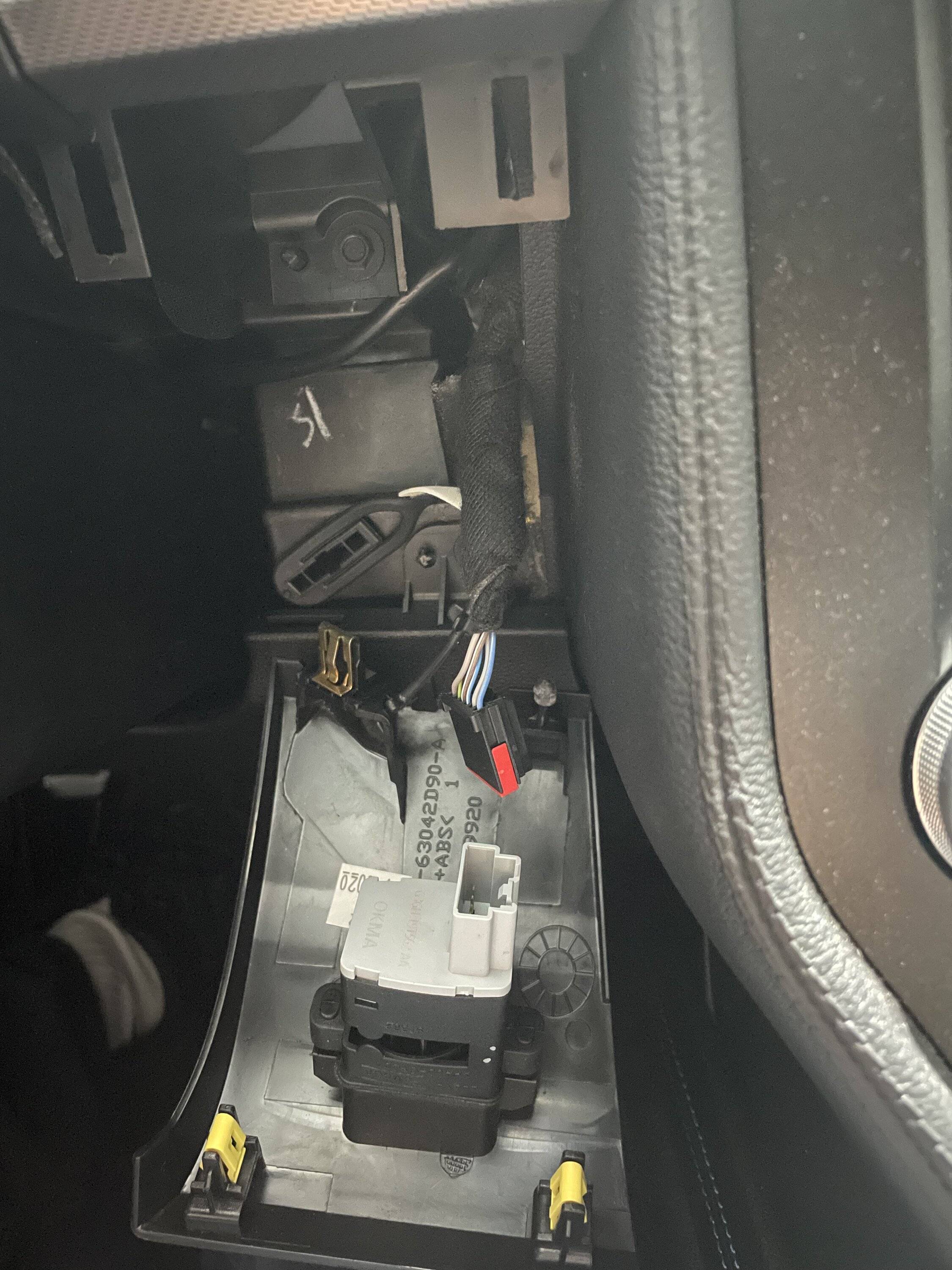

Mounted the drag valve switch below the HVAC cabin sensor.

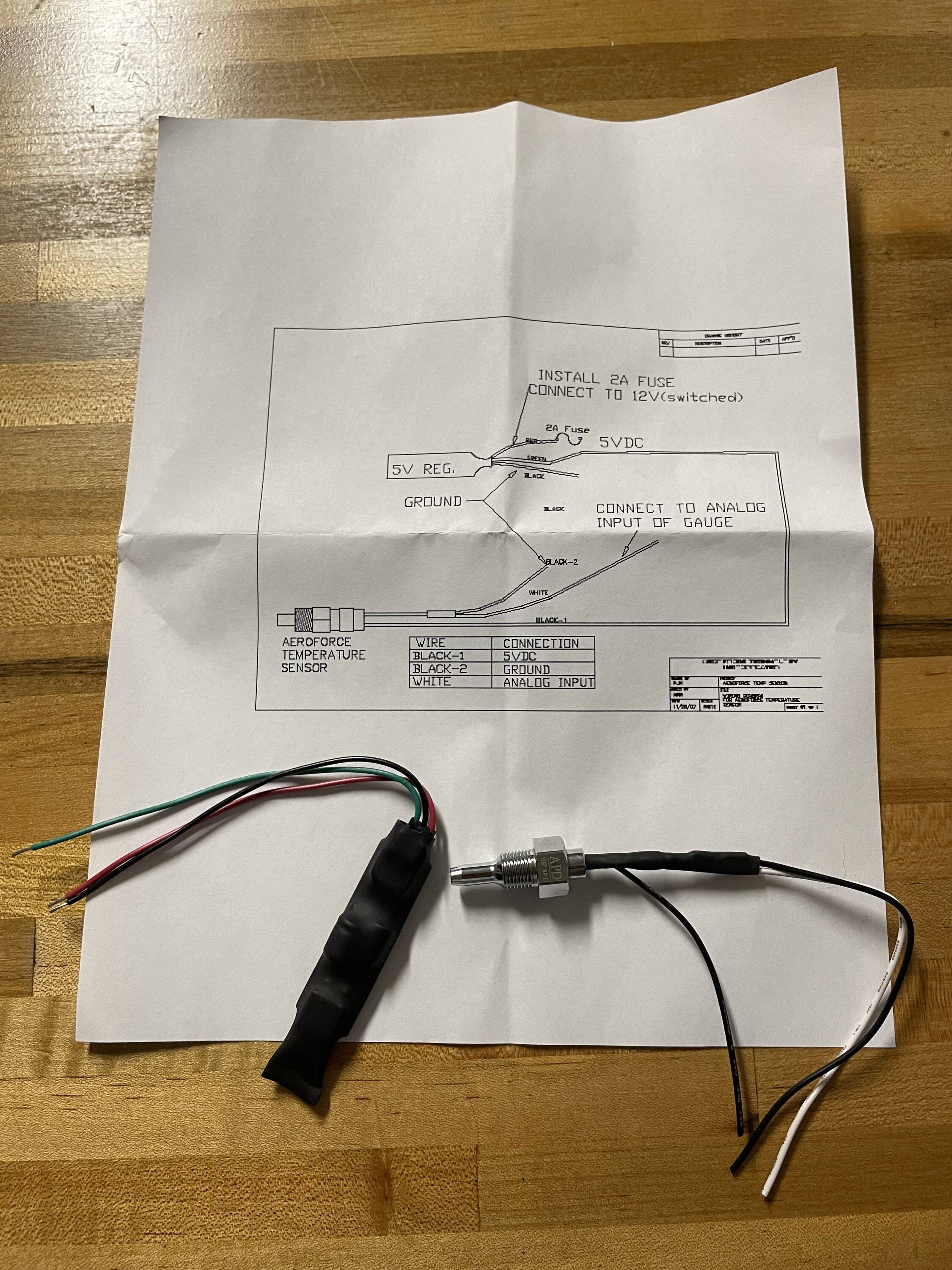

The AeroForce water temp. sensor arrived today.



[smokescreens]

Looking glod so far. Looks like you have or know someone with a small mill?



[SH!FT]

Looking glod so far. Looks like you have or know someone with a small mill?

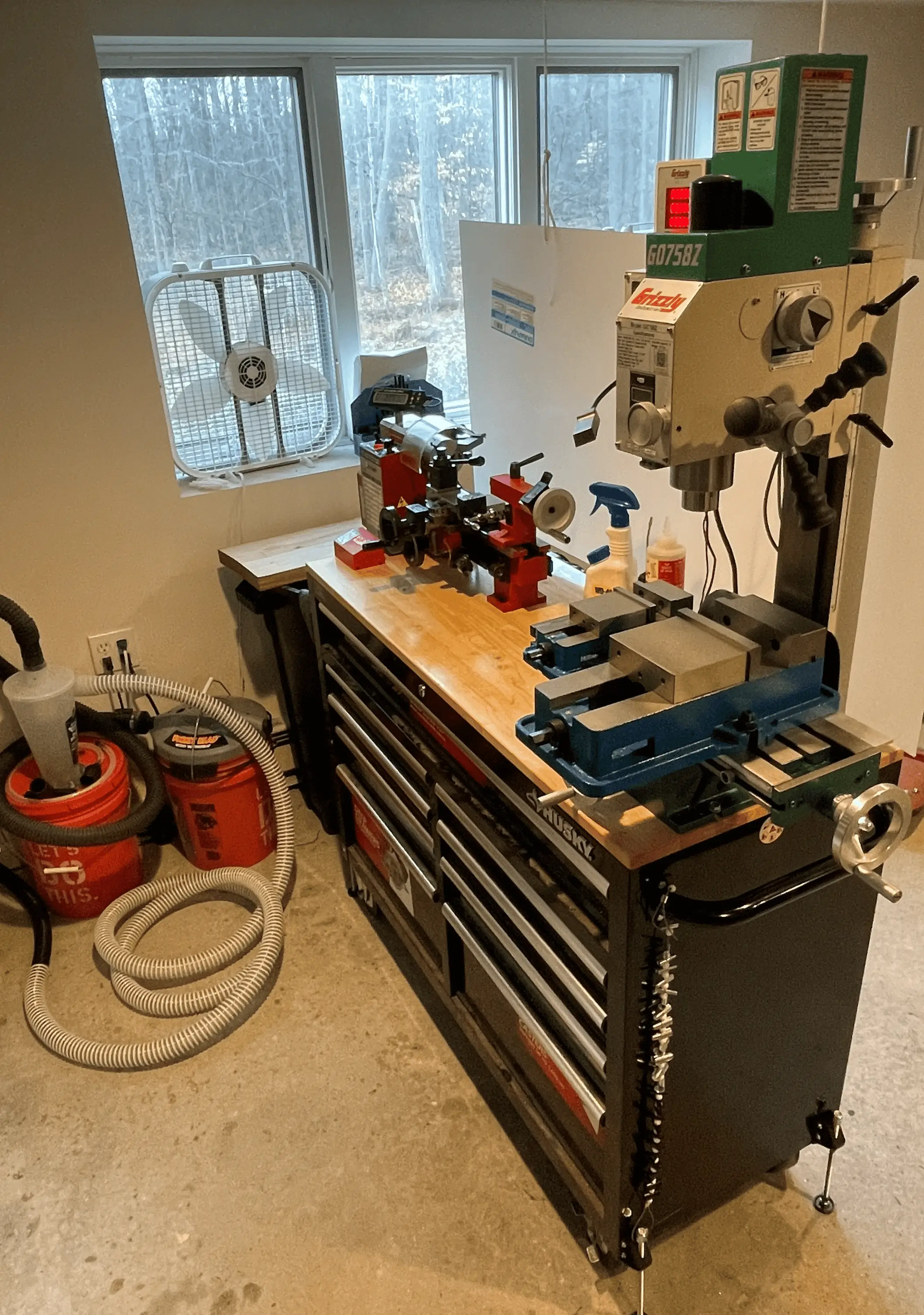

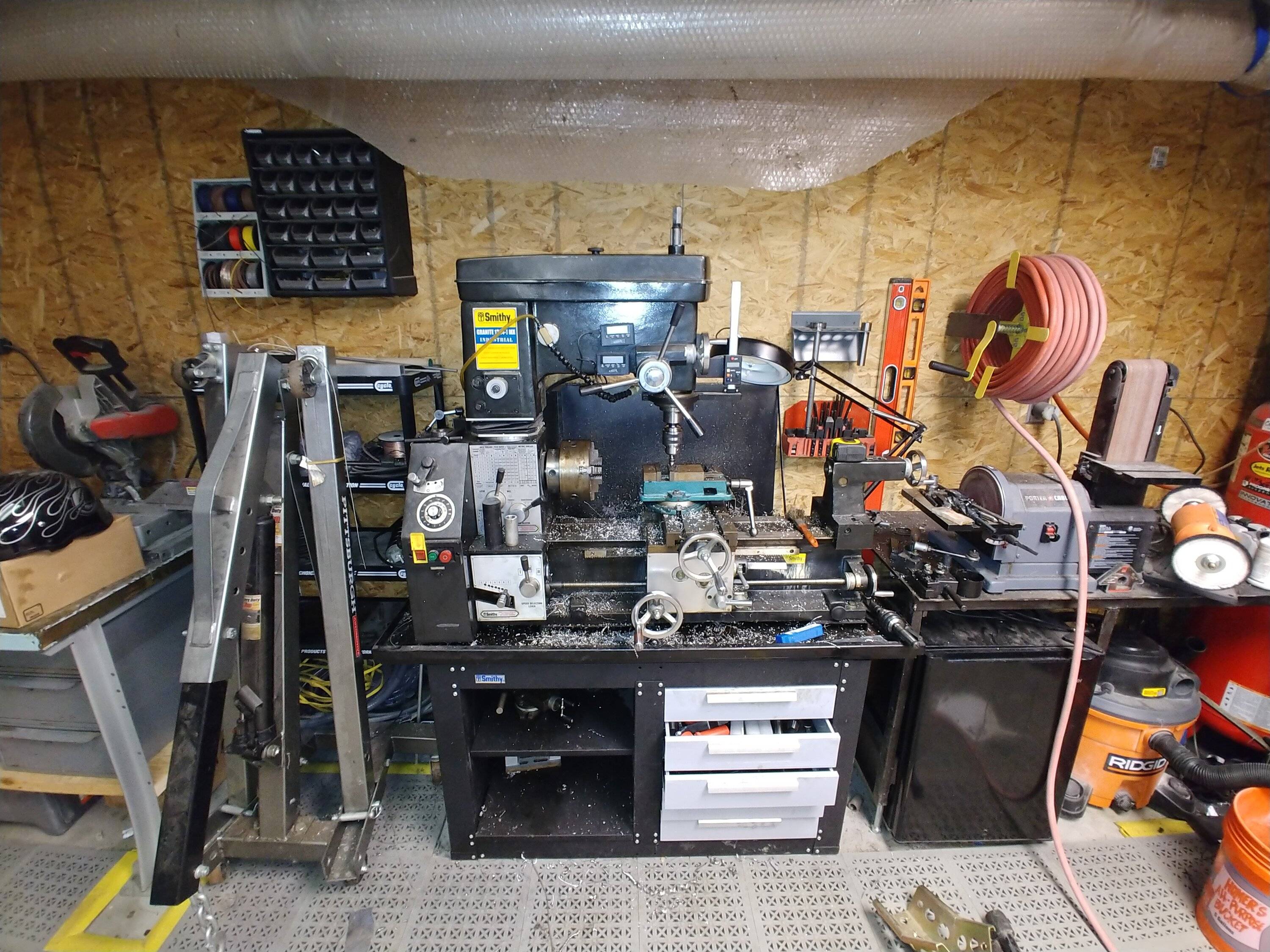

Luckily yes. Here's my benchtop setup at home.
I also have off shift access to the machine shop at work.

I will post prints and dimensions that are hand tool friendly.



[smokescreens]

Luckily yes. Here's my benchtop setup at home.
I also have off shift access to the machine shop at work.

I will post prints and dimensions that are hand tool friendly.

No machinist by trade but i like to play around a bit.



[SH!FT]

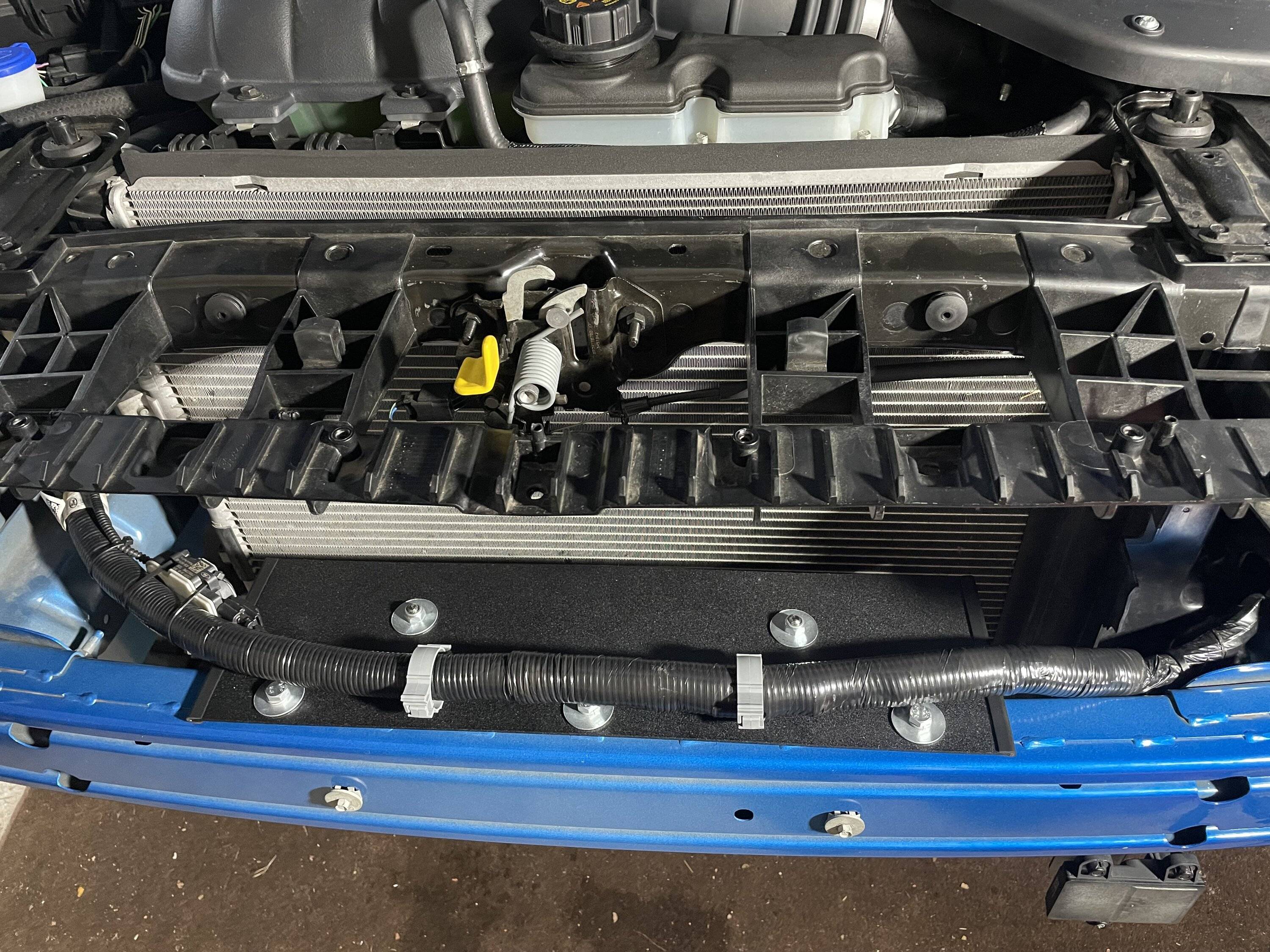

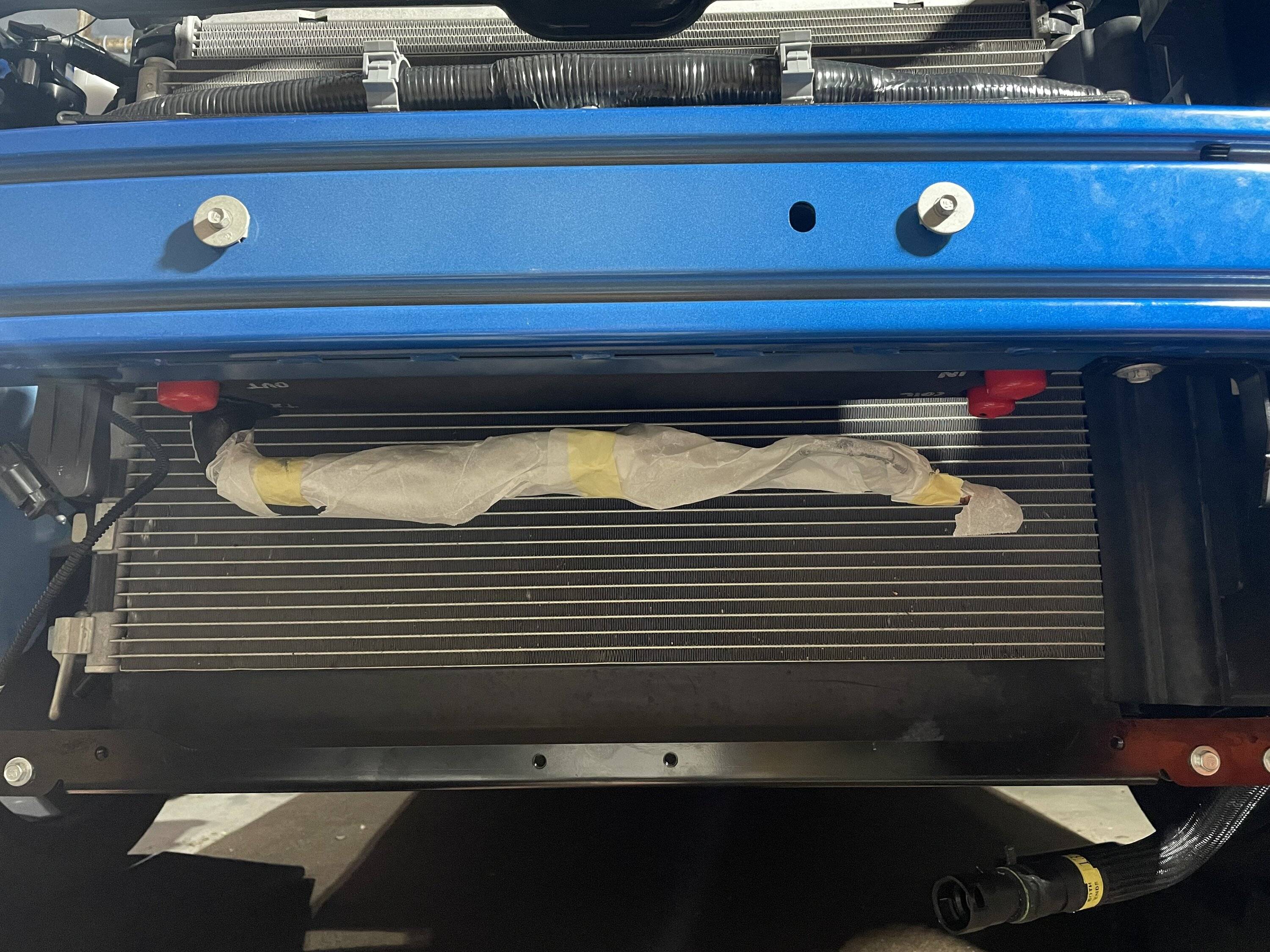

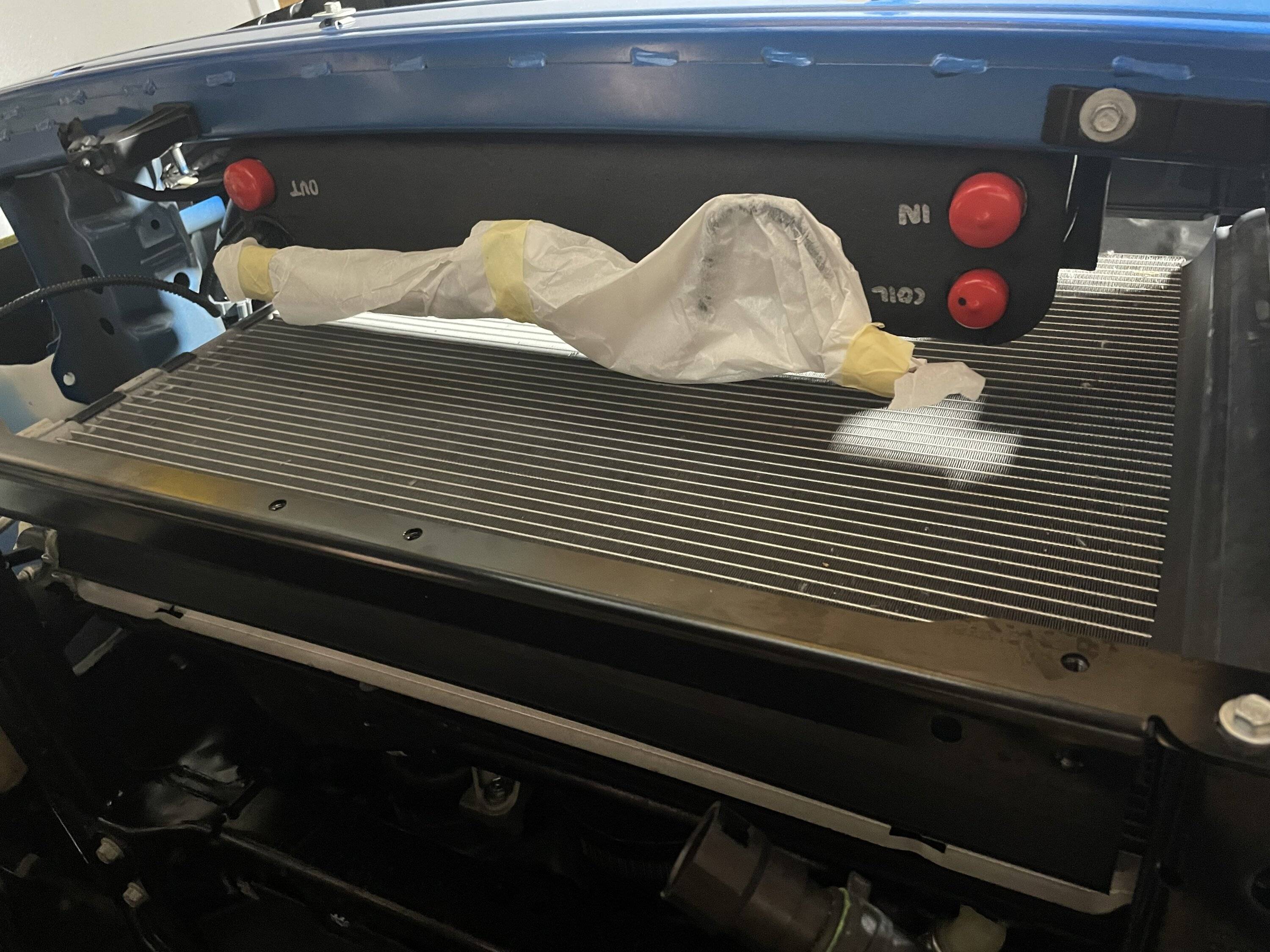

Chiller is mounted!!



[smokescreens]

That looks like its right at home.



[SH!FT]

A little too at home..
Needed to rotate the chiller 180 degrees, but it didn't want to unmount.

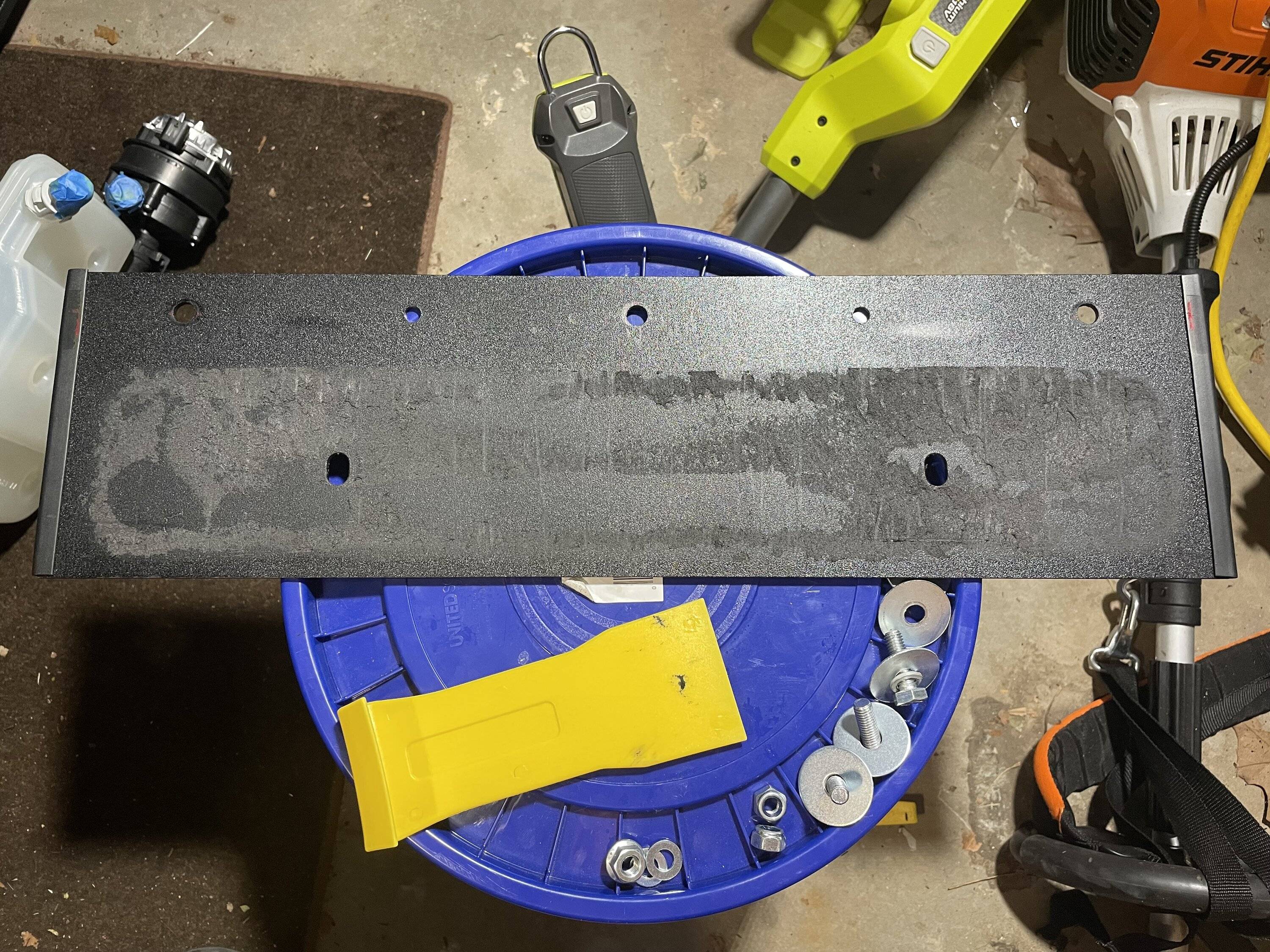

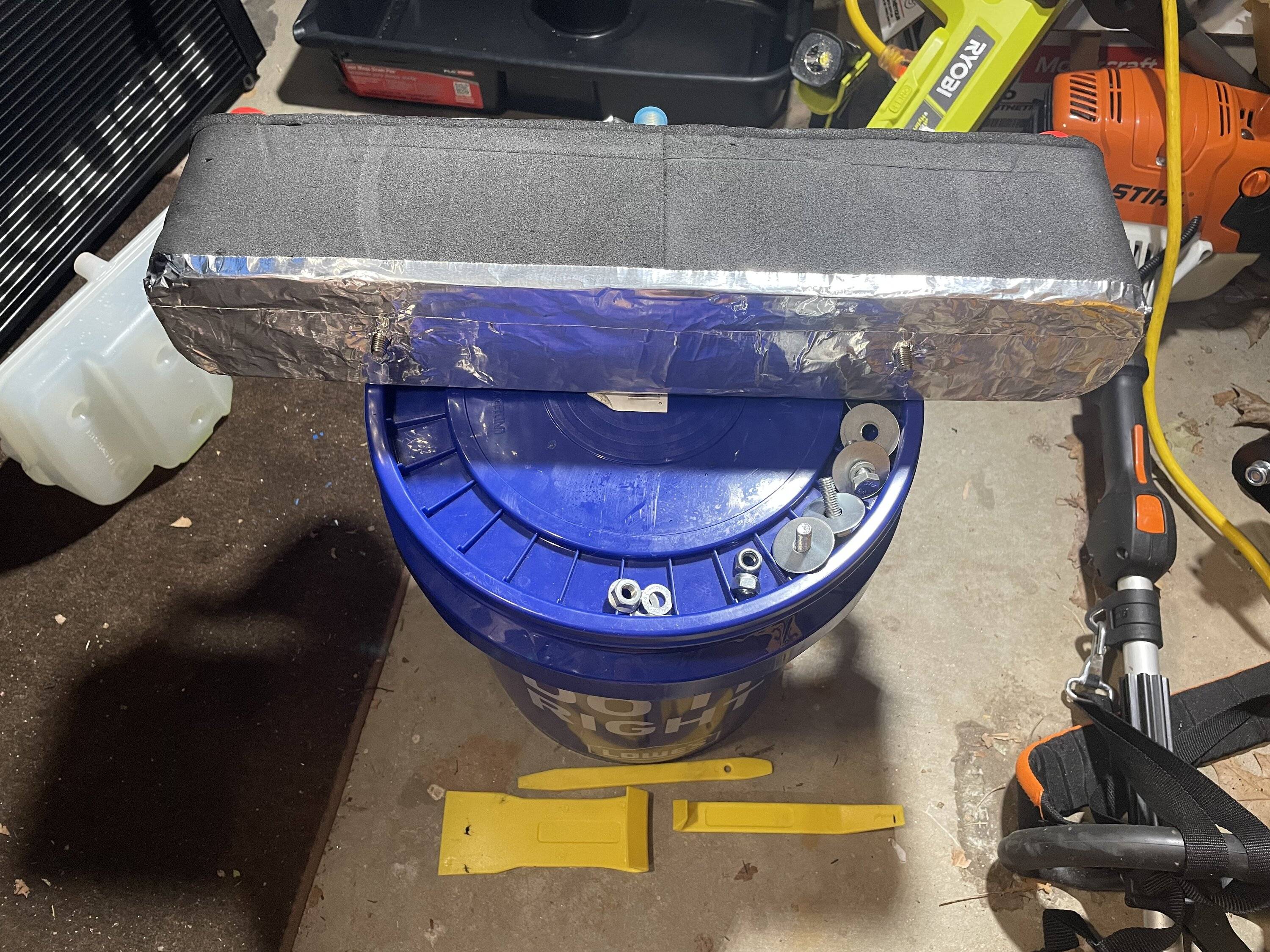

The insulation adhered to the bracket. Took 30 minutes to carefully scrape it off. I wrapped it the chiller bottom in foil tape and waxed the bracket surface so it doesn't happen again.
