In preparation for FI - while doing OPGS and Timing gear

Phils15GT

Well-Known Member
Joined
May 13, 2015
Threads
37
Messages
713
Reaction score
156
Location
Albany, NY
Vehicle(s)
2018 Mustang GT
BTW, forum sponsor Benny at LevittownFordSuperCenter has a "Complete Gasket Kit" that includes the above for less than the individual gaskets. Just ordered based on this thread.


Package deal? Will have to look him up.
Sponsored



BDMACH1

Well-Known Member
Joined
Oct 16, 2015
Threads
16
Messages
880
Reaction score
347
Location
Ravenna, Ohio
First Name
Bob
Vehicle(s)
2016 Mustang GT/CS
BTW, forum sponsor Benny at LevittownFordSuperCenter has a "Complete Gasket Kit" that includes the above for less than the individual gaskets. Just ordered based on this thread.

Just shot Benny a PM.

Thanks man!


Rintegration

Well-Known Member
Joined
Nov 25, 2015
Threads
12
Messages
57
Reaction score
31
Location
Tampa
Vehicle(s)
16 Mustang GT
So from what I've read there are 2 harmonic balancers I can go with, the ATI or MMR. The MMR is apparently lighter and also 100 dollars less. Does anyone know of someone coming across issues with the MMR Balancer? Do I need a specific harmonic balancer with a whipple setup?
ATI and don't look back


jchristena

Well-Known Member
Joined
Nov 18, 2015
Threads
17
Messages
113
Reaction score
50
Location
Austin, TX
Vehicle(s)
2015 GT

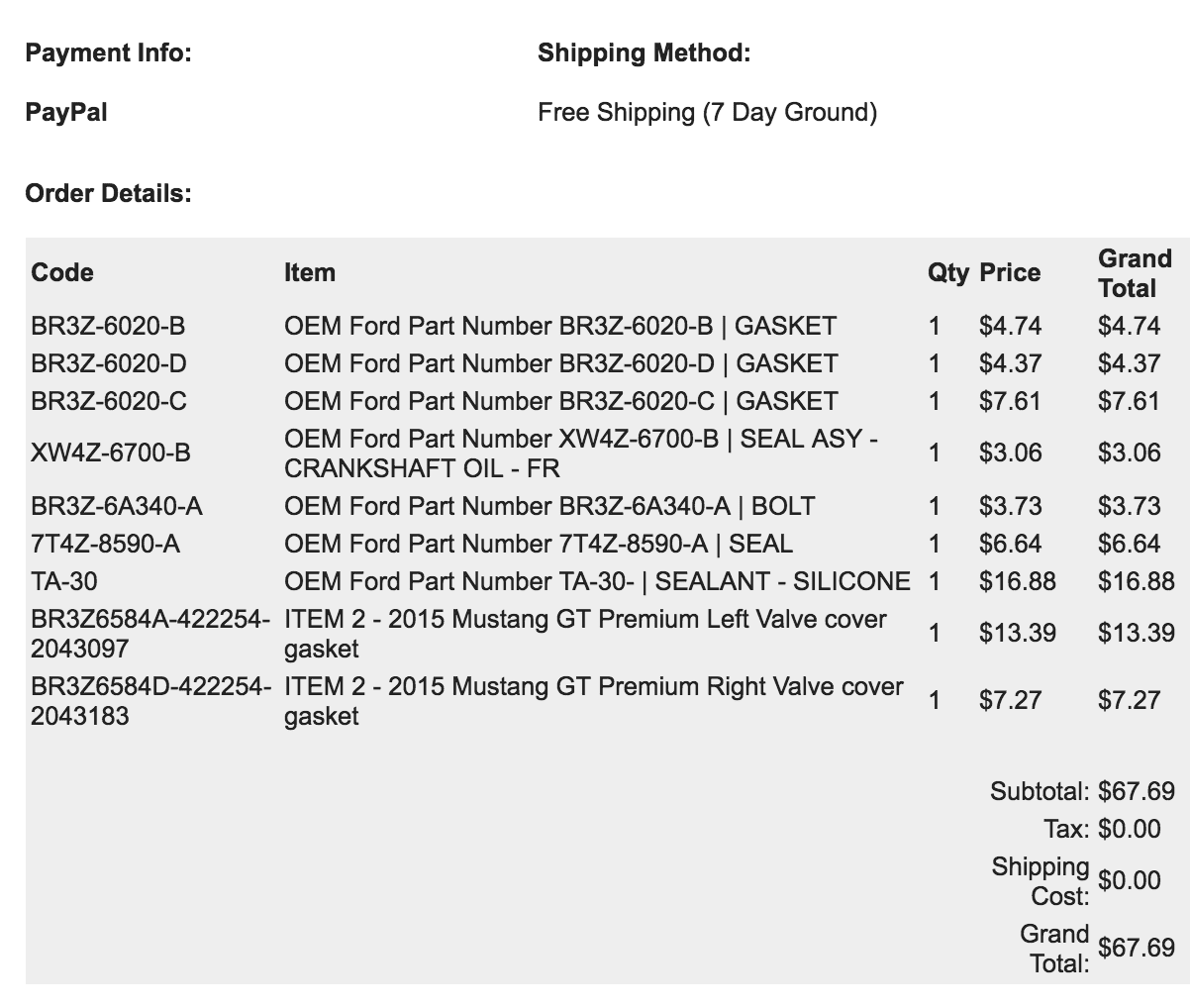

FYI...I just picked up that complete list of gaskets individually at sunriseford.com for 67 bucks shipped. That includes the silicon. Am I missing something?
Screen Shot 2016-05-03 at 9.37.37 AM.png


Sponsored

OP
OP
alrodri8

alrodri8

Well-Known Member
Joined
Feb 13, 2016
Threads
30
Messages
212
Reaction score
22
Location
Tampa, FL
First Name
Anthony
Vehicle(s)
2015 Mustang GT
ATI and don't look back
Wish I wouldve seen this sooner. If there a particular reason ATI is better, reason I ask because the MMR one is already on the way. I believe the MMR one is made by Romac. Anyone have problems with Romac Balancers?


Roh92cp

Well-Known Member
Joined
Jun 27, 2015
Threads
79
Messages
2,895
Reaction score
1,169
Location
Fort Kent Maine
First Name
Shawn
Vehicle(s)
OW GTPP Whipple
Wish I wouldve seen this sooner. If there a particular reason ATI is better, reason I ask because the MMR one is already on the way. I believe the MMR one is made by Romac. Anyone have problems with Romac Balancers?
I just did the MMR/Romac balancer last week, MMR and of course Romac are quality built products and Romac has been making race dampers for a long time. ATI is the go to here is the US and is of course quality and has the #1 name recognition.


BDMACH1

Well-Known Member
Joined
Oct 16, 2015
Threads
16
Messages
880
Reaction score
347
Location
Ravenna, Ohio
First Name
Bob
Vehicle(s)
2016 Mustang GT/CS
FYI...I just picked up that complete list of gaskets individually at sunriseford.com for 67 bucks shipped. That includes the silicon. Am I missing something?
Thanks for the list!:thumbsup: Just ordered everything minus the crank bolt. Have a new crank bolt that came with my Whipple 10 rib kit

Also added the BOSS Timing Chain Tensioners.
http://www.levittownfordsupercenter.com/ford-racing-boss-timing-chain-tensioners-p-2380.html

Also considering putting this in to fix the secondary tensioner, I did a mod similar to this in my 4.6 back in the day and made a huge difference in cam timing.
http://www.modularmotorsportsracing...ge=product_info&cPath=4_30_57&products_id=864

Can't believe Ford still mounts the tensioner upside down!:doh:


Gibbo205

Well-Known Member
Joined
Jan 23, 2015
Threads
156
Messages
6,673
Reaction score
2,207
Location
UK
Vehicle(s)
UK 2015 Mustang & BMW E46 M3
IS the stock crank pulley balanced at factory to the engine does anyone know?


beefcake

Well-Known Member
Diamond Sponsor
Joined
Oct 18, 2014
Threads
1,416
Messages
12,181
Reaction score
4,661
Location
Bethel
Vehicle(s)
2018 Ford Mustang
the ati or the mmr is fine,

romac makes mmrs and their are a great company.

we can get either for you.

it all depends on the power level your going to.

the tensioners isn't something we normally replace, but on all our high hp stuff we do the mmr tensioner bracket for the drivers side, the secondary chains and the chain guides


Sponsored

Bartly

Well-Known Member
Joined
Oct 25, 2015
Threads
94
Messages
1,528
Reaction score
220
Location
Out West
Vehicle(s)
2016 Mustang GT
....the tensioners isn't something we normally replace, but on all our high hp stuff we do the mmr tensioner bracket for the drivers side, the secondary chains and the chain guides
Can you give a threshold for high HP? Where does say one of your Paxton kits fall for a non track guy, say 650ish WHP?


Ingot2015

Well-Known Member
Joined
Nov 28, 2014
Threads
40
Messages
303
Reaction score
47
Location
CT
First Name
Ron
Vehicle(s)
2015 gt
I ordered my Whipple when the Black Friday Sale was going on. Since the deal was so goo, I went ahead and got the 10 rib system with the ATI 20% overdrive damper. Getting ready to start my OPG's and crank sprocket. Does anybody have part number for all gaskets needed???

Bob
You wont need any gaskets. Everything is rubber o-ring type. Just need a few dabs of rtv here and there...


beefcake

Well-Known Member
Diamond Sponsor
Joined
Oct 18, 2014
Threads
1,416
Messages
12,181
Reaction score
4,661
Location
Bethel
Vehicle(s)
2018 Ford Mustang

samcrac

Well-Known Member
Joined
Mar 14, 2016
Threads
26
Messages
124
Reaction score
20
Location
Central FL
Vehicle(s)
2015 GT
These threads are all so mind numbing. The OPG sounds like it really needs to be replaced, but that turns into; while your add it, add a crank sprocket. Now its also a crankshaft damper.

In the theory posted (and the one I'm trying to understand), the crankshaft damper should negate the issues of the other 2. But everyone uses it as "in addition to."

So $300 turns into $600 which turns into $1100 + labor costs. Sure cheap insurance, but like warranties are always argued doesn't it really matter each individual application?

I have seen a BUNCH of threads posted since the coyote came out with the OPG breaking on FI cars. There is a recent video of a Twin Turbo car on Youtube that broke his on a dyno and has to do a motor rebuild. Travis at Boostworks also said this on his Twin car, and also another guy on SVTp forums with twins also broke his all within the last month or so.

I haven't even heard of a "real case" breaking the crank sproket, just vendors saying "we've seen quite a few."

I'm not harping on the vendors, or people on the thread, I'd just like to find a happy medium here. OPGs sound like the main issue here. What is the point of the rest on a street driven blower car running a mild boost number.

Obviously if you are building a Cobra Jet replica, these 3 parts are just the tip of the iceberg.

Last edited:

zaquhree

Well-Known Member
Joined
Aug 20, 2015
Threads
42
Messages
1,238
Reaction score
349
Location
Orlando
Vehicle(s)
2015 S550 GT
OPG is a given

The Crank Gear is thinner on this model

Do OPG and Crank Gear if you want to be safest and have peace of mind

Do dampener if you don't want to do OPG/CG and pray they don't break
