HP front splitter height / clearance angle

Jimmy Dean

Well-Known Member
Joined
Jul 26, 2019
Threads
17
Messages
1,798
Reaction score
1,817
Location
Baton Rouge
First Name
Al
Vehicle(s)
71 mach 1, 82 Bronco, 86 Bronco (dd),
what is the clearance angle or the height of splitter and protrusion of it from front wheels?

Considering a building, and need to check the approach angles to get the car in / out. Also have to do some work this winter to prep driveways and such for it.

Thanks,


OP
OP

Jimmy Dean

Well-Known Member
Joined
Jul 26, 2019
Threads
17
Messages
1,798
Reaction score
1,817
Location
Baton Rouge
First Name
Al
Vehicle(s)
71 mach 1, 82 Bronco, 86 Bronco (dd),
ok, someone with an HP stop enjoying the car for 5 minutes, measure the height of the bottom of the front splitter, and the distance from front of splitter to the front 'axle'


Atlas1

Well-Known Member
Joined
Aug 11, 2018
Threads
20
Messages
2,875
Reaction score
4,713
Location
Everett, WA
Vehicle(s)
2017 Audi S6, 2021 Mach 1 'M1985'
I would but the mover dropped everything off yesterday at our new house. To say my garage is full would be an understatement lol. The Mach 1 is hidden behind a wall of boxes. I should be able to get to it tonight and get measurements


Zelek

Well-Known Member
Joined
Feb 11, 2016
Threads
90
Messages
4,187
Reaction score
3,418
Location
Round Rock / Hutto, TX
First Name
Matt
Vehicle(s)
2021 Mustang Mach 1
Hold on... I got you.


Zelek

Well-Known Member
Joined
Feb 11, 2016
Threads
90
Messages
4,187
Reaction score
3,418
Location
Round Rock / Hutto, TX
First Name
Matt
Vehicle(s)
2021 Mustang Mach 1
I measured 38 inches from the center wheel cap to the front splitter.

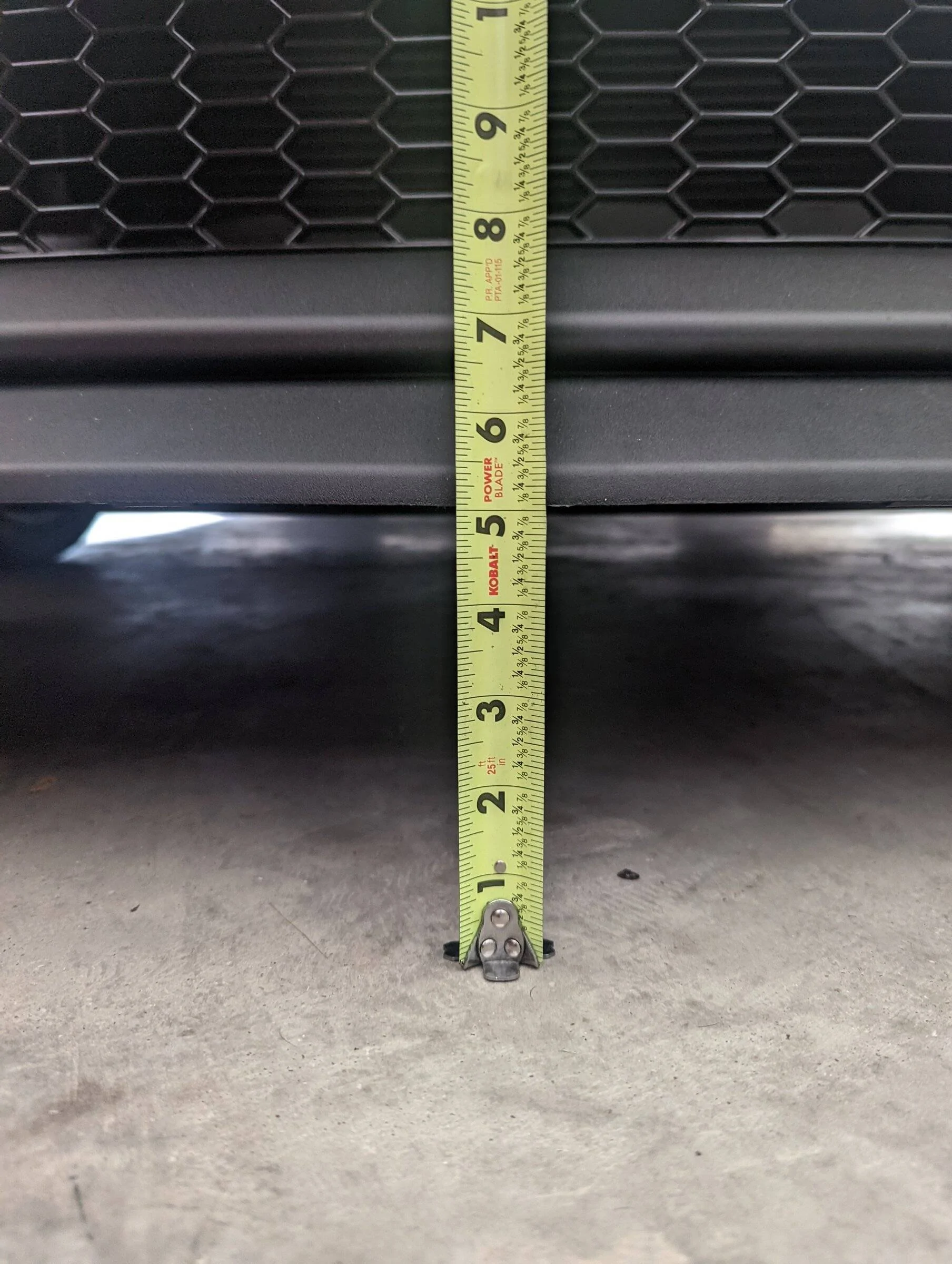

Here is the height:



Techapma

Active Member
Joined
Feb 9, 2021
Threads
4
Messages
38
Reaction score
56
Location
Texas
First Name
Todd
Vehicle(s)
2021 Mach1, HP, FJG, M6
Mine measures~ 5.12” from the bottom of the forward most point of the splitter to the floor, and ~34.50” from the forward most point of the splitter to where the tire contacts the road. The approach angle calculates to approximately 8.4 degrees.

The car has ~ 3/4 tank fuel and has been sitting in the garage for over a week, so I assume its at normal ride height.

OP
OP

Jimmy Dean

Well-Known Member
Joined
Jul 26, 2019
Threads
17
Messages
1,798
Reaction score
1,817
Location
Baton Rouge
First Name
Al
Vehicle(s)
71 mach 1, 82 Bronco, 86 Bronco (dd),
ok, so a 5° ramp would work, or to be very safe, an 18' long ramp for the 1.5' I need to go up for the shop I am considering. which should not be a major issue where it would have to go.


Zelek

Well-Known Member
Joined
Feb 11, 2016
Threads
90
Messages
4,187
Reaction score
3,418
Location
Round Rock / Hutto, TX
First Name
Matt
Vehicle(s)
2021 Mustang Mach 1
Mine measures~ 5.12” from the bottom of the forward most point of the splitter to the floor, and ~34.50” from the forward most point of the splitter to where the tire contacts the road. The approach angle calculates to approximately 8.4 degrees.

The car has ~ 3/4 tank fuel and has been sitting in the garage for over a week, so I assume its at normal ride height.
Yeah, full tank of gas here but on Pilot Sport 4S tires. I don't think the ride height should change from just that tire swap. Safe to say call it 5 inches. (Not what he said or she said)


Atlas1

Well-Known Member
Joined
Aug 11, 2018
Threads
20
Messages
2,875
Reaction score
4,713
Location
Everett, WA
Vehicle(s)
2017 Audi S6, 2021 Mach 1 'M1985'
Found an old post I made where I measured 4.875 ground to splitter


Zelek

Well-Known Member
Joined
Feb 11, 2016
Threads
90
Messages
4,187
Reaction score
3,418
Location
Round Rock / Hutto, TX
First Name
Matt
Vehicle(s)
2021 Mustang Mach 1
I don't know how big the average speed bump is but I've been afraid to go over any so far. 5 inches "should" clear most regular ones that aren't those 3 foot wide ridiculous ones.


Techapma

Active Member
Joined
Feb 9, 2021
Threads
4
Messages
38
Reaction score
56
Location
Texas
First Name
Todd
Vehicle(s)
2021 Mach1, HP, FJG, M6
Caution!!!

my measurements are with 275/35 tires in front and 325/30 in the rear.

my tires are bigger than stock diameter by .30” front and .20” rear.

Adjusting for the smaller stock tires, the approach angle would be roughly 8.25 degrees.

sorry about that oversight.
