HELP Vacuum Line Identification

GTBOB

GTBOB

Well-Known Member
Joined
May 27, 2015
Threads
37
Messages
1,304
Reaction score
619
Location
Fairfield Township, OHIO
First Name
Bob
Vehicle(s)
'18 GT, Royal Crimson, 10 speed, Active Exhaust
Vehicle Showcase
1

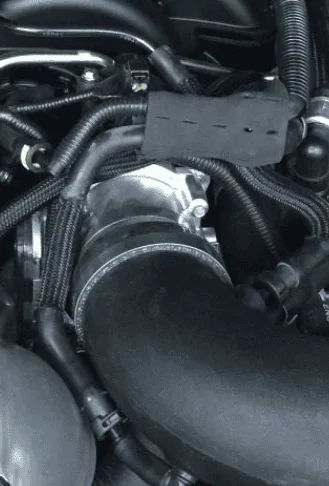

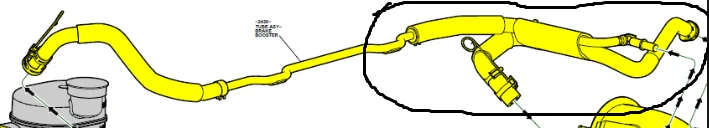

I need some help finding a part number for this vacuum line assembly off of a stock intake manifold. It runs from the brake booster to the front of the manifold. Anybody know? Better yet, if you have one I will buy it from you!!! Paypal ready!!!!
Sponsored



Repo58

Active Member
Joined
Aug 4, 2017
Threads
6
Messages
26
Reaction score
1
Location
South Carolina
First Name
Frank
Vehicle(s)
2016 Mustang GT Base PP NOVI 2200
The part# for a 15-17GT is FR3Z-2420-J. Its a dual check valve but is more commonly referred to as a brake vacuum aspirator. Pretty sure its the same part# for the '18. No one that I spoke to had one in stock and they range from $70-$130.


Repo58

Active Member
Joined
Aug 4, 2017
Threads
6
Messages
26
Reaction score
1
Location
South Carolina
First Name
Frank
Vehicle(s)
2016 Mustang GT Base PP NOVI 2200
Just type that part# in google and select shopping.
